USER MANUAL LEDCON-02 JBSYSTEMS LIGHT

EN - DISPOSAL OF THE DEVICE

Dispose of the unit and used batteries in an environment friendly manner according to your country regulations. SAFETY INSTRUCTIONS: CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only. The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance. CAUTION

Thank you for buying this JB Systems product. To take full advantage of all possibilities, please read these operating instructions very carefully. FEATURES This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer. LEDCON-02 is an all round LED remote controller with extreme flexibility. LEDCON-02 has an integrated LED light modulator (switchable: 4 or 8 channels) for LED PAR56 and LED PAR64 projectors: you can control your LED PAR-projectors exactly the same way you did with your old halogen PAR-lamps when used with a traditional light modulator! But you can also do a lot more... Remote controller for: LED MANAGER

LED SPOT & LED WASH

LED PAR56 / PAR64

Different working modes: 4 or 8 channel LED light modulator with integrated, music controlled, chases. Fixed color mode: Instant access to 9 pre-programmed colors Static chase mode: 12 different color chases with manual speed control Sound chase mode: 12 different color chases with audio triggering Spectrum mix: 32 different spectrum mix colors, including color fades Adjustable speed and dimming with fader Full automatic DMX-address function for up to 120 LED projectors! Blackout and “Full on” function BEFORE USE Check the contents: Check that the carton contains the following items: LEDCON-02 controller AC/DC adapter Operating instructions Some important instructions: Before you start using this unit, please check if there’s no transportation damage. Should there be any, do not use the device and consult your dealer first. Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual. Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual. To protect the environment, please try to recycle the packing material as much as possible. JB SYSTEMS® 1/36 LEDCON-02 This symbol means: indoor use only. This symbol means: Read instructions. To prevent fire or shock hazard, do not expose this appliance to rain or moisture. To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages. This unit is for indoor use only. Don’t place metal objects or spill liquid inside the unit. No objects filled with liquids, such as vases, shall be placed on this appliance. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power. No naked flame sources, such as lighted candles, should be placed on the appliance. Don’t cover any ventilation openings as this may result in overheating. Prevent use in dusty environments and clean the unit regularly. Keep the unit away from children. Inexperienced persons should not operate this device. Maximum save ambient temperature is 40°C. Don’t use this unit at higher ambient temperatures. Always unplug the unit when it is not used for a longer time or before you start servicing. The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country. Check that the available voltage is not higher than the one stated on the rear panel of the unit. The socket inlet shall remain operable for disconnection from the mains. The power cord should always be in perfect condition: switch the unit immediately off when the power cord is squashed or damaged. Never let the power-cord come into contact with other cables! In order to prevent electric shock, do not open the cover. Apart from the mains fuse there are no user serviceable parts inside. Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications! In the event of serious operating problems, stop using the appliance and contact your dealer immediately. Please use the original packing when the device is to be transported. Due to safety reasons it is prohibited to make unauthorized modifications to the unit.

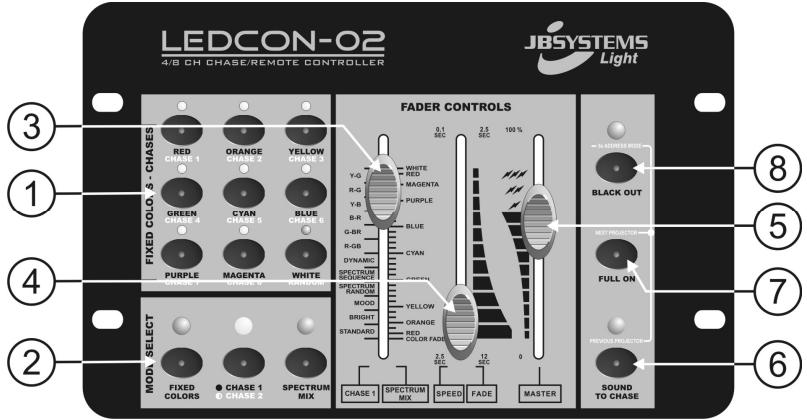

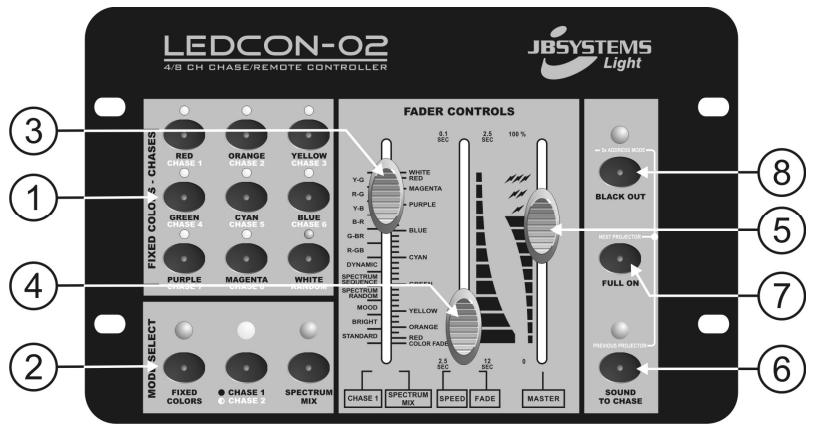

MAINTENANCE Clean by wiping with a polished cloth slightly dipped with water. Avoid getting water inside the unit. Do not use volatile liquids such as benzene or thinner which will damage the unit. JB SYSTEMS® 2/36 LEDCON-02 ENGLISH OPERATION MANUAL FUNCTIONS (FRONT) ENGLISH OPERATION MANUAL FUNCTIONS (REAR)

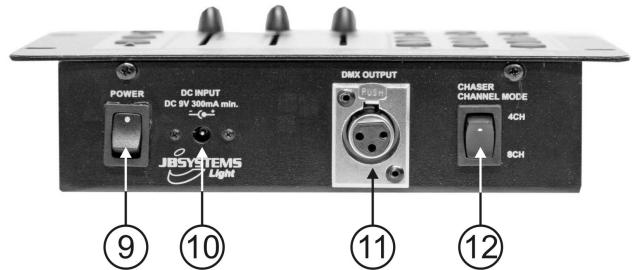

9. POWER SWITCH: used to switch the unit ON/OFF

10. DC INPUT: connect the supplied AC/DC adapter to this input. If you should use another adapter, please

make sure that it has 9Vdc and minimum 300mA with + in the center.

11. DMX OUTPUT: Sends DMX-signals to the connected units.

12. CHASER CHANNEL MODE: used to determine if the LEDCON-02 should work as a 4 or 8 channel LED

light modulator. Please note that you should always run the “auto address” function after changing the channel mode!

1. COLOR / CHASE BUTTONS: These buttons have different functions, depending on the selected

working mode (refer to n°2): FIXED COLOR MODE: You can select 9 different predefined colors. CHASE 2: You can select 8 different chases and a random chase. (sound activated or not) AUTO ADDRESS MODE: You can determine the order of succession of the connected LED PARprojectors. Refer to the chapter “ADDRESSING” for more information.

2. MODE SELECT BUTTONS: 3 buttons used to set the controller in different working modes:

FIXED COLORS: select this mode if you want to use the “fixed color” buttons (1). CHASE MODE: used to select two different chase modes: CHASE 1: select this mode if you want to select one of the 12 color chases using the “chase/color” fader (3). In Chase1 mode the yellow LED is lit. CHASE 2: select this mode if you want to use the controller as a 4 or 8 channel DJ light modulator. You can use the “color / chase buttons” (see n°1) to select the different chases. In Chase2 mode the yellow LED blinks. SPECTRUM MIX: select this mode if you want to select one of the 32 different colors using the “chase/color” fader (3).

3. CHASE/COLOR FADER: used to select one of the available color chases:

Left side of the fader indicates the different chases. Right side of the fader indicates the different colors. Important remark: There’s also a function called “color fade” which is very nice for “background lighting” applications. Select this function to fade gently from one color to another. You can adjust the fade-over time with the color-fade fader(4).

4. SPEED/FADE FADER: used to select the chase speed or color fade time:

Left side of the fader indicates the chase speed, ranging from 2,5s to 0,1s. Right side of the fader indicates the color fade time, ranging from 12s to 2,5s.

5. MASTER FADER: used to control the overall dimming of the LEDs and overall strobe speed.

6. SOUND BUTTON: used to toggle the chase mode between sound and static mode. Press this button

during the “auto address” mode to select the previous projector. Refer to the chapter “ADDRESSING” for more information.

7. FULL ON BUTTON: used to set the 3 colors (R+G+B) at maximum level. Press this button during the

“auto address” mode to select the next projector. Refer to the chapter “ADDRESSING” for more information.

8. BLACKOUT BUTTON: used to set the 3 colors (R+G+B) at zero level. Press this button for about

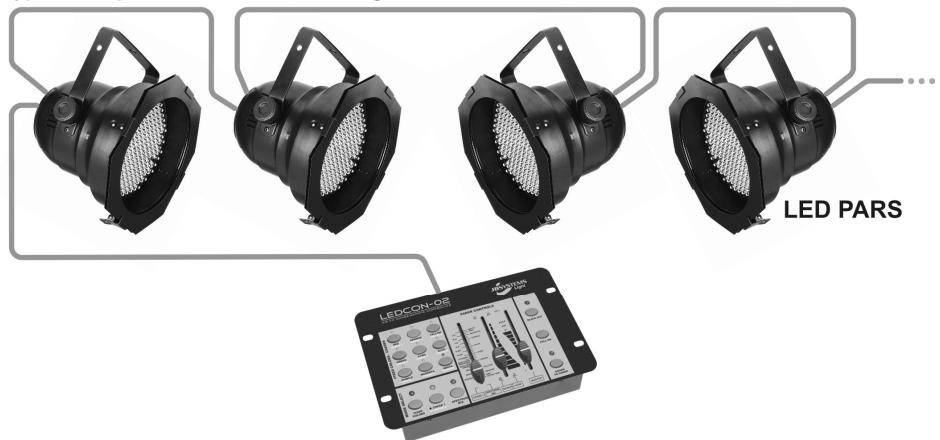

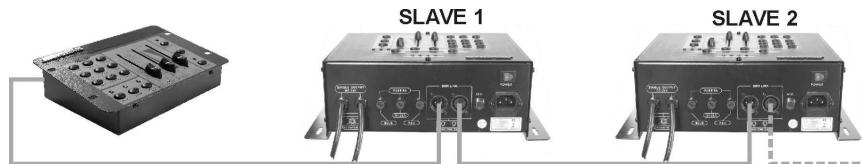

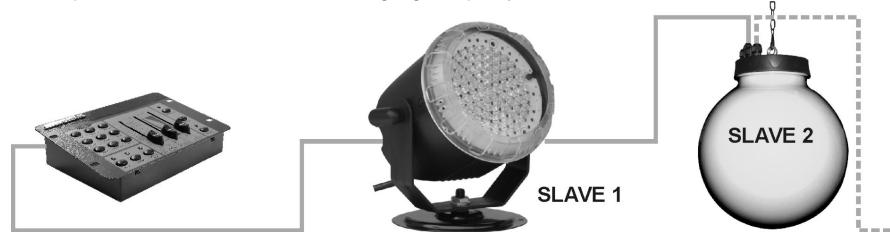

5seconds to start the “automatic address” function. Refer to the chapter “ADDRESSING” for more information. JB SYSTEMS® 3/36 LEDCON-02 CONNECTIONS With LED MANAGER and/or MINI LED MANAGER: Just “daisy chain” the DMX in/outputs of 1 or more LED-Managers with the DMX-output of the LEDCON-02 remote using a good quality balanced cable. The LEDCON-02 remote will be used to control all connected slaves. The LED Managers are automatically switched as slaves (slave LED is lit). The controls on the slave units are disabled. Important! Don’t forget to run the “auto address” function; this will give all connected units their own address. (Refer to the chapter “ADDRESSING”) With LED BALL, LED SPOT/WASH, or other LED projectors: Just “daisy chain” the DMX in/outputs of 1 or more LED BALL and/or LED SPOT/WASH projectors with the DMX-output of the LEDCON-02 remote using a good quality balanced cable Important! Don’t forget to run the “auto address” function; this will give all connected units their own address. (refer to the chapter “ADDRESSING”) JB SYSTEMS® 4/36 LEDCON-02 ENGLISH OPERATION MANUAL ENGLISH OPERATION MANUAL o Press button “chase4” the current LED projector receives address 4 o Press button “chase5” the current LED projector receives address 5 o Press button “chase6” the current LED projector receives address 6 o Press button “chase7” the current LED projector receives address 7 o Press button “chase8” the current LED projector receives address 8 E. Press the “full on” button (see n°7) to select the next projector and return to “D” until all projectors received an address. If you want to select the previous projector, simply press the “sound to chase” button (see n°6). Several projectors can be put on the same address. F. When all projectors received an address, press the “blackout” button again for about 5 seconds, until the “blackout” LED stops blinking. G. Done! A typical setup when used as a DJ LED light modulator: SPECIFICATIONS Just “daisy chain” the DMX in/outputs of all connected LED PAR projectors with the DMX-output of the LEDCON-02 remote using a good quality balanced cable. You can connect up to 120 units! If you use minimum 8 projectors, you can put the LEDCON-02 in 8channel mode. Important! Don’t forget to run the “auto address” function; this will give all connected units their own address. (Refer to the chapter “ADDRESSING”) DIP switches 0 to 9 on the LED PAR must be OFF! Power Input: AC/DC Power adapter: DMX output: Audio input: Size: Weight: DC 9V 300mA minimum. AC 240V, 50Hz 9Vdc / 300mA (or more) 3pin XLR None, internal microphone 21,0 x 14,0 x 4,6cm 930 grams Every information is subject to change without prior notice You can download the latest version of this user manual on our website: www.beglec.com ADDRESSING Each time you build a different installation with the LEDCON-02, you should run this function. The LEDCON02 will distribute new addresses to the connected projectors. There are two ways to distribute the addresses:

1. FULL AUTOMATIC ADDRESS DISTRIBUTION :

The LEDCON-02 distributes the addresses automatically to all the connected LED projectors. The first unit in the chain receives address 1, the next will have address 2, … The address distribution depends on the channel mode and the number of connected LED projectors. Some examples: Set to 4 channel mode with 20 projectors addressing will be: 1234 – 1234 – 1234 – 1234 - 1234 Set to 8 channel mode with 20 projectors addressing will be: 12345678 – 12345678 - 1234 A. First determine if you will put the LEDCON-02 in 4 or 8 channel mode (see switch n°12) B. Connect all projectors to the LEDCON-02 and switch the complete setup on. C. Press the “blackout” button (see n°8) for about 5seconds: until the red “blackout LED” starts blinking. D. You will see notice that the first LED projector in the chain is lit. E. Press the “sound to chase” button (see n°6) to select all projectors: all projectors are lit! F. Press the “random chase” button (see picture ) G. Press the “blackout” button again for about 5 seconds, until the “blackout” LED stops blinking. H. Done!

2. MANUAL ADDRESS DISTRIBUTION :

The user can determine the order of succession of the LED projectors: you have full impact on the configuration but it takes more time to set up an installation with many projectors. A. First determine if you will put the LEDCON-02 in 4 or 8 channel mode (see switch n°12) B. Connect all projectors to the LEDCON-02 and switch the complete setup on. C. Press the “blackout” button (see n°8) for about 5seconds: until the red “blackout LED” starts blinking. D. You will see notice that the first LED projector in the chain is lit. Now you can determine the address of this projector by pressing the corresponding color/chase button (see n°1): o Press button “chase1” the current LED projector receives address 1 o Press button “chase2” the current LED projector receives address 2 o Press button “chase3” the current LED projector receives address 3 JB SYSTEMS® 5/36 LEDCON-02 JB SYSTEMS® 6/36 LEDCON-02 FRANCAIS
