USER MANUAL WIZARD-4 JBSYSTEMS LIGHT

Copyright © 2009 by BEGLEC comm.v.a.

t Hofveld 2 ~ B1702 Groot-Bijgaarden ~ Belgium

Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.

CE

Version: 2.0

DANGER ~ GEVAAR ~ GEFAHR ~ PELIGRO ~ PERIGO

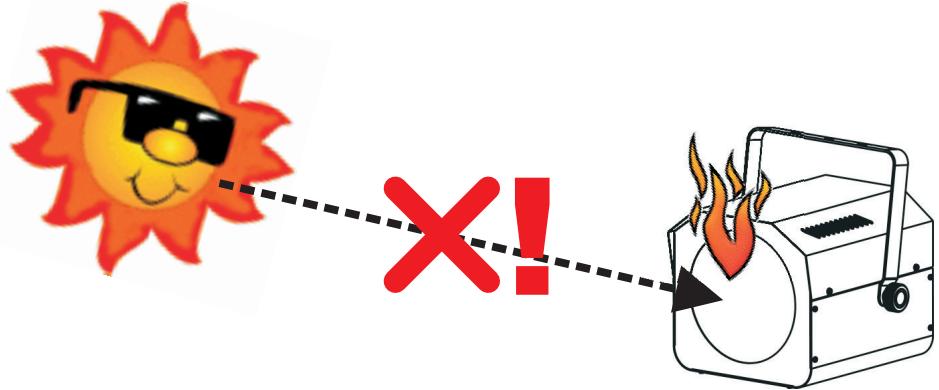

WARNING: DANGER! never expose the lens to direct sunlight, even for a short period. This may damage the light effect or even cause fire!

Dispos of the unit and used batteries in an environment friendly manner according to your country regulations.

FR-DECLASSER L'APPAREIL

Thank you for buying this JB Systems® product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit.

FEATURES

This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

• This device was designed to produce decorative effect lighting and is used in light show systems.
  This is a fabulous effect based on 2pcs 3Watt RGB LEDs
• Fills the room with powerful and sharp, laser like colored beams
• Extremely brilliant colors compared to effects with halogen lamps
• No lamp replacements!
• Virtually no heat production and very low power consumption
• 0-100% dimming and ultra fast strobe function

• Excellent built-in programs for wonderful, ever changing, light shows:

• DMX-control: 1 channel for easy operation or 3 channels for full control

• Standalone: sound activated with internal mic
• Master/slave: wonderful synchronized shows
• Optional CA-8 remote controller available

4-digit menu driven display
- Mains IEC in/outputs for easy linking using optional IEC cables
- Perfect for different applications: discos, clubs, mobile DJs, ...

BEFORE USE

• Before you start using this unit, please check if there's no transportation damage. Should there be any, do not use the device and consult your dealer first.
• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual.

Check the contents:

Check that the carton contains the following items:

• Operating instructions
  GENIUS-2 or WIZARD-4 unit
• Mains cable

SAFETY INSTRUCTIONS:

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only.

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only

This symbol means: Read instructions

This symbol means: Safety Class I appliance

This symbol determines: the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than 0,5 meters

The device is suitable for mounting on standard flammable surfaces. Standard flammable surfaces include building materials such as wood and wood-based materials more than 2mm thick.

• To protect the environment, please try to recycle the packing material as much as possible.
• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.
• This unit is for indoor use only.
• Don't place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.
• Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
• Don't cover any ventilation openings as this may result in overheating.
• Prevent use in dusty environments and clean the unit regularly.
• Keep the unit away from children.
• Inexperienced persons should not operate this device.
  Maximum save ambient temperature is 40^ . Don't use this unit at higher ambient temperatures.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Always unplug the unit when it is not used for a longer time or before to start servicing.
• The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.
• Check that the available voltage is not higher than the one stated on the rear panel of the unit.
• The power cord should always be in perfect condition. Switch the unit immediately off when the power cord is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never let the power-cord come into contact with other cables!
• This fixture must be earthed in order to comply with safety regulations.
• Don't connect the unit to any dimmer pack.
• Always use an appropriate and certified safety cable when installing the unit.
• In order to prevent electric shock, do not open the cover. There are no user serviceable parts inside.
• Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications!
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
• The housing and the lenses must be replaced if they are visibly damaged.
• Please use the original packing when the device is to be transported.
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit.

Important: Never look directly into the light source! Don't use the effect in the presence of persons suffering from epilepsy.

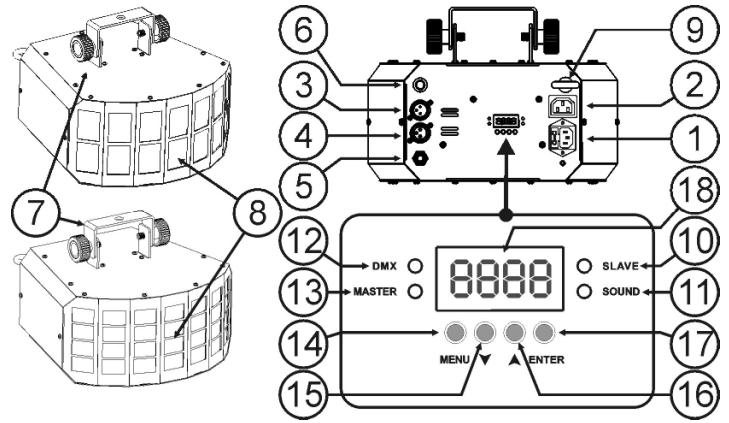

DESCRIPTION:

1. Mains input with IEC socket and integrated fuse holder, connect the supplied mains cable here.
2. Mains output with IEC socket: you can use a special IEC power cable to connect this output with the mains input of the next GENIUS-2 / WIZARD-4 for easier linking. (max 17 units can be linked)
3. DMX input
4. DMX output
5. 14 " Jack input for the optional CA-8 hand controller
6. Internal microphone
7. Hanging bracket with 2 knobs on both sides to fasten the unit and a mounting hole to fix a mounting hook.
8. Optical lenses: 14 lenses for GENIUS-2 and 28 lenses for WIZARD-4
9. Safety ring, attach the optional safety cable here
10. Slave LED: is lit when the unit is in slave mode
11. Sound LED: blinks to the rhythm of the music while the unit is in audio mode
12. DMX LED: is lit when the unit receives a DMX-signal
13. Master LED: is lit when the unit is switched as master
14. MENU button: used to select the different menu items
15. DOWN button: to go back in the menu and to lower the values shown on the display.
16. UP button: to go up in the menu and to increase the values shown on the display.
17. ENTER button: used to confirm your choice.
18. DISPLAY shows the various menus and the selected functions.

OVERHEAD RIGGING

• Important: The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/or damage to property. Overhead rigging requires extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
• The device should be installed out of reach of people and outside areas where persons may walk by or be seated.
• Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's weight.
• Always use a certified safety cable that can hold 12 times the weight of the device when installing the unit. This secondary safety attachment should be installed in a way that no part of

the installation can drop more than 20cm if the main attachment fails.

• The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
• Don't cover any ventilation openings as this may result in overheating.
• The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal.

ELECTRICAL INSTALLATION + ADDRESSED

Important: The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.

Electrical installation for 1 standalone unit:

• Just insert the mains cable. The unit starts working immediately in stand-alone mode.

Remark1: You can connect a CA-8 remote controller to the unit if you want to have more control. Refer to "how to operate the unit" to learn how to do this.

Remark2: if there's no output, please make sure to set the unit in master mode (see next chapter)

Electrical installation for two or more units in master/slave:

• Connect 2 to maximum 16 units together using good quality balanced microphone cables. Put the first unit of the chain in master mode, the rest must be set to slave mode (SL1 or SL2). See the next chapter for more information.
• Make sure that all units are connected to the mains.
• Done!

Remark: You can connect a CA-8 remote controller to the master unit if you want to have more control over the master/slave operation

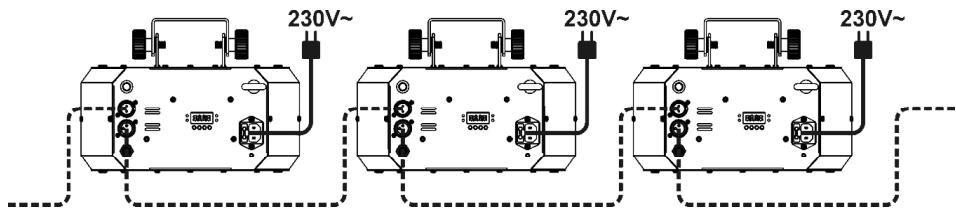

Electrical installation in DMX-mode:

• The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to "daisy chain" your DMX controller and all the connected units with a good quality balanced cable.
• Both XLR-3pin and XLR-5pin connectors are used, however XLR-3pin is more popular because these cables are compatible with balanced audio cables.

Pin layout XLR-3pin: Pin1 = GND ~ Pin2 = Negative signal (-) ~ Pin3 = Positive signal (+)

Pin layout XLR-5pin: Pin1 = GND ~ Pin2 = Negative signal (-) ~ Pin3 = Positive signal (+) ~ Pins4+5 not used.

• To prevent strange behavior of the light effects, due to interferences, you must use a 90 to 120 terminator at the end of the chain. Never use Y-splitter cables, this simply won't work!
• Make sure that all units are connected to the mains.
• Each light effect in the chain needs to have its proper starting address so it knows which commands from the controller it has to decode. In the next section you will learn how to set the DMX addresses.

HOW TO SET THE RIGHT STARTING ADDRESS:

Refer to the next chapter (DMX-512 address setting) to learn how to set the starting address on this unit. The start address of each unit is very important. Unfortunately it is impossible to tell you in this user manual which start addresses you have to set because this completely depends on the controller you will use... So please refer to the user manual of your DMX-controller to find out which starting addresses you must set.

DMX-CONFIGURATION OF WIZARD-4 & GENIUS-2:

1 CHANNEL MODE
3 CHANNEL MODE

Ch1		Ch1	Ch2	Ch3
Chase		Dimmer/Strobe	Color	Rotation
250-255	Random Chase	248-255 On	248-255 Color 32	246-255 Stop
			240-247 Color 31
			232-239 Color 30
230-249	Chase 11	224-231	216-223 Color 28	Fast
210-229	Chase 10	208-215	208-215 Color 27	135-245
190-209	Chase 9	200-207	200-207 Color 26
170-189	Chase 8	192-199	192-199 Color 25
150-169	Chase 7	184-191	184-191 Color 24
130-149	Chase 6	176-183	176-183 Color 23
110-129	Chase 5	168-175	168-175 Color 22
90-109	Chase 4	160-167	160-167 Color 21
70-89	Chase 3	152-159	152-159 Color 20	Slow
50-69	Chase 2	144-151	144-151 Color 19	121-134
30-49	Chase 1	128-135	128-135 Color 17
		120-127	120-127 Color 16
		112-119	112-119 Color 15
		104-111	104-111 Color 14
		096-103	096-103 Color 13
		088-095	088-095 Color 12	10-120
		080-087	080-087 Color 11
		072-079	072-079 Color 10
50-69	Chase 2	064-071	064-071 Color 9	Slow
30-49	Chase 1	056-063	056-063 Color 8	Fast
0-29	OFF	048-055	048-055 Color 7
		040-047	040-047 Color 6	0-9 Stop
		032-039	032-039 Color 5
		024-031	024-031 Color 4
		016-023	016-023 Color 3
		008-015	008-015 Color 2
		000-007	000-007 Color 1

Two DMX-modes are available: 1CH and 3CH mode:

1 channel mode:

Extremely user friendly mode: you only need 1 DMX channel to choose 1 of the 11 preprogrammed sound chases or you can use our Effect commander to switch the unit ON/OFF (no switch pack needed).

3 channel mode:

You can take full control of all functions of the effect.

• Channel 1: control for dimmer + strobe
• Channel 2: select one of the 32 available color combinations.
• Channel 3: Rotation speed and direction

HOW TO SETUP:

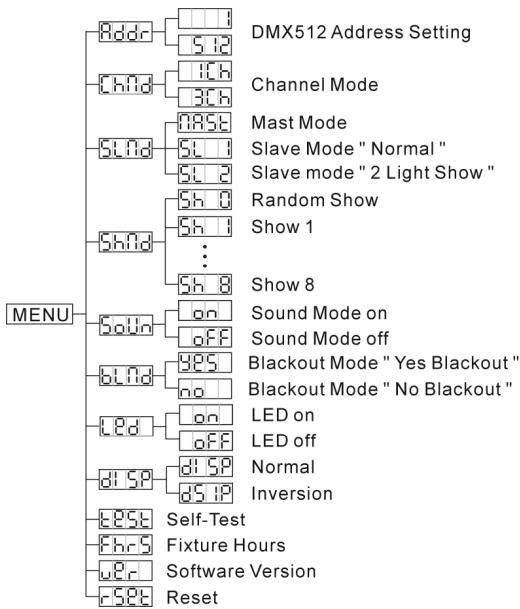

MAIN MENU:

• To select any of the menu options, press the MENU button up to when the required one is shown on the display.
• Select the function with the ENTER button. The display will blink.
• Use DOWN and UP button to choose the desired menu option.
• Once the required menu option is selected, press the ENTER button to select. To go back to the functions without any change press the MENU button or just wait 8 seconds. The menu structure is shown below.

DMX512 Address Setting

Used to set the starting address in a DMX setup.

• Press the MENU button until Rddr is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to change the DMX512 address.
• Once the correct address shows on the display, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)
• Press the MENU button for about 2 seconds to return to running mode.

Channel Mode

Used to set the number of DMX-channels.

• Press the MENU button until hfd is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP button to select the HCH (1 Channel) or 3CH (3 Channel) mode.
• Once the mode is selected, press the ENTER button to setup (or automatically return to the main functions without any change after 8 seconds)
• Press the MENU button for about 2 seconds to return to running mode.

Working Mode

Used to set the unit in master or slave mode.

• Press the MENU button until Stnd is shown on the display.
• Press the ENTER button, the current working mode starts blinking in the display
• Use the DOWN and UP buttons to select [nase] (master), [SL] (slave in sync with the master) or [SL] (2 light show - slave in anti-sync with the master).
• Once the mode is selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)
• Press the MENU button for about 2 seconds to return to running mode.

Show Mode

Used to choose to select one of the preprogrammed shows when used in standalone or master/slave mode.

• Press the MENU button until 5hfd is showing on the display.
• Press the ENTER button, the current show starts blinking in the display.
• Use DOWN and UP buttons to select one of the 8 preprogrammed shows (show 0) to (show 8)
• Once the right show blinks on the display, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)
• Press the MENU button for about 2 seconds to return to running mode.

Bound Model

Used to choose the desired sound mode to trigger the shows.

• Press the MENU button until 504 is shown on the display.
• Press the ENTER button to select.

• Use DOWN and UP button to select one of the available modes:

• (sound mode ON) the shows are triggered by the internal microphone.

• OFF (sound mode OFF) the shows are triggered by the speed selected with the shows.

• Once the right mode is selected, press the ENTER button to confirm.

• Press the MENU button for about 2 seconds to return to running mode.

Blackout Mode

Blackout mode: when no DMX-signal is detected, the unit goes in blackout.

No blackout mode: when no DMX-signal is detected, the unit automatically switches to master mode.

• Press the MENU button until blnd is shown on the display.
• Press the ENTER button, the current selection starts blinking in the display.
• Use DOWN and UP button to select YES (blackout) or NO (no blackout) mode.
• Once the mode is selected, press the ENTER button to save it.

(or automatically return to the main functions without any change after 8 seconds)

• Press the MENU button for about 2 seconds to return to running mode.

Led Display

Display on: display is always on.

Display off: display is off when not used.

• Press the MENU button until the display shows Ed .
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to select on (display always on) or OFF (display off when not used).
• Once the mode is selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)
• Press the MENU button for about 2 seconds to return to running mode.

Display Inversion

Display normal: display is readable when the unit is on the floor.

Display inversion: display is readable when the unit is mounted upside down.

• Press the MENU button until SP is blinking on the display. (normal display)
• Use the ENTER button to change to the mode DSIP (display inversion), the option will be automatically stored after 8 seconds. Or press the ENTER button again return to the mode DSIP (normal display). To go back to the functions press the MENU button.

Self-Test

• Press the MENU button until the display shows LOST.
• Press the ENTER button: the unit will run the built-in programmer for self-test.
• To go back to the functions press the MENU button.

Fixture Hours

Used to show the number of working hours of the unit.

• Press the MENU button until the display shows HrS.
• Press the ENTER button to show the number of working hours in the display.
• To go back to the functions press the MENU button.

Software version:

Used to show the software version of the unit.

Press the MENU button until the display shows Upr
- Press the ENTER button to show the software version of the unit.
- To go back to the functions press the MENU button.

Reset

• Press the MENU button until until the display shows [SET]
• Press the ENTER button: the unit resets and all the motors will return to their home position.

HOME POSITION ADJUST:

• Press the ENTER button for about 5 seconds until the display shows OPAN.
  Press ENTER to confirm
• Use DOWN and UP button to adjust the home position (-127, +127) of the motor
• Press the ENTER button to confirm, or press MENU to exit the offset mode without any changes

HOW TO OPERATE THE UNIT

YOU CAN OPERATE THE UNIT IN 3 WAYS:

By master/slave with built-in preprogrammed functions
By CA-8 easy controller
By any universal DMX controller (1 & 3 channel DMX mode)

- MASTER/SLAVE WITH BUILT-IN PREPROGRAMMED FUNCTIONS:

Select this function when you want an instant show. By linking the units in master/slave connection, the first unit will control the other units to give an automatic, sound activated, synchronized light show. Its DMX input will have nothing plugged into it, and its master-LED will be constantly on and sound-LED will flash to the music.

Important! This function only works when the blackout mode in the menu of the master is set to OFF, otherwise nothing will happen! Read more about this option in the "How to setup" paragraph.

• MASTER has 8 built-in shows: You can select Sh 0 (show 0) to Sh 8 (show 8) directly in the menu of the master.
• SLAVES have 2 working options: These units are set to slave mode (slave-LED is constantly on). In order to create a great light show you can introduce contrast movements In the menu of the slave units you can go to option SLNd and select:

Normal slave: slave works in sync with the master.
2 light show: slave works in opposite with the master.

BY EASY CONTROLLER:

When used in Master/slave mode we strongly advice you to use the CA-8 "Easy controller" Just connect this small controller to the 1/4 jack of the master unit, and you will be able to control the following FUNCTIONS:

Standby	Blackout the unit
Function	1/ SynchroStrobe 2/ Asynchrono Strobe 3/ Sound Strobe	Select Show (Show 1-8)	Select Speed 1/ Slow 2/ Middle 3/ Fast
Mode	Sound/Strobe (LED OFF)	Show (LED ON)	LED blinking

MAINTENANCE

• Make sure the area below the installation place is free from unwanted persons during servicing.
• Switch off the unit, unplug the mains cable and wait until the unit has been cooled down.

During inspection the following points should be checked:

• All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation.
• When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.
• The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected.
• In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.

• The interior of the device should be cleaned annually using a vacuum cleaner or air-jet.

• The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics.

• Clean with a soft cloth using normal glass cleaning products.
  Always dry the parts carefully.

• Clean the external optics at least once every 30 days.
• Clean the internal optics at least every 90 days.

Attention: We strongly recommend internal cleaning to be carried out by qualified personnel!

SPECIFICATIONS

Mains Input: AC 230V, 50Hz
Power consumption: 16 Watt
Fuse: 250V 6,3A slow blow (20mm glass)
Sound Control: Internal microphone
DMX connections: 3pin XLR male / female
DMX channels used: 1 or 3 channels
Lamp: 2x 3-color 3Watt LEDs
Size: 296 x 271 x 140mm
Weight GENIUS-2: 3,8kg
Weight WIZARD-4: 4,0kg

Every information is subject to change without prior notice. You can download the latest version of this user manual on our website: www.beglec.com

MODE D'EMPLOI

Channel Mode (Mode canal)
