USER MANUAL BT-36II JBSYSTEMS LIGHT

Copyright © 2009 by BEGLEC comm.v.a.

Reproduction or publication of the content in any manner, without express permission of the publisher, is prohibited.

CE

Version: 1.0

LIGHT RESEARCH

DANGER ~ GEVAAR ~ GEFAHR ~ PELIGRO ~ PERIGO

WARNING: DANGER! never expose the lens to direct sunlight, even for a short period. This may damage the light effect or even cause fire!

Dispos of the unit and used batteries in an environment friendly manner according to your country regulations.

FR-DECLASSES L'APPAREIL

Thank you for buying this BriteQ® product. To take full advantage of all possibilities and for your own safety, please read these operating instructions very carefully before you start using this unit.

FEATURES

This unit is radio-interference suppressed. This product meets the requirements of the current European and national guidelines. Conformity has been established and the relevant statements and documents have been deposited by the manufacturer.

• Powerful LED moving wash for use in discotheques, theater, studio and hiring companies
• Based on 36pcs high power 3Watt LEDs driven at low current for extremely high light output and reliability.
• Improved light output and color balance, via menu option backward compatible with BT36L1
• Infinite colors thanks to high frequency 400Hz RGB color mixing technology which makes it also a perfect choice in TV studios (no interferences with TV-cameras)
• Easy lens exchange for different beam angles (25° standard + 15° and 45° optional)

• Switchable 8 or 15 DMX channels:

• 8 channels: pan * tilt * strobe * red * green * blue * master dimmer * special function

• 15 channels: pan * pan fine * tilt * tilt fine * pan/tilt speed * pan/tilt macros * macro speed * special function * master dimmer * strobe * red * green * blue * color chase/fade * chase/fade speed.

• Can be used in Master/slave mode with music triggered integrated programs and optional CA-8 controller

• Smooth but very fast 540^ panning and 270^ tilt movements
• Extremely fast strobe function
• Low heat and very low power consumption
  Built-in menus with 4digit LED display
• Compact and stylish enclosure including 1 omega clamp

BEFORE USE

• Before you start using this unit, please check if there's no transportation damage. Should there be any, do not use the device and consult your dealer first.
• Important: This device left our factory in perfect condition and well packaged. It is absolutely necessary for the user to strictly follow the safety instructions and warnings in this user manual. Any damage caused by mishandling is not subject to warranty. The dealer will not accept responsibility for any resulting defects or problems caused by disregarding this user manual.
• Keep this booklet in a safe place for future consultation. If you sell the fixture, be sure to add this user manual.

Check the contents:

Check that the carton contains the following items:

• BT-36 II unit
• Mains Cable
  1 omega clamp
• Operating instructions

SAFETY INSTRUCTIONS:

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: To reduce the risk of electric shock, do not remove the top cover. No user-serviceable parts inside. Refer servicing to qualified service personnel only.

The lightning flash with arrowhead symbol within the equilateral triangle is intended to alert the use or the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within the equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the literature accompanying this appliance.

This symbol means: indoor use only

This symbol means: Read instructions

This symbol determines: the minimum distance from lighted objects. The minimum distance between light-output and the illuminated surface must be more than 1 meters

• To protect the environment, please try to recycle the packing material as much as possible.
• A new light effect sometimes causes some unwanted smoke and/or smell. This is normal and disappears after some minutes.
• To prevent fire or shock hazard, do not expose this appliance to rain or moisture.
• To avoid condensation to be formed inside, allow the unit to adapt to the surrounding temperatures when bringing it into a warm room after transport. Condense sometimes prevents the unit from working at full performance or may even cause damages.
• This unit is for indoor use only.
• Don't place metal objects or spill liquid inside the unit. Electric shock or malfunction may result. If a foreign object enters the unit, immediately disconnect the mains power.
• Locate the fixture in a well ventilated spot, away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
• Don't cover any ventilation openings as this may result in overheating.
• Prevent use in dusty environments and clean the unit regularly.
• Keep the unit away from children.
• Inexperienced persons should not operate this device.
  Maximum save ambient temperature is 40^ . Don't use this unit at higher ambient temperatures.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Always unplug the unit when it is not used for a longer time or when you start servicing.
• The electrical installation should be carried out by qualified personal only, according to the regulations for electrical and mechanical safety in your country.
• Check that the available voltage is not higher than the one stated on the rear panel of the unit.
• The power cord should always be in perfect condition. Switch the unit immediately off when the power cord is squashed or damaged. It must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Never let the power-cord come into contact with other cables!
• This fixture must be earthed to in order comply with safety regulations.
• Don't connect the unit to any dimmer pack.
• Always use an appropriate and certified safety cable when installing the unit.
• In order to prevent electric shock, do not open the cover. there are no user serviceable parts inside.
• Never repair a fuse or bypass the fuse holder. Always replace a damaged fuse with a fuse of the same type and electrical specifications!
• In the event of serious operating problems, stop using the fixture and contact your dealer immediately.
• The housing and the lenses must be replaced if they are visibly damaged.
• Please use the original packing when the device is to be transported.
• Due to safety reasons it is prohibited to make unauthorized modifications to the unit.
  Important: Never look directly into the light source! Don't use the effect in the presence of persons suffering from epilepsy.

LENS (RE)PLACEMENT

Always unplug the unit before you replace the lenses! DO NOT TOUCH THE LED LAMPS! HIGH POWER LEDs ARE VERY SENSITIVE FOR ELECTROSTATIC ELECTRICITY!!! You can easily destroy the LEDs by simply touching them!

• Switch off the main supply and unplug the unit.
• Remove the 4 screws to open the lens compartment and protective glass (A on the picture below)
• Remove the 4 screws that keep the black lens cover plate in place and remove the metal plate. (B on the picture)

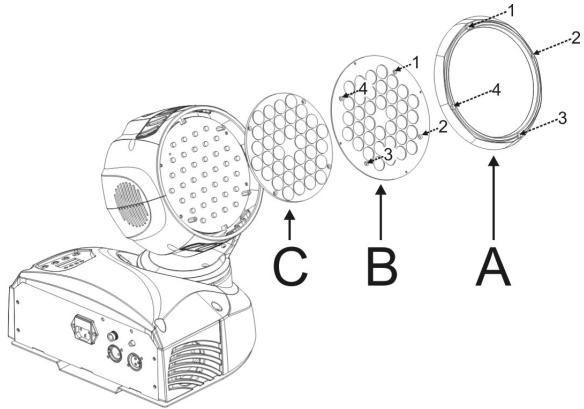

• GENTLY remove the original lens (C on the picture) DO NOT TOUCH THE LEDs!!

• Put the lens with different beam angle gently in place. Please note that the beam angle is indicated in the center of the lens.

• Fasten the metal lens cover with the 4 screws.
• Put the protective glass back in place and fix it with the 4 screws.
• Done!

OVERHEAD RIGGING

• Important: The installation must be carried out by qualified service personal only. Improper installation can result in serious injuries and/or damage to property. Overhead rigging requires extensive experience! Working load limits should be respected, certified installation materials should be used, the installed device should be inspected regularly for safety.
• Make sure the area below the installation place is free from unwanted persons during rigging, de-rigging and servicing.
• Locate the fixture in a well ventilated spot, far away from any flammable materials and/or liquids. The fixture must be fixed at least 50cm from surrounding walls.
• The device should be installed out of reach of people and outside areas where persons may walk by or be seated.
• Before rigging make sure that the installation area can hold a minimum point load of 10 times the device's weight.

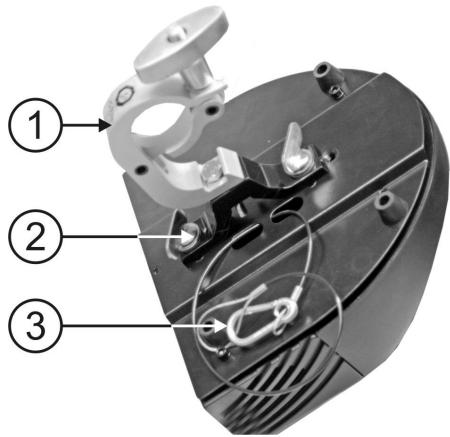

  Always use a certified safety cable (number 3 on the picture) that can hold 12 times the weight of the device when installing the unit. This secondary safety attachment should be installed in a way that no part of the installation can drop more than 20cm if the main attachment fails.
• The device should be well fixed; a free-swinging mounting is dangerous and may not be considered!
• Don't cover any ventilation openings as this may result in overheating.

• The operator has to make sure that the safety-relating and machine-technical installations are approved by an expert before using them for the first time. The installations should be inspected every year by a skilled person to be sure that safety is still optimal.

• Optional Quick Clamp

• Special omega clamp (included)
• Optional safety cable

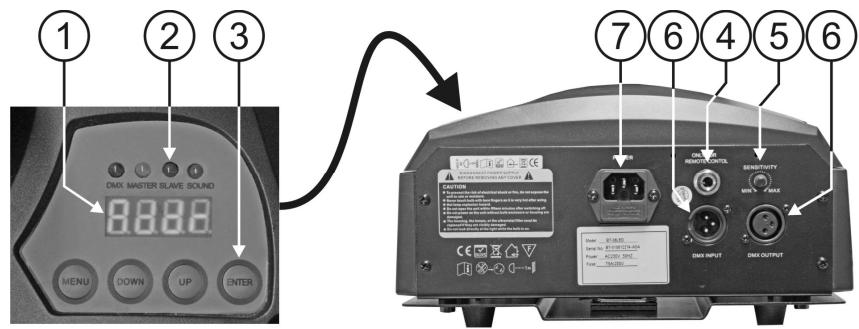

HOW TO SET UP THE UNIT CONTROL PANEL:

1. DISPLAY shows the various menus and the selected functions.
   2.LEDS

DMX	On	DMX input present
MASTER	On	Master mode
SLAVE	On	Slave mode
SOUND	Flashing	Sound activation

1. BUTTONS

MENU	To select the programming functions
DOWN	To go backward in the selected functions
UP	To go forward in the selected functions
ENTER	To confirm the selected functions

1. REMOTE CONTROL INPUT: Used to connect a simple CA-8 hand controller while the unit is used in standalone or master/slave mode.
2. SENSITIVITY: Used to adjust the sensitivity of the micro when the unit is used in standalone or master/slave mode.

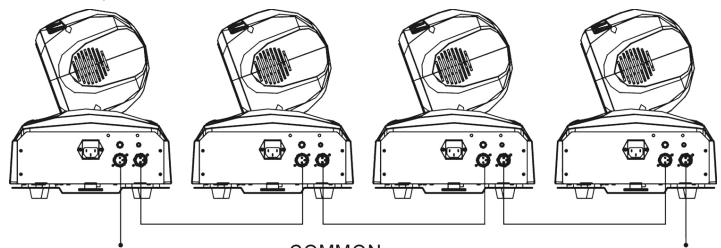

3. DMX INPUT/OUTPUT: used for DMX512 linking. Use good quality 3pin XLR M/F balanced cable to link the units together.
4. MAINS INPUT: with IEC socket and integrated fuse holder, connect the supplied mains cable here.

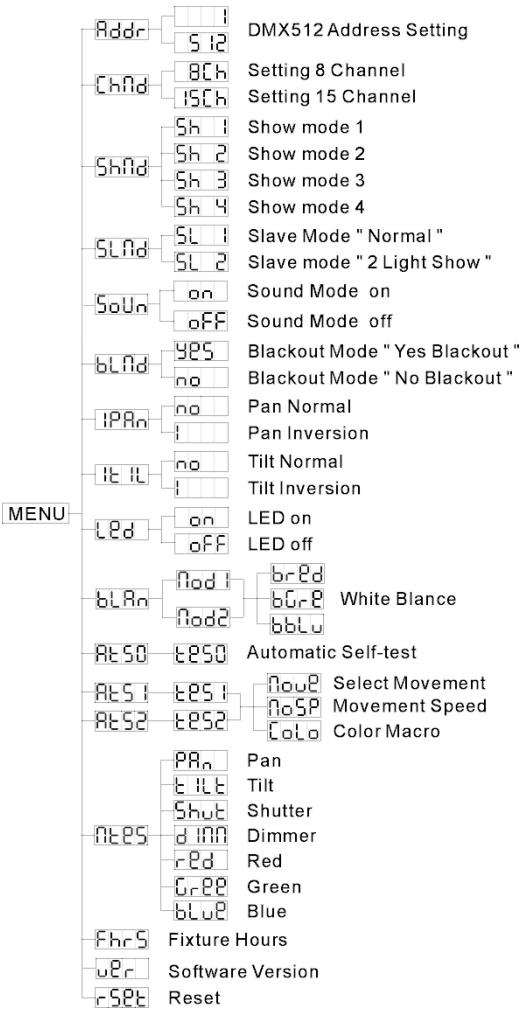

MAIN MENU:

• To select any of the pre-set functions, press the MENU button up to when the required one is shown on the display.
• Select the function with the ENTER button. The display will blink.
• Use DOWN and UP button to change the mode.
• Once the required mode has been selected, press the ENTER button to select. After 8 seconds the display will automatically return to the main functions without any change. To go back to the functions without any change press the MENU button. The main functions are shown on the right.

Addr

DMX512 Address Setting

Used to set the starting address in a DMX setup.

• Press the MENU button until Accur is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to change the DMX512 address.
• Once the correct address shows on the display, press the ENTER button to save it.

(or automatically return to the main functions without any change after 8 seconds) To go back to the functions without any change press the MENU button again.

Channel Mode

• Press the MENU button until Chhd is shown on the display.
• Press the ENTER button so the display starts blinking.
• Use DOWN and UP button to select the ISCH (15 Channel) or 8CH (8 Channel) mode.
• Once the mode is selected, press the ENTER button to setup (Or automatically return to the main functions without any change after 8 seconds.)
• To go back to the functions without any change press the MENU button again.

Show Mode

Used to choose the Show mode when used in standalone or master/slave mode.

• Press the MENU button until Shnd is showing on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to select (show 1), (show 2), (show 3) or (show 4) mode.
• Once the right mode shows on the display, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again.

Show 1 mode- Fixture is placed on the floor. Tilt movement angle 210^ .

Show 2 mode-Fixture is fixed under Tilt movement angle 90^

Show 3 mode - Fixture is placed on a, in front of the audience

The spot is always projecting to the audience's direction; i.e. in front of the stage. Pan movement angle (left to

right to left): 160^ . Tilt movement angle: 90^ (60° above horizon; 30° below horizon.)

Show 4 mode - Fixture is fixed under ceiling.

The spot is mainly projecting in front of the stage. Pan movement angle (left to right to left): 160^ . Tilt movement angle: 90^ (vertically, front 75^ ; back 15^ )

Slave Mode

Used to make the slave unit work in opposite to the master or to work in complete sync.

• Press the MENU button until Sl nd is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP button to select St (normal) or St (2 light show) mode.

• Once the mode is selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)
  To go back to the functions without any change press the MENU button again.

Sound Mode

The unit works to rhythm of the beat when used in standalone or master/slave mode

• Press the MENU button until SolUn is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP button to select on or off mode.
• Once the mode has been selected, press the ENTER button save it. (or automatically return to the main functions without any change after 8 seconds) To go back to the functions without any change press the MENU button again.

Blackout Mode

• Blackout mode: when no DMX-signal is detected, the unit goes in blackout and waits for the DMX-signal.

• No blackout mode: when no DMX-signal is detected, the unit automatically switches to standalone mode.

• Press the MENU button until blnd is shown on the display.

• Press the ENTER button, the display starts blinking.
• Use DOWN and UP button to select 985 (yes blackout) or no (no blackout) mode.
• Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)
  To go back to the functions without any change press the MENU button again.

Pan Inversion

Normal: Panning movement is not inversed.

Pan inversion: Panning movement is inversed

• Press the MENU button until Pan is shown on the display
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP button to select no (normal) or pan inversion) mode.
• Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)
  To go back to the functions without any change press the MENU button again.

Tilt Inversion

Normal: Tilt movement is not inversed.

Tilt inversion: tilt movement is inversed

• Press the MENU button until 山 is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to select no (normal) or tilt inversion mode.
• Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again.

Led Display

Display on: display is always on.

Display off: display is off when not used.

Press the MENU button until the display shows
- Press the ENTER button, the display starts blinking.
- Use DOWN and UP buttons to select on (display always on) or OFF (display off when not used).
- Once the mode has been selected, press the ENTER button to save it. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again.

White balance

Mod1: default setting for maximum performance.

Mod2: default setting for compatibility close to the former BT36L1.

• Press the MENU button until the display shows BL Rn
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to select [nod] (max. performance) or [nod] (BT36L1 compatibility).
• Once the mode is selected, press the ENTER button to save it.
• If you want to adapt the default settings, press the DOWN and UP buttons to select bRed, bRed or bBLu. Press ENTER and adapt the values to your personal taste, confirm with ENTER. (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again.

At50 At51 At52 Self-Test

Used to activate the 3 internal "self-test" programs which show all possibilities of the unit.

• Press the MENU button until [At50] or [At51] or [At52] is shown on the display.

• At50 is a full automatic test program

• 51 and 52 are test programs where you can manually set different parameters for movement, movement speed and color.

• Press the ENTER button to start the internal self-test program.

• To go back to the functions press the MENU button.

Master Mode

Used to activate another test program where you can manually set all the parameters of the unit.

• Press the MENU button until 12:05 is shown on the display.
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to select PA, E, LE, SH, W, I, R, D, C, P, B, U
• Once a mode is selected, press the ENTER button: the display starts blinking to indicate that you can set a value between 000 and 255.

Note: when no buttons are pressed for 8 seconds, the test program aborts automatically.

Fixture Hours

Used to show the number of working hours of the unit.

• Press the MENU button until FhrS is blinking on the display.
• Press the ENTER button to show the number of working hours in the display.
• To go back to the functions press the MENU button.

Software version

Used to show the software version that is installed in the unit

• Press the MENU button until u8r is blinking on the display.
• Press the ENTER button to show the software version on the display.
• To go back to the functions press the MENU button.

Reset

Used to force a reset of the unit.

• Press the MENU button until FSE is blinking on the display.
• Press the ENTER to reset all channels to their standard position.
• To go back to the functions press the MENU button.

Please also check the chapter about the DMX-channel configuration of the unit to find out how you can force a reset by DMX.

Home Position Adjust

Used to adjust the home position pan and tilt functions:

• Press MENU button shortly to enter the main menu ("Addr" on the display)
• Now press the ENTER button for at least 5 seconds to go into offset mode.
• Use DOWN and UP buttons to select the function that you want to adjust
• Press the ENTER button, the display starts blinking.
• Use DOWN and UP buttons to adjust the home position
• Press the ENTER button to confirm your setting (or automatically return to the main functions without any change after 8 seconds)

To go back to the functions without any change press the MENU button again.

HOW TO CONNECT THE UNIT BY DMX

The DMX-protocol is a widely used high speed signal to control intelligent light equipment. You need to "daisy chain" your DMX controller and all the connected light effects with a good quality XLR M/F balanced cable. To prevent strange behavior of the light effects, due to interferences, you must use a 90 to 120 terminator at the end of the chain. Never use Y-splitter cables, this simply won't work!

COMMON

Each light effect in the chain must have its proper starting address so it knows which commands from the controller it has to decode.

HOW TO SET THE RIGHT STARTING ADDRESS:

Refer to the previous chapter (DMX-512 address setting) to learn how to set the starting address on this unit. The starting address of each unit is very important. Unfortunately it is impossible to tell you in this user manual which starting addresses you have to use because this completely depends on the controller you will use... So please refer to the user manual of your DMX-controller to find out which starting addresses you must set.

DMX-CONFIGURATION OF BT-36 II:

8 channel mode

8 Channels DMX-512 Configuration
Ch1	Ch2	Ch3	Ch4	Ch5	Ch6	Ch7	Ch8
Pan	Tilt	Strobe	Red	Green	Blue	Dimmer	Special Function
540°	220°	248-255	No Function	255	100%	255	100%	240-255 Stand alone
		240-247	Strobe					200-209 Reset
		232-239	No Function
		190-231	Fast Open
		182-189	Slow Close
270°	110°	140-181	No Function					80-89 Disable blackout while pan or tilt move
		132-139	Slow Open
		16-131	Fast Close
		0-15	No Function					70-79 Enable blackout while pan or tilt move
0°	0°

15 channel mode

15 Channels DMX-512 Configuration
Ch1	Ch2	Ch3		Ch4	Ch5	Ch6	Ch7	Ch8
Pan	Pan movement fine	Tilt		Tilt movement fine	Pan/Tilt Speed	Pan/Tilt movement macro	Movement Speed	Special Function
540°	255°	255°	255°	255°	Slow	236-255 Macro 12	255 Slow	240-255 Stand alone
270°	16 BIT PAN	220°	255°	255°	Fast	216-235 Macro 11	196-215 Macro 10	200-209 Reset
		110°	0°			176-195 Macro 9	156-175 Macro 8	80-89 Disable blackout while pan or tilt move
		0°	0°			136-155 Macro 7	116-135 Macro 6	70-79 Enable blackout while pan or tilt move
		OFF	0°			076-095 Macro 4	056-075 Macro 3	0-15 No function
		0°	0°			0-15 No function	0-15 No function	0-15
Ch9	Ch10		Ch11		Ch12	Ch13	Ch14	Ch15
Dimmer	Strobe		Red		Green	Blue	Color/Chase/fade	Chase/Fade Speed
255	100%	No Function Strobe	255	100%	255	100%	255 Color Fade 16	255
		240-247					192 Color Fade 1
		232-239					191 Color Chase 16
		190-231					128 Color Chase 1
		182-189					127 Color 32
		140-181					008 Color 1
		132-139					0-7 No function
		16-131
		0-15	No Function	0%	0%	0%	0%	0-7 No function

HOW TO OPERATE THE UNIT

Every time you turn the unit on, it will show "LedU" on the display and move all the motors to their 'home' position and you may hear some noises for about 20 seconds. After that the unit will be ready to receive DMX signal or run the built-in programs.

YOU CAN OPERATE THE UNIT IN FOUR WAYS:

By master/slave built-in preprogram function
By CA-8 easy controller
By universal DMX controller (8 & 15 channel DMX mode)

BY MASTER/SLAVE BUILT-IN PREPROGRAM FUNCTION:

Select this function when you want an instant show. By linking the units in master/slave connection, the first unit will control the other units to give an automatic, sound activated, synchronized light show. Its DMX input will have nothing plugged into it, and its master-LED will be constantly on and sound-LED will flash to the music. Important! This function only works when the blackout mode in the menu of the master is set to OFF, otherwise nothing will happen! Read more about this option in the "Main Menu" paragraph.

• MASTER has 4 built-in shows: You can select Sh1 (show 1), Sh2 (show 2), Sh3 (show 3) or Sh4 (show 4) directly in the menu of the master.
• SLAVES have 2 working options: The other units are set to slave mode (slave-LED is constantly on). In order to create a great light show you can introduce contrast movements (pan/tilt of slave is inversed) In the menu of the slave units you can go to option Sl nd and select:

Normal slave: slave works in sync with the master.
2 light show: slave works in opposite with the master.

BY EASY CONTROLLER

When used in Master/slave mode we strongly advice you to use the CA-8 "Easy controller" Just connect this small controller to the 1/4 jack of the master unit, and you will be able to control the following FUNCTIONS:

Stand By	Blackout the unit
Function	1. Sync. Strobe 2. Two-light strobe 3. Sound Strobe	Select Show 1-4	Fade Speed Fast Middle Slow	1.Pan positioning 2.Tilt positioning 3.Dimmer or Color change
Mode	Sound (LED OFF)	LED Normal Blinking	LED ON	LED Fast Blinking

MAINTENANCE

• Make sure the area below the installation place is free from unwanted persons during servicing.
• Switch off the unit, unplug the mains cable and wait until the unit has been cooled down.

During inspection the following points should be checked:

• All screws used for installing the device and any of its parts should be tightly fastened and may not be corroded.
• Housings, fixations and installations spots (ceiling, truss, suspensions) should be totally free from any deformation.
• When an optical lens is visibly damaged due to cracks or deep scratches, it must be replaced.
• The mains cables must be in impeccable condition and should be replaced immediately when even a small problem is detected.

• In order to protect the device from overheat the cooling fans (if any) and ventilation openings should be cleaned monthly.

• The interior of the device should be cleaned annually using a vacuum cleaner or air-jet.

• The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surroundings can cause greater accumulation of dirt on the unit's optics.

• Clean with a soft cloth using normal glass cleaning products.

Always dry the parts carefully.

• Clean the external optics at least once every 30 days.

• Clean the internal optics at least every 90 days.

Attention: We strongly recommend internal cleaning to be carried out by qualified personnel!

SPECIFICATIONS

Mains Input: AC 230V, 50Hz

Sound Control: Internal microphone

Pan/Tilt: 540^ / 220^

Beam angle: 25^ (15° and 45° lenses optional)

DMX connections: 3pin XLR male / female

36 x 3 Watt

Size: 266 × 276 × 302mm

Weight: 9 kg

Every information is subject to change without prior notice

You can download the latest version of this user manual on our website: www.beglec.com

MODE D'EMPLOI

Channel Mode (Mode canal)

Sound mode (mode son):

At50 At51 At52 Self-Test

At50 At51 At52 Self-Test

Home Position Adjust:
