USER MANUAL FFCM1134L FRIGIDAIRE

Before Operating... 8 Ÿ3

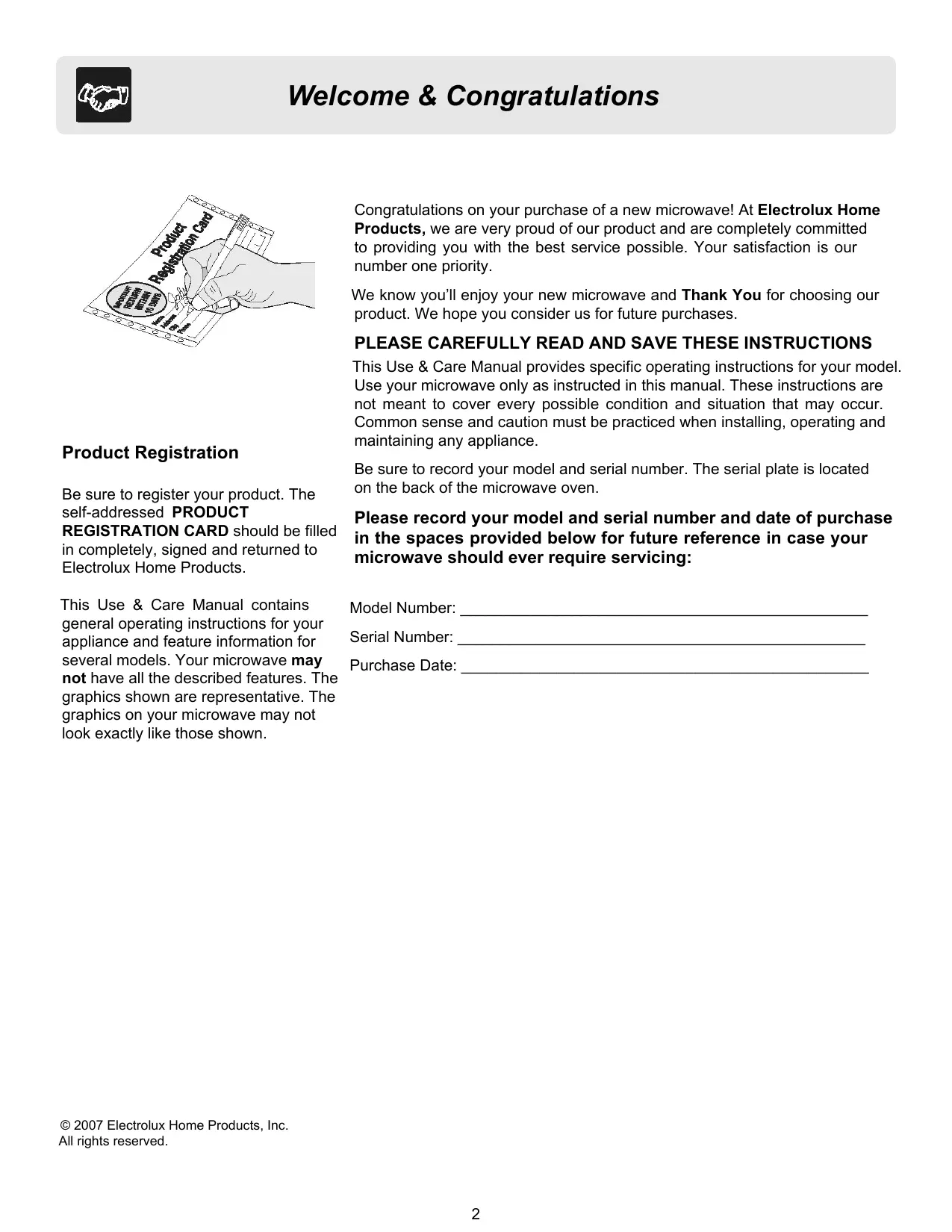

Product Registration Be sure to register your product. The self-addressed PRODUCT REGISTRATION CARD should be filed in completely, signed and returned to Electrolux Home Products. This Use & Care Manual contains general operating instructions for your appliance and feature information for several models. Your microwave may not have all the described features. The graphics shown are representative. The graphics on your microwave may not look exactly like those shown. © 2007 Electrolux Home Products, Inc. All rights reserved. Welcome & Congratulations Congratulations on your purchase of a new microwave! At Electrolux Home Products, we are very proud of our product and are completely committed to providing you with the best service possible. Your satisfaction is our number one priority. We know you'll enjoy your new microwave and Thank You for choosing our product. We hope you consider us for future purchases. PLEASE CAREFULLY READ AND SAVE THESE INSTRUCTIONS This Use & Care Manual provides specific operating instructions for your model. Use your microwave only as instructed in this manual. These instructions are not meant to cover every possible condition and situation that may occur. Common sense and caution must be practiced when installing, operating and maintaining any appliance. Be sure to record your model and serial number. The serial plate is located on the back of the microwave oven. Please record your model and serial number and date of purchase in the spaces provided below for future reference in case your microwave should ever require servicing: Model Number: Serial Number: Purchase Date:

Important Safety Instructions What You Need to Know About Safety Instructions Warning and Important Safety Instructions appearing in the Use & Care Guide are not meant to cover all possible conditions and situations that may occur. Common sense, caution, and care must be exercised when installing, maintaining or operating a microwave. Always contact your dealer, distributor, service agent or manufacturer about problems or conditions you do not understand. Recognize Safety Symbols, Words, Labels À DANGER DANGER - Immediate hazards which WILL result in severe personal injury or death. À WARNING WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death. À CAUTION CAUTION - Hazards or unsafe practices which COULD result in minor personal injury.

À CAUTION To avoid personal injury or property damage, observe the following:

Do not deep fat fry in oven. Fat could overheat and be hazardous to handle. Do not cook or reheat eggs in shell or with an unbroken yolk using microwave energy. Pressure may build up and erupt. Pierce yolk with fork or knife before cooking. Pierce skin of potatoes, tomatoes, and similar foods before cooking with microwave energy. When skin is pierced, steam escapes evenly. Do not operate oven without load or food in oven cavity. Use only popcorn in packages designed and labeled for microwave use. Popping time varies depending on oven wattage. Do not continue to heat after popping has stopped. Popcorn will scorch or burn. Do not leave oven unattended. Do not use regular cooking thermometers in oven. Most cooking thermometers contain mercury and may cause an electrical arc, malfunction, or damage to oven. Do not use metal utensils in oven. Never use paper, plastic, or other combustible materials that are not intended for cooking. When cooking with paper, plastic, or other combustible materials, follow manufacturer’s recommendations on product use. Do not use paper towels which contain nylon or other synthetic fibers. Heated synthetics could melt and cause paper to ignite. Do not heat sealed containers or plastic bags in oven. Food or liquid could expand quickly and cause container or bag to break. Pierce or open container or bag before cooking. To avoid pacemaker malfunction, consult physician or pacemaker manufacturer about effects of microwave energy on pacemaker.

SAVE THESE INSTRUCTIONS

À WARNING To avoid risk of electrical shock or death, this oven must be grounded and plug must not be altered. Grounding Instructions Oven MUST be grounded. Grounding reduces risk of electric shock by providing an escape wire for the electric current if an electrical short occurs. This oven is equipped With a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. See Installation Instructions. Consult a qualified electrician or servicer if grounding instructions are not completely understood, or if doubt exists as to whether the oven is properly grounded. Do not use an extension cord. If the product power cord is too short, have a qualified electrician install a three-slot receptacle. This oven should be plugged into a separate 60 hertz circuit with the electrical ratting as shown in specifications table. When the oven is on a circuit with other equipment, an increase in cooking times may be required and fuses can be blown. Microwave operates on standard household current, 110- 120V. a. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord. b. Extension cords may be used if care is exercised in their use. c. If an extension cord is used:

1. The marked electrical rating of the cord set or

extension cord set should be at least as great as the electrical rating of the appliance.

2. The extension cord must be a grounding-type 3-

3. The longer cord should be arranged so that it will

not drape over the countertop or tabletop where it can be tripped over, snagged, or pulled on unintentionally. If you use an extension cord, the interior light may flicker and the blower sound may vary when the microwave oven is on. Cooking times may be longer, too. Important Safety Instructions Federal Communications Commission Radio Frequency Interference Statement (U.S.A. Only) This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio and television reception. It has been type tested and found to comply with limits for ISM Equipment, pursuant to part 18 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following: + Reorient the receiving antenna of the radio or television. + Relocate the microwave oven with respect to the receiver. + Move the microwave oven away from the receiver. + Plug the microwave oven into a different outlet so that the microwave oven and the receiver are on different branch circuits. The manufacturer is not responsible for any radio or television interference caused by unauthorized modification to this microwave oven. It is the responsibility of the user to correct such interference.

SAVE THESE INSTRUCTIONS

Important Safety Instructions À Precautions to Avoid FSAZEESSSSSE Possible Exposure to Excessive Microwave Energy Adhere to the following precautions: + _ DO NOT attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlock switches. + _ DO NOT place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. + DO NOT use any cleaning materials on the oven door gasket. Doing so could cause damage. + DO NOT operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to:

2. hinges and latches (broken or loosened),

3. door seals and sealing surfaces.

+ Oven should not be be adjusted or repaired by anyone except properly qualified service personnel. Radio Interference

1. Operation of the microwave oven may cause interference

to your radio, TV or similar equipment.

2. When there is interference, it may be reduced or eliminated

by taking the following measures:

1) Clean door and sealing surface of the oven

2) Reorient the receiving antenna of radio or television.

3) Relocate the microwave oven with respect to the receiver.

4) Move the microwave oven away from the receiver.

5) Plug the microwave oven into a different outlet so that

microwave oven and receiver are on different branch circuits. Liquids such as water, coffee, or tea are able to be overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD

RESULT IN VERY HOT LIQUIDS SUDDENLY

BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. To reduce the risk of injury to persons:

1. Do not overheat the liquid.

2. Stir the liquid both before and halfway through

3. Do not use straight-sided containers with narrow

4. After heating, allow the container to stand in the

microwave oven for a short time before removing the container.

5. Use extreme care when inserting a spoon or other

utensils into the container.

SAVE THESE INSTRUCTIONS

Important Safety Instructions À WARNING When using electrical appliances, basic safety precautions should be followed to reduce the risk of burns, electric shocks, fire or injury to persons or exposure to excessive microwave energy.

3. This appliance must be grounded. Connect only to

properly grounded outlet. See GROUNDING INSTRUCTIONS found on Page 4

4. Install or locate this oven ONLY in accordance with the

installation instructions in this Use & Care Manual.

5. Some products such as whole eggs and sealed

containers -for example, closed jars -are able to explode and SHOULD NOT be HEATED in this oven.

6. Use this oven ONLY for its intended use as described in

this Use & Care Manual. Do not use corrosive chemicals or vapors in this oven. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use.

8. DO NOT operate this oven if it has a damaged cord or

power plug, if it is not working properly, or if it has been damaged or dropped.

9. This oven, including power cord, must be serviced

ONLY by qualified service personnel. Special tools are required to service oven. Contact nearest authorized service facility for examination, repair, or adjustment. 10.D0O NOT cover or block any vents or openings on the oven. 11.D0 NOT store this oven outdoors. DO NOT use this appliance near water -for example, near a kitchen sink, in a wet basement, near a swimming pool or similar locations. 12.D0 NOT immerse cord or plug in water. 13.Keep cord AWAY from HEATED surfaces. 14.D0 NOT let cord hang over edge of table or counter. 15.Review the door cleaning instructions in the Care & Cleaning section. 16.To avoid the risk of fire in the oven cavity, injury to persons, or exposure to excessive microwave energy. a. DO NOT overcook food. Carefully attend oven when paper, plastic or other combustible materials are placed inside the oven to facilitate cooking. b. Remove wire twist-ties from paper or plastic bags before placing bag in oven. c. If materials inside the oven ignite, keep oven door CLOSED, turn oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. d. DO NOT use this oven cavity for storage. DO NOT leave paper products, cooking utensils or food in the cavity when not in use. 17.Liquids such as water, coffee, or tea are able overheated beyond the boiling point without appearing to be boiling due to surface tension of the liquid. Visible bubbling or boiling when the container is removed from the microwave oven is not always present. THIS COULD RESULT IN VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID. 18.D0 NOT heat baby bottles in oven. 19.Baby food jars shall be open when heated and contents stirred or shaken before consumption, in order to avoid burns. 20.D0 NOT use this oven for commercial purposes. It is made for household use only.

SAVE THESE INSTRUCTIONS

Features & Specifications Microwave features Window Door assembly Interlock system Tumtable Tumtable Turntable Control ring Shaft glass panel assembly tray Control panel (1) Auto Cook (2) Auto Reheat ES G) Defrost (4) Power Level/Cook Time (10 power levels available) (5) Timer

cook REHEAT DEFROST L__ © (6) Popcorn (7) Beverage 1 2 3 (8) Baked Potato @ easy set (9) Fresh Veggies 4 5 6 + (10) START/+30 sec. : Begin cooking time or add time to cooking. 7 8 9 (11) Safety Lock © ___}_pPowEr 0 TIMER © (12) Clock LEVEL (13) Easy Set (6 instant settings) © ——+ POPCORN BEVERAGE+— (©) (14) Number Pads (0-9) Go) — START (15) STOP : Before cooking: clears all previous settings. BAKED +30 sec FRESH During cooking: press this pad once to pause cooking © —+ s0rar0 VESGIS l— (©) function, press this pad twice to cancel cooking and any other entries. + SAFETY (@] LOCK STOP CLOCK — (@)

Before Operating Learn more about your microwave oven À CAUTION 1. Touch clock pad once. + To avoid risk of personal injury or property damage, do not operate the microwave oven empty. Setting the clock Example: setting clock display for 9:00: CLOCK

2. Enter time using number pads.

+ To avoid risk of personal injury or property damage, do not use stoneware, aluminum foil, metal utensils, or

3. Touch clock pad again.

metal trimmed utensils in the microwave oven. CLOCK Microwave utensil guide Use Do not use + Oven proof glass (specifically treated for high intensity heat): Utility dishes, loaf dishes, pie plates, cake plates, liquid measuring cups, casseroles and bowls without metallic trim. + China: Bowls, cups, serving plates and platters without metallic trim. + Plastic: Plastic wrap (as a cover) - lay the plastic wrap loosely over the dish and press it to the sides. Vent plastic wrap by turning back one edge slightly to allow excess steam to escape. The dish should be deep enough so that the plastic wrap will not touch the food. Use plastic dishes, cups, semi-rigid freezer containers and plastic bags for short cooking times. Use these with care because the plastic may soften from the heat of the food. + Paper: Paper towels, waxed paper, paper napkins and paper plates with no metallic trim or design. Look for the manufacturer's label for any special instructions for use in the microwave oven. Metal utensils: Metal shields the food from microwave energy and produces uneven cooking. Also, avoid metal skewers, thermometers or foil trays. Metal utensils can cause arcing, which can damage your microwave oven. Metal decoration: Bowls, cups, serving plates and platters without metallic trim. Aluminum foil: Avoid large sheets of aluminum foil because they hinder cooking and may cause harmful arcing. Use small pieces of foil to shield poultry legs and wings. Keep ALL aluminum foil at least 1 inch from the side walls of the oven cavity and door of the microwave. Wood: Wooden bowis and boards will dry out and may split or crack when you use them in the microwave oven. Baskets made of wood will react in the same way. Tightly covered utensils: e sure to leave openings for steam to escape from covered cookware. Pierce plastic pouches of vegetables or other food items before cooking. Tightly closed pouches may explode. Brown paper: Avoid using brown paper bags. They absorb heat and can burn. Flawed or chipped cooking utensils: Any utensil that is cracked, flawed or chipped may break in the oven. Metal twist ties: Remove metal twist ties from plastic or paper bags. They become hot and could cause a fire.

Manual Operation Setting the timer Example: setting timer for 5 minutes

1. Touch Timer pad once.

2. Enter desired time using number pads.

(timer may be set up to 99 minutes and 99 seconds).

When the timer has reached the end of set time, you will hear beep alerts indicating the timer has run out. Safety Lock You may lock the control panel to prevent the microwave from being accidentally started or used by children. The safety lock feature is very useful when cleaning the control panel. The lock will prevent accidental programming when wiping the control panel. Example: to set the safety lock ON: Touch and hold the Safety Lock pad for more than 3 seconds. The lock icon will appear in the display window with 1 beep. hold for 3 seconds Example: to change the safety lock from ON to OFF Touch and hold the Safety Lock pad for more than 3 seconds. The lock icon will disappear in the display window with 1 beep. hold for 3 seconds Using Easy Set

Microwave heating or cooking may be quickly set at 100% power level for 1, 2, 3, 4, 5 or 6 minutes. Use the number keys 1, 2, 3, 4, 5 or 6 to choose the desired minutes of cook time (this option Will only work using the 1, 2, 3, 4, 5 or 6 numeric pads.) Example: to quickly heat for 2 minutes at 100% power: Touch number pad for desired minute(s). The 2 microwave will start after 1 second delay. Heating with high power level Example: to heat for 5 minutes and 30 seconds at 100% power:

1. Use the number pads to enter desired

heating time (cook time may be set up to 99 minutes and 99 seconds).

NOTE: For time sets that start with numbers 1 - 6, the remaining numbers must be entered within 1 second from the first key press, otherwise the Easy Set time will be used.

2. Touch START/+30sec pad.

When heating has finished, you will hear 5 beeps and the time of day will display. Heating with lower power levels Using the highest power level to heat foods does not always give the best results when some types of food need slower cooking, such as roasts, baked goods or custards. Your oven has nine other power levels you may Example: to heat for 4 minutes and 30 seconds at 70% power: POWER LEVEL

1. Press Power Level pad once for power

level 10 (100% power).

2. Use the number keys to change the power level

to 7. PL7 appears in the display (70 % power).

When heating has finished you will hear 5 beeps and the time of day will display.

Heating with multiple cooking stages For best results, some microwave recipes call for different power levels or different lengths of time for cooking. Your microwave may be set to change from one stage to another automatically (2 stages maximum). Example: to cook food for 3 minutes at 80%power and then 50% power for 6 minutes 30 seconds:

1. Press Power Level pad.

2. Use the number pads to enter power level

for the 1st stage. PL8 appears in the display (80% power).

4. Use the number pads to enter heating

time for the 1st stage (cook time may be set up to 99 minutes and 99 seconds).

5. Press START/+30 sec

6. Press Power Level for the 2nd stage

NOTE: Must be entered within 1-second from the last input otherwise it starts previous entry settimgs.

7. Use the number key to enter power level

for the 2nd stage. PL5 appears in the display (50% power).

9. Use the number pads to enter heating

time for the 2nd stage (cook time may be set up to 99 minutes and 99 seconds).

When heating has finished, you will hear 5 beeps and the time of day will display. NOTE:

1. The “Convenience operation” can't be set as one of

2. Ifthe 1st stage is the set defrost feature, the 2nd stage

can't be set to Defrost again. If one of the stages is weight defrost, that will be the 1st stage when cooking starts. Manual Operation Adding cook time (+30sec) This feature will let you quickly start 30 seconds cooking at a 100% power level. This feature may be used while cooking and with cook time remaining. Each press of this pad will add 30 seconds. Example: to add 1 minute of cook time at the power level of 100%: Press START/+30sec pad 2 times. NOTE: The “+30sec” function can't be set when using the “weight defrost” and “convenience operation” feature. Setting Defrost by Weight Example: to defrost 0.5 lbs. of food with the default power level with cook time determined automatically:

1. Press Defrost pad once for weight defrost. dEF1 will

appear in the display.

2. Use the number pads to enter weight of

food to defrost in pounds. You may enter weight from 0.5 to 7 lbs.

When defrosting has finished, you will hear 5 beeps and the time of day will display. NOTE: The weight amount must be a valid entry for this feature to start. À valid weight entry is 0.5 to 7 Ibs. A decimal point is assumed before the right-most digit. For example, enter 5 for 5 Ibs. and enter 50 for 5.0 lbs. Setting Defrost by Time Example: to defrost food with the default 30% power level for 5 minutes:

1. Press Defrost pad twice, dEF2 will appear in the

2. Use the number pads to enter desired

defrost time (defrost time may be set up to 99 minutes and 99 seconds).

When defrost has finished, you will hear 5 beeps and time of day will display.

Convenience Operation One Touch Popcorn À CAUTIO + DO NOT leave microwave oven unattended while pop- ping corn. The popcorn feature lets you pop 3 different commercially packaged microwave popcorn sized bags. Use the table below to determine the setting to use: Amount Press popcorn pad

1. Press POPCORN pad 2 times (refer to

2. Press START/+30 sec pad

The microwave will beep 5 times when finished. Important Information About Microwave Popcorn Feature

1. When selecting 3.0-3.5 ounces of

popcorn, it is suggested that you fold down a triangle on each corner of the bag before cooking. Refer to the picture at right.

2. When selecting 3.0-3.5 ounces of

popcorn, the beep will sound twice after two minutes and 30 seconds to tell you to open the oven door and position the bag in the center of the turntable. This is to ensure the popcorn bag can rotate successfully during microwave operation. Close the oven door, press START/+30 sec to continue cooking. (Only for 0.7 cu.ft ) NOTE: lf/when the popcorn bag expands and no longer rotates properly, please press STOP button once. Open the oven door and adjust the bag position to ensure even cooking. Close the oven door, press START/+30 sec to continue cooking. Baked Potato The potato feature cooks 1, 2, or 3 potatoes automatically (cooking times based on 8 to 24 oz.). Use the table below to determine the setting to use: Amount Press potato pad 1 potato (default)

Example: to cook 1 potato automatically.

1. Press baked potato pad (1, 2, or 3, times - refer to table

for correct quantity)

2. Press START/+30 sec pad.

The microwave will beep 5 times when finished. NOTE: + Before cooking, pierce potato with fork several times. + After cooking, let potatoes stand for 5 minutes. Beverage The beverage feature heats 1, 2, or 3 cups of beverage. Use the table below to determine the setting to use. Amount Press beverage pad 1 cup (120 ml) default

1. Press beverage pad (1,2,

or 3 times- refer to table to change number of servings).

2. Press START/+30 sec pad.

The microwave will beep 5 times when finished. Fresh Veggies The fresh vegetable feature cooks 1, 2, or 3 servings of vegetables automatically. Use the table below to determine the setting to use. Amount Press Fresh Veggie Pad 1 serving-4 oz. default 1 2 servings-8 oz. 2 3 servings-16 oz. 3

1. Press the Fresh Veggies pad (1, 2, or 3 times

The microwave will beep 5 times when finished.

Frozen Vegetables The frozen vegetable feature cooks 1, 2, or 3 servings of frozen vegetables automatically. Use the table below to de- termine the settings to use. Amount Numeric Pad 1 serving-4 oz. default setting 1 2 servings -8 oz. serving 2 3 servings-16 oz. serving 3

1. Press Auto Cook pad once. AC-1 appears in the

2. Press numeric pad according to the table above.

3. Press START/+30sec pad.

The microwave will beep 5 times when finished. Frozen Entree Convenience Operation Auto Cook Meat (some models) The meat feature cooks 1, 2, or 3 servings of meat automatically. Use the table below to determine the setting to use: Amount Numeric Pad 1 serving-4 oz. default 1 2 servings-8 oz. 2 3 servings-16 oz. 3

1. Press Auto Cook pad three times. AC-3 appears in the

The microwave will beep 5 times when finished. Seafood (some models) The seafood feature cooks 1, 2, or 3 servings of seafood automatically. Use the table below to determine the setting to use: Amount Numeric Pad 9 ounces 1 12 ounces 2 18 ounces 3 The frozen entree feature allows you to cook entrees that are 9, 12, or 18 ounces.

1. Press Auto Cook pad twice. AC-2 appears in the

The microwave will beep 5 times when finished. Bacon**per 1 slice bacon, cut in half (some models) The bacon feature cooks 1 (2 slices) or 2 (4 slices) of bacon automatically. Amount Numeric Pad 1 serving-8 oz. default 1 2 servings-12 oz. 2 3 servings-16 oz. 3

1. Press Auto Cook pad 4 times. AC-4 appears in the dis-

The microwave will beep 5 times when finished.

1. Press Auto Cook pad 5 times. AC-5 appears in the dis-

The microwave will beep 5 times when finished.

Convenience Operation Auto Reheat Pizza The Auto Reheat feature lets you reheat 1, 2, or 3 slices of pizza automatically (based on 4.0-14.0 oz. Portion). Use the table below to determine the setting

1. Press Auto Reheat pad 3 times. b-3 appears in the

Example: to reheat 4 oz of pizza automatically:

1. Press Auto Reheat pad once. b-1 appears in the

2. Press the numeric key pad to enter 1, 2, or 3 servings.

3. Press START/+30sec pad.

The microwave will beep 5 times when finished. Pasta The Auto Reheat Plate feature allows you to reheat 1 - 3 display.

2. Press numeric pad per the table.

Press START/+30sec pad. The microwave will beep 5 times when finished. Soup (some models) The soup feature cooks 1, 2, or 3 servings of soup automatically. Use the table below to determine the setting to use. servings of pasta. Amount Numeric Pad ** serving: Boiled pasta 4 oz. + Sauce 4 oz. : 1 serving-7 oz. (200 ml) 1 Amount Numeric Pad default setting 1 serving 1 2 servings-14 oz. (400 mi) 2 2 servings 2 3 servings-21 oz. (600 ml) 3 3 servings 3

1. Press Auto Reheat pad twice. b-2 .appears in the

The microwave will beep 5 times when finished.

1. Press Auto Reheat pad 4 times. b-4 appears in the

The microwave will beep 5 times when finished.

Cooking Charts Cooking meat in your microwave Be sure to place prepared meats on a microwave-safe roasting rack in a microwave-safe dish. Start cooking the meat fat side down and if necessary, use narrow strips of aluminum foil to shield any bone tips or thin meat areas. After cooking, check the temperature in several places before letting the meat stand the recommended time. Please note that the temperatures in the following charts are temperature at removal time; the temperature will rise during the standing period. Meat Power level Cook time Directions + Roast beef boneless | High (10) for + 12-17 min/lb. For Place roast beef fat-side down on roasting rack. (up to 4 lbs.) first 5 minutes, 160° F (Medium) Cover with wax paper. Turn over half way then medium (5) through cooking. Let stand * 10-15 minutes. + 14-19 min/lb. For 170° F (Well Done) + Roast pork boneless | High (10) for 15-20 min/lb. For 170° Place roast pork fat-side down on roasting rack. or bone-in first 5 minutes, F (Well Done) Cover with wax paper. Turn over half way (up to 4 lbs.) then medium (5) through cooking. Let stand * 10-15 minutes.

• Expect a 10° F rise in the temperature during the standing period. Meat Doneness Remove from oven After standing (10-15 min.) + Beef Medium 150° F 150° F Well Done 160° F 160° F + Pork Medium 150° F 150° F Well Done 160° F 160° F + Poultry Dark meat 170°F 170°F Light meat 160° F 160° F Cooking poultry in your microwave Be sure to place poultry on a microwave-safe roasting rack in a microwave-safe dish. Cover poultry with wax paper to prevent splattering. Use narrow strips of aluminum foil to shield any bone tips or thin meat areas, or areas that start to overcook. After cooking, check the temperature in several places before letting the meat stand the recommended time. Poultry Cook time / power level Directions + Whole chicken Cook time: 7-10 min. / Ib. Place chicken breast-side down on roasting rack. Cover with (up to 4 lbs.) 180° F dark meat wax paper. Turn over half way through cooking. Cook until 170° F light meat juices run clear and meat near bone is no longer pink. Let Power level: medium high (7) | stand for 5-10 min. + Chicken pieces Cook time: 7-10 min. / Ib. Place chicken bone-side down on dish, with thickest portions (up to 4 lbs.) 180° F dark meat toward the inside of dish. Cover with wax paper. Turn over 170° F light meat half way through cooking. Cook until juices run clear and meat Power level: medium high (7) | near bone is no longer pink. Let stand for 5-10 min. Cooking eggs in your microwave + Never cook eggs in the shell and never warm hard- ° Cook eggs just until set, they will become tough if cooked eggs in the shell; they can explode. : + __ Always pierce whole eggs to keep them from bursting.

Cooking Charts Suggested power levels for cooking The 11 power levels available with this microwave will help you to adjust to the power output best suited for the food type you are preparing. As with any food preparation in the microwave, it is best to follow the microwave instructions that are printed on food packaging. The table below provides suggested power levels for various types of food that you can be prepare in the microwave. Suggestions for getting the best results To help you achieve the best possible results from your microwave oven, read the following suggestions below; Power | Microwave Use to prepare when: level output 10 100% Boiling water High Cooking ground beef Making candy Cooking fresh fruits & vegetables Cooking fish & poultry Preheating browning dish Reheating beverages Cooking bacon slices Storage temperature Foods taken from the freezer or refrigerator take longer to cook than the same foods would at room temperature. Size Small pieces of food cook faster than large ones. Pieces similar in size and shape will cook more evenly when cooked together. For more even results, reduce the power levels when cooking large pieces of food. Natural moisture Very moist foods cook more evenly because microwave energy heats water molecules very efficiently. Stirring 9 90% + Reheating meat slices quickly + Saute onions, celery & green peppers 8 80% + Allreheating + _ Cooking scrambled eggs 7 70% + Cooking breads & cereal products + _ Cooking cheese dishes & veal + Cakes, muffins, brownies & cupcakes 6 60% + _ Cooking pasta 5 50% + Cooking meats & whole poultry + _ Cooking custard + Cooking spare ribs, rib roast & sirloin roast

4 40% + Cooking less tender cuts of meat + _ Reheating frozen packages foods 3 30% + Thawing meat, poultry & seafood + _ Cooking small quantities of food +_ Finish cooking casseroles, stew & some sauces. 2 20% + _ Softening butter & cream cheese + Heating small amounts of food 1 10% + Softening ice cream + Raise yeast dough 0 0% + _ To remove the odor of the oven

Stir foods such as casseroles and vegetable from the outside to the center to distribute the heat more evenly. This will allow the food to cook faster. Constant stirring is not necessary. Turn over items Turn over foods such as pork chops, roasts or whole cauliflower halfway through the cook time. This will help to expose all sides equally to microwave energy. Food placement Place delicate areas of food items, such as asparagus tips, toward the center of the turntable tray. Food arrangement Arrange unevenly shaped foods, such as chicken pieces or salmon, with the thicker or meatier parts toward the outside of the turntable tray. Let the food stand After removing the food from the microwave, cover the food with foil or a casserole lid and let it stand to finish cooking. This will help the food finish in the center and avoids overcooking the out edges. The length of stand time depends on the density and surface area of the food items. Wrappinq in paper towels or waxed paper Sandwiches and many other food types containing pre- baked bread should be wrapped prior to placing in the microwave to help prevent the food items fro drying out while heating.

Cooking Charts Convenience cooking suggestions Convenience category Amount Suggestions Popcorn 3.5 oz, Cook a single “microwave-only” bag of popcorn at a time. Use caution when

3.0 oz, removing and opening the hot popcorn bag from the oven. Let microwave

1.75 oz. | oven cool down at least 5 minutes before using again.

Baked Potato 1,2,3 Pierce each potato several times using a fork. Place on turntable in spoke- potatoes like fashion. After cooking, let stand for 3-5 minutes. Let oven cool for at 8, 16, 24 oz.| least 5 minutes before using again. Use the start/+30sec pad to increase reheat time for thick crust pizza. Beverage 123 Use a microwave-safe measuring cup or mug; do not cover. Place the Cups beverage in the microwave. After heating, stir well. Let oven cool for at least 120,240, | 5 minutes before using again. Beverages heated with the beverage 360 ml. category may be very hot. Remove the container with care. Fresh Veggies 1,2,3 Place fresh vegetables in a 17 - 2 qt. microwave-safe ceramic glass or Servings plastic dish and add % - 7 cup of water (depending on quantity and type). 4, 8, 16 oz. | Cover with lid or vented plastic wrap before cooking. After cooking, stir before standing. Use the start/+30sec pad to increase cook time when cooking dense vegetables such as carrots or broccoli spears. Let oven cool down at least 5 minutes before using again.

Cooking Charts Cooking vegetables in your microwave + __Vegetables should be washed just before cooking. Rarely is extra water needed. If dense vegetables such as potatoes, carrots and greens are being cooked, add about 4 cup of water. + Small vegetables (sliced carrots, peas, lima beans, etc.) will cook faster than larger vegetables. +__Whole vegetables, such as potatoes, acorn squash or corn on the cob, should be arranged in a circle on the turntable before cooking. The will cook more evenly if turned over halfway through cooking. +__ Always place vegetables like asparagus and broccoli with the stem ends pointing towards the edge of the dish and the tips toward the center. Cooking seafood in your microwave When cooking cut vegetables, always cover the dish with a lid or vented microwavable plastic wrap. Whole, unpeeled vegetables such as potatoes, squash, eggplant, etc., should have their skin pricked in several locations before cooking to prevent them from bursting. For more even cooking, stir or rearrange whole vegetables halfway through the cook time. Most of the time, the denser the food the longer the required standing time. For example, a baked potato should stand for 5 minutes before serving, while a dish of peas may be served immediately. Place fish on a microwave-safe roasting rack in a microwave-safe dish. Be sure to always cook fish until it flakes easily With a fork. Use a tight cover to steam fish; a lighter cover of wax paper or paper towel provides less steaming. And be sure not to overcook fish; check it for doneness at a minimum cooking time before cooking longer. Seafood Cook time/power level | Directions Fish steaks gook ime: 1 1 rin-lb. Arrange fish on roasting rack with meaty portions towards the outside of rack. Up to 1% lbs. D evel: med-nig Cover with wax paper. Turn over and rearrange halfway through cook time. (7) Cook until fish flakes easily with fork. Let stand 3-5 mins. Fish fillets Cook time: 4-8 min./Ib. | arrange filets in a baking dish, turning any thin pieces under. Cover with wax Up to 1% lbs. power level: med-high paper. If over 2 inch thick, turn over and rearrange halfway through cook @) time. Cook until fish flakes easily with fork. Let stand 2-3 mins. Shrimp Cook time: 4-62 min/lb.| Arrange shrimp in a baking dish without overlapping or layering. Cover with Up to 1% lbs. D level: med-high | wax paper. Cook until firm and opaque, stirring 2 or 3 times. Let stand 5 mins.

Defrosting tips +. Whenusingthe defrost weight feature, the weight entered should always be (valid entries are from + Use both defrost weight and defrost time features for raw food items only. Defrosting gives best results when food to be thawed is a minimum of 0°F (taken directly from a true freezer). Ifthe food has been stored in a refrigerator-freezer that does not maintain a temperature of 5° F or below, always program a lower food weight or lower cook time to prevent cooking the food. + _lfthe frozen food is stored outside the freezer for up to 20 minutes, enter a reduced cook time or weight. Cooking Charts The shape of the package will alter the defrosting time. Shallow rectangular food packets defrost more quickly than a deep frozen block of food. Separate pieces as they begin to defrost. Separated frozen pieces of food defrost better. Shield warm areas of food with small pieces of foil if they start to become warm. You may use small pieces of aluminum foil to shield food items like chicken wings, leg tips and fish tails, but do not allow the foil to touch the oven cavity walls when defrosting. Defrosting suggestions for meats For best results, please read these suggestions when defrosting meats.. Meat Normal amount | Suggestions Roast beef or pork 2.5to6lbs. Start with the food placed fat side down. After each stage, turn the food (40 to 96 oz.) over and shield any warm portions with narrow strips of aluminum foil. Let stand, covered for 15-30 minutes. Steaks, chops or fish 0.5 to 3 lbs. After each stage, rearrange the food. lfthere are any warm orthawed (8 to 48 oz.) portions of food, shield them with narrow flat pieces of aluminum foil. Remove any pieces of food that are nearly defrosted. Let stand, covered for about 5 to 10 minutes. Ground meat 0.5 to 3 lbs. After each stage, remove any pieces of food that are nearly defrosted. (8 to 48 oz.) Let stand, covered with foil for 5 to 10 minutes. Whole chicken (40 to 96 oz.) Remove giblets before freezing poultry. Start defrosting with the breast 2.5to6 lbs. side down. After the 1st stage, turn the chicken over and shield any warm portions with narrow strips of aluminum foil. After the 2nd stage, again shield any warm portions with narrow strips of aluminum foil. Let stand, covered, for 30 to 60 minutes in the refrigerator. Chicken pieces 0.5 to 3 lbs. After each stage, rearrange or remove any pieces of food that are (8 to 48 oz.) nearly defrosted. Let stand for 10-20 minutes.

Care & Cleaning À Cleaning suggestions For best performance and for safety reasons, keep the + __ Wash the oven door window with very mild soap oven clean inside and outside. Take special care to keep and water. Be sure to use a soft clean cloth to avoid the inner door panel and oven from frame free of food and scratching. grease build-up. +__ If steam accumulates inside or outside the oven Never use rough scouring powder or pads on the door, wipe with a soft cloth. Steam can accumulate microwave. Wipe the microwave oven inside and out with a when operating the oven in high humidity and in no soft cloth and warm (not hot) mild detergent solution. Then way indicates microwave leakage. rinse and wipe completely dry. + Never operate the oven without food in the oven Wipe spatters immediately with a wet paper towel, cavity; this can damage the magnetron tube or especially after cooking greasy foodbs like chicken or bacon. glass tray. You may wish to leave a cup of water standing inside the oven when it is not in use to Clean your microwave oven weekly or more often, if prevent damage if the oven is accidentally turned on. Follow these instructions to clean and care for your microwave oven: +__ Keep the inside (cavity) of the oven clean. Food particles and spilled liquids can stick to the oven walls, causing the oven to wok less efficiently. +__ Wipe up spills immediately. Use a damp, clean cloth and mild soap. DO NOT use harsh detergents or abrasive cleaners. +__ To help loosen baked-on food particles or liquids, heat 2 cups of water (add the juice of 1 lemon if you desire to keep the oven fresh smelling) in a 4 cup measuring glass at High power for 5 minutes or until boiling. Let stand in oven cavity for 1 or 2 minutes. + __ Remove the glass turntable tray from the oven when cleaning the oven cavity or tray. To prevent the glass turntable from breaking, handle with care and do not put it in water immediately after cooking. Wash the turntable tray in warm sudsy water or in the dishwasher. + __ Clean the outside surface of the microwave with soap and a clean damp cloth. Dry with a clean soft cloth. To prevent damage to the operating parts of the oven, do not let water seep into any vents or openings.

Troubleshooting guide If you have a problem you cannot solve, please do not hesi- tate to call our service line: Questions or for Service Call: 1-866-312-2117 Before you call a repair person for your microwave, check the list below for possible easy solutions to some common problems. Neither the microwave’s display or oven operates - + __ Properly insert the plug into a grounded power outlet. +__Ifthe outlet is controlled by a wall switch, make sure the wall switch is turned on. + Remove the plug from the outlet, wait 10 seconds, then plug the microwave in again. + __ Reset the household circuit breaker or replace any blown fuses. + __ Plug a different appliance into the power outlet. If the other appliance will not operate, have a qualified electrician repair the outlet. + __ Plug the microwave into a different power outlet. The oven display works, but the oven will not operate - + _ Make sure the oven door is closed securely and completely. + __ Check to see if packing material or other materials are suck to the door seal. + Check for damage to the oven door. + __ Press the STOP pad twice and attempt to re-enter cooking instructions. + __ Plug a different appliance into the power outlet. If the other appliance will not operate, have a qualified electrician repair the outlet. + __ Plug the microwave into a different power outlet. Before You Call Solutions to Common Problems The power goes off before the cook time has elapsed - +__Ifthere has been a power interruption, remove the plug from the outlet; wait 10 seconds, then plug the microwave in again. If there was a power outage, the time indicator in the display will show 00:00. + __ Reset the clock and any cooking instructions Reset the household circuit breaker or replace any blown fuses. + __ Press the STOP pad twice and attempt to re-enter cooking instructions. Plug a different appliance into the power outlet. If the other appliance will not operate, have a qualified electrician repair the outlet. + __ Plug the microwave into a different power outlet. Food is cooking too slowly - + Make sure the ovenis on a separate 20 amp circuit line. Operating another appliance on the same circuit can cause a voltage drop. If necessary, move the microwave to its own circuit. You see sparks or arcing - + __ Remove any metallic utensils, cookware or metal ties from the oven cavity. If using aluminum foil, use only narrow strips and allow at least one inch between the foil and the interior oven walls. The turntable makes noises or sticks - + __ Clean the turntable, roller ring and oven cavity bottom. + __ Make sure the turntable and roller ring are positioned correctly. Using your microwave causes TV or radio interference - + __ Thisis similar to the interference caused by other small appliances, such as hair dryers. Move your microwave further away from other appliances, like your TV or Please note: If the oven is set to cook for more than 30 minutes at 100% power level, it will automatically adjust itself to a 80% power level after 30 minutes to avoid overcooking

Compact Appliance Warranty Information Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay costs, except as set forth below, associated with replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance With the provided instructions. Exclusions This warranty does not cover the following: Products with original serial numbers that have been removed, altered or cannot be readily determined. Product that has been transferred from its original owner to another party or removed outside the USA or Canada. Rust on the interior or exterior of the unit. Products purchased “as-is” are not covered by this warranty. Food loss due to any refrigerator or freezer failures. Products used in a commercial setting. NPYHEWRE Service calls which do not invoive malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions. Service calls to correct the installation of your appliance or to instruct you how to use your appliance. © æ Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air fiers, water filters, other consumables, or knobs,

handies, or other cosmetic parts. 11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,

cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine

Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

14. Labor costs after ninety (90) days from your original date of purchase incurred for product repair or replacement

as provided herein for carry-in appliances. DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES CUSTOMERS SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. If You Need Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be Service required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below. This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described
