FMTK2727AS - Microwaves FRIGIDAIRE - Free user manual and instructions

Product Type	Built-in microwave with trim kit
Brand	Frigidaire
Model	FMTK2727AS
Color	Stainless Steel (SS)
Required opening dimensions (H x W x D)	432-438 mm x 629-635 mm x 508 mm
Trim kit dimensions (H x W x D)	460 mm x 684 mm x 40 mm
Floor supported weight	Up to 45 kg (100 lb)
Power supply	120 V, 60 Hz, 15 A (estimated)
Microwave power	Approximately 1000 W (estimated)
Capacity	Approximately 1.5 cubic feet (estimated)
Main functions	Microwave cooking, defrost, auto cook, timer, clock
Power levels	10 levels (estimated)
Cavity material	Stainless steel with enamel coating (estimated)
Door	Opens left (estimated), glass
Interior light	Yes
Turntable	Yes, removable
Child lock function	Yes
Maintenance and cleaning	Clean the exterior with a soft damp cloth; do not use abrasive cleaners
Safety	Unplug before installation; do not remove warning labels
Parts included in the trim kit	Front frame, exhaust duct, screws A (11), screws B (4)
Repairability	Spare parts available through Frigidaire after-sales service
Warranty	Standard limited warranty (see manual)

Frequently Asked Questions - FMTK2727AS FRIGIDAIRE

How to correctly install the FMTK2727AS trim kit?

Follow the instructions provided in the manual: use the supplied exhaust duct and frame. Ensure the opening has the correct dimensions (height min 432 mm, max 438 mm; width min 629 mm, max 635 mm; depth min 508 mm). Secure the exhaust duct to the floor, then insert the microwave oven and screw on the frame.

What are the electrical requirements for this microwave?

The oven requires a 120 V, 60 Hz, 15 A power outlet. The outlet must not be located in the shaded area of the diagram (behind the oven). For an opening depth greater than 21 inches (533 mm), the outlet can be placed anywhere on the back wall.

Can I install this microwave above an electric wall oven?

Yes, provided there is a clearance of at least 7.6 cm (3 inches) between the wall oven and the microwave. The trim kit must only be installed above a single electric wall oven, self-cleaning or not.

How to clean the exterior of the microwave?

Use a soft damp cloth with a mild detergent. Avoid abrasive cleaners that could scratch the stainless steel surface. Dry immediately after cleaning.

What to do if the microwave does not heat?

Check that the appliance is properly plugged in and that the outlet works. Ensure the door is fully closed and the latches are engaged. If the problem persists, contact Frigidaire after-sales service.

How to use the defrost function?

Place the frozen food in a suitable dish. Select the defrost mode on the control panel and enter the weight. The microwave automatically adjusts the time and power. Turn the food halfway through if necessary.

Can I use metal containers in this microwave?

No, metal containers and utensils can cause sparks and damage the appliance. Use only microwave-safe dishes (glass, ceramic, suitable plastic).

How to set the clock and timer?

Press the 'Clock' button and use the number pad to enter the time. For the timer, press 'Timer', set the duration and confirm. The microwave will beep at the end.

What does the displayed error code mean?

Error codes indicate a malfunction. For example, 'E1' may indicate a temperature sensor issue. Refer to the troubleshooting section in the manual or contact technical support.

Where can I find spare parts for this model?

Spare parts such as the trim kit, screws, or turntable are available from Frigidaire's parts service. Visit the official website or contact an authorized dealer.

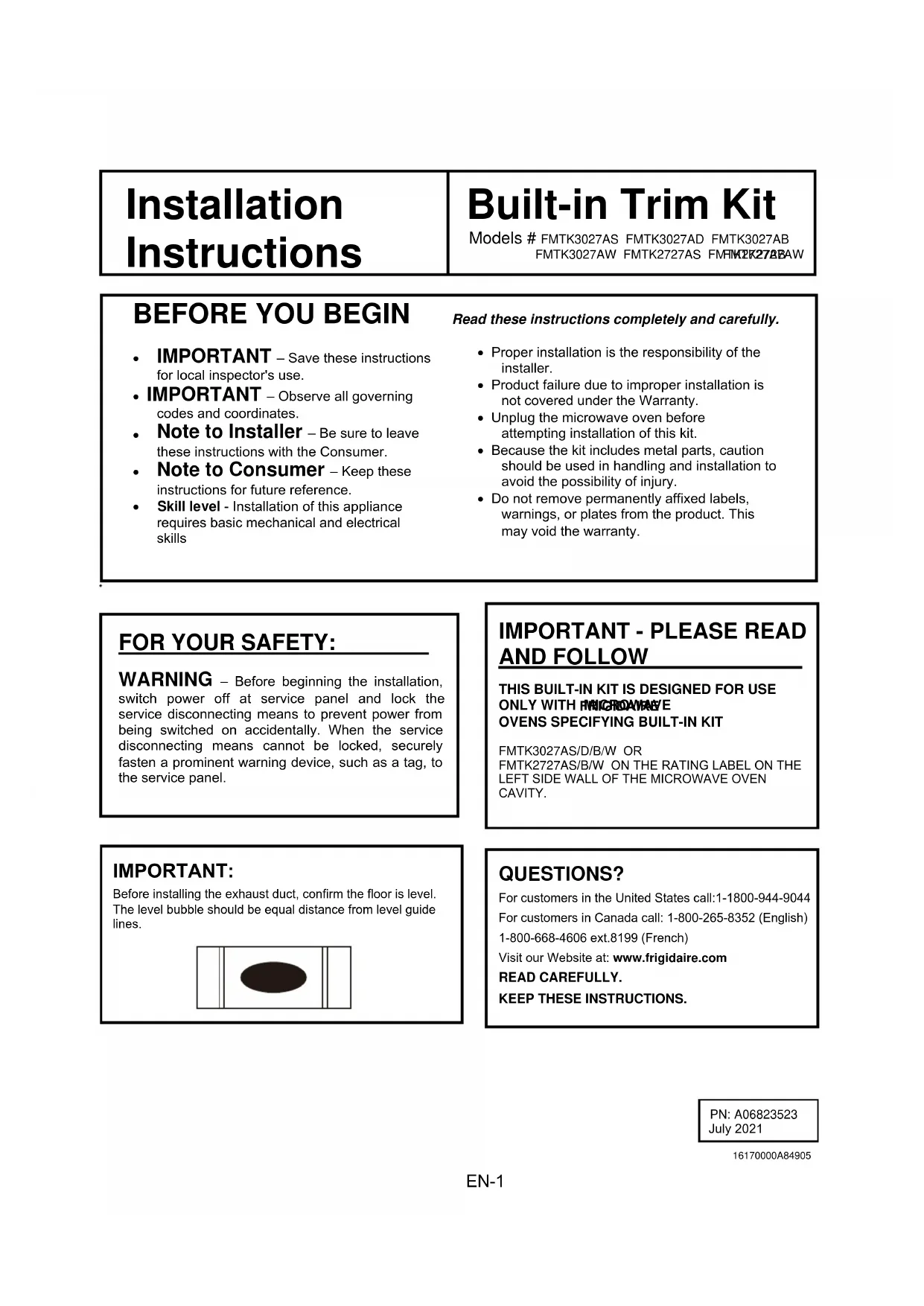

USER MANUAL FMTK2727AS FRIGIDAIRE

Installation Instructions

Built-in Trim Kit

Models # FMTK3027AS FMTK3027AD FMTK3027AB FMTK3027AW FMTK2727AS FMTK27BAW

BEFORE YOU BEGIN

• IMPORTANT - Save these instructions for local inspector's use.
• IMPORTANT - Observe all governing codes and coordinates.
  Note to Installer - Be sure to leave these instructions with the Consumer.
  Note to Consumer - Keep these instructions for future reference.
• Skill level - Installation of this appliance requires basic mechanical and electrical skills

Read these instructions completely and carefully.

• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• Unplug the microwave oven before attempting installation of this kit.
• Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.

FOR YOUR SAFETY:

WARNING - Before beginning the installation, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

IMPORTANT - PLEASE READ AND FOLLOW

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH FVNGROAAGE OVENS SPECIFYING BUILT-IN KIT

Before installing the exhaust duct, confirm the floor is level. The level bubble should be equal distance from level guide lines.

QUESTIONS?

For customers in the United States call:1-1800-944-9044
For customers in Canada call: 1-800-265-8352 (English)
1-800-668-4606 ext.8199 (French)
Visit our Website at: www.frigidaire.com
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.

PN: A06823523 July 2021

16170000A84905

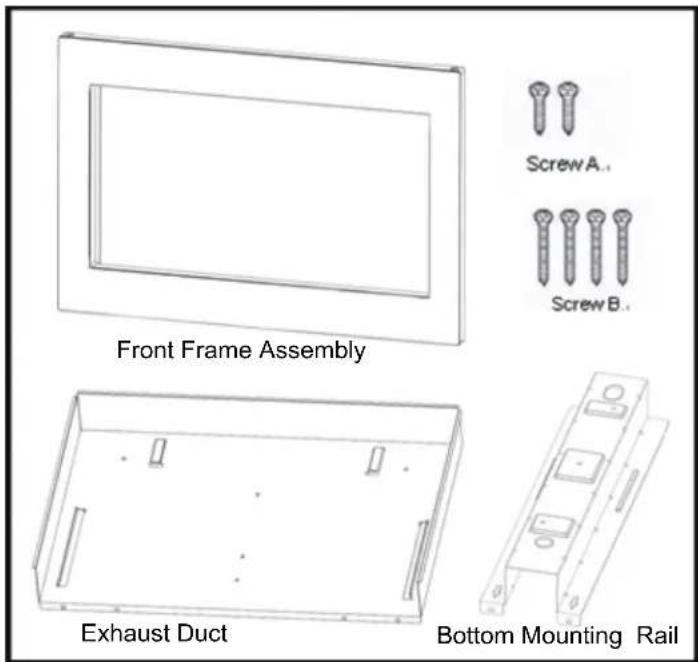

PARTS INCLUDED IN THE KIT

1. Front Frame Assembly-QTY 1
   2.Exhaust Duct - QTY 1

Bottom Mounting Rail - QTY 2

1. Screw A - QTY 11(3.9X8.0 mm)
   4.Screw B - QTY 4 (4.0× 20mm)

CHOOSING A LOCATION FOR YOUR MICROWAVE OVEN IF BUILT-IN

Built-In Trim Kit allows for the installation of microwaves listed below to be built into a cabinet or wall by itself or over an electric wall oven*.

Model Number	Color Descripon
FMBS2227AB Black M	crowave
FMTK3027AS SS		30'' trim kit
FMTK3027AD	Black SS	30'' trim kit
FMTK3027AB	Black 30''	trim kit
FMTK3027AW	White	30'' trim kit
FMTK2727AS SS		27'' trim kit
FMTK2727AB	Black 27''	trim kit
FMTK2727AW	White	27'' trim kit

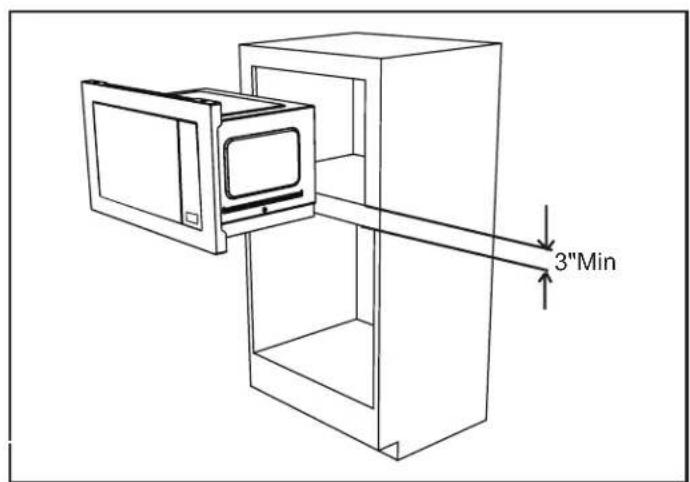

See Illustration 2 for proper location and when building above a wall oven. Carefully follow both the wall oven installation instructions and Electrolux's Built-in Kit instructions. If building over a wall oven, be sure the clearance between the wall oven and the microwave oven is a minimum of 3 inches.

*NOTE: Trim Kit and microwave can only be built-in over an electric self-clean or non-self-cleaning single cavity wall oven.

CABINET OR WALL CUTOUT

Cutout Dimensions

Height (A)
Minimum	17" (432 mm)
Maximum	17 1/4" (438 mm)
Width (B)
Minimum	24 3/4" (629 mm)
Maximum	25" (635 mm)
Depth (C)
Minimum	20" (508 mm)

Illustration 1

Trim Kit Overall Dimensions
	27” 30"
Height	18 1/8 (460 mm)	18 1/8 (460 mm)
Width	26 15/16 (684 mm)	29 15/16 (759 mm)
Depth	1 9/16 (40 mm)	1 9/16 (40 mm)

Illustration 2

Installation Instructions

Illustration 3

Illustration 4

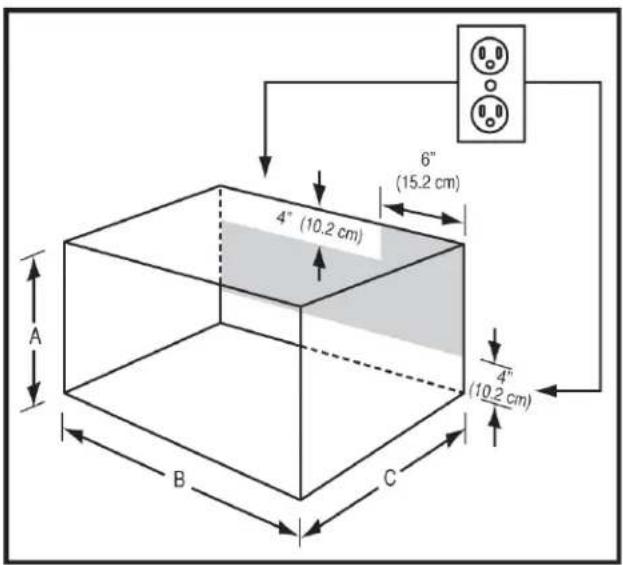

Outlet should NOT be in the shaded area as indicated on Illustration 3

NOTE 1:

The floor of the opening should be constructed of plywood strong enough to support the weight of the oven and floor load (approximately 100 pounds). The floor should be level for proper operation of the oven. Be sure to check the local building code as it may require that the opening be enclosed with side, ceiling and rear partition. The proper functioning of the oven does not require the enclosure.

EXHAUST DUCT ASSEMBLY

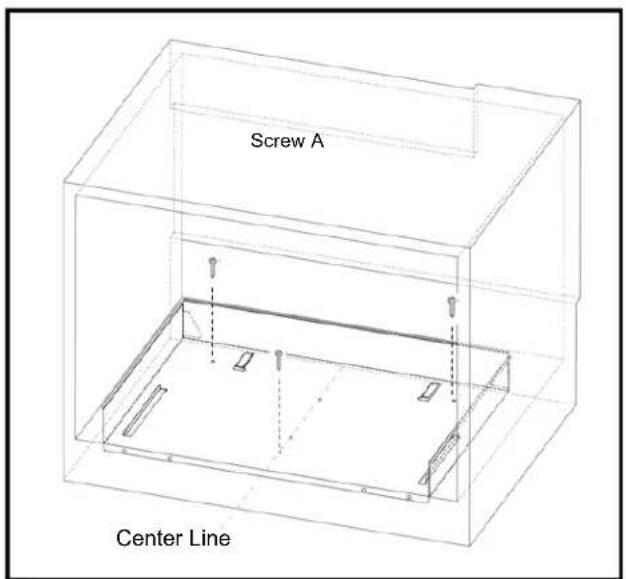

1. Draw a Central Line on floor. Place the Exhaust Duct in the opening, When the Exhaust Duct Assembly is in the opening correctly, the Center Line is in the middle of the Exhaust Duct Assembly. See Illustration 4.
2. Secure the Exhaust Duct Assembly with the three screws A.

IMPORTANT: Secure screws in outer hole. 3 screws are needed for exhaust duct assembly

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level. The level bubble should be equal distance from level guide lines.

Bottom Mounting Rail

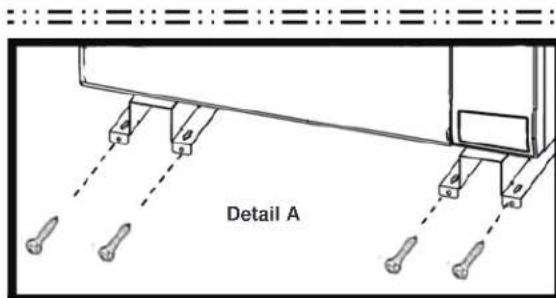

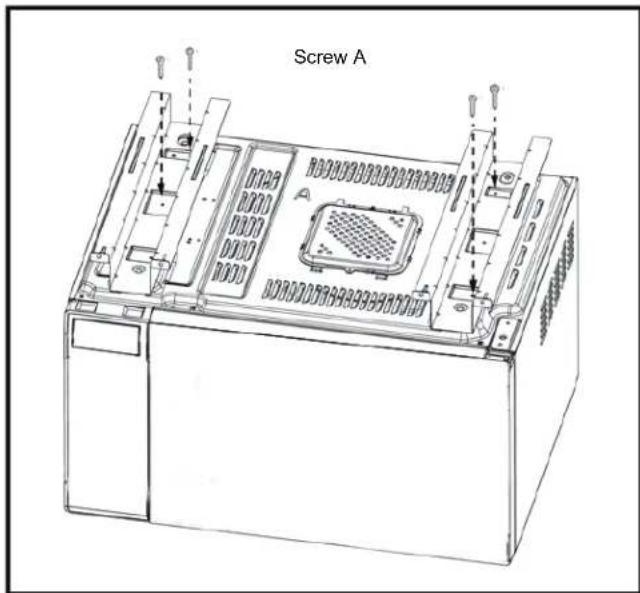

1. Turn microwave upside down so you are looking at oven bottom. Secure the bottom Mounting Rail on oven with four screws A. See Illustration 5 below.

Illustration 5

OVEN INSTALLATION

1. Place the oven adjacent to the wall or cabinet opening. Plug the power cord into the electrical outlet.
   IMPORTANT: Protect cabinet when placing on counter top.

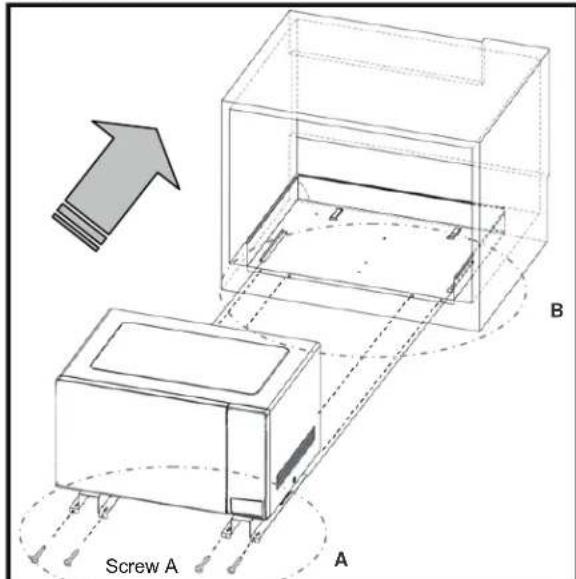

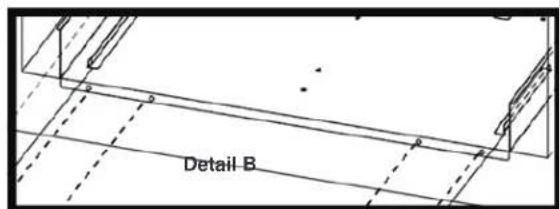

2. Carefully guide the assembled oven into the prepared opening. Slide the oven on the Exhaust Duct Assembly. See Illustration 6.
3. Secure the Exhaust Duct Assembly with the four screws A.

Illustration 6

FRAME INSTALLATION

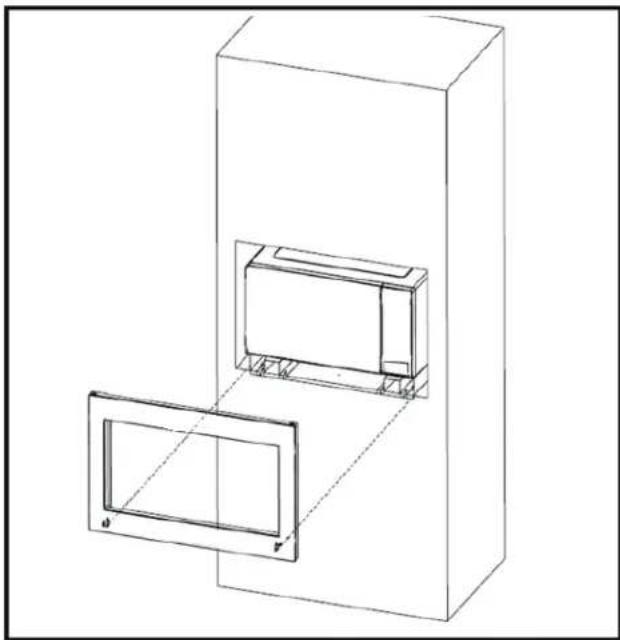

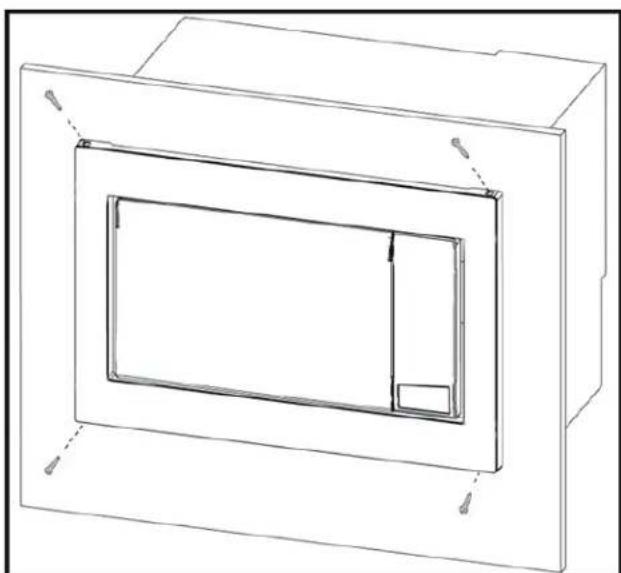

1. Position the FRAME ASSEMBLY to be square with the oven. Carefully place the FRAME ASSEMBLY on the oven. See Illustration 7.
2. Check that it is level and then secure with two Screws B. Secure the bottom portion of the FRAME ASSEMBLY with the two remaining Screws B. See Illustration 8.

Illustration 7
Illustration 8

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH FIMIGROVREVE OVENS SPECIFYING BUILT-IN KIT

FMTK3027AS/D/B/W OR

For customers in the United States call:1-1800-944-9044

For customers in Canada call: 1-800-265-8352 (English)
1-800-668-4606 ext.8199 (French)

Visit our Website at: www.frigidaire.com

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

PN:A06823523

July 2021

MONTAGE DU CONDUIT D'ÉVACUATION

Instructions d-installation
