Product Type	Built-in Microwave
Brand	Frigidaire
Model	FMTK3027AB
Color	Black
Oven Dimensions (H x W x D)	460 x 760 x 508 mm (18⅛ x 29⅞ x 20 inches)
Trim Kit Dimensions (H x W x D)	460 x 759 x 40 mm (18⅛ x 29⅚ x 1⅝ inches)
Oven Weight	Approximately 30 kg
Power Supply	120 V, 60 Hz, 1500 W
Microwave Power	1200 W
Interior Capacity	1.7 cu ft (48 L)
Main Functions	Quick cooking, auto defrost, timer, clock, child lock
Care and Cleaning	Clean with a damp cloth and mild detergent. Do not use abrasive cleaners.
Safety	Automatic child lock, automatic shut-off after cooking
Spare Parts and Repairability	Parts available on order from manufacturer. Repairability index not provided.
Package Contents	Microwave oven, trim kit, mounting screws, installation manual
Warranty	1 year

Frequently Asked Questions - FMTK3027AB FRIGIDAIRE

How to install the microwave in a cabinet?

Follow the instructions provided in the manual. Make sure the opening respects the minimum dimensions: height 432-438 mm, width 629-635 mm, depth at least 508 mm. First attach the exhaust duct to the floor, then install the oven by sliding it over the duct. Secure the front trim with the provided screws.

What is the required opening height?

The opening height must be between 432 mm (17 inches) and 438 mm (17¼ inches).

Can I use this microwave above a wall oven?

Yes, provided the wall oven is electric and not gas. A clearance of at least 7.6 cm (3 inches) must be allowed between the wall oven and the microwave.

How to clean the inside of the microwave?

Wipe the interior with a soft cloth dampened with soapy water. Do not use abrasive cleaners or metal scouring pads. Wipe the door and seals regularly.

What to do if the microwave does not heat?

First check that the appliance is properly plugged in and that the circuit breaker has not tripped. If the problem persists, contact Frigidaire after-sales service.

How to set the clock?

Press the Clock button. Use the numeric keypad to enter the current time. Press Clock again to confirm.

How to use the defrost function?

Place the frozen food in a suitable dish. Press Defrost and enter the weight of the food. The microwave automatically adjusts the defrost time.

Can I use metal utensils?

No, metal utensils can cause sparks and damage the appliance. Use only microwave-safe containers (glass, ceramic, microwave-safe plastic).

How to lock the control panel for child safety?

Press and hold the Lock button for 3 seconds. A lock symbol appears on the display. To unlock, repeat the same operation.

Where to find the serial number of my appliance?

The serial number is on a label on the back or side of the microwave. It is also indicated in the user manual.

USER MANUAL FMTK3027AB FRIGIDAIRE

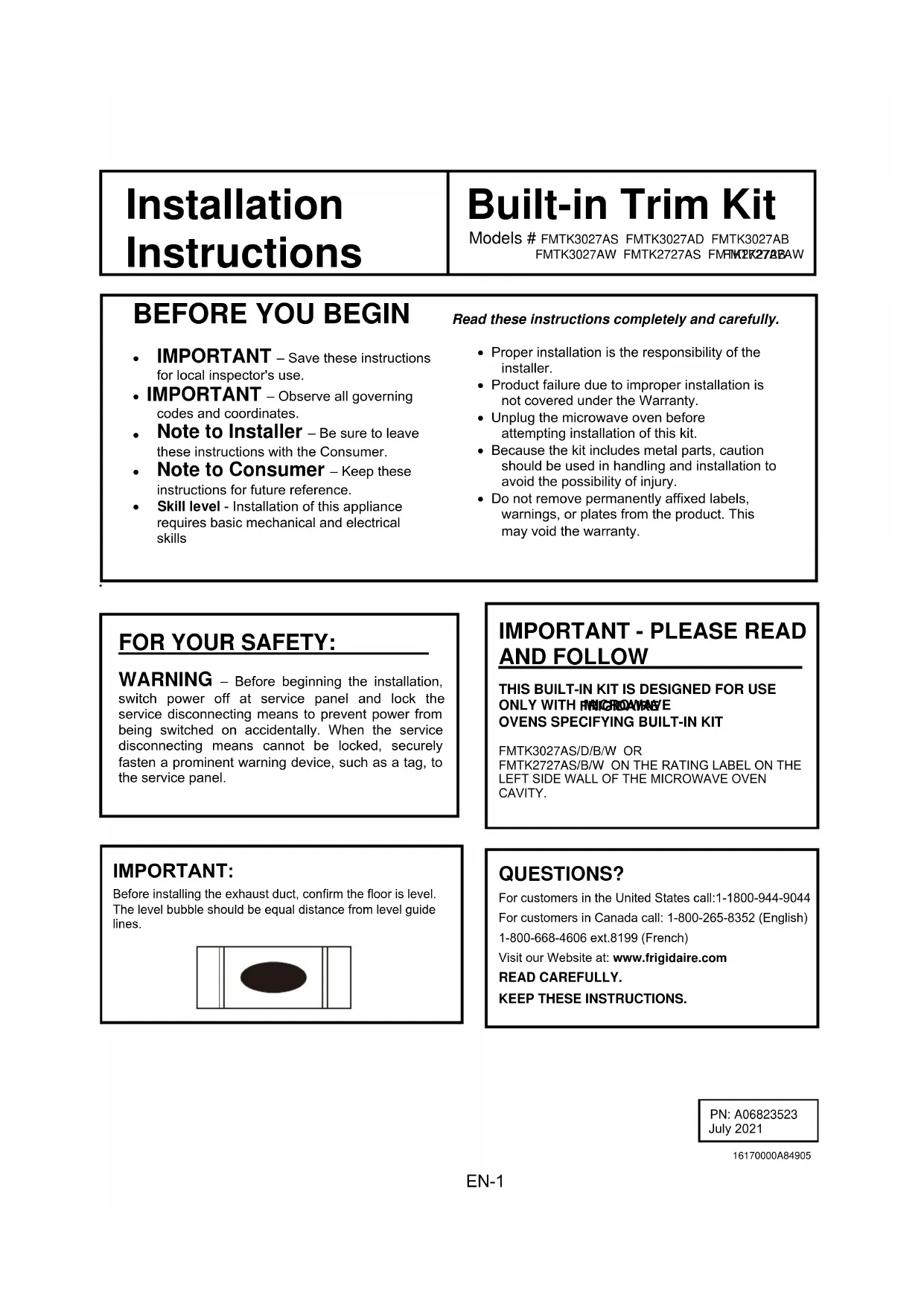

Installation Instructions

Built-in Trim Kit

Models # FMTK3027AS FMTK3027AD FMTK3027AB FMTK3027AW FMTK2727AS FMTK27BAW

BEFORE YOU BEGIN

IMPORTANT - Save these instructions for local inspector's use.
- IMPORTANT - Observe all governing codes and coordinates.
Note to Installer - Be sure to leave these instructions with the Consumer.
Note to Consumer - Keep these instructions for future reference.
- Skill level - Installation of this appliance requires basic mechanical and electrical skills

Read these instructions completely and carefully.

• Proper installation is the responsibility of the installer.
  Product failure due to improper installation is not covered under the Warranty.
• Unplug the microwave oven before attempting installation of this kit.
• Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.

FOR YOUR SAFETY:

WARNING - Before beginning the installation, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

IMPORTANT - PLEASE READ AND FOLLOW

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH FVNGROAAGE OVENS SPECIFYING BUILT-IN KIT

Before installing the exhaust duct, confirm the floor is level. The level bubble should be equal distance from level guide lines.

QUESTIONS?

For customers in the United States call:1-1800-944-9044
For customers in Canada call: 1-800-265-8352 (English)
1-800-668-4606 ext.8199 (French)
Visit our Website at: www.frigidaire.com
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.

PN:A06823523

July 2021

16170000A84905

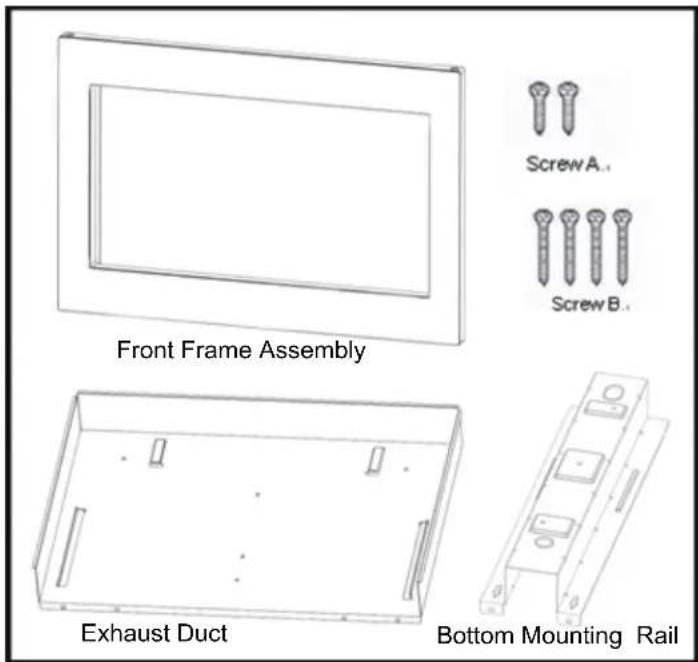

PARTS INCLUDED IN THE KIT

1. Front Frame Assembly-QTY 1
   2.Exhaust Duct - QTY 1

Bottom Mounting Rail - QTY 2

1. Screw A - QTY 11(3.9X8.0 mm)
   4.Screw B - QTY 4 (4.0× 20mm)

CHOOSING A LOCATION FOR YOUR MICROWAVE OVEN IF BUILT-IN

Built-In Trim Kit allows for the installation of microwaves listed below to be built into a cabinet or wall by itself or over an electric wall oven*.

Model Number	Color Descripon
FMBS2227AB Black M	crowave
FMTK3027AS SS		30'' trim kit
FMTK3027AD	Black SS	30'' trim kit
FMTK3027AB	Black 30''	trim kit
FMTK3027AW	White	30'' trim kit
FMTK2727AS SS		27'' trim kit
FMTK2727AB	Black 27''	trim kit
FMTK2727AW	White	27'' trim kit

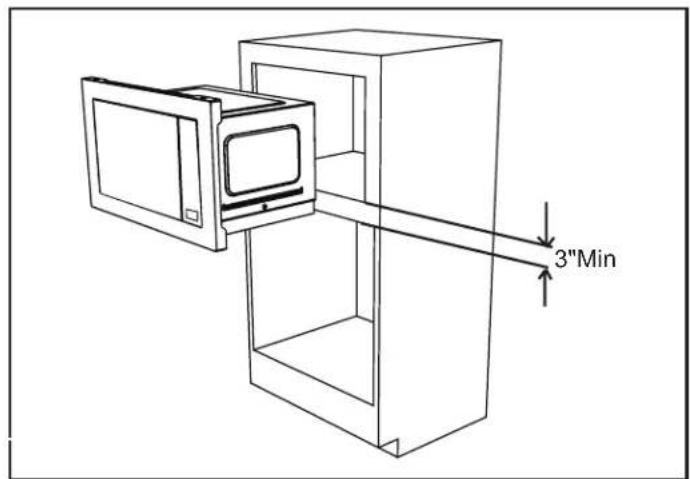

See Illustration 2 for proper location and when building above a wall oven. Carefully follow both the wall oven installation instructions and Electrolux's Built-in Kit instructions. If building over a wall oven, be sure the clearance between the wall oven and the microwave oven is a minimum of 3 inches.

*NOTE: Trim Kit and microwave can only be built-in over an electric self-clean or non-self-cleaning single cavity wall oven.

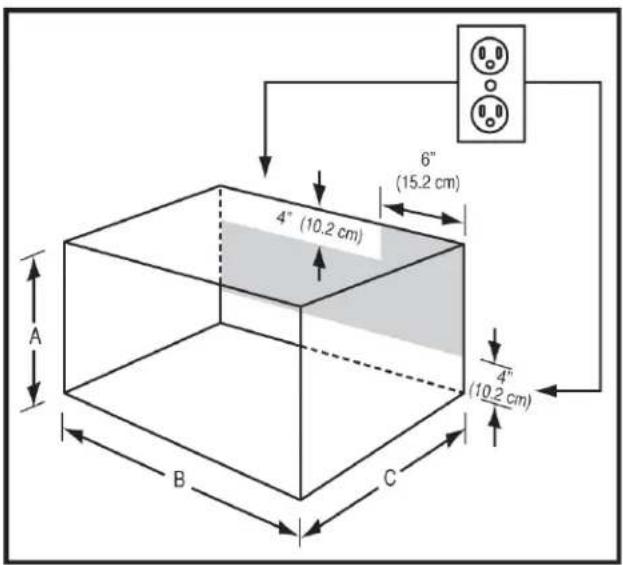

CABINET OR WALL CUTOUT

Cutout Dimensions

Height (A)
Minimum	17" (432 mm)
Maximum	17 1/4" (438 mm)
Width (B)
Minimum	24 3/4" (629 mm)
Maximum	25" (635 mm)
Depth (C)
Minimum	20" (508 mm)

Illustration 1

Trim Kit Overall Dimensions
	27” 30"
Height	18 1/8 (460 mm)	18 1/8 (460 mm)
Width	26 15/16 (684 mm)	29 15/16 (759 mm)
Depth	1 9/16 (40 mm)	1 9/16 (40 mm)

Illustration 2

Installation Instructions

Illustration 3

Illustration 4

Outlet should NOT be in the shaded area as indicated on Illustration 3

NOTE 1:

The floor of the opening should be constructed of plywood strong enough to support the weight of the oven and floor load (approximately 100 pounds). The floor should be level for proper operation of the oven. Be sure to check the local building code as it may require that the opening be enclosed with side, ceiling and rear partition. The proper functioning of the oven does not require the enclosure.

EXHAUST DUCT ASSEMBLY

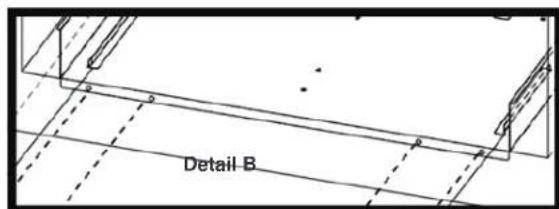

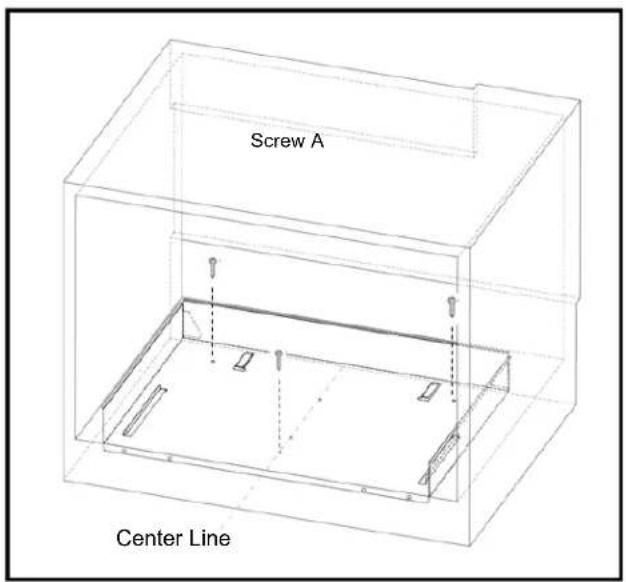

1. Draw a Central Line on floor. Place the Exhaust Duct in the opening, When the Exhaust Duct Assembly is in the opening correctly, the Center Line is in the middle of the Exhaust Duct Assembly. See Illustration 4.
2. Secure the Exhaust Duct Assembly with the three screws A.

IMPORTANT: Secure screws in outer hole. 3 screws are needed for exhaust duct assembly

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level. The level bubble should be equal distance from level guide lines.

Bottom Mounting Rail

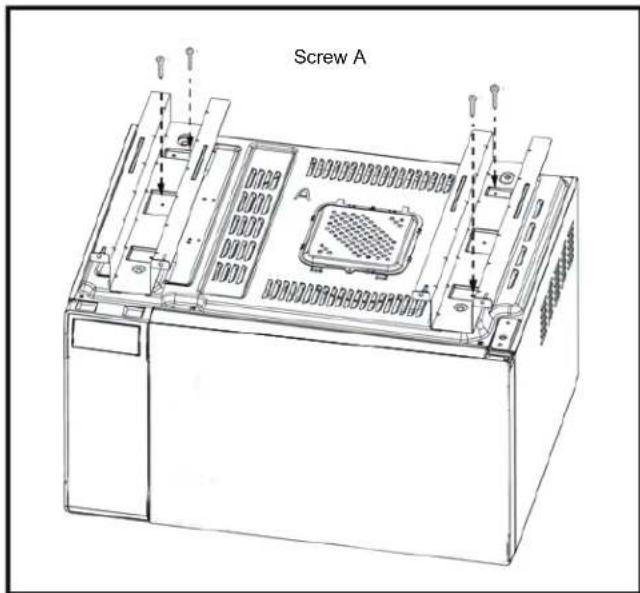

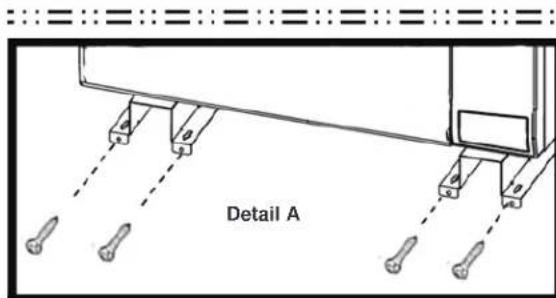

1. Turn microwave upside down so you are looking at oven bottom. Secure the bottom Mounting Rail on oven with four screws A. See Illustration 5 below.

Illustration 5

OVEN INSTALLATION

1. Place the oven adjacent to the wall or cabinet opening. Plug the power cord into the electrical outlet.
   IMPORTANT: Protect cabinet when placing on counter top.

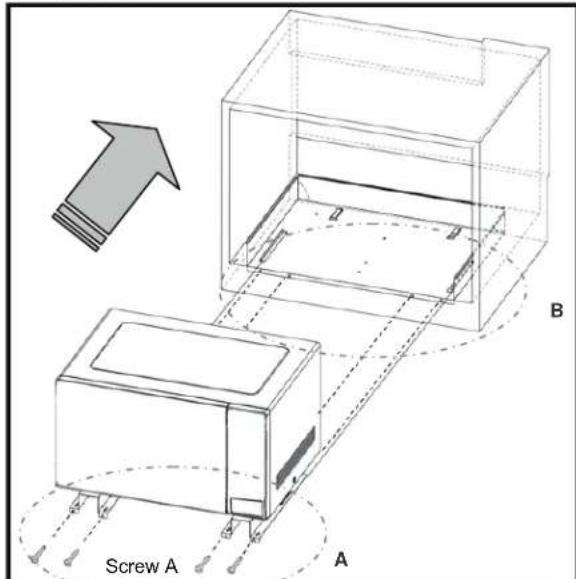

2. Carefully guide the assembled oven into the prepared opening. Slide the oven on the Exhaust Duct Assembly. See Illustration 6.
3. Secure the Exhaust Duct Assembly with the four screws A.

Illustration 6

FRAME INSTALLATION

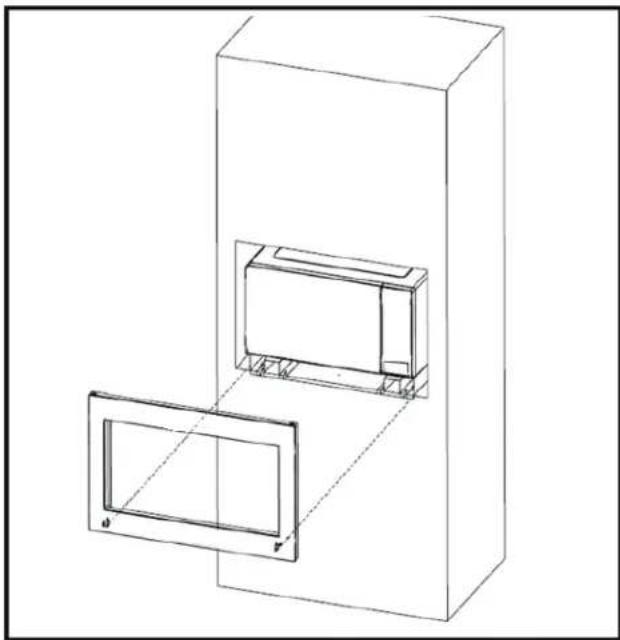

1. Position the FRAME ASSEMBLY to be square with the oven. Carefully place the FRAME ASSEMBLY on the oven. See Illustration 7.

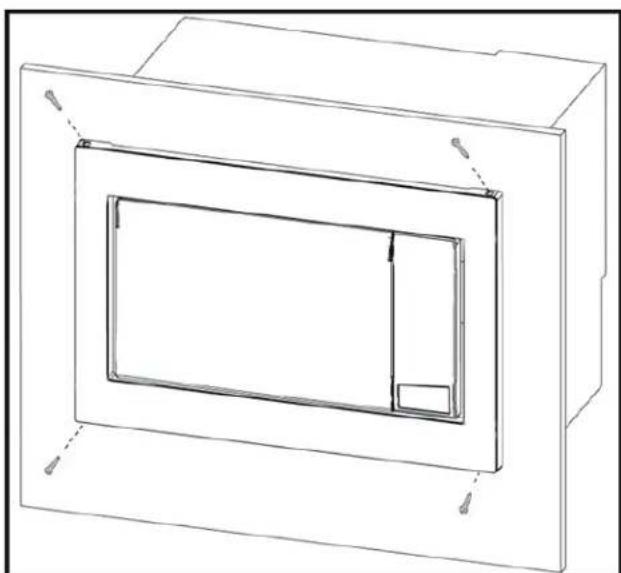

2. Check that it is level and then secure with two Screws B. Secure the bottom portion of the FRAME ASSEMBLY with the two remaining Screws B. See Illustration 8.

Illustration 7
Illustration 8

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH FIMIGROVREVE OVENS SPECIFYING BUILT-IN KIT

FMTK3027AS/D/B/W OR

For customers in the United States call:1-1800-944-9044

For customers in Canada call: 1-800-265-8352 (English)
1-800-668-4606 ext.8199 (French)

Visit our Website at: www.frigidaire.com

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

PN:A06823523

July 2021
