Product Type	Built-in Microwave
Brand	Frigidaire
Model	FMTK2727AB
Color	Black
Interior Capacity	1.6 cu ft
Microwave Power	1000 W (estimated)
Electrical Rating	120 V, 60 Hz, 15 A
Required Cutout Dimensions (H x W x D)	17 – 17.25 in x 24.75 – 25 in x min. 20 in
Trim Kit Dimensions (H x W x D)	18 1/8 in x 26 15/16 in x 1 9/16 in
Oven Weight (estimated)	80 lb (36 kg)
Cooking Functions	Sensor cooking, defrost, express cooking, clock
Child Safety Lock	Yes
Installation Type	Built into cabinet or over an electric wall oven
Included Parts (trim kit)	Front frame, exhaust duct, screw A (11), screw B (4)
Care	Clean with a soft damp cloth
Safety Warnings	Disconnect power before installation; do not install within 2 ft of a gas or electric range

Frequently Asked Questions - FMTK2727AB FRIGIDAIRE

What are the exact cutout dimensions required to install the FMTK2727AB microwave?

The cutout must have a minimum height of 17 inches and maximum of 17.25 inches, a width between 24.75 and 25 inches, and a depth of at least 20 inches.

Can I install this microwave above a gas range?

No, according to the instructions, the microwave must not be installed within 2 feet of a gas or electric range, cooktop, or oven.

What tools are needed for installing the trim kit?

Basic tools like a screwdriver are required. The kit includes screws A and B, the front frame, and the exhaust duct.

How do I level the microwave during installation?

Before installing the exhaust duct, ensure the floor is level using a bubble level. The bubble should be centered between the guide lines.

What is the interior capacity of the FMTK2727AB microwave?

The estimated capacity is 1.6 cubic feet, allowing for cooking medium-sized dishes.

Does the microwave have a child safety lock?

Yes, it is equipped with a child lock feature to prevent unsupervised use.

What cooking functions are available?

The microwave offers sensor cooking, defrost, express cooking, and clock functions.

How do I clean the microwave?

Use a soft damp cloth to clean the interior and exterior. Avoid abrasive cleaners.

Is the maximum weight supported by the cutout floor important?

Yes, the floor must support approximately 100 lb (45 kg) for the oven and overload. Use solid plywood.

Can I install the microwave above an electric wall oven?

Yes, provided there is at least 3 inches of clearance between the wall oven and the microwave, and the wall oven is electric.

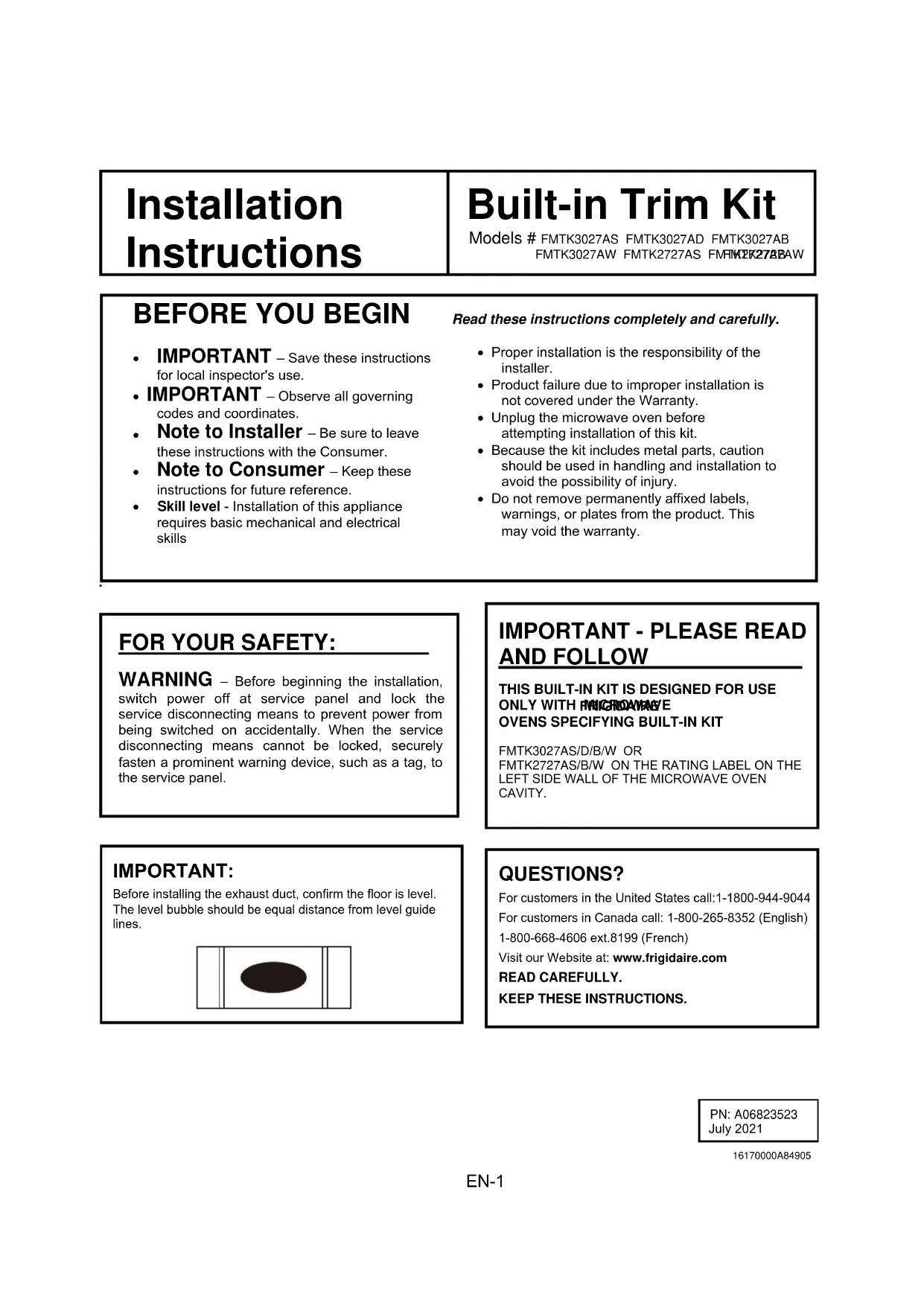

USER MANUAL FMTK2727AB FRIGIDAIRE

Installation Instructions

Built-in Trim Kit

Models # FMTK3027AS FMTK3027AD FMTK3027AB FMTK3027AW FMTK2727AS FMTK27BAW

BEFORE YOU BEGIN

• IMPORTANT - Save these instructions for local inspector's use.
• IMPORTANT - Observe all governing codes and coordinates.
  Note to Installer - Be sure to leave these instructions with the Consumer.
  Note to Consumer - Keep these instructions for future reference.
• Skill level - Installation of this appliance requires basic mechanical and electrical skills

Read these instructions completely and carefully.

• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• Unplug the microwave oven before attempting installation of this kit.
• Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.

FOR YOUR SAFETY:

WARNING - Before beginning the installation, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

IMPORTANT - PLEASE READ AND FOLLOW

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH FVNGROAAGE OVENS SPECIFYING BUILT-IN KIT

Before installing the exhaust duct, confirm the floor is level. The level bubble should be equal distance from level guide lines.

QUESTIONS?

For customers in the United States call:1-1800-944-9044
For customers in Canada call: 1-800-265-8352 (English)
1-800-668-4606 ext.8199 (French)
Visit our Website at: www.frigidaire.com
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.

PN: A06823523 July 2021

16170000A84905

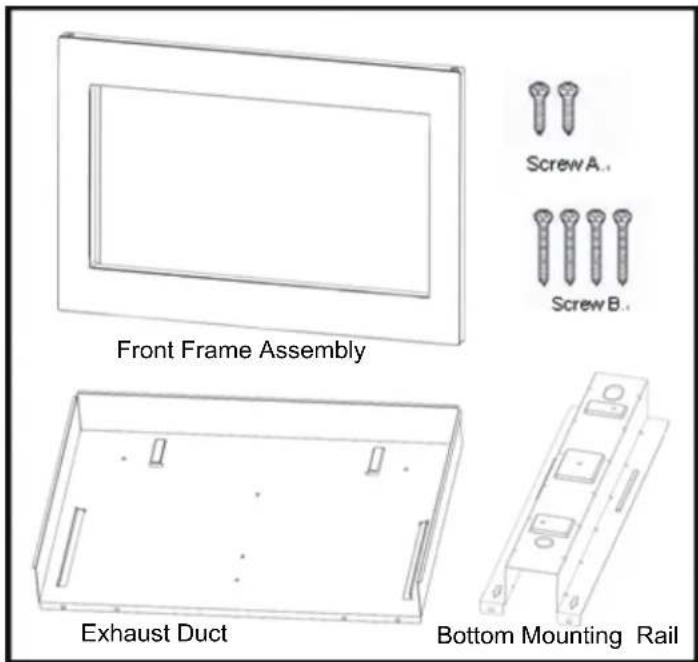

PARTS INCLUDED IN THE KIT

1. Front Frame Assembly-QTY 1
   2.Exhaust Duct - QTY 1

Bottom Mounting Rail - QTY 2

1. Screw A - QTY 11(3.9X8.0 mm)
   4.Screw B - QTY 4 (4.0× 20mm)

CHOOSING A LOCATION FOR YOUR MICROWAVE OVEN IF BUILT-IN

Built-In Trim Kit allows for the installation of microwaves listed below to be built into a cabinet or wall by itself or over an electric wall oven*.

Model Number	Color Descripon
FMBS2227AB Black M	crowave
FMTK3027AS SS		30'' trim kit
FMTK3027AD	Black SS	30'' trim kit
FMTK3027AB	Black 30''	trim kit
FMTK3027AW	White	30'' trim kit
FMTK2727AS SS		27'' trim kit
FMTK2727AB	Black 27''	trim kit
FMTK2727AW	White	27'' trim kit

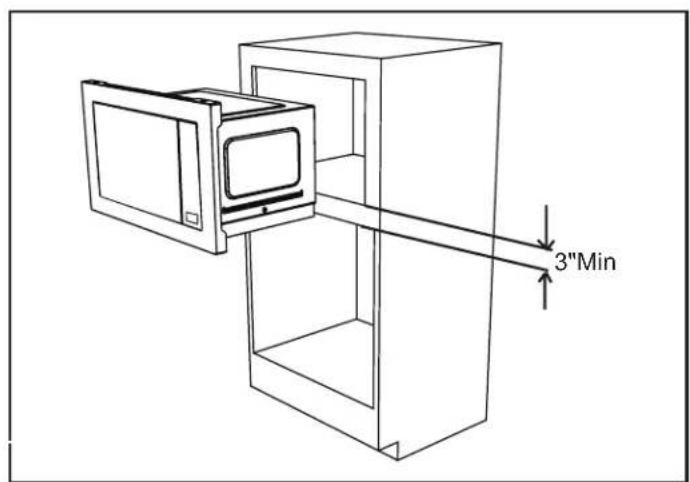

See Illustration 2 for proper location and when building above a wall oven. Carefully follow both the wall oven installation instructions and Electrolux's Built-in Kit instructions. If building over a wall oven, be sure the clearance between the wall oven and the microwave oven is a minimum of 3 inches.

*NOTE: Trim Kit and microwave can only be built-in over an electric self-clean or non-self-cleaning single cavity wall oven.

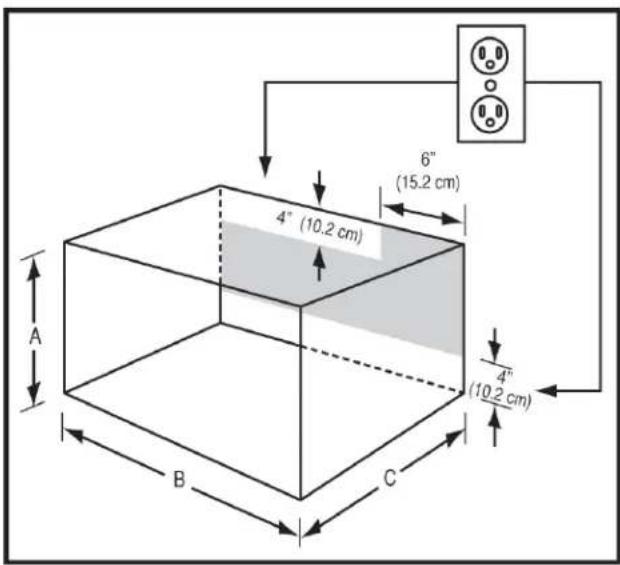

CABINET OR WALL CUTOUT

Cutout Dimensions

Height (A)
Minimum	17" (432 mm)
Maximum	17 1/4" (438 mm)
Width (B)
Minimum	24 3/4" (629 mm)
Maximum	25" (635 mm)
Depth (C)
Minimum	20" (508 mm)

Illustration 1

Trim Kit Overall Dimensions
	27” 30"
Height	18 1/8 (460 mm)	18 1/8 (460 mm)
Width	26 15/16 (684 mm)	29 15/16 (759 mm)
Depth	1 9/16 (40 mm)	1 9/16 (40 mm)

Illustration 2

Installation Instructions

Illustration 3

Illustration 4

Outlet should NOT be in the shaded area as indicated on Illustration 3

NOTE 1:

The floor of the opening should be constructed of plywood strong enough to support the weight of the oven and floor load (approximately 100 pounds). The floor should be level for proper operation of the oven. Be sure to check the local building code as it may require that the opening be enclosed with side, ceiling and rear partition. The proper functioning of the oven does not require the enclosure.

EXHAUST DUCT ASSEMBLY

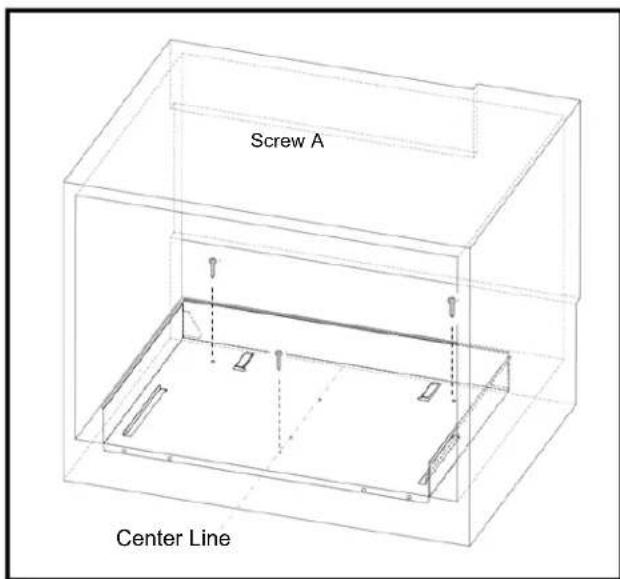

1. Draw a Central Line on floor. Place the Exhaust Duct in the opening, When the Exhaust Duct Assembly is in the opening correctly, the Center Line is in the middle of the Exhaust Duct Assembly. See Illustration 4.
2. Secure the Exhaust Duct Assembly with the three screws A.

IMPORTANT: Secure screws in outer hole. 3 screws are needed for exhaust duct assembly

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level. The level bubble should be equal distance from level guide lines.

Bottom Mounting Rail

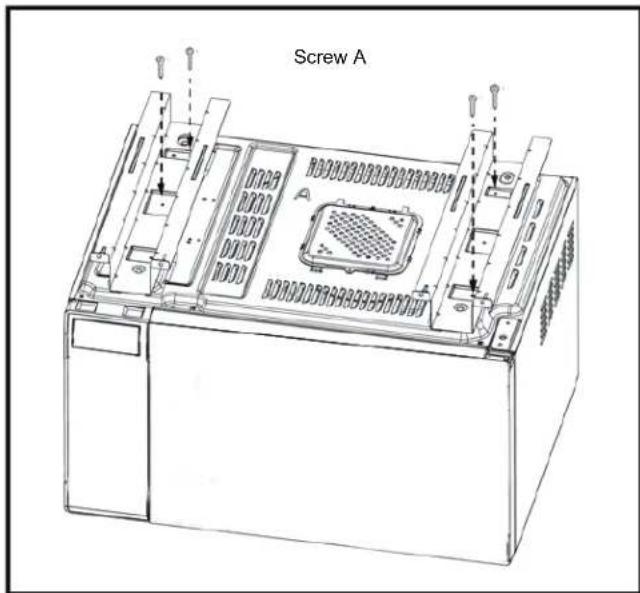

1. Turn microwave upside down so you are looking at oven bottom. Secure the bottom Mounting Rail on oven with four screws A. See Illustration 5 below.

Illustration 5

OVEN INSTALLATION

1. Place the oven adjacent to the wall or cabinet opening. Plug the power cord into the electrical outlet.
   IMPORTANT: Protect cabinet when placing on counter top.

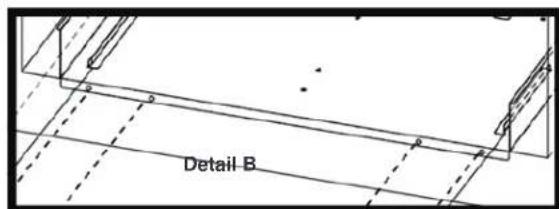

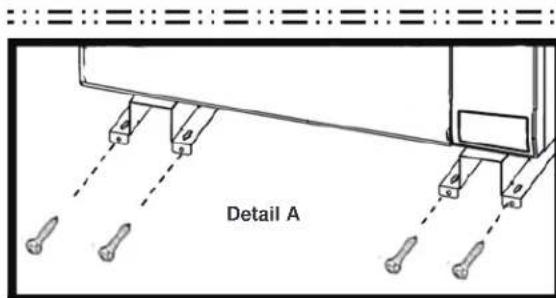

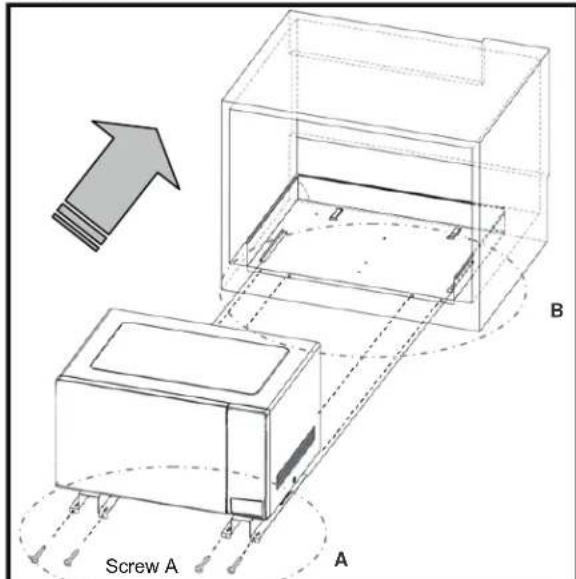

2. Carefully guide the assembled oven into the prepared opening. Slide the oven on the Exhaust Duct Assembly. See Illustration 6.
3. Secure the Exhaust Duct Assembly with the four screws A.

Illustration 6

FRAME INSTALLATION

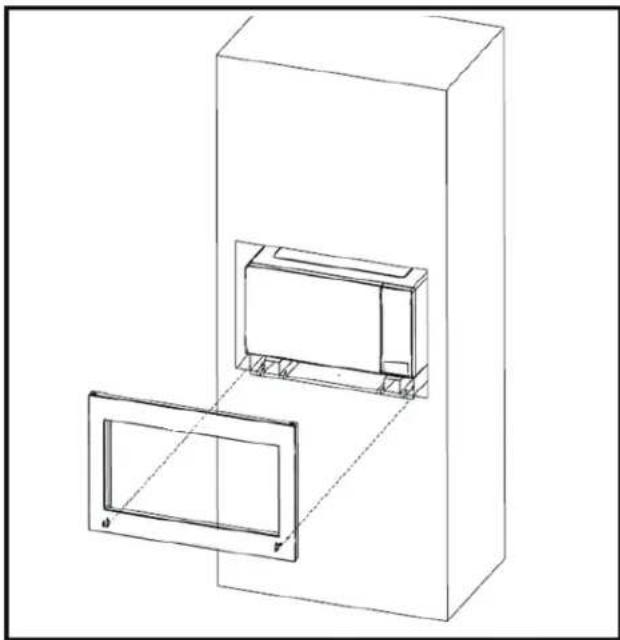

1. Position the FRAME ASSEMBLY to be square with the oven. Carefully place the FRAME ASSEMBLY on the oven. See Illustration 7.

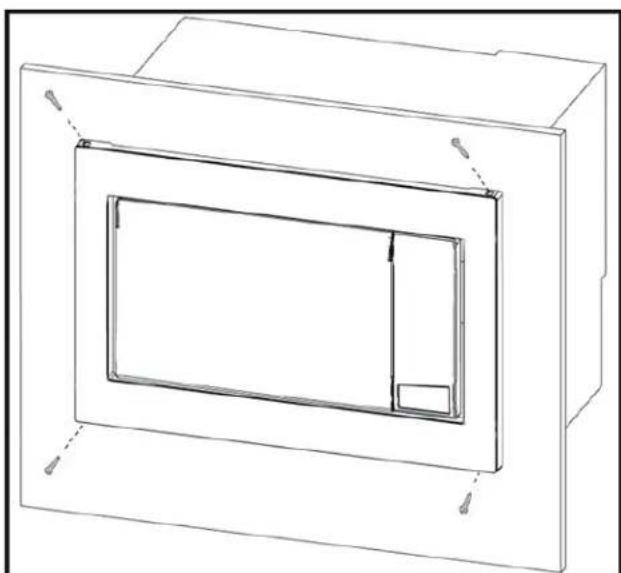

2. Check that it is level and then secure with two Screws B. Secure the bottom portion of the FRAME ASSEMBLY with the two remaining Screws B. See Illustration 8.

Illustration 7
Illustration 8

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH FIMIGROVREVE OVENS SPECIFYING BUILT-IN KIT

FMTK3027AS/D/B/W OR

For customers in the United States call:1-1800-944-9044

For customers in Canada call: 1-800-265-8352 (English)
1-800-668-4606 ext.8199 (French)

Visit our Website at: www.frigidaire.com

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

PN:A06823523

July 2021
