FMTK3027AS - Microwaves FRIGIDAIRE - Free user manual and instructions

Product type	Built-in microwave oven with trim kit
Brand	Frigidaire
Model	FMTK3027AS
Trim kit dimensions (W × H × D)	30 in × 18 1/8 in × 1 9/16 in (759 mm × 460 mm × 40 mm)
Required opening dimensions (W × H × D)	24 3/4 in - 25 in × 17 in - 17 1/4 in × min. 20 in (629-635 mm × 432-438 mm × min. 508 mm)
Color	Stainless steel (SS)
Power supply	120 V, 60 Hz, standard outlet (not specified in the manual)
Weight supported by opening floor	Approximately 45 kg (100 lb) including the oven and overloading
Use	Recessed in a cabinet or wall, above an electric wall oven only
Included parts	Front frame (1), exhaust duct (1), screw A 3.9×8.0 mm (11), screw B 4.0×20 mm (4)
Compatibility	Microwave oven FMBS2227AB; kits FMTK3027AD/AB/AW
Installation	Requires basic mechanical and electrical skills
Clearance above a wall oven	Minimum 7.6 cm (3 in) between the oven wall and the microwave
Outlet position	Do not place in the shaded area (see diagram); if depth > 53.3 cm, anywhere on the back wall
Maintenance and cleaning	Consult the microwave oven manual; do not remove warning labels
Safety	Cut power before installation; unplug the oven before any operation
Warranty	Any failure due to improper installation not covered

Frequently Asked Questions - FMTK3027AS FRIGIDAIRE

Can I install the FMTK3027AS kit above a gas range?

No, the kit must only be installed above an electric wall oven. It is not recommended to install it within 2 feet of a gas or electric range, cooktop, or oven.

What are the exact opening dimensions needed for the kit?

Height: 17 to 17 1/4 in (432-438 mm), Width: 24 3/4 to 25 in (629-635 mm), Minimum depth: 20 in (508 mm).

Is the microwave oven included with the FMTK3027AS kit?

No, the kit only contains the front frame and exhaust duct. The compatible microwave oven (such as FMBS2227AB) must be purchased separately.

How to secure the exhaust duct?

Place the duct in the opening so that the flanges rest against the bottom edge. Secure it with two screws A in the outer holes. Make sure the floor is level before starting.

Can I install this kit in a wall?

Yes, the assembly can be recessed in a cabinet or wall, provided the opening dimensions and safety clearances are respected.

What is the minimum cabinet depth for installation?

The minimum opening depth is 20 in (508 mm). If it exceeds 21 in (533 mm), the outlet can be placed anywhere on the back wall.

How to install the front frame?

Position the frame square with the oven, check that it is level, then secure it with two screws B at the top and two screws B at the bottom (four total).

Is it mandatory to partition the recess niche?

No, the niche does not need to be partitioned for the oven to function properly. However, check your local code which may require it.

What to do if I lose a screw or part?

Contact Frigidaire customer service to order replacement parts. Spare screws are generally available under references A (3.9×8.0 mm) and B (4.0×20 mm).

Can I use this kit with a microwave oven of another brand?

No, the kit is specifically designed for compatible Frigidaire microwave ovens listed in the manual (e.g., FMBS2227AB). Use with other brands is not guaranteed.

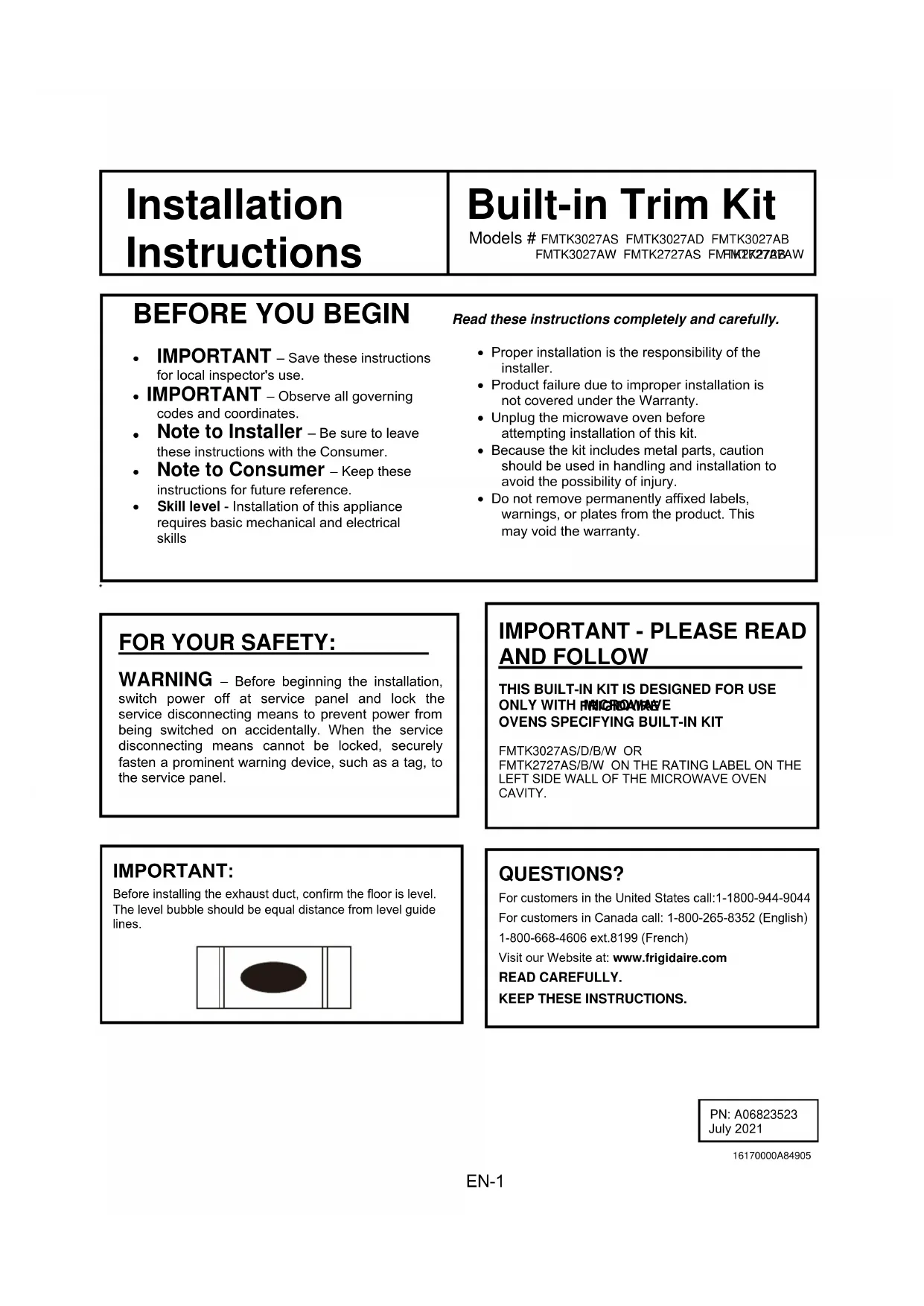

USER MANUAL FMTK3027AS FRIGIDAIRE

Installation Instructions

Built-in Trim Kit

Models # FMTK3027AS FMTK3027AD FMTK3027AB FMTK3027AW FMTK2727AS FMTK27BAW

BEFORE YOU BEGIN

IMPORTANT - Save these instructions for local inspector's use.
- IMPORTANT - Observe all governing codes and coordinates.
Note to Installer - Be sure to leave these instructions with the Consumer.
Note to Consumer - Keep these instructions for future reference.
- Skill level - Installation of this appliance requires basic mechanical and electrical skills

Read these instructions completely and carefully.

• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not covered under the Warranty.
• Unplug the microwave oven before attempting installation of this kit.
• Because the kit includes metal parts, caution should be used in handling and installation to avoid the possibility of injury.
• Do not remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.

FOR YOUR SAFETY:

WARNING - Before beginning the installation, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

IMPORTANT - PLEASE READ AND FOLLOW

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH FVNGROAAGE OVENS SPECIFYING BUILT-IN KIT

Before installing the exhaust duct, confirm the floor is level. The level bubble should be equal distance from level guide lines.

QUESTIONS?

For customers in the United States call:1-1800-944-9044
For customers in Canada call: 1-800-265-8352 (English)
1-800-668-4606 ext.8199 (French)
Visit our Website at: www.frigidaire.com
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.

PN:A06823523

July 2021

16170000A84905

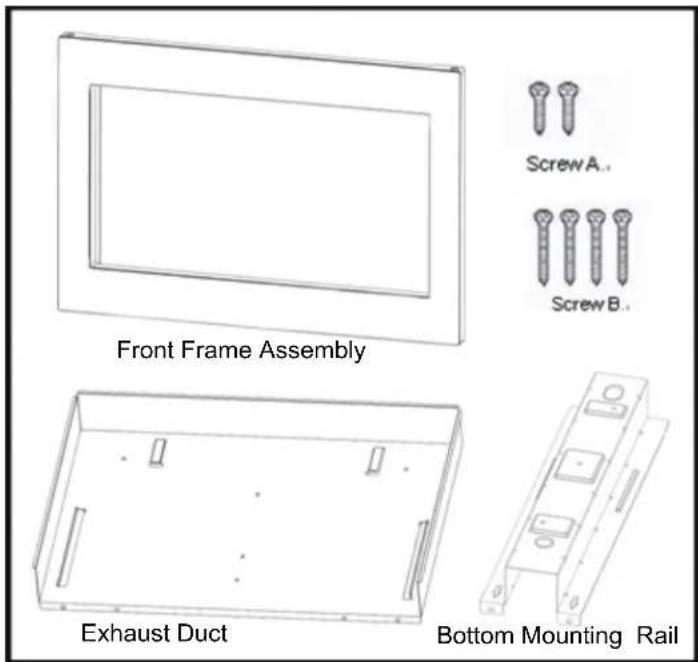

PARTS INCLUDED IN THE KIT

1. Front Frame Assembly-QTY 1
   2.Exhaust Duct - QTY 1

Bottom Mounting Rail - QTY 2

1. Screw A - QTY 11(3.9X8.0 mm)
   4.Screw B - QTY 4 (4.0× 20mm)

CHOOSING A LOCATION FOR YOUR MICROWAVE OVEN IF BUILT-IN

Built-In Trim Kit allows for the installation of microwaves listed below to be built into a cabinet or wall by itself or over an electric wall oven*.

Model Number	Color Descripon
FMBS2227AB Black M	crowave
FMTK3027AS SS		30'' trim kit
FMTK3027AD	Black SS	30'' trim kit
FMTK3027AB	Black 30''	trim kit
FMTK3027AW	White	30'' trim kit
FMTK2727AS SS		27'' trim kit
FMTK2727AB	Black 27''	trim kit
FMTK2727AW	White	27'' trim kit

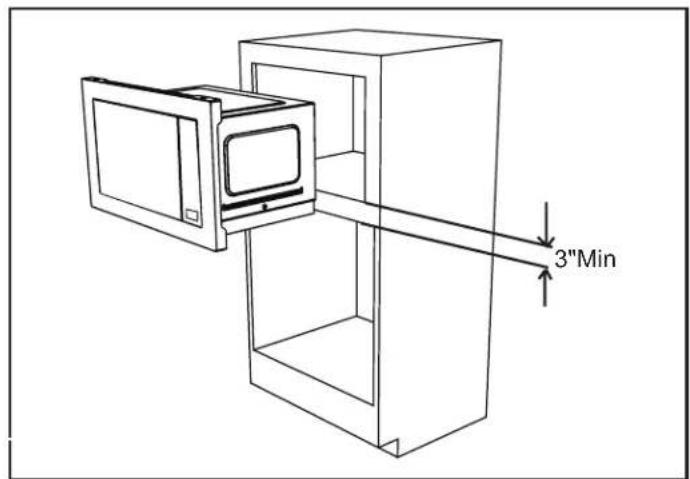

See Illustration 2 for proper location and when building above a wall oven. Carefully follow both the wall oven installation instructions and Electrolux's Built-in Kit instructions. If building over a wall oven, be sure the clearance between the wall oven and the microwave oven is a minimum of 3 inches.

*NOTE: Trim Kit and microwave can only be built-in over an electric self-clean or non-self-cleaning single cavity wall oven.

CABINET OR WALL CUTOUT

Cutout Dimensions

Height (A)
Minimum	17" (432 mm)
Maximum	17 1/4" (438 mm)
Width (B)
Minimum	24 3/4" (629 mm)
Maximum	25" (635 mm)
Depth (C)
Minimum	20" (508 mm)

Illustration 1

Trim Kit Overall Dimensions
	27” 30"
Height	18 1/8 (460 mm)	18 1/8 (460 mm)
Width	26 15/16 (684 mm)	29 15/16 (759 mm)
Depth	1 9/16 (40 mm)	1 9/16 (40 mm)

Illustration 2

Installation Instructions

Illustration 3

Illustration 4

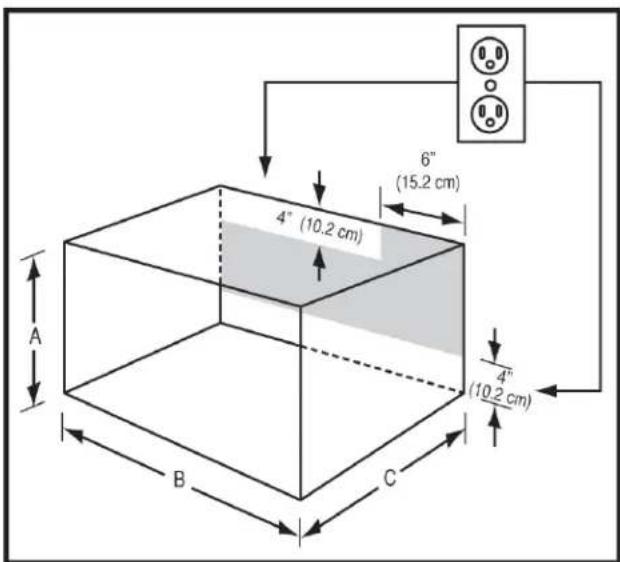

Outlet should NOT be in the shaded area as indicated on Illustration 3

NOTE 1:

The floor of the opening should be constructed of plywood strong enough to support the weight of the oven and floor load (approximately 100 pounds). The floor should be level for proper operation of the oven. Be sure to check the local building code as it may require that the opening be enclosed with side, ceiling and rear partition. The proper functioning of the oven does not require the enclosure.

EXHAUST DUCT ASSEMBLY

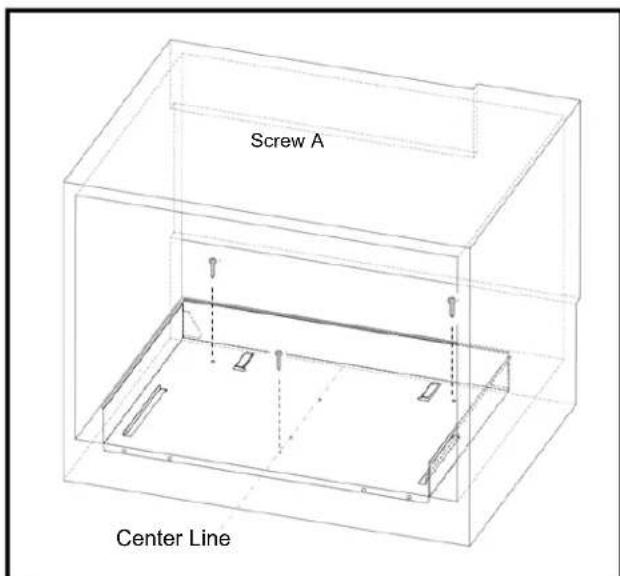

1. Draw a Central Line on floor. Place the Exhaust Duct in the opening, When the Exhaust Duct Assembly is in the opening correctly, the Center Line is in the middle of the Exhaust Duct Assembly. See Illustration 4.
2. Secure the Exhaust Duct Assembly with the three screws A.

IMPORTANT: Secure screws in outer hole. 3 screws are needed for exhaust duct assembly

IMPORTANT:

Before installing the exhaust duct, confirm the floor is level. The level bubble should be equal distance from level guide lines.

Bottom Mounting Rail

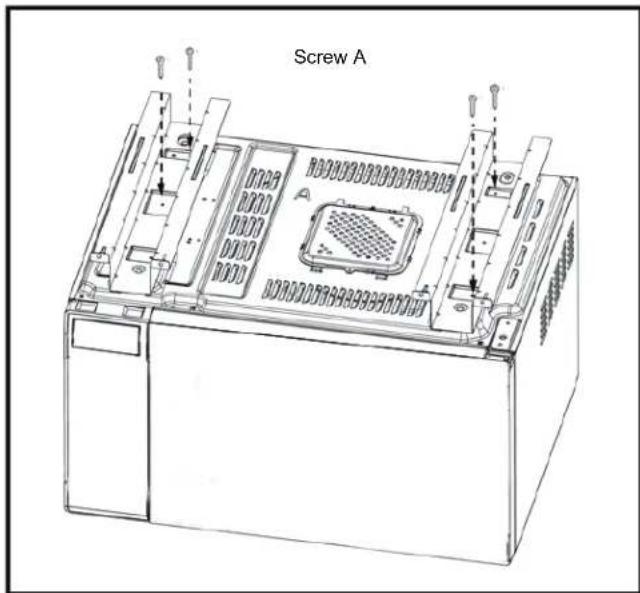

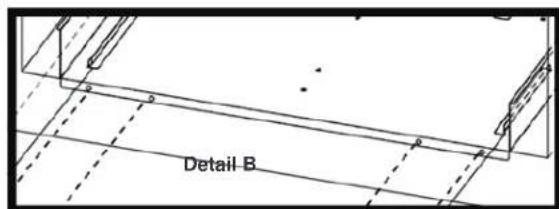

1. Turn microwave upside down so you are looking at oven bottom. Secure the bottom Mounting Rail on oven with four screws A. See Illustration 5 below.

Illustration 5

OVEN INSTALLATION

1. Place the oven adjacent to the wall or cabinet opening. Plug the power cord into the electrical outlet.
   IMPORTANT: Protect cabinet when placing on counter top.

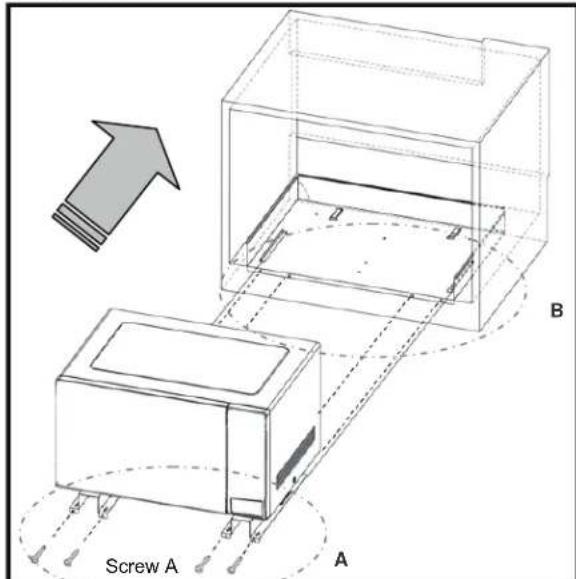

2. Carefully guide the assembled oven into the prepared opening. Slide the oven on the Exhaust Duct Assembly. See Illustration 6.

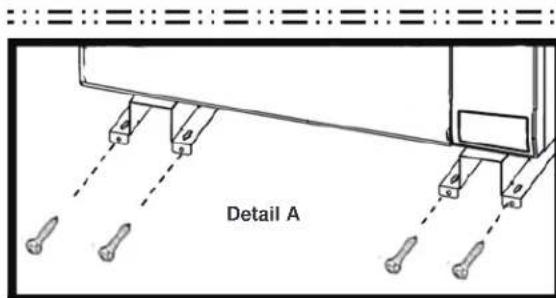

3. Secure the Exhaust Duct Assembly with the four screws A.

Illustration 6

FRAME INSTALLATION

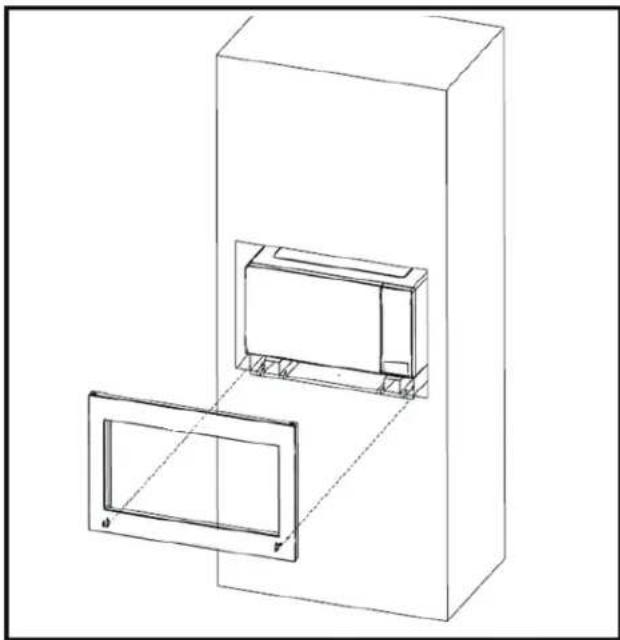

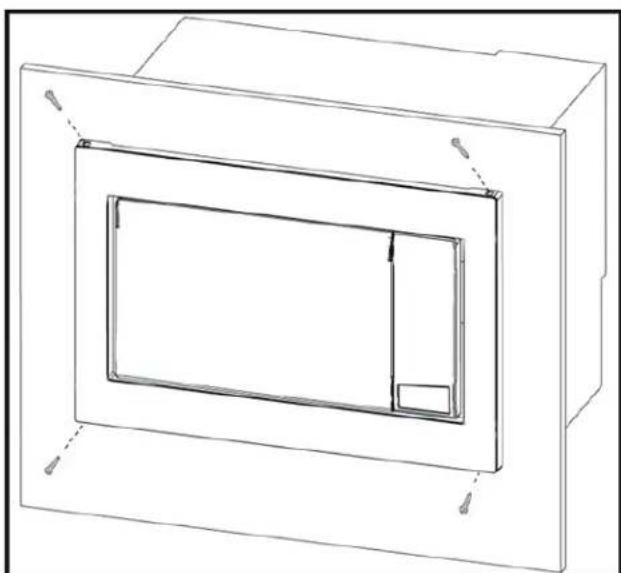

1. Position the FRAME ASSEMBLY to be square with the oven. Carefully place the FRAME ASSEMBLY on the oven. See Illustration 7.
2. Check that it is level and then secure with two Screws B. Secure the bottom portion of the FRAME ASSEMBLY with the two remaining Screws B. See Illustration 8.

Illustration 7
Illustration 8

THIS BUILT-IN KIT IS DESIGNED FOR USE ONLY WITH FIMIGROVREVE OVENS SPECIFYING BUILT-IN KIT

FMTK3027AS/D/B/W OR

For customers in the United States call:1-1800-944-9044

For customers in Canada call: 1-800-265-8352 (English)
1-800-668-4606 ext.8199 (French)

Visit our Website at: www.frigidaire.com

READ CAREFULLY.

KEEP THESE INSTRUCTIONS.

PN:A06823523

July 2021

MONTAGE DU CONDUIT D'ÉVACUATION

Instructions d-installation
