USER MANUAL G-PEN M712 GENIUS

Macro Key Manager User Manual Macro Key Manager Introduction Macro Key Manager is a kind of special tablet application software. Through Macro Key Manager, you can set up the keyboard event

(Copy= “Ctrl+C” ) or hyperlinks which you use mostly. And then, save it as your favorite macro key profile. We have several default profiles. Part of macro keys are default macro keys which the settings are fixed already and can not be modified. Other macro keys are Non-default macro keys and the setting of which can be defined and modified. However, if these default profiles can not meet your requirements, you can create new profiles by yourself. Due to the keyboard events are not unified in different software, we provide the function of “ open.exe to enable the macro key manager profile according to the right software. If you do not set the “ open.exe , the macro key manager may work unexpectedly in different software.

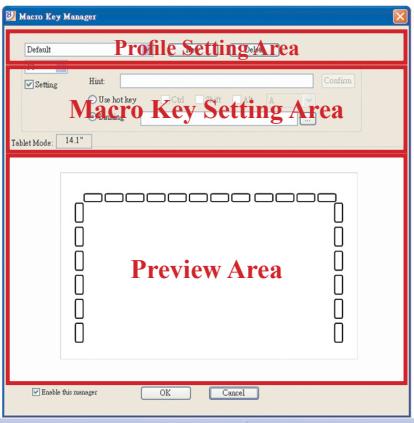

• Profile Setting Area You can select, create or modify macro key profiles
• Macro Key Setting Area ou can set the function of an individual Macro Key here. T here are two kinds of setting. O ne is keyboard event setting and the other is hyperlink setting. Also, you have to name the hint as you like to finish setting process.
• Preview Area You can see the tablet image and the macro keys of your tablet. By hovering to the macro key, the macro key hint will pop up next to the key.

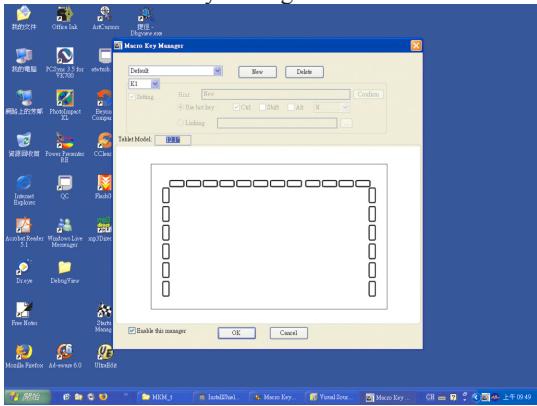

Macro Key Manager Installation Once you install “Macro Key Manager and plug the tablet to your PC, the icon “ will be showed in System Tray. However, you can choose to disable the Macro Key Manager by click the right button. O nce you disable Macro Key Manager or un-plug your tablet from PC, the original icon will be changed into icon “

How to Set up a New Profile

1. Click “New” and name the profile.

2. If a profile is set for particular software, click the

browser icon . If not, please skip this process and click “OK” to finish setting a new profile.

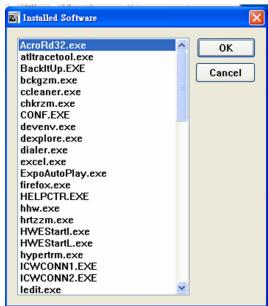

3. All installed software is

showed. Click the right software. Click “OK”

4. Click “OK” to finish this

How to Delete a Profile

1. select the profile you want to delete

How to Set Up Macro Key Function Macro Key Manager

How to Modify a Profile

1. select the profile you want to modify

2. following macro key setting steps to modify

Macro Key Manager ABOUT

You can set timer for how long macro key function will work. There are four different choices-- 0, 1,

1.5 and 3 seconds can be your alternatives which

mean that only when you use a pen to point the macro key area for 0, 1, 1.5, or 3 seconds, the macro key works. You can choose to get the pointing sound or not while the pen tip is pointing on the tablet

Pen Pad (only in Windows 2000/XP/ Vista basic) This is tablet driver. Please reference the driver

usage with driver manual. Start Use After setting profiles process, you can start to use macro key manager now. Please select the profile you want to use and click “

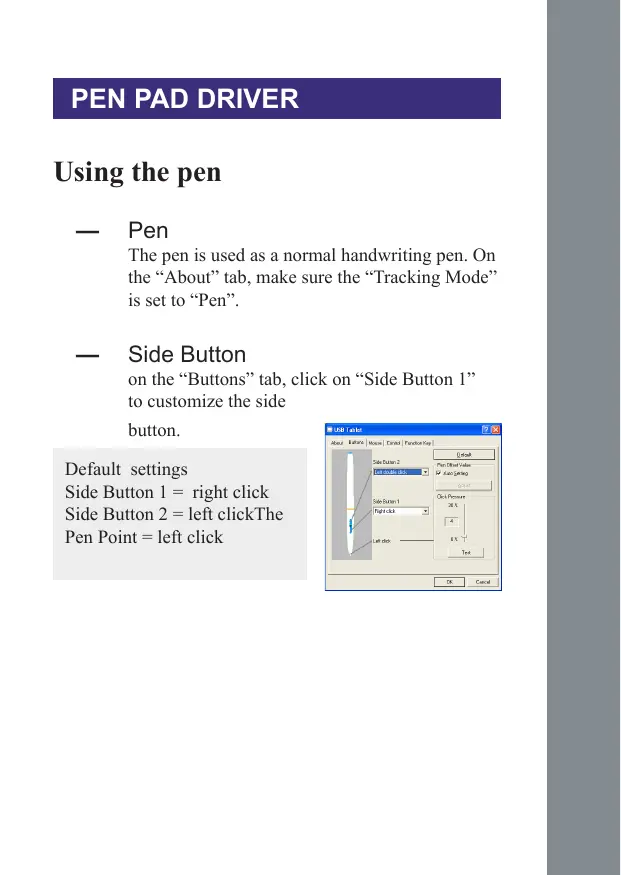

and then this selected profile will be the active profile always. Pen Pad driver Using the pen

Side Button The pen is used as a normal handwriting pen. On the “About” tab, make sure the “Tracking Mode” is set to “Pen”. on the “Buttons” tab, click on “Side Button 1” to customize the side button. Default settings Side Button 1 = right click Side Button 2 = left clickThe Pen Point = left click Macro Key Manager

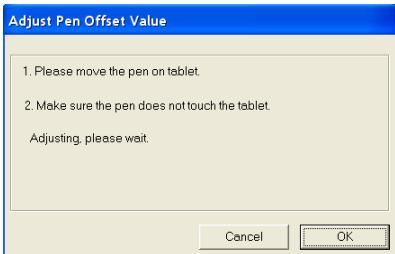

Pen Offset Value When using the tablet, if you want to use a new pen without restarting the computer, you need to perform the “Pen Offset Value” setting.

1. On the “Buttons” tab, uncheck the “Auto Setting”

box to remove the former value.

2. Click the “Adjust” button. Then follow the onscreen instructions for adjustment. Tap the “OK”

button when the “OK” message appears.

3. Check the “Auto Setting” box for your computer to

detect the new pen offset value automatically when restarted.

1. On the “Buttons” tab, move the slider up and down

to adjust the pen pressure from 0 to 30 (0 is the lightest, and 30 is the heaviest).

2. Click the “Test” button to launch the “Click

Pressure Test” writing area. Then you can test if the setting is correct.
