Product Type	Ultralight universal headset
Brand	AKG
Model	HSC 100 SR
Category	Audio headset
Dimensions	Earpiece: diameter 17 mm; total length 78 mm
Weight	8 g (without cable)
Microphone Power Supply	Voltage 1.1 V to 10 V; current < 0.5 mA
Main Features	Directional electrostatic microphone (figure-eight); intra-auricular earpiece; ambient noise attenuation; cable with free ends
Microphone Directional Pattern	Figure-eight
Microphone Sensitivity	ESE 46 +/- 4 dB
Microphone Impedance	2.2 kOhms
Microphone Distortion	< 2 % for 16 dBPa, 300 to 3,400 Hz
Earpiece Sensitivity	ESR -10 +/- 4 dB
Earpiece Impedance	1,500 Ohms
Earpiece Distortion	< 2 % for 17 dBPa, 300 to 3,400 Hz
Signal-to-Noise Ratio	50 dB
Storage and Operating Temperature	-40 °C to +80 °C
Drop Resistance	Up to 150 cm on hard surface
Housing Material	ABS
Supplied Accessories	Foam ear cushions, cable clip, windscreen
Care and Cleaning	Do not spill any liquid; avoid heat, dust, humidity, shocks; wipe with a dry cloth if necessary
Safety	Do not exceed 1.5 Veff (124 dB SPL) to prevent hearing damage
General Information	Manufactured by AKG Acoustics GmbH, Vienna, Austria

Frequently Asked Questions - HSC 100 SR AKG

How to properly position the headset?

Place the earpiece in your ear then turn the microphone arm toward the corner of your mouth. For better retention, fix the cable to your collar using the supplied clip.

How to clean the HSC 100 SR?

Do not spill any liquid on the device. Wipe it with a dry cloth. Avoid exposure to heat, dust, humidity and shocks.

What to do if the microphone does not work?

Check that the microphone supply voltage is between 1.1 V and 10 V and that the connections are correct (red wire: signal and power, shield: ground).

Can I use this headset with a smartphone?

The HSC 100 SR is delivered with a cable with free ends. To use it with a smartphone, you will need an appropriate adapter according to the connector type of your device. Compatibility is not guaranteed by the manufacturer.

How to install the windscreen?

When using outdoors, simply mount the windscreen on the microphone. This prevents unwanted wind noise.

The headset fell, is it dangerous?

The HSC 100 SR is designed to withstand a drop of 150 cm onto a hard surface. However, inspect it to ensure it is not damaged before using it.

What is the warranty for this product?

Warranty information is not detailed in the manual. Please contact your dealer or visit AKG's website for more details.

How to replace the ear cushions?

The supplied foam ear cushions can be adjusted on the earpieces to improve comfort. Remove the old ones and gently snap the new ones into place.

The sound is low, what to do?

Make sure the earpiece is correctly placed in the ear and that the volume of your audio source is sufficient. Also check that the cable is not damaged and connections are secure.

Can I use this headset with a CB radio?

The HSC 100 SR is a universal headset. Check the voltage and impedance specifications to ensure compatibility with your equipment. The microphone requires a power supply of 1.1 to 10 V.

USER MANUAL HSC 100 SR AKG

The HSC 100 SR/OC is a versatile, featherweight headset with a condenser microphone and dynamic microphone. With its figure eight pickup pattern and frequency response optimized for speech pickup, the microphone ensures excellent rejection of ambient noise. The microphone has been designed for insertion into the left or right ear for optimum intelligibility and comfort.

2. Precautions

1. Do not spill any liquids on the equipment.
2. Do not place the equipment near heat sources such as radiators or heating ducts and do not expose it to direct sunlight, excessive dust, moisture, rain, mechanical vibrations, or shock.

3.Use

The HSC 100 SR/OC has been designed for "standard size" ears. If your ears are larger, fix the supplied foam ear cushion on the microphone for better fit and comfort. Try the microphone on with and without the foam ear cushion to find out which way it fits better and more comfortably.

Insert the earphone into your left or right ear such that the microphone arm points toward the corner of your mouth. If you use the headset out of doors slip the supplied windscreen on the microphone in order to prevent unwanted wind noise.

To take the weight of the cable off the headset, use the cable clip to attach the cable, e.g., to the collar.

4. Cable

The HSC 100 SR/OC uses an unterminated cable. The microphone and earphone wires are color coded as follows:

Microphone

Red:	audio and supply voltage (1.5 V to 10 V)
Shield:	ground

Earphone

White:	audio
Shield:	ground

5. Specifications

Environment

ETS 3000 19 EC7.3

Storage and operating temperature range: -40^ to +80^

Guaranteed drop height onto hard surface: 150 cm (59 in.)

System

Dimensions

Earphone diameter: 17 mm (0.7 in.)

Overall length: 78 mm (3.1 in.)

Weight: 8g (0.3 oz.)

less cable

Case material: ABS

Microphone Acoustical Data

SLR 46+/-4dB
Polar pattern figure-of-eight
Impedance 2.2 Kohms
T.H.D. <2% at 16dBPa, 300 to 3,400Hz
Linearity +/-1dB-40 to 17dBPa
Supply voltage 1.1 to 10V
Current consumption <0.5mA
S/N ratio >50dB

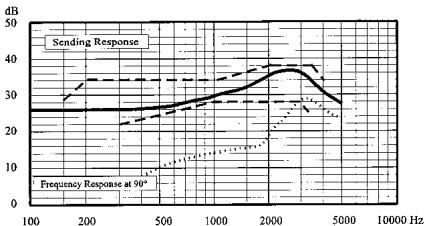

Microphone Frequency Response

Earphone Acoustical Data

RLR -10+/-4dB
Impedance 150 ohms
T.H.D. <2% at 17dBPa, 300 to 3,400Hz
Linearity +/-1dB-40 to 16dBPa
Magnetic stationary field <400A/cm at 2mm from front
Warning: Do not exceed 1.5 V rms = 124dB SPL

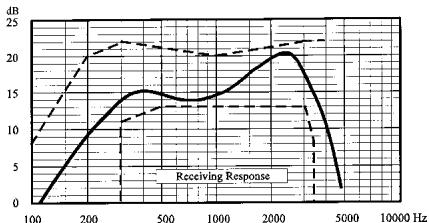

Earphone Frequency Response

1.Description

Blanc:	signal
Blindage:	asse

5. Spécifications

Conditions ambientes

ETS 300019 EC7,3

AKG Acoustics; A Division of Harman Pro Germany

Wilberforce Road, London NW9 6AX/ENGLAND

Tel: [phone], Fax: [phone]

AKG ACOUSTICS; A Division of Harman Pro North America, Inc.

1449 Donelson Pike, Airpark Business Centre 12,

Nashville, TN 37217, U.S.A.

Tel: [phone], Fax: [phone]

Studer Japan Ltd.

2-43-7, Uehara, Shibuya-ku, Tokyo 151-0064/JAPAN

Tel: [phone], Fax: [phone]

Erikson Pro Audio

620 McCaffrey, St-Laurent, Quebec, H4T 1N1, CANADA

Tel: [phone], Fax: [phone]

Internet: www.jam-ind.com/eriksonpro
