K15 - Headphones AKG - Free user manual and instructions

Product Type	On-ear headphones
Brand	AKG
Model	K15
Category	Wired headphones for conferencing
Design	Ultra lightweight, on-ear with adjustable headband
Driver Size	40 mm
Impedance	32 ohms
Sensitivity	113 dB SPL/mW
Frequency Response	20 Hz - 20 kHz
Total Harmonic Distortion (THD)	< 1% at 1 kHz, 1 mW
Cable Length	1.5 m (1500 mm)
Connector	3.5 mm stereo gold-plated plug
Weight (without cable)	98 g
Weight (with cable)	108 g
Dimensions (HxW)	199 x 156 mm
Ear Cup Diameter	53 mm
Contact Pressure	2.2 N (on average head)
Ear Adjustment Range	±10° via gimbal joint
Headband Adjustment	63 mm per side
Headband Material	Soft TPE (thermoplastic elastomer)
Bow Material	Stainless spring steel
Cable Material	Soft TPU (thermoplastic polyurethane)
Cleaning	Wipe ear cups and headband with hygienic tissue
Applications	Conferencing, tour guide, assistive listening, schools
Special Features	Low impedance for high SPL, ultra lightweight, rugged construction, wide frequency range

Frequently Asked Questions - K15 AKG

What is the AKG K15 headphone designed for?

The K15 is designed for professional conferencing, tour guide systems, assistive listening, and school environments, offering high comfort during long use.

How do I clean the AKG K15 headphones?

Simply wipe the high-gloss polished plastic ear cups and soft TPE headband with a hygienic tissue. No need to replace expensive foam cushions.

What type of connector does the K15 use?

It has a 3.5 mm stereo gold-plated plug, compatible with most devices like computers, smartphones, and conference systems.

Is the AKG K15 lightweight?

Yes, it weighs only 98 g without cable and 108 g with cable, making it ultra lightweight for extended wear.

Can I adjust the headphone to fit my head size?

Yes, the headband adjusts up to 63 mm per side, and the ear cups have a ±10° gimbal joint for a customized fit.

What is the frequency response of the K15?

The frequency response ranges from 20 Hz to 20 kHz, covering the full audible spectrum for clear audio.

Is the cable detachable?

The manual does not specify a detachable cable; it appears to be fixed. The cable is soft TPU to reduce structure-borne noise.

How durable is the K15 headphone?

It features a stainless spring steel bow and rugged construction, ensuring extra-long life and stability.

What impedance does the K15 have?

The impedance is 32 ohms, allowing high sensitivity (113 dB SPL/mW) to overcome room noise without requiring a powerful amplifier.

Can I use the K15 for music listening?

While primarily designed for conferencing, its wide frequency range and low distortion make it suitable for general audio listening as well.

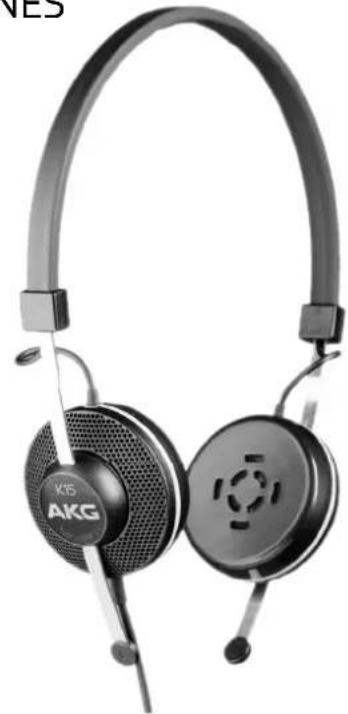

USER MANUAL K15 AKG

Two electronic devices: a black KKG audio jack and a gray audio cable, both without any visible text or symbols.

Black K5 and AKG headphones with earbuds and microphone (no visible text or symbols)

HIGH LEVEL CONFERENCE

K15 high-performance on-ear headphones evolved over decades of experience in the field of conferencing and set new standards. Sophisticated design is paired with high quality audio and advanced security technology. Optimal adjustment to any head size and light weight design allow hours of use, while forgetting the presence of these headphones. After the conference wiping with a simple hygienic tissue will prepare the unit for the next user, without the need to exchange expensive foam cushions. The steel bow is made of stainless spring steel to keep it's shape for the entire lifetime and at the same time making the headphones flexible enough to achieve different wearing positions. The cable is very soft and TPU covered to reduce the structure-borne noise.

HIGHLIGHTS

» Wide frequency range
for modern multimedia conferences
» On-ear, ultra lightweight design and wide adjustment range for maximum wearing comfort
» Rugged construction
for an extra-long life of reliability and stability
» Low impedance technology
for lots of SPL to override room noise when needed
» Cleanable high gloss polished plastic ear cups comply with all hygienic standards
» The headband is made of a soft TPE material to guarantee comfortably wearing properties

APPLICATIONS

When users are changing and/or long using time is required, such as:

» Conferencing
» Tour guide
» Assistive listening
» Schools

KEY SPECIFICATIONS

Contact pressure ear pads to av. head 2,2N

Weight without cable 98g

Weight with cable 108g

Cable diameter 2 , 5 mm

Cable length 1500 mm

Plug 3 , 5 mm stereo gold plated

Dimensions 199 x 156mm

Diameter of ear caps ∅53mm

Ear adjustment via gimbal joint ±10° in each direction

Head adjustment range for head size 63mm / side

Acoustics 40mm speaker

Impedance 32 ohms

Sensitivity 113 +/-3 dB spl/ mW (@32ohms)

THD <1% @1kHz@1mW

Frequency range 20Hz-20.000 Hz

Item number 3446H00010

HARMAN

AKG ACOUSTICS GMBH LAXENBURGER STRASSE 254, 1230 VIENNA/AUSTRIA

AKG ACOUSTICS, U.S. 8400 BALBOA BOULEVARD, NORTHRIDGE, CA 91329, U.S.A.
