K72 - Headphones AKG - Free user manual and instructions
Find the device manual for free K72 AKG in PDF.
| Product Type | Closed-back over-ear headphones |
| Driver Size | 40 mm |
| Frequency Response | 16 Hz – 20 kHz |
| Sensitivity | 112 dB SPL/V |
| Max Input Power | 200 mW |
| Impedance | 32 ohms |
| Weight | 200 g (7 oz) |
| Cable Length | 3 m (9.8 ft) |
| Connection Type | 3.5 mm (1/8") jack with 6.3 mm (1/4") screw-on adapter |
| Box Dimensions (W x H x D) | 220 x 110 x 235 mm |
| Shipping Weight | 0.546 kg |
| Construction Material | Metal structure |
| Headband Type | Self-adjusting |
| Earpads | Replaceable, breathable |
| Sound Isolation | Passive (closed-back design) |
| Intended Use | Home recording, mixing, mastering, monitoring |
| Color | Black |
| Accessories Included | 3.5 mm-to-6.3 mm screw-on adapter |
| Maintenance | Clean with dry cloth; avoid liquids |
| Spare Parts Available | Replaceable earpads |
Frequently Asked Questions - K72 AKG
User questions about K72 AKG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Headphones in PDF format for free! Find your manual K72 - AKG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. K72 by AKG.
USER MANUAL K72 AKG

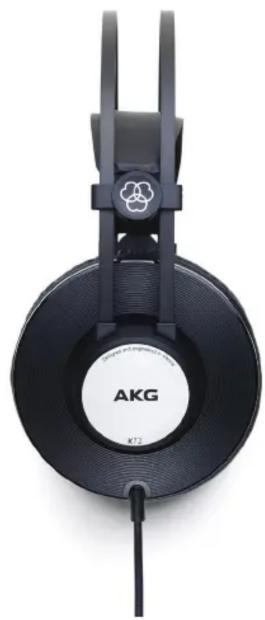

Professional 40mm Drivers
For reference monitor accuracy over a precisely balanced 16Hz–20kHz frequency response
Lightweight Design and Self-Adjusting Headband
For exceptional comfort over long periods of time
Professional Build Quality
Metal construction and closed back design for excellent durability and sound isolation
Flexibility
Low impedance design and included adapter
Pro quality sound meets style and affordability with the AKG K72 over-ear, closed back headphones. Professional-grade 40mm drivers reveal even the subtlest nuances, so you can be confident your mix will translate accurately on any system. Whether you're tracking the hook or mixing background harmonies, the self-adjusting headband and lightweight design will provide hours of comfort. Designed by the company whose mics and headphones have helped create some of the world's most iconic recordings, the durable K72 headphones deliver great sound wherever your music takes you.
KEY MESSAGES
PROFESSIONAL DRIVERS
When it comes to audio quality, driver size and weight are critical, especially in the lower frequencies. Generous 40mm drivers deliver high sensitivity for powerful output, plus an extended, balanced frequency response that reveals every detail of the mix without artificially coloring the sound.
PROFESSIONAL BUILD QUALITY
Like all AKG products, the K72 headphones are put through stringent mechanical, electric, and acoustic tests to ensure that they will stand up to a lifetime of use. With metal construction and replacable earpads, your investment will be protected for years to come. Additionally, the construction provides an exceptional level of audio isolation due to a new acoustic chamber, between the ear cup and the hinge that connects to the headband. Our innovative design gives you the freedom to move your head in any direction, without letting sound in or out.
IN THE BOX ■TRY IT FOR YOURSELF
K72 Headphones, 1 screw-on 3.5 mm (1/8-inch) -to-6.3 mm (1/4-inch) adaptor.
DESIGNED FOR COMFORT
The exposed headband design keeps the K72 headphones comfortably light, without compromising driver size. Breathable, lightweight ear pads encircle your ears, rather than putting pressure on them. And a single-sided cable gives you freedom to move. To sum it up, these high-performance headphones sound, feel and look great.
FLEXIBILITY
The K72s feature a low-impedance design and included screw-on 3.5 mm (1/8-inch)-to-6.3 mm (1/4-inch) adapter for compatibility with a broad range of playback devices, from professional studio gear to portable music players. Our engineers leveraged their extensive expertise to optimize every single component—delivering a great set of headphones without compromise.

Select a track you're familiar with a play it through the K72. Note the light weight, the comfortable, self-adjusting headband, and the sonic isolation from the over the ear, closed back design. Pay attention to the clarity and detail in the bass and high frequencies, as well as the precisely balanced frequency response.
APPLICATIONS
HOME RECORDING, MIXING, AND MASTERING
INDIVIDUAL OR ENSEMBLE ARTIST MONITORING
ENGINEER OR PRODUCER MONITORING
GENERAL USE HEADPHONE
TECHNICAL SPECIFICATIONS
Design: Closed-back over-ear headphones
Frequency range: 16 Hz to 20 kHz
Sensitivity: 112 dB spl/V
Max. input power: 200 mW
Input impedance: 32 ohms
Net weight: 200 g (7 oz)
Cable: 3 m (9.8 ft) cable
Main connection: 3.5 mm (1/8") plug
with 6.3 mm (1/4") screw-on adapter
ORDER SPECIFICATIONS
Box dims: 220 x 110 x 235mm
Shipping weight: 0.546kg
Case pack qty: 10
Case packs: 578 x 473 x 270mm
Net weights - case packs: 2.61kg
Gross weights - case packs: 6.57kg
AKG code: 3169H00020
UPC code: 885038038788
EAN code: 9002761038781
