USER MANUAL AMT 132 KRESS

Operating Instructions GB 8

Mode d'emploi F 12

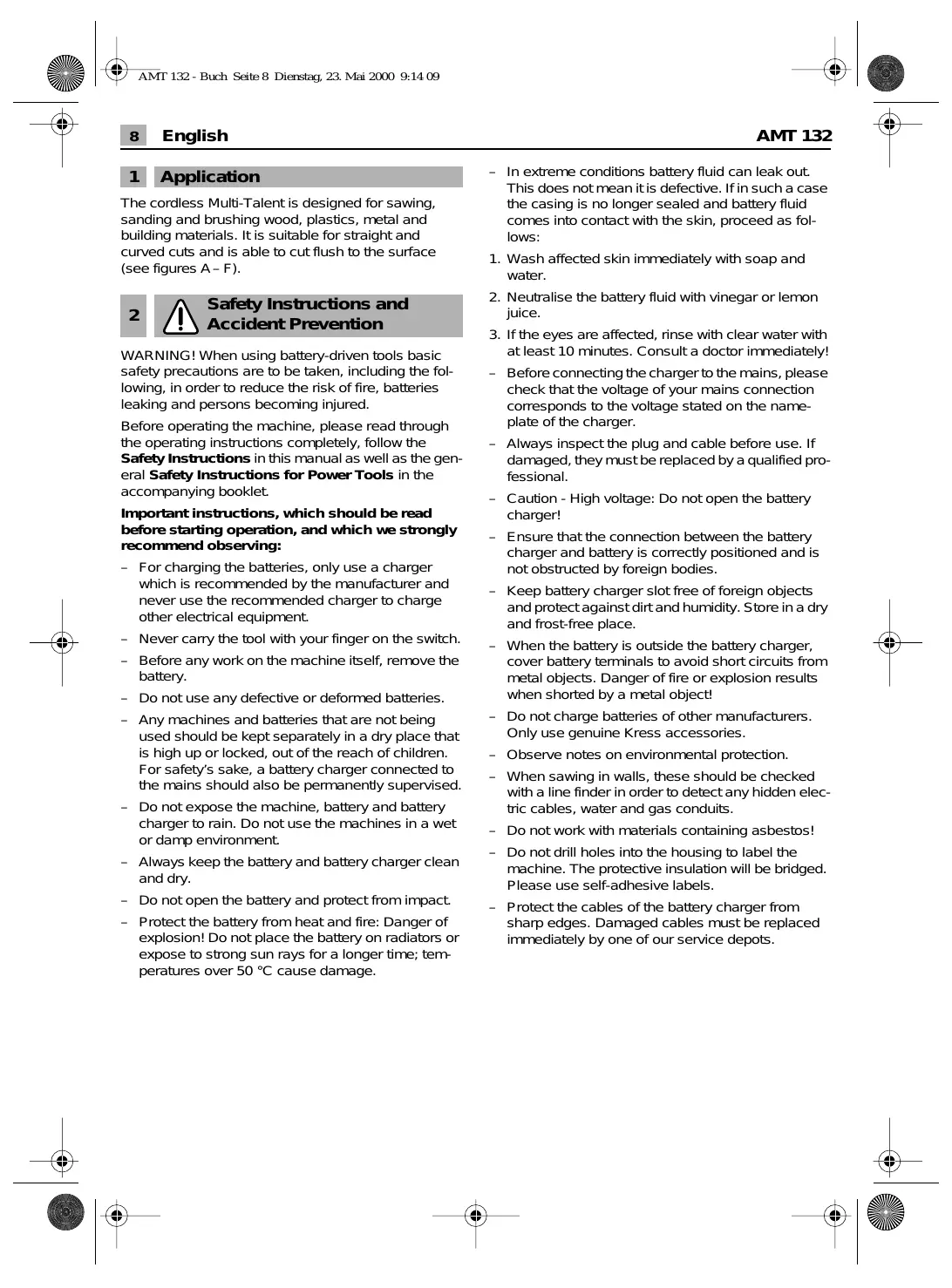

The cordless Multi-Talent is designed for sawing, sanding and brushing wood, plastics, metal and building materials. It is suitable for straight and curved cuts and is able to cut flush to the surface (see figures A-F).

2! Safety instructions and Accident Prevention

WARNING! When using battery-driven tools basic safety precautions are to be taken, including the following, in order to reduce the risk of fire, batteries leaking and persons becoming injured.

Before operating the machine, please read through the operating instructions completely, follow the Safety Instructions in this manual as well as the general Safety Instructions for Power Tools in the accompanying booklet.

Important instructions, which should be read before starting operation, and which we strongly recommend observing:

• For charging the batteries, only use a charger which is recommended by the manufacturer and never use the recommended charger to charge other electrical equipment.
• Never carry the tool with your finger on the switch.
• Before any work on the machine itself, remove the battery.
• Do not use any defective or deformed batteries.
• Any machines and batteries that are not being used should be kept separately in a dry place that is high up or locked, out of the reach of children. For safety's sake, a battery charger connected to the mains should also be permanently supervised.
• Do not expose the machine, battery and battery charger to rain. Do not use the machines in a wet or damp environment.
• Always keep the battery and battery charger clean and dry.
• Do not open the battery and protect from impact.

• Protect the battery from heat and fire: Danger of explosion! Do not place the battery on radiators or expose to strong sun rays for a longer time; temperatures over 50^ cause damage.

• In extreme conditions battery fluid can leak out. This does not mean it is defective. If in such a case the casing is no longer sealed and battery fluid comes into contact with the skin, proceed as follows:

• Wash affected skin immediately with soap and water.
• Neutralise the battery fluid with vinegar or lemon juice.
• If the eyes are affected, rinse with clear water with at least 10 minutes. Consult a doctor immediately!
• Before connecting the charger to the mains, please check that the voltage of your mains connection corresponds to the voltage stated on the nameplate of the charger.
• Always inspect the plug and cable before use. If damaged, they must be replaced by a qualified professional.
• Caution - High voltage: Do not open the battery charger!
• Ensure that the connection between the battery charger and battery is correctly positioned and is not obstructed by foreign bodies.
• Keep battery charger slot free of foreign objects and protect against dirt and humidity. Store in a dry and frost-free place.
• When the battery is outside the battery charger, cover battery terminals to avoid short circuits from metal objects. Danger of fire or explosion results when shorted by a metal object!
• Do not charge batteries of other manufacturers. Only use genuine Kress accessories.
• Observe notes on environmental protection.
• When sawing in walls, these should be checked with a line finder in order to detect any hidden electric cables, water and gas conduits.
• Do not work with materials containing asbestos!
• Do not drill holes into the housing to label the machine. The protective insulation will be bridged. Please use self-adhesive labels.
• Protect the cables of the battery charger from sharp edges. Damaged cables must be replaced immediately by one of our service depots.

AMT 132

English

9

3 Illustration

1 Saw blade
2 Saw stop plate
3 Pendulum stroke switch
4 Hand guard
5 Locking button for On/Off switch
6 On/Off switch
7 Battery
8 Battery locking
9 Battery charging unit
10 Clamping lever

Accessories illustrated or described are not always included as standard delivery items.

4 Technical Data

Cordless Multi-Talent

Article number

Stroke rate at no load

Stroke length

Pendulum stroke steps

Pendulum stroke - can be switched off

Weight with battery

Battery A132

Article number

(Spare parts no. 46416)

Type

Rated voltage

Capacity

Number of cells

Operating temperature range

Weight

Battery charging unit

Article number

(Spare parts no. 30858)

Input voltage

Output voltage

Charging current/time

Weight

AMT 132

12070103

0-2240 min

19 mm

1

•

approx. 1.9kg

98024701

NiCd

13.2V=

1.5 Ah

11

+5°C...+45°C

0.8 kg

MSL 60

98033401

230 V ~

13.2V=

approx. 1.65 A/

approx. 60 min

approx. 1.3kg

5 Noise/vibration information

Measured values determined according to EN 50 260.

Sound pressure level: 73 + 3dB (A)

Sound power level: 86 + 3dB (A)

Work place emission value: 76 + 3 dB (A).

For operation, noise protection measures are required.

The acceleration measured is usually less than 2.5m / s^2

6 Charging the batteries

The rated voltage of the battery must agree with the value on the machine.

• The batteries are not charged. They therefore have to be charged before use.
• A new battery develops full power only after it has been subjected to approx. 5 charging and discharging cycles.
• The maximum service life of the batteries is attained if you charge these at an ambient temperature of between +5^ and max. +45^ .
• If the battery is not within the permitted loading temperature range (approx. +5^ and +45^ ) charging time is extended by the cooling or warm-up time.
• Important! Batteries will discharge even if the tool is not used. They should therefore be re-charged regularly.

Or better still - connect the battery to the mains charger which will automatically switch to maintenance charging after the battery has been fully charged. This is particularly useful for maintenance and for the optimal operational readiness of the batteries.

• Do not leave the battery in the charger if the latter is not in operating condition.

To ensure long service life, the batteries should always be charged in good time. This is particularly important if you notice a reduction in power output.

1. Remove battery 7 from the handle by simultaneously pressing the locking device 8.
2. Make sure that the mains voltage complies with the voltage on the name-plate on the charger. Connect charger plug to mains.
3. Push battery into battery until it snaps into place.

10 English

AMT 132

Battery charging unit type: MSL 60

Use as Intended

The device is only designed for charging Kress NiCd batteries with voltages between 12V and 13.2V .

Charging Procedure

The charging process begins as soon as the mains plug is inserted into the power supply socket and the battery is placed into battery charger slot.

The "intelligent" battery charger recognises the charged condition of the battery and switches a fully charged battery immediately to trickle charging. By means of this charging process, the battery is protected and always fully charged.

Rapid charging is only possible when the temperature of the battery is between +5^ and +45^ .

The charging unit it suitable for continuous operation.

Display and Key

Blinking green indicator light: The battery has contact; charging is in progress (max. 60 minutes).

Constant green indicator light: The battery is charged; the charger has switched to maintaining charge.

Constant red light: The battery is not connected or too warm. Remove the battery from the charger and reconnect or allow to cool off to room temperature, then recommence charging.

Constant red light: The battery is too hot or too cold.
The charging process begins automatically as soon as the battery is in the permissible temperature range.

Blinking red light: The battery is defective or there is a short between the charging contacts.

• Remove the battery from the battery charger.
• Pull out the mains plug!
• Check the charging slot for foreign bodies.

If the batteries cannot be charged correctly:

1. Make sure the socket is providing voltage.
2. Make sure the charging points provide good contact.
3. Should charging still not be possible, please send the battery and battery charger to our nearest service centre.

Notes for the correct use of the battery:

• To obtain the maximum service life, do not recharge the battery immediately after a short period of use but, if possible, discharge to the lower capacity limit and then recharge.
• Avoid to the extent possible the blocking of the machine. The resulting excessive current flow leads to quick discharging and increased wear of the battery.
• An increasingly shorter operating time per recharging of the battery is an indication that the battery is worn out and must be replaced.

Do not carry out any repair on the charger yourself!

As a basic rule, return the faulty machine to our next customer service centre (also in the case of defective mains cables)!

7 Inserting/Removing Tools

Before any work on the machine itself, remove the battery.
A Wear protective gloves.

The clamping system has the advantage of being able to change the tools without requiring any other aid.

When changing the tool, make sure that the sawblade receptacle is free from any material residue such as wood or metal chips.

Inserting the Tool

Push the hand guard 4 to the back.

Turn the clamping lever 10 clockwise through 90^ to the stop and hold firmly.

Push the tool in fully and let go of the clamping lever 10.

To lock, press the tip of the tool onto a wooden block until the clamping lever 10 springs back to its original position.

Push the hand guard 4 forwards again.

Only work when the hand guard 4 is closed.

The roller guide curbs any tool deviations and serves for relieving the mechanism. As a stop it automatically produces the clamping angle of 90^ . This is, of course, only applicable if original tools are used.

Removing the Tool

Push the hand guard 4 to the back.

Turn the clamping lever 10 clockwise through 90^ as far as the stop and hold firmly in this position.

Pull out the tool.

8 Putting into Operation

Convince yourself before using that the battery is securely seated in the machine.

Switching On/Off

The machine can only be switched on by pressing the locking button for the On/Off switch 5. This prevents the machine from being switched on unintentionally as well as any unwanted battery discharge.

Using the On/Off switch 6 the number of infinitely variable strokes can be controlled and adapted to the specific treatment for the differing materials.

AMT 132

English

11

Recommended number of strokes

Low range for treating glass, ceramics and metal, and also for sawing using the tenon saw blade.

Medium range for treating plastics, pressed material and plywood.

High range for treating hard wood, soft wood and chip board.

Adjusting the Pendulum Stroke Setting

The pendulum stroke settings "0" and "1" are selected using the pendulum stroke switch 3. In position "0" the pendulum stroke is switched off.

Recommended Pendulum Stroke Setting

Position “0” for glass, ceramics, soft steel, non-ferrous metal, aluminium and pressed material.

Position "1" for plastics, plywood, hard wood, soft wood and chip board.

9 Practical Tips

The tool holder is designed for using different tools such as a sander, knife of brushes. The pendulum stroke must be switched off for these applications.

For sawing, the pendulum movement must be switched off. As soon as a cutting depth of approx. 2 - 3mm is reached, the pendulum action can be switched on to achieve an optimum cutting performance.

When using a saw blade, make sure that the material to be sawn is pressed against the saw stop plate 2. This pressure is additionally supported by the movement of the saw blade 1.

Should the saw blade jam, switch the machine off immediately, wedge the sawing slit open using a suitable tool and carefully pull out the machine together with the saw blade.

When sawing metals the pendulum action must be switched off and a little oil should be applied to the cutting spot. Sheet metal should be clamped to a firm surface (chip board or plywood) in order to prevent the material from swinging with the sawing action as far as possible.

Danger of kick-back: When the sawing procedure is finished, switch the machine off and do not pull the saw blade out of the cut until it has come to a stand-still.

10 Maintenance Measures

Before any work on the machine itself, remove the battery.

Always keep the ventilation slots clean.

Wipe off the accessible plastic parts regularly with a cloth without cleaning agent.

From time to time, a drop of oil should be applied to the moveable roller guide for the tool.

Servicing Instructions

If you make heavy use of the equipment for an extended period of time, we recommend returning it together with the charger to our servicing department for a thorough inspection at regular intervals. This prevents high repair costs and extends the service life of your equipment.

11 Environmental Protection

Kress takes back worn-out machines for the purpose of resource-saving recycling. As a result of their modular construction, Kress machines can be very easily dismantled into their reusable materials.

Defective rechargeable batteries must be recycled according to the Guidelines 91/157/EEC.

Do not throw used batteries in household waste, in fire or in water.

Do not open battery and dispose of it through the available collection points.

Do not place the battery on any heated surface or expose it to strong sunlight for a longer period of time. Do not expose the battery to temperatures over 50^ .

Give your worn-out Kress machine to your dealer or send it directly to Kress.

Subject to change without notice

12 Français

AMT 132

1 Utilisation

Reservation for andringar

AMT 132

Dansk

33

1 Anvendelse

Ladeaggregat for akku

Varenummer

(Reservedel-nr. 30858)

Indgangsspaending

Udgangsspaending

Ladestrom/ladetidt

Vægt

AMT 132

12070103

0-2240 min-1

19 mm

1

.

ca. 1,9 kg

98024701

NiCd

13,2V=

1,5 Ah

11

+5°C...+45°C

0,8 kg

MSL 60

98033401

230 V ~

13,2V=

ca. 1,65 A/

ca. 60 min

ca. 1,3 kg

5 Stoj-/vibrationsinformation

(Reservedensummer 30858)

Inngangsspenning

Utgangsspenning

Ladestrøm/ladetidt

Vekt

AMT 132

12070103

0-2240 min-1

19 mm

1

•

ca. 1,9 kg

98024701

NiCd

13.2V=

1.5 Ah

11

+5°C...+45°C

0,8 kg

MSL 60

98 03 3401

230 V ~

13,2V=

ca. 1,65 A/

ca. 60 min

ca. 1,3 kg

(ApI. aVtAlAakTko' 30858)

Tao 1iooou

Tao Edoou

Pεuα φόπιης/

XpOvocΦoPtiOns

Bapoc

AMT 132

12 07 0103

0-2240 min-1

19 mm

1

•

περιποι. 1,9 kg

98024701

NiCd

13.2V=

1.5 Ah

11

+5°C ... +45°C

0,8 kg

MSL 60

98 03 3401

230 V ~

13,2V=

περιπου. 1,65 A/

περιπου. 60 min

πεπiou. 1,3 kg

5

atnpou to 6ikaiomega aalayaw

GB (C) Declaration of conformity

We declare under our sole responsibility that this product is in conformity with the following standards or standardization documents: EN 50 260, EN 55 014-1, EN 55 014-2, EN 60 555 according to the provisions of the regulations 73/23/EEC, 89/336/EEC, 98/37/EC. (Charging device: EN 60 335, EN 55 014-1, EN 55 014-2, EN 61 000-3-2, EN 61 000-3-3, 73/23/EEC, 89/336/EEC).

1. This electro-tool was manufactured with high precision and subjected to rigorous factory quality controls.
2. Therefore, we guarantee the cost-free correction of fabrication or material defects that occur within 24 months of the date of purchase by the end user. We reserve the right to repair defective parts or replace them with new parts. Replaced parts become our property.
3. Improper use or handling as well as opening of the machine by unauthorised repair agencies voids the guarantee. Parts subject to wear are excluded from the guarantee.
4. The guarantee may only be enforced when defects are reported without undue delay (including shipping damage). Guarantee implementation does not extend the guarantee period.
5. If the tool is defective, please complete the guarantee card and return the unit, guarantee card and a brief description of the problem to the responsible service location. Please enclose your sales receipt.
6. The guarantee obligations assumed by us shall exclude any further claims on the part of the buyer, in particular the right to recission of a sale, reduction and the assertion of damage claims.
7. However, the buyer shall have the right to either a reduction (in the purchase price) or the recession of the sale (cancellation of the sales agreement) should we fail to eliminate any defects within a reasonable period of time.
8. Damage claims in accordance with §§ 463, 480 Paragraph 2,635 BGB due to absence of guaranteed quality shall not be not excluded.
9. The provisions defined in Items 7 and 8 only apply to the Federal Republic of Germany.

F Garantie

Please fill in immediately and keep in safe place.
