USER MANUAL ORBIT TRAVEL 41540 MORPHY RICHARDS

Please read and keep these instructions

Important safety instructions

In addition we offer the following safety advice.

• Do not use outdoors.

The use of any electrical appliance requires the following common sense safety rules. Primarily there is danger of injury or death and secondly the danger of damage to the appliance. These are indicated in the text by the following two conventions: WARNING: Danger to the person! IMPORTANT: Damage to the appliance!

• Children do not understand the dangers associated with operating electrical appliances. Never allow children to use this appliance.

• Close supervision is necessary when any appliance is used near children.

41540 Orbit MEE-Rev2

• WARNING: Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside down, there may be hot water in the water tank. • WARNING: To protect against the risk of electric shock do not put the appliance in water or in any other liquid. • Do not use the vertical steam feature on clothes that are being worn. • Do not leave the iron unattended whilst plugged in or on an ironing board. Never allow the mains lead to over hang the work surface. • Never yank the cord to disconnect from the socket, instead, grasp plug and pull to disconnect. • Do not allow the cord to touch hot surfaces. Let the iron cool completely before putting away. Loop cord loosely around the iron before storing.

Other safety considerations

• IMPORTANT : When not in use, your iron should never be placed flat and left on an ironing board. • Do not operate the iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron, but telephone for advice. Incorrect reassembly can cause a risk of electric shock when the iron is used. • Always disconnect the iron from the electrical socket when filling with water, emptying, cleaning and when not in use. • To prevent damage to the textile being ironed, follow the temperature guide carefully and test the inside of the hem of the garment. • When ironing is complete, remove the plug from the socket, empty any remaining water from the tank, and allow to cool before storage. • If you drop or severely knock your iron this could cause internal damage even if the outside appears alright. Have it checked by a qualified electrician. • Ensure the product is set to the correct voltage.

• This product is not for frequent use.

• Use the iron only for its intended use.

Electrical requirements

Check that the voltage on the rating plate of your appliance corresponds with your house electricity supply which must be A.C. (alternating current). If the socket outlets in your home are not suitable for the plug supplied with this appliance the plug should be removed and the appropriate one fitted. WARNING : The plug removed from the mains lead, if severed, must be destroyed as a plug with a bared flexible cord is hazardous if engaged into a live socket outlet. WARNING: This appliance must be earthed.

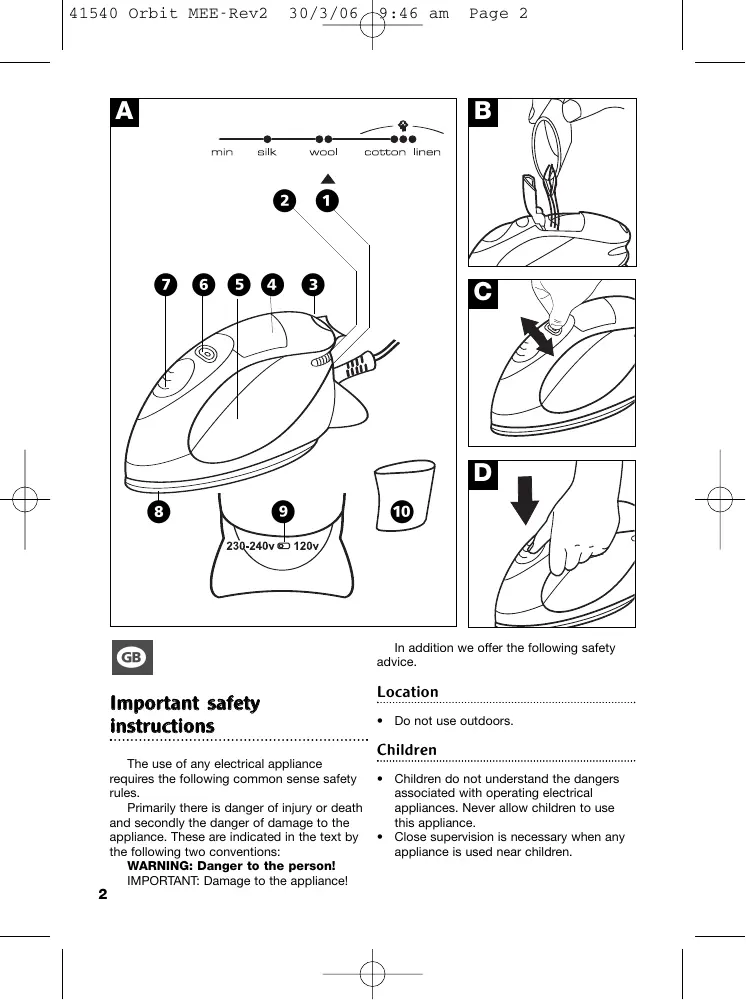

Temperature control dial Temperature indicator light Water inlet cover Water tank Steam control Surge button Sole plate Voltage selection switch Filler cup

Set the voltage selection switch ‚ to the correct voltage.

1 With the iron disconnected from the mains supply, set the steam control fl to off C. 2 Pull the water inlet › cover out and using the beaker provided fill the iron with water B. • Three cups of water will fill the tank (75ml). 3 Replace the water inlet cover. 4 Always pour out the remaining water after use.

41540 Orbit MEE-Rev2

In hard water areas the use of distilled or ironing immediately. The temperature demineralised water is recommended. indicator light ‹ shows that the iron is

Warning: When filling your iron with warming up. 3 After a few minutes the iron will stabilise at tap water always use the beaker the required temperature and the indicator provided. Never fill directly under the light will go out. It will cycle on-off during tap. IMPORTANT: Never use battery topping up operation to show that the iron is fluid or water containing any substances like maintaining the selected temperature. starch, or sugar, or defrosted water from a It is always a good idea to begin with cool refridgerator. fabrics and work up to higher settings. An iron heats up quicker than it cools down so you’ll save time and electricity. If you do adjust the temperature from a hot setting to a cooler setting, wait until the 1 Plug in the iron. iron temperature has stabilised before you 2 Set the temperature control dial ¤ to the continue ironing. temperature required, but don’t start

Temperature/fabric guide

Heat setting markings on the iron match those of the International Textile Care Labelling Code. Textiles and clothes should carry ironing instructions, but if they don’t, follow this fabric guide. Be sure to test the temperature by ironing the hem of the garment or similar area first.

Nylon, Acetates e.g. Acrilan

Courtelle, Orlon Triacetates, e.g. Tricel/Polyester

Wool, Polyester mixtures e.g.

If moisture required use damp cloth (not Acetate)

Control knob positions

Without water in tank

Fabrics requiring this setting usually require steam pressing for heavy cotton, denim etc.

Steam/ shot-of-steam

41540 Orbit MEE-Rev2

You do not need to fill the iron with water. Set the steam control to off. • Any temperature setting may be used depending on the garment.

Turn the temperature control dial to the steam position and rest the iron on its heel whilst it warms up. Turn the steam control to the steam position C. • The steam facility should only be used on garments which are suitable for ironing at the 3 dot settings.

remaining water out of the filling hole.

Replace the water inlet cover. Ensure the iron is cool and thoroughly dry before storing in the bag provided. IMPORTANT: The flex can be damaged if wound too tightly around the iron after use. Make a loose loop with the flex and wrap it around the iron. The iron must be cool before winding the flex and storing on its heel.

Your iron has a built-in cleaning system designed to keep the water valve, steam chamber and steam vents clear of lint and loose mineral deposits. Jet clean should be used after each period of ironing. 1 Ensuring that there is a little water in the tank, place the iron on its heel and turn the temperature control dial to the 3-dot setting. 2 Wait for the temperature indicator light to go out, then unplug the iron and hold it about 6" (150mm) above the sink in the ironing position. 3 Press the surge button about 10 times in succession. 4 Empty out any remaining water. IMPORTANT : Do not use descaling products in this iron.

Push in the surge button ‡ to obtain a boost of extra steam for ironing out creases in heavy material such as denim etc. D.

• The surge-of-steam can be used whilst dry ironing, providing there is water in the tank, and the temperature control is set within the steam range. • Do not use surge-of-steam at temperatures below the steam range shown on the control dial. To clean a coated soleplate • For optimum steam quality, do not operate In the unlikely event of any man-made the shot more than three times in fibres fusing to the soleplate, set the iron at succession. the 3-dot position and pass it over a clean piece of cotton which will draw the deposit off the surface. Do not use scouring powder or solution as Hold the iron in a vertical position between this could cause damage to the coating. 1cm and 2cm away from the item. Push the surge button. To clean the exterior • This feature is especially useful for Allow the iron to cool and wipe with a removing creases from hanging clothes, damp cloth, then dry. curtains, wall hangings, etc.

Emptying and storing

If your iron doesn't work

When you have finished ironing, unplug the iron and allow to cool. Ensure that the steam control is set to the 'off' position.

Remove the water inlet cover and empty any

If the iron does not work, check the following:

• Has the temperature control been set to the required temperature?

41540 Orbit MEE-Rev2

• Is the plug in its socket?

• Is the plug itself or the socket faulty? Check by plugging in another appliance.

from original purchase date. Therefore it is vital to retain your original till receipt or invoice to indicate the date of initial purchase.

To qualify for the 2-year guarantee the appliance must have been used according to the manufacturers instructions. For example, It is important to retain the retailers receipt appliances must have been descaled and as proof of purchase. Staple your receipt to filters must have been kept clean as this back cover for future reference. instructed. Please quote the following information if Morphy Richards shall not be liable to the product develops a fault. These numbers replace or repair the goods under the terms can be found on the base of the product. of the guarantee where: 1 The fault has been caused or is Model no. Serial no. attributable to accidental use, misuse, negligent use or used contrary to the All Morphy Richards products are manufacturers recommendations or where individually tested before leaving the factory. the fault has been caused by power In the unlikely event of any appliance proving surges or damage caused in transit. to be faulty within 28 days of purchase it 2 The appliance has been used on a voltage should be returned to the place of purchase supply other than that stamped on the for it to be replaced. products. If the fault develops after 28 days and 3 Repairs have been attempted by persons within 24 months of original purchase, you other than our service staff (or authorised should contact Morphy Richards quoting dealer). Model number and Serial number on the 4 Where the appliance has been used for product, or write to Morphy Richards at the hire purposes or non domestic use. address shown. 5 Morphy Richards are not liable to carry You will be asked to return the product (in out any type of servicing work, under the secure, adequate packaging) to the address guarantee. below along with a copy of proof of 6 The guarantee excludes consumables purchase. such as bags, filters and glass carafes. Subject to the exclusions set out below This guarantee does not confer any rights (1-6) the faulty appliance will then be repaired other than those expressly set out above and or replaced and dispatched usually within 7 does not cover any claims for consequential working days of receipt. loss or damage. This guarantee is offered as If for any reason this item is replaced an additional benefit and does not affect your during the 2-year guarantee period, the statutory rights as a consumer. guarantee on the new item will be calculated

Your two-year guarantee

41540 Orbit MEE-Rev2

Met water in de tank

Zonder water in de tank

Nylon, Acetates e.g. Acrilan

Courtelle, Orlon Triacetates, e.g. Tricel/Polyester

g For electrical products sold within the European

Community. At the end of the electrical products useful life it should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country.

Morphy Richards products are intended for household use only. Morphy

Richards has a policy of continuous improvement in product quality and design. The Company, therefore, reserves the right to change the specification of its models at any time.
