BLUE CHAMELEON DE LUXE - Audio Accessories MR HANDSFREE - Free user manual and instructions

Product type	Bluetooth mono headset
Brand	MR HANDSFREE
Model	BLUE CHAMELEON DE LUXE
Wireless technology	Bluetooth
Talk time	8 hours
Standby time	200 hours
Charging time	2 hours (first charge: 24 hours)
Battery type	Built-in rechargeable
Low battery indicator	5 quick beeps every 20 seconds
Maximum range	10 meters
Number of pairable devices	Up to 8
Default PIN code	0000
Main functions	Call, hang up, reject, transfer, hold, voice dial, mute, redial last number
Buttons	Multifunction (MF), Volume +/-, power on/off
LED indicator	Blue: solid when charging, flashing in standby, fast flash during call
Compatibility	Bluetooth mobile phones, PC/PDA with audio profile
Maintenance	Recharge every two months if not used for long periods
Cleaning	Wipe with a soft dry cloth
Safety	Use the supplied charger, do not expose to moisture
Spare parts	Charging adapter available

Frequently Asked Questions - BLUE CHAMELEON DE LUXE MR HANDSFREE

How to pair the Blue Chameleon headset with my phone?

Make sure the headset is off. Press the MF button until the blue LED remains solid (pairing mode). On your phone, search for Bluetooth devices, select 'Blue Ch-I', then enter PIN 0000. The indicator will flash 10 times to confirm pairing.

What should I do if I hear 5 quick beeps every 20 seconds?

This means the battery is almost empty. Recharge the headset for 2 hours until the blue LED turns off.

How to turn the headset on and off?

To turn on, press the MF button for 3 seconds: you will hear 4 ascending tones and the blue indicator will flash twice. To turn off, press MF for 5 seconds: 4 descending tones and the indicator goes off.

How to adjust volume and activate Mute?

Use the + (2) button to increase and - (8) button to decrease volume. To toggle Mute, press one of the volume buttons until you hear a beep.

What is the battery life of the headset?

Talk time is 8 hours, and standby time about 200 hours, after a full charge of 2 hours (first charge: 24 hours).

Can the headset be connected to multiple devices?

Yes, the headset can store up to 8 paired devices. The last used device connects automatically when powered on.

How to answer an incoming call?

When the headset rings, briefly press the MF button to answer. To reject, hold MF for 3 seconds.

How to use voice dialing?

Press the MF button, wait for a beep, then say the contact name. If your phone supports voice dialing, the call will be initiated. Press MF again to cancel.

What if the sound is disturbed or connection unstable?

Make sure the phone is in a good reception area and the distance between headset and phone does not exceed 10 meters. If connection is lost, the headset tries to reconnect for 90 seconds.

The blue LED does not light up, is this normal?

In standby mode, the indicator flashes every 5 seconds, but it turns off after 5 minutes of inactivity to save battery. It will light up again when you press any button.

USER MANUAL BLUE CHAMELEON DE LUXE MR HANDSFREE

mr Handsfree® Blue Chameleon Bluetooth® wireless headset GB NL F D I E P GR RU HU HR User's manual

DECLARATION OF CONFORMITY

We, the undersigned,

Company:	TE-GROUP nv
Address:	Kapelsestraat 61, 2950 Kapellen - BELGIUM

declare, that the following equipment:

Product Name:	BLUE CHAMELEON
Product Type:	Bluetooth® headset

is in conformity with the Directions of the European Union

EC R&TTE Directive

1999/5/EC

EC Low Voltage Directive

72/23/EEC

EC EMC Directive

89/338/EEC

Conformity of the Bluetooth ^® headset with the above-mentioned directions is guaranteed by the CE-symbol.

Two horizontal bar designs with grayscale shades and a central crosshair (no text or symbols)

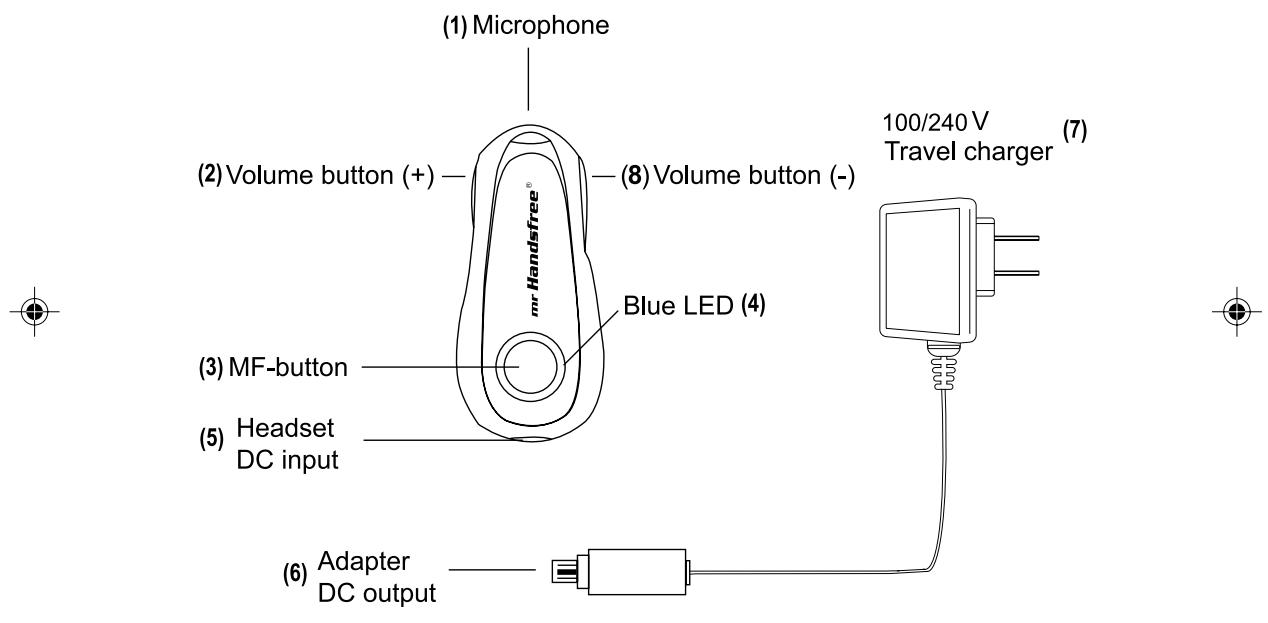

(1) Microphone (2) Volume button (+) Volume button (-) mr Handsfree® Blue LED (4) (3) MF-button Headset DC input (5) (6) Adapter DC output 100/240 V Travel charger (7)

m_BlueChameleon_III.pmd 1 14.06.2006, 12:37

Two horizontal bar designs with grayscale shades and a central crosshair (no text or symbols)

TABLE OF CONTENTS

GETTING STARTED 2

PAIRING THE HEADSET 3

MAKING AND ANSWERING / ENDING CALLS ...... 3

TRANSFERRING / SWITCHING CALLS / PUTTING CALLS

ON HOLD 4

CONNECTING WITH A PC OR PDA.... 4

TROUBLE SHOOTING 5

BLUETOOTH ^® 5

2

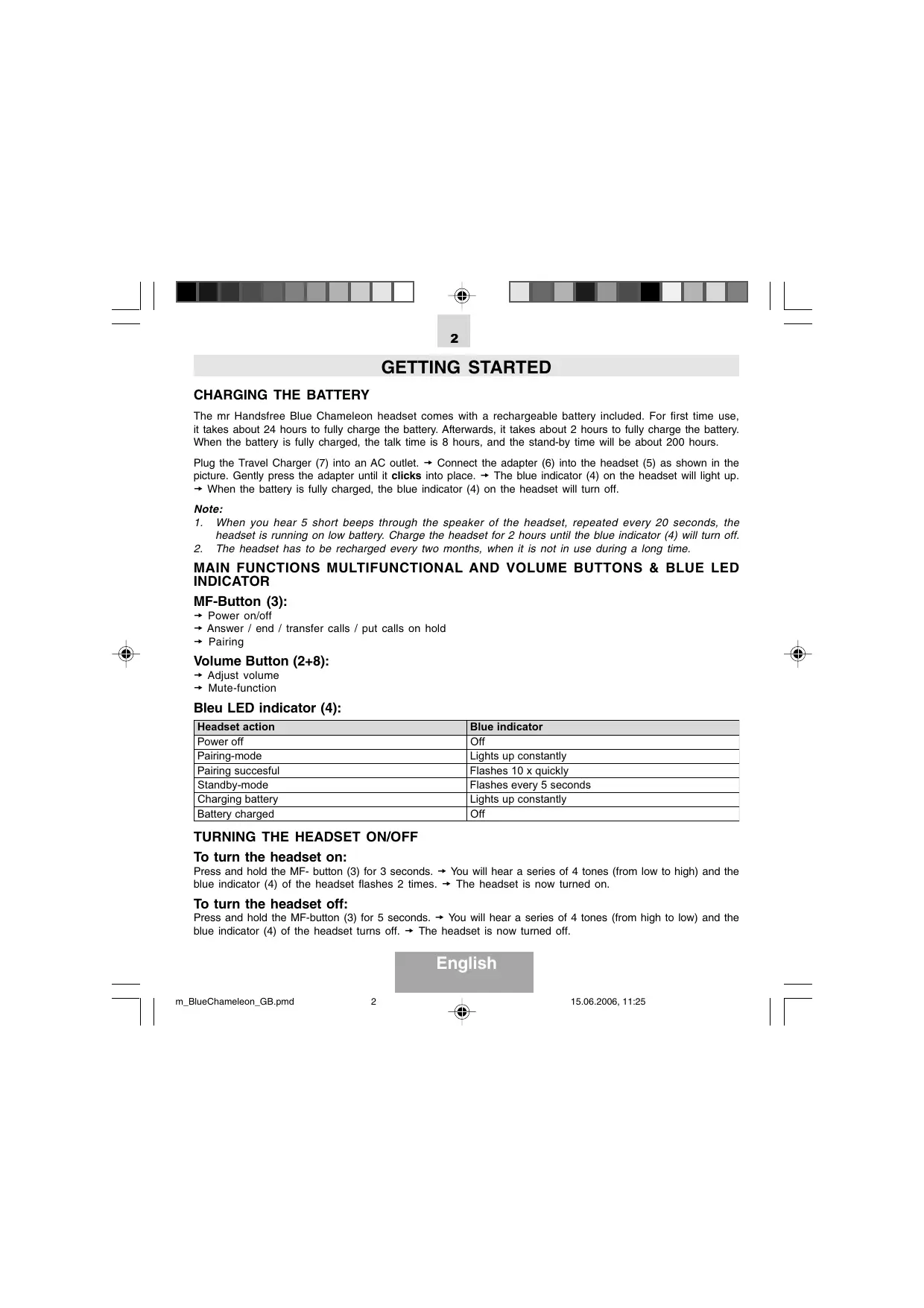

GETTING STARTED

CHARGING THE BATTERY

The mr Handsfree Blue Chameleon headset comes with a rechargeable battery included. For first time use, it takes about 24 hours to fully charge the battery. Afterwards, it takes about 2 hours to fully charge the battery. When the battery is fully charged, the talk time is 8 hours, and the stand-by time will be about 200 hours.

Plug the Travel Charger (7) into an AC outlet. → Connect the adapter (6) into the headset (5) as shown in the picture. Gently press the adapter until it clicks into place. → The blue indicator (4) on the headset will light up. → When the battery is fully charged, the blue indicator (4) on the headset will turn off.

Note:

1. When you hear 5 short beeps through the speaker of the headset, repeated every 20 seconds, the headset is running on low battery. Charge the headset for 2 hours until the blue indicator (4) will turn off.
2. The headset has to be recharged every two months, when it is not in use during a long time.

MAIN FUNCTIONS MULTIFUNCTIONAL AND VOLUME BUTTONS & BLUE LED INDICATOR

MF-Button (3):

→ Power on/off
→ Answer / end / transfer calls / put calls on hold
→ Pairing

Volume Button (2+8):

→ Adjust volume
→ Mute-function

Bleu LED indicator (4):

Headset action	Blue indicator
Power off	Off
Pairing-mode	Lights up constantly
Pairing successful	Flashes 10 x quickly
Standby-mode	Flashes every 5 seconds
Charging battery	Lights up constantly
Battery charged	Off

TURNING THE HEADSET ON/OFF

To turn the headset on:

Press and hold the MF- button (3) for 3 seconds. → You will hear a series of 4 tones (from low to high) and the blue indicator (4) of the headset flashes 2 times. → The headset is now turned on.

To turn the headset off:

Press and hold the MF-button (3) for 5 seconds. → You will hear a series of 4 tones (from high to low) and the blue indicator (4) of the headset turns off. → The headset is now turned off.

English

3

PAIRING THE HEADSET

You are required to pair the Blue Chameleon headset with your mobile phone once before using it. Each Blue Chameleon headset has a default PIN-code 0000 for pairing, which is stored in its internal memory. You are usually required to enter the PIN-code 0000 in a pairing process with a Bluetooth® mobile phone or other devices; however it depends on the kind of Bluetooth® device that the headset is connected to.

The Blue Chameleon headset must be turned off before initiating pairing. Press and hold the MF-button (3) until the blue indicator (4) lights up constantly. The headset is now ready for pairing. Initiate the pairing process on your Bluetooth® mobile phone to pair with the Blue Chameleon headset. (Refer to the manual of your mobile phone.) Select Blue Ch-I out of the list with found devices on your mobile phone. You will be asked to enter the PIN-code to complete pairing, enter 0000 and confirm it. When the pairing has been successful, the blue indicator (4) of the headset will flash 10 times quickly.

Note:

1. If the Blue Chameleon headset is not in pairing mode, your mobile phone won't find the headset. Please set the headset into pairing mode before letting your mobile phone search for the headset.
2. If no pairing is possible for a period of time (approx. two minutes), the headset will automatically leave pairing mode. You may need to start all over again.
3. The Blue Chameleon headset can pair up to 8 devices. The different devices are stored in a list in the internal memory of the headset.

a. If you wish to pair more than 8 devices, the less recent paired device will be automatically deleted from the list.
b. All devices (max.8) that are on this list, can be connected to the headset.
c. When turning on the headset, it will automatically connect to the device it was last connected with. If you want to connect the headset with another device of this list, you have to start the procedure from this device. This device then becomes the last connected device on the list.

1. Paired devices remain paired even when:

• One of the devices is not turned on.
- A service connection is interrupted or the service stopped.
• One or both devices are rebooted.

MAKING AND ANSWERING / ENDING CALLS

Once the Blue Chameleon headset is successfully paired with your mobile phone, you can use it to make and receive calls. The Blue Chameleon headset can be used with voice dialing if your mobile phone supports this feature. (Please check the manual of your mobile phone).

MAKING CALLS

Using voice dialing:

Press the MF-button (3), wait for a beep and say the name of the person you want to call. → Press the MF-button (3) again to cancel voice dialing.

Using the phone keys to make a call:

Enter and dial the number on the mobile phone as you normally do. → Once the call has been set up, the sound will be transmitted to your headset automatically.

English

4

Redial:

Press and hold the MF-button (3) for 3 seconds to redial the last number you called.

ANSWERING / ENDING CALLS

When the Blue Chameleon headset is turned on and there is an incoming call, you will hear a musical tone and the blue indicator (4) will change to a quick-flashing mode. → Press the MF-button (3) to answer the call or press and hold the MF-button (3) for 3 seconds to reject the call. → Adjust the headset volume by pressing the + button (2) to increase the volume and pressing the - button (8) to decrease the volume. → End the call by pressing the MF-button (3).

When the headset is turned off, press and hold the MF-button (3) for 3 seconds to turn the headset on. → The call will automatically be transferred to the headset.

Note:

Due to the different design of some mobile phones, an auto-disconnect may happen even when the Blue Chameleon headset is turned on. In that case, the headset won't ring when there is an incoming call. Press the MF-button (3) for 3 sec. to reconnect the headset with your mobile phone for an incoming call.

MUTE FUNCTION

During conversation, it is possible to mute the microphone.

Press and hold the Volume-button (2/8) until you hear a beep to activate the Mute function. → To disable the Mute function, press the Volume-button (2/8) once again until you hear a beep.

TRANSFERRING / SWITCHING CALLS / PUTTING CALLS ON HOLD

To transfer a call:

Press and hold the MF-button (3) until you hear a series of 4 tones (from high to low) to transfer the call to the mobile phone while talking on the headset. The headset will be turned off. → If you want to transfer the call back to the headset, press the MF-button (3) again for 3 seconds.

To switch to a second call:

Press and hold the MF-button (3) for 3 seconds to switch to a second call during a call. This function only works when your mobile phone service provider provides this service (check with your network provider).

To put a call on hold:

Press and hold the MF-button (3) for 3 seconds to put a call on hold. → Press and hold this button (3) once again for 3 seconds to continue the conversation.

CONNECTING WITH A PC OR PDA

You are allowed to connect the Blue Chameleon headset with a Bluetooth ^® enabled PC or PDA that is supported with Audio Gateway Profiles. Please refer to the user manual of your Bluetooth ^® enabled PC or PDA for setup information.

English

5

TROUBLE SHOOTING

1. You hear 5 quick beeps, repeated every 20 seconds.	The headset is running low on battery. Charge the headset for 2 hours until the blue LED indicator turns off.
2. No sound contact between the Blue Chameleon headset and other devices.	- Make sure that the two devices have been paired.- Make sure that the headset is turned on.- Make sure that the two devices are within a working range (10 m).- Make sure that your mobile phone is within signal strength.- Some Bluetooth® mobile phones can support only one Bluetooth® headset. Disconnection may happen when there is more than one headset paired with your mobile phone.
3. Several Bluetooth® devices appear on my mobile phone while searching the Blue Chameleon headset.	Most Bluetooth® enabled mobile phones with Bluetooth® function activated can search for more than one Bluetooth® device within operative range. The headset will appear as "Blue Ch-l" on your mobile phone after having been found by your mobile phone.
4. There is a disturbance noise coming from the Blue Chameleon headset.	The performance of the headset will be affected by two factors:- Whether your mobile phone is in a good signal area. If your mobile phone is in weak signal area, you won't hear clearly with the headset.- Whether it is in the operative range (10 m). The headset will automatically try to reconnect within 90 seconds.
5. The Blue Chameleon headset is turned on and is paired, but the blue LED indicator doesn't light up.	The blue LED indicator flashes in Standby-mode every 5 seconds. If after 5 minutes no action is taken, the blue LED indicator will turn off to save the battery. The LED will light again as soon as you press any key.

BLUETOOTH®

The Bluetooth ^® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by TE-Group NV is under license. Other trademarks and trade names are those of their respective owners.

English

Two horizontal bar designs with grayscale shades and a central crosshair (no text or symbols)

INHOUDSOPGAVE

STARTPROCEDURE 2

PAIRING (KOPPELING) VAN DE HEADSET .... 3

TELEFONEREN EN OPROEPEN BEANTWOORDEN / BEËINDIGEN 3

OPROEPEN DOORSCHAKELEN / OVERSCHAKELEN NAAR TWEEDE OPROEP / IN WACHT ZETTEN .... 4

VERBINDEN MET EEN PC OF EEN ZAKCOMPUTER (PDA) ..... 5

PROBLEEMOPLOSSING 5

BLUETOOTH ^® 5

2

STARTPROCEDURE

BATTERIJ OPLADEN

Met spraakherkenning (voice dialing):

Two horizontal bar designs with grayscale shades and a central crosshair (no text or symbols)

TABLE DES MATIÈRES

MISE EN ROUTE 2

APPARIEMENT DU CASQUE.... 3

CONNECTER AVEC UN PC OU PDA 5

RESOLUTION DES PROBLEMES .... 5

BLUETOOTH® 6

2

MISE EN ROUTE

RECHARGER LA BATTERIE

CONNECTER AVEC UN PC OU PDA

Two horizontal bar designs with grayscale shades and a central crosshair marker, no text or symbols present.

BLUETOOTH®

Two isolated black crosshair markers on white background, no text or symbols present

m_BlueChameleon_F.pmd 6 15.06.2006, 11:45

Français

6

15.06.2006, 11:45

Two horizontal bar designs with grayscale shades and a central crosshair (no text or symbols)

INHALTSVERZEICHNIS

INBETRIEBNAHME 2

Two horizontal bar designs with grayscale shades and a central crosshair marker, no text or symbols present.

BLUETOOTH®

Two isolated circular markers with crosshairs on a white background, no text or symbols present.

Deutsch m_BlueChameleon_D.pmd 6 15.06.2006, 15:31

Two horizontal bar designs with grayscale shades and a central crosshair (no text or symbols)

INDICE

PRIME OPERAZIONI 2

CONNESSIONE CON PC O PDA 5

CONNESSIONE CON PC O PDA

Two horizontal bar designs with grayscale shades and a central crosshair (no text or symbols)

INDICE

EMPEZAR 2

ACOPLAMIENTO DEL AURICULAR.... 3

HACER Y CONTESTAR / TERMINAR LLAMADAS .... 3

TRASPASO DE LLAMADAS / PASAR A UNA

SEGUNDA LLAMADA / LLAMADA EN ESPERA .... 4

CONECTAR CON UN PC O PDA 5

Two horizontal grayscale color swatches with a central crosshair and number 6, no text or symbols present.

BLUETOOTH®

Two isolated circular markers with crosshairs on a white background, no text or symbols present.

m_BlueChameleon_E.pmd 6 16.06.2006, 12:37

Español

6

16.06.2006, 12:37

Two horizontal bar designs with grayscale shades and a central crosshair (no text or symbols)

ÍNDICE

PREPARAR O AURICULAR 2

ACOPLAR O AURICULAR 3

EFECTUAR E ATENDER / TERMINAR CHAMADAS ...... 3

TRANSFERÊNCIA DE CHAMADAS / PASSAR PARA UMA

SEGUNDA CHAMADA / CHAMADA EM ESPERA .... 4

LIGAR AO PC OU PDA....5

Two horizontal bar designs with grayscale shades and a central crosshair (no text or symbols)

ΠΕΡΙΕΧΟΜΕΝΑ

ΛΕΙΤΟΥΡΓΙΑ 2

Two horizontal bar designs with grayscale shades and a central crosshair marker, no text or symbols present.

BLUETOOTH®

Two isolated circular markers with crosshairs on a white background, no text or symbols present.

m_BlueChameleon_GR.pmd 6 16.06.2006, 12:45

Γραικός

6

16.06.2006, 12:45

Two horizontal bar designs with grayscale shades and a central crosshair (no text or symbols)

СОДЕРЖАНИЕ

КОМПЛЕКТНОСТЬ 2

Two horizontal bar designs with grayscale shades and a central crosshair (no text or symbols)

Two isolated circular markers with crosshairs on a white background, no text or symbols present.

Two horizontal bar designs with grayscale shades and a central crosshair (no text or symbols)

TARTALOMJEGYZEK

AZ ELŐKÉSZÜLETEK 2

The Bluetooth ^® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by TE-Group NV is under license. Other trademarks and trade names are those of their respective owners.

Magyar

Two horizontal bar designs with grayscale shades and a central crosshair (no text or symbols)

SADRŽAJ

POČETAK RADA 2

UPARIVANJE NAGLAVNE SLUŠALICE 3

NAZIVANJE I ODGOVARANJE / PREKIDANJE POZIVA..... 3

PREBACIVANJE / JAVLJANJE NA POZIV/

POZIV NA ČEKANJU 4

SPAJANJE NA PC ILI PDA 4

TRAŽENJE GREŠAKA 5

BLUETOOTH ^® 5

2

POČETAK RADA

PUNJENJE BATERIJE

The Bluetooth ^® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by TE-Group NV is under license. Other trademarks and trade names are those of their respective owners.

Hrvatski

Two horizontal bar designs with grayscale shades and a central crosshair (no text or symbols)

Waste electrical products must not be disposed of with household waste. This equipment should be taken to your local recycling centre for safe treatment.

Copyright © by TE-Group nv - Belgium

Blue Chameleon/06-06/V01
