USER MANUAL T515 ALTEC LANSING

CLASS B DIGITAL DEVICE OR PERIPHERAL Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This Class B digital apparatus complies with Canadian ICES-003.

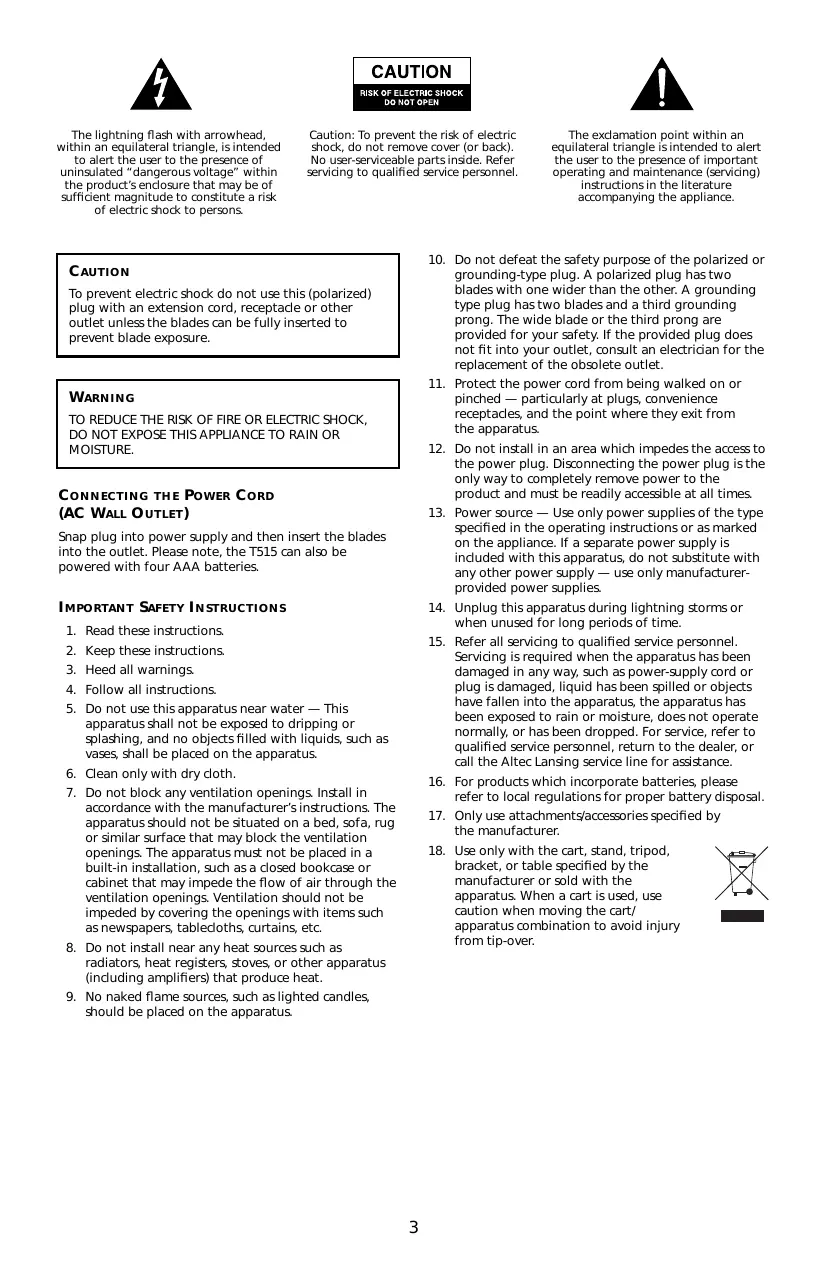

INSTRUCTIONS FCC CLASSE B POUR UN PÉRIPHÉRIQUE OU UN DISPOSITIF NUMÉRIQUE DE The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Caution: To prevent the risk of electric shock, do not remove cover (or back).

No user-serviceable parts inside. Refer servicing to qualified service personnel.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

10. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for the replacement of the obsolete outlet.

CAUTION To prevent electric shock do not use this (polarized) plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

11. Protect the power cord from being walked on or pinched — particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,

DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

12. Do not install in an area which impedes the access to the power plug. Disconnecting the power plug is the only way to completely remove power to the product and must be readily accessible at all times.

13. Power source — Use only power supplies of the type specified in the operating instructions or as marked on the appliance. If a separate power supply is included with this apparatus, do not substitute with any other power supply — use only manufacturerprovided power supplies.

Snap plug into power supply and then insert the blades into the outlet. Please note, the T515 can also be powered with four AAA batteries.

IMPORTANT SAFETY INSTRUCTIONS

14. Unplug this apparatus during lightning storms or when unused for long periods of time.

1. Read these instructions.

15. Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. For service, refer to qualified service personnel, return to the dealer, or call the Altec Lansing service line for assistance.

2. Keep these instructions.

3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water — This apparatus shall not be exposed to dripping or splashing, and no objects filled with liquids, such as vases, shall be placed on the apparatus. 6. Clean only with dry cloth.

16. For products which incorporate batteries, please refer to local regulations for proper battery disposal.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. The apparatus should not be situated on a bed, sofa, rug or similar surface that may block the ventilation openings. The apparatus must not be placed in a built-in installation, such as a closed bookcase or cabinet that may impede the flow of air through the ventilation openings. Ventilation should not be impeded by covering the openings with items such as newspapers, tablecloths, curtains, etc.

17. Only use attachments/accessories specified by the manufacturer.

18. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus

(including amplifiers) that produce heat. 9. No naked flame sources, such as lighted candles, should be placed on the apparatus.

ALTEC LANSING ONE YEAR LIMITED WARRANTY

(TWO-YEAR LIMITED WARRANTY IN THE EUROPEAN UNION AND ASIA)

How Will State Law Affect Your Rights?: This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Please note that in the European Union, you as a consumer might have other legal rights under national legislation of

European Union Member States governing the sale of Altec Lansing’s goods. Those rights are not affected by this guarantee.

What Does The Warranty Cover?: Altec Lansing warrants that its products shall be free from defects in materials or workmanship, with the exceptions stated below.

What Is The Period Of Coverage?: For units purchased in European Union or Asia, this warranty runs for two years from the date of purchase. For units not purchased in Europe or Asia, this warranty runs for one year from the date of purchase. The term of any warranties implied by law shall expire when your limited warranty expires. Some states and/or Member States in the European Union do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

The above limited warranties and remedies are sole warranties and remedies available to purchaser, if, and to the extent, valid and enforceable under the applicable law.

CUSTOMER SERVICE The answers to most setup and performance questions can be found in the Troubleshooting guide. You can also consult the FAQs in the customer support section of our

Web site at www.alteclansing.com. If you live in North America and still can’t find the information you need, please call our customer service team for assistance before returning the speakers to your retailer under their return policy.

What Does The Warranty Not Cover?: This warranty does not cover any defect, malfunction or failure that occurs as a result of: improper installation; misuse or failure to follow the product directions; abuse; or use with improper, unintended or faulty equipment. (For information on proper installation, operation and use consult the manual supplied with the product. If you require a replacement manual, you may download a manual from www.alteclansing.com.) Also, consequential and incidental damages are not recoverable under this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Email: csupport@alteclansing.com If you live outside of North America, please visit our website at www.alteclansing.com and select your region to locate your country’s distributor. For the most up-todate information, be sure to check our Web site at www.alteclansing.com.

What Will Altec Lansing Do To Correct The Problem?:

Altec Lansing will, at its option, repair or replace any product that proves to be defective in material or workmanship. If your product is no longer being manufactured, or is out of stock, at its option, Altec Lansing may replace your product with a similar or better Altec Lansing product.

INTERNATIONAL DISTRIBUTION International customers: For information regarding the distribution of Altec Lansing products in your country, please visit www.alteclansing.com and click on your region.

How To Get Warranty Service: To get a covered product repaired or replaced, you must contact Altec

Lansing during the warranty period by email (csupport@alteclansing.com). You must include in your email, your name, address, email address, telephone number, date of purchase and a complete description of the problem you are experiencing. In the United States, you may alternatively contact Altec Lansing by telephone at 1-800-ALTEC88 — please be prepared to provide the same information. If the problem appears to be related to a defect in material or workmanship, Altec Lansing will provide you a return authorization and instructions for return shipment. Return shipments shall be at the customer’s expense, and the return must be accompanied by the original proof of purchase. You should insure the shipment as appropriate because you are responsible for the product until it arrives at Altec Lansing.

DISPOSAL OF OLD ELECTRICAL &

ELECTRONIC EQUIPMENT This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office or your household waste disposal service.

Turn your mobile phone into a sound machine

The Altec Lansing T515 Bluetooth Speaker/Headset System integrates your mobile phone and provides a speakerphone. It is also a portable stereo system with a wearable headset and a microphone. You can listen to music on your mobile phone, hear a phone call come in through the speakers or headset, take the call with the touch of a button, then touch the button again to go back to the music.

For music-enabled Stereo

Bluetooth® (A2DP) mobile phones A2DP protocol enables the wireless transmission of full stereo sound to other Bluetooth devices. To determine whether your mobile phone is equipped with A2DP-enabled Bluetooth technology, consult your mobile phone packaging, user’s manual, or manufacturer’s website.

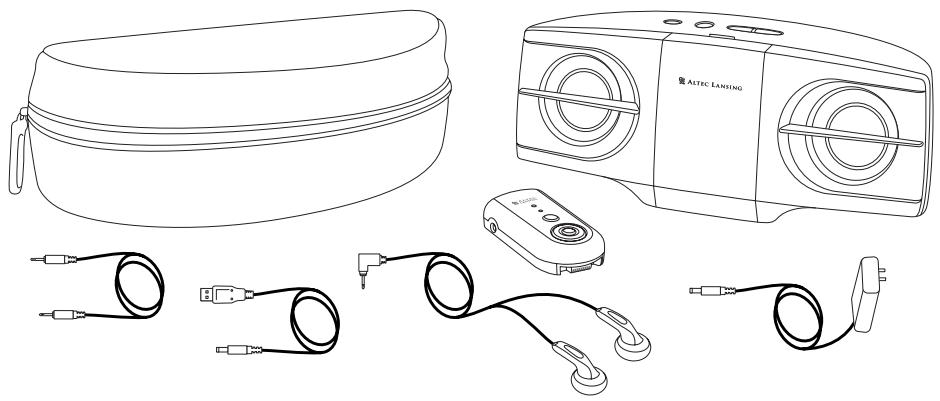

• T515 Mobile Speaker System enabled for Bluetooth • T515 Detachable Headset with built-in rechargeable battery • Stereo Earphones • Carrying Case • USB Charging Cable • 3.5mm Stereo Cable • 4 AAA batteries (LR 03) for T515 Mobile Speaker System • Power Supply Note: Dispose of batteries according to local regulations. Do not dispose as household waste.

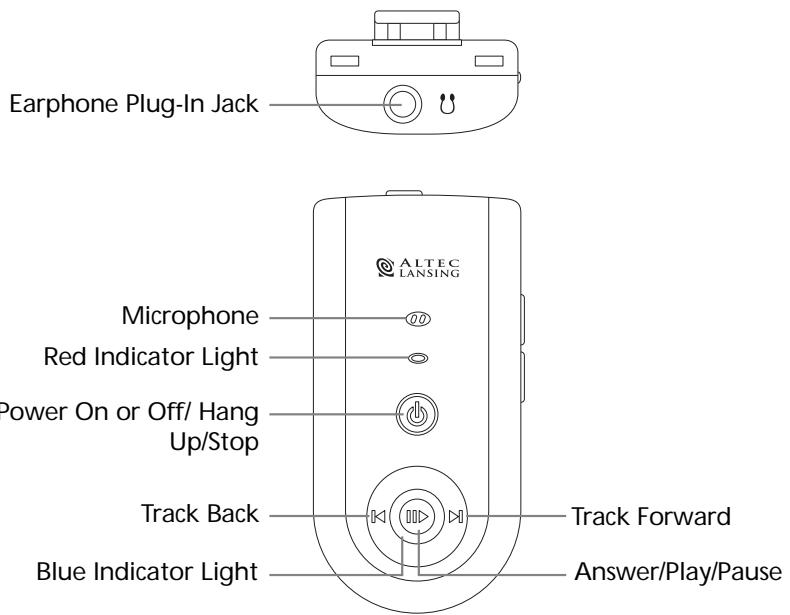

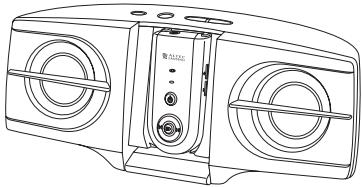

Getting to know your T515 Bluetooth

Speaker/Headset System

Earphone Plug-In Jack

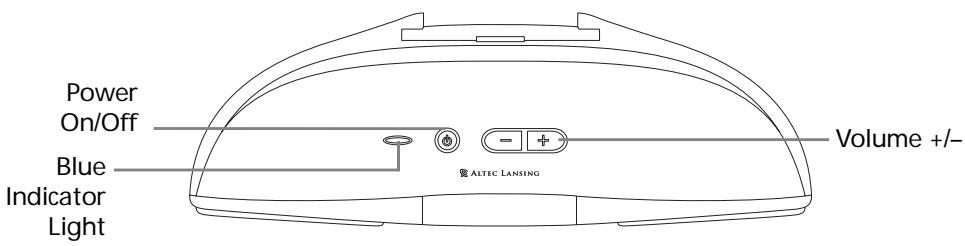

Red Indicator Light Power On or Off/ Hang Up/Stop Track Back

Blue Indicator Light

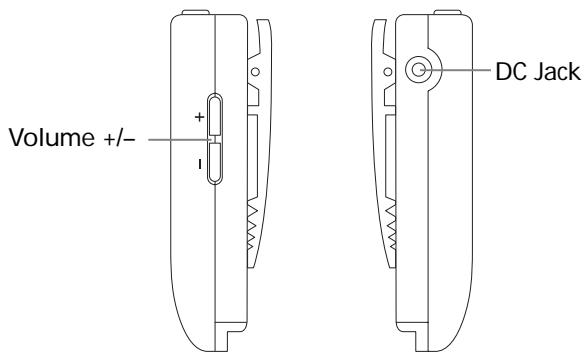

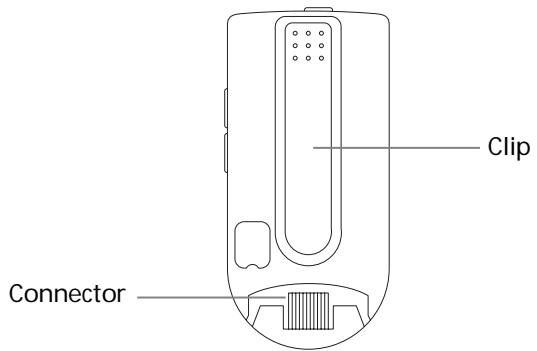

Getting to know your T515 Bluetooth

Speaker/Headset System

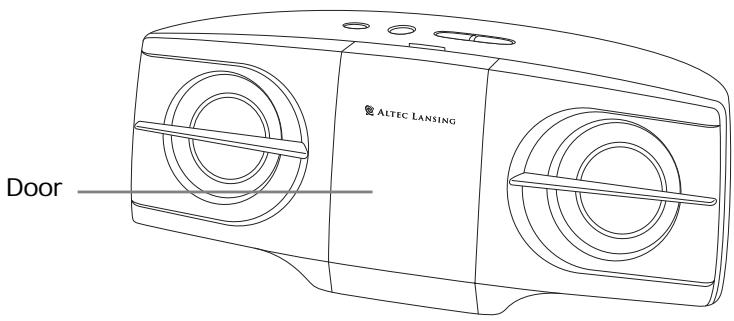

Opening the door of the Speaker System

Docking the Detachable Headset into the Speaker System

Removing the Detachable Headset from the Speaker System

Talk and Standby Time

The fully charged rechargeable battery provides up to 7 hours of operation time and up to 20 hours of standby time. With four AAA batteries (LR 03), the Speaker System can provide up to 9 hours of operation time and 13 hours of standby time. Note: When no calls are in progress, the Headset stays in standby mode.

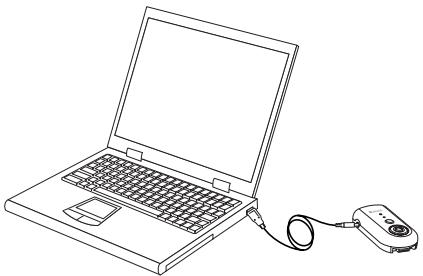

To charge the T515 Detachable Headset using your computer, connect it to your computer with the USB charging cable.

The red indicator light turns on. When the battery is fully charged, the red indicator light shuts off.

Low Rechargeable battery

When the Headset is on and detects low voltage, the red indicator light flashes every 3 seconds. To charge the T515 Detachable Headset inside the T515 Mobile Speaker System, connect it to a wall outlet using the power supply included.

Detachable Headset On/Off To turn on the Headset when it is separate from the Speaker System, press and hold the button for 2 seconds. The blue indicator light flashes 3 times and you hear a tone in the ear phones. To turn the Headset off, press and hold the button for 3 seconds. The red indicator light flashes 3 times and you hear a tone in the ear phones. Note: When docked, the Headset automatically turns on if the Speaker System is already on. Also, a docked Headset automatically turns on or off when the Speaker System is turned on or off.

Note: After the Headset is charged, remove it to avoid draining the

Speaker System batteries. Charging the Headset’s rechargeable battery takes about 3 hours. The red indicator light automatically shuts off once the battery is fully charged. If the Detachable Headset has not been used for a long time or if the rechargeable battery is drained charging may take a few minutes longer. Note: After the Headset is charged, remove it to avoid draining the Speaker System battery.

4. Release the button. The Headset is now in pairing mode.

5. Activate your mobile handset’s Bluetooth function (Consult your mobile handset user guide for details.) 6. Set the mobile handset to search for the Bluetooth device and select “T515” from the list (Consult your mobile handset user guide for details.) 7. When prompted by the mobile handset, enter the preprogrammed default PIN code “0000.” (Note: If you do not enter the PIN code, the Headset exits pairing mode and you hear a tone.)

System On/Off To turn the Speaker System on, press the button. To turn the Speaker System off, press the button again.

Detachable Headset To pause the music, press the button on the Headset when playing music from a Bluetooth mobile handset while the Headset is docked on the Speaker System.

Bluetooth-enabled computer The procedure for pairing a Bluetoothenabled computer is similar to the one for your mobile handset, but is subject to your computer’s Bluetooth software (Consult your computer user guide for details.)

Detachable Headset Before using your Headset for the first time, you must pair it with a Bluetooth-enabled mobile handset and/or a computer. After you complete pairing procedure, the Headset is ready to make and receive calls, as well as play music.

Incoming Call When you receive an incoming call, press the button on the Detachable Headset once to accept the incoming call. When you are listening to music and receive an incoming call, the music pauses automatically, and you can answer or reject the call. When the call ends, music resumes.

Pairing to your mobile handset

1. Place the Detachable Headset and the mobile handset no more than 3 feet (1 meter) apart. Note: Be sure there is nothing between them. 2. Ensure the Detachable Headset is turned off. 3. Press and hold the button until the red and blue indicator lights flash alternately.

Second Incoming Call

When you receive a second incoming call, press the button on the Headset once to accept the incoming call and put the current call on hold. Press the button once to switch between callers.

Redialing the Last Number from Your

Detachable Headset To redial the last number stored in your mobile handset, press the button for 1 second. You hear a tone when the number is redialed. Press the button to cancel redialing.

To end a call, press the button on the Headset once. You can also end the call using your mobile handset in the normal way. You hear a tone when the call ends.

Volume of Your Detachable Headset Increasing the Volume Press the button on the Headset to increase the volume one step at a time. When you reach maximum volume, you hear a tone on the ear phones.

When there is an incoming call, the mobile handset’s ring tone plays through the Headset on the ear phones or the Speaker System. If the built-in ring tone is not supported, the default ring sounds and the blue indicator light flashes.

Decreasing the Volume

Press the button on the Headset to decrease volume one step at a time. When you reach the minimum volume, you hear a tone on the ear phones. Note: When the Headset is docked on the Speaker System, the volume is set to a pre-defined level, and the and buttons on the Headset are disabled.

Press the button once to reject an incoming call during ringing. You can also reject the call using your mobile handset in the normal way. You hear a tone when the call is rejected. Dialing from Your Mobile Handset Simply make calls on your mobile handset in the normal way.

Adjusting the Volume of the Speaker System

Voice-dialing from Your

Detachable Headset If your mobile handset is equipped with a voice-dialing function, press the button on your Headset for 1 second, and say the voice tag. You hear a tone when the voice tag is registered. Press the button to cancel the voice tag. Note: Be sure to record voice tags into the mobile handset before using voicedialing function.

Increasing the Volume

Press the button on the Speaker System to increase volume one step at a time. Decreasing the Volume Press the button on the Speaker System to decrease volume one step at a time.

Note: If you were on a call when the link between your Headset and your

Mobile Handset was lost, the call will automatically transfer to your Mobile Handset.

Muting the Detachable

Headset Microphone To mute or un-mute the microphone temporarily, press for 3 seconds. A tone indicates the microphone is muted.

Listening to Music from the

Turning On/Off the Buzzer

To listen to music from the Speaker

System, turn it on and put the Detachable Headset into it.

Press the and buttons for

1 second to enable the buzzer. A tone indicates the buzzer is activated. Press the and buttons for 1 second to disable the buzzer. A tone indicates the buzzer is disabled. Note: When the buzzer tone is on, press or button for 1 second to stop the buzzer temporarily.

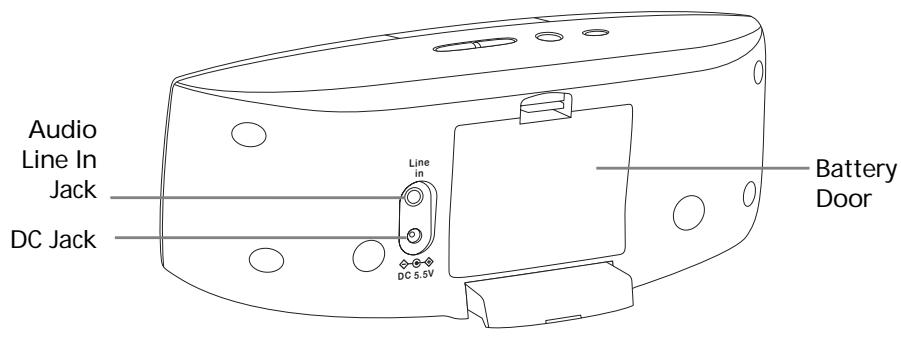

System with other Audio Sources The Line In Jack for other audio sources is located on the back of the Speaker System. Use it to connect any audio source that has a stereo 3.5 mm plug (i.e., headphone-style plug.) Caution: Make sure the audio source features a line-out jack. This ensures that the output is not amplified. Check the owner’s manual for your audio device for more information.

To transfer a connected call from your Headset to your mobile handset or vice versa, press the button for 3 seconds. A tone indicates the transfer has begun.

If you cannot solve the problem with this manual, try switching your

Detachable Headset and your mobile handset off and on again.

If the Bluetooth link between the

Detachable Headset – whether it is used with the speaker system or with the headphones – and your Mobile Handset is broken, follow these steps to re-establish it: 1. Press the button. 2. Press the button for 3 seconds. This will transfer the audio from the Mobile Handset back to the Headset/Speaker System.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareillage digital de Classe B est conforme au ICES-003 canadien. Corporate Headquarters 535 Rte. 6 & 209, Milford, PA 18337-0277, USA 866-570-5702 • 570-296-4434 • Fax 570-296-6887 Europe 13 Rue Beaumont, L-1219 Luxembourg, Luxembourg Asia/Pacific 25 Canton Road, Tsim Sha Tsui, Kowloon, Hong Kong Designed in USA. Made in China A12150-1 R04
