TransTube® 100 EFX Operation Manual

Intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: Risk of electrical shock — DO NOT OPEN!

CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, do not expose this appliance to rain or moisture. Before using this appliance, read the operating guide for further warnings.

WARNING: When using electrical products, basic cautions should always be followed, including the following:

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding plug. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit from the apparatus.
11. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug, proceed as follows:

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.
c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

1. Only use attachments/accessories provided by the manufacturer.

2. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
   Unplug this apparatus during lightning storms or when unused for long periods of time.

3. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
4. Never break off the ground pin. Write for our free booklet "Shock Hazard and Grounding." Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.
5. If this product is to be mounted in an equipment rack, rear support should be provided.
6. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:

Duration Per Day In Hours	Sound Level dBA, Slow Response
8	90
6	92
4	95
3	97
2	100
1 1/2	102
1	105
1/2	110
1/4 or less	115

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

SAVE THESE INSTRUCTIONS!

ENGLISH

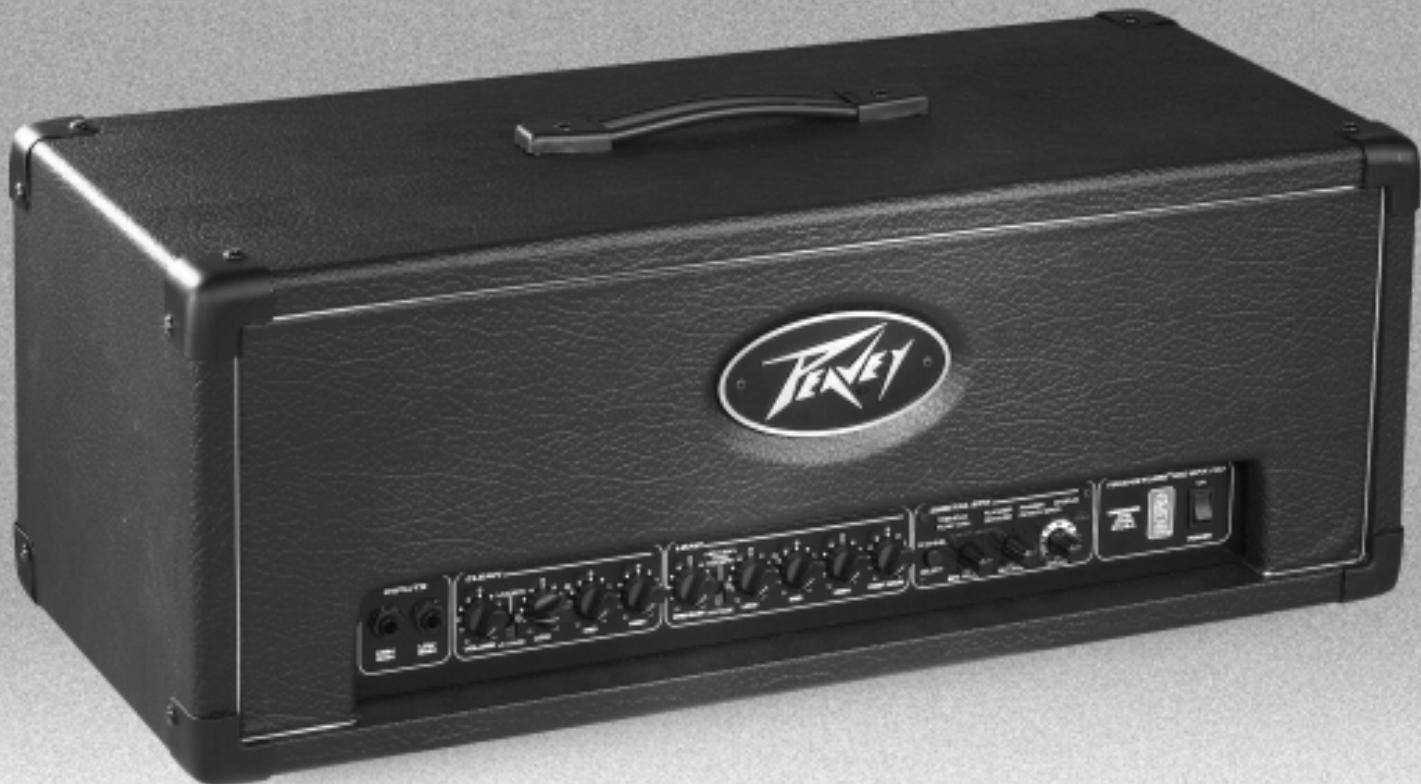

TRANSTUBE® 100 EFX AMPLIFIERS

Combining today's hottest effects with the killer tone of Peavey's patented TransTube circuitry, the EFX Series offers unbelievable replication of tube amp characteristics. Nine footswitchable digital effects allow these two-channel amps to create a vast array of awesome sounds, without using external effects processors. If external effects are still desired, EFX amps allow patching via an ultra-quiet effects loop. The TransTube 100 EFX head is a ruggedly constructed unit representing years of research and development in amplifier design and manufacturing. From user-friendly controls to specially voiced presets, these amps demonstrate Peavey's commitment to quality performance and unsurpassed durability. Plugging into an EFX amp puts the sound you want at your discretion, allowing you to concentrate on the reason you play ... the music!

Features

• 100 Watts into 16, 8 or 4 Ohms (selectable impedance)
  High and low gain inputs
• Clean channel with separate volume, EQ, and voicing controls

• Lead channel with separate pre- and post-gain, EQ, and gain/voicing controls
  9 digital effects

• Tremolo

• Octaver

• Rotary speaker

-Funk wah

• Delay

• Reverb

• Flanger

• Chorus

-Phaser

• Power damping switch (tight, medium, loose)
• Effects loop with level switch
• Preamp out and power amp in
• External speaker jacks
• Power level switch for 25 Watts, 50 Watts or 100 Watts operation

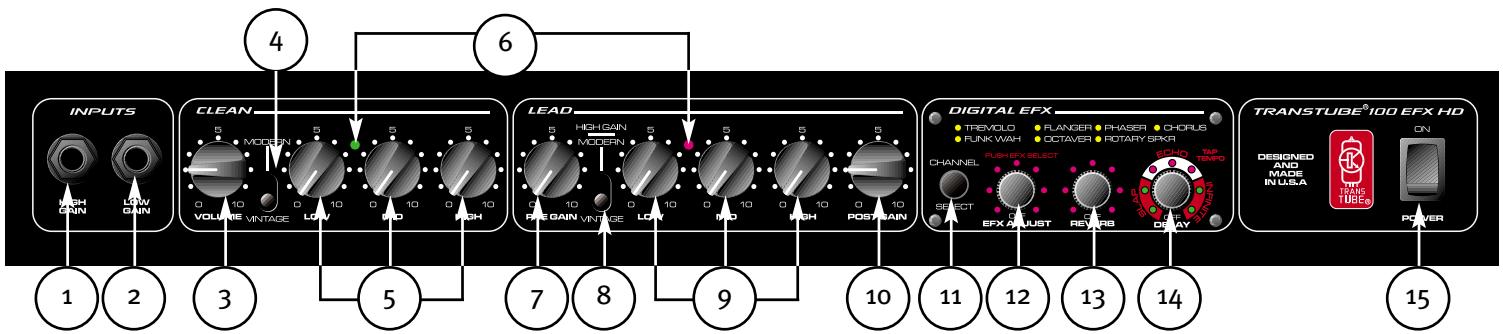

FEATURES AND CONTROLS

(1) INPUT (HIGH GAIN)

This 1 / 4'' mono jack is designed to accommodate most any guitar output signal. Input signal gain can be adjusted by the PRE GAIN (7) control (Lead channel only).

(2) INPUT (LOW GAIN)

This 1 / 4'' mono jack is designed to accommodate instruments with extremely high outputs that might overdrive the high gain input. It is -6 dB from the high gain input. If both inputs are used simultaneously, both will be low gain.

(3) VOLUME

This control sets the overall level of the Clean channel.

(4) MODERN / VINTAGE SWITCH

This switch selects the voicing of the Clean channel. The MODERN position reflects the tones of current amplifier design. The VINTAGE position changes the EQ and adds brightness to simulate classic amp design.

(5) CLEAN CHANNEL EQ

These passive controls allow adjustment of LOW, MID, and HIGH frequencies. The tonal changes produced by these controls will vary depending on the position of the MODERN / VINTAGE SWITCH (4). The “o” position is maximum cut; the “10” position is maximum boost.

(6) ACTIVE CHANNEL LEDs

These indicators signify the active channel. Green indicates Clean channel activation; red indicates Lead channel activation.

(7) PRE GAIN

This control adjusts the input gain of the Lead channel. Increasing input gain will increase preamp distortion and sustain.

(8) MODERN / VINTAGE / HIGH GAIN SWITCH

This switch selects both the gain and voicing of the Lead channel. The MODERN position increases gain and notches (cuts) mid frequencies to establish a “hard rock/metal” tone. The VINTAGE position replicates overdriven classic tube amps, while the HIGH GAIN setting increases gain and changes the EQ to allow leads/solos to “cut through.”

(9) LEAD CHANNEL EQ.

These passive controls allow adjustment of LOW, MID, and HIGH frequencies. The "o" position is maximum cut; the "10" position is maximum boost.

(10) POST GAIN

This control sets the overall gain of the Lead channel.

(11) CHANNEL SELECT

This switch selects the channel (Lead or Clean). The ACTIVE CHANNEL LEDs (6) indicate the active channel — green for Clean; red for Lead.

(12) EFX ADJUST

Pressing this control selects the effect. A yellow LED adjacent to the effect name will illuminate to indicate the selected effect. Rotating this control clockwise changes the parameter of the active effect according to the descriptions below. The surrounding LED ring indicates relative value of the parameter being adjusted.

EFX ADJ PARAMETERS

Tremolo - Rate increase Funk Wah - Sensitivity increase

Octaver - Wet/ Dry mix Rotary Speaker - Rate increase

Flanger - Rate increase Phaser - Rate increase

Chorus - Rate increase/deep decrease

EFX amps are built with factory settings loaded into the presets. To return to the factory settings, press and hold both the EFX ADJUST (12) and DELAY (14) controls while turning the amp on.

(13) REVERB

This control adjusts the overall reverb level. The surrounding LED ring indicates level.

(14) DELAY

This control adjusts delay type, time, and volume. Three types of delay are available: SLAP (1 repeat), ECHO (3-4 repeats), or INFINITE (5-6 repeats). The LEDs in each section of the control indicate which type is active and volume level. Pressing the control twice sets the delay time to the interval between presses.

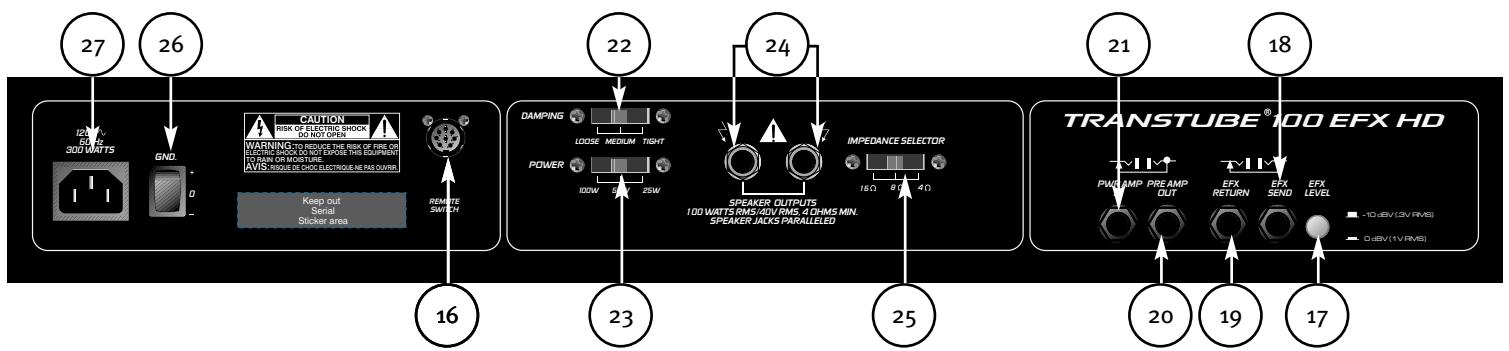

(15) POWER SWITCH

This switch applies power to the unit in the "ON" position. One of the ACTIVE CHANNEL LEDs (6) will illuminate to indicate that the unit is on. Pressing the lower portion of the switch turns the unit off.

(16) REMOTE SWITCH

This eight-pin DIN connector is provided for connection of the PFC 3 footswitch (included). The footswitch cable should be connected before the amp is powered up. See the FOOTSWITCH section of this manual for explanation of footswitch operation.

(17) EFFECTS LEVEL SWITCH

Selects the effects loop operating level: -10 dBV (0.3V RMS) when "out" and o dBV (1 V RMS) when "in".

(18) EFFECTS SEND

Output for supplying signals to external low-level effects or signal processing equipment.

(19) EFFECTS RETURN

Input for returning signals from external low-level effects or signal processing equipment.

(20) PREAMP OUT

The preamp out can be used to route the amplified signal from the preamp to a mixing console, tape recorder, etc. Connect the preamp output to line-level inputs of other equipment using high quality shielded cable. This patch does not affect operation of the amplifier.

(21) POWER AMP IN

Used to connect line-level signals to the power amplifier section. Connect the power amp input to line-level output of other equipment using high quality shielded cable. This patch disconnects the preamp section from the power amp section.

(22) DAMPING

This three-position switch allows for adjustment of the damping factor of the power amplifier. Damping is the ability of an amplifier to control speaker cone motion after the signal disappears. A higher damping factor (TIGHT) reduces cone vibration more quickly than a lower damping factor (LOOSE). This switch works much like the Resonance and Presence controls found on other Peavey amps, if they were to be turned simultaneously. If the Damping switch is changed, the volume level of the amp will also change and may require re-adjustment of the volume.

(23) POWER

This three-position switch selects the power output level of the power amplifier. This switch works like the T. Dynamics® control found on other Peavey amplifiers which provides for a more pronounced tube power compression simulation at lower settings.

(24) SPEAKER OUTPUTS

These paralleled 1/4'' mono (TS) jacks are provided for the connection of speaker enclosure(s). Minimum speaker impedance is 4 Ohms. The CABINET IMPEDANCE switch (25) must be set to match the load of the speaker cabinet(s).

(25) CABINET IMPEDANCE

This three-position switch allows for appropriate selection of speaker cabinet impedance. If two enclosures of equal impedance are used, the switch should be set to half the individual value. For example, two 16 Ohm enclosures necessitate an 8 Ohm setting, while two 8 Ohm enclosures would require a 4 Ohm setting. Minimum speaker impedance is 4 Ohms.

(26) GROUND POLARITY SWITCH

This three-position rocker switch should normally be placed in the center (o) position. If hum or noise is noticed coming from the speaker enclosure(s), the switch may be placed in the “+” or “-” position to minimize hum and noise. If changing the polarity does not alleviate the problem, consult your authorized Peavey dealer, the Peavey factory, or a qualified service technician.

(27) IEC MAINS CONNECTOR

This is a standard IEC power connector. An AC mains cord having the appropriate AC plug and ratings for the intended operating voltage is included in the carton. The mains cord should be connected to the amplifier before connecting to a suitable AC outlet.

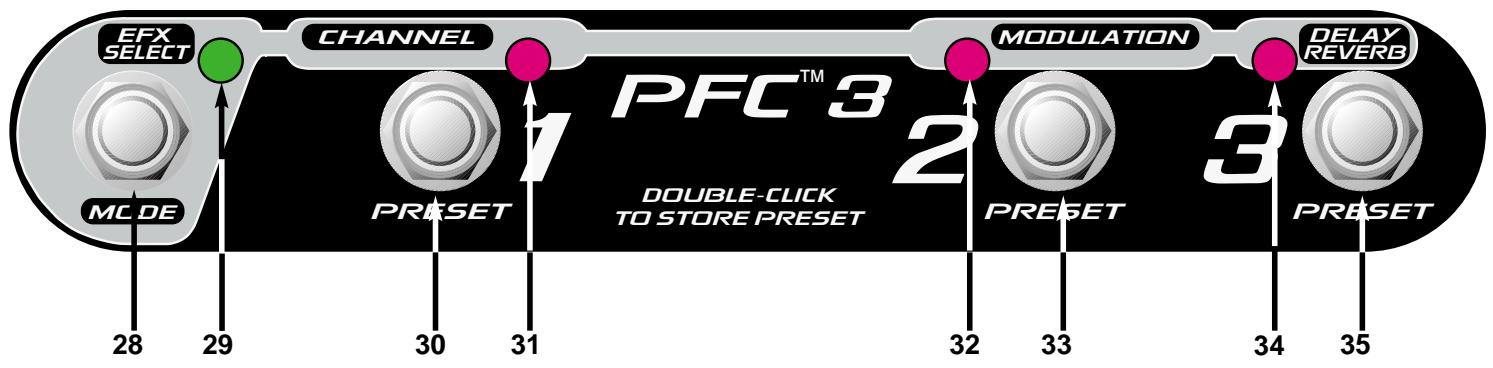

MODE SELECT

The PFC 3 footswitch operates in two modes: EFX Select mode and Preset Select mode. Pressing the MODE SWITCH (28) selects between the two modes. The active mode is indicated by the MODE LED (29). Illumination of the LED indicates EFX Select Mode; a dark LED indicates Preset Select Mode. Controls and indicators 30-35 perform different functions relative to the active mode.

PRESET SELECT MODE

In this mode, all three switches control effects presets. Their corresponding LEDs indicate which preset is active. Once desired settings are achieved utilizing the effects controls on the front panel, double-click one of the Preset switches (30, 33, or 35) to store the settings. To return to the last saved settings for a Preset, press the desired Preset switch once.

For a detailed explanation on creating and storing presets, refer to the TWEAK FEATURES section of this manual on the following page.

EFX SELECT MODE

NOTE: When entering this mode, the current preset will remain active. In this mode, SWITCH 1 (30) selects between the Lead and Clean channels. The CHANNEL LED (31) will illuminate when the Lead channel is active. SWITCH 2 (33) toggles between two effects and their respective settings. This switch may be used as an on/off switch if one of the settings has no effects active. To use the MODULATION LED (32) as a status indicator, the “off” (or lower setting) should be made with the LED dark, and the “on” (or higher setting) made with the LED illuminated. SWITCH 3 (35) toggles between two reverb and delay settings. As with effects settings, this switch may be used as an on/off for reverb and delay. Both functions change simultaneously when this switch is depressed.

Tweak Features

EFX amplifiers offer hidden features to further adjust the parameters of the digital effects. In addition to the adjustments described in the EFX ADJ PARAMETERS section of this manual, additional tweaks may be made to customize effects to user preference. Tweaks are made by pressing and holding the EFX ADJUST (12) control while simultaneously rotating the REVERB (13) control. The EFX ADJUST control must be pressed for at least one second to enter Tweak Mode. Reverb setting will not be affected while in Tweak Mode. The LED ring surrounding the control will now reflect the value of the effect being tweaked. As in standard parameter changes, the effect being tweaked will be the active effect as indicated by the LED adjacent to the effect name.

TWEAK ADJ PARAMETERS

Tremolo - Intensity

Funk Wah - Decay time

Phaser - Depth

Flanger - Depth

Rotary Speaker - Wet/Dry mix

Chorus - Wet/Dry

mix

To recover the factory settings for both Standard and Tweak Modes, press the EFX ADJUST (12) control and hold for one second to enter Tweak Mode, then press the DELAY (14) control.

CREATING AND STORING A CUSTOM PRESET

The following steps explain the creation and storage of two different effects/settings, as well as two different settings for Delay/Reverb. The Flanger and Octaver effects were selected at random. These steps will accomplish custom presets using any of the effects.

1. Assure the footswitch is in the EFX Select Mode by pressing the MODE SWITCH (28) if necessary. The MODE LED (29) will illuminate.
2. Use SWITCH 1 (30) to select Lead or Clean channel. The CHANNEL LED (31) will illuminate for Lead channel.
3. Select the position of SWITCH 2 (33). The MODULATION LED (32) may be illuminated or dark at the discretion of the user.
4. Select Flanger and adjust rate to preference using the EFX ADJUST (12) control on the front panel (standard adjustment).
5. Press and hold the EFX ADJUST (12) control while adjusting Flanger depth to preference with the REVERB (13) control on the front panel (tweak).
6. Press SWITCH 2 (33) to change to the other Modulation position. The MODULATION LED (32) will illuminate or go dark depending on its status in step 5.
7. Select Octaver and adjust wet/dry mix to preference using the EFX ADJUST (12) control on the front panel (standard adjustment).
8. Select the position of SWITCH 3 (35). The DELAY/REVERB LED (34) may be illuminated or dark at the discretion of the user.
9. Adjust reverb to preference using the REVERB (13) control on the front panel.
10. Press SWITCH 3 (35) to change to the other Delay/Reverb position. The DELAY/REVERB LED (34) will illuminate or go dark depending on its status in step 10.
11. Adjust delay type, time, and volume to preference using the DELAY (14) control.
12. Set the position of SWITCH 2 (33) and SWITCH 3 (35) to the settings preferred as defaults. (Default setting is the one that is active when the preset is selected.)
13. Press the MODE SWITCH (28) to return to the Preset Mode.
14. Double-click PRESET 1, 2, or 3 (30, 33, or 35) to store the settings in that location.

SUGGESTED SETTINGS

These are general settings to achieve the sound of various musical styles. The exact settings will depend on such things as the type of guitar being played and effects settings.

CLEAN

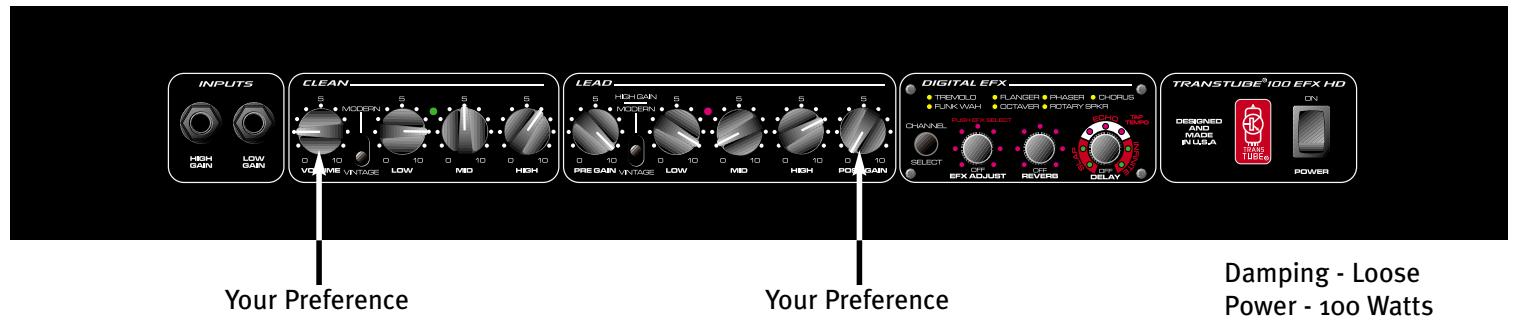

METAL

JAZZ

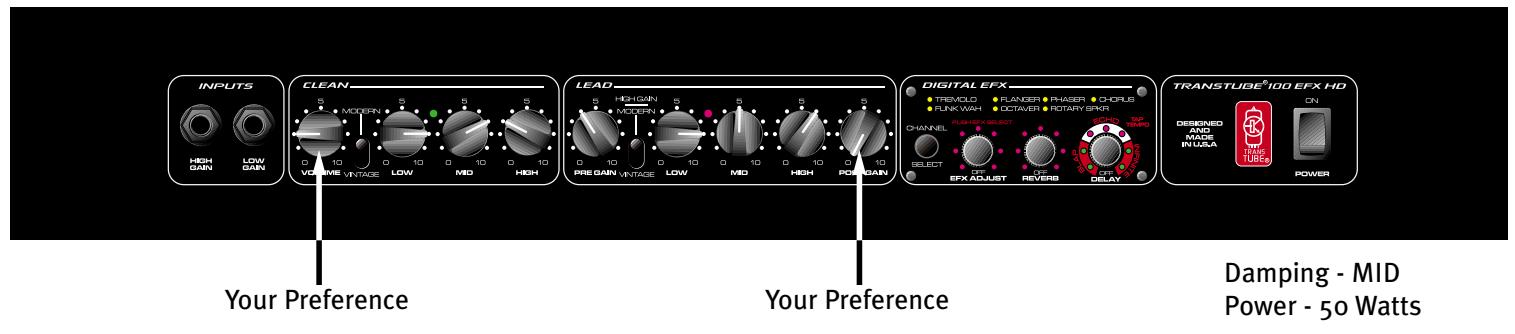

MODERATE DISTORTION

CLEAN BLUES

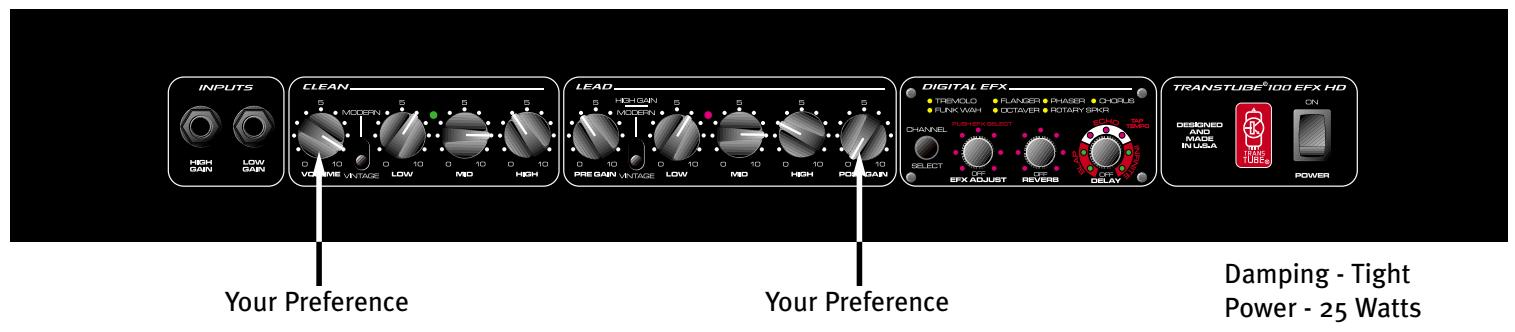

DIRTY BLUES

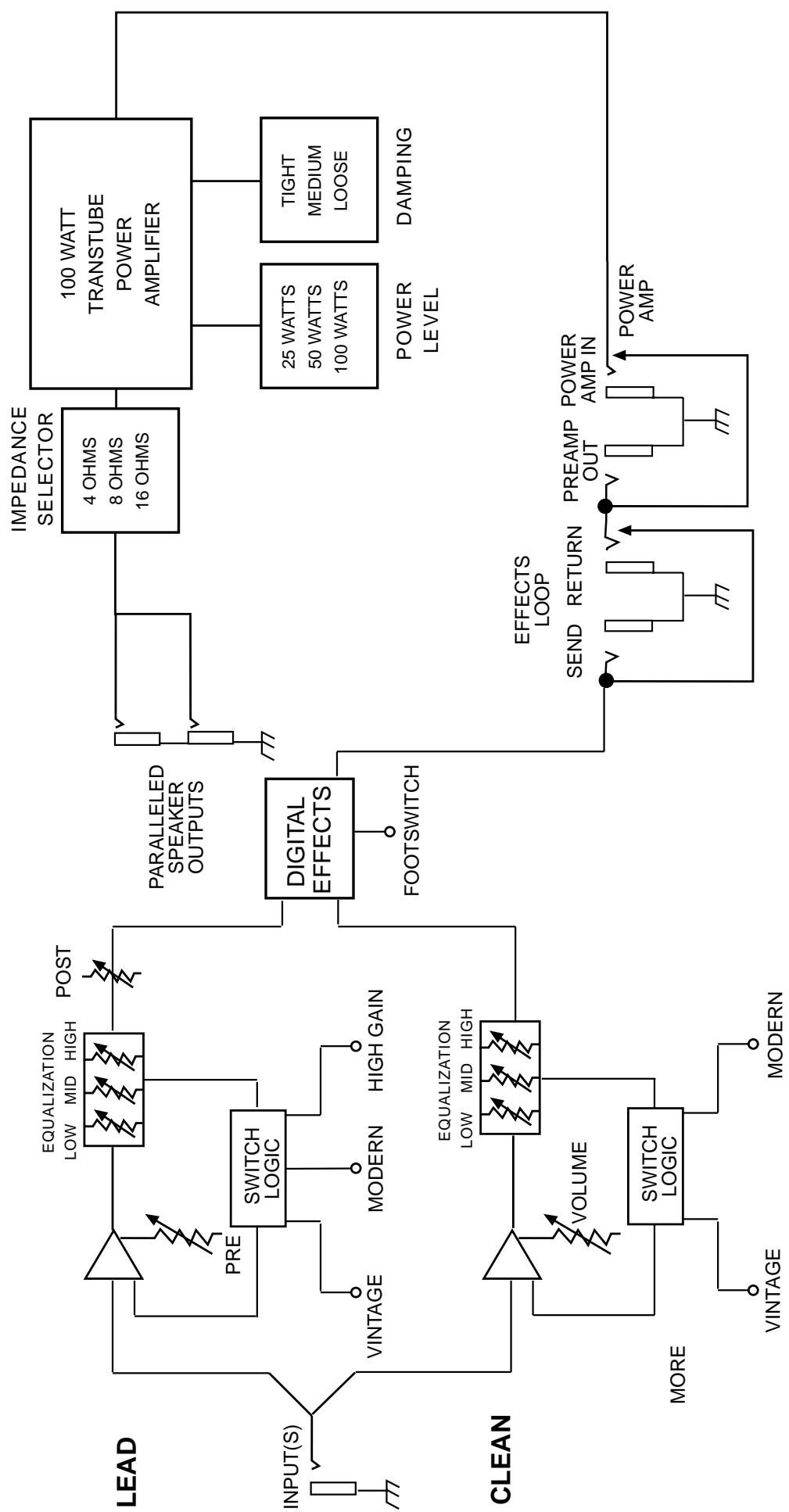

TRANSTUBE® 100 EFX SPECIFICATIONS

Power Amplifier Section:

Power measured with power switch @ 100%

(5% THD, 1 kHz, 120 VAC line)

Rated Power and Load:

100 W RMS into 16, 8 or 4 Ohms

Frequency Response:

+0, -3 dB 100 Hz to 20 kHz @ 65 W RMS into 8 Ohms

Hum and Noise:

Greater than 90 dB below rated power

Power Consumption:

Domestic: 300 W @ 60 Hz, 120 VAC

Export: 300 W @ 50/60 Hz, 220-230/240 VAC

Preamp Section:

Preamp specs measured @ 1 kHz with controls preset as follows:

Channel Select - Clean

Clean Mode Switch - Modern

Low and High EQ - 10

Mid EQ-0

Lead Pre and Post Gain - 10

Lead Mode Switch - Vintage

Effects - Off

Nominal Levels – Clean Volume @ 5

Minimum Levels – Clean Volume @ 10

Preamp High Gain Input:

Impedance: High Z, 250 k Ohms

Nominal Input Level: -14 dBV, 200 mV RMS

Minimum Input Level: -23 dBV, 68 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Preamp Low Gain Input:

Impedance: High Z, 44 k Ohms

Nominal Input Level: -8 dBV, 400 mV RMS

Minimum Input Level: -17 dBV, 136 mV RMS

Maximum Input Level: +6 dBV, 2 V RMS

Effects Send:

Load Impedance: 1 k Ohms or greater

Nominal Output Level:

Effects Level Switch "Out": -10 dBV, 0.32 V RMS

Effects Level Switch "In": 0 dBV, 1 V RMS

Effects Return:

Impedance: High Z, 22 k Ohms

Effects Level Switch "Out": -10 dBV, 0.32 V RMS

Effects Level Switch "In": 0 dBV, 1 V RMS

Preamp Output:

Load Impedance: 1 k Ohms or greater

Nominal Output Level: 0 dBV, 1 V RMS

Power Amp Input:

Impedance: High Z, 22 k Ohms

System Hum and Noise @ Nominal Input Level:

(20 Hz to 20 kHz unweighted)

Greater than 78 dB below rated power

Equalization:

Clean Channel:

Special Low, Mid, and High passive EQ

Modern/Vintage Switch: Two distinct EQ and

Gain voicings

Lead Channel:

Low, Mid, and High passive EQ

Vintage/Modern/High Gain Switch: Three different

EQ voicings

Dimensions:

11"Hx26.5"Wx11" D

(279 mm H x 673 mm W x 279 mm D)

Weight:

39 lbs. (17.7 kg)

ESPÁÑOL

TRANSTUBE® EFX AMPLIFICADOS

Power Amplifier Section:

Power measured with T. Dynamics® @ 100%

(5% THD, 1 kHz, 120 VAC line)

Rated Power and Load:

65 W RMS into 8 Ohms

Frequency Response:

+3, -0 dB 100 Hz to 20 kHz @ 50 W RMS into 8 Ohms

Hum and Noise:

Greater than 90 dB below rated power

Power Consumption:

Domestic: 200 W @ 60 Hz, 120 VAC

Export: 200 W @ 50/60 Hz, 220-230 VAC

Preamp Section:

Preamp specs measured a 1 kHz with controls

preset as follows:

Channel Select - Clean

Clean Mode Switch - Modern

Low and High EQ - 10

Mid EQ - 0

Lead Pre and Post Gain - 10

Lead Mode Switch - Vintage

Effects - Off

Nominal Levels - Clean Volume @ 5

Minimum Levels - Clean Volume @ 10

Preamp High Gain Input:

Impedance: High Z, 250 k Ohms

Nominal Input Level: -12.6 dBV, 234 mV RMS

Minimum Input Level: -23 dBV, 70 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Effects Send:

Load Impedance: 1 k Ohms or greater

Nominal Output Level:

Effects Level: -8.4 dBV, 380 mV RMS

Effects Return:

Impedance: High Z, 22 k Ohms

Designed Input Level:

Effects Level: -8.4 dBV, 380 mV RMS

(Switching jack provides Effects Send to Effects

Return connection when not used.)

System Hum and Noise @ Nominal Input Level:

(20 Hz to 20 kHz unweighted)

Greater than 76 dB below rated power

Equalization:

Clean Channel:

Special Low, Mid, and High passive EQ

Modern/Vintage Switch: Two distinct EQ voicings

Lead Channel:

Low, Mid, and High passive EQ

Vintage/Modern/High Gain Switch: Three different EQ

and Gain voicings

Presence fixed: 2 dB @ 7 kHz

Resonance fixed: 3 dB @ resonant frequency of cabinet

External Footswitch Functions:

Channel select; effects control

Dimensions:

18" H x 21.5" W x 10.75" D

(457 mm H x 546 mm W x 273 mm D)

Weight:

34.5 lbs. (16 kg)

Power Amplifier Section:

Power measured with T. Dynamics® @ 100%

(5% THD, 1 kHz, 120 VAC line)

Rated Power and Load:

80 W RMS into 8 Ohms

100 W RMS into 4 Ohms

Frequency Response:

+0, -3 dB 100 Hz to 20 kHz @ 65 W RMS into 8 Ohms

Hum and Noise:

Greater than 90 dB below rated power

Power Consumption:

Domestic: 300 W @ 60 Hz, 120 VAC

Export: 300 W @ 50/60 Hz, 220-230/240 VAC

Preamp Section:

Preamp specs measured @ 1 kHz with controls preset as follows:

Channel Select - Clean

Clean Mode Switch - Modern

Low and High EQ - 10

Mid EQ-0

Lead Pre and Post Gain - 10

Lead Mode Switch - Vintage

Effects - Off

Nominal Levels - Clean Volume @ 5

Minimum Levels – Clean Volume @ 10

Preamp High Gain Input:

Impedance: High Z, 250 k Ohms

Nominal Input Level: -14 dBV, 200 mV RMS

Minimum Input Level: -23 dBV, 68 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Preamp Low Gain Input:

Impedance: High Z, 44 k Ohms

Nominal Input Level: -8 dBV, 400 mV RMS

Minimum Input Level: -17 dBV, 136 mV RMS

Maximum Input Level: +6 dBV, 2 V RMS

Effects Send:

Load Impedance: 1 k Ohms or greater

Nominal Output Level:

Effects Level Switch "Out": -10 dBV, 0.32 V RMS

Effects Level Switch "In": 0 dBV, 1 V RMS

Effects Return:

Impedance: High Z, 22 k Ohms

Effects Level Switch "Out": -10 dBV, 0.32 V RMS

Effects Level Switch "In": 0 dBV, 1 V RMS

Preamp Output:

Load Impedance: 1 k Ohms or greater

Nominal Output Level: 0 dBV, 1 V RMS

Power Amp Input:

Impedance: High Z, 22 k Ohms

System Hum and Noise @ Nominal Input Level:

(20 Hz to 20 kHz unweighted)

Greater than 78 dB below rated power

Equalization:

Clean Channel:

Special Low, Mid, and High passive EQ

Modern/Vintage Switch: Two distinct EQ and Gain voicings

Lead Channel:

Low, Mid, and High passive EQ

Vintage/Modern/High Gain Switch: Three different EQ voicings

Presence:

+6 dB @ 5 kHz

Resonance:

+6 dB @ resonant frequency of cabinet

External Footswitch Functions:

Channel select; effects control

Dimensions:

20.75" H x 26.75" W x 11.63" D

(527 mm H x 679 mm W x 295 mm D)

Weight:

54.3 lbs. (25 kg)

FRANÇAIS

TRANSTUBE® EFX AMPLIFICATEUR

• Delay

• Reverb

• Flanger

• Chorus

-Phaser

• Delay

• Reverb

• Flanger

• Chorus

-Phaser

Tremolo - Rate increase

Funk Wah - Sensitivity increase

Octaver - Wet/Dry mix

Rotary Speaker - Rate increase

Flanger - Rate increase

Phaser - Rate increase

Chorus - Rate increase/deep decrease

(22) BOUCLE D'EFFETS

Rotary Speaker - Wet/Dry mix

Phaser - Depth

Chorus - Wet/Dry mix

Power Amplifier Section:

Power measured with T. Dynamics® @ 100%

(5% THD, 1 kHz, 120 VAC line)

Rated Power and Load:

65 W RMS into 8 Ohms

Frequency Response:

+3, -0 dB 100 Hz to 20 kHz @ 50 W RMS into 8 Ohms

Hum and Noise:

Greater than 90 dB below rated power

Power Consumption:

Domestic: 200 W @ 60 Hz, 120 VAC

Export: 200 W @ 50/60 Hz, 220-230 VAC

Preamp Section:

Preamp specs measured a 1 kHz with controls

preset as follows:

Channel Select - Clean

Clean Mode Switch - Modern

Low and High EQ - 10

Mid EQ-0

Lead Pre and Post Gain - 10

Lead Mode Switch - Vintage

Effects - Off

Nominal Levels - Clean Volume @ 5

Minimum Levels - Clean Volume @ 10

Preamp High Gain Input:

Impedance: High Z, 250 k Ohms

Nominal Input Level: -12.6 dBV, 234 mV RMS

Minimum Input Level: -23 dBV, 70 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Effects Send:

Load Impedance: 1 k Ohms or greater

Nominal Output Level:

Effects Level: -8.4 dBV, 380 mV RMS

Effects Return:

Impedance: High Z, 22 k Ohms

Designed Input Level:

Effects Level: -8.4 dBV, 380 mV RMS

(Switching jack provides Effects Send to Effects

Return connection when not used.)

System Hum and Noise @ Nominal Input Level:

(20 Hz to 20 kHz unweighted)

Greater than 76 dB below rated power

Equalization:

Clean Channel:

Special Low, Mid, and High passive EQ

Modern/Vintage Switch: Two distinct EQ voicings

Lead Channel:

Low, Mid, and High passive EQ

Vintage/Modern/High Gain Switch: Three different EQ

and Gain voicings

Presence fixed: 2 dB @ 7 kHz

Resonance fixed: 3 dB @ resonant frequency of cabinet

External Footswitch Functions:

Channel select; effects control

Dimensions:

18" H x 21.5" W x 10.75" D

(457 mm H x 546 mm W x 273 mm D)

Weight:

34.5 lbs. (16 kg)

212 EFX SPECIFICATIONS

Power Amplifier Section:

Power measured with T. Dynamics® @ 100%

(5% THD, 1 kHz, 120 VAC line)

Rated Power and Load:

80 W RMS into 8 Ohms

100 W RMS into 4 Ohms

Frequency Response:

+0, -3 dB 100 Hz to 20 kHz @ 65 W RMS into 8 Ohms

Hum and Noise:

Greater than 90 dB below rated power

Power Consumption:

Domestic: 300 W @ 60 Hz, 120 VAC

Export: 300 W @ 50/60 Hz, 220-230/240 VAC

Preamp Section:

Preamp specs measured @ 1 kHz with controls preset as follows:

Channel Select - Clean

Clean Mode Switch - Modern

Low and High EQ - 10

Mid EQ - 0

Lead Pre and Post Gain - 10

Lead Mode Switch - Vintage

Effects - Off

Nominal Levels – Clean Volume @ 5

Minimum Levels – Clean Volume @ 10

Preamp High Gain Input:

Impedance: High Z, 250 k Ohms

Nominal Input Level: -14 dBV, 200 mV RMS

Minimum Input Level: -23 dBV, 68 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Preamp Low Gain Input:

Impedance: High Z, 44 k Ohms

Nominal Input Level: -8 dBV, 400 mV RMS

Minimum Input Level: -17 dBV, 136 mV RMS

Maximum Input Level: +6 dBV, 2 V RMS

Effects Send:

Load Impedance: 1 k Ohms or greater

Nominal Output Level:

Effects Level Switch "Out": -10 dBV, 0.32 V RMS

Effects Level Switch "In": 0 dBV, 1 V RMS

Effects Return:

Impedance: High Z, 22 k Ohms

Effects Level Switch "Out": -10 dBV, 0.32 V RMS

Effects Level Switch "In": 0 dBV, 1 V RMS

Preamp Output:

Load Impedance: 1 k Ohms or greater

Nominal Output Level: 0 dBV, 1 V RMS

Power Amp Input:

Impedance: High Z, 22 k Ohms

System Hum and Noise @ Nominal Input Level:

(20 Hz to 20 kHz unweighted)

Greater than 78 dB below rated power

Equalization:

Clean Channel:

Special Low, Mid, and High passive EQ

Modern/Vintage Switch: Two distinct EQ and Gain voicings

Lead Channel:

Low, Mid, and High passive EQ

Vintage/Modern/High Gain Switch: Three different EQ voicings

Presence:

+6 dB @ 5 kHz

Resonance:

+6dB@ resonant frequency of cabinet

External Footswitch Functions:

Channel select; effects control

Dimensions:

20.75"H x 26.75"W x 11.63" D

(527 mm H x 679 mm W x 295 mm D)

Weight:

54.3 lbs. (25 kg)

DEUTSCH

TRANSTUBE®-VERSTÄRKER

• Delay

• Reverb

• Flanger

• Chorus

-Phaser

• Delay

• Reverb

• Flanger

• Chorus

-Phaser

(1) INPUT (HIGH GAIN)

(5) CLEAN CHANNEL EQ

(6) ACTIVE CHANNEL LEDs

Rotary Speaker - Wet/Dry-Mix

Phaser - Tiefe

Chorus - Wet/Dry-Mix

Power Amplifier Section:

Power measured with T. Dynamics® @ 100%

(5% THD, 1 kHz, 120 VAC line)

Rated Power and Load:

65 W RMS into 8 Ohms

Frequency Response:

+3, -0 dB 100 Hz to 20 kHz @ 50 W RMS into 8 Ohms

Hum and Noise:

Greater than 90 dB below rated power

Power Consumption:

Domestic: 200 W @ 60 Hz, 120 VAC

Export: 200 W @ 50/60 Hz, 220-230 VAC

Preamp Section:

Preamp specs measured a 1 kHz with controls

preset as follows:

Channel Select - Clean

Clean Mode Switch - Modern

Low and High EQ - 10

Mid EQ - 0

Lead Pre and Post Gain - 10

Lead Mode Switch - Vintage

Effects - Off

Nominal Levels - Clean Volume @ 5

Minimum Levels - Clean Volume @ 10

Preamp High Gain Input:

Impedance: High Z, 250 k Ohms

Nominal Input Level: -12.6 dBV, 234 mV RMS

Minimum Input Level: -23 dBV, 70 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Effects Send:

Load Impedance: 1 k Ohms or greater

Nominal Output Level:

Effects Level: -8.4 dBV, 380 mV RMS

Effects Return:

Impedance: High Z, 22 k Ohms

Designed Input Level:

Effects Level: -8.4 dBV, 380 mV RMS

(Switching jack provides Effects Send to Effects

Return connection when not used.)

System Hum and Noise @ Nominal Input Level:

(20 Hz to 20 kHz unweighted)

Greater than 76 dB below rated power

Equalization:

Clean Channel:

Special Low, Mid, and High passive EQ

Modern/Vintage Switch: Two distinct EQ voicings

Lead Channel:

Low, Mid, and High passive EQ

Vintage/Modern/High Gain Switch: Three different EQ

and Gain voicings

Presence fixed: 2 dB @ 7 kHz

Resonance fixed: 3 dB @ resonant frequency of cabinet

External Footswitch Functions:

Channel select; effects control

Dimensions:

18" H x 21.5" W x 10.75" D

(457 mm H x 546 mm W x 273 mm D)

Weight:

34.5 lbs. (16 kg)

212 EFX SPECIFICATIONS

Power Amplifier Section:

Power measured with T. Dynamics® @ 100%

(5% THD, 1 kHz, 120 VAC line)

Rated Power and Load:

80 W RMS into 8 Ohms

100 W RMS into 4 Ohms

Frequency Response:

+0, -3 dB 100 Hz to 20 kHz @ 65 W RMS into 8 Ohms

Hum and Noise:

Greater than 90 dB below rated power

Power Consumption:

Domestic: 300 W @ 60 Hz, 120 VAC

Export: 300 W @ 50/60 Hz, 220-230/240 VAC

Preamp Section:

Preamp specs measured @ 1 kHz with controls preset as follows:

Channel Select - Clean

Clean Mode Switch - Modern

Low and High EQ - 10

Mid EQ-0

Lead Pre and Post Gain - 10

Lead Mode Switch - Vintage

Effects - Off

Nominal Levels – Clean Volume @ 5

Minimum Levels - Clean Volume @ 10

Preamp High Gain Input:

Impedance: High Z, 250 k Ohms

Nominal Input Level: -14 dBV, 200 mV RMS

Minimum Input Level: -23 dBV, 68 mV RMS

Maximum Input Level: 0 dBV, 1 V RMS

Preamp Low Gain Input:

Impedance: High Z, 44 k Ohms

Nominal Input Level: -8 dBV, 400 mV RMS

Minimum Input Level: -17 dBV, 136 mV RMS

Maximum Input Level: +6 dBV, 2 V RMS

Effects Send:

Load Impedance: 1 k Ohms or greater

Nominal Output Level:

Effects Level Switch "Out": -10 dBV, 0.32 V RMS

Effects Level Switch "In": 0 dBV, 1 V RMS

Effects Return:

Impedance: High Z, 22 k Ohms

Effects Level Switch "Out": -10 dBV, 0.32 V RMS

Effects Level Switch "In": 0 dBV, 1 V RMS

Preamp Output:

Load Impedance: 1 k Ohms or greater

Nominal Output Level: 0 dBV, 1 V RMS

Power Amp Input:

Impedance: High Z, 22 k Ohms

System Hum and Noise @ Nominal Input Level:

(20 Hz to 20 kHz unweighted)

Greater than 78 dB below rated power

Equalization:

Clean Channel:

Special Low, Mid, and High passive EQ

Modern/Vintage Switch: Two distinct EQ and

Gain voicings

Lead Channel:

Low, Mid, and High passive EQ

Vintage/Modern/High Gain Switch: Three different

EQ voicings

Presence:

+6 dB @ 5 kHz

Resonance:

+6 dB @ resonant frequency of cabinet

External Footswitch Functions:

Channel select; effects control

Dimensions:

20.75" H x 26.75" W x 11.63" D

(527 mm H x 679 mm W x 295 mm D)

Weight:

54.3 lbs. (25 kg)

IMPORTANT SAFETY INSTRUCTIONS

WARNING: When using electric products, basic cautions should always be followed, including the following:

1. Read all safety and operating instructions before using this product.
2. All safety and operating instructions should be retained for future reference.
3. Obey all cautions in the operating instructions and on the back of the unit.
4. All operating instructions should be followed.
5. This product should not be used near water (i.e., a bathtub, sink, swimming pool, wet basement, etc.)
6. This product should be located so that its position does not interfere with its proper ventilation. It should not be placed flat against a wall or placed in a built-in enclosure that will impede the flow of cooling air.
7. This product should not be placed near a source of heat such as a stove, radiator, or another heat producing amplifier.
8. Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.
9. Never break off the ground pin on the power supply cord. For more information on grounding, write for our free booklet "Shock Hazard and Grounding."
10. Power supply cords should always be handled carefully. Never walk on or place equipment on power supply cords. Periodically check cords for cuts or signs of stress, especially at the plug and the point where the cord exits the unit.
11. The power supply cord should be unplugged when the unit is to be unused for long periods of time.
12. If this product is to be mounted in an equipment rack, rear support should be provided.
13. Metal parts can be cleaned with a damp rag. The vinyl covering used on some units can be cleaned with a damp rag or an ammonia-based household cleaner if necessary. Disconnect unit from power supply before cleaning.
14. Care should be taken so that objects do not fall and liquids are not spilled into the unit through the ventilation holes or any other openings.
15. This unit should be checked by a qualified service technician if:

a. The power supply cord or plug has been damaged.
b. Anything has fallen or been spilled into the unit.
c. The unit does not operate correctly.
d. The unit has been dropped or the enclosure damaged.

1. The user should not attempt to service this equipment. All service work should be done by a qualified service technician.
2. This product should be used only with a cart or stand that is recommended by Peavey Electronics.
3. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures.

Duration Per Day In Hours

8

6

4

3

2

1 1/2

1

1/2

1/4 or less

Sound Level dBA, Slow Response

90

92

95

97

100

102

105

110

115

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or protectors for the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

SAVE THESE INSTRUCTIONS!

PEAVEY ELECTRONICS CORPORATION LIMITED WARRANTY

Effective Date: July 1, 1998

What This Warranty Covers

Your Peavey Warranty covers defects in material and workmanship in Peavey products purchased and serviced in the U.S.A. and Canada.

What This Warranty Does Not Cover

The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental, product modification or neglect; (2) damage occurring during shipment; (3) damage caused by repair or service performed by persons not authorized by Peavey; (4) products on which the serial number has been altered, defaced or removed; (5) products not purchased from an Authorized Peavey Dealer.

Who This Warranty Protects

This Warranty protects only the original retail purchaser of the product.

How Long This Warranty Lasts

The Warranty begins on the date of purchase by the original retail purchaser. The duration of the Warranty is as follows:

Product Category	Duration
Guitars/Basses, Amplifiers, Pre-Amplifiers, Mixers, Electronic Crossovers and Equalizers	2 years * (+ 3 years)
Drums	2 years * (+ 1 year)
Enclosures	3 years * (+ 2 years)
Digital Effect Devices and Keyboard and MIDI Controllers	1 year * (+ 1 year)
Microphones	2 years
Speaker Components (incl. speakers, baskets, drivers, diaphragm replacement kits and passive crossovers) and all Accessories	1 year
Tubes and Meters	90 days

[Denotes additional warranty period applicable if optional Warranty Registration Card is completed and returned to Peavey by original retail purchaser within 90 days of purchase.]

What Peavey Will Do

We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges.

How To Get Warranty Service

(1) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Peavey Dealer or Authorized Peavey Service Center.

OR

(2) Ship the defective item, prepaid, to Peavey Electronics Corporation, International Service Center, 412 Highway 11 & 80 East, Meridian, MS 39301 or Peavey Canada Ltd., 95 Shields Court, Markham, Ontario, Canada L3R 9T5. Include a detailed description of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of warranty coverage. Also provide a complete return address.

Limitation of Implied Warranties

ANY IMPLIED WARRANTY, INCLUDING WARRANTYES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Exclusions of Damages

PEAVEY'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT PEAVEY'S OPTION. IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. PEAVEY SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS, LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE, OR ANY OTHER DAMAGES WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you have any questions about this warranty or service received or if you need assistance in locating an Authorized Service Center, please contact the Peavey International Service Center at [phone] / Peavey Canada Ltd. at [phone].

Features and specifications subject to change without notice.

Features and specifications subject to change without notice.

Peavey Electronics Corporation • 711 A Street • Meridian • MS • 39301 [phone] • FAX [phone] • www.peavey.com
