USER MANUAL SUPREME XL PEAVEY

For more information on other great Peavey products, go to your local Peavey dealer or online at www.peavey.com Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION: Risk of electrical shock — DO NOT OPEN! CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: When using electrical products, basic cautions should always be followed, including the following:

Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding plug. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit from the apparatus. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug‚ proceed as follows: a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E‚ the earth symbol‚ colored green or colored green and yellow. b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black. c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red. Only use attachments/accessories provided by the manufacturer. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Never break off the ground pin. Write for our free booklet “Shock Hazard and Grounding.” Connect only to a power supply of the type marked on the unit adjacent to the power supply cord. If this product is to be mounted in an equipment rack, rear support should be provided. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government’s Occupational and Health Administration (OSHA) has specified the following permissible noise level exposures: Duration Per Day In Hours

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation. SAVE THESE INSTRUCTIONS!

ENGLISH Supreme™ XL The Supreme™ XL—the next chapter in the ongoing saga of Peavey’s TransTube™ technology. Those mad Peavey scientists have once again applied their fiendish skills to creating a monster of an amplifier‚ capable of reproducing heaps of the hottest tube amp tones—past and present. Stir in the ability to create your own voice and you have a sonic pallet capable of producing anything you can dream. Two fully-independent channels (Rhythm/passive EQ and Lead/active EQ)—from the sparkling clean tones of the “Rhythm” mode‚ the nearly uncontrollable scream of the “Lead” mode to the extreme flexibility of new TransTube power amp damping and power level switches, the Supreme™ XL is sure to leave you mesmerized every time you plug in. Capable of over 100 Watts of earth shaking power into any standard guitar cabinet, this behemoth can blow the roof off the largest of venues or…with a twist of the master volume and a flip of the 25/50/100 Watt power level switch, keep a crowd in the smallest of bars. Further tonal mayhem can be accomplished with outboard effects via the foot-switchable effects loop. Reverb is also included to put the icing on the cake. We’ve even thrown in a footswitch and a classic jeweled pilot light so that you will certainly have the tools to break ALL of the rules. The all new Peavey Supreme XL—now you don’t have anymore excuses. You can just hook the Supreme XL up to your favorite cabinet‚ plug in and go. Or better yet‚ read through this operating guide and get the most out of your amplifier. Be sure to hook up correctly so you don’t damage yourself or your equipment. Features

• 100 Watts RMS @ 8 Ohms
• Two fully independent channels
• Bottom, body, and edge along with active EQ on Lead channel
• Three-band passive EQ on Rhythm channel
• Three-position EQ and gain voicing switches on each channel — Lead channel: British‚ Modern‚ Ultra — Rhythm channel: Vintage‚ Modern‚ Crunch
• Power level switch for 25 Watts, 50 Watts, or 100 Watts operation
• Power amp damping switch (tight, medium, loose)
• Two-button footswitch (included)
• Classic jeweled pilot light
• Chrome-plated brass control knobs

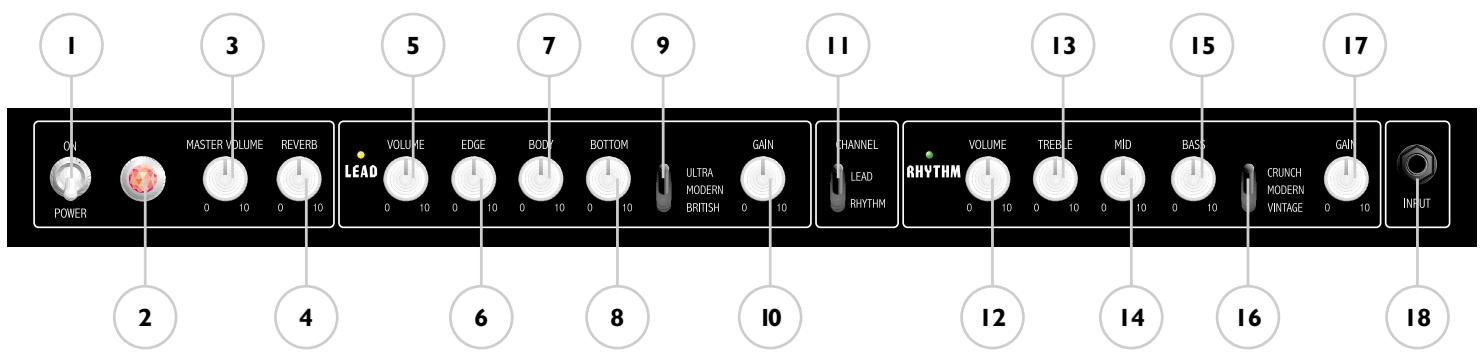

POWER SWITCH This heavy-duty, two-way toggle switch applies mains power to the unit. The red POWER STATUS LAMP (2) will illuminate when this switch is in the ON position. (2)

This is no mere indicator—this is the classic jeweled pilot light. It illuminates when mains power is being supplied to the amp and looks really cool at the same time! (3) MASTER VOLUME This control sets the overall volume level of the amp. Once the desired balance between both channels in the amplifier has been achieved, the entire output level of the unit can be increased or decreased by rotating this control. Clockwise rotation increases level; counterclockwise rotation decreases level. (4) REVERB Controls the overall reverb level. (5 & 12) VOLUME These controls set the overall level for each respective channel. (6) EDGE This control on the Lead channel, varies the high frequency response of the amplifier. It is an active control (shelving type) and allows 15 dB of boost or cut. (7) BODY This control on the Lead channel, varies the mid frequency response of the amplifier. It is an active control (peak/notch type) and allows 15 dB of boost or cut. (8) BOTTOM This control on the Lead channel, varies the low frequency response of the amplifier. It is an active control (shelving type) and allows 15 dB of boost or cut.

This three-position switch selects between three distinct gain and EQ voicings on the Lead channel. (10 & 17) GAIN This control adjusts the input volume level of each respective channel. Rotating this control clockwise will increase the amount of preamp distortion and sustain. (11)

CHANNEL SELECT SWITCH

This switch selects the Rhythm or Lead channels. It must be in the Lead position for normal footswitch operation. (13) TREBLE This passive control (Rhythm channel only) regulates the high frequency response. (14) MID This passive control (Rhythm channel only) regulates the mid frequency response. (15) LOW This passive control (Rhythm channel only) regulates the low frequency response. (16)

CRUNCH/MODERN/VINTAGE

This three-position switch selects between three distinct EQ voicings on the Rhythm channel. (18) INPUT A 1/4" jack is provided to accommodate signals from any standard electric guitar.

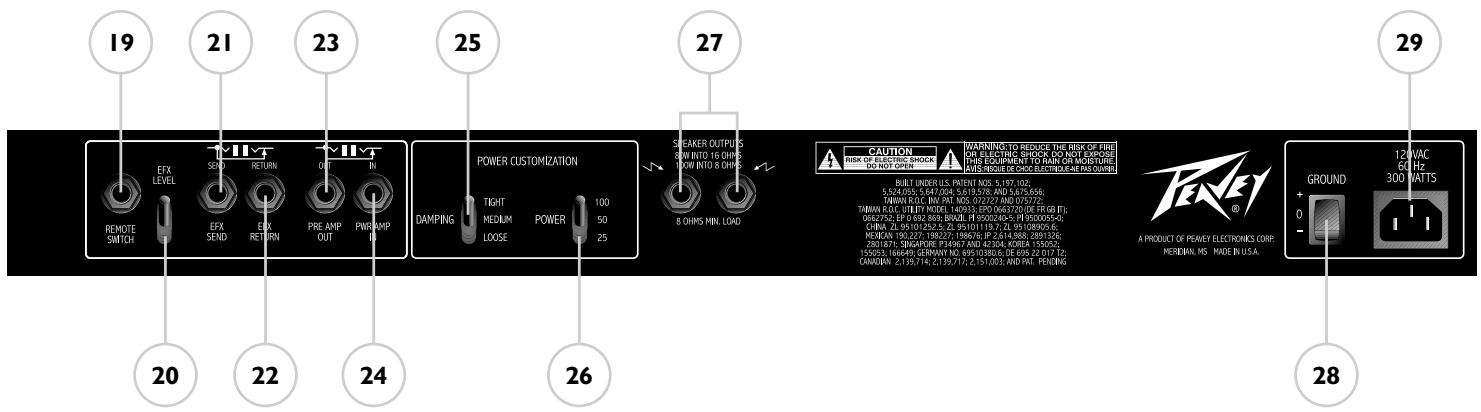

REMOTE SWITCH A 1/4" connector is provided for connection of the footswitch. The footswitch cable should be connected before the amp is powered up. See the FOOTSWITCH section of this manual for explanation of footswitch operation. (20)

EFFECTS LEVEL SWITCH

Selects the effects loop operating level: -10 dBV (0.3V RMS) when “Down” and -1.4 dBV (850 mV) when “Up.” (21) EFFECTS SEND Output for supplying signals to external low-level effects or signal processing equipment. (22) EFFECTS RETURN Input for returning signals from external low-level effects or signal processing equipment. (23) PREAMP OUT The preamp out can be used to route the amplified signal from the preamp to a mixing console, tape recorder, etc. Connect the preamp output to line-level inputs of other equipment using a high-quality shielded cable. This patch does not affect operation of the amplifier. (24)

Used to connect line-level signals to the Supreme XL’s power amplifier section. Connect the power amp input to line-level output of other equipment using high-quality shielded cable. This patch disconnects the Supreme XL preamp section from the power amp section. (25) DAMPING This three-position switch allows for adjustment of the damping factor of the power amplifier. Damping is the ability of an amplifier to control speaker cone motion after the signal disappears. A higher damping factor (TIGHT) reduces cone vibration more quickly than a lower damping factor (LOOSE). If the Damping switch is changed, the volume level of the amp will also change and may require readjustment of the Master Volume (3).

(26) POWER This three-position switch selects the power output level of the power amplifier. This switch works like the T. Dynamics® control found on other Peavey amplifiers (visit www.peavey.com for more info)which provides for a more pronounced tube power compression simulation at lower settings. (27) SPEAKER OUTPUTS These parallel 1/4" mono (TS) jacks are provided for the connection of speaker enclosure(s). Minimum speaker impedance is 8 Ohms. Although you can daisy-chain enclosures‚ it is preferable to use both 1/4" jacks thereby maintaining proper gain structure as well as ensuring optimum performance. (28)

GROUND POLARITY SWITCH

This three-position rocker switch should normally be placed in the center (0) position. If hum or noise is noticed coming from the speaker enclosure(s), the switch may be placed in the “+” or “-” position to minimize hum and noise. If changing the polarity does not alleviate the problem, consult your authorized Peavey dealer, the Peavey factory, or a qualified service technician. (29)

This is a standard IEC power connector. An AC mains cord having the appropriate AC plug and ratings for the intended operating voltage is included in the carton. The mains cord should be connected to the amplifier before connecting to a suitable AC outlet.

U.S. DOMESTIC AC MAINS CORD

The mains cord supplied with the unit is a heavy-duty, three-conductor type with a conventional 120 VAC plug with ground pin. If the outlet used does not have a ground pin, a suitable grounding adapter should be used, and the third wire should be grounded properly. C a u t i o n : Never break off the ground pin on any equipment. It is provided for your safety. FOOTSWITCH

(30) Select This rockin’ 2-button stereo footswitch is included with every Supreme™ XL. Only what’s called for—change channels and engage or defeat the effects loop. This Select button allows for easy‚ hands-free selection of either the Lead or Rhythm channel. The 14-foot cable gives you plenty of room to maneuver. Connect the 1/4" jack to the Remote Switch (19) and you’re ready to stomp. Please make sure to connect this footswitch with the Power Off. (31) Effects This one is easy. Stomp on the Effects button and engage or disengage your connected effects devices.

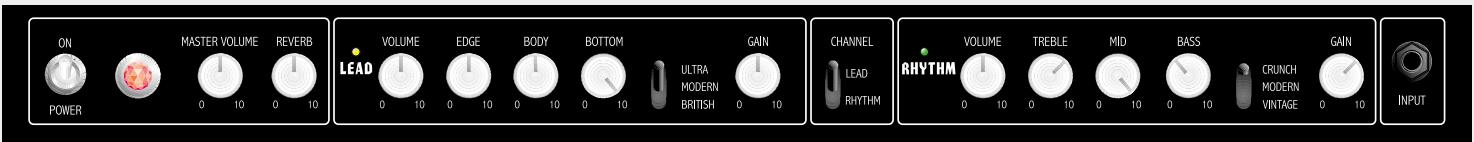

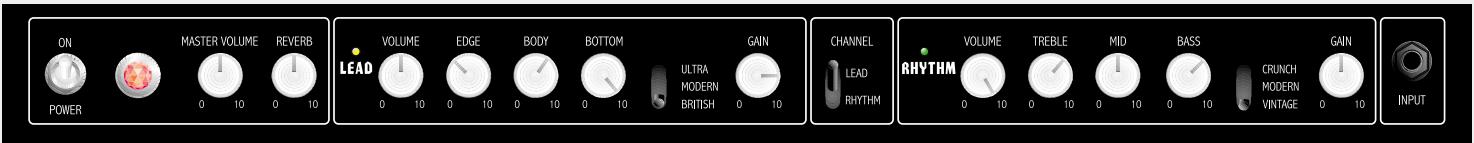

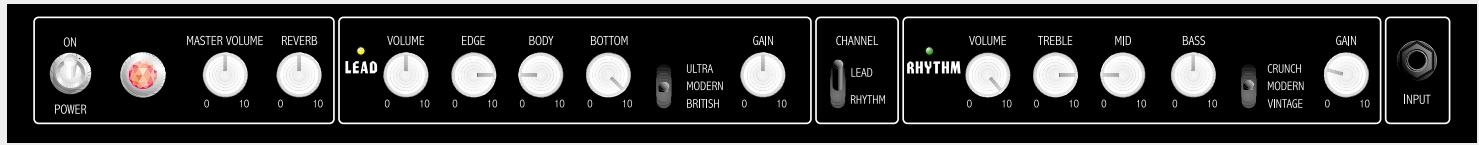

Supreme™ XL SUGGESTED SETTINGS X-Man Setting: Damping = Loose; Power = 100 watts; bridge‚ humbucker; Master Volume and Reverb set as desired Brown-o-tron: Damping = Medium; Power = 50 watts; humbucker; Master Volume and Reverb set as desired Left Field: Damping = Tight; Power = 25 watts; neck and middle single-coil; Master Volume and Reverb set as desired

Rhythm Channel (Vintage) Preamp Output Rated Power & Load Nominal Input Level: -29 dB; 35 mV RMS Minimum Input Level: -44 dB; 6 mV RMS Maximum Input Level: -2.5 dB; 750 mV RMS Load Impedance: 1k ohms or greater Nominal Output Level: -1.4 dBV; 850 mV RMS Rhythm Channel (Crunch) Impedance: High Z; 22 k ohms Designed Input Level: -1.4 dBV; 850 mV RMS (Switching jack provides Effects Send to Effects Return when not in use.) 100 watts RMS into 8 ohms; 80 watts RMS into 16 ohms Power @ Clipping 80 watts RMS into 16 ohms @ 5% THD; 1 kHz; 120 VAC line Hum and Noise Nominal Input Level: -46 dB; 5 mV RMS Minimum Input Level: -60 dB; 1 mV RMS Lead Channel (Ultra) Power Amp Input Greater than 98 dB below rated power Nominal Input Level: -70 dB; 0.3 mV RMS Minimum Input Level: -83 dB; 0.07 mV RMS System Hum and Noise @ Nominal Input Level Power Consumption Effects Send Domestic: 300 watts; 60 Hz; 120 VAC Export: 300 watts; 50/60 Hz; 230–240 Hz Load Impedance: 1 k ohms or greater Nominal Output Level: Effects Level switch: DOWN: -10 dBV; 300 mV RMS Effects Level switch: UP -1.4 dBV; 850 mV RMS (Clean channel‚ Modern‚ 20 Hz–20kHz unweighted) Greater than 64 dB below rated power PREAMP SECTION The following specifications are measured @ 1kHz with the controls preset as follows: Low and High EQ @ 10; Mid EQ @ 0 Lead Volume @ 5 Bottom EQ @ 10 Body and Edge EQs @ 5 Master Volume @ 10 Reverb @ 0 Nominal Levels are with Gain @ 5; Volume @10 Minimum Levels are with Gain @ 10; Volume @ 10 Damping @ Tight Power @ 100 watts Effects Return Impedance: High Z; 22 k ohms Designed Input Level: Effects Level switch: DOWN: -10 dBV; 300 mV RMS Effects Level switch: UP -1.4 dBV; 850 mV RMS (Switching jack provides Effects Send to Effects Return when not in use.) N o t e : For proper ventilation‚ allow 24" clearance from nearest conbustible surface.

Equalization Rhythm channel: Low‚ Mid and High passive EQ with three distinct voicings Lead channel: Bottom‚ Body and Edge active EQ with three distinct voicings Remote Footswitch 2-button footswitch for channel selection and effects loops bypass (included) Dimensions and Weight 10.875" (276 mm) H x 26.500" (673 mm) W x 11.000" (279 mm) D

Rhythm Channel (Vintage) Preamp Output Rated Power & Load Nominal Input Level: -29 dB; 35 mV RMS Minimum Input Level: -44 dB; 6 mV RMS Maximum Input Level: -2.5 dB; 750 mV RMS Load Impedance: 1k ohms or greater Nominal Output Level: -1.4 dBV; 850 mV RMS Rhythm Channel (Crunch) Impedance: High Z; 22 k ohms Designed Input Level: -1.4 dBV; 850 mV RMS (Switching jack provides Effects Send to Effects Return when not in use.) 100 watts RMS into 8 ohms; 80 watts RMS into 16 ohms Power @ Clipping 80 watts RMS into 16 ohms @ 5% THD; 1 kHz; 120 VAC line Hum and Noise Nominal Input Level: -46 dB; 5 mV RMS Minimum Input Level: -60 dB; 1 mV RMS Lead Channel (Ultra) Power Amp Input Greater than 98 dB below rated power Nominal Input Level: -70 dB; 0.3 mV RMS Minimum Input Level: -83 dB; 0.07 mV RMS System Hum and Noise @ Nominal Input Level Power Consumption Effects Send Domestic: 300 watts; 60 Hz; 120 VAC Export: 300 watts; 50/60 Hz; 230–240 Hz Load Impedance: 1 k ohms or greater Nominal Output Level: Effects Level switch: DOWN: -10 dBV; 300 mV RMS Effects Level switch: UP -1.4 dBV; 850 mV RMS (Clean channel‚ Modern‚ 20 Hz–20kHz unweighted) Greater than 64 dB below rated power PREAMP SECTION The following specifications are measured @ 1kHz with the controls preset as follows: Low and High EQ @ 10; Mid EQ @ 0 Lead Volume @ 5 Bottom EQ @ 10 Body and Edge EQs @ 5 Master Volume @ 10 Reverb @ 0 Nominal Levels are with Gain @ 5; Volume @10 Minimum Levels are with Gain @ 10; Volume @ 10 Damping @ Tight Power @ 100 watts Effects Return Impedance: High Z; 22 k ohms Designed Input Level: Effects Level switch: DOWN: -10 dBV; 300 mV RMS Effects Level switch: UP -1.4 dBV; 850 mV RMS (Switching jack provides Effects Send to Effects Return when not in use.) N o t e : For proper ventilation‚ allow 24" clearance from nearest conbustible surface.

Equalization Rhythm channel: Low‚ Mid and High passive EQ with three distinct voicings Lead channel: Bottom‚ Body and Edge active EQ with three distinct voicings Remote Footswitch 2-button footswitch for channel selection and effects loops bypass (included) Dimensions and Weight 10.875" (276 mm) H x 26.500" (673 mm) W x 11.000" (279 mm) D

Rhythm Channel (Vintage) Preamp Output Rated Power & Load Nominal Input Level: -29 dB; 35 mV RMS Minimum Input Level: -44 dB; 6 mV RMS Maximum Input Level: -2.5 dB; 750 mV RMS Load Impedance: 1k ohms or greater Nominal Output Level: -1.4 dBV; 850 mV RMS Rhythm Channel (Crunch) Impedance: High Z; 22 k ohms Designed Input Level: -1.4 dBV; 850 mV RMS (Switching jack provides Effects Send to Effects Return when not in use.) 100 watts RMS into 8 ohms; 80 watts RMS into 16 ohms Power @ Clipping 80 watts RMS into 16 ohms @ 5% THD; 1 kHz; 120 VAC line Hum and Noise Nominal Input Level: -46 dB; 5 mV RMS Minimum Input Level: -60 dB; 1 mV RMS Lead Channel (Ultra) Power Amp Input Greater than 98 dB below rated power Nominal Input Level: -70 dB; 0.3 mV RMS Minimum Input Level: -83 dB; 0.07 mV RMS System Hum and Noise @ Nominal Input Level Power Consumption Effects Send Domestic: 300 watts; 60 Hz; 120 VAC Export: 300 watts; 50/60 Hz; 230–240 Hz Load Impedance: 1 k ohms or greater Nominal Output Level: Effects Level switch: DOWN: -10 dBV; 300 mV RMS Effects Level switch: UP -1.4 dBV; 850 mV RMS (Clean channel‚ Modern‚ 20 Hz–20kHz unweighted) Greater than 64 dB below rated power PREAMP SECTION The following specifications are measured @ 1kHz with the controls preset as follows: Low and High EQ @ 10; Mid EQ @ 0 Lead Volume @ 5 Bottom EQ @ 10 Body and Edge EQs @ 5 Master Volume @ 10 Reverb @ 0 Nominal Levels are with Gain @ 5; Volume @10 Minimum Levels are with Gain @ 10; Volume @ 10 Damping @ Tight Power @ 100 watts Effects Return Impedance: High Z; 22 k ohms Designed Input Level: Effects Level switch: DOWN: -10 dBV; 300 mV RMS Effects Level switch: UP -1.4 dBV; 850 mV RMS (Switching jack provides Effects Send to Effects Return when not in use.) N o t e : For proper ventilation‚ allow 24" clearance from nearest conbustible surface.

Equalization Rhythm channel: Low‚ Mid and High passive EQ with three distinct voicings Lead channel: Bottom‚ Body and Edge active EQ with three distinct voicings Remote Footswitch 2-button footswitch for channel selection and effects loops bypass (included) Dimensions and Weight 10.875" (276 mm) H x 26.500" (673 mm) W x 11.000" (279 mm) D

FRANÇAIS Supreme™ XL La Supreme™ XL—le dernier chapitre de la désormais illustre série TransTube™ de Peavey. Notre équipe d’ingénieurs a encore récidivée et concue une unité incroyable tant par sa simplicité d’utilisation que par sa polyvalence sonore. Capable d’approcher les sonorités d’amplificateurs à lampes (anciens et modernes) tout en gardant les facilités de l’amplification à transistors, il vous permettra sans doute d’élargir votre jeu grace à l’incroyable palette sonore possible. D’une puissance de plus de 100 Watts, la Supreme™ XL peut être connectée dans toute enceinte guitare de bonne qualité pour vous donner des performances du plus haut niveau. Alternativement, vous bénéficiez du même grain sonore à des puissances plus modérées grâce au sélécteur de puissance (25/50/100 Watts) pour une plus intime utilisation, ou si vous désirez renouer des liens avec votre entourage! Elle possède également une réverb numérique intégrée, une boucle d’effets contrôlable au pied, un pédalier, une égalisation par canal,…Tout pour profiter pleinement de ces possibilités sonores! Vous pouvez juste brancher une enceinte à sa sortie, votre guitare a son entrée et jouer!! Mais nous vous conseillons pour profiter pleinement de votre nouvelle unité de lire ce manuel dans son intégralité. Assurez-vous de la validité et de la qualité des connexions à et de votre Supreme™ XL pour ne pas endommager votre matériel ou vous-même! Caractéristiques

• 100 Watts RMS @ 8 Ohms

Rhythm Channel (Vintage) Preamp Output Rated Power & Load Nominal Input Level: -29 dB; 35 mV RMS Minimum Input Level: -44 dB; 6 mV RMS Maximum Input Level: -2.5 dB; 750 mV RMS Load Impedance: 1k ohms or greater Nominal Output Level: -1.4 dBV; 850 mV RMS Rhythm Channel (Crunch) Impedance: High Z; 22 k ohms Designed Input Level: -1.4 dBV; 850 mV RMS (Switching jack provides Effects Send to Effects Return when not in use.) 100 watts RMS into 8 ohms; 80 watts RMS into 16 ohms Power @ Clipping 80 watts RMS into 16 ohms @ 5% THD; 1 kHz; 120 VAC line Hum and Noise Nominal Input Level: -46 dB; 5 mV RMS Minimum Input Level: -60 dB; 1 mV RMS Lead Channel (Ultra) Power Amp Input Greater than 98 dB below rated power Nominal Input Level: -70 dB; 0.3 mV RMS Minimum Input Level: -83 dB; 0.07 mV RMS System Hum and Noise @ Nominal Input Level Power Consumption Effects Send Domestic: 300 watts; 60 Hz; 120 VAC Export: 300 watts; 50/60 Hz; 230–240 Hz Load Impedance: 1 k ohms or greater Nominal Output Level: Effects Level switch: DOWN: -10 dBV; 300 mV RMS Effects Level switch: UP -1.4 dBV; 850 mV RMS (Clean channel‚ Modern‚ 20 Hz–20kHz unweighted) Greater than 64 dB below rated power PREAMP SECTION The following specifications are measured @ 1kHz with the controls preset as follows: Low and High EQ @ 10; Mid EQ @ 0 Lead Volume @ 5 Bottom EQ @ 10 Body and Edge EQs @ 5 Master Volume @ 10 Reverb @ 0 Nominal Levels are with Gain @ 5; Volume @10 Minimum Levels are with Gain @ 10; Volume @ 10 Damping @ Tight Power @ 100 watts Effects Return Impedance: High Z; 22 k ohms Designed Input Level: Effects Level switch: DOWN: -10 dBV; 300 mV RMS Effects Level switch: UP -1.4 dBV; 850 mV RMS (Switching jack provides Effects Send to Effects Return when not in use.) N o t e : For proper ventilation‚ allow 24" clearance from nearest conbustible surface.

Equalization Rhythm channel: Low‚ Mid and High passive EQ with three distinct voicings Lead channel: Bottom‚ Body and Edge active EQ with three distinct voicings Remote Footswitch 2-button footswitch for channel selection and effects loops bypass (included) Dimensions and Weight 10.875" (276 mm) H x 26.500" (673 mm) W x 11.000" (279 mm) D

Effective Date: July 1, 1998 What This Warranty Covers Your Peavey Warranty covers defects in material and workmanship in Peavey products purchased and serviced in the U.S.A. and Canada. What This Warranty Does Not Cover The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental, product modification or neglect; (2) damage occurring during shipment; (3) damage caused by repair or service performed by persons not authorized by Peavey; (4) products on which the serial number has been altered, defaced or removed; (5) products not purchased from an Authorized Peavey Dealer. Who This Warranty Protects This Warranty protects only the original retail purchaser of the product. How Long This Warranty Lasts The Warranty begins on the date of purchase by the original retail purchaser. The duration of the Warranty is as follows: Product Category Duration Guitars/Basses, Amplifiers, Pre-Amplifiers, Mixers, Electronic Crossovers and Equalizers 2 years *(+ 3 years) Drums 2 years *(+ 1 year) Enclosures 3 years *(+ 2 years) Digital Effect Devices and Keyboard and MIDI Controllers 1 year *(+ 1 year) Microphones 2 years Speaker Components (incl. speakers, baskets, drivers, diaphragm replacement kits and passive crossovers) and all Accessories 1 year Tubes and Meters 90 days [*Denotes additional warranty period applicable if optional Warranty Registration Card is completed and returned to Peavey by original retail purchaser within 90 days of purchase.] What Peavey Will Do We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges. How To Get Warranty Service (1) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Peavey Dealer or Authorized Peavey Service Center. (2) Ship the defective item, prepaid, to Peavey Electronics Corporation, International Service Center, 412 Highway 11 & 80 East, Meridian, MS 39301 or Peavey Canada Ltd., 95 Shields Court, Markham, Ontario, Canada L3R 9T5. Include a detailed description of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of warranty coverage. Also provide a complete return address. Limitation of Implied Warranties ANY IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Exclusions of Damages PEAVEY'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT PEAVEY'S OPTION. IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. PEAVEY SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS, LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE, OR ANY OTHER DAMAGES WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. If you have any questions about this warranty or service received or if you need assistance in locating an Authorized Service Center, please contact the Peavey International Service Center at (601) 483-5365 / Peavey Canada Ltd. at (905) 475-2578. Features and specifications subject to change without notice.
