USER MANUAL PV 1200 PEAVEY

Intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. CAUTION: Risk of electrical shock – DO NOT OPEN! CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

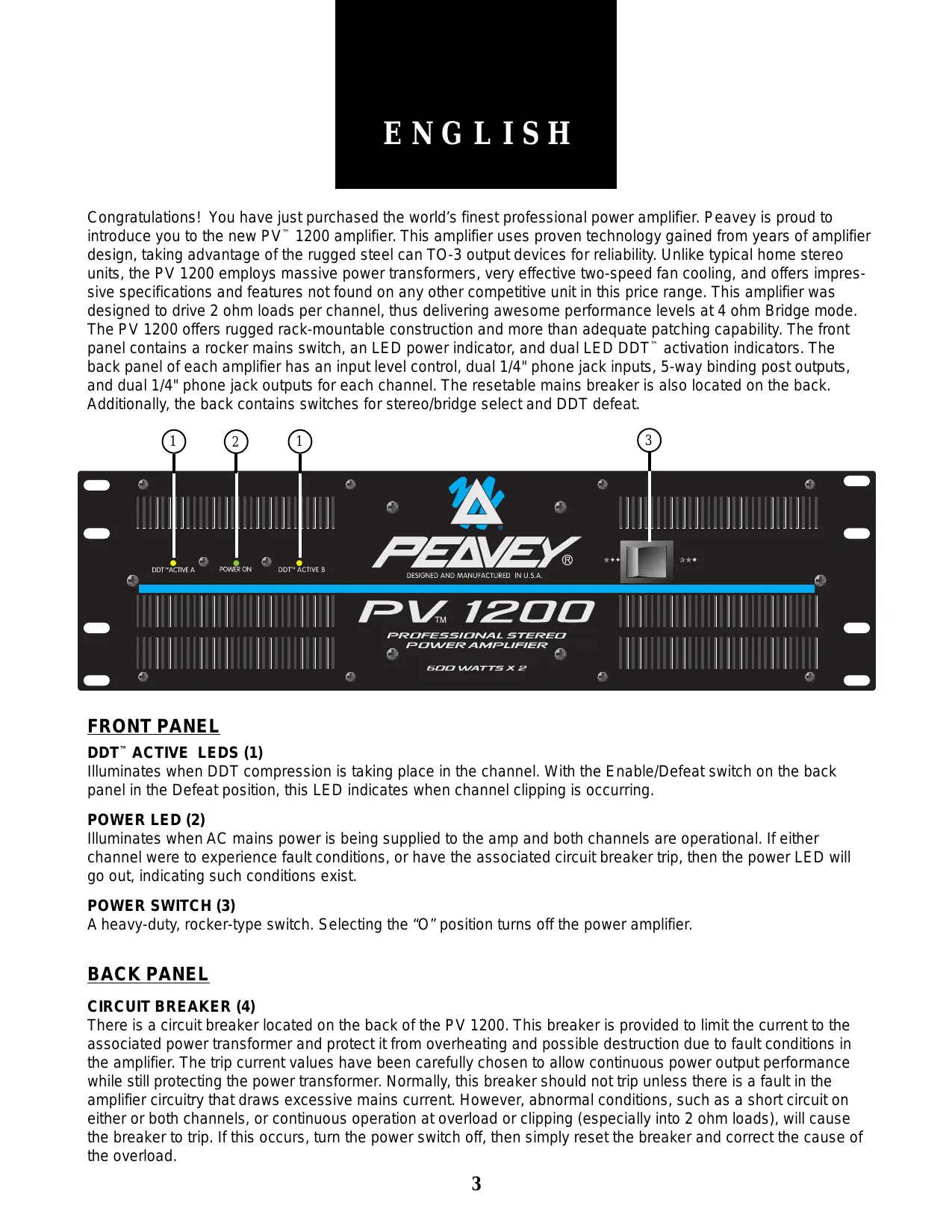

ENGLISH Congratulations! You have just purchased the world’s finest professional power amplifier. Peavey is proud to introduce you to the new PV™ 1200 amplifier. This amplifier uses proven technology gained from years of amplifier design, taking advantage of the rugged steel can TO-3 output devices for reliability. Unlike typical home stereo units, the PV 1200 employs massive power transformers, very effective two-speed fan cooling, and offers impressive specifications and features not found on any other competitive unit in this price range. This amplifier was designed to drive 2 ohm loads per channel, thus delivering awesome performance levels at 4 ohm Bridge mode. The PV 1200 offers rugged rack-mountable construction and more than adequate patching capability. The front panel contains a rocker mains switch, an LED power indicator, and dual LED DDT™ activation indicators. The back panel of each amplifier has an input level control, dual 1/4" phone jack inputs, 5-way binding post outputs, and dual 1/4" phone jack outputs for each channel. The resetable mains breaker is also located on the back. Additionally, the back contains switches for stereo/bridge select and DDT defeat.

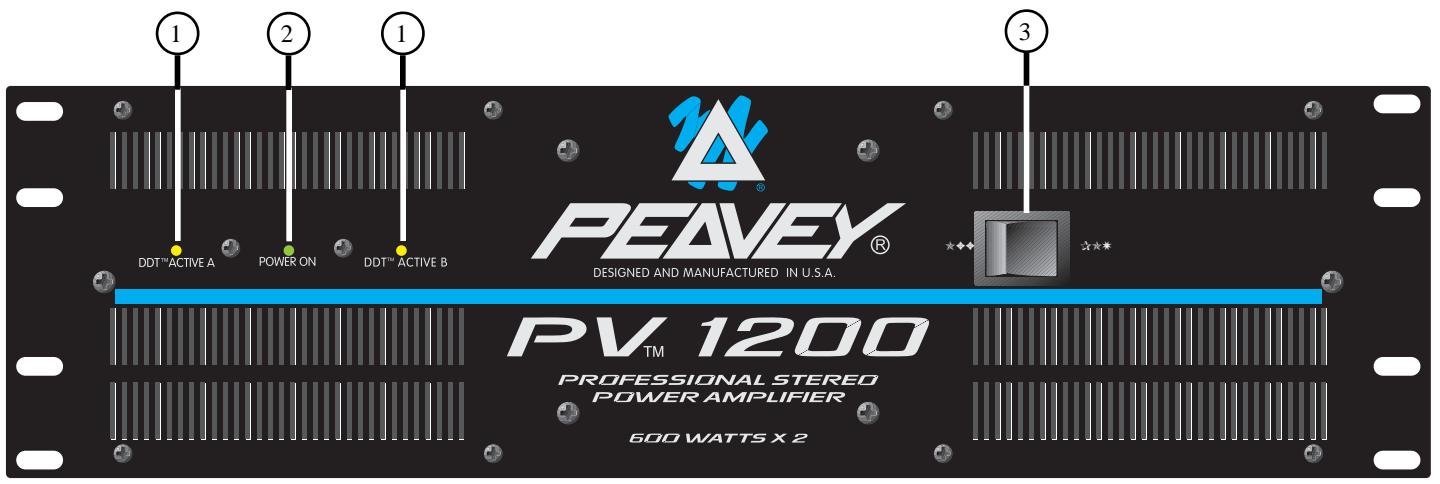

FRONT PANEL DDT™ ACTIVE LEDS (1) Illuminates when DDT compression is taking place in the channel. With the Enable/Defeat switch on the back panel in the Defeat position, this LED indicates when channel clipping is occurring. POWER LED (2) Illuminates when AC mains power is being supplied to the amp and both channels are operational. If either channel were to experience fault conditions, or have the associated circuit breaker trip, then the power LED will go out, indicating such conditions exist. POWER SWITCH (3) A heavy-duty, rocker-type switch. Selecting the “O” position turns off the power amplifier. BACK PANEL CIRCUIT BREAKER (4) There is a circuit breaker located on the back of the PV 1200. This breaker is provided to limit the current to the associated power transformer and protect it from overheating and possible destruction due to fault conditions in the amplifier. The trip current values have been carefully chosen to allow continuous power output performance while still protecting the power transformer. Normally, this breaker should not trip unless there is a fault in the amplifier circuitry that draws excessive mains current. However, abnormal conditions, such as a short circuit on either or both channels, or continuous operation at overload or clipping (especially into 2 ohm loads), will cause the breaker to trip. If this occurs, turn the power switch off, then simply reset the breaker and correct the cause of the overload.

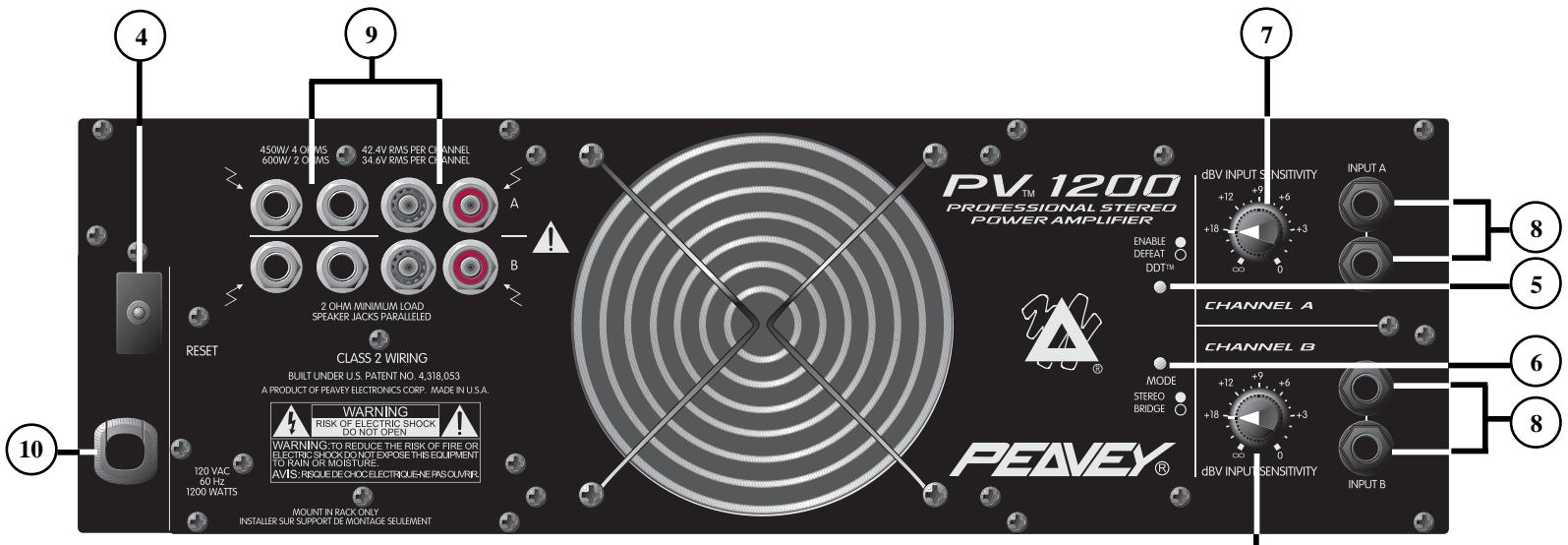

When tripped, the button on the breaker will be outward nearly 1/2" and can be reset by pushing inward. A normal reset button length is about 1/4". If this “thermal” type breaker does trip, simply pushing the button back in will reset it, after waiting a brief period of time to allow it to cool down. REMEMBER, ALWAYS TURN THE POWER OFF BEFORE RESETTING THE BREAKER. If the breaker trips instantly each time you attempt to reset it, the unit should be taken to a qualified service center for repair.

DDT SWITCH (5) This switch is used to either enable or defeat the DDT™ compressor. Normally the DDT function should be enabled to minimize the possibility of either or both channels going into clipping or overload. With DDT defeated, a severe overload could cause the mains circuit breaker to trip as a matter of course. (The Peavey DDT compression system will be covered in greater detail later in this manual.) MODE SWITCH (6) This switch is used to select either Stereo or Bridge mode of operation. Care should be exercised whenever the Bridge mode is selected. Accidental selection of this mode could damage loudspeakers, particularly in biamped systems. (The Bridge mode will be covered in greater detail later in this manual.) INPUT SENSITIVITY (7) These controls are used to adjust the input gain of each channel. Thus, they determine how “loud” each channel of the power amplifier will “play” for a given input signal level. Maximum input gain (minimum sensitivity rating) is achieved at the full clockwise setting, and this setting yields maximum mixer/system headroom. A setting of less than full clockwise will yield lower system noise at the expense of mixer/system headroom. HIGH-Z INPUT JACKS (8) Two parallel (bridged) input jacks are provided for each channel. This allows for one to be used as a conventional input, and, simultaneously, the other to be used as a “line out” (Y-cord) to connect to another input jack on this amplifier or other amps or equipment. These 1/4" jacks are not “chassis grounded” and, when used, will provide a quasi-balanced input capability due to the unique “ground loop” elimination circuitry associated with each input. This feature will normally allow “hum-free” operation when relatively short 1/4" cable patches are made between the jacks on this amp and other jacks on various other equipment that share the same rack with this amp. SPEAKER OUTPUTS (9) Two 1/4" jacks and 5-way binding post speaker output terminals are provided for each channel. Again, for each channel, these outputs are in parallel; hence, the speaker connection cables can be terminated with 1/4" phone plugs, banana plugs, or stripped wires for use in the binding post terminals. For sustained high power applications, the use of the binding post terminals is recommended. However, care must be exercised to assure correct speaker phasing. Regardless of what connections are used, the typical parallel speaker load should always be limited to 2 ohms per channel or 4 ohms Bridge mode for any application. Operation at loads of 4 ohms per channel or 8 ohms Bridge mode is more desirable for sustained operation applications due to the fact that the amplifier will run much

cooler at this load. Operation above 4 ohms per channel, and even open circuit conditions, can always be considered safe. However, sustained operation at loads below 2 ohms could result in temporary amplifier shutdown due to the thermal limits and/or the amplifier internal fault circuitry. AC LINE CORD—120 V products only (10) All the PV Series power amplifiers are fitted with a single, heavy-duty 3-conductor line cord and a conventional AC plug with a ground pin. It should be connected to an independent circuit capable of supporting at least 15 amps or greater continuously. This is particularly critical for sustained high power applications. If the socket used does not have a ground pin, a suitable ground lift adaptor should be used and the third wire grounded properly. Never break off the ground pin on any equipment. It is provided for your safety. The use of extension cords should be avoided but, if necessary, always use a three-wire type with at least a #14 AWG wire size. The use of lighter wire will severely limit the power capability of this power amplifier. Always use a qualified electrician to install any new electrical equipment. To prevent the risk of shock or fire hazard, always be sure that the amplifier is properly grounded.

INSTALLATION AND CONNECTION

The PV professional series of power amplifiers is designed for durability in commercial installations and has the quality of performance required in studio and home applications. These units are a standard rack-mount configuration height, and each is cooled by an automatic two-speed internal fan. All input and output connections are on the back panel. Additionally, the level controls and selector switches are on the back panel. The front panel contains LED indicators for power & DDT activation, the mains power switch, and the resetable circuit breaker(s).

INDUSTRIAL AND COMMERCIAL INSTALLATIONS

For commercial and other installations where sustained high power operation is required, the amplifiers should be mounted in a standard 19" rack. It is not necessary to leave a rack space between each amplifier in the stack since each fan pulls air in from the rear and exhausts the hot air out the front. However, an adequate “COOL” air supply must be provided for the amplifier when rack-mounted. The internal fan must have a source of air that is not preheated by other equipment. The amplifier will start up in low speed fan operation and will normally stay at low speed operation unless sustained high power operating levels occur. Then, as the amplifier “heat sinks” heat up, the automatic thermal sensing circuitry will cause high speed operation to occur. Depending upon signal conditions and amp loading, high speed fan operation may continue or it may cycle continuously between high and low. This situation is quite normal. If cooling is inadequate due to preheated air or a reduction of air flow occurs due to blockage of the amplifier inlet/outlet ports, or if the amplifier is severely overloaded or short circuited, the amplifier thermal sensing system may cause temporary shutdown of the unit. This is indicated by the power LED on the front panel ceasing to illuminate. Depending upon the available cooling air, operation should be restored relatively quickly, and the power LED will be illuminated. In any event, corrective action should be taken to determine the cause of the thermal shutdown. If the amplifier is not severely overloaded or shorted and air flow is normal in and out of the amplifier, then steps should be taken to provide a cooler environment for all the amplifiers. As a general rule, the cooler electronic equipment is operated, the longer its useful service life.

STUDIO AND HOME INSTALLATION

In most low to medium power applications, the power amplifier can be mounted in any configuration. It is desirable that, if at all possible, the power amplifier be located at the top of an equipment stack. This will prevent possible overheating of sensitive equipment by the hot air rising from the power amplifier. As a general rule, most home and studio requirements will never cause high speed fan operation. However, if they do, this may indicate that you have not taken the necessary steps to provide adequate cooling. Remember, closed up in a cabinet, a PV Series power amplifier will have severe cooling problems, even at low power levels. Again, inadvertent short circuit or sustained overload usage could also cause temporary thermal shutdown and/or tripping of the mains power breaker. Also, most home wiring and electrical circuits are only 15 amps. Two PV 1200s or even one PV 2000 can cause a 15 amp breaker to trip if a severe overload occurs. BRIDGE MODE The Bridge mode on stereo amplifiers is often misunderstood as to the actual operation and usage. In basic terms, when a two-channel amplifier is operated in the Bridge mode, it is converted into a single-channel unit with a Power Rating equal to the sum of both channels’ power ratings at a Load Rating of twice that of the single channel rating. For example, the PV 1200 is rated at 600 watts RMS per channel into 2 ohms. The Bridge Ratings

are 1200 watts RMS into 4 ohms (minimum load). Bridge mode operation is accomplished by placing the mode switch in the “BRIDGE” position, connecting the positive speaker lead to Channel A red binding post, negative speaker lead to Channel B red binding post, and using Channel A as the input channel. All Channel B input functions are defeated, and they serve no purpose now. Another application for Bridge mode operation is to drive sound distribution systems in very large public address applications. In this mode, the PV 1200 power amplifier can actually drive 70 volt systems directly without using matching transformers. Another common use for the Bridge mode is in subwoofer applications where very high power levels are required to reproduce extreme low frequencies. Such enclosures usually contain 2 or 4 loudspeakers to handle the power levels involved. For Bridge mode usage, the enclosure impedance must be 4 or 8 ohms—never below 4 ohms! DDT™ Peavey’s patented DDT (Distortion Detection Technique) compression circuit enables the user to maximize the performance of the amplifier/speaker combination by preventing the power amp from running out of headroom (clipping). This compression system is activated by a very unique circuit that senses signal conditions which might overload the amplifier and activates compression (reduces the amp gain) when clipping is imminent. Threshold of compression, then, is clipping itself, and no specific threshold control is used. This technique effectively utilizes every precious watt available for the power amplifier to reproduce the signal while at the same time minimizing clipping and distortion and thus significantly reducing the potential of loudspeaker degradation and damage. The DDT system is an automatic hands-off approach to the problem of power amplifier clipping. Since the PV Series power amplifiers use circuit breakers for “over current” protection, the DDT compression system plays even a more important role in continuous performance by preventing each channel from clipping and overload. Continuous operation at clipping can cause the circuit breakers to trip, but with the DDT activated, this problem is minimized. For this reason, you should always have the DDT compression system enabled.

SPECIFICATIONS Output Power2, 3: 2 ohms, 1 kHz, 1% THD 4 ohms, 1 kHz, 1% THD 8 ohms, 1 kHz, 1% THD 600 W RMS per channel 450 W RMS per channel 270 W RMS per channel (Bridge mode, mono) 4 ohms, 1 kHz, 0.006% THD 8 ohms, 1 kHz, 0.005% THD 1200 W RMS 900 W RMS Rated Output Power2: 4 ohms, 20 Hz to 20 kHz, 0.1% THD 8 ohms, 20 Hz to 20 kHz, 0.07% THD 400 W RMS per channel 240 W RMS per channel Slew Rate3: Stereo mode, each channel Bridge mode, mono 20 volts per µSec 40 volts per µSec Total Harmonic Distortion2, 3: 20 Hz to 20 kHz, @ rated output power, 8 ohms Less than 0.07% Input Sensitivity & Impedance4: @ rated output power, 8 ohms

20 K ohms (32 dB gain) Dimensions & Weight: Height Width Depth Weight 5.25" (13.3 cm) 19" (48.3 cm) 15" (38.1 cm) 45 pounds (20.5 kg) Frequency Response2, 3: ±1 dB, 1 W RMS, 8 ohms ±0.2 dB, @ rated output, 8 ohms 10 Hz to 40 Hz 20 Hz to 20 kHz Damping Factor2 ,3: 8 ohms, 1 kHz Greater than 300 Hum & Noise2: Below rated output power, 8 ohms 100 dB, unweighted Power Consumption2: @ rated output power, 8 ohms

Stereo mode, both channels driven

Due to our efforts for constant improvements, features and specifications listed herein are subject to change without notice.

STEREO MODE DDT Compression should be enabled for system protection To left speakers Left Output from Mixer

Can be used as outputs to chain to other power amp units Right Output from Mixer Mode switch must be in stereo position To right speakers BRIDGE MODE DDT Compression should be enabled for system protection System Load 4 ohm minimum

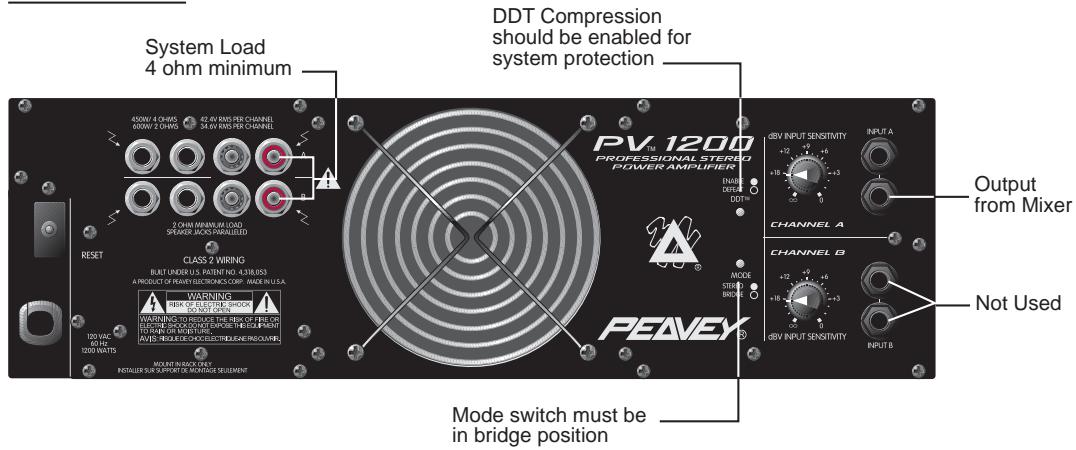

Output from Mixer Not Used Mode switch must be in bridge position

TWO-CHANNEL MONO MODE

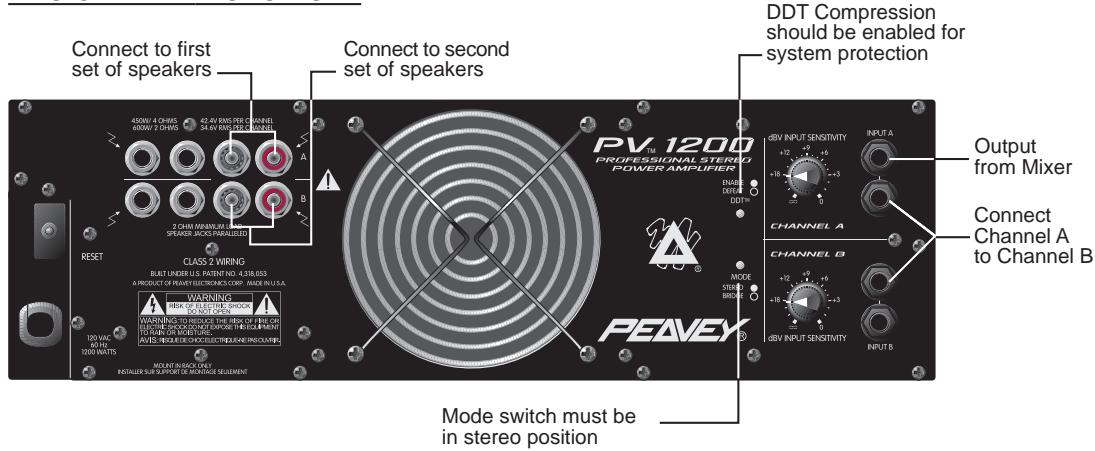

Connect to first set of speakers DDT Compression should be enabled for system protection Connect to second set of speakers Output from Mixer

WARRANTY/REMEDY PEAVEY ELECTRONICS CORPORATION (“PEAVEY”) warrants this product, EXCEPT for covers, footswitches, patchcords, tubes and meters, to be free from defects in material and workmanship for a period of one (1) year from date of purchase, PROVIDED, however, that this limited warranty is extended only to the original retail purchaser and is subject to the conditions, exclusions, and limitations hereinafter set forth: PEAVEY 90-DAY LIMITED WARRANTY ON TUBES AND METERS If this product contains tubes or meters, Peavey warrants the tubes or meters contained in the product to be free from defects in material and workmanship for a period of ninety (90) days from date of purchase; PROVIDED, however, that this limited warranty is extended only to the original retail purchaser and is also subject to the conditions, exclusions, and limitations hereinafter set forth. CONDITIONS, EXCLUSIONS, AND LIMITATIONS OF LIMITED WARRANTIES These limited warranties shall be void and of no effect, if: a. The first purchase of the product is for the purpose of resale; or b. The original retail purchase is not made from an AUTHORIZED PEAVEY DEALER; or c. The product has been damaged by accident or unreasonable use, neglect, improper service or maintenance, or other causes not arising out of defects in material or workmanship; or d. The serial number affixed to the product is altered, defaced, or removed. In the event of a defect in material and/or workmanship covered by this limited warranty, Peavey will: a. In the case of tubes or meters, replace the defective component without charge. b. In other covered cases (i.e., cases involving anything other than covers, footswitches, patchcords, tubes or meters), repair the defect in material or workmanship or replace the product, at Peavey’s option; and provided, however, that, in any case, all costs of shipping, if necessary, are paid by you, the purchaser. THE WARRANTY REGISTRATION CARD SHOULD BE ACCURATELY COMPLETED AND MAILED TO AND RECEIVED BY PEAVEY WITHIN FOURTEEN (14) DAYS FROM THE DATE OF YOUR PURCHASE. In order to obtain service under these warranties, you must: a. Bring the defective item to any PEAVEY AUTHORIZED DEALER or AUTHORIZED PEAVEY SERVICE CENTER and present therewith the ORIGINAL PROOF OF PURCHASE supplied to you by the AUTHORIZED PEAVEY DEALER in connection with your purchase from him of this product. If the DEALER or SERVICE CENTER is unable to provide the necessary warranty service you will be directed to the nearest other PEAVEY AUTHORIZED DEALER or AUTHORIZED PEAVEY SERVICE CENTER which can provide such service. b. Ship the defective item, prepaid, to:

PEAVEY ELECTRONICS CORPORATION

International Service Center 326 Hwy. 11 & 80 East Meridian, MS 39301 including therewith a complete, detailed description of the problem, together with a legible copy of the original PROOF OF PURCHASE and a complete return address. Upon Peavey’s receipt of these items: If the defect is remedial under these limited warranties and the other terms and conditions expressed herein have been complied with, Peavey will provide the necessary warranty service to repair or replace the product and will return it, FREIGHT COLLECT, to you, the purchaser. Peavey’s liability to the purchaser for damages from any cause whatsoever and regardless of the form of action, including negligence, is limited to the actual damages up to the greater of $500.00 or an amount equal to the purchase price of the product that caused the damage or that is the subject of or is directly related to the cause of action. Such purchase price will be that in effect for the specific product when the cause of action arose. This limitation of liability will not apply to claims for personal injury or damage to real property or tangible personal property allegedly caused by Peavey’s negligence. Peavey does not assume liability for personal injury or property damage arising out of or caused by a non-Peavey alteration or attachment, nor does Peavey assume any responsibility for damage to interconnected non-Peavey equipment that may result from the normal functioning and maintenance of the Peavey equipment. UNDER NO CIRCUMSTANCES WILL PEAVEY BE LIABLE FOR ANY LOST PROFITS, LOST SAVINGS, ANY INCIDENTAL DAMAGES, OR ANY CONSEQUENTIAL DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THE PRODUCT, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THESE LIMITED WARRANTIES ARE IN LIEU OF ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR USE; PROVIDED, HOWEVER, THAT IF THE OTHER TERMS AND CONDITIONS NECESSARY TO THE EXISTENCE OF THE EXPRESSED, LIMITED WARRANTIES, AS HEREINABOVE STATED, HAVE BEEN COMPLIED WITH, IMPLIED WARRANTIES ARE NOT DISCLAIMED DURING THE APPLICABLE ONE-YEAR OR NINETY-DAY PERIOD FROM DATE OF PURCHASE OF THIS PRODUCT. SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THESE LIMITED WARRANTIES GIVE YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH MAY VARY FROM STATE TO STATE. THESE LIMITED WARRANTIES ARE THE ONLY EXPRESSED WARRANTIES ON THIS PRODUCT, AND NO OTHER STATEMENT, REPRESENTATION, WARRANTY, OR AGREEMENT BY ANY PERSON SHALL BE VALID OR BINDING UPON PEAVEY. In the event of any modification or disclaimer of expressed or implied warranties, or any limitation of remedies, contained herein conflicts with applicable law, then such modification, disclaimer or limitation, as the case may be, shall be deemed to be modified to the extent necessary to comply with such law. Your remedies for breach of these warranties are limited to those remedies provided herein and Peavey Electronics Corporation gives this limited warranty only with respect to equipment purchased in the United States of America.

INSTRUCTIONS — WARRANTY REGISTRATION CARD

1. Mail the completed WARRANTY REGISTRATION CARD to:

PEAVEY ELECTRONICS CORPORATION

Meridian, MS 39302-2898 a. Keep the PROOF OF PURCHASE. In the event warranty service is required during the warranty period, you will need this document. There will be no identification card issued by Peavey Electronics Corporation.

2. IMPORTANCE OF WARRANTY REGISTRATION CARDS AND NOTIFICATION OF CHANGES OF ADDRESSES:

a. Completion and mailing of WARRANTY REGISTRATION CARDS — Should notification become necessary for any condition that may require correction, the REGISTRATION CARD will help ensure that you are contacted and properly notified. b. Notice of address changes – If you move from the address shown on the WARRANTY REGISTRATION CARD, you should notify Peavey of the change of address so as to facilitate your receipt of any bulletins or other forms of notification which may become necessary in connection with any condition that may require dissemination of information or correction.
