USER MANUAL CLASSIC 50 212-410 PEAVEY

Intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: Risk of electrical shock — DO NOT OPEN!

CAUTION: To reduce the risk of electric shock, do not remove cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

WARNING: To prevent electrical shock or fire hazard, this apparatus should not be exposed to rain or moisture, and objects filled with liquids, such as vases, should not be placed on this apparatus. Before using this apparatus, read the operating guide for further warnings.

WARNING: When using electrical products, basic cautions should always be followed, including the following:

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any of the ventilation openings. Install in accordance with manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding plug. The wide blade or third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point they exit from the apparatus.
11. Only use attachments/accessories provided by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
    Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14. Never break off the ground pin. Write for our free booklet "Shock Hazard and Grounding." Connect only to a power supply of the type marked on the unit adjacent to the power supply cord.
15. If this product is to be mounted in an equipment rack, rear support should be provided.
16. Note for UK only: If the colors of the wires in the mains lead of this unit do not correspond with the terminals in your plug, proceed as follows:

a) The wire that is colored green and yellow must be connected to the terminal that is marked by the letter E, the earth symbol, colored green or colored green and yellow.
b) The wire that is colored blue must be connected to the terminal that is marked with the letter N or the color black.
c) The wire that is colored brown must be connected to the terminal that is marked with the letter L or the color red.

1. This electrical apparatus should not be exposed to dripping or splashing and care should be taken not to place objects containing liquids, such as vases, upon the apparatus.
2. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise-induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:

Duration Per Day In Hours	Sound Level dBA, Slow Response
8	90
6	92
4	95
3	97
2	100
1 1/2	102
1	105
1/2	110
1/4 or less	115

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss. Ear plugs or protectors to the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss, if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

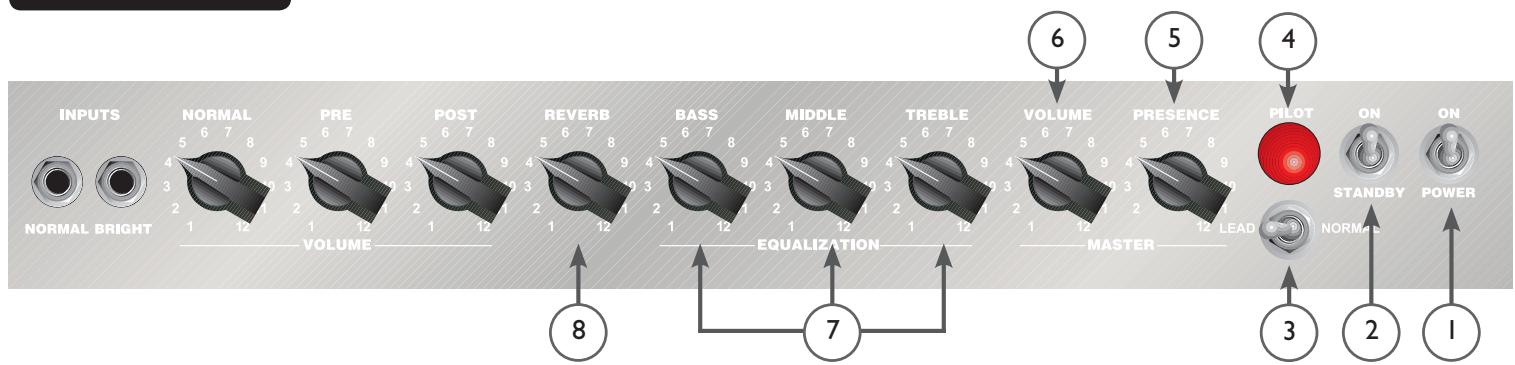

Switch to "ON" position to turn on.

STANDBY SWITCH (2)

Allows amp to be placed in standby or active mode. In standby mode the tubes remain hot, but the amplifier is not operational.

CHANNEL SELECT SWITCH (3)

Allows selection of the Lead or Normal channels.

NOTE: Channel selection may also be accomplished by the remote footswitch. If remote selection is desired the channel switch must be in the Lead position.

PILOT LIGHT LED (4)

Illuminates when AC power is being supplied to the amp.

PRESENCE (5)

An active tone control that boosts the extreme high frequencies by up to 6 dB.

MASTER VOLUME (6)

Controls the overall volume level of the system.

TREBLE, MIDDLE, AND BASS EQ (7)

Passive tone controls that regulate high, mid, and low frequencies, respectively.

REVERB (8)

Reverberation is an echo effect. Rotate clockwise to increase the effect. Remote footswitch can control ON/OFF.

Ventilation: Allow 24" of clearance on all sides from a combustible surface.

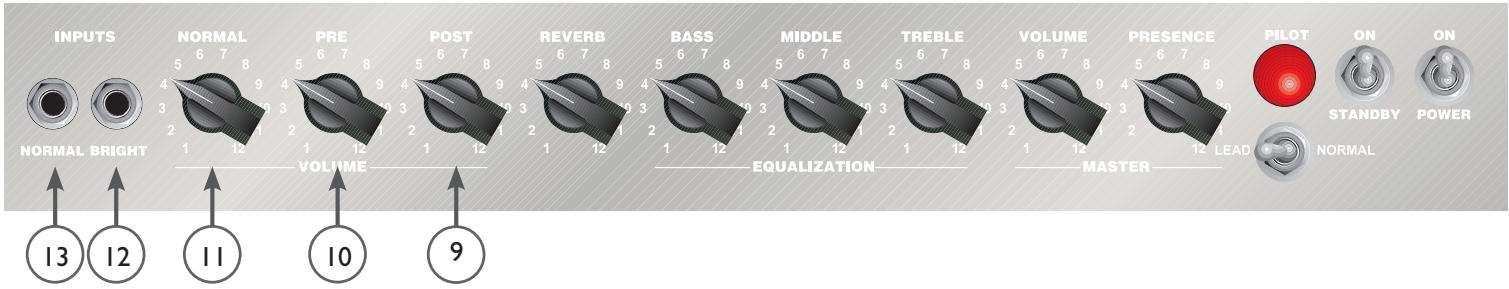

POST GAIN (9)

Controls the overall volume level of the Lead channel. The final level adjustment should be made after the desired sound has been achieved.

PRE GAIN (10)

Controls the input volume level of the Lead channel.

NORMAL GAIN (11)

Controls the volume level of the Normal channel.

BRIGHT INPUT (12)

Input for instrument-level signals. This input produces enhanced high frequency response (treble), similar to a bright switch, when compared to the normal input.

NORMAL INPUT (13)

Input for instrument-level signals. For brighter frequency response (highs) see Bright Input (12).

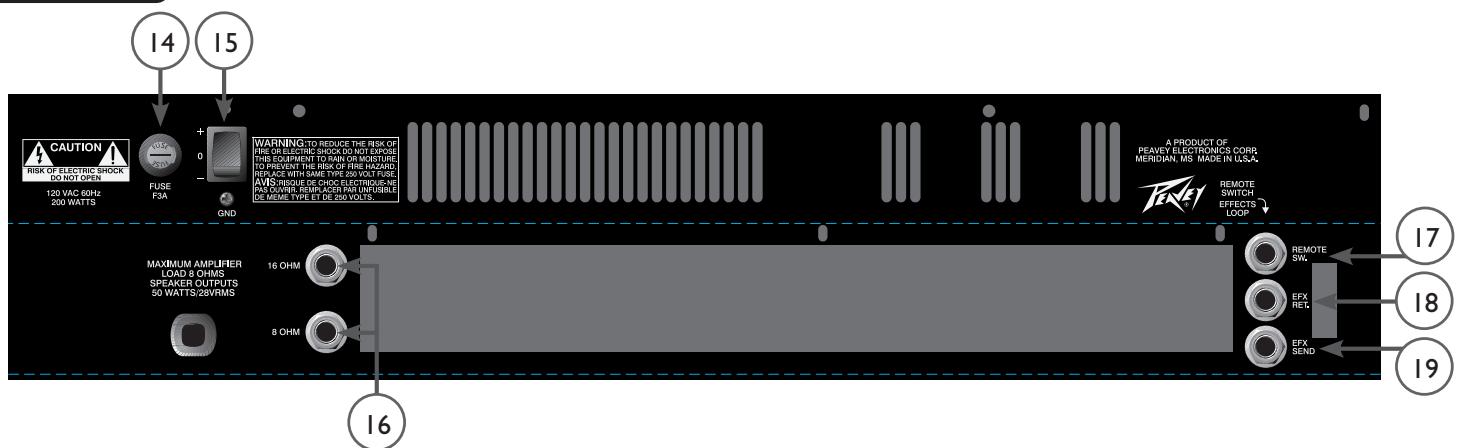

FUSE (14)

The fuse is located within the cap of the fuseholder. If the fuse should fail, IT MUST BE REPLACED WITH THE SAME TYPE AND VALUE IN ORDER TO AVOID DAMAGE TO THE EQUIPMENT AND TO PREVENT VOIDING THE WARRANTY. If the amp repeatedly blows fuses, it should be taken to a qualified service center for repair.

WARNING: THE FUSE SHOULD ONLY BE REPLACED WHEN THE POWER CORD HAS BEEN DISCONNECTED FROM ITS POWER SOURCE.

GROUND SWITCH (15)

Three position rocker-type switch which, in most applications, should be operated in its center or zero position. There may be some situations when audible hum and/or noise will come from the loudspeaker. If this situation arises, position the ground switch to either positive or negative (+ or -) or until the noise is minimized.

NOTE: Should the noise problem continue, consult your Authorized Peavey Dealer, the Peavey Factory, or a qualified service technician. THE GROUND SWITCH IS NOT FUNCTIONAL ON 220/240 VOLT MODELS.

SPEAKER OUTPUTS (16)

Speaker output (1 / 4^ ) jacks are provided for 16 and 8 ohms. When both jacks are engaged, amplifier impedance is 8 ohms.

REMOTE SWITCH JACK (17)

Provided for the connection of the optional remote footswitch. Footswitch is used to select the Lead or Normal channels and defeat reverb. When using remote footswitch, always insert the plug fully (second click) to ensure proper operation.

EFFECTS RETURN (18)

Input for returning signals from external effects or signal processing equipment.

EFFECTS SEND (19)

Output for supplying signals to external effects or signal processing equipment.

Classic® 50

Guitar Amplifier

SPECIFICATIONS

POWER AMPLIFIER SECTION

Four 6BQ5/EL84's with 12AX7 driver

Rated Power & Load:

50 W RMS into 16 or 8 ohms

Power @ Clipping (Typically):

(5% THD, 1 kHz, 120 V AC line)

50 W RMS into 16 or 8 ohms

(Bias must be reduced to measure)

Frequency Response:

+0, -2 dB, 50 Hz to 15 kHz, @ 40 W RMS into 16 ohms

Hum & Noise:

No greater than 80 dB below rated power

Power Consumption:

200 watts, 50/60 Hz, 120 VAC (Domestic)

PREAMP SECTION

Two 12AX7's

The following specs are measured @ 1 kHz with the controls preset as follows:

Pre & Post (lead) @ 0

Reverb Level @ 0

Bass & Treble EQ @ 12

Middle EQ @ 0

Master Volume @ 12

Presence @ 6

Nominal level is with Input Gain @ 6.

Minimum level is with Input Gain @ 12.

Preamp Normal Input:

Impedance: Very high Z, 470 K ohms

Lead Channel (Post Gain @ 10):

Nominal Input Level:

-40 dBV, 10 mV RMS

Minimum Input Level:

-70 dBV, 0.3 mV RMS

PREAMP SECTION, continued

Normal Channel:

Nominal Input Level:

-17 dBV, 140 mVRMS

Minimum Input Level:

-28 dBV, 40 mV RMS

Maximum Input Level:

0 dBV, 1.0 V RMS

Preamp Bright Input:

Impedance: Very high Z, 470 K ohms

+12 dB boost @ 2 kHz

Equalization:

(Lead and Normal Channels)

Custom bass, middle, and treble passive-type EQ

Effects Send:

Load Impedance: 1 K ohm or greater

Nominal Output Level: -6 dBV, 0.5 V RMS

Effects Return:

Impedance: High Z, 2 M ohms

Designed Input Level: -6 dBV, 0.5 V RMS

(Switching jack provides Effects Send to Effects Return connection when not used.)

External Footswitch Function:

Reverb Defeat (when reverb control is raised)

Normal/Lead Channel Select (when Lead activated)

WARNING

Principal volume (6)

Pre & Post (lead) @ 0

Reverb Level @ 0

Bass & Treble EQ @ 12

Middle EQ @ 0

Master Volume @ 12

Presence @ 6

Impedance:Très Haute,470Kohms

Canal Lead (Post Gain @ 12):

Canal Normal (Post Gain @ 12):

Impedance:Très Haute,470Kohms

+12 dB boost @ 2 kHz

Egalisation:

Impedance: Haute, 2 M ohms

Pre & Post (lead) a 0

Nivel de Reverb a O

What This Warranty Covers

Your Peavey Warranty covers defects in material and workmanship in Peavey products purchased and serviced in the U.S.A. and Canada.

What This Warranty Does Not Cover

The Warranty does not cover: (1) damage caused by accident, misuse, abuse, improper installation or operation, rental, product modification or neglect; (2) damage occurring during shipment; (3) damage caused by repair or service performed by persons not authorized by Peavey; (4) products on which the serial number has been altered, defaced or removed; (5) products not purchased from an Authorized Peavey Dealer.

Who This Warranty Protects

This Warranty protects only the original retail purchaser of the product.

How Long This Warranty Lasts

The Warranty begins on the date of purchase by the original retail purchaser. The duration of the Warranty is as follows:

Product Category	Duration
Guitars/Basses, Amplifiers, Pre-Amplifiers, Mixers, Electronic Crossovers and Equalizers	2 years *(+ 3 years)
Drums	2 years *(+ 1 year)
Enclosures	3 years *(+ 2 years)
Digital Effect Devices and Keyboard and MIDI Controllers	1 year *(+ 1 year)
Microphones	2 years
Speaker Components (incl. speakers, baskets, drivers, diaphragm replacement kits and passive crossovers) and all Accessories	1 year
Tubes and Meters	90 days

[Denotes additional warranty period applicable if optional Warranty Registration Card is completed and returned to Peavey by original retail purchaser within 90 days of purchase.]

What Peavey Will Do

We will repair or replace (at Peavey's discretion) products covered by warranty at no charge for labor or materials. If the product or component must be shipped to Peavey for warranty service, the consumer must pay initial shipping charges. If the repairs are covered by warranty, Peavey will pay the return shipping charges.

How To Get Warranty Service

(1) Take the defective item and your sales receipt or other proof of date of purchase to your Authorized Peavey Dealer or Authorized Peavey Service Center. OR

(2) Ship the defective item, prepaid, to Peavey Electronics Corporation, International Service Center, 412 Highway 11 & 80 East, Meridian, MS 39301 or Peavey Canada Ltd., 95 Shields Court, Markham, Ontario, Canada L3R 9T5. Include a detailed description of the problem, together with a copy of your sales receipt or other proof of date of purchase as evidence of warranty coverage. Also provide a complete return address.

Limitation of Implied Warranties

ANY IMPLIED WARRANTY, INCLUDING WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH OF THIS WARRANTY.

Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Exclusions of Damages

PEAVEY'S LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT, AT PEAVEY'S OPTION. IF WE ELECT TO REPLACE THE PRODUCT, THE REPLACEMENT MAY BE A RECONDITIONED UNIT. PEAVEY SHALL NOT BE LIABLE FOR DAMAGES BASED ON INCONVENIENCE, LOSS OF USE, LOST PROFITS, LOST SAVINGS, DAMAGE TO ANY OTHER EQUIPMENT OR OTHER ITEMS AT THE SITE OF USE, OR ANY OTHER DAMAGES WHEHTHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE, EVEN IF PEAVEY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

If you have any questions about this warranty or service received or if you need assistance in locating an Authorized Service Center, please contact the Peavey International Service Center at [phone] / Peavey Canada Ltd. at [phone].

FEATURES AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

Features and specifications subject to change without notice.
