USER MANUAL KH 4106 MINI COMPRESSOR ULTIMATE SPEED

Read these operating instructions carefully before using the appliance for the first time and preserve this maual for later reference. Pass this manual on to whoever might acquire the appliance at a future date.

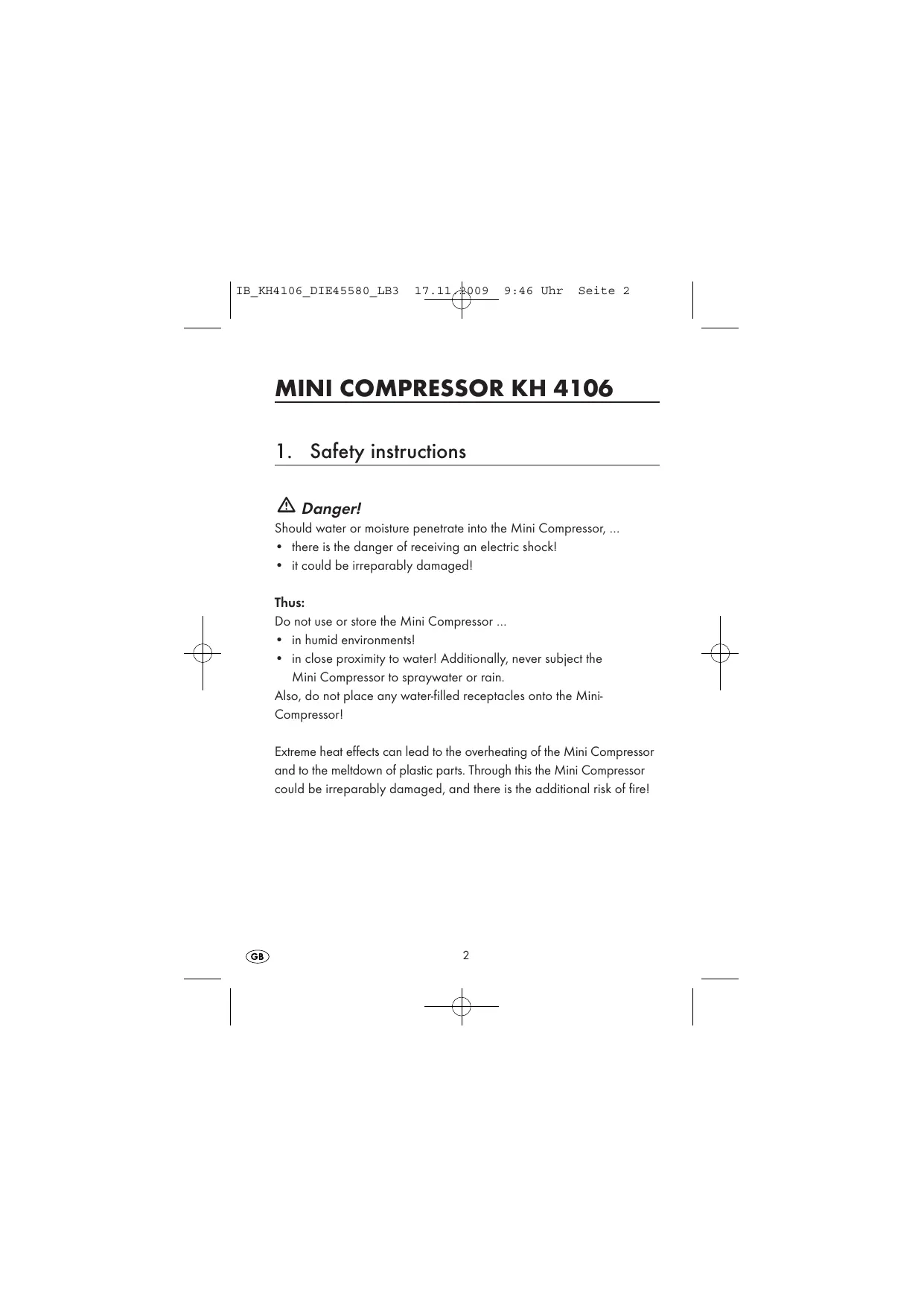

PAN Danger! Should water or moisture penetrate into the Mini Compressor, … + _there is the danger of receiving an electric shock! +_it could be irreparably damagedl Thus: Do not use or store the Mini Compressor .… +_in humid environmenisl +_in close proximity to water! Additionally, never subject the Mini Compressor to spraywater or rain: Also, do not place any water-filled receptacles onto the Mini- Compressorl Extreme heat effects can lead to the overheating of the Mini Compressor and to the meltdown of plastic parts. Through this the Mini Compressor could be irreparably damaged, and there is the additional risk of firel

IB_KH4106 DIE45580 LB3 17 sp 9:46 Uhr Seite 3 Thus: + Do not place the Mini Compressor in close proximity to heat sources. Do not place unprotected open flame sources - e.g. burning candles - on the Mini Compressorl Do not leave the Mini Compressor in a vehicle if there are high outdoor temperatures. Especially in summer the temperature inside a vehicle can become extremely high. Do not cover the ventilation openings of the Mini Compressorl Therefore, do not place the Mini Compressor on blankets or other textiles etc. Take note that the Mini Compressor is not suitable for constant operation. Thus do permit the Mini Compressor to be switched on without a break for periods in excess of 10 minutes. Allow itto cool down for at least 30 minutes before switching it back on. The Mini Compressor should not be used or stored in dusty environ- ments. Dust could penetrate into the Mini Compressor. Should large amounis of dust penelrate into the Mini Compressor it could overheat and be irreparably damaged. There is also a danger of firel Never attempt to repair the power cable yourself in the case of a defectl There is the danger of an electric shock! Instead, approach one of our service partners.

IB_KH4106 DIE45580 LB3 FrRgse 9:46 Uhr Seite 4 Always check the maximum permitted air pressure for the object to be inflated! For this, consult the operating instructions and safety information supplied with the object to be inflated. Additionally, when inflating objects with the Mini Compressor always take note of the mamometer on the Mini Compressor. Should the object be inflated beyond the maximum permitted air pressure it could burst. There is then the danger of serious physical injury! Also, take precautions that the Mini Compressor cannot be used by children without supervision! À Caution! The Mini Compressor could be irreparably damaged if it als or is dropped! Therefore always place the Mini Compressor on a stable, level and nonslip surface. © NOTE: For damages resulting from … + Opening the housing of the Mini Compressor + _attempted repairs made by non-qualified personnel +_improper utilisation of the Mini Compressor no liability or warranty will be accepted! The Mini Compressor becomes warm when it is switched on. This is not a cause for concern and is not an indication of a technical problem.

The Mini Compressor is suitable exclusively for. +_the inflation of objects with a valve {e. g. tyres, balls etc.]. + measuring the air pressure of inflated objects. +_for operation on the 12-V circuit of vehicles via the cigar lighter. *_ for domestic, non-commercial use.

+ Mini Compressor +3 Adapter sets for various valve types + Operating manual © NOTE: The connector valve @ of the Mini Compressor is suitable for the inflation of tyres with Schrader valves. For this you do not need to use an additional valve adapter. For the inflation of bicycle tyres with valve types … + Sclaverand (also: French valves, Presta valves, innertube valves, racing vahes] + Dunlop (also: Blitz valves, German valves} you require the valve adapter for Schrader car valves. These are available from specialist bicycle shops.

Operating voltage 12VDC Current consumption: 65A Max. operating pressure: 17 bar /250 Psi Continuous operating time: 10 Minutes The CO Time (Continuous Operation Time) details how long an appliance can be operated without the motor overheating and becoming damaged. After the appliance has run for this period it must be switched off until the motor has cooled itself down

5. Operating elements

© Mini Compressor @ Manometer display … + bar resp. kg/cm2 [inner, yellow scale] + psi (outer, white scale) © Aïrline © Connection valve with fastening lever © Power cable @ Turn switch (Mini Compressor on/off] © Cigar lighter plug © Adaptor sets for various valve types. D 0

Remove the Mini Compressor and the Adapter sets @ from the packaging. Unwind the power cable @ to its full length. The Mini Compressor is now ready for use.

7. Using the Mini Compressor

7.1 Using the Mini Compressor to inflate objects

1. Remove the cigar lighter from its holder in the vehicle.

© NOTE: Should the interior of the cigar lighter holder be soiled {e.g. with tobacco shreds or ash]: Clean it with a non-con-ducting object before inserting the cigar lighter plug @. Otherwise it could cause a malfunction in the operation of the Mini Compressor. Ideal would be a small brush, cotton buds or something similar. Under no circumstances use anything metallicl JAN Danger! Also, do not insert your fingers into the cigar lighter holder! Should you do so, you may receive an electrical shock!

2. Insert the cigar lighter plug @ firmly into the cigar lighter holder in

the vehicle. … Check to see if an adaptor is required for use on the object to be inflated. Should this be the case: Press resp. screw ihe required adaptor into the opening of the connection valve @. Check to ensure that the fastening lever of the connection valve @ is open. When open, the fastening lever is in a vertical position. Press the opened connection valve @ onto the valve of the object to be inflated. Press it down so that it is firmly seated. Should you be using one of the adaptors @: Press the connection valve with the adaptor into the valve of the object to be inflated. . Close the connection valve @, in that the fastening lever is pressed down. Continue to firmly hold the connection valve down. Ensure that the connection valve cannot disconnect itself from the valve of the object being inflated.

IB_KH4106 DIE45580 LB3 17 sp 9:46 Uhr Seite 9

7. Switch on the vehicle ignition should this be necessary for the cigar

lighter to function. In case of query, consult the operating handbook for the vehicle.

. Firmly hold the object to be inflated. If necessary, obtain assistance from a second person.

9. Twistthe turn switch @ in a clockwise direction until

it audibly engages. The Mini Compressor now starts to run. Check the continuall} rising air pressure on the mamometer @ of the Mini Compressor. 10.As soon as the desired air pressure is displayed on the mamometer @ : Switch the Mini Compressor off. Twist the turn switch @ this time in an anti-clockwise direction until it audibly engages. 11.Remove the cigar lighter plug @ from the cigar lighter holder in the vehicle. Ifnecessary, switch off the vehicle ignition. 12.Open the fastening lever ofthe connection valve @ in that it is pushed into a vertical position. Pull the connection valve (complete with the adaptor, if one has been used) from the valve of ihe inflated object.

Turn the connection valve back and forth to make it easier to remove. When removing the connection valve air can escape from the valve of the object that has been inflated. Therefore ensure that the connection valve is removed as quickly as possible.

7.2 Using the Mini Compressor to measure inflation

pressure © NOTE: For measuring the pressure of an inflated object the Mini Compressor does not require electricity.

1. Follow steps 3 to 6 in chapter 7.1 ,Using the Mini Compressor to

2. Read off the inflation pressure on the mamometer @ of the

3. To conclude, follow step 12 in chapter 7.1 ,Using the

Always store the Mini Compressor at a clean and dry location. To avoid damage, make sure that the air line @ and the power cable @ are not folded.

À Caution: Ensure that moisture cannot penetrate into the Mini Compressorl Danger of Electrocution! + Clean the housing of the Mini Compressor with a lightly moist cloth

Do not dispose of the appliance in your normal domestic waste. This product is subject to the European guideline = 2002/96/EC. Dispose of the appliance through an approved dis-posal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre. € Dispose of all packaging materials in an environmentally responsible manner. n œ

IB_KH4106 DIE45580 LB3 17 sp 9:46 Uhr Seite 12

11. Warranty & Service

The warranty for this appliance is for 3 years from the date of purchase. The appliance has been manufactured with care and meticulously exa- mined before delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone With our Service Department. Only in this way can a postfree despatch for your goods be assured. The warranty covers only claims for material and maufacturing defects, but not for transport damage, for wearing parts or for damage to fragile components, e.g. buttons or batteries. This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal tam- pering not carried out by our authorized service branch. Your statutory rights are not restricted in any way by this warranty. The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaïred paris. Any damage and defects extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.
