Product type	Electric space heater
Brand	Cecotec
Model	Eady Warm 6700 Crystal Connection
Use	Supplemental heating for indoor use
Power supply	Grounded electrical outlet
Installation	On a horizontal and stable surface
Installation	Do not embed
Safety	Overheat protection (do not cover)
Safety	Do not use near a bathtub, shower or swimming pool
Safety	Do not place under an electrical outlet
Safety	Keep a minimum distance of 1 meter from flammable materials
Safety	Do not use to heat clothing
Safety	Regularly check the condition of the power cord
Maintenance	Unplug the appliance before any cleaning
Maintenance	Clean with a damp, soft cloth
Maintenance	Clean the appliance after a period of inactivity before reuse
Replacement parts	Replace the damaged cable through the official Cecotec after-sales service
Information	Not suitable as primary heating
Information	Household use only
Information	Do not use with an external timer or a remote control system
Information	Expansion noises may occur during temperature changes, this is normal

Frequently Asked Questions - Eady Warm 6700 Crystal Connection CECOTEC

Can I use this heater as the main heating source?

No, this appliance is not suitable as primary heating. It is designed for occasional supplemental heating.

Can I cover the appliance to dry laundry?

No, never cover the appliance. This could cause overheating and pose a fire risk.

Can I use this heater in the bathroom?

No, do not use it near a bathtub, shower or swimming pool. The appliance must only be used in dry indoor spaces.

What should I do if the power cord is damaged?

Unplug the appliance immediately and do not use it anymore. The cable must be replaced by the official Cecotec technical assistance service to avoid any danger.

What safety distance should I maintain?

Keep fabrics, curtains and flammable materials at least 1 meter away from the air outlet.

How do I clean the appliance?

Unplug the appliance before cleaning. Use a damp, soft cloth to wipe the surface. Never immerse the appliance in water.

Is it normal for the appliance to make noises?

Yes, expansion noises may occur during temperature changes. This is normal and does not indicate a malfunction.

Can I use a power strip or an extension cord?

It is recommended to plug the appliance directly into a grounded outlet. Avoid power strips to prevent overloads.

Can I use the appliance with an external timer?

No, the appliance is not designed to work with external timers or remote control systems.

What should I do if the appliance has fallen or appears damaged?

Do not use the appliance if it has fallen or shows signs of damage. Contact the official Cecotec technical assistance service.

USER MANUAL Eady Warm 6700 Crystal Connection CECOTEC

Convector de cristal con control Wi-Fi / Glass convection heater with Wi-Fi control

Safety instructions 8

1. Parts and components 48

2. Before use 48

3. Product assembly 48

4. Control panel 49

5. Operation 49

6. Cleaning and maintenance 51

7. Technical specifications 51

8. Disposal of old electrical and electronic appliances 51

9. Technical support and warranty 52

10. Copyright 52

11. Simplified EU Declaration of Conformity 52

SOMMAIRE

EN: This product is not suitable for primary heating purposes. This product is only suitable for well insulated spaces or occasional use

SAFETY INSTRUCTIONS

Read these instructions thoroughly before using the product. Keep this instruction manual for future reference or new users.

• Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the wall outlet is grounded.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farm houses, hotels, motels, and offices.
• Check the power cord regularly for visible damage. If the cable is damaged, it must be replaced by Cecotec official Technical Support Service to avoid any danger.

- This symbol means "do not cover".

- WARNING: to avoid overheating, do not cover the appliance. Do not use for heating clothes.

• Unplug the cord from the power supply before switching off the appliance. Do not pull the cord.
• Do not place the appliance close to heat sources, flammable substances, or wet surfaces where it could fall or be thrown into water, nor allow it to come into contact with water or other liquids. Do not use outdoors.
• Always use the device on a horizontal and stable surface.
• The appliance must not be placed immediately below a socket.

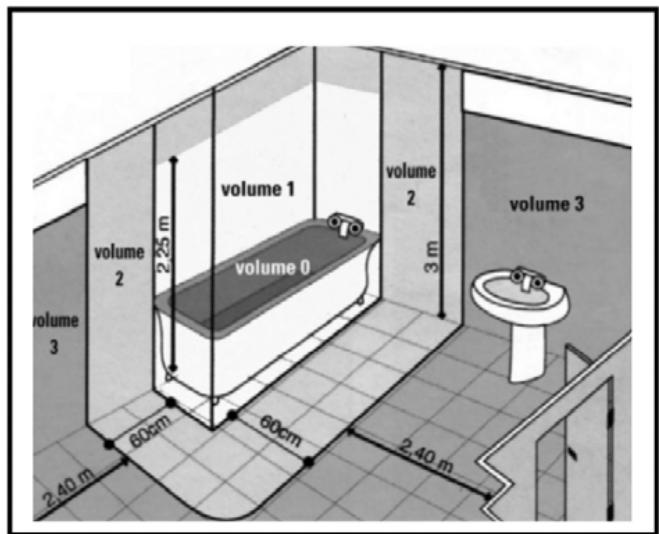

• Do not use the heating appliance in the immediate vicinity of a bath, shower, or swimming pool.

• Do not use this appliance if it has been dropped or shows visible signs of damage.

• WARNING: do not use the appliance in small rooms if persons in said room are incapable of leaving by themselves, unless continuously supervised.

• WARNING: to avoid fire, keep fabrics, curtains, and any flammable material at least 1 metre away from the air outlet.
• Install the appliance in such a way that the mains socket is accessible.
• This device is not suitable for built-in installation. Always respect safety distances.
• When using this appliance after a period of inactivity, it must be cleaned before being put into operation.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Temperature changes can cause the appliance to make noises. This is normal and does not indicate any malfunction.
• Keep the packaging materials out of the reach of children, they could be dangerous.
• No liability is accepted for any eventual damage or personal injuries derived from misuse or non-compliance with this instruction manual.
• Keep the device out of the reach of children under 3 years old, unless constantly supervised.
• Children between 3 and 8 years old should only switch the appliance on or off when it has been placed in its normal, intended operating position and if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children between 3 and 8 years old should not plug in, adjust, and clean the appliance and should not carry out maintenance tasks.

• CAUTION: some of the product's parts may become very hot and cause burns. Particular attention should be paid when children and/or vulnerable people are present.

• This appliance can be used by children aged 8 and above, and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

• Supervise children to prevent them from playing with the appliance. Close supervision is necessary if the appliance is used by or near children.

Instructions on cells

• The remote control operates on a Lithium Ion battery.
• Do not burn or expose the battery to high temperatures, as it may explode.
• Leaks from the cells can occur under extreme conditions. Do not touch any liquid that leaks from the cells. If the liquid gets into contact with skin, wash immediately with soap and water. If the liquid gets into the eyes, wash them immediately with clean water for a minimum of 10 minutes and seek medical attention. Wear gloves when handling the battery or cells and dispose of it immediately in accordance with local regulations.
• Avoid contact between the cells and small metal objects such as paper clips, coins, keys, nails, or screws.
• Do not tamper with the cells in any way.
• The cells must be removed from the appliance for safe disposal.
• Keep the cells out of the reach of children when there is a risk of ingestion.
• Cell ingestion can cause burns, soft-tissue perforation, and death. It can cause severe burns within two hours of the

ingestion.

• In case of cell ingestion, please seek medical help immediately.
• The cells' power supply terminals must not be short-circuited.
• If the device is to be stored for a long period of time, it is advisable to remove the cells.
• The battery must be inserted in the correct position. Pay attention to polarity when inserting it.

1. Main body
2. Control panel
3. Feet
4. On/Off switch

Please note

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the device out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent product damage when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If any of them are missing or not in good condition, please contact the official Cecotec Technical Service immediately.
• Make sure the side power switch is set to the OFF position.
• Plug the device to an earthed wall socket.

3. PRODUCT ASSEMBLY

Floor assembly

Attach the feet support to the product's bottom part using the ST12 x 4 mm screws provided as shown in figure 2.

Wall assembly

Warning:

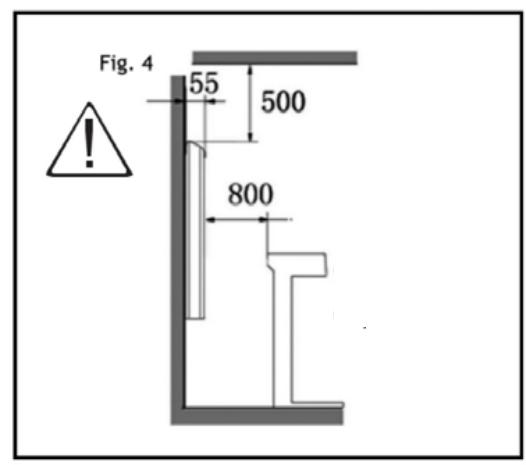

When installing the product, make sure to leave a minimum safety distance of 15 cm from the floor to the device and 50 cm from the ceiling.

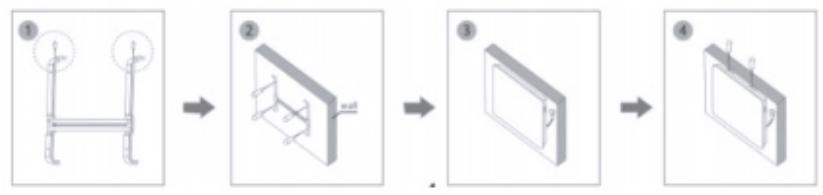

1. Remove the installation bracket at the rear of the unit by removing the fixing screws as shown in figure 3.

2. Present this wall bracket at the location where it is to be installed, then mark the bracket holes on the wall (make sure the bracket is level) at the ends of the bracket.

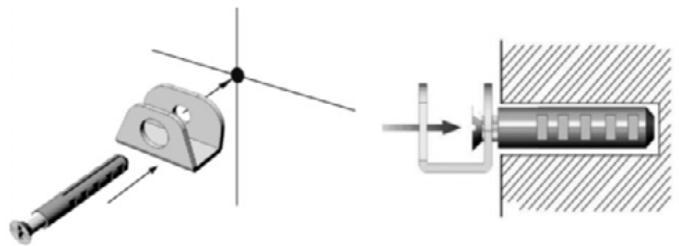

3. Using a drill, make holes in the wall of the same diameter as the fixing screws. Insert a fixing dowel into the previously drilled holes.
4. Fix the bracket to the installation wall using the screws as shown in figure 3, make sure that the screws are aligned with the holes.
5. Once the wall bracket has been correctly installed, you can fix the appliance in place by moving the appliance closer to the wall and reattaching the screws removed in step 1.
6. Distance between holes (screws 4x35 mm):

Reference:	Model	Distance between the holes
0531805350	ReadyWarm 6650/6670Crystal Connection	28 cm
0531905351	ReadyWarm 6700/6720Crystal Connection	44 cm
0532005352	ReadyWarm 6750/6770Crystal Connection	60 cm

4. CONTROL PANEL

The buttons on the product control panel correspond to those that will appear in the application. Fig. 4

1. Display
2. Increase button
3. Decrease button
4. Power button
5. Mode button
6. Timer button
7. Receiver
8. Child lock button

5. OPERATION

Power

• Turn on the side power switch.
• Press power button to start the device and enter the function settings. The upper part of

the display will show the room temperature.

- The heater will start operating at low power.

Mode

Press the mode button to select the power level, you can select between low power heating and full power heating.

Temperature

Press the "+" or "-" buttons to select the desired temperature from 15 °C to 35 °C. The temperature indicator will remain lit while it is being set.

Timer

Press the timer button to set the time at which you want the appliance to operate. It can be set from 1 to 24 hours. Press the + and – buttons to set the desired hour. The appliance will show the remaining time on the display.

Child lock

• Press and hold the Child Lock button for 3 seconds to activate the child lock safety system. The display will show the padlock indicating that this system is activated.
• Hold the child lock button for 3 seconds again to unlock it.

Wi-Fi connection

In order to link your product with our App, please follow the steps below:

1. Download Cecotec's App from Google Play or App Store.
2. Connect the appliance to the mains, switch it on, and press the power button (located on the control display) for 5 seconds until you hear a beep. The Wi-Fi icon will start flashing and the device will then be ready to pair with the App.
3. Start the App. If it is the first time you use it, create an account. If not, log in.
4. Once in the app's main menu, tap on "+" in the top-right corner. A menu containing various devices will open. Tap on the "Ready Warm Crystal" icon.

5. A window will open to confirm that the Wi-Fi icon is flashing. If so, click on "Confirm indicator slowly blink".

6. Next, a window will open asking for the Wi-Fi user name and password (remember your Wi-Fi network must be of 2.4 GHz). Once you have entered your password and user name, tap on "Next".

7. On the next screen, you will have to select the pairing mode. Tap on "EZ Mode" and a mode-selection menu will open.

8. Select EZ mode. Next, confirm the indicator is flashing (click on "Confirm indicator slowly blink") and click on "Next". The pairing process will start automatically.

9. Wait for it to finish and you will be able to use your device via the App.

6. CLEANING AND MAINTENANCE

• Turn off and unplug the appliance and allow it to cool down before cleaning it.
• Do not use abrasive cleaners or scouring pads to clean the product.
• Use a soft, dampened and clean cloth to clean the product's exterior housing.
• Clean the air inlet and outlet periodically.

7. TECHNICAL SPECIFICATIONS

Product reference: 05318/05350

Product: Ready Warm 6650 Crystal Connection/Ready Warm 6670 Crystal Connection

Power: 1000 W

Voltage: 220-240 V, 50/60 Hz.

Product reference: 05319/05351

Product: Ready Warm 6700 Crystal Connection/Ready Warm 6720 Crystal Connection

Power: 1500 W

Voltage: 220-240 V, 50/60 Hz.

Product reference: 05320/05352

Product: Ready Warm 6750 Crystal Connection/Ready Warm 6770 Crystal Connection

Power: 2000 W

Voltage: 220-240 V, 50/60 Hz.

Technical specifications may change without prior notification to improve product quality.

Made in China | Designed in Spain

8. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

This symbol indicates that, according to the applicable regulations, the product and/or battery must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

9. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec official Technical Support Service at [phone].

10. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

11. SIMPLIFIED EU DECLARATION OF CONFORMITY

Cecotec Innovaciones hereby declares that these heating appliances, model numbers 05318_ReadyWarm 6650 Crystal Connection, 05319_ReadyWarm 6700 Crystal Connection, 05320_ReadyWarm 6750 Crystal Connection, 05350_ReadyWarm 6670 Crystal Connection, 05351_ReadyWarm 6770 Crystal Connection and 05352_ReadyWarm 6720 Crystal Connection are in conformity with the Radio Equipment Directive 2014/53/EU.

The full text of the EU Declaration of Conformity can be found on the following website: www.cecotec.es

Information requirement for the electric local space heaters
Model(s) identifier: Serie Ready WarmCrystal Connection
Item	Symbol	Value	Unit	Item	Unit
Heating power				Type of heat input, for electric storage local space heaters only (single select)

Nominal heat output	Pnom	Ref.(05318,05350): 1,0 Ref.(05319,05351): 1.5 Ref.(05319,05351): 2,0	kW	Manual heat charge control with integrated thermostat	[no]
Minimum heat output (indicative)	Pmin	Ref.(05318,05350): 0,001 Ref.(05319,05351): 0,001 Ref.(05319,05351): 0,001	kW	Manual heat charge control with room and/or outdoor temperature feedback	[no]
Maximum continuous heat output	Pmax	Ref.(05318,05350): 1,0 Ref.(05319,05351): 1.5 Ref.(05319,05351): 2,0	kW	Electronic heat charge control with room and/or outdoor temperature feedback	[no]
Auxiliary electricity consumption				Fan assisted heat output	[no]
At nominal heat output	elmax	N/A	kW	Type of heat output/room temperature control (single select)
At minimum heat output	elmin	N/A	kW	Single stage heat output and no room temperature control	[no]
In standby mode	elSB	N/A	kW	Two or more manual stages, no room temperature control	[no]
				With mechanic thermostat room temperature control	[no]
				With electronic room temperature control	[yes]
				Electronic room temperature control plus day timer	[no]
				Electronic room temperature control plus week timer	[yes]
Other control options (multiple selections possible)
				Room temperature control, with presence detection	[no]
				Room temperature control, with open window detection	[no]
				With distance control option	[yes]
				With adaptive start control	[no]
				With working time limitation	[no]
				With black bulb sensor	[no]
Contact	Cecotec Innovaciones S.L. · C/de la Pinadeta s/n 46930 Quart de Poblet, Valencia (SPAIN)

1. PIÈCES ET COMPOSANTS

Img. 1

Prodotto: Ready Warm 6650 Crystal Connection/Ready Warm 6670 Crystal Connection

Potenza: 1000 W

Tensione: 220-240 V, 50/60 Hz.

Prodotto: Ready Warm 6700 Crystal Connection/Ready Warm 6720 Crystal Connection

Potenza: 1500 W

Tensione: 220-240 V, 50/60 Hz.

Prodotto: Ready Warm 6750 Crystal Connection/Ready Warm 6770 Crystal Connection

Potenza: 2000 W

Tensione: 220-240 V, 50/60 Hz.

Product: Ready Warm 6650 Crystal Connection/Ready Warm 6670 Crystal Connection

Vermogen: 1000 W

Voltage: 220-240 V, 50/60 Hz.

Product: Ready Warm 6700 Crystal Connection/Ready Warm 6720 Crystal Connection

Vermogen: 1500 W

Voltage: 220-240 V, 50/60 Hz.

Product: Ready Warm 6750 Crystal Connection/Ready Warm 6770 Crystal Connection

Vermogen: 2000 W

Voltage: 220-240 V, 50/60 Hz.

Fig./Img./Abb./Afb./Rys 3

Fig./Img./Abb./Afb./Rys 4

Fig./Img./Abb./Afb./Rys 5

Fig./Img./Abb./Afb./Rys 6

Fig./Img./Abb./Afb./Rys 7

Fig./Img./Abb./Afb./Rys 8

Fig./Img./Abb./Afb./Rys 9

Fig./Img./Abb./Afb./Rys 10

Fig./Img./Abb./Afb./Rys 12

Fig./Img./Abb./Afb./ Rys 11

Fig./Img./Abb./Afb./ Rys 13

Fig./Img./Abb./Rys./Obr.1

Fig./Img./Abb./Rys./Obr. 2

Fig./Img./Abb./Rys./Obr. 3

Fig./Img./Abb./Rys./Obr. 4

Fig./Img./Abb./Rys./Obr. 5

www.cecotec.es

Quart de Poblet, Valencia (Spain)

YV_03220808
