Product type	Home DVD player
Brand	CLATRONIC
Model	DVD 593
Dimensions (W x D x H)	430 × 250 × 40 mm
Weight	1.5 kg
Power supply	220-240 V ~ 50 Hz
Power consumption	10 W
Playable formats	DVD, DVD±R, DVD±RW, CD, CD-R, CD-RW, MP3, JPEG
Main functions	Play, pause, stop, fast forward/reverse, programming, random playback, repeat, zoom
Video outputs	HDMI, composite (RCA), component (YUV)
Audio outputs	Coaxial digital audio, stereo RCA audio
Maximum resolution	1080p (via HDMI)
Remote control included	Yes
Maintenance	Clean with a soft, dry cloth. Do not use solvents.
Safety	Do not expose to moisture, do not open the casing. Unplug before cleaning.
Spare parts available	Remote control and power cable (references not specified)
Reparability index	5/10 (estimate for a DVD player)
Operating conditions	Ambient temperature: 5°C to 35°C, max humidity 80%

Frequently Asked Questions - DVD 593 CLATRONIC

How to connect the DVD player to the TV?

Use an HDMI cable for best quality. Connect one end to the HDMI output of the player and the other to an HDMI input on your TV. Select the corresponding HDMI source on the TV.

Why is the player not displaying any picture?

Check that the cable is properly connected and that the TV is set to the correct source. Make sure the disc is clean and inserted correctly. Try another cable if necessary.

How to adjust the sound if I hear nothing?

Check the volume on your TV and that the audio cable (RCA or optical) is connected. If using an external audio system, make sure it is powered on and set to the correct input.

The remote control does not work, what to do?

Replace the batteries (AAA type). Check that there is no obstacle between the remote and the sensor. If the problem persists, the remote may be defective; contact customer service.

How to clean the DVD player lens?

Use a specially designed lens cleaning disc. Insert it into the player and follow the disc's instructions. Never use liquid or cotton swabs directly on the lens.

The player does not read some DVDs, why?

Check the disc's region code (the player is usually set to region 2 for Europe). Discs from other regions may not play. Also make sure the disc is not scratched or dirty.

How to use the programming function?

During playback of a CD or DVD, press the PROGRAM button. Use the numeric keys to enter track numbers in the desired order, then press PLAY to start programmed playback.

Can I plug the player into a Bluetooth speaker?

No, this model does not have Bluetooth function. You must use a wired audio output (RCA or coaxial) to an amplifier or speakers with corresponding input.

How to update the player's firmware?

This model does not support firmware updates. If a major issue occurs, contact CLATRONIC technical support.

What is the warranty for the DVD 593 player?

The legal warranty is 2 years. Keep the purchase receipt for any claims. For repairs, contact an authorized CLATRONIC service center.

USER MANUAL DVD 593 CLATRONIC

In the following situations moisture may develop on the lens:

• Immediately if a heater is switched on.
  In a steaming or very damp room.
• If the device is transferred from cold to warm surroundings.

If moisture has formed inside the device, it is possible that the device will no longer function correctly. In this case please turn off the power and wait for approximately one hour until the moisture has evaporated.

What to do if there is television interference while you are watching a programme.

Depending on the reception conditions there may be interference to the television picture when you are watching a television programme and the device is switched on.

This is not a malfunction of the device or television.

Switch the device off if you want to watch a television programme.

DISC FOR PLAYBACK

This DVD player is capable of playing the following types of discs with the corresponding logos:

Usable Discs:

Disc Types	Marks	Recording Types	Disc Size	Max. Playing Time
DVD	DVD VIDEO TM	Audio + Video	12 cm	Approx. 240 min. (Single-sided)
				Approx. 480 min. (Double-sided)
			8 cm	Approx. 80 min. (Single-sided)
				Approx. 160 min. (Double-sided)
AUDIO-CD	COMPACT DISC DIGITAL AUDIO	Audio	12 cm	74 Min.
			8 cm	20 Min.

DIGITAL

Dolby Digital disc

DTS Disc

Digital Audio disc

STEREO

Stereo disc

NTSC

NTSC broadcast system in USA, Canada, Japan, South Korea, etc.

PAL

PAL broadcast system in U.K., France, Australia, etc.

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Region Code

Both the DVD player and the disc are coded by region.

These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is descriptor on the rear panel of the player.

Disc structure

A DVD video disc consists of "title", and each title may be divided into some "chapters" (See Example 1.)

For example, if a DVD disc contains some movies, each movie may have its own title number, and it may be further divided into some chapters.

On the other hand, Audio CD consist of "tracks". (See Example 2.) In general, each track has it own track number. (On some discs, each track may also be divided by indexes.)

DESCRIPTION

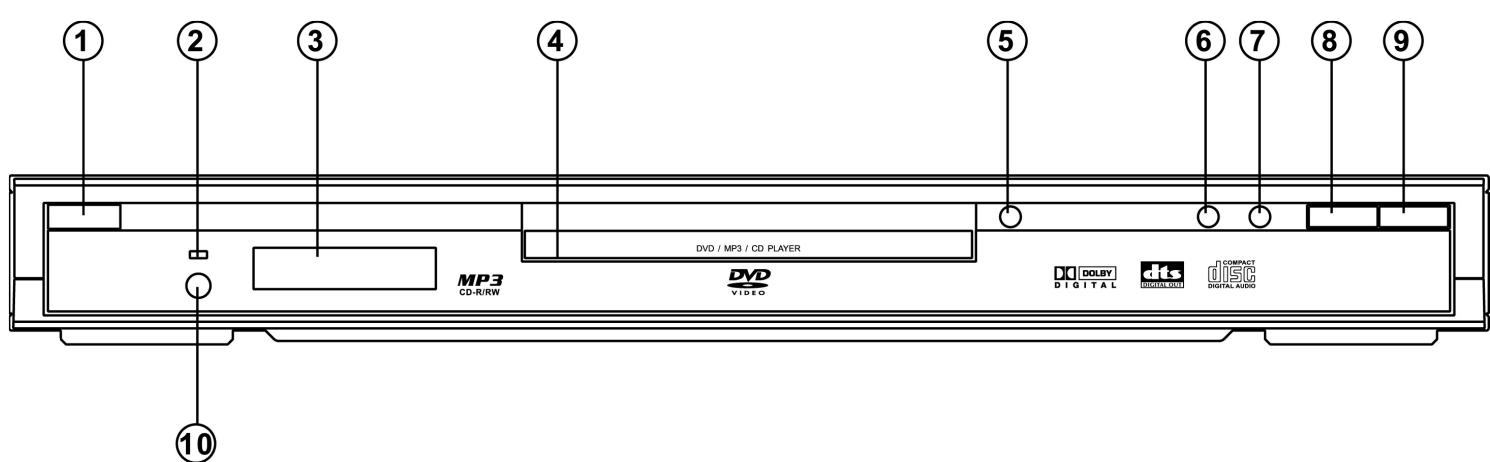

Front Panel

1. POWER - To switch standby modes.
2. STANDBY INDICATOR
3. DISPLAY
4. DISC TRAY
5. OPEN/CLOSE - To open or close the disc tray

6. PREV - Press to skip to the previous chapter/track.

7. NEXT - Press to skip to the next chapter/track.

8. STOP - To stop playing the disc.

9. PLAY/PAUSE

10. To start disc playback.

11. To interrupt disc playback.

12. REMOTE SENSOR

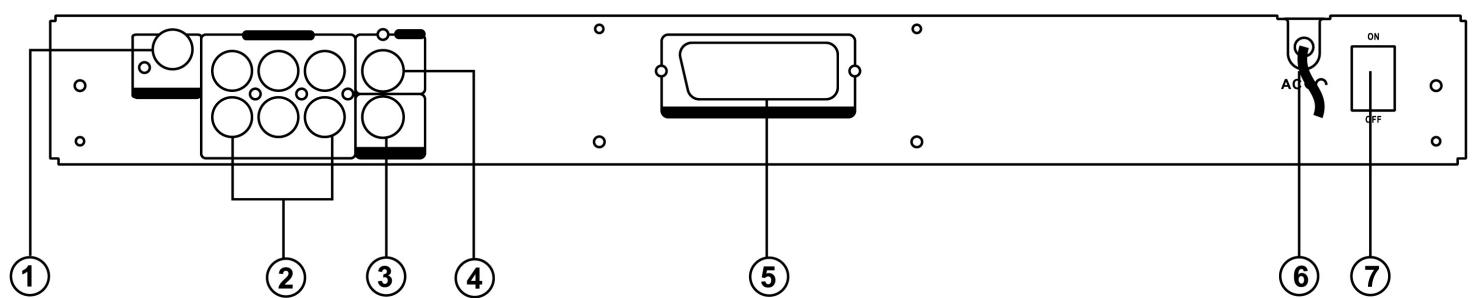

Rear Panel

1. DIGITAL OUT-COAXIAL
2. Connect to audio equipment with digital-coaxial audio input.
3. 5.1ch Analog audio out jacks.
4. to an amplifier with 5.1 ch analog input jacks.
5. S-VIDEO OUT

6. Connect to a TV with SVHS video input.

7. VIDEO OUT

8. Connect to a TV with video input.
9. SCART OUT
10. Connect to a TV with SCART input.
11. AC POWER CORD
12. Connect to a standard AC outlet.
13. POWER ON / OFF

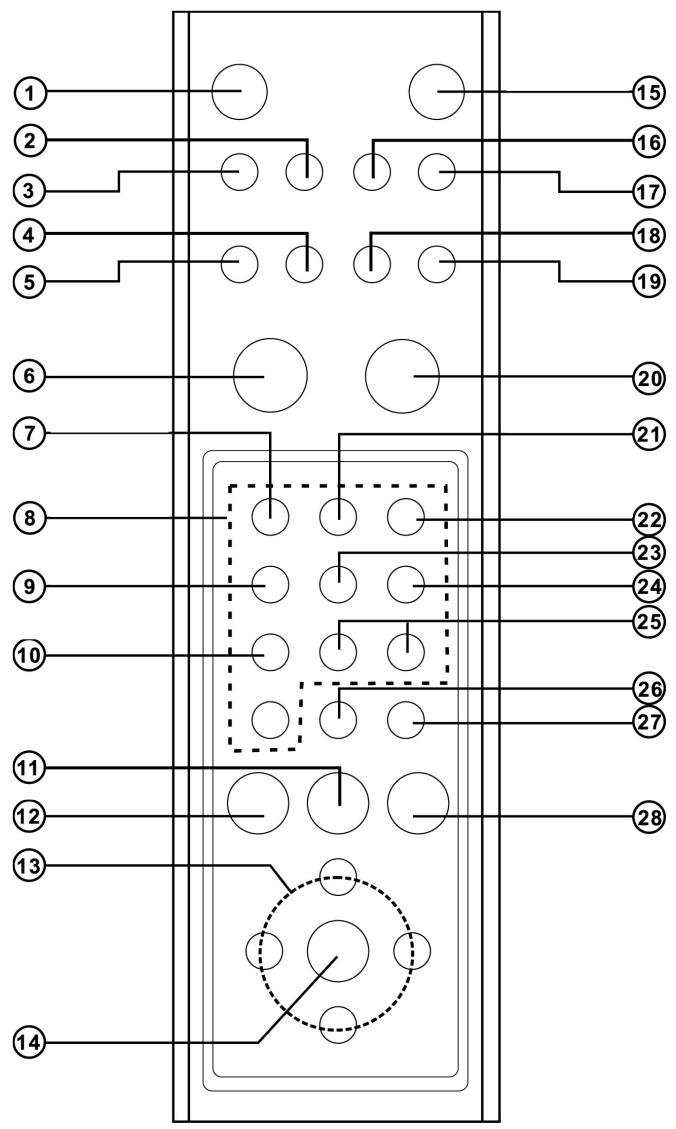

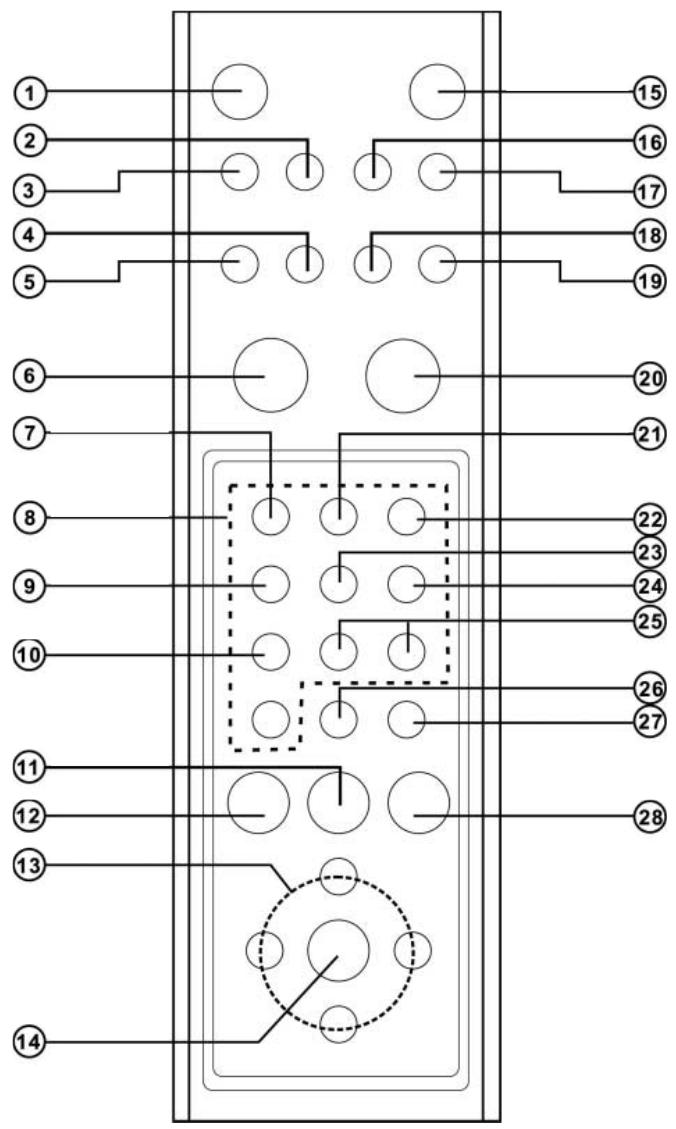

Remote control Unit

1. POWER
2. To switch to standby mode.
3. TITLE/PBC
4. Press to access a DVD's title menu.
5. DVD MENU/RETURN
6. Press to access a DVD's Disc menu.
7. Go back to previous menu.
8. DIGEST (VCD and CD only)
9. Press to preview VCD/CD track.
   5.PROGRAM
10. Press to access program mode.
11. PLAY
12. Press to start playback.

Insert Batteries (Remote Control Unit)

You can control the player with the supplied remote control unit. Insert two R6 (size AA) batteries by matching the + and - markings inside the compartment. When using the remote unit, point it at the remote sensor on the player.

1. ZOOM

2. Press to enlarge the picture.

3. NUMBER BUTTONS (0 - 9)

4. Select numbered item in a menu.

5. ANGLE

6. Select a DVD camera angle.

10.AUDIO

• Select an audio language.

11.NEXT

• Press to go to the next chapter or track.

12.PREV

• Press to go to the previous chapter or track.

13.(left/right/up/down) select an item in the menu.

14.ENTER

-Acknowledge menu selection.

15.DISPLAY

• Press during playback to see current disc information on the TV screen.

16.SUBTITLE

• Select a subtitle language.

17.MUTE

• Press to silence the volume, press again to restore the volume.

• SETUP

• Press to access or remove the setup menu of the player

19.GOTO

• Press to search for a specific chapter or playing time.

20.STOP

• Press to stop playback.

21.REPEAT

• Press to play a chapter, title, track or disc repeatedly.

22.REPEAT A-B

• Press to repeat a specific segment.

23.SHUFFLE

• Press to play track in random order.

24.PAUSE/STEP

• Pause playback temporarily/frame-by-frame playback.

25.SLOW

• Press to play slow reverse/forward playback of DVD.

26.REV

• Press to search backward during playback.

27.FWD/CLEAR

• Press to search forward during playback.

• Clear input selections.

28.SHIFT

• Press to number lock on the buttons with number printed on the surface.

Notes:

• Do not leave the remote control unit in the extremely hot or humid place.
• Do not use a new battery with an old one.
• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a malfunction in controlling the player.
• If you do not use the remote control unit for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

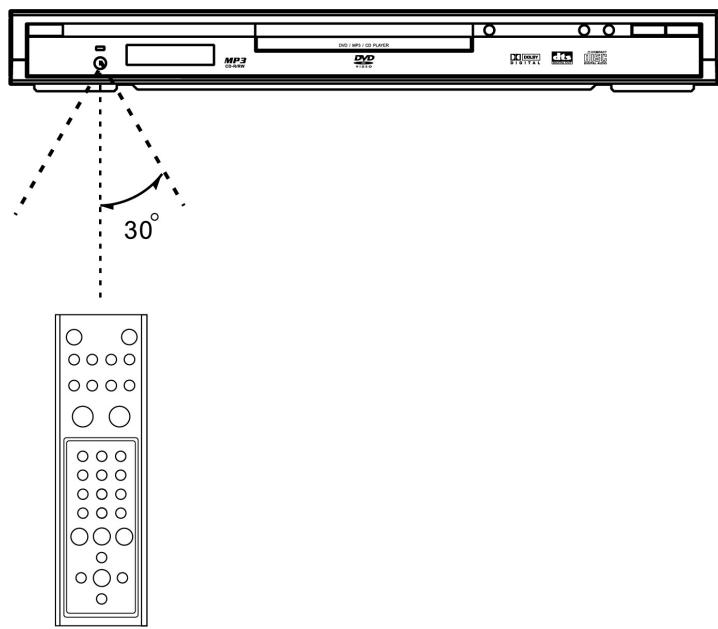

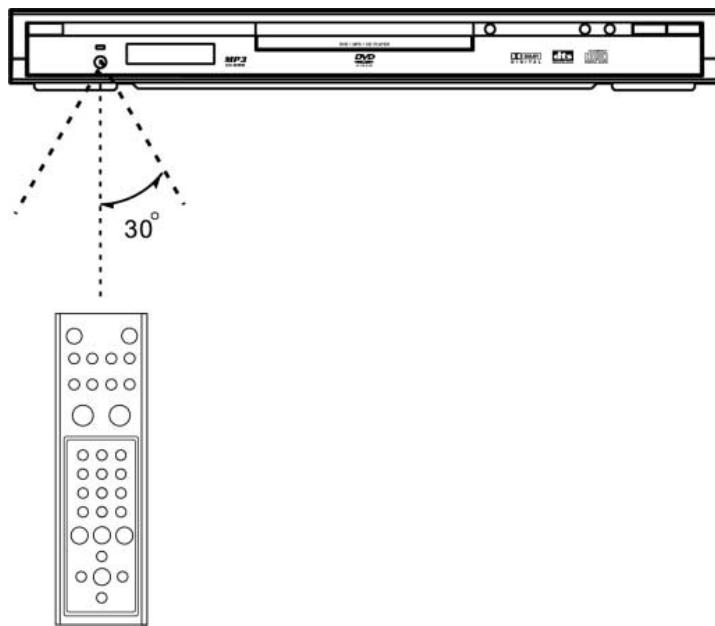

Range of Operation of the Remote Control

The remote control can be used up to approximately 5 meters in a straight line.

It can also be operated at a horizontal angle of up to 30^ from the remote sensor.

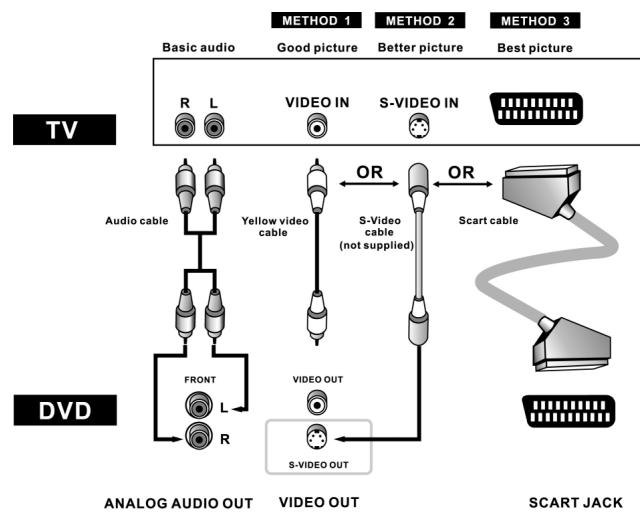

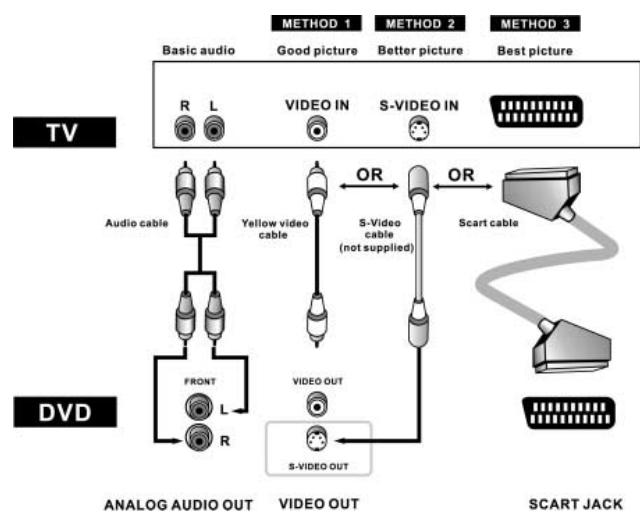

CONNECTION TO A TV (FOR VIDEO)

METHOD 1 DVD Player + TV with Video input jack
METHOD 2 DVD Player + TV with S-Video input jack
METHOD 3 DVD Player + TV with Scart input jack (Audio & video)

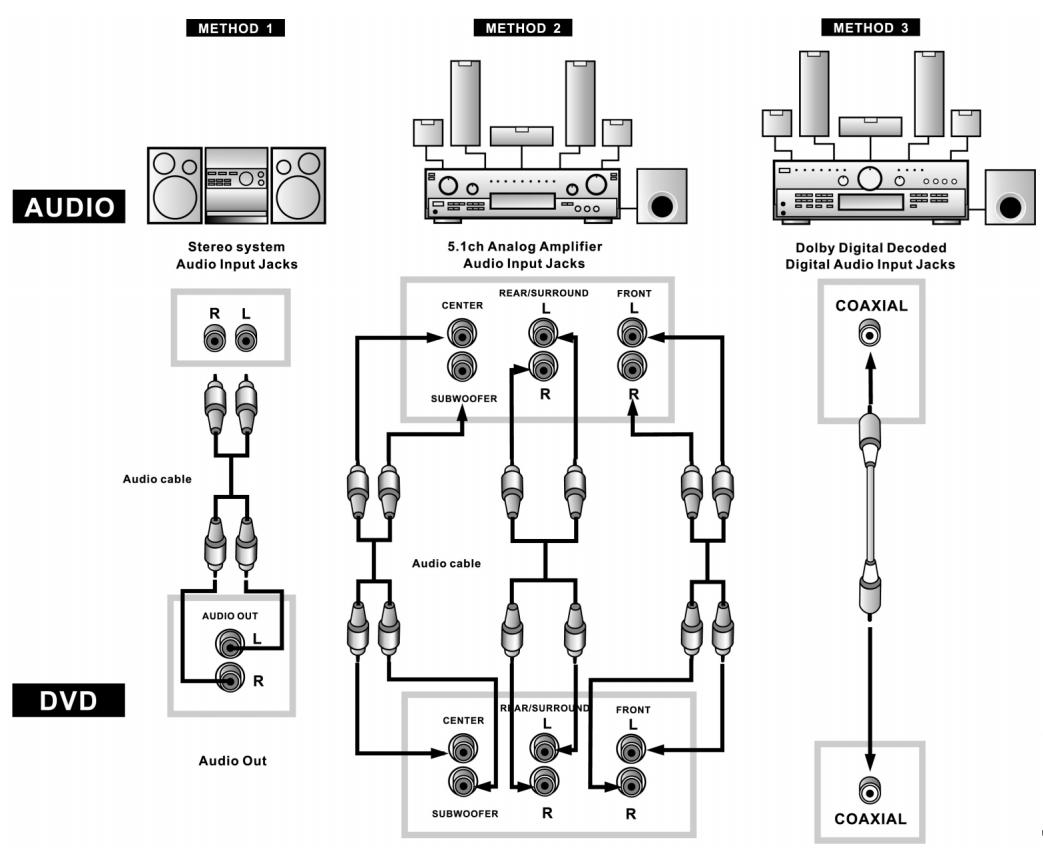

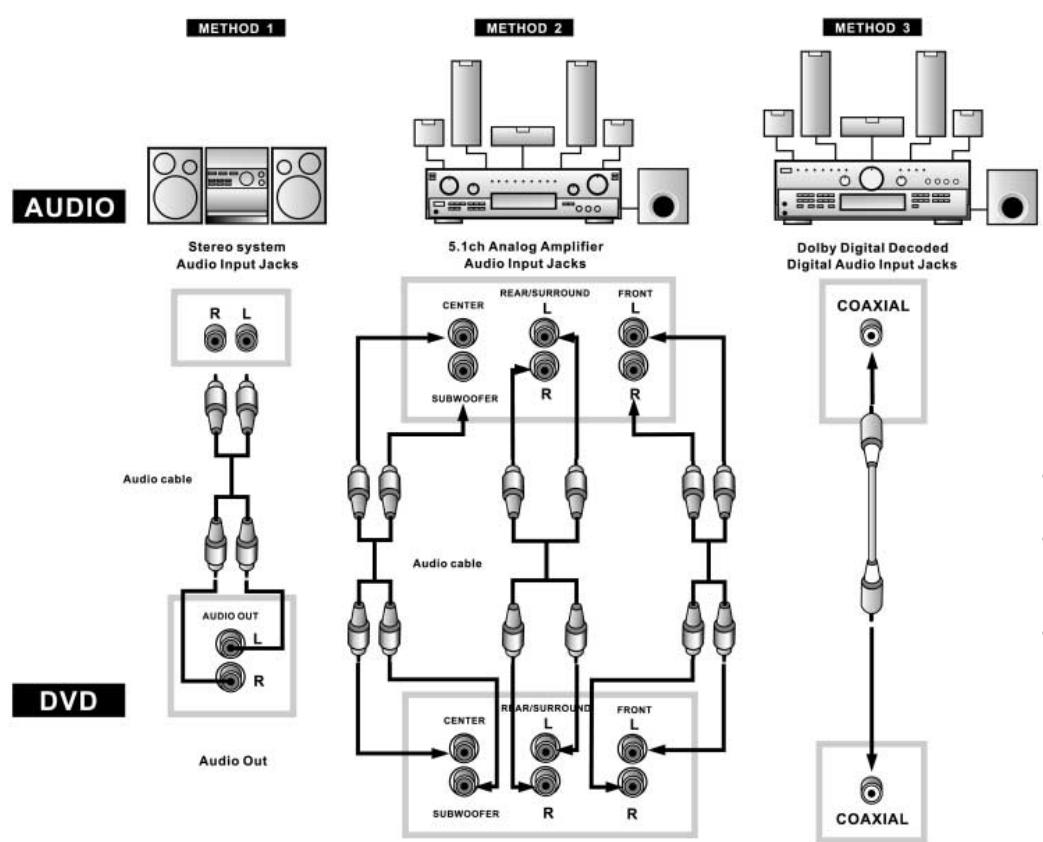

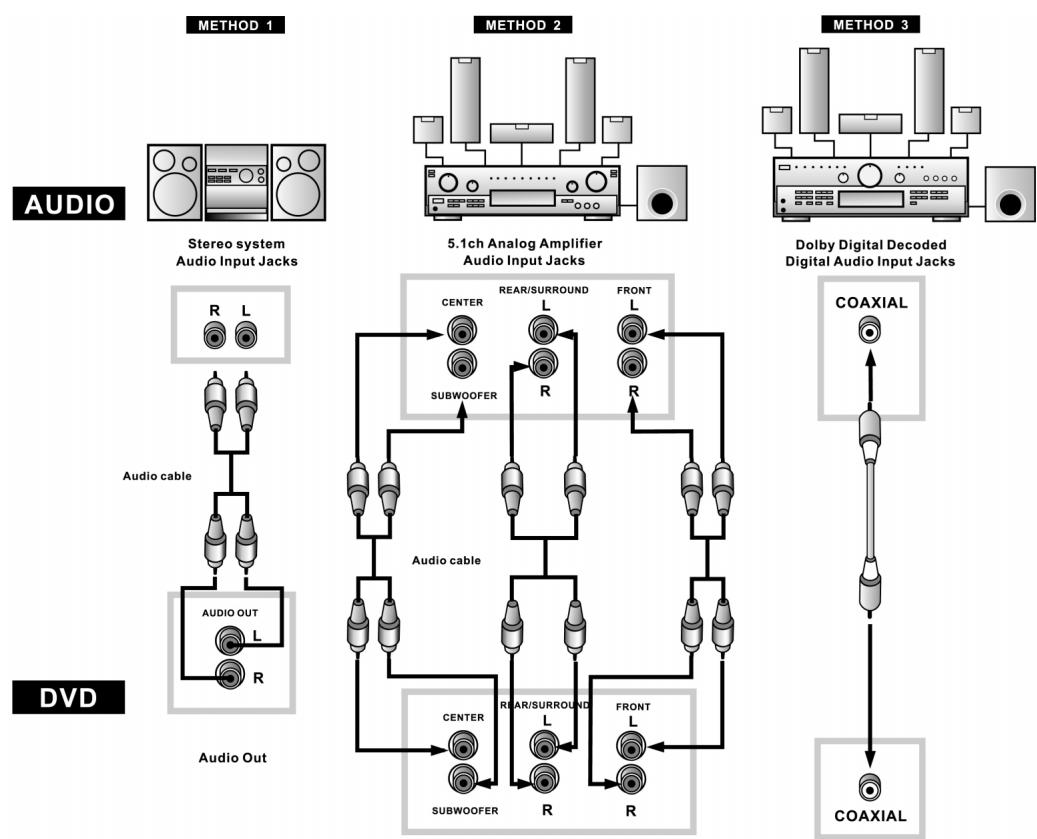

CONNECTION TO AN AUDIO SYSTEM

The following diagram shows examples of connections commonly used to connect the DVD player to TV sets with other audio equipment.

Before Connecting the DVD player

• Be sure to turn off the power to all components in the system before connecting another component.
• Refer to the instruction Manuals for your TV, stereo system and other components to be connected to the DVD player.

• METHOD 1 DVD Player + Stereo System

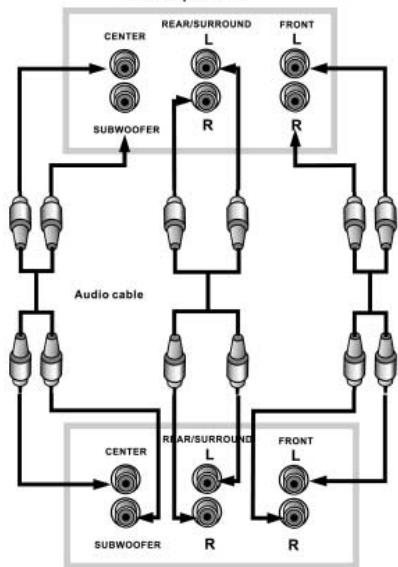

• METHOD 2 DVD Player + Amplifier with 5.1ch Analog input jacks
• METHOD 3 DVD Player + Amplifier with Dolby Digital Decoder/DTS Decoder

BASIC PLAYBACK

Powering on the player and playing the disc

• Press POWER button. If there is a disc in the tray, the player will begin to play it once the power is on.
• Press OPEN / CLOSE button to open the tray to either change the disc or insert a disc.

• Once the disc is in the tray, press OPEN/CLOSE button to close the tray. Once closed, the player will begin to play the disc.

Stopping playback

• Press STOP button once to stop playback and show the logo screen. The player memorizes the location where playback is stopped, if last memory is ON.
• Press PLAY button to resume playback from the location where playback is stopped.
• When the STOP button is pressed twice, the resume function will be cleared.

Pausing playback

• Press PAUSE / STEP button once to pause playback. The sound is muted during PAUSE mode.
• Press PLAY button to resume normal playback.

Search Forward/Search backward

• Press FWD button to fast forward through the disc. The speed can be selected by pressing the key further (2x, 4x, 6x, 8x, normal) for DVD / (1x, 2x, 3x, 4x, normal) for VCD.

• Press PLAY button to resume normal playback.
• Press REV button to fast reverse through the disc. The speed can be selected by pressing the key further (2x, 4x, 6x, 8x, normal) for DVD / (1x, 2x, 3x, 4x, normal) for VCD.
• Press PLAY to resume normal playback.

Slow motion Forward / Backward

• Press SLOW forward button to play a disc in slow motion.
  Each time the SLOW forward button is pressed, the slow motion speed changes (2x, 4x, 8x, normal speed for DVD) / (1x, 2x, 3x, 4x, normal speed for VCD).
• Press PLAY button to resume normal playback.
• Press SLOW backward button to play a disc in slow reverse.
  Each time the SLOW backward button is pressed, the slow reverse speed changes (2x, 4x, 8x, normal speed for DVD) / (1x, 2x, 3x, 4x, normal speed for VCD).
• Press PLAY button to resume normal playback.

Skipping to the Next / Previous chapter/track

• Press NEXT button to skip forward to the beginning of the next chapter (DVD) or track (Audio CD).
• Press PREV button once to skip backward to the previous chapter (DVD) or beginning of the current track (Audio CD).
• Press PREV button twice to skip backward to the previous track (Audio CD).

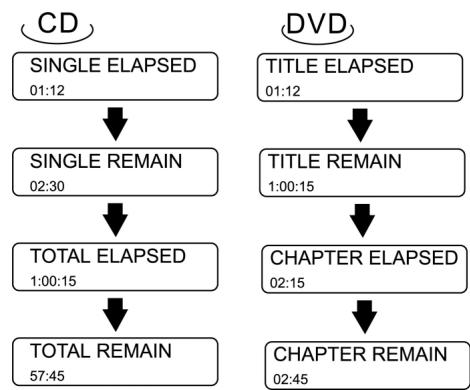

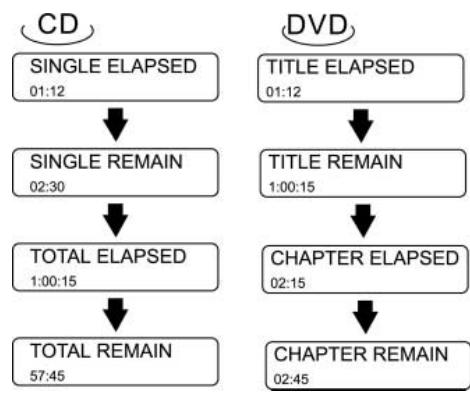

Checking the Remaining Time

• Press the DISPLAY button to check the elapsed time and remaining time as illustrated.

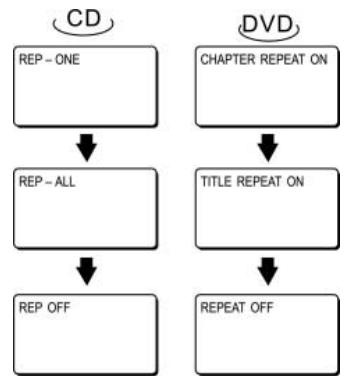

REPEAT PLAY

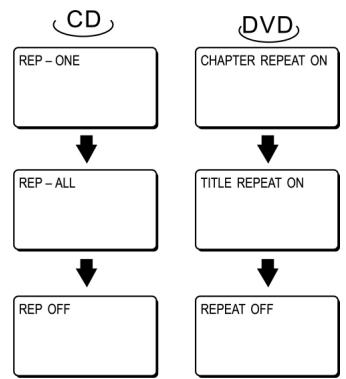

Repeat Viewing / Listening

• Press REPEAT button to repeat the chapter, title and all for DVD disc; track and all for CD disc.

TITLE REPEAT ON / REP-ALL - repeat entire title
When playback reaches the end title of the disc, playback resumes at the beginning.

CHAPTER - repeat current chapter
When playback reaches the end of the current chapter, playback jumps back to the beginning of the chapter.

REP-ONE - repeat current track / song
When playback reaches the end of the current track / song, playback jumps back to the beginning of the track / song.

A B Repeat playback

• Press A - B button once at the beginning of the segment (point A) you want to play repeatedly.
• Press A-B button again at the end of the segment (point B).
• The player automatically returns to point A and starts repeat playback of the selected segment (A - B).
• Press A - B button a third time to disable repeat A - B playback and allow playback to continue in normal.

PROGRAM PLAY (For VCD or CD only)

• Press STOP button and then press PROG button.

• Enter the track with the number buttons (0 - 9) on the remote control. The OSD will display the following:

• Press ENTER.

• Track 5 will store in program 1, repeat step may store up to 99 program.
• To delete the program, please push the STOP button and open the CD door.

RANDOM PLAY(shuffle)–For VCD or CD only

• Press SHUFFLE button during playback to toggle between ON and OFF. The setting are as follow: ON = Random mode enabled. When playback reaches the end of the current track, playback jumps to a random track. OFF = Random model disabled. (OSD) off. (Must press STOP key first before to use)

USING DISC MENU / TITLE

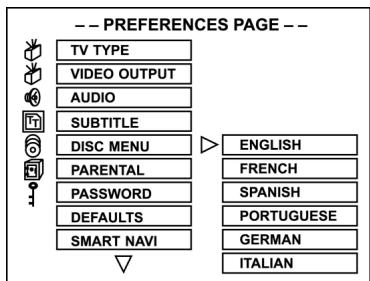

To select the disc menu

• You can use the menus for the audio language, subtitle language, etc. DVD menu contents differ from disc to disc.
• Press the DVD MENU button during playback. The menu screen appears.

• Use the up/down or left/right button to access the different features.

• Press the ENTER button

• The selected item will play.

Using the Title Menu

• For DVD's containing multiple titles, you can view the title of each movie.
• If and how this function is working depends on the respective DVD.

AUDIO LANGUAGE / SUBTITLE LANGUAGE (only applicable to DVD disc)

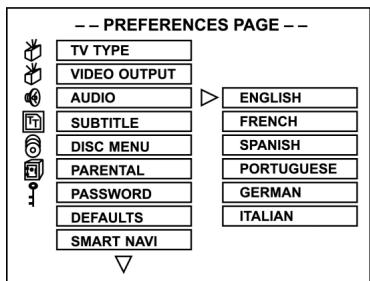

Selecting the Audio Language

• Press AUDIO button to select different audio languages (eg. English, French, Spanish, German, .......depending on the number of languages recorded on a DVD disc).

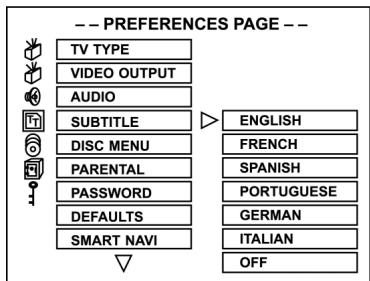

Selecting the Subtitle Language

• Press SUBTITLE button to select different subtitle languages (eg. English, French, Spanish, German, ....depending on the number of languages recorded on a DVD disc).

ZOOM

• Press ZOOM button repeatedly during playback to select zoom 1.5x, 2x, 3x to change the size of the picture.
• While an image is enlarged, you can use UP/DOWN, LEFT/RIGHT buttons to shift the view and display the part you wanted.

ANGLE

• Press the ANGLE button during playback to select the desired angle.
• This function only works with discs on which multiple scenes were shot from different angles.

MOVE TO A TITLE, CHAPTER OR TIME DIRECTLY

• Press the STOP button.
  Press the GOTO button.
  Each time the button is pressed, it repeats as shown below.

DVD: May select the TITLE, CHAPTER or DIRECT JUMP to desired location immediately.

VCD: Only DIRECT JUMP to desired location immediately.

CD: Only DIRECT JUMP to desired location immediately. e.g. The Song 1 = 3min,

Song 2 = 4min

Song 3 = 6min

The total time = 13 min

When set the time to 00:05:00, the player will jump to Song 2 and start on 2min.

DIGEST PLAY (For VCD or CD only)

• Press STOP first and then press the DIGEST button and the following menu will appear.

1. INTRO	3. TRACK
2. DISC	4. EXIT

VCD

• Press the number key to select INTRO, DISC, TRACK and EXIT and then press ENTER button.
• INTRO: Each track will be play first 8 seconds.
  DISC: The title will be divided into several parts according to the number of track it contains. (Press the number to select the window you'd like to see, and press the ENTER button.)
• TRACK: The title will be divided by 5 minute. (Press the number to select the window you'd like to see, and press the ENTER button.)

CD

• Press the number key to select INTRO or EXIT and then press ENTER button.

1. INTRO	3.
2. ____________	4. _

• INTRO: Each track will be play first 12 seconds. (Anytime press the PLAY button, the current song will continue playing and disable the INTRO function.

JPEGPlayback

Some CD-Rs may contain pictures in a JPEG format. For example, you may have photographic film developed with pictures stored in JPEG format. Then you can playback those JPEG files in this player.

Some useful features are described below:

• When you insert a disc with JPEG files, the files or pictures available for playback will be listed on the screen.
• Press UP / DOWN buttons to select the folder or file and press ENTER.
• After you open one JEPG file, each subsequent file will appear automatically for a few seconds. To keep the JEPG image on the screen longer, press PAUSE button to pause the image.
• During playback, press UP / DOWN, LEFT / RIGHT to rotate or flip the image.

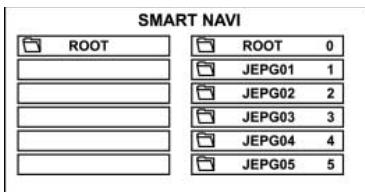

SMART NAVI
ROOT	0
JEPG01	1
JEPG02	2
JEPG03	3
JEPG04	4
JEPG05	5

MP3Playback

This system has a built in MP3 decoder. You can playback MP3 tracks (files) recorded on CD-R, CD-RW.

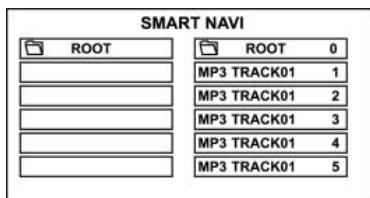

Starting playback

• It is recommended you turn on you TV when playing back an MP3 disc.

• Press the OPEN/CLOSE button to load a disc.

• The menu will show up the folders and the files in root directory.
• Use the UP/DOWN buttons to select the desired music folder, then press ENTER.
• Use the UP/DOWN buttons again to select a song file. Press ENTER to begin playback of the song file.

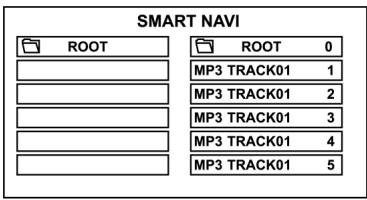

SMART NAVI
ROOT	ROOT 0
	MP3 TRACK01 1
	MP3 TRACK01 2
	MP3 TRACK01 3
	MP3 TRACK01 4
	MP3 TRACK01 5

PLAY MODE

• The indication corresponding to the selected mode appears on the TV screen.

• Use the LEFT/RIGHT and UP/DOWN buttons to select play mode.

• Use the LEFT/RIGHT buttons to select the desire music folder, then press ENTER.
• Use the LEFT/RIGHT and UP/DOWN buttons to select the song file, then press ENTER.

NOTE:

May using the REPEAT button in remote control to play a FOLDER REPEAT, DISC, DISC REPEAT, DISC SCAN, SINGLE, FOLDER, REP-ONE (Repeat one song) repeatedly.

SETUP MENU

The SETUP MENU let you to customize the DVD player by allowing you to select various language preferences, set up a parental level, turn captions and screen saver on and off, adjust what type of television screen you have and more. Below, find the menu, and then find the corresponding page that describes the features of the selected menu option.

1. Press the SETUP button.
2. Press the UP/DOWN buttons to select the menus/screens.
3. Press the ENTER button to select the highlighted option.

Press SET UP in the stop or playback mode (in DVD mode).

• The SET-UP menu is display

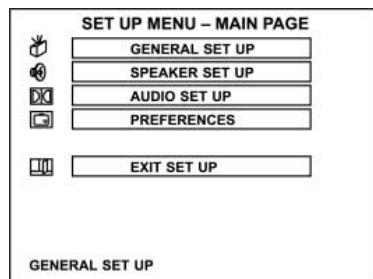

SET UP MENU - MAIN PAGE

GENERAL SET UP

SPEAKER SET UP

AUDIO SET UP

PREFERENCES

EXIT SET UP

GENERAL SET UP

• Press UP/DOWN buttons to select, and press ENTER button to enter.
• The SETUP menu operation, can set up the general, speaker, audio, and perferences.
• To exit SETUP menu.

Press DOWN button to select the EXIT SETUP to exit.

General Setup

Select GENERAL SETUP in the SETUP MENU and then select the desired option using the cursor buttons to navigate through the menus/screens and press the ENTER button to select.

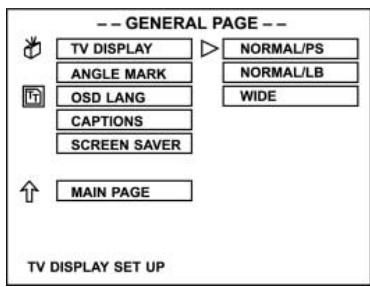

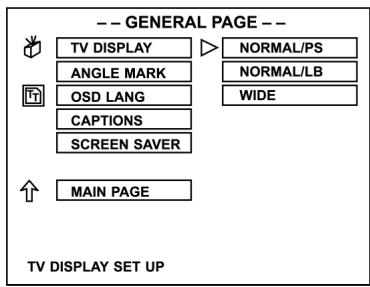

1. Set up the TV DISPLAY

NORMAL/PS: Pan scan. Select when the unit is connected to a conventional TV. Video material formatted in the Pan Scan style is played back with the left and right edges are cut off.

NORMAL/LB: Letter Box. Select when the unit is connected to a normal TV. Wide-screen images are shown on the screen with a black band at the top and bottom.

WIDE: Select when the unit is connected to a wide-screen TV.

Note:

The displayable picture size is preset on the DVD disc. Therefore the playback picture of some DVD discs may not conform to the picture size you select.

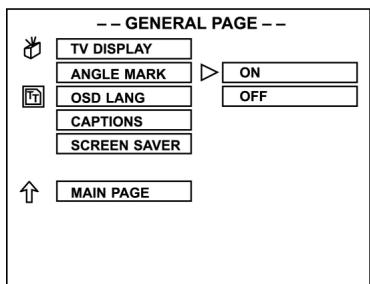

2. Set up ANGEL MARK

• Some DVD disc is record by serval video camera from the different angles to take, when playback, can select the one of the angle to watch.

ON open the angle

OFF close the angle

• The disc must have the angle mark, the set up can work.

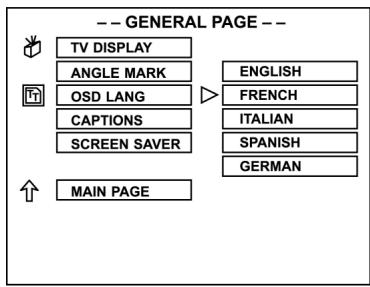

3. Set up the OSD LANG

• You can select the TV display language.

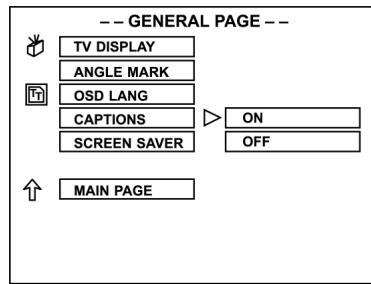

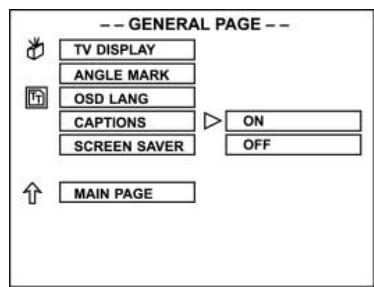

4. Set up CAPTIONS

ON - open the option.

OFF - close the option.

The TV set must support closed captions function.

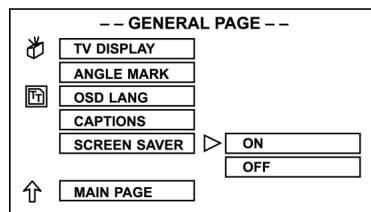

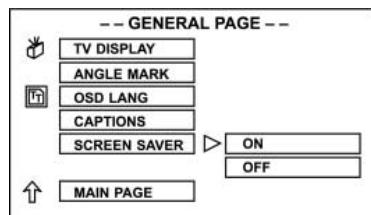

5. Set up SCR Saver

• When no disc or playback stop some time, the unit will automatic open the Screen saver function. This time the screen will become black, only the DVD patten move on the screen. This function is protect the TV screen long time display will be hurt.

Speaker Setup

• Press UP/DOWN button to select the SPEAKER SET UP and press ENTER.
• The left is the main catalog, the right is the children catalog.
• Press LEFT/RIGHT button to enter the children catalog and press ENTER to confirm.

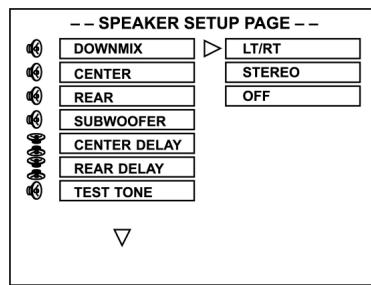

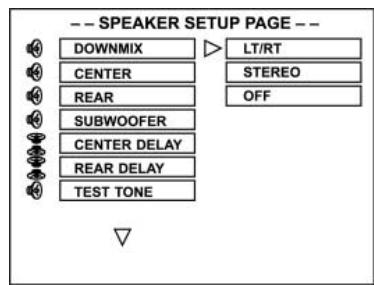

1. Set up the DOWNMIX MODE

• LT/RT When the playback disc with the PROLOGIC DOLBY stereo, select this item, through this unit 's decode system, you can enjoy effect in your room similar the movie theater with two front speaker.
• STEREO When sources is two channel, the audio output is the common stereo signal. When sources is 5.1 channel, only output the left and right 2 channel signal.
  OFF close the DOWNMIX and active the 5.1channel manual.

When active 5.1 channel manual. You may control CENTER, REAR, SUBWOOFER SPEAKER ON/OFF and CENTER/REAR SPEAKER delay time. TEST TONE may check the all speaker connect properly.

Audio Setup

• Press UP/DOWN button to select the AUDIO SET UP and press ENTER.
• The left is the main catalog, the right is the children catalog.
• Press LEFT/RIGHT button to enter the children catalog and press ENTER to confirm.

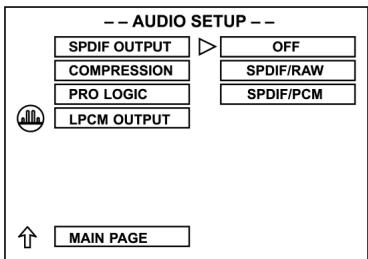

1. Set up the AUDIO OUTPUT

• SPDIF/PCM when connect the 2 channels digital analog or stereo analog AUX, playback the DOLBY digital disc, please select this funtion.
• SPDIF/RAW when the digital audio output connection with the DOLBY decode function power amplify, please select this function.

NOTES: When using built-in amplifier, audio output must set to analog, otherwise rear and center speaker will no signal output. When set to SPDIF/RAW or SPDIF/PCM, 5.1 signal may through digital out to external amplifier.show or hide the captions.

• Press UP/DOWN button to select SPDIF OUT, then press ENTER.
• Press UP/DOWN button to select OFF, SPDIF/RAW, or SPDIF/PCM, then press ENTER.
• Choose OFF if you used built-in amplifier.
• Choose SPDIF/RAW if you connected to a Stereo using the Player's COAXIAL Digital Audio Out jacks and your Stereo is PCM-compatible.

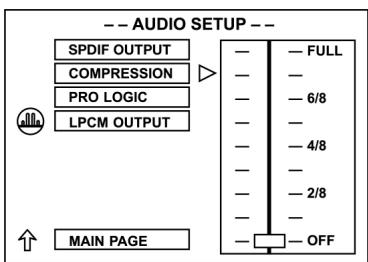

2. Set up the COMPRESSION

• Dynamic Range Compression

Dynamic Range Compression reduces volume change by letting you adjust the difference between soft and loud sounds.

Press UP/DOWN button to set Dynamic Range Compression to 1/8 through FULL or to turn it OFF, then press ENTER.

To hear the full range of range of sounds as recorded, choose OFF or a lower ratio such as 1/8 or 2/8. To minimize the difference in volume between loud segments and quiet scenes, choose a higher ratio such as 6/8 or FULL.

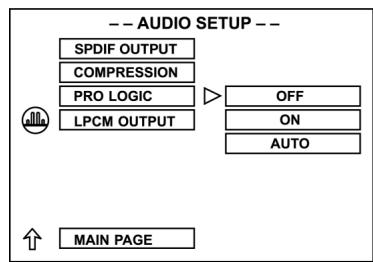

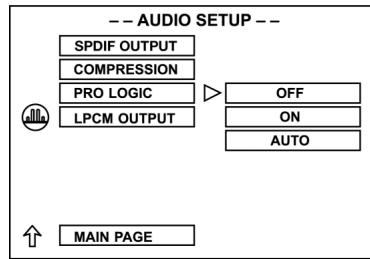

3. Set up the PRO LOGIC

PROG LOGIC ON

Select this item, all 2 channel signal playback disc with the PRO LOGIC decode system to 5.1 channel. This function must set the DOWNMIX to OFF.

PRO LOGIC OFF

Pro Logic is switched off.

PRO LOGIC AUTO

Function is switched automatically.

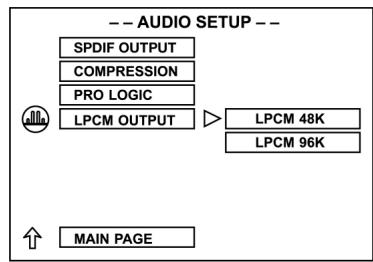

4. Set up the LPCM OUTPUT

LPCM 48K:

In the linear PCM setting "48K" means that the maximum "Digital Output Sampling Rate" is 48 KHz. If the encoded sampling rate of the title track is 96 KHz the output is forcibly converted to 48 KHz.

LPCM 96K:

If "96K" has been selected the maximum output sampling rate is 96K and no enforced conversion takes place.

Preference Setup

(Only in the STOP mode or open the tray.)

Press UP/DOWN button to select the PREFERENCES SET UP and press ENTER.

• The left is the main catalog, the right is the children catalog.

Press LEFT/RIGHT button to enter the children catalog and press ENTER to confirm.

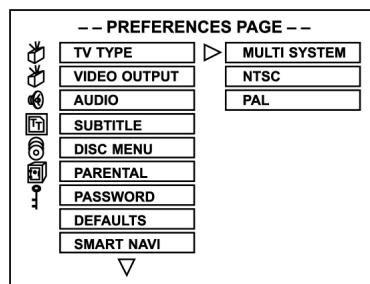

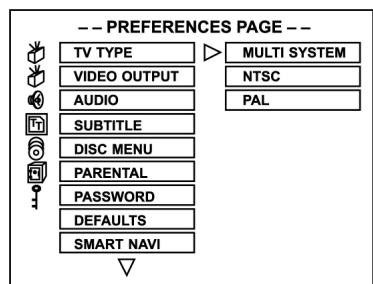

1. Set up theVIDEO (TV Type)

Please adjust the Video Out in this way, that he meets the system of the TV, the model will be connected to.

1. If you are using a PAL television set, select the PAL output signal;
2. If you are using an NTSC television, select the NTSC output signal;
3. Select MULTI if your television set has a multisystem.

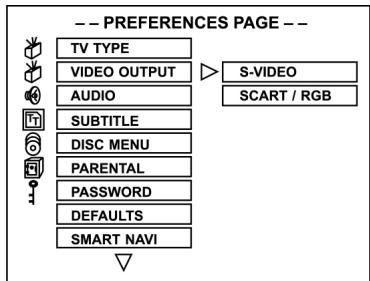

2. Set up the VIDEO OUTPUT

• If connect the S-VIDEO terminal, please select S-VIDEO.
• If connect the RGB, please select RGB (Scart version only).

3. Set up the AUDIO

• The audio is decide by disc, only the disc supports the language format, the audio set up just can work. For example, the disc has English and German two FORMATS, you can select the English or German is decide the disc.

4. Set up the SUBTITLE

• Subtitle is the words of the disc play audio, as same the audio set up, must the disc support, the sub-title just can work.

5. Set up the DISC MENU

• Set up the disc menu subtitle language, it is decide the disc.

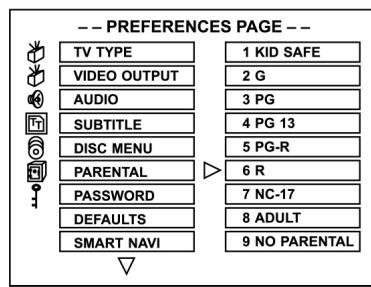

6. Set up the PARENTAL

• When playback with the parent lock function disc, can use the PARENTAL to control the disc, and with the password.

RATING EXPLANATIONS

• KID SAF - Kid safe; it is safe even for kids.
• G - General Audience; recommended as acceptable for viewers of all ages.
• PG - Parental Guidance suggested.
• PG 13 – Material is unsuitable for children under age 13.
• PG-R – Parental Guidance-restricted; recommended that parents restrict children under age 17 from viewing or allow children to view only when supervised by a parent or adult guardian.
• R - Restricted, under 17 requires accompanying parent or adult guardian.
• NC-17 - NO children under age 17; not recommended viewing for children under age 17.
• ADULT - Mature material; should be viewed only by adults due to graphic sexual material, violence, or language.
• NO PARENTAL - Disable the parental lock function.

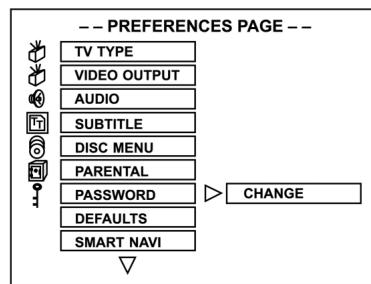

7. Set up the PASSWORD

• CHANGE set up the new pass word, first enter "CHANGE", and appear the change menu, input the original "xxxx", move to the new password, input the new password, and press ENTER to confirm.

To clear 4-digit password: If you forget your password, the super password is "3308".

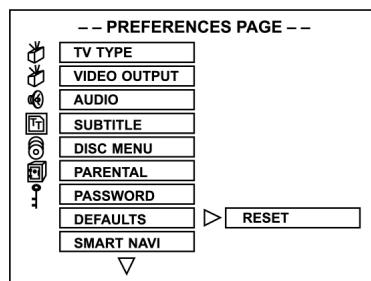

8. Set up the DEFAULTS

• If you don't want to save the all of the set up by yourself, select it.
• If you select RESET all functions are returned to the original factory settings of the device.

Note: This menu only set up at open the door station, other station it is grey.

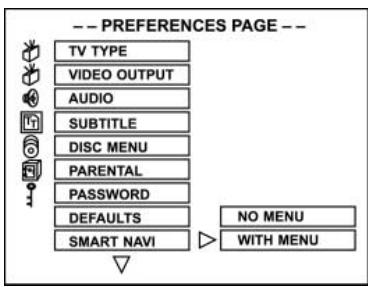

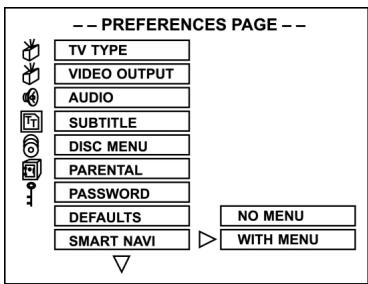

9. Set up the SMARTNAVI

• NO MENU

The JPEG CD and MP3 disc will not show the menu and run the files automatic.

WITH MENU

All NON-DVD / CD / VCD disc will show the SMART-NAV1 menu in TV screen. You may using UP / DOWN /LEFT / RIGHT button in remote control to select the desire files.

Troubleshooting

Before calling customer service if you have problems with this device, please search for the possible fault in the table below. With a few simple tests or minor adjustments you may be able to rectify the problem so that the device functions correctly again.

Symptom (frequent) Remedy

No power	Insert the mains plug into the socket.
• No playback even if PLAY is pressed. •Playback begins but stops again immediately.	•Condensation has formed: Wait approx. 1 to 2 hours until the device has dried out. •The device can only play back the following media: DVDs, video CDs, CDs, MP3s and JPEGs. •The disc may be dirty and require cleaning. •Ensure that the disc has been inserted with the label facing upwards.
No picture.	•Ensure that the device is properly connected. •Ensure that the television is turned to "video".
•No sound. •Distorted sound.	•Ensure that the device is properly connected. •Ensure that the television and stereo system have been adjusted correctly. •Adjust the main volume via the remote control.
The picture is distorted during fast forward or fast rewind.	In this case the picture is sometimes a little distorted - this is normal.
No fast forward (or fast rewind) playback.	Some discs have sectors which do not allow fast forward (or reverse) playback.
No 4:3 (16:9) picture.	Select the correct setting corresponding to the characteristics of your television ("TV Aspects").
No Surround Sound.	Select the correct setting under "Audio Output" corresponding to your stereo system.

Symptom (frequent) Remedy

No operation possible via the remote control.	·Check whether the batteries have been inserted with the correct polarity (+ and -). ·The batteries are flat and must be replaced. ·Point the remote control in the direction of the sensor on the device. ·Do not use the remote control at a distance of more than 5 metres from the sensor
Buttons do not work (on the device and/or on the remote control).	·Remove any obstacles between the remote control and the sensor on the device. Switch the device off and then on again. Alternatively, switch the device off, remove the mains plug and re-insert it in the socket (it is possible that the device is not working due to external circumstances such as a thunderstorm or static electricity etc.).
Menu screen is not or only partially displayed on the television screen.	Select the corresponding type of screen according to the operating instructions of the television set.
No colour	Turn the TV type to the German colour norm PAL. Confirm the SETUP button to return to the menu.

Symptom (DVD) Remedy

Audio soundtrack and/or subtitle language is not the one selected in the basic setup.	If the audio soundtrack and/or subtitle language is not on the disc, the language selected in the basic settings cannot be heard or seen.
The display appears in French (for example).	The setting in the menus under "Disc Languages" is French. Select French.
No subtitles.	• Subtitles only appear on DVDs on which subtitles have been recorded. • Subtitles have been switched off from the television picture. Press the "SUBTITLE" button.
No alternative audio soundtrack (or subtitle) language is selected.	• No alternative language is selected on discs on which only one language has been recorded. • On some discs the alternative language cannot be selected with the AUDIO or SUBTITLE button. Try to select it from the DVD menu if there is one.
Angles cannot be changed.	This function depends on the availability of the software. Even if a DVD has been recorded from different angles, these may only be available for certain scenes (when the ANGLE symbol lights up on the device).

Symptom (Video CD)
Remedy

There is no menu.	This function is only possible with video CDs with Playback Control.
VCD/ SVCD does not play back.	With the disc inserted, switch over the PBC function using the menu button.
CD-RWs do not play back.	CD-RWs must not be written with hard disc simulation tools such as Packed CD, In CD or similar programmes.
CD-Rs and CD-RWs do not play back, or only play back with errors.	The error rate of CD-R and CD-RW media depends on: • the media type • the writing program (possibly carry out an UPDATE) • the writer and its firmware (possibly carry out an UPDATE) • the writing speed (the lower the better)

This product is equipped with copyright protection technology which is itself protected by specific American patent claims and other intellectual copyrights in the possession of the Macrovision Corporation and other holders of rights. Use of this copyright protection technology is only permitted with the authorisation of the Macrovision Corporation and is limited to home and other restricted performance situations unless express approval is given by the Macrovision Corporation. Dismantling or disassembly of this protection technology is prohibited.

For your Information:

How to Handle and Care for your CDs

Handling Precautions

• Hold the CD by the edges so that the surface is not covered in fingerprints.

Fingerprints, dirt and scratches may cause the CD to jump and distort the sound.

• Do not write on the label side with a ballpoint pen or other writing utensil.
• Do not use any record cleaning spray, petrol, diluting agent, antistatic fluid or any other kind of solvent.
• Please ensure that you do not bend or drop the CD.

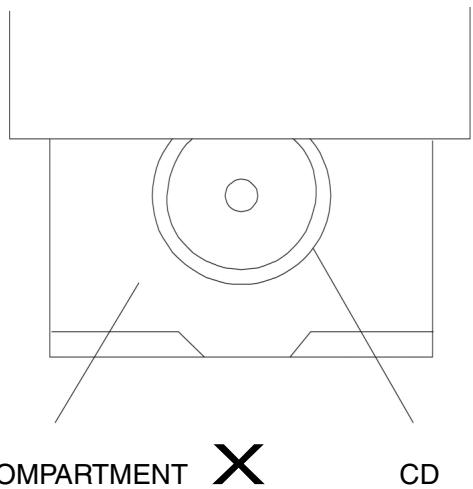

• Never insert more than one CD into the CD compartment.

• Do not try to close the door if the CD has not been correctly inserted into the CD compartment.

• Please make sure that you always store the CD in its original case when not being used.

If the Surface is Dirty

• Wipe the CD gently with a soft, moist (water only) cloth.
• When wiping CDs always move the cloth from the centre of the CD to the outer edge.

(If you wipe the CD in a circular manner you will cause circular scratches which will produce noises on the CD.)
- If a CD is moved from cold to warm surroundings it is possible that moisture will form on the CD. Wipe off the moisture with a soft, dry cloth that is free of fluff before inserting the CD.

Incorrect CD Storage

You may damage the CD if you store it in the following locations:

exposed to direct sunlight
- damp or dusty locations
- locations exposed to a direct source of heat or heating.

Maintenance

• Please ensure that before any maintenance is carried out the device is switched off and the plug removed from the power supply.
• Wipe the device with a dry, soft cloth. Should the surfaces become extremely dirty, please wipe them with a cloth that has been immersed in a weak soapy water solution and then wrung out before wiping off with a dry cloth.
• Never use alcohol, petrol, diluting agent, cleaning liquid or other chemicals. Do not use any compressed air to remove dust.

Definition of Terms

Angle

On some DVDs there are scenes that have been recorded simultaneously from a number of different viewing angles (the same scene from the front, the left, the right etc.). With such DVDs the ANGLE button can be pressed to see the scene from the various angles.

Chapter Number

These numbers are recorded on DVDs. A title is divided up into many sections, each of which has a number. Specific sections of the video presentation can be quickly found using these numbers.

DVD

This term refers to optical CDs of a high-density on which high-quality picture and sound recordings have been made using digital signals. Through the use of a new video compression technique (MPEG) and a high-density recording technique it is possible to record long and aesthetically pleasing videos on DVDs (for example, an entire feature film can be recorded). DVDs consist of two 0.6 mm-thin discs. The greater the density, the more information can be recorded. A DVD has a greater capacity than a single-side 1.2 mm-thick disc. The fact that two thin discs are combined means that at some time in the future it will be possible to have double-sided playback with even longer playback times.

PBC (Playback Control)

This is recorded on video CDs (version 2.0). The scenes or information can be seen (or heard) interactively via the television screen using the menu that appears on the screen.

Subtitles

These are printed lines of text that appear at the bottom of the screen and translate or explain the dialogue. Subtitles are recorded on DVDs.

Time Number

This shows the running time recorded on the DVD. If a DVD contains two or more films, the films are numbered as title 1, title 2, etc.

Track Number

This number refers to tracks recorded on video CDs and CDs. They make it possible to search for and find specific tracks (e.g. songs) very quickly

Video CD

Video CDs contain picture and sound recordings whose quality is comparable to a video cassette. This device also supports video CDs with Playback Control (version 2.0).

SPECIFICATIONS

Power Requirement AC 230V, 50Hz

Power Consumption 20W

Signal System NTSC/PAL

Weight 2.1kg

Dimensions 430(L) x 260(W) x 49(H)mm

Operating Temperature Range +5^ to +35^

Operating Humidity Range 5 to 90% (no condensation)

Discs Played

1. DVD-VIDEO disc
   12cm single-sided, single-layer
   12cm single-sided, dual-layer
   12cm double-sided, single-layer
2. Compact Disc (CD-DA, MP3-CD)
   12cm disc
   8cm disc

S Video Output

Y output level 1 Vp-p (75 ohm)
C output level 0.30 Vp-p (75 ohm)
Number of connectors 1

Video Output

Output level 1 Vp-p (75 ohm)
Output connector RCA type
Number of connectors 1

Audio Output

Output Level 2 Vrms (1kHz, 0db)
Output connector RCA type

Audio Signal Output Characteristics

1. S/N ratio CD audio 90db (EIAJ)

2. Dynamic range DVD (Linear audio) 80db CD audio 80db (EIAJ)

3. Total hamonic distortion THD + SN 70db

Digital Audio Output

Output connectors Coaxial digital output RCA type

Specifications are subject to change without notice.

Weight and dimensions are approximate.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

For repairs or replacement during the life of the guarantee return the device in its original packing together with the proof of purchase to your dealer.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

TITLE REPEAT ON/REP-ALL -

hele titel herhalen

TITLE REPEAT ON/REP-ALL

THIS PRODUCT CONTAINS A LOW POWER LASER DEVICE.

Safety Information

Please Note:

This device is designed only for use in a temperate climate. It must only be connected to an alternating current supply of 220-240V/50Hz. The device must not be used under any other circumstances.

Important:

• The DVD player is a class 1 laser product. The device uses an invisible laser beam which may produce hazardous rays. Please ensure that you use the device only for the purposes for which it is designed and in accordance with instructions.
• When the device is connected to a standard mains power socket do not put your eyes too close to the opening in the device and do not look inside the player.
• Any use of the operating controls, any settings or use of the device which deviate from those described in these instructions may result in your being exposed to the hazardous rays.
• Do not open any covers or repair the device yourself. Please contact qualified specialists if this device requires maintenance or repairs.

Warning:

• In order to avoid risks such as fire or electric shock, please do not expose the device to rain or moisture.
• In order to avoid risks such as fire, electric shock or interference, please use only the recommended accessories.

Precautions

Please read these precautions carefully before using the device.

Protection of the Mains Lead

In order to prevent the device from malfunctioning and to protect against electric shocks, fire or injury, please note the following:

• Always remove the plug by pulling the plug itself and not the lead.
• Never touch the mains plug or lead with wet hands.
• Keep the mains lead away from heaters.
• Never put a heavy object on the electric lead.
• Never try to repair or replace the mains lead yourself.

The mains lead may only be replaced by a qualified electrician!

Positioning

Please avoid setting up the device in the following surroundings:

• In direct sunshine, where there is exposure to heaters or in closed vehicles.
• In high temperatures (over 35^ ) or high humidity (over 90% ).
• In extremely dusty surroundings.

Otherwise internal parts may be seriously damaged

When the device is not being used:

• Please turn the device off when it is not being used.
• Should you not use the device for a prolonged period, please remove the mains plug from the socket.

Do not insert your fingers or other objects into the device

• Touching internal parts of this device is dangerous and may result in serious damage to the device. Do not try to take the device apart.
• Do not insert any foreign bodies into the CD drawer.

Keep away from water, fire and magnets

• Keep the device away from vases, baths, wash basins etc. If liquid enters the device this may cause serious damage.
• Open sources of fire, such as burning candles, must not be placed on the device.
• Never place magnetic items, such as loudspeakers, in the vicinity of the device.

Ventilation

• Please maintain a free space of 5cm around the device to ensure adequate ventilation.
• Do not cover any ventilation slits with objects such as magazines, tablecloths, curtains etc.
• Please position the device horizontally and do not place any heavy items on it.
• Do not place the device on amplifiers or other devices which may heat up.

Condensation

In the following situations moisture may develop on the lens:

• Immediately if a heater is switched on.
  In a steaming or very damp room.
• If the device is transferred from cold to warm surroundings.

If moisture has formed inside the device, it is possible that the device will no longer function correctly. In this case please turn off the power and wait for approximately one hour until the moisture has evaporated.

What to do if there is television interference while you are watching a programme.

Depending on the reception conditions there may be interference to the television picture when you are watching a television programme and the device is switched on.

This is not a malfunction of the device or television.

Switch the device off if you want to watch a television programme.

DISC FOR PLAYBACK

This DVD player is capable of playing the following types of discs with the corresponding logos:

Usable Discs:

Disc Types	Marks	Recording Types	Disc Size	Max. Playing Time
DVD	DVD VIDEO TM	Audio + Video	12 cm	Approx. 240 min. (Single-sided)
				Approx. 480 min. (Double-sided)
			8 cm	Approx. 80 min. (Single-sided)
				Approx. 160 min. (Double-sided)
AUDIO-CD	COMPACT DISC DIGITAL AUDIO	Audio	12 cm	74 Min.
			8 cm	20 Min.

DIGITAL

Dolby Digital disc

DTS Disc

Digital Audio disc

Stereo disc

NTSC broadcast system in USA, Canada, Japan, South Korea, etc.

PAL broadcast system in U.K., France, Australia, etc.

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

Region Code

Both the DVD player and the disc are coded by region.

These regional codes must match in order for the disc to play. If the codes do not match, the disc will not play.

The Region Number for this player is descriptor on the rear panel of the player.

Disc structure

A DVD video disc consists of "title", and each title may be divided into some "chapters" (See Example 1.)

For example, if a DVD disc contains some movies, each movie may have its own title number, and it may be further divided into some chapters.

On the other hand, Audio CD consist of "tracks". (See Example 2.) In general, each track has it own track number. (On some discs, each track may also be divided by indexes.)

DESCRIPTION

Front Panel

1. POWER - To switch standby modes.
2. STANDBY INDICATOR
3. DISPLAY
4. DISC TRAY
5. OPEN/CLOSE - To open or close the disc tray

6. PREV - Press to skip to the previous chapter/track.

7. NEXT - Press to skip to the next chapter/track.

8. STOP - To stop playing the disc.

9. PLAY/PAUSE

10. To start disc playback.

11. To interrupt disc playback.

12. REMOTE SENSOR

Rear Panel

1. DIGITAL OUT-COAXIAL
2. Connect to audio equipment with digital-coaxial audio input.
3. 5.1ch Analog audio out jacks.
4. to an amplifier with 5.1 ch analog input jacks.
5. S-VIDEO OUT

6. Connect to a TV with SVHS video input.

7. VIDEO OUT

8. Connect to a TV with video input.
9. SCART OUT
10. Connect to a TV with SCART input.
11. AC POWER CORD
12. Connect to a standard AC outlet.
13. POWRE ON / OFF

Remote control Unit

1. POWER
2. To switch to standby mode.
3. TITLE/PBC
4. Press to access a DVD's title menu.
5. DVD MENU/RETURN
6. Press to access a DVD's Disc menu.
7. Go back to previous menu.
8. DIGEST (VCD and CD only)
9. Press to preview VCD/CD track.
   5.PROGRAM
10. Press to access program mode.
11. PLAY
12. Press to start playback.

Insert Batteries (Remote Control Unit)

You can control the player with the supplied remote control unit. Insert two R6 (size AA) batteries by matching the + and - markings inside the compartment. When using the remote unit, point it at the remote sensor on the player.

1. ZOOM

2. Press to enlarge the picture.

3. NUMBER BUTTONS (0 - 9)

4. Select numbered item in a menu.

5. ANGLE

6. Select a DVD camera angle.

10.AUDIO

• Select an audio language.

11.NEXT

• Press to go to the next chapter or track.

12.PREV

• Press to go to the previous chapter or track.

13.(left/right/up/down) select an item in the menu.

14.ENTER

-Acknowledge menu selection.

15.DISPLAY

• Press during playback to see current disc information on the TV screen.

16.SUBTITLE

• Select a subtitle language.

17.MUTE

• Press to silence the volume, press again to restore the volume.

• SETUP

• Press to access or remove the setup menu of the player

19.GOTO

• Press to search for a specific chapter or playing time.

20.STOP

• Press to stop playback.

21.REPEAT

• Press to play a chapter, title, track or disc repeatedly.

22.REPEAT A-B

• Press to repeat a specific segment.

23.SHUFFLE

• Press to play track in random order.

24.PAUSE/STEP

• Pause playback temporarily/frame-by-frame playback.

25.SLOW

• Press to play slow reverse/forward playback of DVD.

• REV

• Press to search backward during playback.

27.FWD/CLEAR

• Press to search forward during playback.

• Clear input selections.

28.SHIFT

• Press to number lock on the buttons with number printed on the surface.

Notes:

• Do not leave the remote control unit in the extremely hot or humid place.
• Do not use a new battery with an old one.
• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a malfunction in controlling the player.
• If you do not use the remote control unit for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.

Range of Operation of the Remote Control

The remote control can be used up to approximately 5 meters in a straight line.

It can also be operated at a horizontal angle of up to 30^ from the remote sensor.

CONNECTION TO A TV (FOR VIDEO)

METHOD 1 DVD Player + TV with Video input jack
METHOD 2 DVD Player + TV with S-Video input jack
METHOD 3 DVD Player + TV with Scart input jack (Audio & video)

CONNECTION TO AN AUDIO SYSTEM

The following diagram shows examples of connections commonly used to connect the DVD player to TV sets with other audio equipment.

Before Connecting the DVD player

• Be sure to turn off the power to all components in the system before connecting another component.
• Refer to the instruction Manuals for your TV, stereo system and other components to be connected to the DVD player.

• METHOD 1 DVD Player + Stereo System
• METHOD 2 DVD Player + Amplifier with 5.1ch Analog input jacks
• METHOD 3 DVD Player + Amplifier with Dolby Digital Decoder/DTS Decoder

BASIC PLAYBACK

Powering on the player and playing the disc

• Press POWER button. If there is a disc in the tray, the player will begin to play it once the power is on.
• Press OPEN / CLOSE button to open the tray to either change the disc or insert a disc.

• Once the disc is in the tray, press OPEN/CLOSE button to close the tray. Once closed, the player will begin to play the disc.

Stopping playback

• Press STOP button once to stop playback and show the logo screen. The player memorizes the location where playback is stopped, if last memory is ON.
• Press PLAY button to resume playback from the location where playback is stopped.
• When the STOP button is pressed twice, the resume function will be cleared.

Pausing playback

• Press PAUSE / STEP button once to pause playback. The sound is muted during PAUSE mode.
• Press PLAY button to resume normal playback.

Search Forward/Search backward

• Press FWD button to fast forward through the disc. The speed can be selected by pressing the key further (2x, 4x, 6x, 8x, normal) for DVD / (1x, 2x, 3x, 4x, normal) for VCD.

• Press PLAY button to resume normal playback.
• Press REV button to fast reverse through the disc. The speed can be selected by pressing the key further (2x, 4x, 6x, 8x, normal) for DVD / (1x, 2x, 3x, 4x, normal) for VCD.
• Press PLAY to resume normal playback.

Slow motion Forward / Backward

• Press SLOW forward button to play a disc in slow motion.
  Each time the SLOW forward button is pressed, the slow motion speed changes (2x, 4x, 8x, normal speed for DVD) / (1x, 2x, 3x, 4x, normal speed for VCD).
• Press PLAY button to resume normal playback.
• Press SLOW backward button to play a disc in slow reverse.
  Each time the SLOW backward button is pressed, the slow reverse speed changes (2x, 4x, 8x, normal speed for DVD) / (1x, 2x, 3x, 4x, normal speed for VCD).
• Press PLAY button to resume normal playback.

Skipping to the Next / Previous chapter/track

• Press NEXT button to skip forward to the beginning of the next chapter (DVD) or track (Audio CD).
• Press PREV button once to skip backward to the previous chapter (DVD) or beginning of the current track (Audio CD).
• Press PREV button twice to skip backward to the previous track (Audio CD).

Checking the Remaining Time

• Press the DISPLAY button to check the elapsed time and remaining time as illustrated.

REPEAT PLAY

Repeat Viewing / Listening

• Press REPEAT button to repeat the chapter, title and all for DVD disc; track and all for CD disc.

TITLE REPEAT ON / REP-ALL - repeat entire title When playback reaches the end title of the disc, playback resumes at the beginning.

CHAPTER - repeat current chapter
When playback reaches the end of the current chapter, playback jumps back to the beginning of the chapter.

REP-ONE - repeat current track / song
When playback reaches the end of the current track / song, playback jumps back to the beginning of the track / song.

A B Repeat playback

• Press A - B button once at the beginning of the segment (point A) you want to play repeatedly.
• Press A - B button again at the end of the segment (point B).
• The player automatically returns to point A and starts repeat playback of the selected segment (A - B).
• Press A - B button a third time to disable repeat A - B playback and allow playback to continue in normal.

PROGRAM PLAY (For VCD or CD only)

• Press STOP button and then press PROG button.

• Enter the track with the number buttons (0 - 9) on the remote control. The OSD will display the following:

• Press ENTER.

• Track 5 will store in program 1, repeat step may store up to 99 program.
• To delete the program, please push the STOP button and open the CD door.

RANDOM PLAY(shuffle)–For VCD or CD only

• Press SHUFFLE button during playback to toggle between ON and OFF. The setting are as follow: ON = Random mode enabled. When playback reaches the end of the current track, playback jumps to a random track. OFF = Random model disabled. (OSD) off. (Must press STOP key first before to use)

USING DISC MENU / TITLE

To select the disc menu

• You can use the menus for the audio language, subtitle language, etc. DVD menu contents differ from disc to disc.
• Press the DVD MENU button during playback. The menu screen appears.

• Use the up/down or left/right button to access the different features.

• Press the ENTER button

• The selected item will play.

Using the Title Menu

• For DVD's containing multiple titles, you can view the title of each movie.
  If and how this function is working depends on the respective DVD.

AUDIO LANGUAGE / SUBTITLE LANGUAGE (only applicable to DVD disc)

Selecting the Audio Language

• Press AUDIO button to select different audio languages (eg. English, French, Spanish, German, .......depending on the number of languages recorded on a DVD disc).

Selecting the Subtitle Language

• Press SUBTITLE button to select different subtitle languages (eg. English, French, Spanish, German, ....depending on the number of languages recorded on a DVD disc).

ZOOM

• Press ZOOM button repeatedly during playback to select zoom 1.5x, 2x, 3x to change the size of the picture.
• While an image is enlarged, you can use UP/DOWN, LEFT/RIGHT buttons to shift the view and display the part you wanted.

ANGLE

• Press the ANGLE button during playback to select the desired angle.
• This function only works with discs on which multiple scenes were shot from different angles.

MOVE TO A TITLE, CHAPTER OR TIME DIRECTLY

• Press the STOP button.
  Press the GOTO button.
  Each time the button is pressed, it repeats as shown below.

DVD: May select the TITLE, CHAPTER or DIRECT JUMP to desired location immediately.

VCD: Only DIRECT JUMP to desired location immediately.

CD: Only DIRECT JUMP to desired location immediately. e.g. The Song 1 = 3min,

Song 2 = 4min

Song 3 = 6min

The total time = 13 min

When set the time to 00:05:00, the player will jump to Song 2 and start on 2min.

DIGEST PLAY (For VCD or CD only)

• Press STOP first and then press the DIGEST button and the following menu will appear.

VCD

• Press the number key to select INTRO, DISC, TRACK and EXIT and then press ENTER button.
• INTRO: Each track will be play first 8 seconds.
  DISC: The title will be divided into several parts according to the number of track it contains. (Press the number to select the window you'd like to see, and press the ENTER button.)
• TRACK: The title will be divided by 5 minute. (Press the number to select the window you'd like to see, and press the ENTER button.)

CD

• Press the number key to select INTRO or EXIT and then press ENTER button.

• INTRO: Each track will be play first 12 seconds. (Anytime press the PLAY button, the current song will continue playing and disable the INTRO function.

JPEG Playback

Some CD-Rs may contain pictures in a JPEG format. For example, you may have photographic film developed with pictures stored in JPEG format. Then you can playback those JPEG files in this player.

Some useful features are described below:

• When you insert a disc with JPEG files, the files or pictures available for playback will be listed on the screen.
• Press UP / DOWN buttons to select the folder or file and press ENTER.
• After you open one JEPG file, each subsequent file will appear automatically for a few seconds. To keep the JEPG image on the screen longer, press PAUSE button to pause the image.
• During playback, press UP / DOWN, LEFT / RIGHT to rotate or flip the image.

MP3Playback

This system has a built in MP3 decoder. You can playback MP3 tracks (files) recorded on CD-R, CD-RW.

Starting playback

• It is recommended you turn on you TV when playing back an MP3 disc.

• Press the OPEN/CLOSE button to load a disc.

• The menu will show up the folders and the files in root directory.
• Use the UP/DOWN buttons to select the desired music folder, then press ENTER.
• Use the UP/DOWN buttons again to select a song file. Press ENTER to begin playback of the song file.

PLAY MODE

• The indication corresponding to the selected mode appears on the TV screen.

• Use theLEFT/RIGHT and UP/DOWN buttons to select play mode.

• Use the LEFT/RIGHT buttons to select the desire music folder, then press ENTER.
• Use the LEFT/RIGHT and UP/DOWN buttons to select the song file, then press ENTER.

NOTE:

May using the REPEAT button in remote control to play a FOLDER REPEAT, DISC, DISC REPEAT, DISC SCAN, SINGLE, FOLDER, REP-ONE (Repeat one song) repeatedly.

SETUP MENU

The SETUP MENU let you to customize the DVD player by allowing you to select various language preferences, set up a parental level, turn captions and screen saver on and off, adjust what type of television screen you have and more. Below, find the menu, and then find the corresponding page that describes the features of the selected menu option.

1. Press the SETUP button.
2. Press the UP/DOWN buttons to select the menus/screens.
3. Press the ENTER button to select the highlighted option.

Press SET UP in the stop or playback mode (in DVD mode).

• The SET-UP menu is display

• Press UP/DOWN buttons to select, and press ENTER button to enter.
• The SETUP menu operation, can set up the general, speaker, audio, and perferences.
• To exit SETUP menu.

Press DOWN button to select the EXIT SETUP to exit.

General Setup

Select GENERAL SETUP in the SETUP MENU and then select the desired option using the cursor buttons to navigate through the menus/screens and press the ENTER button to select.

1. Set up the TV DISPLAY

NORMAL/PS: Pan scan. Select when the unit is connected to a conventional TV. Video material formatted in the Pan Scan style is played back with the left and right edges are cut off.

NORMAL/LB: Letter Box. Select when the unit is connected to a normal TV. Wide-screen images are shown on the screen with a black band at the top and bottom.

WIDE: Select when the unit is connected to a wide-screen TV.

Note:

The displayable picture size is preset on the DVD disc. Therefore the playback picture of some DVD discs may not conform to the picture size you select.

2. Set up ANGEL MARK

• Some DVD disc is record by serval video camera from the different angles to take, when playback, can select the one of the angle to watch.

ON open the angle

OFF close the angle

• The disc must have the angle mark, the set up can work.

3. Set up the OSD LANG

• You can select the TV display language.

4. Set up CAPTIONS

ON - open the option.

OFF - close the option.

The TV set must support closed captions function.

5. Set up SCR Saver

• When no disc or playback stop some time, the unit will automatic open the Screen saver function. This time the screen will become black, only the DVD patten move on the screen. This function is protect the TV screen long time display will be hurt.

Speaker Setup

• Press UP/DOWN button to select the SPEAKER SET UP and press ENTER.
• The left is the main catalog, the right is the children catalog.
• Press LEFT/RIGHT button to enter the children catalog and press ENTER to confirm.

1. Set up the DOWNMIX MODE

• LT/RT When the playback disc with the PROLOGIC DOLBY stereo, select this item, through this unit 's decode system, you can enjoy effect in your room similar the movie theater with two front speaker.
• STEREO When sources is two channel, the audio output is the common stereo signal. When sources is 5.1 channel, only output the left and right 2 channel signal.
  OFF close the DOWNMIX and active the 5.1channel manual.

When active 5.1 channel manual. You may control CENTER, REAR, SUBWOOFER SPEAKER ON/OFF and CENTER/REAR SPEAKER delay time. TEST TONE may check the all speaker connect properly.

Audio Setup

• Press UP/DOWN button to select the AUDIO SET UP and press ENTER.
• The left is the main catalog, the right is the children catalog.
• Press LEFT/RIGHT button to enter the children catalog and press ENTER to confirm.

1. Set up the AUDIO OUTPUT

• SPDIF/PCM when connect the 2 channels digital analog or stereo analog AUX, playback the DOLBY digital disc, please select this funtion.
• SPDIF/RAW when the digital audio output connection with the DOLBY decode function power amplify, please select this function.

NOTES: When using built-in amplifier, audio output must set to analog, otherwise rear and center speaker will no signal output. When set to SPDIF/RAW or SPDIF/PCM, 5.1 signal may through digital out to external amplifier.show or hide the captions.

• Press UP/DOWN button to select SPDIF OUT, then press ENTER.
• Press UP/DOWN button to select OFF, SPDIF/RAW, or SPDIF/PCM, then press ENTER.
• Choose OFF if you used built-in amplifier.
• Choose SPDIF/RAW if you connected to a Stereo using the Player's COAXIAL Digital Audio Out jacks and your Stereo is PCM-compatible.

2. Set up the COMPRESSION

• Dynamic Range Compression

Dynamic Range Compression reduces volume change by letting you adjust the difference between soft and loud sounds.

Press UP/DOWN button to set Dynamic Range Compression to 1/8 through FULL or to turn it OFF, then press ENTER.

To hear the full range of range of sounds as recorded, choose OFF or a lower ratio such as 1/8 or 2/8. To minimize the difference in volume between loud segments and quiet scenes, choose a higher ratio such as 6/8 or FULL.

3. Set up the PRO LOGIC

PROGLOGICON

Select this item, all 2 channel signal playback disc with the PRO LOGIC decode system to 5.1 channel. This function must set the DOWNMIX to OFF.

PRO LOGIC OFF

Pro Logic is switched off.

PRO LOGIC AUTO

Function is switched automatically.

4. Set up the LPCM OUTPUT

LPCM 48K:

In the linear PCM setting "48K" means that the maximum "Digital Output Sampling Rate" is 48 KHz. If the encoded sampling rate of the title track is 96 KHz the output is forcibly converted to 48 KHz.

LPCM 96K:

If "96K" has been selected the maximum output sampling rate is 96K and no enforced conversion takes place.

Preference Setup

(Only in the STOP mode or open the tray.)

Press UP/DOWN button to select the PREFERENCES SET UP and press ENTER.

• The left is the main catalog, the right is the children catalog.

Press LEFT/RIGHT button to enter the children catalog and press ENTER to confirm.

1. Set up theVIDEO (TV Type)

Please adjust the Video Out in this way, that he meets the system of the TV, the model will be connected to.

1. If you are using a PAL television set, select the PAL output signal;
2. If you are using an NTSC television, select the NTSC output signal;
3. Select MULTI if your television set has a multisystem.

2. Set up the VIDEO OUTPUT

• If connect the S-VIDEO terminal, please select S-VIDEO.
• If connect the RGB, please select RGB (Scart version only).

3. Set up the AUDIO

• The audio is decide by disc, only the disc supports the language format, the audio set up just can work. For example, the disc has English and German two FORMATS, you can select the English or German is decide the disc.

4. Set up the SUBTITLE

• Subtitle is the words of the disc play audio, as same the audio set up, must the disc support, the sub-title just can work.

5. Set up the DISC MENU

• Set up the disc menu subtitle language, it is decide the disc.

6. Set up the PARENTAL

• When playback with the parent lock function disc, can use the PARENTAL to control the disc, and with the password.

RATING EXPLANATIONS

• KID SAF - Kid safe; it is safe even for kids.
• G - General Audience; recommended as acceptable for viewers of all ages.
• PG - Parental Guidance suggested.
• PG 13 – Material is unsuitable for children under age 13.
• PG-R – Parental Guidance-restricted; recommended that parents restrict children under age 17 from viewing or allow children to view only when supervised by a parent or adult guardian.
• R - Restricted, under 17 requires accompanying parent or adult guardian.
• NC-17 - NO children under age 17; not recommended viewing for children under age 17.
• ADULT - Mature material; should be viewed only by adults due to graphic sexual material, violence, or language.
• NO PARENTAL - Disable the parental lock function.

7. Set up the PASSWORD

• CHANGE set up the new pass word, first enter "CHANGE", and appear the change menu, input the original "xxxx", move to the new password, input the new password, and press ENTER to confirm.

To clear 4-digit password: If you forget your password, the super password is "3308".

8. Set up the DEFAULTS

• If you don't want to save the all of the set up by yourself, select it.
• If you select RESET all functions are returned to the original factory settings of the device.

Note: This menu only set up at open the door station, other station it is grey.

9. Set up the SMARTNAVI

• NO MENU
  The JPEG CD and MP3 disc will not show the menu and run the files automatic.
  WITH MENU
  All NON-DVD / CD / VCD disc will show the SMART-NAVI menu in TV screen. You may using UP / DOWN /LEFT / RIGHT button in remote control to select the desire files.

Troubleshooting

Before calling customer service if you have problems with this device, please search for the possible fault in the table below. With a few simple tests or minor adjustments you may be able to rectify the problem so that the device functions correctly again.

Symptom (frequent) Remedy

No power	Insert the mains plug into the socket.
• No playback even if PLAY is pressed. • Playback begins but stops again immediately.	• Condensation has formed: Wait approx. 1 to 2 hours until the device has dried out. • The device can only play back the following media: DVDs, video CDs, CDs, MP3s and JPEGs. • The disc may be dirty and require cleaning. • Ensure that the disc has been inserted with the label facing upwards.
No picture.	• Ensure that the device is properly connected. • Ensure that the television is turned to "video".
• No sound. • Distorted sound.	• Ensure that the device is properly connected. • Ensure that the television and stereo system have been adjusted correctly. • Adjust the main volume via the remote control.
The picture is distorted during fast forward or fast rewind.	In this case the picture is sometimes a little distorted - this is normal.
No fast forward (or fast rewind) playback.	Some discs have sectors which do not allow fast forward (or reverse) playback.
No 4:3 (16:9) picture.	Select the correct setting corresponding to the characteristics of your television ("TV Aspects").
No Surround Sound.	Select the correct setting under "Audio Output" corresponding to your stereo system.

Symptom (frequent) Remedy

No operation possible via the remote control.	·Check whether the batteries have been inserted with the correct polarity (+ and -). ·The batteries are flat and must be replaced. ·Point the remote control in the direction of the sensor on the device. ·Do not use the remote control at a distance of more than 5 metres from the sensor
Buttons do not work (on the device and/or on the remote control).	·Remove any obstacles between the remote control and the sensor on the device. Switch the device off and then on again. Alternatively, switch the device off, remove the mains plug and re-insert it in the socket (it is possible that the device is not working due to external circumstances such as a thunderstorm or static electricity etc.).
Menu screen is not or only partially displayed on the television screen.	Select the corresponding type of screen according to the operating instructions of the television set.
No colour	Turn the TV type to the German colour norm PAL. Confirm the SETUP button to return to the menu.

Symptom (DVD) Remedy

Audio soundtrack and/or subtitle language is not the one selected in the basic setup.	If the audio soundtrack and/or subtitle language is not on the disc, the language selected in the basic settings cannot be heard or seen.
The display appears in French (for example).	The setting in the menus under "Disc Languages" is French. Select French.
No subtitles.	• Subtitles only appear on DVDs on which subtitles have been recorded. • Subtitles have been switched off from the television picture. Press the "SUBTITLE" button.
No alternative audio soundtrack (or subtitle) language is selected.	• No alternative language is selected on discs on which only one language has been recorded. • On some discs the alternative language cannot be selected with the AUDIO or SUBTITLE button. Try to select it from the DVD menu if there is one.
Angles cannot be changed.	This function depends on the availability of the software. Even if a DVD has been recorded from different angles, these may only be available for certain scenes (when the ANGLE symbol lights up on the device).

Symptom (Video CD)
Remedy

There is no menu.	This function is only possible with video CDs with Playback Control.
VCD/ SVCD does not play back.	With the disc inserted, switch over the PBC function using the menu button.
CD-RWs do not play back.	CD-RWs must not be written with hard disc simulation tools such as Packed CD, In CD or similar programmes.
CD-Rs and CD-RWs do not play back, or only play back with errors.	The error rate of CD-R and CD-RW media depends on: • the media type • the writing program (possibly carry out an UPDATE) • the writer and its firmware (possibly carry out an UPDATE) • the writing speed (the lower the better)

This product is equipped with copyright protection technology which is itself protected by specific American patent claims and other intellectual copyrights in the possession of the Macrovision Corporation and other holders of rights. Use of this copyright protection technology is only permitted with the authorisation of the Macrovision Corporation and is limited to home and other restricted performance situations unless express approval is given by the Macrovision Corporation. Dismantling or disassembly of this protection technology is prohibited.

For your Information:

How to Handle and Care for your CDs

Handling Precautions

• Hold the CD by the edges so that the surface is not covered in fingerprints.

Fingerprints, dirt and scratches may cause the CD to jump and distort the sound.

• Do not write on the label side with a ballpoint pen or other writing utensil.
• Do not use any record cleaning spray, petrol, diluting agent, antistatic fluid or any other kind of solvent.
• Please ensure that you do not bend or drop the CD.

• Never insert more than one CD into the CD compartment.

• Do not try to close the door if the CD has not been correctly inserted into the CD compartment.

• Please make sure that you always store the CD in its original case when not being used.

If the Surface is Dirty

• Wipe the CD gently with a soft, moist (water only) cloth.
• When wiping CDs always move the cloth from the centre of the CD to the outer edge.

(If you wipe the CD in a circular manner you will cause circular scratches which will produce noises on the CD.)

• If a CD is moved from cold to warm surroundings it is possible that moisture will form on the CD. Wipe off the moisture with a soft, dry cloth that is free of fluff before inserting the CD.

Incorrect CD Storage

You may damage the CD if you store it in the following locations:

exposed to direct sunlight
- damp or dusty locations
- locations exposed to a direct source of heat or heating.

Maintenance

• Please ensure that before any maintenance is carried out the device is switched off and the plug removed from the power supply.
• Wipe the device with a dry, soft cloth. Should the surfaces become extremely dirty, please wipe them with a cloth that has been immersed in a weak soapy water solution and then wrung out before wiping off with a dry cloth.
• Never use alcohol, petrol, diluting agent, cleaning liquid or other chemicals. Do not use any compressed air to remove dust.

Definition of Terms

Angle

On some DVDs there are scenes that have been recorded simultaneously from a number of different viewing angles (the same scene from the front, the left, the right etc.). With such DVDs the ANGLE button can be pressed to see the scene from the various angles.

Chapter Number

These numbers are recorded on DVDs. A title is divided up into many sections, each of which has a number. Specific sections of the video presentation can be quickly found using these numbers.

DVD

This term refers to optical CDs of a high-density on which high-quality picture and sound recordings have been made using digital signals. Through the use of a new video compression technique (MPEG) and a high-density recording technique it is possible to record long and aesthetically pleasing videos on DVDs (for example, an entire feature film can be recorded). DVDs consist of two 0.6 mm-thin discs. The greater the density, the more information can be recorded. A DVD has a greater capacity than a single-side 1.2 mm-thick disc. The fact that two thin discs are combined means that at some time in the future it will be possible to have double-sided playback with even longer playback times.

PBC (Playback Control)

This is recorded on video CDs (version 2.0). The scenes or information can be seen (or heard) interactively via the television screen using the menu that appears on the screen.

Subtitles

These are printed lines of text that appear at the bottom of the screen and translate or explain the dialogue. Subtitles are recorded on DVDs.

Time Number

This shows the running time recorded on the DVD. If a DVD contains two or more films, the films are numbered as title 1, title 2, etc.

Track Number

This number refers to tracks recorded on video CDs and CDs. They make it possible to search for and find specific tracks (e.g. songs) very quickly

Video CD

Video CDs contain picture and sound recordings whose quality is comparable to a video cassette. This device also supports video CDs with Playback Control (version 2.0).

SPECIFICATIONS

Power Requirement AC 230V, 50Hz

Power Consumption 20W

Signal System NTSC/PAL

Weight 2.1kg

Dimensions 430(L) x 260(W) x 49(H)mm

Operating Temperature Range +5^ to +35^

Operating Humidity Range 5 to 90% (no condensation)

Discs Played

1. DVD-VIDEO disc
   12cm single-sided, single-layer
   12cm single-sided, dual-layer
   12cm double-sided, single-layer
2. Compact Disc (CD-DA, MP3-CD)
   12cm disc
   8cm disc

S Video Output

Y output level 1 Vp-p (75 ohm)
C output level 0.30 Vp-p (75 ohm)
Number of connectors 1

Video Output

Output level 1 Vp-p (75 ohm)
Output connector RCA type
Number of connectors 1

Audio Output

Output Level 2 Vrms (1kHz, 0db)
Output connector RCA type

Audio Signal Output Characteristics

1. S/N ratio CD audio 90db (EIAJ)

2. Dynamic range DVD (Linear audio) 80db CD audio 80db (EIAJ)

3. Total hamonic distortion THD + SN 70db

Digital Audio Output

Output connectors Coaxial digital output RCA type

Specifications are subject to change without notice.

Weight and dimensions are approximate.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

For repairs or replacement during the life of the guarantee return the device in its original packing together with the proof of purchase to your dealer.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

METHOD 1
Stereo system

Audio Input Jacks
Audio Out

METHOD 2
5.1ch Analog Amplifier

Audio Input Jacks

METHOD 3
Dolby Digital Decoded Digital Audio Input Jacks

SMART NAVI
ROOT	0
JEPG01	1
JEPG02	2
JEPG03	3
JEPG04	4
JEPG05	5

Reprodukte MP3

SMART NAVI
ROOT	ROOT 0
	MP3 TRACK01 1
	MP3 TRACK01 2
	MP3 TRACK01 3
	MP3 TRACK01 4
	MP3 TRACK01 5

Režim).[re]

HnB KOem Cnyae He CTaBbTe Ha CeTeBOi KaBeIb TjXeJIbIe IpeDMeTbl.

HnB KOem CJyue He NbITaITeCb CamN NOUHNHT b NN 3ameHHTb CTeBOi Ka6eJIb.

3aMeHa HeNCpPaBHoro CeTeBoro Ka6eJa DOnyckaeTc TToJIbKO JInzOM, IMEIOUIM COOTBeTCTBEHHOE 3JeTpOteXHnueCKoe O6pa3OBaHne n ONblT.

Mecto yctahOBKn

I36eraTe CTaBnTb I3dJIne B MeCTax Co CLeNyUOuIMN yCNoBnAIMN:

Bo3dIeCTBnE npRbIX COJIHeuHbIX JUyEi, nCTOCHIKOB TeNla, He OCTaBJaIte eRO B 3aKpbITOM aBTOMo6nIe. BbICOKa TEMpepaTypa (60Jee 35^ ) nJIN BbICOKa BlaxHOCTb (60Jee 90% ).

3KCTpeMaJIbHO IIbIbHOE IOMeUHeH.

B npotnbHom clyuae 3eKtpoHka n3dJIy moKet pOlyuHT bcpe3HbIe NOBpeKdEHHa.

Ecn He noIb3yeTecn3dennem

Ecn He nolb3yeTeCb n3dennm, BbIKIOuHTe erO. Ecn Je He 6yndeTe nolb3OBaTbCn3dennm IInTEJbHOe Bpemr, TO BblhTBe BNkU y3 p03ETKn.

He cyuTe naIbCuI nII npyRne npedMeTb I n3dJIne

PnKacTbCk BHyTpHm Yactm N3deJnna Opancho n 3TO MOKeT npNBecTn K cepbe3HbIM NOBpejDeHnma. He nbTaIteCb pa3o6paTb n3deJnne.

He BCTabJIaIe B OTeCk CD nOcTOpOHnX npEIMeTOB.

DépXnTe n3dJIne Ha paCCTOaHm OT BOJbI, ORHa N MaHHTOB

HnB Koem Clyuae He NOpHOCHTe K 3dJIIO MaHHTbIe IpeDMtbl, KaK HApPIMep rPOMKOrOBOpNTeJI.

Bentnlaun,cknaDnpOBaHne

C zelbIO o6ecneueHn BHTnJIaUN He CTaBbTe OKOJIIO n3JeIIN HnKaKnx PpeMToB 6JIxKe 5 CM.

He 3aKpbBaIe BeHTnlaUIOHHbIe OTBepCTnKaKIMnJIb6 IpeDMeTaMn, KaK Ra3Etbl, CkAtepTn, 3aHaBeCn nT.D.

YctaHOBNTe n3dJIne B TROP3OHTaJIbHOM NIOLOXeHn IN He CTaBBTe Ha HrO TjXeJIbIe IpeDmETbl.

He CtaBbTe n3dJIeNe Ha ycIINTeJIb nn dpyroJ 3JIekTpOpnp6Op, KOtOpblc MOrYT HArpeBaTbCra.

KoHdeHcaunBlaun

TeLeBnDEnHn ClSA, KaHaIbI, JNoHnI,

IOxHoi Kopen n T.I.

CnCTema PAL B AHRIN,

Φρaнци,

AByCTpaJIiN, T.D.

PpOIN3VeIeNo IIO IInCeH3nn FInpMbbl Dolby Laboratories.

Cnmbol "Dolby", a Tacke IboHna 6yKbDA JBIAOTcT OTOBbIMn Mapkamn fipMbI Dolby Laboratories.

Cektopha KoInpOBka

DVD-Плесь сам диссдддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徳псьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнгпсьнrgngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngngg

NocJIeIOBaTeIbHOCtB CeKTopHbIX KOIOB DOJXHa COOTBeTCTBOBaTb Ipyr Ipyr, YTObI YTeHne DnCKa

6bIIO BO3MOXHbIM. EcJI N KOJbI HE COOTBETCTBYOT dpyr Ipyr, YTeHHe DnCKa He BO3MOXHO.

CektopbIe KoIbI dIy DaHHO rPieepa HaxoJrTcHa erO o6paTHoN CTOpOHe.

CTpykTpya Nuska

ДиCK DVD-Video COCTOHT n3 OTdJIbHbIX "Ha3BaHn"(Title), npuHem NOJ KaJdbIM Ha3BaHneM MOyT HaxoIITbcra pa3JIuHbIe "rIaBbI" (Chapter) (cM. pnc. 1). EcnI Ha dNcKe, HApPmEp, 3aIncAHO HeCKOJIbKO ΦIbMOB, TO KaJdbIe FInbM MoKet IMeTb

CO6CTBENHOe H3BaHne (HOMep) n eue pa3 PnOpa3delen Ha CO6CTBENHbIe rnaBbl.

BCTabIeHne 6aTaapeek (Iy)

HnHexeJeUOaJ DaIarpaMMa DeMOHCTpnpyeT pa3JIuHbIe BO3MOxHOCTN, KOToPbIe IcNoJIb3yOTcI dJIa POnKJIoueHnA DVD-Плeepa K TeIeBn3Opy nJI My3bIkaJIbHOMy ueHTpy.

Peped nodklouehnem DVD nleepa

• Перд NOДКЛЮЧЕНЕМ HOБьIX KOMПОHEHTOB KIMHeLOшЕмся KOMПЛЕКСУ yбeДиTEcB TOM, YTO BCEKOMПОHEТы KOMПЛЕКСA BbIKЛЮЧЕHы.
• BHIMaTeJbHo IpoUHTaIe pyKOBoDcTBo ПОЛьЗOBaTeJЯ ДЯ TeJIeBn3Opa, CtepeO-KOMПлeKca И ДPyrIx KOMNoHEnTOB, K KOTOpbIM 6yIeT ПоДКЛЮчATbcя DVD-пleep.

MeTo1

DVD-πleep + cTepeo-Komπηκc

MeToD 2

OctaHOBKa BOCnpon3BedeHna

-Дя OCTaHOBKN BOCnpOIN3BedeHnI OTO6paXeHnCmBOJa"LOGO"HaxMnte OAnH pa3 KHOIpKy"STOP".Плeep 3aIOMHnIT MeCTO,Ha KOToPOM 6blIO ppeOCTaHOBJIeHHO BOCnpOIN3BedeHne,IprU yCIOBnI,чTo aKTHIN3IropOBaHaФyHKuY"3aIOMHnIPOScJIeHNIO YCTaHOBKy".
Дя пюдоженя ВОспpon3БeДЕня C MeCTa OCTaHOBKN haxmnte KhoNky "PLAY".
-ДыхкраTHоне habkaTne KhoПКи "STOP"notuSHTəTyФункцю.

Функця OCTaHOBOK BO BpemЯ BOCPON3BedeHnA

• YTO6bI BOCNoJIb3OBAtBcA ΦyHKUnei OCTaHOBOK BO BpeMRA BOCpOn3BeDeHnHaXMITE OINH pa3 KHOJky "PAUSE/STEP". 3Byk BpeXmme "PAUSE" BBIKJIIOuHaTcR.
  Для пюдолжкени BOCпронзveдени нахмITE кногку "PLAY".

Понь Впебел/Понь назд

TITLE REPEAT ON/REP-ALL-NOBTOP BCEFO Ha3BaHnIa

Karnda 3aKoHnTcB BOCpOuN3BeJeHne NocJIeHNe IopoxKn CD nIcka, BOCpOuN3BeJeHne cTapTyeTcE ue pa3 cHaJaIa.

CHARTER- NOBTOp TeKUsei rIaBbI

Korda 3aKoHHTcB BOCPON3BeJeHne TeKUeI rJaBBi, NaHETcB BOCPON3BeJeHne 3ToJ Ke rJaBBi ChaJaJa.

REP-ONE- NOBTop Tekuüe DOpoxkN/pechn

Korda 3aKoHnTcB OcnpOn3BeJeHne TeKyuSei DOpOxKn/NeChN, NaHHeTcB OcnpOn3BeJeHne 3ToJ Xe DOpOxKn/NeChN ChaHaJa.

ПовторговocрпогиЗve徳неA←→B

B haçaIe OTe3Ka (IyHKT A), KOTOpbI JKeJaTe NOBTOpITb, HaxMITE KHOJKy A-B.
B KOHcE OTpE3ka (nyHKT B), KOTOpbI XeJaTe NOBTOPHTb, HaxMNTe eUe pa3 KHOJky A-B.
- Плесь abTomatueckи Вернетск Кпункту А и стаптуЕТ BOCПОНЗВЕДЕНUE ВИбраHHORO Oтpeзka (A-B).
- YTO6bI NOTUINITb NOBtOp BOCnpoN3BeDEHne OTpe3ka (A-B) Haxmnte KhoNkY A-B TpeTn pa3. BOCnpOu3BeDEHne npoDOnJxNTcB HOpMaJIbHOM nopRdKe.

PpOrpaMMnPoBAHbI NopAIOK BOCnPOn3BeDeHnA (ToJIbKO VCD nII CD dNcKn)

-С国家战略нжмITEКНОПКУ"Stop",a3aTeM KHOПКУ "PROG".

• 3aJaIeTe C Iy npn nOmoU KHOJOK C uNΦpAMn (0-9) HomeR Heo6xOuMOn DOpoxKn. Ha dncJIee NOBvTcR cJeDyUoUaKarTINHka:

• Haxmte KhoNky "ENTER".

PROGRAM P01:05

CnyaHbI npOaIOK BOCpOu3BeDeHnA (shuffle) (ToIbKO VCD nIu CD dNcKn)

• Haxmnte BO BpemB OBCnpOIN3BeJeHnKHOIpKy "SHUFFLE", YTO6bI NMeTb BO3MOXHOCTb nepeKJIouaTb MekJy "ON" n "OFF". YcTaHOVBKa 03NaHaet CJIeDyIOUee:

"ON" - pexim cnyaHoro nopraika Bocnpo3BedeHn BkIouen. Korga 3akOHHTcB OBCpOu3BedeHne TeKyuSei DOpOxKn, NaHHeTcB OBCpOu3BedeHne HOBoi, clyaHHO Bb6paHHo IopoxKn.

"OFF" - рекиmsclуаногорядka Bocnpoin3BveDENy BbIKIQUeH. Ha dincPJIeE NOBHTcR "OFF"(HaxMMTe KHOJNky "STOP",чTO6blNoJIb3OBAtbcrДИSCPJIeEMВДальНeHшeM).

Повьанке Meю DISK u TITLE

OTkpblte MeHIO Disk

• MeHIO nCnOJb3yeTc8 C cIeJIbIO BbI6Opa Ra3bIka npocLyuINBaHHa, cy6THTpOB u T.D. MeHIO pa3JIuHbIX DVD nICKOB OTIIuHaOTc8 dpyr OT dpyra.
• Haxmnte BO Bpemr Bocnpn3BeJeHnK HONKy MeHIO DVD. MeHIO nOyBntc Ha dncJIee.
• Пи помоши Кногок селками (Вверх/ВиИЗ) Или (ВпразBO/BЛЕBO) BCTаньTe Ha Heобхдмьи ПУНКТ MEHIO.
• Haxmte KhoNky "ENTER": -HaHHeTcBOCpOn3BeJeHne BbI6paHHoro NyHKta.

ПовьразимеMuTo Title

• Пи помоши сTORO мEHIO мoxho npocmoTpeTb Ha3BaHЯ OTdJIbHbIX ФиьMOB, KOTOpbie HaxOДТСЯ Ha DVD nickkax, ImeIoUx pazlUnHbIe Ha3BaHЯ.
• KaK 3Ta ΦyHKUЯ pa6OtaET n HauTeT Iи OHa noIePcky 3aBVCNT OT DVD nIcKa.

• C ueIbIy Bbl6opa 3bIka cy6THTPOB (HaIpIMep: anHJIINCKN, ΦpaHcy3CKN, INcPaHcKN, HEmeCkN, ..., 3aBnCtOT KOJIInueCTBa 3bIKOB, 3aIIncaHHbIX Ha DVD-dIscke) haxMnte KhoNky "SUBTITLE".

ZOOM

• YTO6bI yBeJIuHtB KapTHy n3O6paXeHnra (B 1,5 pa3a, 2 pa3a, 3 pa3a) HaxMnte BO BpeMa BOCpOn3BeJeHnHa HeCKoJIbKO pa3 KHOIpKy "ZOOM".
• KorIDA n306paXeHne yBelenueHO, eRo MOxHo DBrIgATb IIO 3KpaHy pRi NOMOuN KHOJOK CO CTpeJIkAmn (BBepx/BHN3, BnPaBO/BJIeBOU), C UeJIbIO npocMOTpa OTdJIbHbIX qAcTeH n306paXeHna.

NepcnektuBa (yrol)

• YTo6bI Bb6paTb Heo6xOДmMyIO nepcNeKtNBy (yroJ KaMepbl), HaxMnTe BO BpeM BAocPpOn3BeDeHn KhoNkY "ANGLE".
• ΘTOPTpeKIMФункционириетToJIbkoC DVDДИСКAMN，HaKOTOpbIX3aПИСансыI CцeHы，CHЯТьIE ПОД pa3ЛИЧныМУгLOМ KINHOKaMepbl.

CTapT BocnpOn3BedeHn

Ha BpemBBOCpOIN3BeIeHnI DnCKOB C 3aIInCbIO BΦopMaTe MP3 peKOMeHnyeTcB KJIIOuAtb TeJIeBn3Op.
1. Д�� за гугузки ди stickа нахMuTe Кногку "OPEN/CLOSE".
B MeHIO NOBNTcHa3BaHHe NaIKu CnICOK coDEpxIMOrO B VIne Root Directory.
2. BbI6epnte npn nOMOuN KHOJOK co cTpeJIkAmn BBepx/BHn3 Heo6xoDmMyO My3bIkaJIbHyIO NaIky I NOITBepdnte BbI6Op KHOJKO "ENTER".
3.ДЯВыбopaОп_REделенHоипechи BOCПОЛьЗИТecьОпТьЖЕКНКAMN CO CTpeлКамN

BBepx/BHn3, 3aTeM HaxMnte IJL CtapTa BocnpOn3BeJeHnKHOIpKy "ENTER".

PexHM BOCPON3BedeHnA

Ha 3kpaHe TeIeBn3Opa IoRbIaTeTcI N3O6paXeHne, COOTBeTCTByIOUeee BbIbpaHHOMy pexIMy.
1.Дя Вьбopa ржима BOCnpon3BeDEHNA BOCNoJIb3yITeCb KHOIpKaMn CO CTpeJkAmn.
2. BbIbePnte npn NMOUKN KHOJOK CO cTpeJIkAmN BnpaBO/BJeBO Heo6XoDmMyO My3bIkaJIbHyIO NaIKy I NOITBepdNTe BbIbOp KHOJKOIN "ENTER".
3. BbIeRnTe npn nOmoUng KHOJOK CO cTpeJIkAmn OnpdeJeHnyIO neCHIO NODTBepdTe BbI6Op KHOJKOIN "ENTER".

Приимechанee:чTOбы IOВТОРИТь ИДИN ИЗ ржIMOB: FOLDER REPEAT, DISC, DISC REPEAT, DISC SCAN, SINGLE, FOLDER, REP-ONE (noBToP TOJIbKO OДнойпесни) наdmITE KHONKу "REPEAT" на пильte ДИСТАнцIHOrOу nprableniya.

MeHIO SETUP

MeHIO SETUP no3BOJare 3aInpoPamMnpoBaTb pa3nUhIbe yHKuIN DVD-nnEepa nO Bauemy JeJaHIO, Bbl6paTb IpeIPOHTeJIbHbIe Ra3IKN 3ByK03aIncN, BCTPOnTb POIITeJIbCKN KJIIOU, aKTINBn3InPOBaT bIIN OTKJIIOHTb pa3LIuHbIe CmMBOJIbI N pay3HbIe 3aCTaBKn, Bbl6paTb TII TNeEBn3IOHHO 3KpAHa N TaK DaJIee. Bbl6epnte HIXe COOTBETCTBYIOUe MeHIO n IpeRdNTe Ha COOTBETCTBYIOUyO CTpaHNU, Ha KOToPoI OINCAHbI DaHHbIe IN BO3MOXHOCTN Bbl6paHNOrO MeHIO.
