USER MANUAL CDP 537 MP3 CLATRONIC

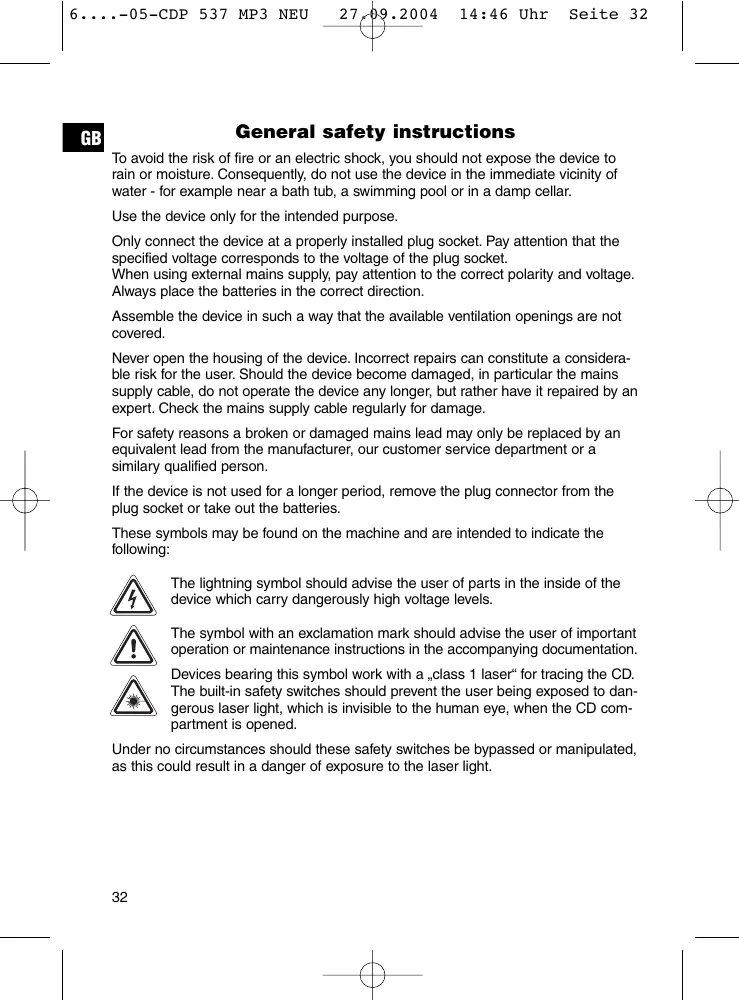

General safety instructions

To avoid the risk of fire or an electric shock, you should not expose the device to rain or moisture. Consequently, do not use the device in the immediate vicinity of water - for example near a bath tub, a swimming pool or in a damp cellar.

Use the device only for the intended purpose.

Only connect the device at a properly installed plug socket. Pay attention that the specified voltage corresponds to the voltage of the plug socket. When using external mains supply, pay attention to the correct polarity and voltage. Always place the batteries in the correct direction.

Assemble the device in such a way that the available ventilation openings are not covered.

Never open the housing of the device. Incorrect repairs can constitute a considerable risk for the user. Should the device become damaged, in particular the mains supply cable, do not operate the device any longer, but rather have it repaired by an expert. Check the mains supply cable regularly for damage.

For safety reasons a broken or damaged mains lead may only be replaced by an equivalent lead from the manufacturer, our customer service department or a similar qualified person.

If the device is not used for a longer period, remove the plug connector from the plug socket or take out the batteries.

These symbols may be found on the machine and are intended to indicate the following:

The lightning symbol should advise the user of parts in the inside of the device which carry dangerously high voltage levels.

The symbol with an exclamation mark should advise the user of important operation or maintenance instructions in the accompanying documentation.

Devices bearing this symbol work with a „class 1 laser“ for tracing the CD. The built-in safety switches should prevent the user being exposed to dangerous laser light, which is invisible to the human eye, when the CD compartment is opened.

Under no circumstances should these safety switches be bypassed or manipulated, as this could result in a danger of exposure to the laser light.

Commissioning the device

GB

Battery Mode (not supplied)

1. Open the battery compartment on the rear side.
2. Insert 2 1.5V AA type batteries. Match the polarities correctly (see the inside of the battery compartment or the marking on the outside).
3. If the device is not used for a long period of time, remove the batteries to avoid the "spilling" of battery acid.
4. A battery symbol in the display shows you the remaining capacity of the batteries that are inserted. Always change the battery set completely, do not change just one battery.

Warning: batteries are not to be disposed of together with domestic wastes. Dispose of the used batteries at the relevant collection bin or at your dealer's.

Never throw batteries into the fire.

AC Adapter Mode (not supplied)

You can also use the device with an adapter.

1. Insert the AC adapter into a duly installed 230V/50Hz protective contact outlet.
2. Connect the CD player to the AC adapter by connecting the jack of the adapter into the 4.5V/DC socket.
3. When using an adapter (4.5V DC/600 mA) match the polarities correctly as indicated on the CD player.

General Operating

Switch Functions:

Please note that with the exception of the "EQ", "A - B", "PROG", "MODE", "CHARGE" and "ESP" buttons you are able to adjust all the settings both on the machine itself and on the remote control.

EQ: There are various types of music genre available (NORMAL, POP, ROCK, VOICE/SPORT, CLASSIC, JAZZ).

CHARGE: The charging function is activated when connected to an external mains line. Make sure that there are no batteries in the battery compartment. Danger of explosion! Use only appropriate rechargeable batteries!

HOLD: it blocks the functions of all the device's keys to protect against their accidental activation. If you press one of the function buttons the words "KEY LOCKED" appear in the display.

VOLUME: it sets the volume.

LINE OUT: it is used for example to connect the device to a stereo system.

GB

DC IN 4,5V: it is used for the connection of a mains adapter.

PHONES: For the connection of headphones or earphones.

OPEN: to open the CD deck.

Please note:

The anti-shock function "ESP" is not supported for CDRWs with WAV files.

Switching off

Turn off the device by holding STOP (6) (D on the remote control), or releasing it after around 60 seconds after activating the STOP button.

Playing CD's

1. Open the CD deck with the OPEN key.
2. Insert a CD with the label facing up on the centering cone and snap it into place. Close the CD deck cover.
3. Press the PLAY/PAUSE button to start the playback. The CD starts from the first track. The current track and its length are shown in the display.
4. To remove a CD, press the STOP key, open the CD deck with the OPEN key and take out the CD carefully.

Always keep the CD deck cover closed.

Playing Music in MP3 Format

You can also play music in MP3 format with this device. The device also supports common CD types: CD-RW, CD-R.

Description of the CD buttons:

PLAY/PAUSE: You can briefly interrupt the playing. Renewed pressing of the button will re-start the playing from the same place.

SKIP/SEARCH: Using this button you can jump to the next or previous title. If the I< / I button is kept pressed down, the machine starts to search through the tracks.

STOP/OFF: The CD is stopped. By pressing once again, the unit is switched off.

ESP/DIR: It activates/deactivates the anti-shock function for the inserted audio CD. Select different functions with a MP3 CD in the tray (keyword search and folder selection).

A-B:

• Press A - B button once at the beginning of the segment (point A) you want to play repeatedly.
• Press A - B button again at the end of the segment (point B).
• The player automatically returns to point A and starts repeat playback of the selected segment (A-B).
• Press A-B button a third time to disable repeat A-B playback and allow playback to continue in normal.

MODE:

The following functions can be selected with the MODE key (in CD mode):

Press once = '' 1^ : the current track is repeated continuously;
Press a second time = ALL": the whole CD is played continuously;
Press a third time = "INTR(O)": all tracks are played for 10 seconds.
Press a fourth time = "RAND": all the tracks are played one after other at random.
Press a fifth time = "RAND ALL:" All tracks are played one after the other in a random order and repeated continuously.
Press a sixth time = all the functions are reset. The normal play mode is resumed.

Functions in Playback Mode for an MP3 CD:

Press once = '' 1^ The current track is played continuously.

Press a second time = "ALL" The whole CD is played continuously.

Press a third time = "C ALL DIR" The current directory (album) is played continuously.

Press a fourth time = "INTR(O)" : all tracks are played for 10 seconds.

Press a fifth time = "RAND": all the tracks are played one after other at random.

Press a sixth time = "RAND ALL:" All tracks are played one after the other in a random order and repeated continuously.

Press a seventh time = "RAND ALL DIR" The currently selected directory (the album) is played in a random order and repeated continuously.

Press an eighth time = all the functions are reset. The normal play mode is resumed.

GB

GB

Programmed Playback

1. Press the MODE key. (Not in playback mode)
2. The track to be saved and the current memory slot appear on the display. Please note: When an MP3 CD is inserted, the track of the relevant album is also shown in the upper line of the display.
3. Select the desired track with the SKIP/SEARCH button and press the MODE key again.
4. The display changes to memory slot P-02.
5. Select the next track with the SEARCH key and press the MODE key again. Repeat the procedure until all the desired tracks are selected.
6. Press the Play/Pause key. The playback starts.

The device stops automatically once the entire sequence of programmed tracks is completed. The programmed sequence remains in the memory until the CD is taken out of the CD deck or until the device is switched off. To repeat the programmed sequence again, first press MODE 1x, then PLAY/PAUSE.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

For repairs or replacement during the life of the guarantee return the device in its original packing together with the proof of purchase to your dealer.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
