USER MANUAL BQ 2672 CLATRONIC

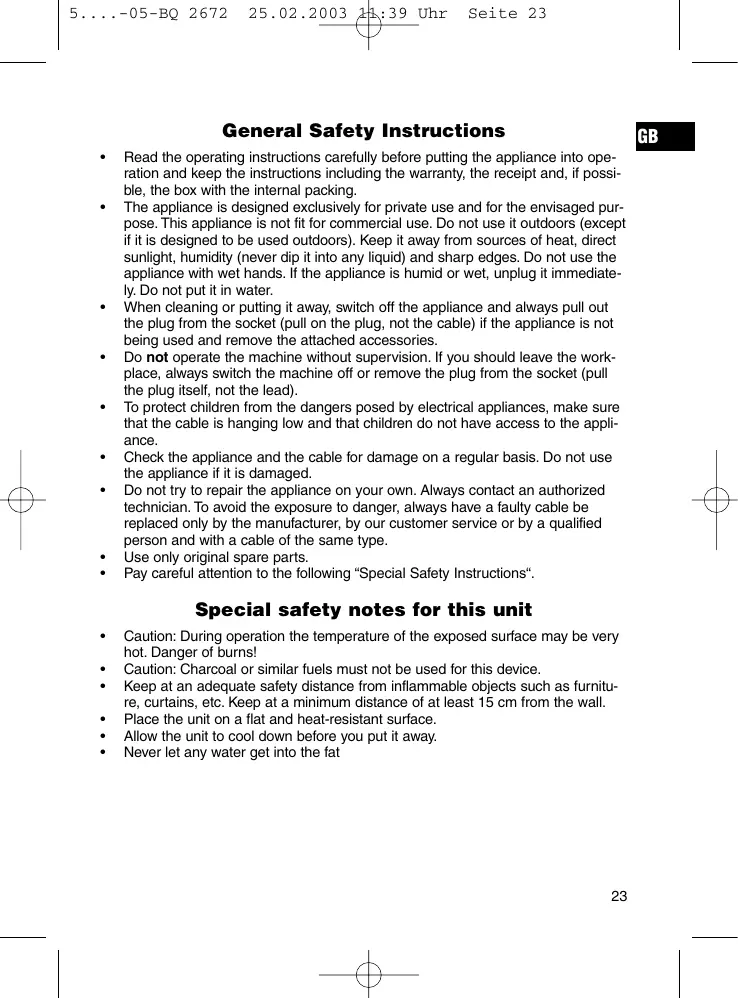

General Safety Instructions

GB

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special safety notes for this unit

• Caution: During operation the temperature of the exposed surface may be very hot. Danger of burns!
• Caution: Charcoal or similar fuels must not be used for this device.
• Keep at an adequate safety distance from inflammable objects such as furniture, curtains, etc. Keep at a minimum distance of at least 15cm from the wall.
• Place the unit on a flat and heat-resistant surface.
• Allow the unit to cool down before you put it away.
• Never let any water get into the fat

GB

Preliminary Operations

Overview of the Components

A Heating element

E Grill tray

B On/Off switch with indicator lamp

F Grill grid

C Handle

G Reflective metal sheet

D Power cable with plug

H Fixing screw

• Release the fixing screw (H).
• Remove any packaging material that may be present.
• Clean the gridiron (F) and the reflective metal sheet (G) with a damp cloth.
• Fill in 1.5 m of cold water up to the "MAX" mark in the trough.
• Assemble all parts as illustrated in the drawing.
  Fix the heating element (A) back into place with the screw (H).
• Before using for the first time, fill the grill tray with water and use it for 15 minutes to remove the protective film from the heating coil. The development of smoke is normal. Make sure that a sufficient level of ventilation is available.
• Preheat the device before use for approximately 5 minutes.

Usage

1. Insert the plug in a duly installed 230V/50Hz protective contact socket.
2. Switch on the appliance (the LED in the switch lights up).
3. Lay the food directly on the grill grid. Never use plates, trays or aluminum foil beneath the food. The grilling time depends on the thickness of the food and the set temperature. Thick foods are grilled more quickly by piercing it with metal skewers. Turn the food from time to time.
4. Should the water level drop below the MIN mark after continuous use, pull the plug from the socket and refill with water until the MAX mark is reached.

Switching-off: Switch off the appliance (the LED in the switch is off).

Cleaning

• Always pull the plug from the mains socket before cleaning and wait until the unit has cooled down.
• Release the fixing screw (H).
• Clean the unit with a slightly dampened cloth. Never dip the heating element into water!
  The gridiron, reflective metal sheet and trough can be cleaned in soapy water.
• Never use a steel brush or other scratching objects.
• Assemble all the parts as shown in the diagram.
  Fix the heating element (A) back into place with the screw (H).

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

PL

TapaHTnI TepaTeTc npN BCKpbITn N3dEnIg NOCTOpOHnIMn IInzamn.

RUS

Pocne rapaHTn

Iocne OKOHaHnCpoka rapaHTn, peMOHT n3dJIeI pON3BOIDTC3a ONaTу, COOTBETCTBYIOUcIMM MaCTepCKHM INI NyHKTaMn CepBNCHO 6CbJyKbAHn.

Technische Daten

Model: BQ 2672
