IPTUSB - Turntable ION - Free user manual and instructions

Product type	Vinyl turntable with USB output
Brand	ION
Model	IPTUSB
Dimensions (approx.)	40 x 35 x 12 cm
Weight (approx.)	3 kg
Power supply	Mains (cable included) or 6 D batteries (not included)
Speeds	33, 45 and 78 RPM
Speed control (Pitch)	+/- 10% with tempo control
Outputs	USB, RCA (line), headphone 1/8" and 1/4"
Built-in speakers	Yes, for listening without external amplifier
Audio controls	Volume, tone (bass/treble), gain
Digital conversion	Via USB with included EZ Vinyl Converter software
Dust cover	Yes, with latch
45 RPM adapter	Included
Carrying handle	Integrated
Replacement parts	Replaceable cartridge, 45 RPM adapter
Maintenance	Soft dry cloth, avoid abrasive products
Safety	Read safety booklet before use

Frequently Asked Questions - IPTUSB ION

How to connect the IPTUSB turntable to a computer?

Use the supplied USB cable to connect the turntable's USB output to a USB port on your computer. Make sure the turntable is powered on. The EZ Vinyl Converter software must be installed to transfer music to digital format.

Can I use batteries to power the turntable?

Yes, the turntable can operate with 6 D batteries (not included). Install them in the designated compartment, respecting the polarity indicated on the diagram.

How to adjust the playback speed of a vinyl?

Use the RPM selector located on the control panel to choose between 33, 45 or 78 RPM. The PITCH knob allows fine adjustment of +/- 10%.

What to do if the sound from vinyls is too low or too high?

Adjust the GAIN knob to set the amplification level of the signal from the cartridge. You can also use the AUDIO knob for overall volume.

How to connect a headphone to the turntable?

The turntable has two headphone jacks: one 1/8 in (mini-jack) and one 1/4 in. Plug in your headphones and adjust the volume with the AUDIO knob. Caution, lower the volume before connecting headphones to protect your hearing.

Can I connect the turntable to a hi-fi system?

Yes, use the RCA outputs (main jack) to connect the turntable to an amplifier, mixing console, or powered speaker. The output level is controlled by the AUDIO knob.

How to start converting a vinyl to digital file?

Install the EZ Vinyl Converter software from the included CD. Connect the turntable to the computer via USB, place a vinyl, and launch the software. Follow the on-screen instructions to record and save your music in digital format.

What to do if the dust cover is difficult to open?

The cover is held by a latch: slide it to the left to unlock it. If the problem persists, check that no obstacle is blocking the mechanism.

How to maintain the IPTUSB turntable?

Clean the device with a soft dry cloth. Do not use abrasive products or solvents. Protect the turntable from dust by closing the cover after use.

Where to find replacement parts for the turntable (cartridge, adapter)?

Replacement parts, such as the cartridge or the 45 RPM adapter, are available on the manufacturer's website ION Audio (www.ion-audio.com) or from authorized dealers.

USER MANUAL IPTUSB ION

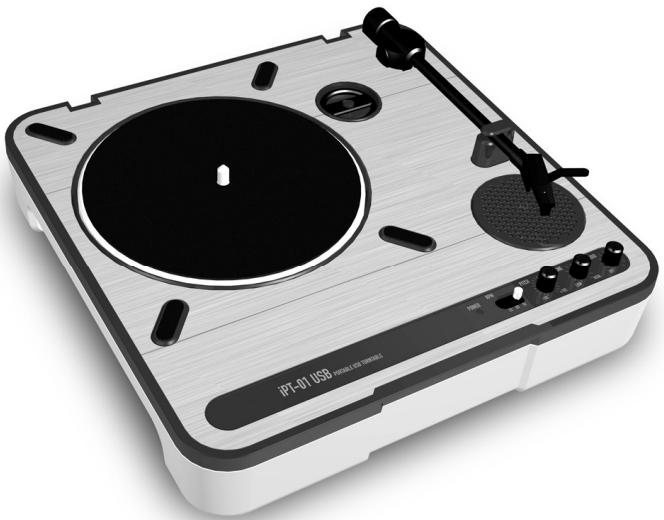

iPTUSB PORTABLE TURNTABLE

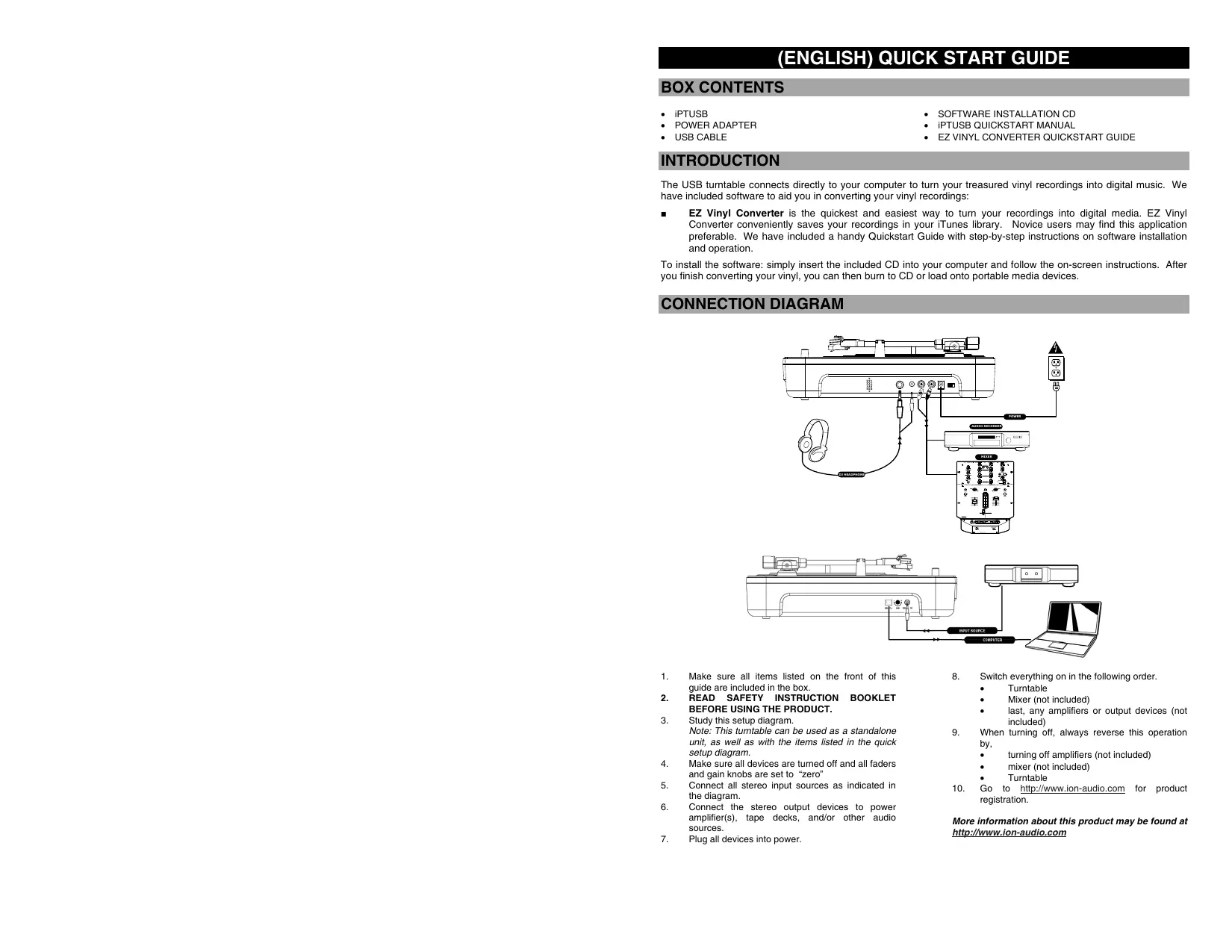

Quick Start Owner's Manual

ENGLISH :

The USB turntable connects directly to your computer to turn your treasured vinyl recordings into digital music. We have included software to aid you in converting your vinyl recordings:

EZ Vinyl Converter is the quickest and easiest way to turn your recordings into digital media. EZ Vinyl Converter conveniently saves your recordings in your iTunes library. Novice users may find this application preferable. We have included a handy Quickstart Guide with step-by-step instructions on software installation and operation.

To install the software: simply insert the included CD into your computer and follow the on-screen instructions. After you finish converting your vinyl, you can then burn to CD or load onto portable media devices.

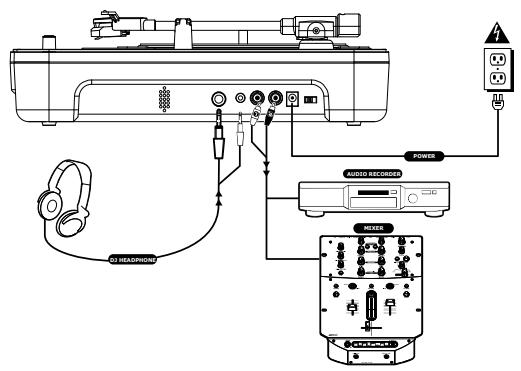

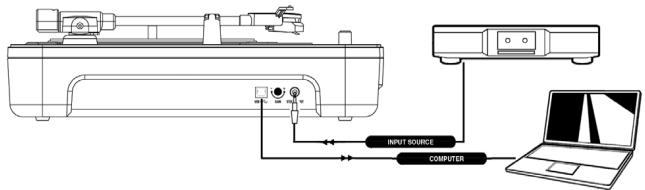

CONNECTION DIAGRAM

1. Make sure all items listed on the front of this guide are included in the box.
2. READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT.
3. Study this setup diagram.

Note: This turntable can be used as a standalone unit, as well as with the items listed in the quick setup diagram.

1. Make sure all devices are turned off and all faders and gain knobs are set to "zero"
2. Connect all stereo input sources as indicated in the diagram.
3. Connect the stereo output devices to power amplifier(s), tape decks, and/or other audio sources.

4. Plug all devices into power.

5. Switch everything on in the following order.

Turntable
- Mixer (not included)
- last, any amplifiers or output devices (not included)

1. When turning off, always reverse this operation by,

turning off amplifiers (not included)
- mixer (not included)
Turntable

1. Go to http://www.ion-audio.com for product registration.

More information about this product may be found at http://www.ion-audio.com

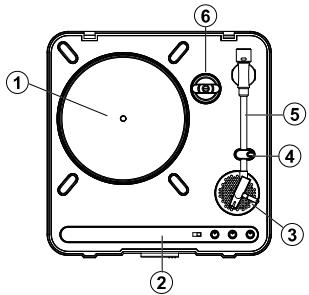

1. Platter: Place your record on the platter.
2. Control Panel: Please see the alternate detailed section on the control panel features.
3. On Board Speaker: Use this speaker to listen to the audio.
4. Tone Arm Clip: Use this clip to secure your tonearm when storing and transporting the unit.
5. Tonearm: This unit comes with a ready to use pre-balanced tonearm and cartridge. The cartridge is user replaceable with parts from your distributor located in the warranty guide. The platter starts spinning once the tonearm is lifted over the record.

6. 45 Adapter: Use this adapter with 45 rpm records.

7. Dust Cover: This cover protects the turntable from dust and abuse while not in use or while in transport.

8. Dust Cover Latch: This latch holds the dustcover securely in place, and can easily be opened by sliding it to the left.
9. Carry Handle: Use this handle easily remove the unit from record crates and bags, as well as carrying it in transport.
10. Battery Cover: This holds the batteries securely in place during use and transport. It easily slides open and closed as indicated on the cover itself.

NOTE: This unit uses 6 "D" cell batteries (not included). They should be installed in the proper direction indicated.

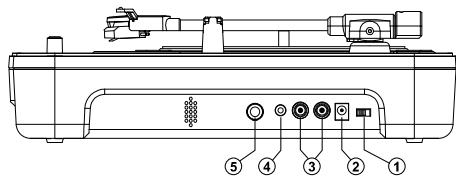

OUTPUT PANEL FEATURES

1. Power Switch: Use this switch to turn the power on and off.
2. AC In: This turntable is designed to work with either batteries or the power supply cord that comes with it. While the power is switched off, plug the power supply into the turntable first, then plug it into the wall power outlet, then switch on. NOTE: This unit can also be powered by 6 "D" Cell batteries (Not Included).
3. Master Output (RCA): This "line level" output is for connecting to the input of an external audio device such as a DJ mixer, tape recorder, CD Burner, PA system, powered speaker, or a home stereo. The level of the master stereo output signal is controlled by the audio level control.
4. 1/8" Headphone Jack: Use this jack with the 1/8" mini headphones plug. NOTE: Be sure the volume control is set to the OFF position before plugging in any headphones to avoid permanent hearing damage.
5. 1/4" Headphone Jack: Use this jack with the 1/4" headphone plug. NOTE: Be sure the volume control is set to the OFF position before plugging in any headphones to avoid permanent hearing damage.

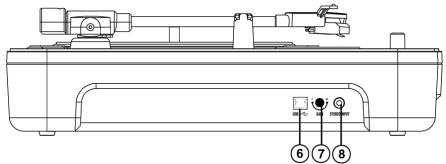

1. USB Audio Output: Use the included USB Cable to connect your turntable to your computer. Refer to the software instruction guide before plugging in your turntable.
2. Gain: This knob can be used to adjust the gain level of the audio signal from the turntable. If the audio from the turntable is too quiet or too loud, use this knob to adjust the volume setting.
3. 1/8" Stereo Line Input: Connect Tape Players, Reel to Reel, or any other audio source here. This signal is sent to the computer through the USB connection. Make sure that your phono cartridge is installed while using this input for maximum sound quality. Also make sure that your RCA jacks are either plugged into an input device or not in contact with metal.

Note: The 1/8" audio input is not routed to the turntable's RCA output jacks, only to your computer via USB.

1. Audio Level Control: This rotary control adjusts the volume level of the onboard speaker, headphone and line out outputs. NOTE: Make sure the Audio Level Control is set to OFF when connecting any alternate audio output devices.

2. Tone Control: This feature allows you to adjust the low and high frequency audio levels.

3. Pitch Control: This knob adjusts the pitch of the music + / - 10% . In the center position the pitch is at 0% .

NOTE: In order for the pitch to be adjusted, the tempo also changes according to what the pitch setting.

1. RPM Selection Switch: This switch selects the RPM of the turntable platter -- 33, 45, and 78 RPM.
2. Power LED: This LED indicates that the power switch on. Make sure the power is off when storing or transporting the unit, to avoid wasting battery power.

BATTERY INSTALLATION

This product can be powered by 6 "D" Cell batteries. They should be loaded as show above, with the positive end toward the handle.

(ESPANOL) MANUAL DE COMENZO RAPIDO DEL LECTOR

CONTENIDO DE LA CAJA

IPTUSB
TRANSFORMADOR DE CORRIENTE
CORDON USB

• CD DE INSTALLACION
• MANUAL DE INICIO RÁPIDO DE IPTUSB
• MANUAL DE INICIO RÁPIDO DE EZ VINYL CONVERTER

INTRODUCCION
