Cecofry Advance 10000 Full Vision - Deep fryer CECOTEC - Free user manual and instructions

Product type	Air fryer (oil-free)
Brand	Cecotec
Model	Cecofry Advance 10000 Full Vision
Capacity	10 L
Power	1500 W
Power supply	220-240 V ~ 50/60 Hz
Temperature range	80 °C to 200 °C
Timer	1 to 60 minutes
Cooking functions	Frying, baking, grilling, roasting, reheating
Viewing window	Yes, large Full Vision window
Main material	Stainless steel and heat-resistant plastic
Removable basket	Yes, with non-stick coating
Cleaning	Removable basket and pot, dishwasher safe
Safety	Auto shut-off, overheat protection, cool-touch handle
Dimensions (W x D x H)	35 x 30 x 35 cm
Weight	6 kg
Cord length	0.8 m
Included accessories	Basket, grid, recipe book
Warranty	2 years

Frequently Asked Questions - Cecofry Advance 10000 Full Vision CECOTEC

How to use the Cecofry Advance 10000 Full Vision air fryer for the first time?

Before first use, remove all packaging, wash the basket and pot with warm soapy water, dry them thoroughly, then heat the appliance empty at 180 °C for 10 minutes to eliminate manufacturing odors.

How much food can I cook in this model?

With a 10 L capacity, you can cook up to 1.5 kg of fries or the equivalent for a family of 4 to 6 people. Never fill the basket beyond the max line.

Do I need to add oil for frying?

No, the air fryer uses pulsed hot air to cook food with very little or no oil. You can add a teaspoon of oil for a crispier result if desired.

How to adjust the temperature and cooking time?

Turn the temperature knob between 80 and 200 °C, and the timer from 1 to 60 minutes. The appliance heats up quickly and a sound signal indicates the end of cooking.

Can I open the air fryer during cooking?

Yes, the Full Vision window allows you to monitor cooking without opening. You can also open the drawer at any time: heating stops automatically and resumes when you close it.

How to clean the air fryer after use?

Unplug the appliance and let it cool. Remove the basket and pot: they are dishwasher safe. Wipe the interior with a damp cloth. Never immerse the base in water.

Why does the air fryer stop during cooking?

This may be due to overheating or poor air circulation. Check that the ventilation slots are not blocked and that you have not overfilled the basket. Auto shut-off is a safety feature.

What types of food can I cook?

You can cook fries, vegetables, meats, fish, cakes, and even reheat food. Use oven-safe silicone or metal containers as appropriate.

Is the air fryer very noisy?

The fan emits a moderate noise comparable to a convection oven, about 50-60 dB. This is normal and does not affect cooking.

Where can I find spare parts for this model?

Contact Cecotec customer service or visit the official website. Parts such as the basket, pot, or cord are available. Repairability is facilitated by standard components.

USER MANUAL Cecofry Advance 10000 Full Vision CECOTEC

Safety instructions 9

1. Parts and components 66

2. Before use 67

3. Installation 67

4. Operation 68

5. Troubleshooting 70

6. Cleaning and maintenance 71

7. Disposal of old electrical

and electronic appliances 72

1. Copyright 72

2. Simplified EU Declaration of Conformity 72

SOMMAIRE

EU01_116899_Thermosense Oval

EU01_118902_Thermosense Oval Red

EU01_118903_Thermosense Oval Black

EN • The coding in this manual is generic and applies to all code variants of the appliance.

Read the following instructions carefully before using the appliance. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• When using electrical and electronic appliances, basic precautions must always be followed to reduce the risk of fire, electrical shock, and injury.
• This appliance can be used by children aged 8 years and above and people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.
• Keep this appliance and its power cord out of reach of children under the age of 8.
• This symbol means “caution, hot surface.” The temperature of the accessible surfaces may be high when the appliance is in operation.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• Do not immerse the cord, plug, or any other non-removable part of the appliance in water or any other liquid. Do not expose electrical connections to water.
• This appliance is intended for domestic use only and is not suitable for use in commercial establishments such as bars, restaurants, farms, hotels, motels, and offices.

• Position the appliance in such a way to avoid spillage of hot liquids. Be especially careful with the handle.

• Make sure the voltage of your mains supply matches the voltage requirements specified in the rating label of the appliance.

• We recommend that the room where you intend to use the appliance is equipped with a working kitchen hood or is well ventilated.
• Incorrect or improper use can damage the appliance and be dangerous for the user. Use the appliance only for the purposes described in this manual.
• Unplug the appliance from the mains supply before moving it, carrying out any cleaning or maintenance task, or when not in use.
• Do not use outdoors.
• Check the power cord regularly for visible damage. If the cord is damaged, it must be repaired by Cecotec's Official Technical Support Service to avoid any hazard.
• Do not twist, bend, pull, or damage the power cord. Protect it from sharp edges and heat sources. Never let the power cord come into contact with hot surfaces. Do not let the cord hang over the edge of the working surface or worktop.
• Do not use extension cords, unless advised by a qualified electrician. Using the wrong type of extension cord could cause damage to the appliance or injuries to the user.
• Do not operate the appliance if its cord, plug, or body show visible damage, do not operate properly, or have been dropped.
• The appliance should not be used in potentially dangerous locations, such as flammable, explosive, chemical-laden, or wet atmospheres.
• Place the appliance on an even, heat-resistant surface. Be careful when placing the basket out of the air fryer. Place the handle inwards to prevent spillage of what's inside. Do

not place the appliance near heat sources, places with high humidity levels, or combustible materials.

• Do not insert or allow fingers or foreign objects to enter any ventilation or exhaust openings, as it could cause electrical shock or fire.
• Do not fill the basket with oil to avoid causing a fire hazard.
• Do not touch the interior of the appliance while in operation.
• Always place the ingredients to be cooked inside the basket to prevent them from touching the heating elements.
• Make sure your hands are completely dry before handling the plug or switching on the appliance.
• Unplug the appliance from the outlet when not in use or when it is being cleaned. Allow it to cool down completely before attaching or removing parts and before cleaning the appliance.
• Do not leave the appliance unsupervised while plugged to the mains.
• Cleaning and maintenance must be carried out according to this instruction manual to make sure the appliance operates properly.
• Do not place the appliance against the wall. Leave a safety distance of 10 cm on the back of the appliance and 10 cm on each side. Do not place any object on top of the appliance when in use.
• Hot steam is released through the air outlet openings during operation. Keep your hands and face at a safety distance from the steam and from the air outlet openings. Hot air may come out when removing the basket from inside the appliance.

• Immediately unplug the appliance if you notice black smoke coming out of it. Wait until the smoke disappears to remove the basket from the appliance.

• We recommend the use of gloves when touching the basket and rack.

• Do not attempt to repair the appliance yourself.
• Supervise children to ensure they do not play with the appliance.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the product.

2. BEFORE USE

• This appliance comes in a packaging designed to protect it during transport. Remove the appliance from its box. You can keep the original box and other packaging materials in a safe place to prevent damage to the appliance if you need to transport it in the future. If you wish to dispose of the original packaging, make sure all items are recycled properly.
• Check that all parts and components are included and in good condition. If any of them are missing or damaged, please contact Cecotec's Official Technical Support Service immediately.

Box content:

• Air fryer
• Rack
• Basket divider
• Instruction manual

- Do not remove the product's serial number in order to keep proper traceability if technical assistance is required.

3. INSTALLATION

Note: When using the air fryer for the first time, it may emit some smoke or odour. This is normal and will soon disappear. It is essential to ensure sufficient ventilation around the air fryer.

Using the air fryer

• Place the air fryer on a flat, stable, heat-resistant surface, away from any potential water splashes or heat sources.
• Place the basket inside the air fryer properly.
• Do not place any objects on top of the product to avoid disrupting airflow.
• Connect the power cord to an earthed socket; the Start/Cancel touch icon will illuminate.
• Remove the basket from the air fryer with extreme care.
• Place ingredients in the basket.
• Use the control panel as detailed below:
• Never exceed the MAX indicator on the basket, as this could negatively affect cooking results and the appliance's lifespan.
• For best results, it is recommended to cover the basket surface without stacking food items, as this ensures even cooking.
• For removing ingredients (such as chips, vegetables or ingredients without excess oil), turn the basket over and pour the ingredients onto the dish.
• Never flip the basket when cooking fatty foods or those that release liquids as these may spill.

Tip: Use tongs to remove large or delicate ingredients from the basket.

Note: Be careful when turning the basket, as any oil accumulated at the bottom will spill over the ingredients.

4. OPERATION

4.1 - Buttons description: Fig. 2

- Power button ⏻: Pressing this button turns the air fryer on or off.

- Start/Pause button ▷Ⅱ: During cooking, pressing this button stops heating and the fan turns off. Here, this button acts as a pause function. While paused, you can change menus to choose another preset configuration. Pressing this button again resumes cooking. Here, this button acts as a resume function.

- Menu change button ≡: Repeatedly pressing this button allows you to change and select the cooking function.

- TEMP /TIME change button: During cooking, if you wish to adjust temperature or time, first touch the TEMP/TIME change button. Then you can either increase or decrease cooking time in 1-minute intervals or adjust temperature in 5°C intervals by pressing the buttons continuously on either side of the temperature or time icons ▶. Press and hold the buttons for rapid scrolling to set the desired temperature/cooking time.

4.2 - Preset programmes:

Programme	Temperature (°C)	Time (min)	Preheating	Shake/Flip
Defrost	40	20	/	/
DIY	200	20	/	Yes
Pork	200	15	/	Yes
Pizza	185	12	Yes	/
Vegetables	180	15	/	Yes
Chips	200	20	/	Yes

Reheat	175	4	/	/
Dehydrate	40	8 hrs	/	/
Chicken wings	195	25	/	Yes
Cake	160	20	/	/
Fish	190	10	/	Yes
Steak	200	10	Yes	Yes

Once you're familiar with the appliance, you may want to experiment with your own recipes. Simply choose the time and temperature that suit your personal taste.

( SHAKE )

4.3 - Shake function:

To ensure even cooking, some foods need to be shaken during the cooking process. The shake indicator will flash when the cooking cycle has reached halfway through. This is the time to shake or flip your food in the appliance, which helps ensure uniform cooking. For chips, the shake indicator will flash at both 50% and 75% of the cooking time.

4.4 - Pre-heating function:

For pizza and steak dishes, the preheat function will run for 5 minutes initially at 200°C. During the warm-up function, the screen will rotate in circles. When preheating is finished, it will beep 3 times and then "Add food" Add Food will appear on the screen. After placing the ingredients in the basket, cooking will begin. If the ingredients are not placed in the basket, it will return to standby mode after a few minutes.

4.5 - Memory function:

If a power failure occurs while running, the machine can remember the working status and working time before the power failure within 1 to 2 hours after the power failure, and continue running according to the status before the power failure after being turned on again.

Cooking tips

• Smaller food items require shorter preparation time than larger ones.
• A larger quantity of ingredients only requires a slightly longer preparation time, and conversely, a smaller quantity only requires a slightly shorter preparation time.
• Turning smaller food items halfway through the cooking process optimises the final result and prevents uneven cooking.
• Add a little extra oil to fresh potatoes for a crispier result. Cook the food items in the air fryer immediately after adding oil.
• Do not prepare extremely fatty ingredients such as sausages in the air fryer.

ENGLISH

• Foods that can be prepared in a conventional oven can also be prepared in the air fryer. The optimal quantity for preparing chips is 500 grams.
• Use pre-made pastry to prepare quick and easy snacks. Pre-made pastry requires less preparation time than homemade dough.
• Place a baking tin or oven dish in the air fryer basket when baking a cake or quiche, or when cooking fragile or filled ingredients.
• You can also use the air fryer to reheat ingredients.

• Leave the basket partially open after cooking to prevent condensation inside the air fryer.

• TROUBLESHOOTING

Problem	Possible cause	Solution
The air fryer does not switch on	The machine is not connected to the power supply.	Make sure that the machine is connected to the power supply.
	The power button has not been pressed.	Press the start/on button after setting the temperature and time or choosing the recipe.
The fried ingredients are not done	Too much food in the basket	Place smaller amounts of ingredients in the basket for better results. Smaller ingredients cook more evenly.
	The selected temperature is insufficient	Set the appropriate temperature for each food
The ingredients are unevenly fried.	Some ingredients should be stirred or flipped over halfway through cooking.	Ingredients placed on top of each other or facing each other (such as chips) should be shaken halfway through preparation.
Fried snacks are not crispy when they come out of the air fryer.	The snack used isn't suitable for air frying.	Use oven-ready snacks or lightly coat snacks with oil for a crispier result.
The basket does not slide in properly	Too many ingredients in basket	Do not fill the basket above the maximum mark on the basket.

White smoke coming from the air fryer	This occurs when cooking very fatty foods	When cooking fatty food in the air fryer, a large amount of oil will leak onto the base of the basket. Oil may produce smoke and the basket may heat more than usual This does not affect the appliance or the final result.
	The basket or rack has grease residue from previous cooking	The white smoke is due to the fat heating up in the basket. Be sure to clean the basket thoroughly after every use.
Fresh chips cook unevenly in the air fryer.	You are not using the right type of potato	Use fresh potatoes and make sure they stay put during frying.
	You have not washed the potato sufficiently to remove the starch before frying.	Wash the potatoes thoroughly to remove the starch from the potatoes.
Fresh chips are not crispy	The crispiness of the chips depends on the amount of oil and water they contain.	Make sure to thoroughly dry potato wedges before adding oil.
		Cut potato sticks as thin as possible for a crispier result.
		Add a little more oil for a crispier result.

6. CLEANING AND MAINTENANCE

Clean the appliance after every use. The frying basket and the appliance interior have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this could damage the non-stick coating.

• Remove the plug from the mains socket and allow the appliance to cool down.
• Remove the basket to allow the appliance to cool down more quickly.
• Clean the appliance's housing with a damp cloth.
• Clean the basket with hot water, a small amount of washing-up liquid and a non-abrasive sponge.
• You can use a degreasing liquid to remove any remaining dirt.
• Unplug the appliance and allow it to cool down.
• Clean the appliance interior with hot water and a non-abrasive sponge.

ENGLISH

• Clean the heating element once cooled with a cleaning brush to remove any food residue.
• Ensure all parts are clean and dry.

Note: Both the basket and rack are dishwasher-safe

Storage

• Unplug the appliance and let it cool down.
• Ensure all parts are clean and dry before storing the product.

7. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its service life, you must remove the batteries/accumulators and take it to a collection point designated by local authorities.

For detailed information on how to properly dispose of electrical and electronic

equipment and/or the corresponding batteries, consumers should contact their local authorities.

Compliance with the above guidelines will help to protect the environment.

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The content of this publication may not, either in part or in its entirety, be reproduced, stored in a retrieval system, transmitted or distributed by any means (electronic, mechanical, photocopying, recording or similar) without prior authorisation from CECOTEC INNOVACIONES, S.L.

9. SIMPLIFIED EU DECLARATION OF CONFORMITY

CE Cecotec Innovaciones hereby declares that this appliance complies with the essential requirements and other relevant provisions of the regulations applicable in the European Union. This appliance has been designed, manufactured and tested in compliance with required safety and quality standards. The full text of the EU Declaration of Conformity can be found on the following website: https://cecotec.es/es/information/declaration-of-conformity

1. PIÈCES ET COMPOSANTS

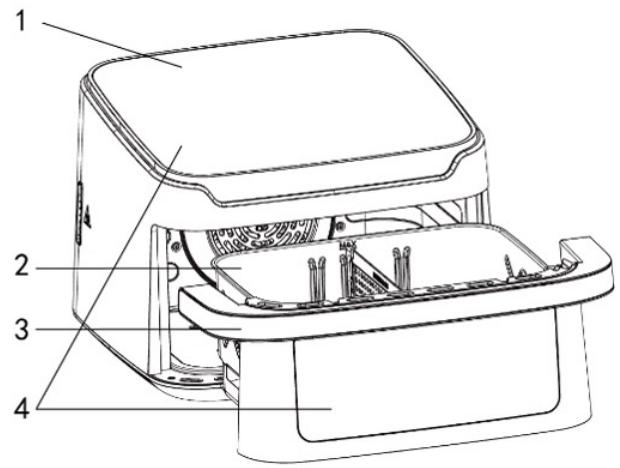

Appareil. Img. 1

information/declaration-of-conformity

Fig./Img./Abb./Afb./Rys.1

Fig./Img./Abb./Afb./Rys. 2
