USER MANUAL C07834 - 01-05 DEVILLE

7 - CONDITIONS GENERALES DE GARANTIE

5.3 USE OF CONTROLS AND ACCESSORIES

5.4 USING THE APPLIANCE

5.4.1 Lighting the Stove

5.4.2 Working Requirements

5.4.2.1 Working with door closed

5.4.2.2 Ash Removal

5.4.2.3 Safety Rules

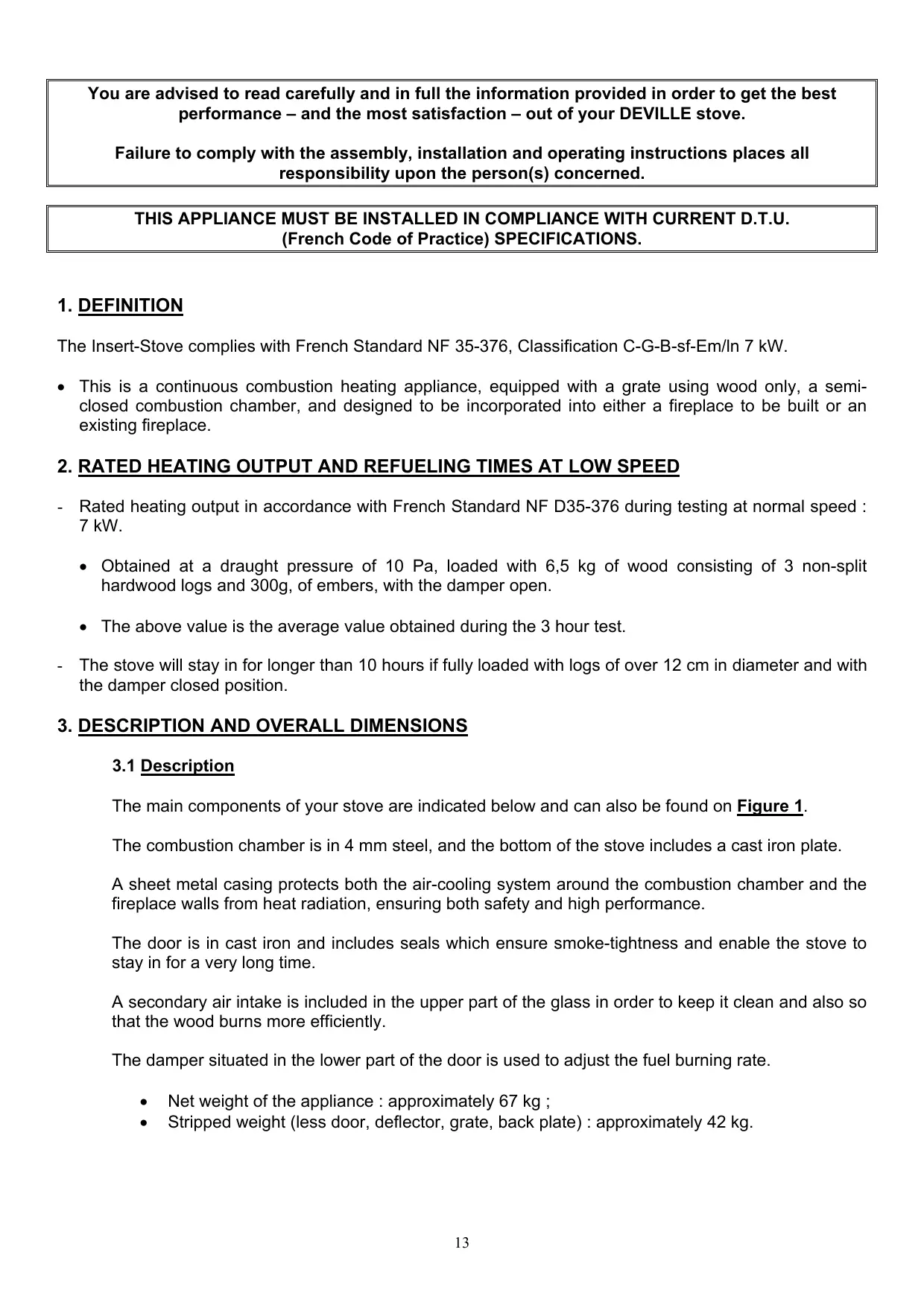

You are advised to read carefully and in full the information provided in order to get the best performance – and the most satisfaction – out of your DEVILLE stove. Failure to comply with the assembly, installation and operating instructions places all responsibility upon the person(s) concerned. THIS APPLIANCE MUST BE INSTALLED IN COMPLIANCE WITH CURRENT D.T.U. (French Code of Practice) SPECIFICATIONS.

1. DEFINITION

The Insert-Stove complies with French Standard NF 35-376, Classification C-G-B-sf-Em/ln 7 kW.

• This is a continuous combustion heating appliance, equipped with a grate using wood only, a semiclosed combustion chamber, and designed to be incorporated into either a fireplace to be built or an existing fireplace.

2. RATED HEATING OUTPUT AND REFUELING TIMES AT LOW SPEED

- Rated heating output in accordance with French Standard NF D35-376 during testing at normal speed : 7 kW.

• Obtained at a draught pressure of 10 Pa, loaded with 6,5 kg of wood consisting of 3 non-split hardwood logs and 300g, of embers, with the damper open.
• The above value is the average value obtained during the 3 hour test. - The stove will stay in for longer than 10 hours if fully loaded with logs of over 12 cm in diameter and with the damper closed position.

3. DESCRIPTION AND OVERALL DIMENSIONS

3.1 Description

The main components of your stove are indicated below and can also be found on Figure 1. The combustion chamber is in 4 mm steel, and the bottom of the stove includes a cast iron plate. A sheet metal casing protects both the air-cooling system around the combustion chamber and the fireplace walls from heat radiation, ensuring both safety and high performance. The door is in cast iron and includes seals which ensure smoke-tightness and enable the stove to stay in for a very long time. A secondary air intake is included in the upper part of the glass in order to keep it clean and also so that the wood burns more efficiently. The damper situated in the lower part of the door is used to adjust the fuel burning rate.

Net weight of the appliance : approximately 67 kg ; Stripped weight (less door, deflector, grate, back plate) : approximately 42 kg.

3.2 Overall dimensions (Fig. 2)

External dimensions (mm) Overall Width

4. SURROUNDS AND ACCESSORIES

4.1 Surrounds

Your Insert-Stove can be installed within either an existing fireplace or a new DEVILLE fireplace.

4.2 Optional extras

On request, the stove may be supplied with the following accessories : - Two hot air outlets, 125 mm, ref. C07006.EU03 for supplying hot air to adjacent rooms (Fig. 3), - A blower, ref. C07814 (Fig. 4) : . this is a convection accelerator consisting of a box and a 2 speed blower. . with option C07006.EU03, the blower can be used to send the hot air to adjoining rooms in two different directions. Duct length is limited to 4 metres. . Forced air flow : 120 m3/hour. . For further details, see installation instructions : § 7.1.

4.3 Installation of optional extras

- The optional hot air outlets C07006.EU03, the blower C07814 should be assembled before the stove is installed in the fireplace, - For installation, see the instructions supplied with these items.

5. REQUIREMENTS

Your “closed stove” is an extremely efficient heating appliance : - High output, - Stays in for a long time at reduced speed. Caution : using the air regulating lever enables to obtain complementary air flow for lighting : position (A), see fig. 5a to 5c. Position A is reserved exclusively for restarting and lighting operations, and should not be maintained more than 30 minutes, which would result in severe damage on the appliance and its environment. Do not leave the appliance unattended when using position “LIGHTING” (A).

5.1 Lighting the stove for the first time

- When the fireplace is completed and the appliance in place, give the various building materials time to dry (2 or 3 weeks), - After lighting the stove for the first time (see § 5.4.1), build a moderate fire for the first few hours using just one log with a diameter of about 15 cm, with the damper halfway open (Fig. 5h) : . this will ensure that the temperature of all the parts of the fireplace increases gradually and that the appliance will expand normally. - You may find that initially the stove gives off a smell of paint, in which case simply air the room.

5.2 Fuel

5.2.1 Recommended fuel

Hardwood : oak, hornbeam, beech, chestnut, etc. It is advisable to use only well-seasoned wood with a maximum moisture content of 20%, that is wood that has been stored under cover for 2 years after being cut, in order to prevent sooting up of the flue and the glass. Do not use resinous woods (pine, fir, spruce, etc.), which involve more frequent maintenance of the stove and the flue.

5.2.2 Alternative Fuels

Brown coal briquettes, but only with the door closed, can be used to keep the stove in for long periods at low speed. Limit the load to 3 kg with the damper halfway open (Fig. 5h).

5.2.3 Prohibited Fuels

All types of fuel other than wood and brown coal briquettes are forbidden, notably coal and coal derivatives. Flare-ups from small pieces of wood, vine shoots or similar, bits of plank, straw and cardboard are dangerous and these must not be used.

5.3 Use of controls and accessories

- Air adjustment lever (Fig. 5g, 5h, 5i) : . burning adjustment, i.e. slow burning position, intermediate burning or normal burning, is obtained by moving the lever using the poker, . the lighting position (A) is obtained by moving the lever by hand : this position must only be used when the appliance is “cold” and by performing the following : Operation Nr 1 : push the air adjustment lever knob to the end point matching the LIGHTING (A) position Fig. 5a, Operation Nr 2 : lift the unlocking index located on the left of the air adjustment lever Fig. 5b, Operation Nr 3 : maintain the index in the high position with the left hand and push the control knob left with the right hand : you are in the lighting position (A) Fig. 5c. To return to the normal burning (Fig. 5i) intermediate burning (Fig. 5h) or slow burning (Fig. 5g) position, after lighting, use the poker to push the air adjustment lever control knob which may be hot. - Door handle (Fig. 6) : must be handled using the poker.

5.4 Using the appliance

5.4.1 Lighting the stove

- Set the air adjustment lever to position A. - Screw up some paper and place it on the grate along with some very dry kindling with some bigger split wood on top (diameter 3 to 5 cm). - Light the paper and close the door (or leave it slightly ajar so as to get the fire burning more quickly). - When the kindling is alight, open the door and put in the wood recommended above. Use the controls to obtain the desired rate of combustion.

5.4.2. Working requirements

5.4.2.1 Closed

- Use the controls to adjust the stove to the rate at which you want to burn (see § 5.3). The amount of wood you put in depends on the heating rate you require : . for maximum heat, put in 3 logs with a diameter of about 12 cm, . for medium heat, just put in one or two logs, . for a longer heating period at low speed, put in one or two non-split logs a diameter greater than 15 cm. - For slow burning over a long period, put the logs on top of a bed of embers that are giving off very little glow, - For rapid restarting of the fire, add some kindling wood, load the logs, set the air adjustment lever on position (A) (Fig. 5a to 5c), for a few minutes to accelerate lighting, without leaving the appliance unattended, then close the lever. This method gets the fire going quickly again, especially if the wood is slightly damp. - While the embers are recatching, before reloading change speed (e.g. normal to low) so that the stove and the smoke flue can gradually adjust. - To prevent smoke or ash coming back into the room when putting more wood in, several precautions need to be taken : . turn the fan off to avoid sucking up ash that might fall in front of the stove, . open the door halfway, wait a bit in order to initiate the draught obtained with the door open, then open the door slowly. - In mild periods and if using wet wood, continuous working at low speed can result in incomplete combustion, which causes deposits of soot and tar. To avoid this, alternate between low and normal speed, - When the stove has been working at low speed, the glass may get slightly sooted up. Any soot will usually be burnt off when the stove is working at a higher speed.

5.4.2.2 Ash removal

- The air used for burning the wood comes in under the grate when the damper is open. The incoming air also cools the grate. So in order to ensure the best performance from your stove and prevent damage to the grate through overheating, it is essential to empty out the ash regularly so as to keep the grate clean. - The ash level should never reach the cast iron grate. - Use the scraper to remove ash from the grate (Fig. 7). - The ash pan, located underneath the grate, is easily removed using the poker.

5.4.2.3 Safety rules

- Never try to extinguish the fire with water. - Be careful of the glass, which gets very hot. Keep children away from it. - The stove gives out a lot of heat through the glass, so keep heat-sensitive materials and objects at least 1,50 metres away from it. - Empty the ash pan into a special metal or otherwise inflammable receptacle used only for this purpose. Ashes that might appear cold can still be very hot, even if you think they have had enough time to get cold. - Do not put easily flammable materials near the appliance or in the wood store (Fig. 8).

6. SWEEPING AND MAINTENANCE RECOMMENDATIONS : STOVE AND SMOKE FLUE

The mechanical cleaning of the smoke duct is compulsory, and must be performed several times per year, at least during the heating season. A receipt must be handed to you by the person having performed this operation. At the time of duct cleaning, the following operations must be carried out : - Dismount the deflector : . dismount the deflector (1) by lifting it and pulling it forwards (Fig. 9), . tilt the rear of the deflector (Fig. 10) and pull it out (Fig. 11). Nota : to move up the cowl and the deflector, do in the reverse order to the dismantling (deflector in place Fig. 9). - Check thoroughly the state of the appliance and particularly the elements ensuring sealing : locking joints and devices, supporting parts (door, frame). - Retighten the fastening screws : . front plate : 4 locking screws (octagonal spanner) - Check the condition of the smoke flue and the connecting pipe ; all fittings should be in good mechanical condition and be smoke-tight. - Vacuum inside the hood to get rid of any dust and if necessary clear the hot air convection system. In the event of a fault, have the stove or the installation repaired by a qualified tradesman.

REGULAR MAINTENANCE - Clean the window with a damp cloth and ash. If required, use a specific household cleaning product while complying with the instructions : . wait for the appliance to cool down completely before performing this operation. - Clean regularly the secondary air guide A (Fig. 12) : . with a vacuum cleaner (follow arrows 1), remove the particles trapped between the upper air guide (metallic) and the window, if required slide a thin blade (2) between the air guide and the window (Fig.

13) to help cleaning (remove the particles).

These particles prevent the formation of a secondary air layer which protects the window from direct contact with the smoke and completes wood combustion. This operation must be performed whenever the window is dirtied and systematically after heath extinction. If localised and strongly marked traces of soot (Fig. 15) reappear and multiply, dismount the air guide to clean thoroughly (Fig. 16) :

remove the door from its hinges and place it on a flat surface, remove the 5 screws (Allen) using a 10 mm flat wrench, remove the air guide and clean it, replace the sealing joint around the window (diameter 6,5), re-assemble the elements and check that the window clearance recommended (Fig. 16) is observed. This operation must be performed by a qualified professional. - Clean regularly the hot air outlet grids of the cowl. They clog easily because their meshing is fine : choose an appropriate frequency. - Check the efficiency of the door closing device, and if required perform the following operations according to Fig. 14 :

to tighten the catch : . loosen screw c and tighten screw d, . give both screws a quarter turn and repeat if necessary. N.B : This will increase the pressure of the sealing strip around the door.

to slacken the catch : . loosen screw d and tighten screw c, . give both screws a quarter turn and repeat if necessary. N.B : This will reduce the pressure of the sealing strip around the door.

TERMS AND CONDITIONS

Apart from the legal warranty, particularly for latent defects, Deville guarantees to deliver the furniture in case of obvious defects or non-conformity to the ordered furniture. Without prejudice to the provisions that are to be taken concerning the carrier, claims on delivery of furniture concerning the obvious defects or the non conformity, must be issued by the Buyer in writing a registered letter with confirmation of receipt to Deville company with in 5 days after noticing the defect. It is up to the Buyer to prove the reality of the noticed defects and irregularities. The Buyer must let Deville every opportunity of noticing any of those defects and irregularities in order to salve then. The Buyer must also keep the non standard supplies at the disposal of Deville, according to the instructions of the latter. Prior to any return of supplies an agreement will be issued.

EXTEND The warranty of Deville covers, except for any compensation or for damages, the free replacement or repairing of supplier the part acknowledged as being defected (except for wear and tear parts ) by its services to the exclusion of the fees for the workplace, for the removal and for the shipping. On enamelled equipments, appliances, crackles are never considered as a manufacturing defect. They are due to the difference of expansion of iron enamel or cast-iron enamel and don’t alter the adherence. Paid replacement parts are warranted for a six-month period from the invoicing date, any additional warranty agreed by a retailer from Deville doesn’t commit Deville. Whenever claiming under a warranty, the guarantee with the stamp from the retailer Deville is strictly required. The above guarantee must be produced for any demand to repair the appliance under warranty, or a detachable slip or coupon of any such guarantee must, according to the own organisation of Deville, be returned to the latter within the required time. For lack of this, the date on the invoice issued by Deville can’t be taken into account. The interventions under warranty can’t have the effect of continuing the warranty.

WARRANTY PERIOD The agreed warranty period assured by Deville is the longer of 1 year from the day of the purchase of the appliance, subject to the above terms and conditions are fact that the claims covered by the conditions are requested within the required time. The repairing, the replacement or the alteration of parts under the warranty period can neither have the effect of continuing the period of the latter, not get to any compensation for any fees, for late delivery, accidents or any such damages.

EXCLUSION The warranty is unavailable for the following cases, without this list being exhaustive : - Fitting out, fitting out and assembling of appliances not due to Deville. - Consequently Deville can’t be considered as responsible for damages or supplies, or accidents to persons due to local laws and regulations ( for example the fact that there is no linking to the a earth ground connection, or a wrong drought of a fitting out ). Fair wear and tear of the supplies or abnormal use of the supplies including the case of industrial or trading use or a use of the supplies in different conditions from the ones it was built for. It is, for example, of non respect of the conditions described in the directions issued by Deville : display to outside conditions damaging the appliance ; such as excessive dampness or abnormal change of the electrical tension. Malfunction, damage or accident due to a shock, a drop, a carelessness, a failure of supervision or of service from the Buyer. Any alteration, change or intervention made by a member of the staff or a company that is not approved by Deville, or manufactured with replacement parts that are not genuine or not approved by the manufacturer.

These terms add and define the above general terms of warranty and come first to the former, refer to the enclosed leaf untitled : “special terms of sales Deville - warranty”.
