USER MANUAL BT4010 JABRA

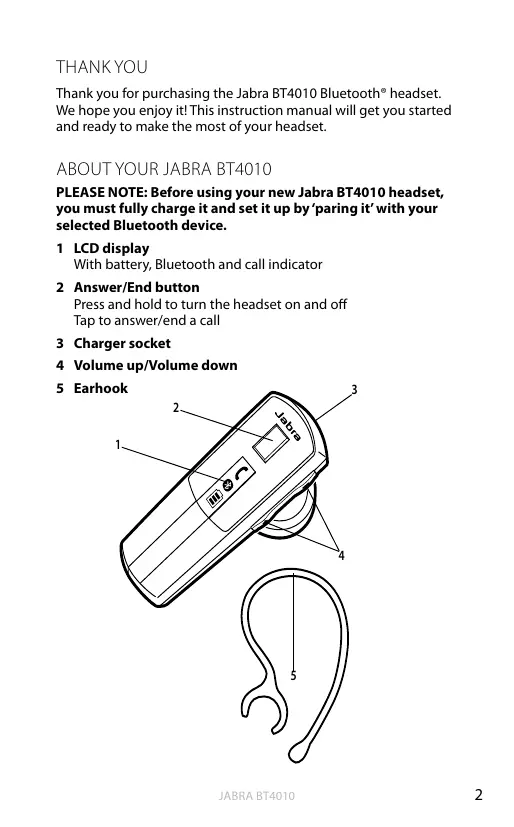

THANK YOU Thank you for purchasing the Jabra BT4010 Bluetooth® headset. We hope you enjoy it! This instruction manual will get you started and ready to make the most of your headset.

ABOUT YOUR JABRA BT4010

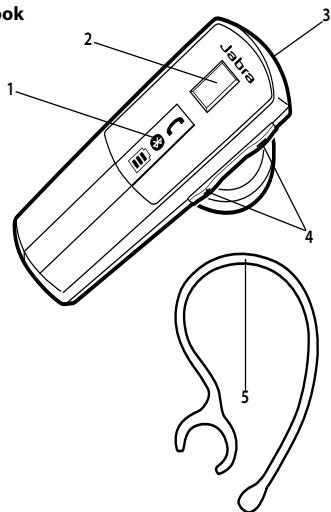

PLEASE NOTE: Before using your new Jabra BT4010 headset, you must fully charge it and set it up by pari selected Bluetooth de: 1 LCD display With battery, Bluetooth and call indicator Answer/End button Press and hold to turn the headset on and off Tap to answer/end a call 3 Charger socket Volume up/Volume down Earhook CES

Your Jabra BT4010 lets you do all this: Answer calls End calls Reject calls* Voice dialing* Last number redialing* Call waiting” Put call on hold* LCD Display + Battery status -_ Bluetooth connection status + Callstatus Specifications Talk time up to 6 hours/standby time up to 150 hours + _ Rechargeable battery with charging option from AC power supply. Alternative charger options PC via USB cable or car charger (not included) = LCD display for status and battery indicator = Size: L 49 mm x W 17 mm x d 27,9 mm = Weight 10 grams + Qualified for bluetooth specification version 2.0 + EDR (enhanced data rate), supporting headset and hands-free profiles for phone conversations + E-SCO for enhanced audio quality 28 bit encryption Operating range up to 10 meters (approx. 33 feet)

The Jabra BT4010 is easy to operate. The answer/end button on the headset performs different functions depending on how long you press it Instruction Duration of press Tap Press briefly Double tap 2 quickly repeated taps Press Approx: 1 seconds Press and hold Approx: More than 3 seconds

HOW THE DISPLAY WORKS

Bluetooth Indicator Battery Icon Call Indicator [oo] Headset on, Less than 10 min. | battery Headset off talktime status shown Sy e No bluetooth icon: AN Connected to Not connected to In pairing mode | phone phone AT = No call indicator: Incoming or Current call No call outgoing call

1. Charge your headset

Make sure that your Jabra BT4010 headset is fully charged before you start using it. Use the AC adaptor to charge from a power socket. Your headset indicates the charging level while charging: What you see What you see 1st battery level flashing Less than 30% 2nd battery level flashing Between 30 - 70% 3rd battery level flashing More than 70% All battery levels on, no Fully charged flashing Please note: The lifetime ofthe battery will be significantly reduced if your device is left uncharged for a long period. We therefore recommend that you recharge your device at least once a month. Turning your headset on and off = Press and hold the answer / end button to turn on your headset, The LCD display will show the battery status to indicate the headset is on. = Press and hold the answer / end button to turn off your headset until you see the indicator turn off in the LCD display. Pairing the headset with your phone Before you use your Jabra BT4010, you need to pair it with your mobile phone.

1. Your headset will automatically go into pairing mode when you

turn it on the first time, and you will see the Bluetooth indicator flashing in the LCD display. Set your Bluetooth phone to ‘discover’ the Jabra BT4010. Follow your phone instruction guide. This usually involves going to a setup,’ connect'or'Bluetooth' menu on your phone and selecting the option to discover'or'add'a Bluetooth device.”

Your phone will find the Jabra BT4010. Your phone then asks if you want to pair with it. Accept by pressing "Yes’or"OK'on the phone and confirm with the passkey or PIN = 0000 (4 zeros). Your phone wi confirm when pairing is complete. In case of unsuccessful pairing, repeat steps 1 to 3. Manual pairing You can manually put your Jabra BT4010 into pairing mode, if you want to pair with a second phone or Bluetooth device: Make sure the headset is of. Press and hold the answer / end button for approx 5 sec. until the Bluetooth indicator on the LCD display starts flashing. Set your Bluetooth phone to discover your headset as described above. WEARING STYLE The Jabra BT4010 ready to be worn without an earhook simply insert it into your right or left ear with the headset pointing towards your mouth. If you prefer to use the earhook, click it on as shown in the illustration. For optimal performance, wear the Jabra BT4010 and your mobile phone on the same side of your body or within line of sight . In general, you will get better performance when there are no obstructions between your headset and your mobile phone.

HOW TO Answer a call = Tap the answer/end button on your headset to answer a call. End a call + Tap the answer/end button to end an active call. Make a cal = When you make 2 call from your mobile phone, the call will (subject to phone settings) automatically transfer to your headset. If your phone does not allow this feature, tap on the Jabra BT4010% answer/end button to transfer the call to the headset. Reject a c + Press the answer/end button when the phone rings to reject an incoming call. Depending on your phone settings, the person who called you will either be forwarded to your voice m: you will hear a busy signal. Activate voice dialing® -_ Press the answer/end button. For best results, record the voice- dialing tag through your headset. Please consult your phone’s user manual for more information about using this feature.

+ Double tap the answer/end button when the headset is on and not used. last number * Adjust sound and volume * = Tap the volume up or down to adjust the volume. Callwe This lets you put a call on hold during a conversation and answer a waiting call + Press the answer/end button once to put the active call on hold and answerthe waiting call + Press the answer/end button to switch between the two call. - | Tap the answer/end button to end the active conversation. ing and placing a call on hold”

Battery In When the Jabra BT4010 is turned on, you will always know the battery level from the LCD display. tor What you see Battery level/Talk time 3 Battery levels Between 4-6 hours talk time 2 Battery levels Between 2-4 hours talk time 1 Battery levels Less than 2 hours talk time TROUBLESHOOTING & FAQ Thear crackling noises -_ Bluetooth is a radio technology, which means it is sensitive to objects between the headiset and the connected device. Itis designed for the headset and the connected device to be used within 33 feet (10 meters) of each other, with no major objects in the way (wall, etc). cannot hear anything in my headset -_ Increase the volume in the headset + Ensure that the headset is paired to a device that is playing + Make sure your phone is connected to the headset by checking the LCD display to see if the Bluetooth indicator is on. You can connect to the headiset by tapping the answer/end button. Lam having pairing problems -__ You may have deleted your headset pairing connection in your mobile phone. Follow the pairing instructions. Willthe Jabra BT4010 work with other Bluetooth equipment? = The Jabra BT4010 is designed to work with Bluetooth mobile phones. I can also work with other Bluetooth devices that are compliant with Bluetooth version 1.1 or higher and support a headset and/or hands-free profile.

I cannot use Reject call, call on hold, Redi These features are dependent on the ability of your phone to support a hands-free profile. Even ifthe handsfree profile is implemented reject call call hold and voice dialing are optional features which are not supported by all devices. Please consult your device manual for details The device is not connected to my headset in time to answer anincoming c: Ithe headiset is off and is turned on when a call is incoming, the device and headset might not connect in time for the call to be answered, In order to avoid such inconveniences please keep the headset on, in range and connected l'or voice dialling NEED MORE HELP?

Always store the Jabra BT4010 with the power off and safely protected Avoid storage at extreme temperatures (above 45°C/113°F — including direct sunlight — or below -10°C/14°F). This can shorten battery life and may affect operation. High temperatures may also degrade performance. Do not expose the Jabra BT4010 to rain or other liquids. WARNING!

EXCESSIVE VOLUME LEVELS CAN CAUSE PERMANENT

HEARING DAMAGE. USE AS LOW A VOLUME AS POSSIBLE. Permanent hearing loss may result from long-term exposure to sound at high volumes. Headsets are capable of delivering sounds at loud volumes and high pitched tones. Under certain circumstances, exposure to such sounds can result in permanent hearing loss damage. The volume level may vary based on conditions such as the phone you are using, its reception and volume settings, and the environment. Avoid prolonged use ofthe headset at exces sound pressure levels. Please read the safety guidelines below prior to using this headset.

You Can Reduce the Risk of Hearing Damage by Following These Safety guidelines

1. Prior to using this product follow these steps:

+ Before putting on the headset, turn the volume control to its lowest level, Putthe headset on, and then + Slowly adjust the volume control to a comfortable level.

2. During the use ofthis product:

+ _ Keep the volume at the lowest level possible and avoid using the headset in noisy environments where you may be inclined to turn up the volume; necessary, adjust the volume control slowly: Hincreased volume Ringing in the ears may indicate that the sound levels are too high: If you experience discomfort or ringing in your ears, immediately discontinue using the headset and consult a physician; and + Stop using the headset ifit causes great discomfort. With continued use at high volume, your ears may become accustomed to the sound level, which may result in permanent damage to your hearing without any noticeable discomfort. SAFETY INFORMATION! + Use ofa headset will impair you ability to hear other sounds. Use caution while using your headset when you are engaging in any activity that requires your full attention. you have a pace maker or other electrical medical devices, you should consult your physician before using this device. This package contains small parts that may be hazardous to children and should be kept out of reach from children. The bags themselves or the many small parts they contain may cause choking if ingested. Nevertry to dismantlethe product yourself None ofthe components can be replaced or repaired by users. Only authorized dealers or service centers may open the product. If any parts of your product require replacement for any reason, including normal wear and tear or breakage, contact your dealer.

Avoid exposing you product to rain, moisture or other to protect against damage to the product or injury to you. this product has ear tips, the ear tips should rest against, but not enter the ear canal. Keep all products, cords and cables away from operating machinery. Observe all signs and instructions that require an electrical device or RF ratio product to be switched ot areas such as hospitals, blasting areas, potentially explosive atmospheres or aircrafts. Hthis product overheats, ifthe product has been dropped or damaged, ifthe product has à damaged cord or plug, or ifthe product has been dropped in a liquid, discontinue use and contact GN Netcom, Inc. Never mount or store the product over any air bag deployment area as serious injury may result when an airbag deploys. Remember: Always drive safely, avoid dis local law: Using the headset while operating a motor vehicle, motorcycle, watercraft or bicycle may be dangerous, and is illegal in some jurisdictions, just as use of this headset with both ears covered while driving is not permitted in certain jurisdictions. Check your local laws. Use caution while using your headset when you are engaging in any activity that requires your full attention. While engaging in any such activity, removing the headset from your ear or turning off your headset will keep you from being distracted, so as to avoid accident or injury. Also try to keep conversations short and do not take notes or read documents. ACATS028 Ignition of flammable atmosphere Do not use the headiset in environments where there is a danger ofignition of flammable gasses.

BUILT-IN BATTERY CARE: + Your device is powered by a rechargeable battery. The full performance of a new battery is achieved only after two or tree complete charge and discharge cycles. The battery can be charged and discharged hundreds of times, but will eventually wear out. Recharge your battery only with the provided approved chargers designated for this device. Unplug the charger from the electrical plug and the device when not in use. Do not leave a fully charged battery connected to a charger, since overcharging may shorten its lifetime. I left unused, a fully charged battery will lose its charge over time. Leaving the device in hot or cold places, such as in a closed car in the summer and winter conditions, will reduce the capacity and lifetime of the battery. Always try to keep the battery between 15°C and 25°C (59°F and 77°F). À device with a hot or cold battery may not work temporary, even when the battery is fully charged. Battery performance is particularly limited in temperatures well below freezing, Do not dispose of batteries in a fire as they may explode. Batteries may also explode if damaged. Battery warning! +_ Caution" - The battery used in this device may present a risk of fire or chemical burn if mistreated. Do not attempt to open the product or replace the battery. I is built-in and not changeable. Use of other batteries may present a risk of fire or explosion and the warranty will be terminated Recharge your battery only with the provided approved chargers designated for this device. Dispose of batteries according to local regulations. Please recycle when possible. Do not dispose as household waste. Always store product out of the reach of children.

CHARGER CARE Do not attempt to charge your headset with anything other than the AC adaptor provided. The use of any other types may damage or destroy the headset and may invalidate any approval or warranty, and may be dangerous. For availability of approved enhancements, please check with your dealer. Important: The “color” indicator light will be on while charging and will turn off when charging is complete. The headset cannot be used while charging Charger warning! When you disconnect the power cord or any enhancement, grasp and pull the plug, not the cord, never use a charger that is damaged. Do not attempt to disassemble the charger as it may expose you to dangerous electric shock. Incorrect reassembly can cause electric shock or fire when the product is subsequentiÿ used. Avoid charging your headset in extremely high or low temperatures and do not use the charger outdoors or in damp areas. Charge the product according to the instructions supplied with this product. WARRANTY Limited One (1) -year Warranty: GN Netcom, Inc. warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below) for a period of one (1) year from the date of purchase ("Warranty Period"). During the Warranty Period, GN will repair or replace (at GNS discretion) this product or any defective parts ("Warranty Service”). If repair or replacement is not commercially practicable or cannot be timely made, GN may choose to refund to you the purchase price paid for the affected product. Repair or replacement under the terms ofthis warranty does not give right to any extension or a new beginning of the period of warranty.

Claims under the Warranty: To obtain Warranty Service, please contact the GN dealer from which you purchased this product or visit www jabra.com for further information about customer support. You will need to return this Product to the dealer or ship it to the dealer or to GN (if so indicated on www jabra.com) in either its original packa or packaging affording an equal degree of protection. You will bear the cost of shipping the product to GN. the Product is covered by the warranty, GN will bear the cost of shipping product back to you after the completion of service under this warranty. Return shipping will be charged to you for products not covered by the warranty or requiring no warranty repair. The Following information must be presented to obtain Warranty Service: (a) the product, and (b) proof of purchase, which clearly indicates the name and address ofthe seller, the date of purchase and the product type, which is evidence that this product is within the Warranty Period. Please further include (c) your return address, (d) daytime telephone number, and (e) a detailed reason for return. As part of GN/Jabra efforts to reduce environmental waste You understand that the product may consist of reconditioned equipment that contains used components, some of which have been reworked. The used components all live up to GN/Jabras high quality standards and comply with the GN product performance and reliability specifications. You understand that replaced parts or components will become the property of GN. Limitation of War This warranty is only valid for the original purchaser and will automatically terminate prior to expiration if this product is sold or otherwise transferred to another party. The warranty provided by GN in this statement applies only to products purchased for use, and not for resale. It does not apply to open box purchases, which are sold'as is” and without any warranty. Specifcally exempt from warranty are limited-life consumable components subject to normal wear and tear, such as microphone windscreens, ear cushions, modular plugs, ear tips, decorative finishes, batteries, and other accessories, This warrant) ifthe factory-applied serial number, date code label, or product label has been altered or removed from this product. This Warranty does not cover defects or damages that result from: (a) improper storage, misuse or abuse, accident or neglect, such as physical damage (cracks, scratches, etc) to the surface ofthe product resulting from misuse;

(b) contact with liquid, water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the products or accessories for commercial purposes or subjecting the product or accessories to abnormal usage or conditions; or (d) other acts which are not the fault of GN. This Warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other than GN or a GN dealer which is authorized to do GN warranty work. Any unauthorized repairs will void this Warranty. This Warranty does not cover defects or damages that result from the use ofnon-GN branded or certified products, accessories, or other peripheral equipment. REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REMEDY OF THE CONSUMER. GN SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY 1S EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS. AND IMPLIED WARRANTIES WHATSOEVER, INCLUDING BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR À PRACTICAL PURPOSE. NOTE! This warranty gives you specific legal rights. You may have other rights which vary from location to location. Some jurisdictions do not allow the exclusion or limitation ofincidental or consequential damages or implied warranties, so the above exclusions may not apply to you. This warranty does not affect your legal (statutory) rights under your applicable national or local laws.

CERTIFICATION AND SAFETY APPROVALS

FCC: This device complies with part 15 ofthe FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Jabra (GN Netcom, Inc.) will void the users authority to operate the equipment. See 47 CFR Sec. 15.21. This equipment has been tested and found to comply with the limits: for a Class B digital device, pursuant to part 15 ofthe FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of and on, the user is encouraged to try to correct the interference by one or more ofthe following measures: + Reorient or relocate the receiving antenna Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The device and its antenna must not be co-loaded or operating conjunction with any other antenna or transmitter. Industry Canada Operation is subject to the following two condi- tions: (1) This device may not cause interference and (2) This device must accept any interference, including interference that may cause undesired operation of the device. See RSS-GEN 7.1.5. The term”IC:" before the certification/registration number only signifies that registration was performed based on a Declaration of Conformity indicating that Industry Canada technical specifica- tions were met. It does not imply that Industry Canada approved the equipment. CE: This product is CE marked according to the provisions ofthe R &TTE Directive (99/5/EC). Hereby, GN Netcom A/S, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information please consult httpy/wwwjabra.com Bluetooth: The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Jabra is under license. Other trademarks and trade names are those of their respective owners.

1. Bluetooth is a radio technology that connects devices, such

as mobile phones and headsets, without wires or cords over a short distance approx. 33 feet (10 meters). Get more information at wwwbluetooth.com Bluetooth profiles are the different ways that Bluetooth devices communicate with other devices. Bluetooth phones support either the headiset profile, the hands-free profile or both In order to support a certain profile, a phone manufacturer must implement certain mandatory features within the phone’ software.

3. Pairing creates a unique and encrypted link between two

Bluetooth devices and lets them communicate with each other. Bluetooth devices will not work if the devices have not been paired.

Passkey or PIN is a code that you enter on your mobile phone to pair it with your Jabra BT4010. This makes your phone and the Jabra BT4010 recognize each other and automatically work together. Standby mode is when the Jabra BT4010 is passively waiting for a call. When you'end'a call on your mobile phone, the headset goes into standby mode. Dispose of the product according 0 local standards and regulations. mm rvnijabra com/wece

1. Site Web: _ wwjabra.com/nasupport

C € K rue. araono MADE IN CHINA ' Rec ao © Bluetooth re 2008 GN Netcom US, Inc. Al right reserved. Jabra” is a registered trademark of GN Netcom A/S. Al other trademarks included herein are the property of their respective ouners.The Bluetooth? word mark and logos are oumed by the Bluetooth SIG; Inc. and Any use of such marks by GN Netcom AS is under license. (Design and specications subject to change without notice) mmvjabracom
