USER MANUAL A120S JABRA

© 2006 Jabra, GN Mobile A/S (GN Netcom A/S). All rights reserved. Jabra® is a registered trademark of GN Mobile A/S (GN Netcom A/S). All other trademarks included herein are the property of their respective owners. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Mobile A/S (GN Netcom A/S) is under license.

(Design and specifications subject to change without notice)

www.jabra.com

Made in China

RELEASE YOUR JABRA

Jabra

Bluetooth music adaptor

User manual

Jabra

TOLL FREE Customer Contact Details:

Phone Numbers:

Belgique/Belgie 008007225272

Danmark 70252272

1. Thank you 3
2. About your Jabra A120s 3
   3.What your Jabra A120s can do. 3
   ES 4. Getting started. 4
3. Charging your Jabra A120s 4
4. Turning on your Jabra A120s 4
5. Pairing with a headset or other device 4
6. Using the Jabra A120s. 5
   9.What the lights mean 5
7. Troubleshooting & FAQ. 5
   11.Need more help? 6
   NO 12. Certification and safety approvals.. 6
   SE 13. Taking care of your music adaptor . 6
   14.Warranty. 7
8. Glossary 7

GR

1. Thank you

Thank you for purchasing the Jabra A120s Bluetooth® music adaptor. We hope you enjoy it! You will discover a new way of enjoying your music - wirelessly! This instruction manual will get you started and ready to make the most of your adaptor.

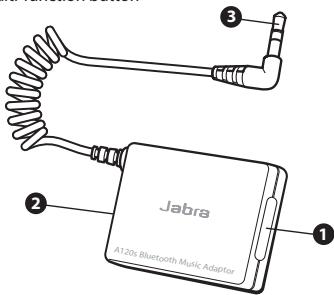

2. About your Jabra A120s

1. Light indicator (LED) and multi-function button
2. Charging socket
3. 3.5mm audio jack

3. What your Jabra A120s can do

Your Jabra A120s is designed to work with any Jabra Bluetooth stereo headset such as the Jabra BT620s. The adaptor connects to most audio sources such as portable MP3 players, handheld gaming devices, computers etc. via a standard 3.5mm audio connector.

Specifications:

• Up to 10 hours of music - standby time up to 240 hours
• Rechargeable battery with charging option from AC power supply (not included in the pack), PC via USB cable or car charger (car charger not included)
  Weight 14 grams
• Operating range up to 10 metres
• Advanced Audio (A2DP) ^5 , Remote Control (AVRCP) ^6 (see glossary page 7)
• Bluetooth¹ specification 1.2 (see glossary page 7)

What's in the pack?

• Jabra A120s Bluetooth music adaptor
• USB charger for charging from any PC or laptop
• Velcro tape for fixing the adaptor to the back of the music player
• User manual

GB

F

ES

PT

DE

IT

NL

SU

NO

SE

DK

GR

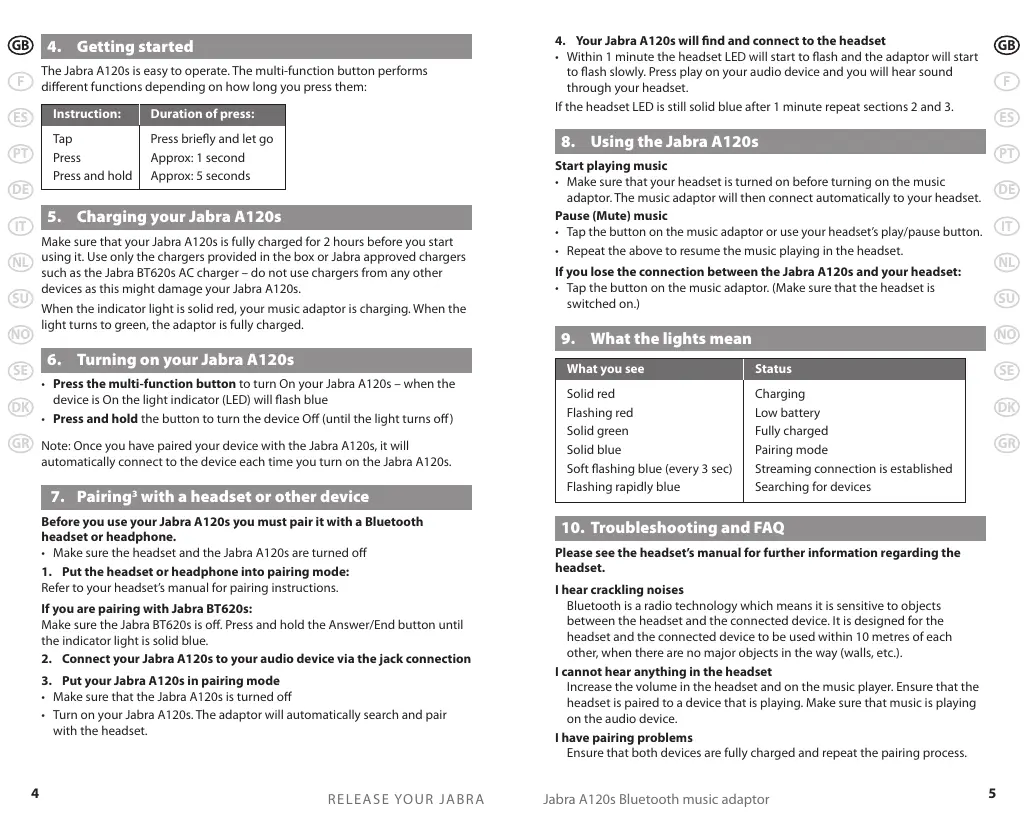

4. Getting started

The Jabra A120s is easy to operate. The multi-function button performs different functions depending on how long you press them:

Instruction:	Duration of press:
Tap	Press briefly and let go
Press	Approx: 1 second
Press and hold	Approx: 5 seconds

5. Charging your Jabra A120s

Make sure that your Jabra A120s is fully charged for 2 hours before you start using it. Use only the chargers provided in the box or Jabra approved chargers such as the Jabra BT620s AC charger – do not use chargers from any other devices as this might damage your Jabra A120s.

When the indicator light is solid red, your music adaptor is charging. When the light turns to green, the adaptor is fully charged.

6. Turning on your Jabra A120s

• Press the multi-function button to turn On your Jabra A120s – when the device is On the light indicator (LED) will flash blue
• Press and hold the button to turn the device Off (until the light turns off)

Note: Once you have paired your device with the Jabra A120s, it will automatically connect to the device each time you turn on the Jabra A120s.

7. Pairing³ with a headset or other device

Before you use your Jabra A120s you must pair it with a Bluetooth headset or headphone.

• Make sure the headset and the Jabra A120s are turned off
• Put the headset or headphone into pairing mode:
  Refer to your headset's manual for pairing instructions.
  If you are pairing with Jabra BT620s:
  Make sure the Jabra BT620s is off. Press and hold the Answer/End button until the indicator light is solid blue.
• Connect your Jabra A120s to your audio device via the jack connection
• Put your Jabra A120s in pairing mode
  Make sure that the Jabra A120s is turned off
• Turn on your Jabra A120s. The adaptor will automatically search and pair with the headset.

4. Your Jabra A120s will find and connect to the headset

• Within 1 minute the headset LED will start to flash and the adaptor will start to flash slowly. Press play on your audio device and you will hear sound through your headset.

If the headset LED is still solid blue after 1 minute repeat sections 2 and 3.

8. Using the Jabra A120s

Start playing music

• Make sure that your headset is turned on before turning on the music adaptor. The music adaptor will then connect automatically to your headset.

Pause (Mute) music

• Tap the button on the music adaptor or use your headset's play/pause button.
• Repeat the above to resume the music playing in the headset.

If you lose the connection between the Jabra A120s and your headset:

• Tap the button on the music adaptor. (Make sure that the headset is switched on.)

9. What the lights mean

What you see	Status
Solid red	Charging
Flashing red	Low battery
Solid green	Fully charged
Solid blue	Pairing mode
Soft flashing blue (every 3 sec)	Streaming connection is established
Flashing rapidly blue	Searching for devices

10. Troubleshooting and FAQ

Please see the headset's manual for further information regarding the headset.

I hear crackling noises

Bluetooth is a radio technology which means it is sensitive to objects between the headset and the connected device. It is designed for the headset and the connected device to be used within 10 metres of each other, when there are no major objects in the way (walls, etc.).

I cannot hear anything in the headset

Increase the volume in the headset and on the music player. Ensure that the headset is paired to a device that is playing. Make sure that music is playing on the audio device.

I have pairing problems

Ensure that both devices are fully charged and repeat the pairing process.

I need to enable pairing manually.

Ensure that the music adaptor is turned off. Press and hold the button until you see a solid blue light. The adaptor is now in manual pairing mode.

I skip a track on the headset but nothing is happening

The music adaptor is only transmitting the music to the headset and can't skip tracks and perform any other actions on your music player.

I have distorted sound in the headset

The audio level is typically controlled by the music player. For optimal performance the volume on the music player should be set to a maximum of 80% of the maximum output volume.

11. Need more help?

Jabra offers customer support online at www.jabra.com or you can see the inside front cover for the support details for your country.

12. Certification and safety approvals

CE

This product is CE marked according to the provisions of the R & TTE Directive (99/5/EC).

Hereby, GN Netcom, declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For further information please consult http://www.jabra.com

Within the EU this device is intended to be used in Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, The Netherlands, United Kingdom, and within EFTA in Iceland, Norway and Switzerland

Bluetooth

The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by GN Netcom is under license. Other trademarks and trade names are those of their respective owners.

13. Taking care of your music adaptor

• Always store the Jabra A120s with the power off and safely protected.
• Avoid storage at extreme temperatures (above 45^ / 113^ - including direct sunlight - or below -10^ / 14^) . This can shorten battery life and may affect operation. High temperatures may also degrade performance.
• Do not expose the Jabra A120s to rain or other liquids.

14. Warranty

Jabra (GN Netcom) warrants this product against all defects in material and workmanship for a period of two years from the date of original purchase. The conditions of this warranty and our responsibilities under this warranty are as follows:

• The warranty is limited to the original purchaser
• A copy of your receipt or other proof of purchase is required.
• The warranty is void if the serial number, date code label or product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorized third parties
• The responsibility of Jabra (GN Netcom) products shall be limited to the repair or replacement of the product at its sole discretion
• Any implied warranty on Jabra (GN Netcom) products is limited to two years from the date of purchase on all parts, including any cords and connectors
• Specifically exempt from any warranty are limited-life consumable components subject to normal wear and tear, such as microphone windscreens, ear cushions, decorative finishes, batteries, and other accessories
• Jabra (GN Netcom) is not liable for any incidental or consequential damages arising from the use or misuse of any Jabra (GN Netcom) product
• This warranty gives you specific rights and you may have other rights which vary from area to area
• Unless otherwise instructed in the User Manual, the user may not, under any circumstances, attempt to perform service, adjustments or repairs on this unit, whether in or out of warranty. It must be returned to the purchase point, factory or authorized service agency for all such work
• Jabra (GN Netcom) will not assume any responsibility for any loss or damage incurred in shipping. Any repair work on Jabra (GN Netcom) products by unauthorized third parties voids any warranty

15. Glossary

^1 Bluetooth is a radio technology that connects devices, such as mobile phones and headsets, without wires or cords over a short distance (approx. 10 metres). Get more information at www.bluetooth.com
2 Bluetooth profiles are the different ways that Bluetooth devices communicate with other devices. Bluetooth phones support either the headset profile, the hands-free profile or both. In order to support a certain profile, a phone manufacturer must implement certain mandatory features within the phone's software.
3 Pairing creates a unique and encrypted link between two Bluetooth devices and lets them communicate with each other. Bluetooth devices will not work if the devices have not been paired.

Standby mode is when the Jabra A120s is on but not connected to a headset.

A2DP (Advanced Audio Distribution Profile) is a Bluetooth Profile that enables stereo sound. Both the adaptor and the device it connects to must support A2DP in order to hear A2DP sound in the headset.

AVRCP (Audio Video Remote Control Profile) is a Bluetooth profile that enables remote control of the device that the headset is connected to. Both the headset and the device it connects to must support AVRCP in order for AVRCP to work.
