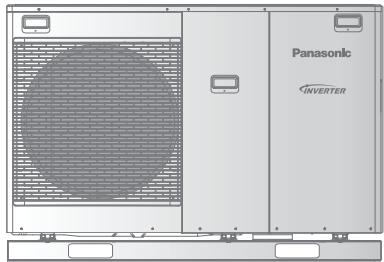

USER MANUAL WHMDC05H3E5 PANASONIC

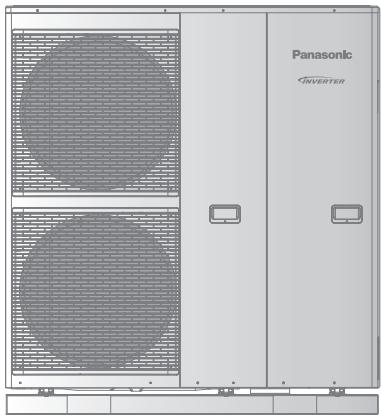

Air-to-Water Heatpump

Model No.

WH-MDC05H3E5

WH-MDC07H3E5

WH-MDC09H3E5

Model No.

WH-MDC12H6E5

WH-MDC16H6E5

WH-MXC09H3E5

WH-MXC12H6E5

WH-MXC09H3E8

WH-MXC12H9E8

WH-MXC16H9E8

Quick Menu Guide

(Mono bloc) Air-to-Water Heatpump

2-7

English

Please read the Operating Instructions thoroughly before using the Quick Menu.

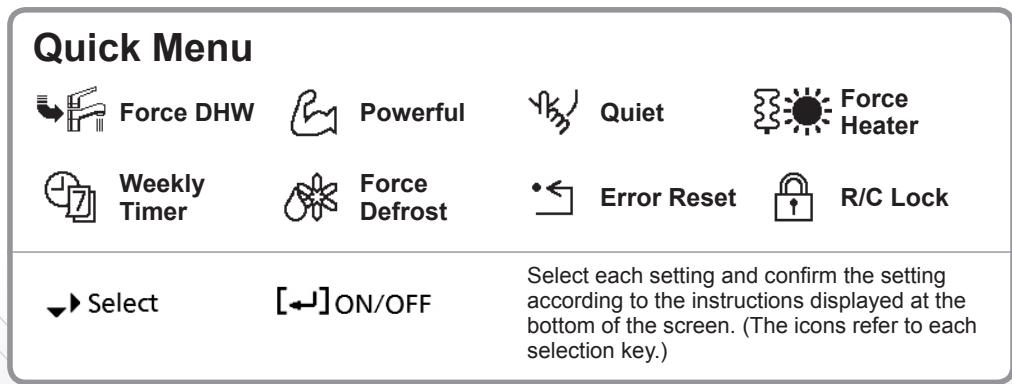

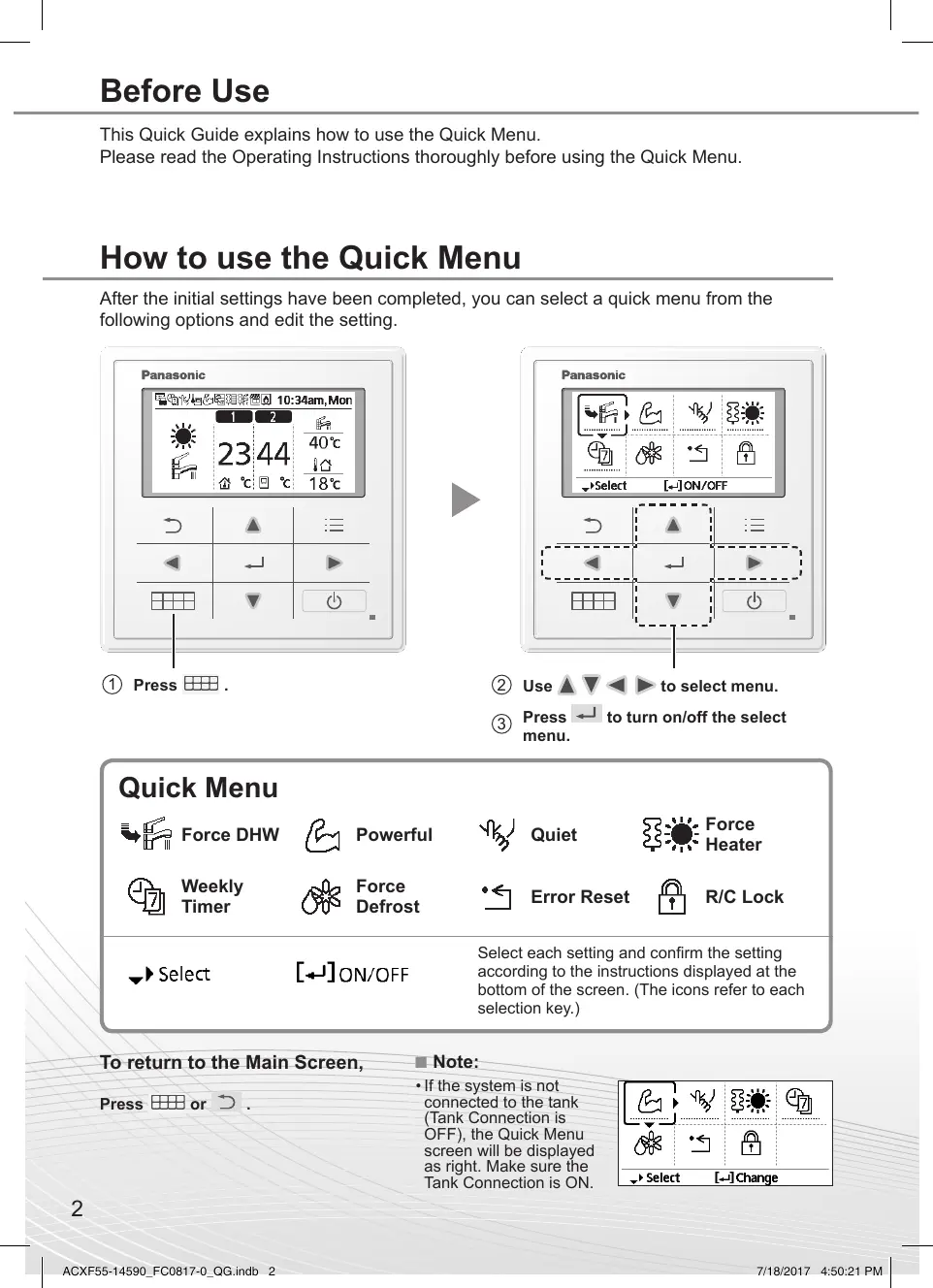

How to use the Quick Menu

After the initial settings have been completed, you can select a quick menu from the following options and edit the setting.

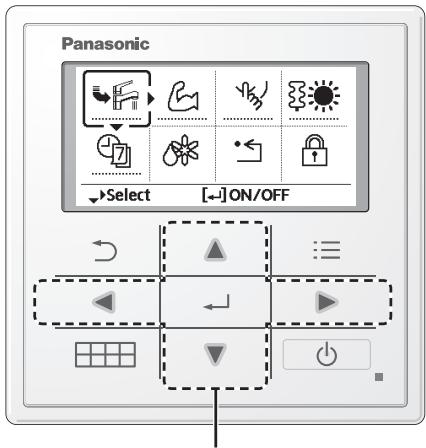

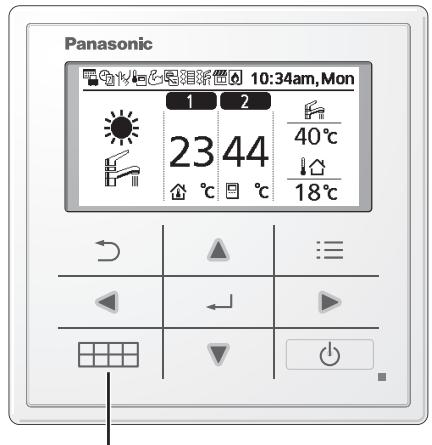

① Press .

② Use ▲ ▼ ▶ ▷ to select menu.

③ Press ← to turn on/off the select menu.

To return to the Main Screen, Note:

Press or

• If the system is not connected to the tank (Tank Connection is OFF), the Quick Menu screen will be displayed as right. Make sure the Tank Connection is ON.

Notes on operation icon

Example:

Operation icon indicate with "……" = OFF

Operation icon indicate with "——" = ON

Force DHW

Select this icon to turn the Tank DHW on or off.

Press to confirm your selection.

• Force DHW is turned off.

• Force DHW is turned on.

Note:

• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation & mode should change back to the previous memorized status.

Powerful

Select this icon to operate the heating/cooling system powerfully.

Press to confirm your selection.

(The powerful operation starts approximately 1 minute after is pressed.)

Note:

• Powerful is disabled when operation is turned OFF.

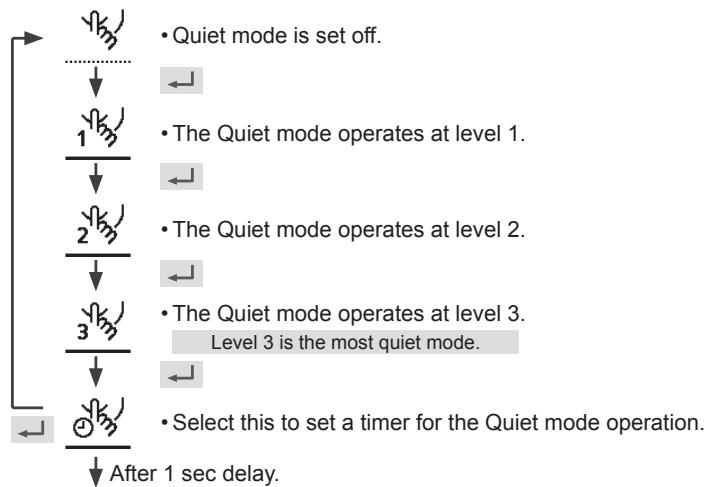

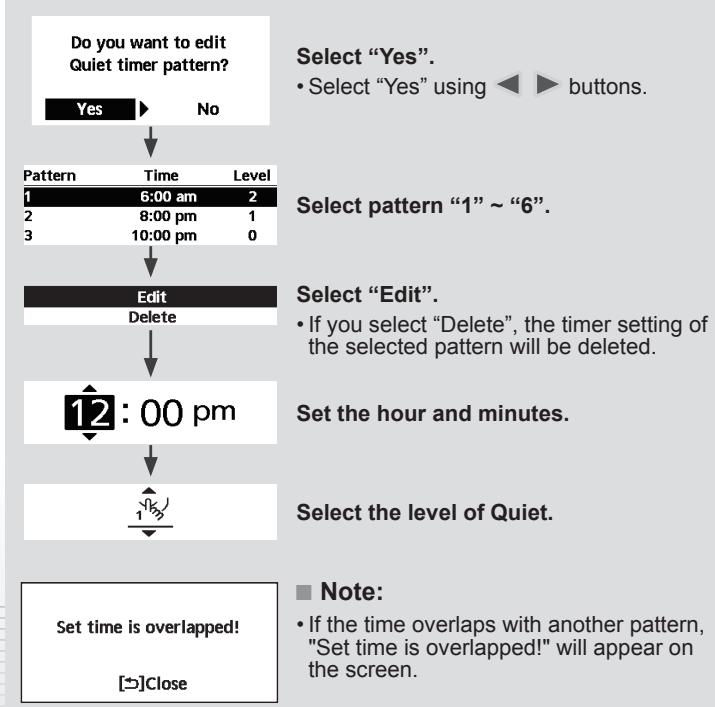

Quiet

Select this icon to operate quietly.

Press to confirm your selection.

(The quiet operation starts approximately 1 minute after is pressed.)

Force Heater

Select to force the Heater on.

Press to confirm your selection.

(The Force Heater mode starts approximately 1 minute after is pressed.)

• Force Heater is turned off.
• Force Heater is turned on.

Note:

• Force Heater is disabled whenever operation is already on and 'Disabled due to operation ON!' will be displayed.

Disabled due to operation ON!

[Close

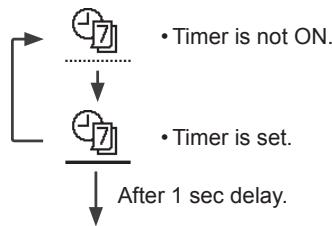

Weekly Timer

Select this icon to delete (cancel) or change the pre-set Weekly Timer.

Press to confirm your selection.

Select "Yes".

• If you select "No", the screen will return to the Main Screen.

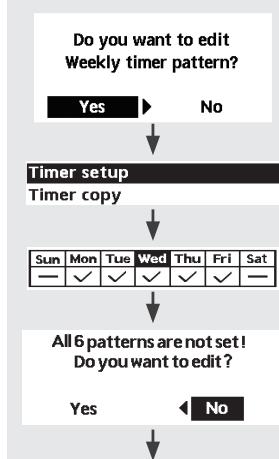

• Timer setup: Select Timer setup to edit the Weekly Timer.

• Timer copy: Select to copy a timer setting.

[Example of a Timer setup]

Select the day(s) which you wish to edit using buttons.

If all 6 patterns are not preset, this screen will be displayed.

① Select pattern "1" ~ "6".
② Set the hour and minutes of the Timer.
③ Select ON/OFF of the Timer.
④ Select the operation mode.

⑤ Set the temperature for both Zone 1 and 2 (if your system has the 2-Zone setting).

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

⑥ Set the Tank temperature.

Note:

• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.
• If you have preset the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.

Select to defrost the frozen pipes.

Press to confirm your selection.

(When the mode is accepted, below screen will be displayed.)

Request accepted!

[Close

Force Defrost

Select to restore the previous settings when error has occurred.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Request accepted!

[Close

• Make sure all units are turned off before selecting this mode which restores the whole system to the previous settings.

Error Reset

Select to lock the Remote Controller.

Press to confirm your selection.

(When the mode has been accepted, below screen will be displayed.)

Do you want to lock remote control?

R/C Lock

Select "Yes".

(The Main Screen will be locked.)

• If "No" is selected, the screen will return to the Main Screen.

To unlock the Remote Controller

Press any key.

(When the mode has been accepted, below screen will be displayed.)

Enter any 4 digits of number (if the number is correct, the screen will be unlocked).

To reset forgotten password (under operation OFF screen)

Press , and continuously for 5 seconds.

(When the mode has been accepted, below screen will be displayed.)

Select "Reset".

1 PASSWORD is reset to 0000
2.Remote control is unlocked

(The screen will be off after 3 seconds.)

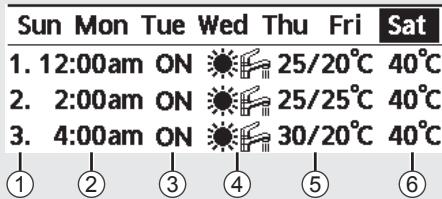

1. 12:00am ON 25/20°C 40°C
2. 2:00am ON 25/25°C 40°C
3. 4:00am ON 30/20°C 40°C

1 2 3 4 5 6

Zo	Ma	Di	Wo	Do	Vr	Za
-	✓	✓	✓	✓	✓	-

Disabled due to operation ON!

[Close

All 6 patterns are not set! Do you want to edit?

[PaapadeiymaiaqpuoogxPovoiakottn]

Sun Mon Tue Wed Thu Fri Sat

1. 12:00am ON 25/20°C 40°C
2. 2:00am ON 25/25°C 40°C
3. 4:00am ON 30/20°C 40°C

Saturday: Pattern 1: Set Temp
Zone1		Zone2
ON	25°C	ON	25°C

1.Password is reset to 0000

2.Remote control is unlocked

Kraftfull inaktiveras nar driften stangs AV.

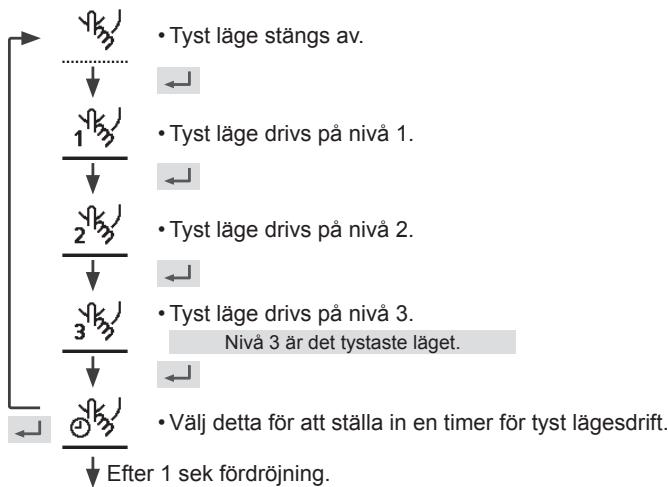

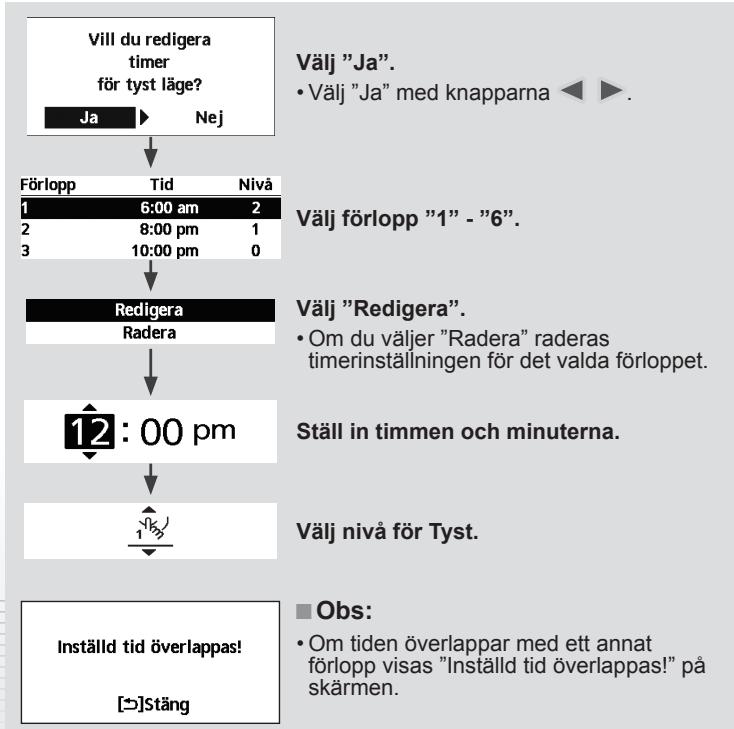

Tystläge
