CHAUFFE-BIBERON EXPRESS AUTO ET MAISON - Bottle warmer TIGEX - Free user manual and instructions

Product type	Electric bottle warmer for home and car use
Brand	TIGEX
Model	EXPRESS BOTTLE WARMER CAR AND HOME
Home power supply	AC 230V, 50 Hz, 500 W
Car power supply	DC 12V, 100 W
Operating ambient temperature	7 °C to 37 °C
Capacity	Bottles up to 330 ml, jars up to 190 g
Main functions	Fast steam heating, automatic shut-off at end of cycle, operation indicator light
Included accessories	Basket for jars, heating accelerator ring, water dosing cup, power cord, car adapter cord
Cleaning	Exterior and interior of the tank with a damp cloth; basket, ring and dosing cup dishwasher safe (top rack)
Descaling	Pour 100 ml hot water + 100 ml white vinegar, leave for 30 min, rinse
Safety	Do not immerse the appliance, do not use without water, adult supervision required, do not use in a moving car
Warranty	2 years, covers manufacturing defects, excluding damaged cable and plug, requires proof of purchase
Spare parts and reparability	Repair exclusively by TIGEX after-sales service (address provided in the manual)
General information	Complies with current European standards; do not heat sealed containers

Frequently Asked Questions - CHAUFFE-BIBERON EXPRESS AUTO ET MAISON TIGEX

How to use the bottle warmer in home mode?

Fill the dosing cup with the indicated amount of water according to the volume and initial temperature. Pour the water into the tank. Place the bottle (ring slightly loosened) or the jar (without lid, in the basket) into the tank. Plug in the power cord, switch the switch to the home position, then press the start button. The light turns on and the appliance stops automatically at the end of the cycle.

How to use the bottle warmer in the car?

Connect the car adapter cord to the appliance and switch the switch to the car position. Plug the other end into the cigarette lighter. Make sure the engine is running to avoid draining the battery. Never use the appliance while driving. Follow the same water filling and start-up steps.

How much water to use to heat a 240 ml bottle at room temperature?

For a 240 ml bottle at 20 °C in home use, pour 8 ml of water into the tank. For car use, pour 5 ml. Approximate heating time is about 1 min 48 s (home) and 8 min 06 s (car).

How to clean the bottle warmer?

Always unplug the appliance and let it cool down. Clean the inside and outside of the tank with a damp cloth. Never immerse the tank in water. The basket, accelerator ring and dosing cup can be washed with soapy sponge or in the dishwasher (top rack).

How to descale the appliance?

Pour into the tank a mixture of 100 ml hot water and 100 ml white vinegar. Leave for about 30 minutes, then empty the tank and wipe with a damp cloth. Repeat regularly depending on frequency of use and water hardness.

Can I use the bottle warmer without water?

No, never start the appliance without filling the tank with the required amount of water. The water must be pure, without additives. Dry operation would damage the appliance.

How long should I wait between two uses?

Let the appliance cool down for about 15 minutes between two heating cycles to avoid overheating and ensure optimal operation.

What to do if the bottle is not warm enough or too hot?

If the contents are not warm enough at the end of the cycle, slightly increase the amount of water next time. If too hot, reduce the water dose. Adjust according to your needs and desired temperature.

Is the bottle warmer under warranty?

Yes, a 2-year warranty is offered from the date of purchase, subject to proper use. Recognized defects are covered by the manufacturer. Keep your proof of purchase. Damaged cable and plug are excluded from the warranty.

Can I heat a closed bottle or a jar with its lid?

No, bottles must be placed in the tank with the ring slightly loosened to allow steam to escape. Jars must be heated without their lid to avoid overpressure.

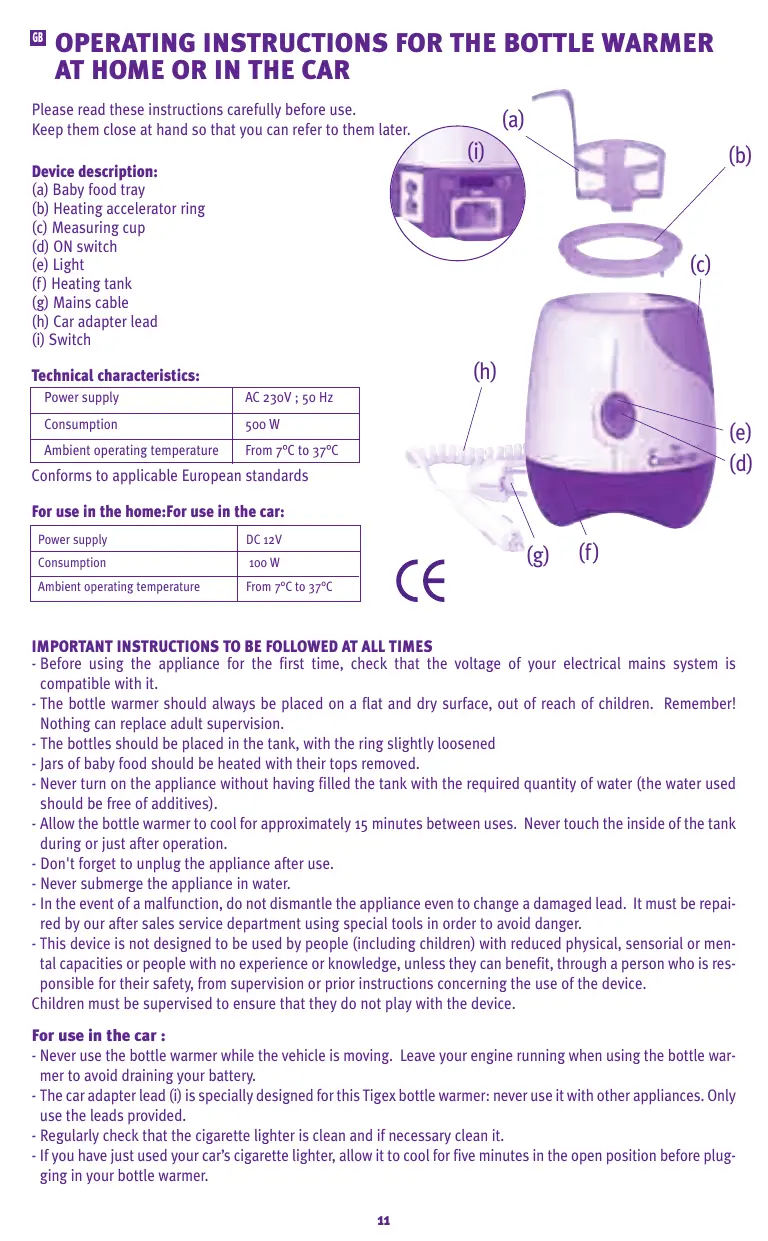

USER MANUAL CHAUFFE-BIBERON EXPRESS AUTO ET MAISON TIGEX

Chauffe-biberon express Auto & Maison

Calienta biberones
expres casa/coche

Express bottle warmer for the car and home

Scaldabiberon ultrarapidoauto e casa

Please read these instructions carefully before use.

Keep them close at hand so that you can refer to them later.

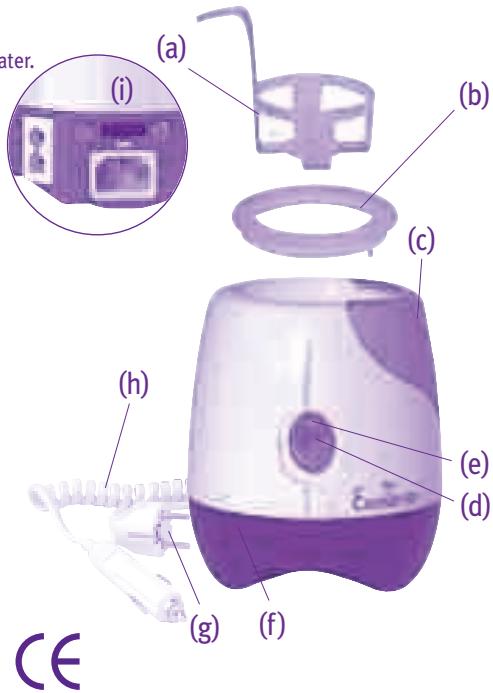

Device description:

(a) Baby food tray
(b) Heating accelerator ring
(c) Measuring cup
(d) ON switch
(e) Light
(f) Heating tank
(g) Mains cable
(h) Car adapter lead
(i) Switch

Technical characteristics:

Power supply	AC 230V; 50 Hz
Consumption	500 W
Ambient operating temperature	From 7°C to 37°C

Conforms to applicable European standards

For use in the home:For use in the car:

Power supply	DC 12V
Consumption	100 W
Ambient operating temperature	From 7°C to 37°C

IMPORTANT INSTRUCTIONS TO BE FOLLOWED AT ALL TIMES

• Before using the appliance for the first time, check that the voltage of your electrical mains system is compatible with it.
• The bottle warmer should always be placed on a flat and dry surface, out of reach of children. Remember! Nothing can replace adult supervision.
• The bottles should be placed in the tank, with the ring slightly loosened
• Jars of baby food should be heated with their tops removed.
• Never turn on the appliance without having filled the tank with the required quantity of water (the water used should be free of additives).
• Allow the bottle warmer to cool for approximately 15 minutes between uses. Never touch the inside of the tank during or just after operation.
• Don't forget to unplug the appliance after use.
• Never submerge the appliance in water.
• In the event of a malfunction, do not dismantle the appliance even to change a damaged lead. It must be repaired by our after sales service department using special tools in order to avoid danger.
• This device is not designed to be used by people (including children) with reduced physical, sensorial or mental capacities or people with no experience or knowledge, unless they can benefit, through a person who is responsible for their safety, from supervision or prior instructions concerning the use of the device.
  Children must be supervised to ensure that they do not play with the device.

For use in the car :

• Never use the bottle warmer while the vehicle is moving. Leave your engine running when using the bottle warmer to avoid draining your battery.
• The car adapter lead (i) is specially designed for this Tigex bottle warmer: never use it with other appliances. Only use the leads provided.
• Regularly check that the cigarette lighter is clean and if necessary clean it.
• If you have just used your car's cigarette lighter, allow it to cool for five minutes in the open position before plugging in your bottle warmer.

1/ Fill the bottle warmer's measuring cup (c) with water, following the instructions shown below, then pour this water into the tank (f).

Bottles

Volume contained in the bottle	Initial temperature of the liquid to be heated	Amount of water to be poured in the tank for use in the house	Approximate heating time for use in the house*	Amount of water to be poured in the tank for use in the car	Approximate heating time for use in the car*
120 ml	20°C	8 ml	1 min 28 s	4 ml	6 min 15 s
240 ml	20°C	8 ml	1 min 48 s	5 ml	8 min 06 s
330 ml	20°C	10 ml	2 min 12 s	6 ml	10 min 15 s
120 ml	4°C	12 ml	2 min 17 s	6 ml	6 min 55 s
240 ml	4°C	13 ml	2 min 52 s	6 ml	11 min 54 s
330 ml	4°C	18 ml	3 min 40 s	7 ml	13 min 57 s

Jars of baby food

Volume contained in the jars of baby food	Initial temperature of the food	Amount of water to be poured in the tank for use in the house	Approximate heating time for use in the house*	Amount of water to be poured in the tank for use in the car	Approximate heating time for use in the car*
130 g	20°C	12 ml	1 min 52 s	7 ml	6 min 50 s
190 g	20°C	19 ml	2 min 45 s	11 ml	10 min 15 s
130 g	4°C	33 ml	3 min 59 s	17 ml	13 min 44 s
190 g	4°C	41 ml	5 min 38 s	19 ml	16 min 40 s

*Manufacturer's data.

The average heating time experienced in reality may vary slightly according to the conditions of use. Note: bottles and baby food are heated up by the steam produced by the boiling of the water.

The sizes and material (glass or plastic) of the bottle or jars of baby food as well as the type and quantity of the liquid to be heated have an effect on the final temperature of the contents. If you find that your bottles or jars of baby food are not warm enough at the end of the heating cycle, use a little more water next time. If, on the other hand they are too hot, you should reduce the amount of water used.

2/ Place the bottle (slightly open) in the tank (f).

For a jar of baby food (with its top removed) use the baby food tray (a).

Tigex Excellence tips :

In order to avoid the risk of bacteria reproducing you should prepare and heat your bottles and jars of baby food just before the meal. Never keep an unfinished bottle.

Food should not be heated up for long periods

3/ For small bottles, fit the adapter ring (b) to the tank (f).

4/ \* USE IN THE HOME

Plug the appliance into the mains using the mains power cable (g). Turn the switch (i) located on the back of the appliance to the "home" position.

* USE IN THE CAR

Plug the car adapter lead (h) into the back of the appliance and turn the switch (i) located on the back of the appliance to the "car" position. Then plug the lead (h) into the cigarette lighter of your car.

5/ Press the ON switch (d) to begin the heating cycle. The light comes on (e). The "ON" button cannot be used to turn off the appliance. The heater turns off automatically at the end of the heating cycle.

CAUTION! The steam given off during the heating cycle is very hot. Do not bring your hand near the appliance while it is operating.

6/ Without waiting, carefully remove the bottle or small pot and then turn the switch (i) located at the back of the appliance to the OFF position. You can then unplug the appliance.

For a bottle: tighten the ring and shake well to mix up the contents. Pour a few drops of liquid on the back of your hand to check the temperature.

For jars of baby food: stir the contents and check the temperature.

Make sure that the appliance is cool before cleaning it or putting it away.

Cleaning your bottle warmer :

Always unplug the appliance and wait until it is cool before cleaning it.

Use a damp cloth to clean the inside and outside of the tank (f). Never submerge the tank (f) in water. Do not use abrasive products.

Adapter ring (b), tray (a) and measuring cup (c) can be washed using a sponge with soap and water or can be cleaned in the dishwasher in the top tray.

Dscaling the tank :

According to the quality of the water used, a limescale deposit can build up on the bottom of the tank (f) over time. You should regularly descale your bottle warmer by pouring a mixture of 100ml of hot water +100ml of white vinegar into the tank (f). Leave this to act for approximately 30 minutes before emptying the tank (f) and wipe with a damp cloth. Detergent products should not be used.

Warranty :

If the unit is looked after carefully, and the operating instructions are followed, the manufacturer guarantees it for 2 years from the date of purchase. We undertake to repair the unit free of charge if poor materials or design faults are to blame. Further claims will not be entertained. Damage caused by inappropriate use of the unit will not be compensated. The supply cable and plug are excluded from the warranty insofar as wear is concerned. Within the first two years from date of purchase, we will eliminate defects acknowledged as justified without invoicing any additional costs incurred. Clarify in advance who is going to accept responsibility for costs. The unit must in any case be sent in accompanied by the warranty note or other evidence of purchase date. If no evidence of purchase date is supplied, we will invoice costs without making further enquiries. The unit will then be returned and payment demanded on delivery.

This guarantee applies in all countries in which the product is sold.

Regardless of the circumstances, the legal guarantee will always apply, in conformity with the law.
