Brand	TIGEX
Model	700220
Product type	Bottle warmer
Home power supply	AC 230V, 50 Hz, 500 W
Car power supply	DC 12V, 100 W
Operating ambient temperature	From 7°C to 37°C
Main functions	Heats bottles and jars by steam, automatic shut-off, home/car switch, heating accelerator ring, jar basket, water dosing cup
Heating capacity	Bottles up to 330 ml, jars up to 190 g
Indicative heating time (home, 120 ml at 20°C)	Approximately 1 min 28 s
Required water quantity according to content	From 4 to 41 ml depending on volume and initial temperature
Safety	Do not immerse in water, do not use without water, cool for 15 min between uses, adult supervision required, automatic shut-off at end of cycle
Maintenance and cleaning	Clean tank with damp cloth; dosing cup, basket and ring are dishwasher safe (top rack)
Descaling	Mix 100 ml hot water + 100 ml white vinegar, let sit for 30 min
Spare parts	Removable mains power cable, removable car adapter cord
Repairability	Repair by after-sales service only, do not disassemble yourself
Warranty	2 years, subject to proper use and upon presentation of proof of purchase
Consumer service	BP 197 - 42013 Saint-Étienne Cedex 2 - France

Frequently Asked Questions - 700220 TIGEX

How much water to use to heat a 120 ml bottle at 20°C?

For a 120 ml bottle at 20°C, pour 8 ml of water into the tank for home use, or 4 ml for car use. Refer to the table for other volumes and temperatures.

How long does it take to heat a bottle?

Heating time varies depending on volume, initial temperature, and power source. For example, a 240 ml bottle at 20°C heats in about 1 min 48 s at home and 8 min 06 s in the car.

Can I heat jars in this bottle warmer?

Yes, remove the lid from the jar and place it in the jar basket (a). Use the water quantities and times indicated in the table for jars.

How to use the device in the car?

Plug the car adapter cord (h) into the back of the product, switch the switch (i) to car position, then plug into the cigarette lighter. Do not use while driving and leave the engine running to avoid discharging the battery.

What to do if the bottle is not hot enough at the end of the cycle?

Slightly increase the amount of water during the next use. If on the contrary it is too hot, reduce the water dose.

How to clean the bottle warmer?

Unplug and wait for the device to cool. Clean the tank with a damp cloth. The dosing cup, basket, and ring can be washed with a sponge or in the dishwasher (top rack).

How to descale the device?

Pour into the tank a mixture of 100 ml hot water and 100 ml white vinegar. Let it sit for about 30 minutes, then empty and clean with a damp cloth. Do not use detergent products.

Does the device stop automatically?

Yes, the bottle warmer turns off automatically at the end of the heating cycle. The power button does not allow manual shutdown.

What is the warranty on this product?

A 2-year warranty is offered, covering defective parts and manufacturing defects. Cables and plugs are excluded if damaged. Attach proof of purchase for any claim.

Can I use the heating accelerator ring?

Yes, if the bottle diameter allows, place the ring (b) on the tank to accelerate heating. It is supplied with the device.

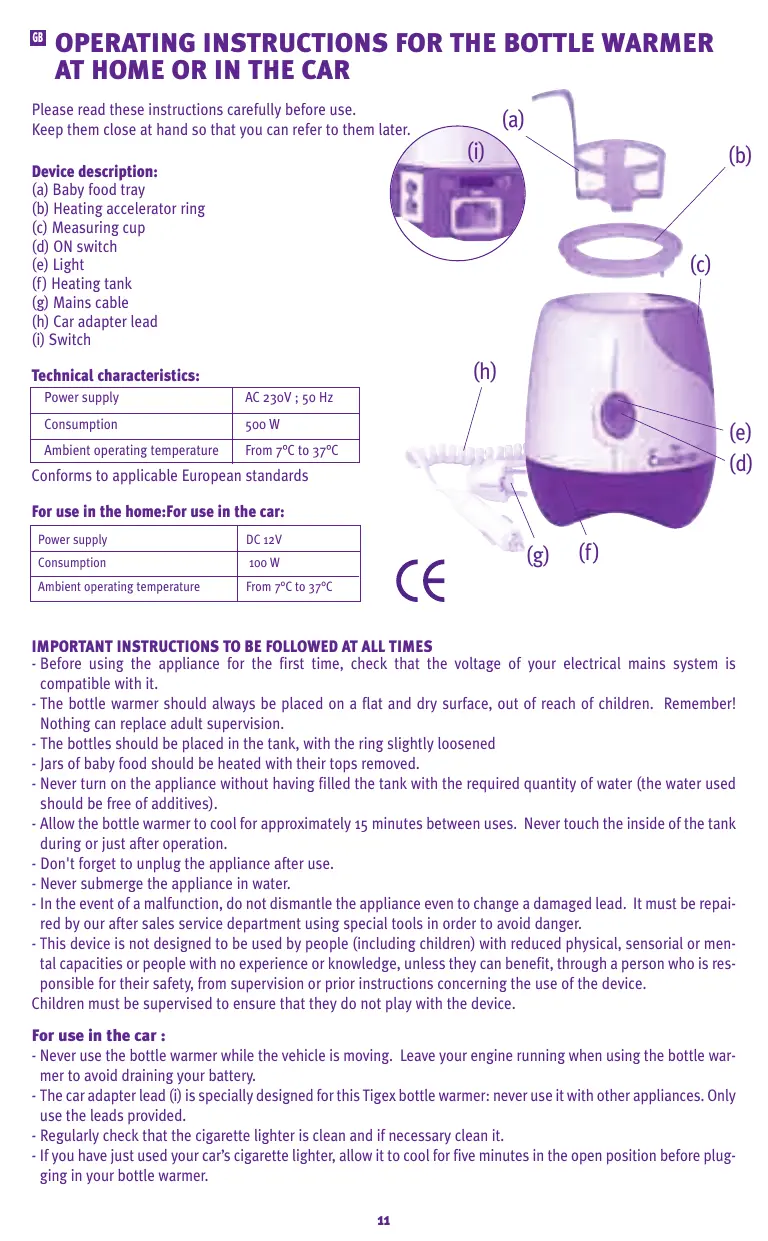

USER MANUAL 700220 TIGEX

Chauffe-biberon express Auto & Maison

Calienta biberones
expres casa/coche

Express bottle warmer for the car and home

Scaldabiberon ultrarapidoauto e casa

Please read these instructions carefully before use.

Keep them close at hand so that you can refer to them later.

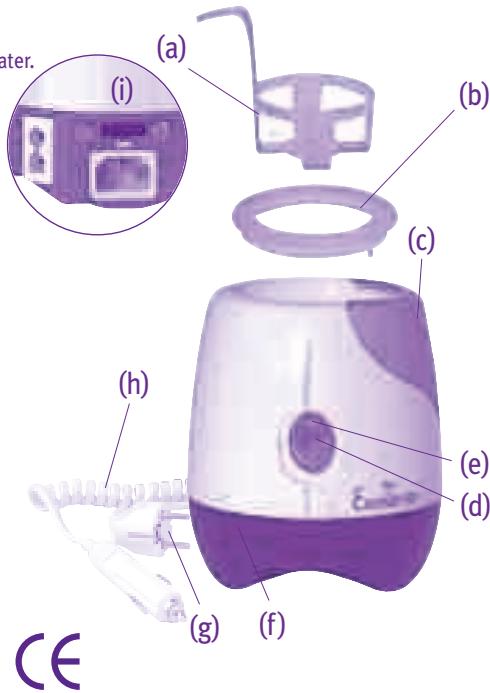

Device description:

(a) Baby food tray
(b) Heating accelerator ring
(c) Measuring cup
(d) ON switch
(e) Light
(f) Heating tank
(g) Mains cable
(h) Car adapter lead
(i) Switch

Technical characteristics:

Power supply	AC 230V; 50 Hz
Consumption	500 W
Ambient operating temperature	From 7°C to 37°C

Conforms to applicable European standards

For use in the home:For use in the car:

Power supply	DC 12V
Consumption	100 W
Ambient operating temperature	From 7°C to 37°C

IMPORTANT INSTRUCTIONS TO BE FOLLOWED AT ALL TIMES

• Before using the appliance for the first time, check that the voltage of your electrical mains system is compatible with it.
• The bottle warmer should always be placed on a flat and dry surface, out of reach of children. Remember! Nothing can replace adult supervision.
• The bottles should be placed in the tank, with the ring slightly loosened
• Jars of baby food should be heated with their tops removed.
• Never turn on the appliance without having filled the tank with the required quantity of water (the water used should be free of additives).
• Allow the bottle warmer to cool for approximately 15 minutes between uses. Never touch the inside of the tank during or just after operation.
• Don't forget to unplug the appliance after use.
• Never submerge the appliance in water.
• In the event of a malfunction, do not dismantle the appliance even to change a damaged lead. It must be repaired by our after sales service department using special tools in order to avoid danger.
• This device is not designed to be used by people (including children) with reduced physical, sensorial or mental capacities or people with no experience or knowledge, unless they can benefit, through a person who is responsible for their safety, from supervision or prior instructions concerning the use of the device.
  Children must be supervised to ensure that they do not play with the device.

For use in the car :

• Never use the bottle warmer while the vehicle is moving. Leave your engine running when using the bottle warmer to avoid draining your battery.
• The car adapter lead (i) is specially designed for this Tigex bottle warmer: never use it with other appliances. Only use the leads provided.
• Regularly check that the cigarette lighter is clean and if necessary clean it.
• If you have just used your car's cigarette lighter, allow it to cool for five minutes in the open position before plugging in your bottle warmer.

1/ Fill the bottle warmer's measuring cup (c) with water, following the instructions shown below, then pour this water into the tank (f).

Bottles

Volume contained in the bottle	Initial temperature of the liquid to be heated	Amount of water to be poured in the tank for use in the house	Approximate heating time for use in the house*	Amount of water to be poured in the tank for use in the car	Approximate heating time for use in the car*
120 ml	20°C	8 ml	1 min 28 s	4 ml	6 min 15 s
240 ml	20°C	8 ml	1 min 48 s	5 ml	8 min 06 s
330 ml	20°C	10 ml	2 min 12 s	6 ml	10 min 15 s
120 ml	4°C	12 ml	2 min 17 s	6 ml	6 min 55 s
240 ml	4°C	13 ml	2 min 52 s	6 ml	11 min 54 s
330 ml	4°C	18 ml	3 min 40 s	7 ml	13 min 57 s

Jars of baby food

Volume contained in the jars of baby food	Initial temperature of the food	Amount of water to be poured in the tank for use in the house	Approximate heating time for use in the house*	Amount of water to be poured in the tank for use in the car	Approximate heating time for use in the car*
130 g	20°C	12 ml	1 min 52 s	7 ml	6 min 50 s
190 g	20°C	19 ml	2 min 45 s	11 ml	10 min 15 s
130 g	4°C	33 ml	3 min 59 s	17 ml	13 min 44 s
190 g	4°C	41 ml	5 min 38 s	19 ml	16 min 40 s

*Manufacturer's data.

The average heating time experienced in reality may vary slightly according to the conditions of use. Note: bottles and baby food are heated up by the steam produced by the boiling of the water.

The sizes and material (glass or plastic) of the bottle or jars of baby food as well as the type and quantity of the liquid to be heated have an effect on the final temperature of the contents. If you find that your bottles or jars of baby food are not warm enough at the end of the heating cycle, use a little more water next time. If, on the other hand they are too hot, you should reduce the amount of water used.

2/ Place the bottle (slightly open) in the tank (f).

For a jar of baby food (with its top removed) use the baby food tray (a).

Tigex Excellence tips :

In order to avoid the risk of bacteria reproducing you should prepare and heat your bottles and jars of baby food just before the meal. Never keep an unfinished bottle.

Food should not be heated up for long periods

3/ For small bottles, fit the adapter ring (b) to the tank (f).

4/ \* USE IN THE HOME

Plug the appliance into the mains using the mains power cable (g). Turn the switch (i) located on the back of the appliance to the "home" position.

* USE IN THE CAR

Plug the car adapter lead (h) into the back of the appliance and turn the switch (i) located on the back of the appliance to the "car" position. Then plug the lead (h) into the cigarette lighter of your car.

5/ Press the ON switch (d) to begin the heating cycle. The light comes on (e). The "ON" button cannot be used to turn off the appliance. The heater turns off automatically at the end of the heating cycle.

CAUTION! The steam given off during the heating cycle is very hot. Do not bring your hand near the appliance while it is operating.

6/ Without waiting, carefully remove the bottle or small pot and then turn the switch (i) located at the back of the appliance to the OFF position. You can then unplug the appliance.

For a bottle: tighten the ring and shake well to mix up the contents. Pour a few drops of liquid on the back of your hand to check the temperature.

For jars of baby food: stir the contents and check the temperature.

Make sure that the appliance is cool before cleaning it or putting it away.

Cleaning your bottle warmer :

Always unplug the appliance and wait until it is cool before cleaning it.

Use a damp cloth to clean the inside and outside of the tank (f). Never submerge the tank (f) in water. Do not use abrasive products.

Adapter ring (b), tray (a) and measuring cup (c) can be washed using a sponge with soap and water or can be cleaned in the dishwasher in the top tray.

Dscaling the tank :

According to the quality of the water used, a limescale deposit can build up on the bottom of the tank (f) over time. You should regularly descale your bottle warmer by pouring a mixture of 100ml of hot water +100ml of white vinegar into the tank (f). Leave this to act for approximately 30 minutes before emptying the tank (f) and wipe with a damp cloth. Detergent products should not be used.

Warranty :

If the unit is looked after carefully, and the operating instructions are followed, the manufacturer guarantees it for 2 years from the date of purchase. We undertake to repair the unit free of charge if poor materials or design faults are to blame. Further claims will not be entertained. Damage caused by inappropriate use of the unit will not be compensated. The supply cable and plug are excluded from the warranty insofar as wear is concerned. Within the first two years from date of purchase, we will eliminate defects acknowledged as justified without invoicing any additional costs incurred. Clarify in advance who is going to accept responsibility for costs. The unit must in any case be sent in accompanied by the warranty note or other evidence of purchase date. If no evidence of purchase date is supplied, we will invoice costs without making further enquiries. The unit will then be returned and payment demanded on delivery.

This guarantee applies in all countries in which the product is sold.

Regardless of the circumstances, the legal guarantee will always apply, in conformity with the law.
