USER MANUAL DMH 250-2 EINHELL

When using equipment, a few safety precautions must be observed to avoid injuries and damage.

Please read the complete operating manual with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, give them these operating instructions as well.

We accept no liability for damage or accidents which arise due to non-observation of these instructions and the safety information.

1. Safety regulations

CAUTION!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

Take suitable precautions to protect yourself and your environment from potential hazards.

Never put the chisel hammer to any use other than that intended.
Be careful with combustible materials. Sparks may be caused by impact.
Keep pneumatic tools safe from children.
Always concentrate while you work. Do not work if you are tired.
- Use only a quick-release coupling to connect up the air supply.
- It is imperative to use a pressure reducer to set the working pressure.
- Never use oxygen or combustible gases as an energy source.
- Never allow the tool to run unloaded at full idle speed.
Always disconnect the tool from the air supply before carrying out any repairs or maintenance work.
- Use only original replacement parts.

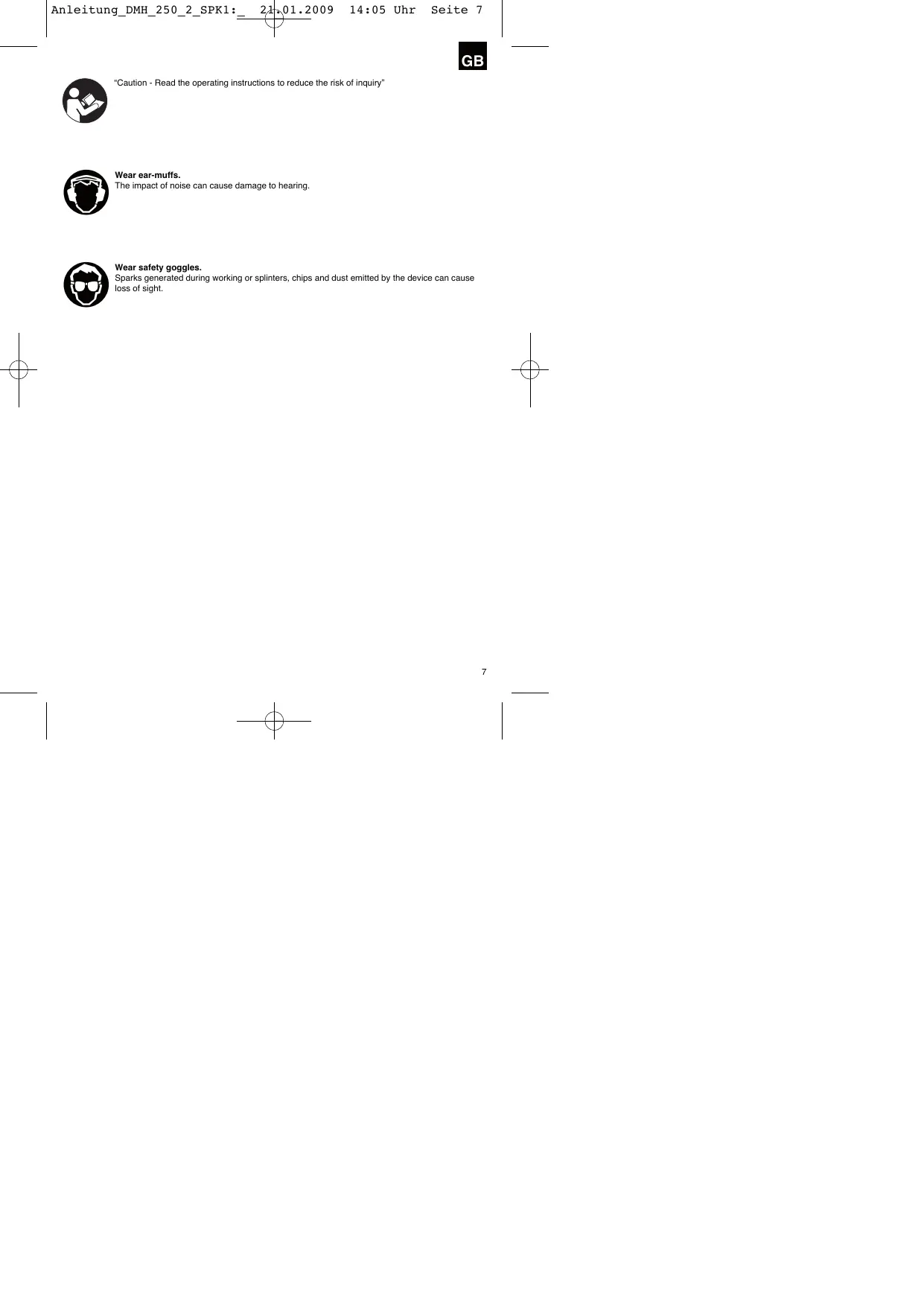

- Wear the necessary protective clothing, particularly goggles, ear-muffs and safety gloves, when working with the chisel hammer.

2. Layout (Fig. 1)

1 trigger lever
2 air regulating screw
3 cylinder
4 clamping spring
5 plug-in nipple for air supply

3. Proper use

The chisel hammer is a pneumatic tool for general use. It can be used, for example, to cut grooves, to remove tiles or plaster, to knock holes through walls, to cut metal sheet and plate, and to knock off bolts and rivets.

The exhaust air leaves the housing to the front.

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

Repairs and maintenance work are to be carried out only by authorized specialist workshops.

Please note!

The power of the tool will be reduced if you use a hose that has too small an inner diameter or which is too long.

4. Technical data

Permissible working pressure max.:	6,3 bar
Air consumption:	115 l/min
Chisel holder (hexagonal):	9.8 mm
Stroke:	43 mm
Blow rate:	4500 blows/min
Recommended hose diameter:	Ø 10 mm
Sound pressure level LpA:	98.4 dB (A)
Sound power level LWA:	109.4 dB (A)

Vibration a_ 2.77 m/s²

Weight: 1.1 kg

Air quality

cleaned and oiled

Air supply

via conditioning unit with filter pressure reducer and mist oiler

Compressor capacity

approx. 250 l/min. equivalent to a motor rating of 2.2 kW

Work settings

6 bar working pressure set at the pressure reducer or filter pressure reducer

5. Putting into operation

Screw the supplied plug-in nipple into the air connection after you have wound 2 to 3 layers of sealing tape around the thread. Insert the chisel of your choice in the hexagon tool holder. Slide the clamping spring over the chisel. Holding the clamping spring by its front clip, screw the clamping spring onto the thread of the cylinder as far as the stop. Use a flexible pneumatic pipe (internal 0 10 mm) and quick-action coupling to connect the chisel hammer to a powerful compressor or compressed-air system. Make sure that the air regulating screw (2) is open. Move the chisel hammer toward the workpiece and press the trigger lever (1) to start the tool.

To change the chisel, disconnect the tool from the air supply. Holding the clamping spring by its rear clip, screw the clamping spring off the cylinder of the chisel hammer. The chisel can be changed as described above.

The chisel shaft should be lubricated occasionally with a little standard grease.

6. Maintenance and cleaning

Observance of the following maintenance instructions will ensure that this quality tool gives you years of troublefree service. Clean the tool thoroughly as soon as you are finished with your work.

Regular lubrication is vital for the long-term, reliable operation of your chisel hammer. Use only special tool oil for this purpose.

You can choose from the following options for lubricating the tool:

6.1 By mist oiler

A complete conditioning unit includes a mist oiler and is fitted to the compressor.

6.2 By hand

Each time before you use your impactscrewdriver, feed 3-5 drops of special tool oil into the air connection. If the pneumatic tool has not been used for several days, you must feed 5-10 drops of oil into the air connection before you switch on. Keep your pneumatic tool in dry rooms only.

7. The warranty does not cover:

Wearing parts
- Damage caused by an unacceptable level of working pressure.
- Damage caused by unconditioned compressed air.
- Damage caused by improper use or unauthorized tampering.

8. Cleaning, maintenance and ordering of spare parts

8.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
  We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.

8.2 Maintenance

There are no parts inside the equipment which require additional maintenance.

8.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Type of machine
- Article number of the machine
- Identification number of the machine
- Replacement part number of the part required

GB

For our latest prices and information please go to www.isc-gmbh.info

9. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system.

The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Attention!

X 98/37/EC
2006/95/EC
97/23/EC
2004/108/EC
□ 90/396/EEC
89/686/EEC

404/EEC
R&TTED 1999/5/EC
2000/14/EC_2005/88/EC:
95/54/EC:
97/68/EC:

EN 792-4

Subject to change without notice
