USER MANUAL TWISTER 2000 FLYMO

INSTRUCTION MANUAL IMPORTANT INFORMATION: Please read these instructions carefully and make sure you understand them before using this unit. Retain these instructions for future reference.

Safety Explanation of Symbols on the Blower/Vacuum

WARNING: This unit can be

Switch off! Remove plug from mains before adjusting, cleaning or if cable is entangled or damaged. dangerous! Careless or improper use can cause serious injury. Keep others, including children, pets and bystanders outside the 10 metre hazard zone. Read the user instructions carefully to make sure you understand all of the controls and what they do. Do not operate in the rain or leave the blower/ vacuum outdoors while raining. The use of eye protection is recommended. General

Never allow children under age of 14 or people unfamiliar with these instructions to use the product. Local regulations may restrict the age of the operator. Only use the product in the manner and for the functions described in these instructions. Never operate the product when you are tired, ill or under the influence of alcohol, drugs or medicine. The operator or user is responsible for accidents or hazards occurring to other people or their property. Electrical

The British Standards Institute recommend the use of a Residual Current Device (R.C.D.) with a tripping current of not more than 30mA. Even with a R.C.D. installed 100% safety cannot be guaranteed and safe working practice must be followed at all times. Check your R.C.D. every time you use it. Before use, examine cable for damage, replace it if there are signs of damage or ageing. Do not use the product if the electric cables are damaged or worn. Immediately disconnect from the mains electricity supply if the cable is cut, or the insulation is damaged. Do not touch the electric cable until the electrical supply has been disconnected. Do not repair a cut or damaged cable. Replace it with a new one.

Your electric cable must be uncoiled, coiled cables can overheat and reduce the efficiency of the product. Do not pull cable around sharp objects. Always switch off at the mains before disconnecting any plug, cable connector or extension cable. Switch off, remove plug from mains and examine electric supply cable for damage or ageing before winding cable for storage. Do not repair a damaged cable, replace it with a new one. Use only genuine replacement cable. Never carry the product by the cable. Never pull on the cable to disconnect any of the plugs. Always wind cable carefully, avoiding kinking. Use only on AC mains supply voltage shown on the product rating label. Our products are double insulated to EN60335. Under no circumstance should an earth be connected to any part of the product. Preparation

Always wear suitable clothing, gloves, and stout shoes. The use of eye protection is recommended. The use of ear protection is recommended. To prevent dust irritation, the wearing of a face mask is recommended. Do not wear loose clothing or jewellery that can be drawn into the air inlet.

Do not wear clothing with attachments, i.e. toggles or drawstrings that can be drawn into the air inlet. Inspect your product before each use. Replace any worn or damaged parts. Do not use if any part is damaged or broken or if any of the screws are loose. Have it repaired by an authorised repairer. Always check your product is in a safe operating condition before use. Use

Use the product only in daylight or good artificial light. Do not use the product when it is raining or in damp and wet areas. Never use the product in or near water or ponds. Know how to stop the product quickly in an emergency. On slopes, be extra careful of your footing and wear non-slip footwear. Never pick up or carry the product by the cable. Keep children, pets and bystanders at a safe distance when using your product. Keep long hair away from air inlet. Keep all inlets clear of debris.

10. Always remain alert.

11. Do not attempt to use your product for

vacuuming without the fully assembled debris bag fitted.

12. Never blow debris in the direction of

13. Do not overreach. Keep proper footing and

balance at all times.

14. Remove the plug from the mains :

- before removing or replacing fully assembled debris bag; - before leaving the product unattended for any period; - before clearing a blockage; - before checking or cleaning the appliance; - if the product starts to vibrate abnormally. Check immediately. Excessive vibration can cause injury. Maintenance and storage

Keep all nuts, bolts and screws tight to be sure the product is in a safe working condition. Replace worn or damaged parts for safety. After use the product should be stored in a safe place where it is protected from damage. Inspect the collection bag regularly. If the collection bag becomes worn or damaged, replace. Cables IMPORTANT

Use only 1.00mm2 size cable up to 30 metres length maximum. Maximum rating :

Mains cables and extensions are available from your local Husqvarna Outdoor Products Approved Service Centre. Only use extension cables specifically designed for outdoor use. 1.00mm2 size cable, 10 amps 250 volts AC. Assembly Instructions

WARNING: Stop the unit and disconnect the

mains electricity supply before opening the inlet cover or attempting to insert or remove the inlet restrictor, blower tube, or vacuum tubes. The motor must be stopped and the impeller blades no longer turning to avoid serious injury from the rotating blades.

WARNING: If received assembled, ensure

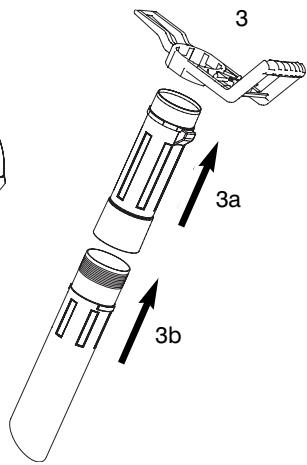

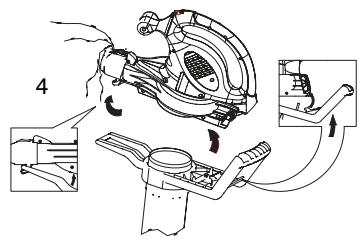

your unit is properly assembled and all fasteners are secure. Vacuum Assembly

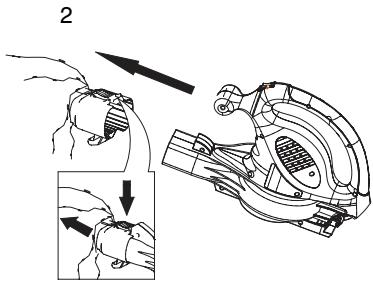

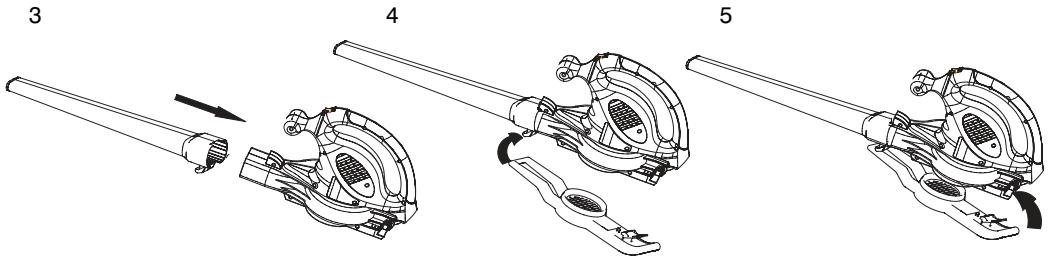

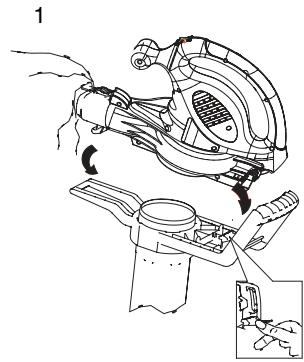

How to convert unit from vacuum use to blower use

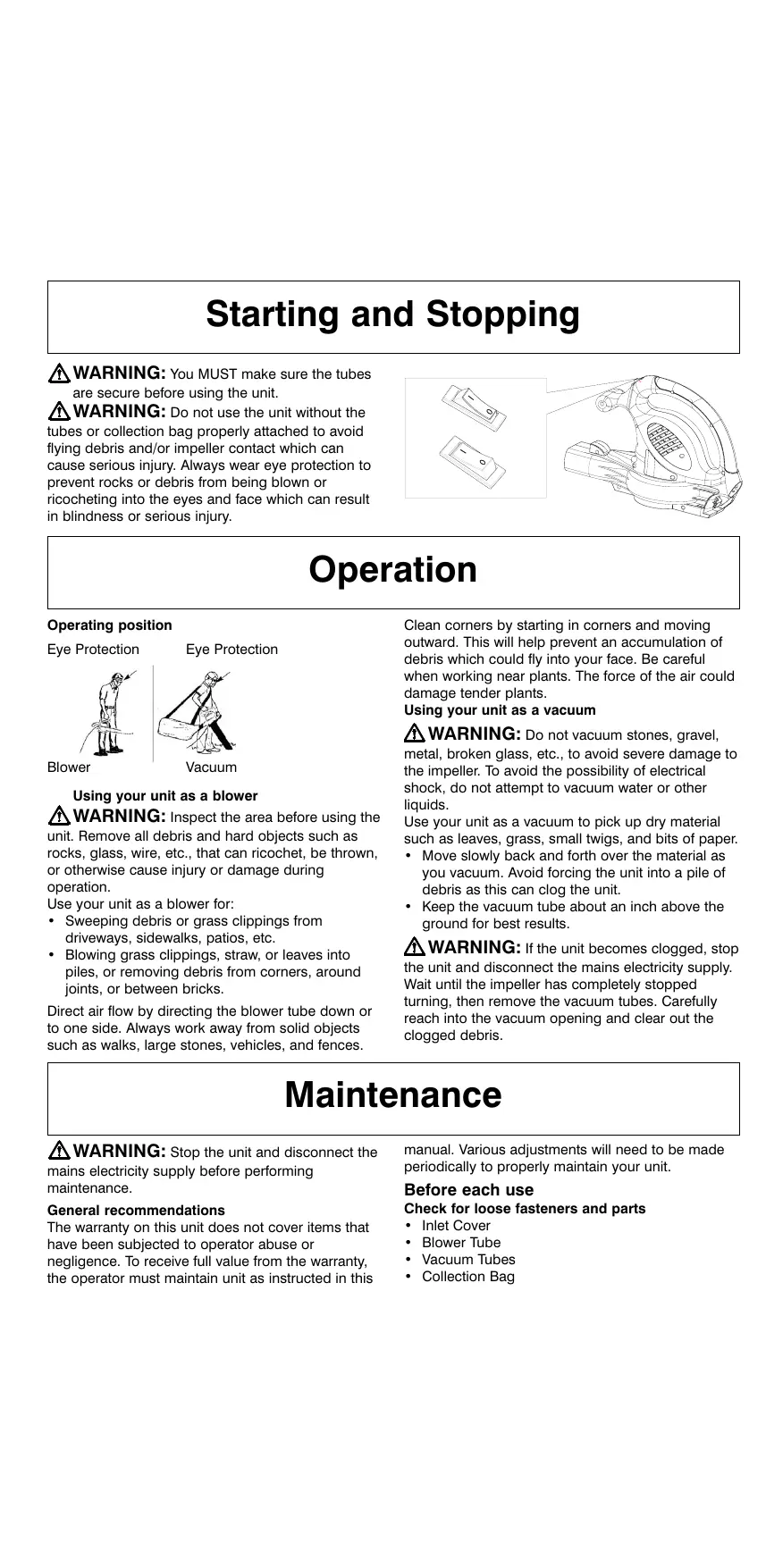

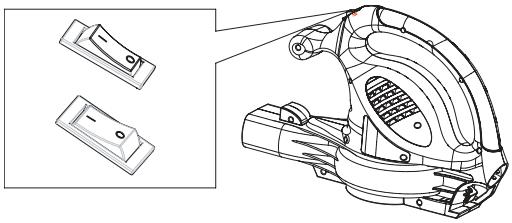

Starting and Stopping

WARNING: You MUST make sure the tubes

are secure before using the unit.

WARNING: Do not use the unit without the

tubes or collection bag properly attached to avoid flying debris and/or impeller contact which can cause serious injury. Always wear eye protection to prevent rocks or debris from being blown or ricocheting into the eyes and face which can result in blindness or serious injury. Operation Operating position Eye Protection Blower Clean corners by starting in corners and moving outward. This will help prevent an accumulation of debris which could fly into your face. Be careful when working near plants. The force of the air could damage tender plants. Using your unit as a vacuum Eye Protection Vacuum Using your unit as a blower

WARNING: Inspect the area before using the

unit. Remove all debris and hard objects such as rocks, glass, wire, etc., that can ricochet, be thrown, or otherwise cause injury or damage during operation. Use your unit as a blower for:

• Sweeping debris or grass clippings from driveways, sidewalks, patios, etc.
• Blowing grass clippings, straw, or leaves into piles, or removing debris from corners, around joints, or between bricks. Direct air flow by directing the blower tube down or to one side. Always work away from solid objects such as walks, large stones, vehicles, and fences.

WARNING: Do not vacuum stones, gravel,

metal, broken glass, etc., to avoid severe damage to the impeller. To avoid the possibility of electrical shock, do not attempt to vacuum water or other liquids. Use your unit as a vacuum to pick up dry material such as leaves, grass, small twigs, and bits of paper.

• Move slowly back and forth over the material as you vacuum. Avoid forcing the unit into a pile of debris as this can clog the unit.
• Keep the vacuum tube about an inch above the ground for best results.

WARNING: If the unit becomes clogged, stop

the unit and disconnect the mains electricity supply. Wait until the impeller has completely stopped turning, then remove the vacuum tubes. Carefully reach into the vacuum opening and clear out the clogged debris. Maintenance

WARNING: Stop the unit and disconnect the

mains electricity supply before performing maintenance. manual. Various adjustments will need to be made periodically to properly maintain your unit. General recommendations The warranty on this unit does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, the operator must maintain unit as instructed in this Check for loose fasteners and parts

• Collection Bag Before each use Check for damaged or worn parts Please contact your local Husqvarna Outdoor Products Approved Service Centre for further information or for replacement of damaged or worn parts.
• ON/OFF Switch - Ensure switch functions properly by moving the switch to the OFF position. Make sure motor stops; then restart motor and continue.
• Inlet Cover - Discontinue use of unit if inlet cover fails to latch properly or if it is damaged in any way. After each use Clean collection bag

IMPORTANT: THE COLLECTION BAG

MUST BE PROPERLY EMPTIED.

• You must properly empty and maintain the collection bag to avoid deterioration and obstruction of air flow.
• Remove the collection bag from the unit and empty after each use. Do not store bag without emptying the bag of all contents (grass, leaves, etc.).
• Wash the bag once a year. Remove the bag from the blower and turn the bag inside out. Wash the bag with a water hose. Allow the bag to hang and dry completely before you reuse the bag. Inspect and clean unit and labels Stop unit and disconnect the mains electricity supply.
• After each use, inspect complete unit for loose or damaged parts. Clean the unit using a damp cloth with a mild detergent.
• Wipe off unit with a clean dry cloth. Service

WARNING: All internal or electrical service

MUST be performed by your local Husqvarna Outdoor Products Approved Service Centre. How to remove an object from the air intake

WARNING: Stop the unit and disconnect the

mains electricity supply before opening the inlet cover. The motor must be stopped and the impeller blades no longer turning to avoid serious injury from the rotating blades.

1. While holding the inlet cover open, remove the

vacuum tubes. The inlet cover must be held open through all remaining steps.

2. Carefully reach into the vacuum opening and

clear out the air intake area. Clear all debris from impeller.

3. Inspect the impeller for cracks. If cracked or

damaged, do not use the unit. Have parts replaced by your local Husqvarna Outdoor Products Approved Service Centre. Do not attempt to replace them yourself. Storage

WARNING: Perform the following steps after

• Stop the unit and disconnect the mains electricity supply.
• Allow motor to cool before storing or transporting.
• Store unit with all guards in place. Position unit so that any sharp object cannot accidentally cause injury.
• Store unit unplugged, well out of the reach of children. Seasonal storage Prepare unit for storage at the end of the season or if it will not be used for 30 days or more. If your blower is to be stored for a period of time:

• Stop the unit and disconnect the mains electricity supply.
• Clean the entire unit before lengthy storage.
• Open inlet cover and clean any dirt, grass, or debris that has collected. Inspect the blower and all tubes. Close and make sure the cover is latched.
• Clean air vents and air inlet of debris.
• Store your unit in a well ventilated area and covered, if possible, to prevent dust and dirt accumulation. Do not cover with plastic. Plastic cannot breathe and may cause condensation and eventual rust or corrosion.
• Check entire unit for loose screws. Replace any damaged, worn, or broken parts. Fault Finding Chart

Always stop the unit and disconnect the mains electricity supply before performing all of the recommended remedies below except remedies that require unit to be operating. FAULT CHECK ACTION Unit fails to operate.

1. Switch in the OFF position.

2. Mains cable disconnected

from electricity supply.

3. Circuit breaker tripped, or

4. Mechanical failure.

1. Slide switch to ON position.

Outdoor Products Approved Service Centre. Unit vibrates abnormally.

1. Debris hung on impeller.

2. Mechanical failure.

Outdoor Products Approved Service Centre. Impeller will not turn freely.

1. Debris in air intake area or

2. Mechanical failure.

2. Contact your local Husqvarna

Outdoor Products Approved Service Centre. Environmental Information Husqvarna Outdoor Products are manufactured under an Environmental Management System (ISO 14001) using,where practical,components manufactured in the most environmentally responsible manner, according to company procedures,and with the potential for recycling at the end of the products’ life. Packaging is recyclable and plastic components have been labelled (where practical) for categorised recycling.

• Awareness of the environment must be considered when disposing of ‘end-of-life’ product.
• If necessary, contact your local authority for disposal information. The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council office, your household waste disposal service or the shop where you purchased the product. Service Recommendations
• Your product is uniquely identified by a product rating label.
• We strongly recommend that your product is serviced at least every twelve months. Guarantee & Guarantee Policy If any part is found to be defective due to faulty manufacture within the guarantee period, Husqvarna Outdoor Products, through its Authorised Service Repairers will effect the repair or replacement to the customer free of charge providing: (a) The fault is reported directly to the Authorised Repairer. (b) Proof of purchase is provided. (c) The fault is not caused by misuse, neglect or faulty adjustment by the user. (d) The failure has not occurred through fair wear and tear. (e) The machine has not been serviced or repaired, taken apart or tampered with by any person not authorised by Husqvarna Outdoor Products. (f) The machine has not been used for hire. (g) The machine is owned by the original purchaser. (h) The machine has not been used outside of the country for which it was specified. (i) The machine has not been used commercially.
• This guarantee is additional to, and in no way diminishes the customers statutory rights. Failures due to the following are not covered, therefore it is important that you read the instructions contained in this Operator’s Manual and understand how to operate and maintain your machine: Failures not covered by guarantee

Failures as a result of not reporting an initial fault. Failures as a result of sudden impact. Failures as a result of not using the product in accordance with the instructions and recommendations contained in this instruction manual. Machines used for hire are not covered by this guarantee. The following items listed are considered as wearing parts and their life is dependent on regular maintenance and are, therefore not normally subject to a valid warranty claim: electric mains cable, collection bag Caution! Husqvarna Outdoor Products does not accept liability under the warranty for defects caused in whole or part,directly or indirectly by the fitting of replacement parts or additional parts that are not either manufactured or approved by Husqvarna Outdoor Products, or by the machine having been modified in any way. EC Declaration of Conformity I, the undersigned M. Bowden of Husqvarna Outdoor Products, Aycliffe Industrial Park, NEWTON AYCLIFFE, Co. Durham. DL5 6UP. Certify that the product: Category Leaf Blower/Collector Make . . . Husqvarna Outdoor Products Conforms to the specifications of Directive 2000/14/EEC I, the undersigned M. Bowden of Husqvarna Outdoor Products, Aycliffe Industrial Park, NEWTON AYCLIFFE, Co. Durham. DL5 6UP. Certify that a sample of the above product has been tested using directive 81/1051/EEC as a guide. The maximum A - weighted sound pressure level recorded at operator position under free field semi anechoic chamber conditions was : Identification of Series See Product Rating Label Conformity Assessment Procedure ANNEX V Other Directives : 98/37/EEC, 89/336/EEC, 73/23/EEC & applicable standards : EN60555-2:1987, EN60555-3:1987, EN55014-1:1993, EN55014-2:1995 EN60335-1:1994

I, the undersigned M. Bowden of Husqvarna Outdoor Products, Aycliffe Industrial Park, NEWTON AYCLIFFE, Co. Durham. DL5 6UP. Certify that a sample of the above product has been tested using ISO 5349 as a guide. The maximum weighted root mean square value of vibration recorded at operator’s hand position was: Type Guaranteed sound power level Measured sound power level Level Value Nominal Air Flow Weight Twister 2000 107 dB(A) 105 dB(A) 92 dB(A) 15 m/s2 0,167 m3/s 4,2 kg Newton Aycliffe, 13/06/2006 M. Bowden, Research & Development Director Sécurité Explication des symboles figurant sur l’aspirateur-souffleuse
