Product type	Portable liquid fuel heater
Brand	QLIMA
Model	SRE 1330 TC-2
Dimensions (L × D × H)	371 × 299 × 429 mm
Weight	7.7 kg
Power supply	230 V AC – 50 Hz
Recommended fuel	Qlima Premium Quality Fuels or PTX (compliant with 2002/2010 decrees)
Heat output min./max.	1080 W / 3000 W
Fuel consumption min./max.	0.113 L/h / 0.313 L/h
Removable tank capacity	5.0 L
Runtime min./max.	16 h / 44 h
Recommended room volume (min./max.)	48 m³ / 120 m³
Power consumption (ignition / operation)	335 W / 250 W
Average power consumption (min./max.)	78 W / 123 W
Noise level min./max.	28 dB / 35 dB
Main functions	Electronic ignition, adjustable thermostat (5–26 °C), timer, clock, digital display, child lock, fuel indicator, automatic shutdown after 36 h
Safety	Automatic shutdown in case of shock (code E01), overheating (E07), fan obstruction (Filter), incomplete combustion (E13), power cut (Time----), child lock (Child Lock)
Maintenance	Clean fan filter and fuel filter (with fuel, never with water). Do not use solvents.
Included accessories	Transport cap
Warranty	2 years (manufacturing defects), excluding consumables and normal wear
Repairability	Repairs by approved specialist. Spare parts through dealer or manufacturer.

Frequently Asked Questions - SRE 1330 TC-2 QLIMA

What fuel to use with the Qlima SRE 1330 TC-2 heater?

Use exclusively high-quality liquid fuel for mobile heating, such as Qlima Premium Quality Fuels or PTX, compliant with French decrees of 18/07/2002 and 25/06/2010. Using another fuel may cause breakdowns, odors, or fire hazards and voids the warranty.

Why does my heater emit a new smell during first use?

It's normal: the protective paint heats for the first time. This odor disappears quickly. Ventilate the room during the first hours of operation.

What room volume is needed to use this heater safely?

The minimum recommended volume is 48 m³ (about 20 m² with a ceiling height of 2.4 m). The maximum recommended volume is 120 m³. Do not use in a smaller room, in a basement, or above 1000 m altitude.

How to use the child lock (Child Lock)?

Press the CHILD LOCK button (item 15) for more than 3 seconds until a beep is heard. The CHILD LOCK icon appears on the screen. Only the ON/OFF button remains active. To deactivate, press again for 3 seconds.

What to do if the display shows an error code like E01, E07, or E13?

Refer to the code table in the manual: E01 = shock or vibration (check the device and restart); E07 = overheating (ventilate the room); E13 = incomplete combustion (ventilate and ensure sufficient ventilation). If the problem persists, contact your dealer.

How to clean the fuel filter?

Turn off the device and let it cool. Remove the removable tank, then the fuel filter. Clean it with clean fuel or using a blow gun (never with water). Put it back after drying.

Can I use the heater as a main heating source?

No, this product is a supplementary heater for intermittent use. It cannot operate continuously for more than 36 hours (automatic shutdown beyond that). It does not replace central heating.

How to transport the heater safely?

Let the device cool, remove the removable tank and empty the fixed tank. Place the provided transport cap (on the fixed tank) to prevent leaks. Always transport the heater in an upright position.

What does the 'OIL' indicator light mean?

The tank is almost empty. The device automatically reduces its power (low burner) for about 80 minutes. Fill the removable tank to resume normal operation. If you do not fill, the device stops (code E03).

How to program the automatic start (timer)?

Make sure the time is set (chapter C). Press MODE (item 18) until 'Timer set' flashes. Set the desired time with the +/- keys (19). Press ON/OFF (20) then timer (17). The green timer indicator lights up. The heater will start at the chosen time.

USER MANUAL SRE 1330 TC-2 QLIMA

GB This product is not suitable for primary heating purposes

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Do not move the heater when it is burning or still hot. Do not refill nor service the heater when it is burning or still hot.
• Position the front of the heater at a distance of minimum 1.5 metres from walls, curtains, and furniture.
• Do not use the heater in dusty rooms or places with strong draughts. In either situation you will not have optimum burning. Do not use the heater in the immediate surrounding of a bath, a shower or a swimmingpool.
• Switch off the heater, before you leave or go to sleep. Unplug the heater as well, when you go away for a longer period of time (e.g. holidays).
• Store and move fuel only in suitable tanks and jerrycans.
• Make sure that the fuel is not exposed to heat or extreme temperature changes. Always store the fuel in a cool, dry and dark place (sunlight will affect the quality).
• Never use the heater in places where harmful gasses or fumes may be present (e.g. exhaust gasses or paint fumes).
• Beware that the grid of the heater becomes hot. If the appliance is covered there is a risk of fire.
  • Always make sure that there is sufficient ventilation.
  • This appliance can be used by children aged

from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.

DANGER

• Do not immerse the appliance in water and do not let water run into it.
• Never open the appliance to prevent electric shock.

WARNING

• The installation must be completely in accordance with local regulations, ordinances and standards.
• Check if the voltage indicated on the type plate corresponds to the local mains voltage before you connect the appliance.
• The appliance is suitable for mains voltages ranging from \~230 V.
• If the mains cord is damaged, you must have it replaced by an authorized service centre or similarly qualified persons in order to avoid a hazard.
  • Always return the appliance to an authorized service centre for examination or repair.
• Repair by unqualified people could cause an extremely hazardous situation for the user.
• Do not attempt to repair the appliance yourself, otherwise your guarantee becomes invalid.
• Keep the mains cord away from hot surfaces.
  • Children should be supervised to ensure that

they do not play with the appliance.

• The plug must be accessible at all times.
• Do not insert objects into the openings of the device.
• The device must not be located immediately below a socket outlet.
• In order to avoid overheating, do not cover the device.
• Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.
• The heater is to be installed so that switches and other controls cannot be touched by a person in the bath or shower.
  • Children of less than 3 years should be kept away unless continuously supervised.
• Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.
• CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

CAUTION

• Switch off the appliance and disconnect it from the mains immediately if it produces a strange smell or an abnormal noise. Take the appliance to an authorized service centre.
• Switch off the appliance and unplug it accord-

ing to the user instructions before you move or clean it.

• Make sure the appliance and the mains cord are always out of reach of babies (at least one metre away).
• Do not use the appliance if not IPX4 protection class (see type plate) in damp places or close to water. Only IPX4 class appliances are suitable for these circumstances.
• Do not use the appliance in places where the humidity level exceeds 95%.
• Do not expose the appliance to extreme heat or cold or to direct sunlight.
• Do not use the appliance outdoors.
• Never tilt or move the appliance while it is operating.
• Do not use any extension cords or multi-socket adapters.
• Always take the plug out of the socket when the device is not in use.

① CONSIGLI PER UN USO SICURO

Line drawing of a plastic bottle with a recycling symbol on top (no text or labels)

LE COMBUSTIBLE APPROPRIÉ

Simple line drawings of an open box, a card, and a pair of eyeglasses (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grilles and cooling connectors (no text or symbols)

Illustration of a hand inserting a CD into a washing machine with an arrow indicating direction (no text or symbols)

Diagram of a hand holding a curved mechanical component with a rotating arrow indicating rotation (no text or symbols)

Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

A INSTALLATION DE L'APPAREIL

Combustion normale:

Illustration of a hand using a tool to adjust or install a device with a grid-patterned panel (no text or symbols visible)

Diagram of a mechanical device inside a container with an arrow indicating motion (no text or symbols)

Diagram of a mechanical device with a hand pressing a component, showing no text or symbols.

J L'INDICATEUR 'OIL'

Illustration of a hand using a pipette to clean water from a washing machine, with a water dispenser and small container nearby (no text or symbols)

Bouchon de transport

L ENTREPOSAGE (FIN DE LA SAISON)

Line drawing of a plastic bottle with a recycling symbol on top (no text or labels)

Illustration of an open box with a card, a plastic sheet, and a small bag (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation slots and wiring (no text or symbols)

Illustration of a hand inserting a CD into a washing machine with an arrow indicating direction (no text or symbols)

Diagram of a hand holding a valve with a rotating arrow indicating rotation (no text or symbols)

Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

A DIE INSTALLATION DES KAMINOFENS

Illustration of a hand inserting a plug into a device labeled 'R' (no text or symbols on the device itself)

Diagram of a mechanical device inside a container with an arrow indicating motion (no text or symbols)

Diagram of a laboratory setup with a funnel and test tube, showing a downward arrow indicating a process (no text or symbols present)

J DIE BRENNSTOFFANZEIGE „OIL“

Illustration of a kitchen appliance with a hand using a tool, accompanied by a water dispenser and a small bowl (no text or symbols)

Line drawing of a plastic bottle with a recycling symbol on top (no text or labels)

Simple line drawings of an open box, a card, and a pair of eyeglasses (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grilles and attached cable (no text or symbols)

Illustration of a hand inserting a CD into a washing machine with an arrow indicating direction (no text or symbols)

Diagram of a hand holding a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

VEJLEDNING

A INSTALLATION AF KAMINEN

E INDSTILLING AF DEN ∅NSKEDE TEMPERATUR

Illustration of a hand using a screwdriver to adjust or install a device inside a container (no text or symbols visible)

Diagram of a mechanical device inside a container with an arrow indicating motion (no text or symbols)

Diagram of a mechanical device inside a bell jar with a downward arrow indicating force or movement (no text or symbols)

J 'OIL'-INDIKATOREN

Illustration of a kitchen appliance with a hand holding a tool, no text or symbols present

Transportdækslet

L OPBEVARING (SLUT PÅ FYRINGSSÆSONEN)

Line drawing of a plastic bottle with a recycling symbol on the top (no text or labels)

Simple line drawings of an open box, a card, and a pair of eyeglasses (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grilles and attached cable (no text or symbols)

Illustration of a hand inserting a CD into a washing machine with an arrow indicating direction (no text or symbols)

Diagram of a hand holding a valve with a rotating arrow indicating rotation (no text or symbols)

Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

A INSTALACION DE LA ESTUFA

C AJUSTE DE HORA

Combustión anómala:

Illustration of a hand inserting a plug into a device labeled 'R' (no text or symbols on the device itself)

Diagram of a mechanical device inside a cylindrical housing, showing internal components and an arrow indicating motion (no text or symbols)

Diagram of a mechanical device with a hand holding a tool, showing internal components and an arrow indicating motion (no text or symbols)

J EL INDICADOR 'OIL'

Illustration of a kitchen appliance with a hand holding a tool, no text or symbols present

Tapón de transporte

L ALMACENAMIENTO (FIN DEL INVIERNO)

Line drawing of a plastic bottle with a recycling symbol on top (no text or labels)

Simple line drawing of an open box with a card and a stack of paper sheets, no text or symbols present.

Line drawing of a portable air conditioner unit with ventilation slots and wiring (no text or symbols)

Illustration of a hand inserting a device into a machine, with an arrow indicating direction (no text or symbols present)

Diagram of a hand holding a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Line drawing of a water tank with a connected gas bag and recycling symbol (no text or labels)

KÄYTTÖOHJEET

A LÄMMITTIMEN ASENTAMINEN

C AJAN ASETUS

F AJASTIMEN KÄYTTÄMINEN

Illustration of a hand inserting a plug into a device labeled 'R' (no text or symbols on the device itself)

Polttoainesuodatin

Diagram of a mechanical device inside a container with an arrow indicating motion (no text or symbols)

Diagram of a mechanical device inside a transparent enclosure, showing a hand pressing a component with an arrow indicating force (no text or symbols present)

J ÖLJYN MERKKIVALO

Illustration of a kitchen appliance with a hand holding a tool, no text or symbols present

Kuljetussuoja

L VARASTOINTI (LÄMMITYSKAUDEN PÄÄTTYESSÄ)

Simple line drawing of an open box with a stack of boxes and a bag, no text or symbols present.

Line drawing of a portable air conditioner unit with ventilation grilles and attached cable (no text or symbols)

Illustration of a hand inserting a CD into a machine, with an arrow indicating direction (no text or symbols)

Diagram of a hand holding a knob with a rotating arrow indicating rotation (no text or symbols)

Line drawing of a battery with recycling symbol and connected plug, no text or labels present

ΕΓΧΕΙΡΙΔΙΟ

Set the time to use the heater as a clock or if using the timer. You can even set the time when the heater is on.

D ENAYΣH THΣ ΘΕΡΜΑΣΤΡΑΣ

Illustration of a hand inserting a plug into a device labeled 'R' (no text or symbols on the device itself)

Φίλτρο καυσίμο

Diagram of a hand using a device to press or install a component, showing internal components and an upward arrow (no text or symbols)

J H ENΔΕΙΚΤΙΚΗ ΛΥΧΝΙΑ “ΟΙL” (ΚΑΥΣΙΜΟ)

Illustration of a hand using a tool to clean water from a water dispenser, with a small container nearby (no text or symbols)

Πώμα μεταφοράς

Congratulations with your purchase of a portable domestic heater. You have purchased a quality product, which will serve you for many years to come. This, of course, provided you use the heater correctly. Please read these Directions for Use first, to ensure maximum lifetime for your heater.

Your heater comes with a 24-month manufacturer's warranty on all defects in materials or workmanship.

We wish you a warm and comfortable time with your heater.

Yours sincerely,

PVG Holding b.v.

Customer Service Department

1 READ THE DIRECTIONS FOR USE FIRST.

2 IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.

GENERAL DIRECTIONS FOR USE

Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL (pages 128 ff.).

1 Remove all packaging materials (refer to Section A, Fig. A).

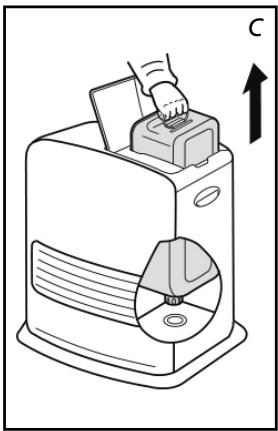

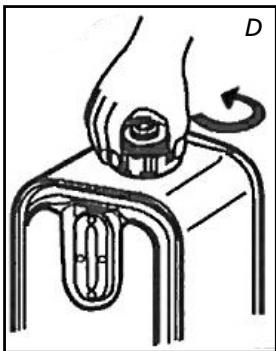

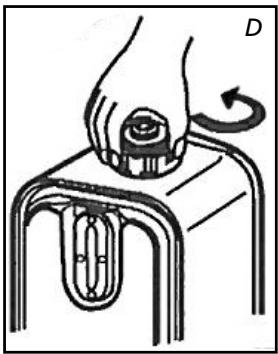

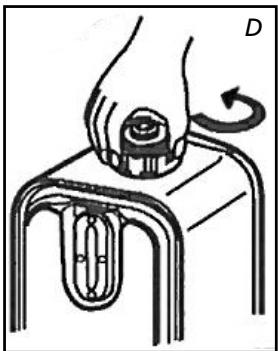

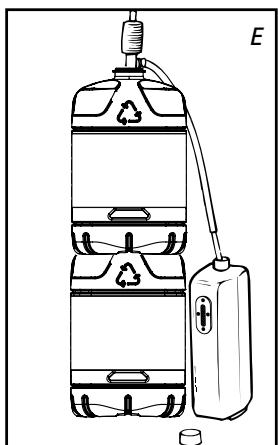

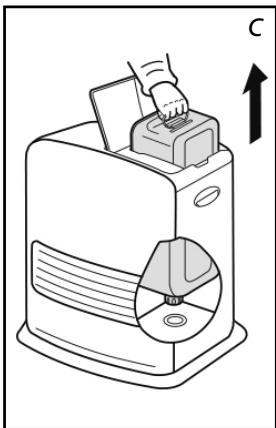

2 Fill the removable tank ④ (refer to Section B, Fig. C-F).
3 Insert the plug into the wall-socket.
4 Ignite the heater using the ON-OFF key 20 (refer to Section D).
5 If required, change the temperature using the adjustment keys 19 (refer to Section E).
6 Switch off the heater by pressing the ON-OFF key 20.

As a fire precaution, the tank must be filled either when the heater has been switched off or in another room than the room where the heater is installed.

• Always ensure that the tank is closed properly after filling it at a safe distance from all sources of heat and open flames (see chapter B).
• The first time the heater is ignited it will smell like "new" for a short time.
• Store all fuel containers with their original caps and seals in a cool and dark place.
• Fuel ages. Use new fuel at the start of every heating season.
• The use of Qlima Premium Quality Fuels as a heating fuel assures you that you have a good quality fuel.
• Before changing brands and/or types of fuel make sure that the mobile heater first completely empties all of the remaining fuel inside the heater.

Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. When replacing old appliances with new once, the retailer is legally obligated to take back your old appliance for disposal at least for free of charge.

① Information display
② Operating keys
③ Tank compartment lid
4 Removable tank
5 Metal cap
6 Fuel filter
⑦ Fixed tank
⑧ Flame inspection window
9 Hot air grille
10 Air supply
11 Safety bracket
12 Filter ventilator
13 Plug
14 Connecting lead
15 Child safety catch key
16 Green timer indicator
17 Timer key
18 Mode key
19 Key to set temperature/time
20 On/off key (red indicator on)

WHAT YOU NEED TO KNOW IN ADVANCE

Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. This product is intended to be used as a heater in residential houses and is only suitable for use in dry locations, in normal household conditions, indoors in living room, kitchen and garage.

Regardless of the model, you must always make sure that the heater is used in a room large enough to enable the heater to be used safely without extra ventilation. If the room is smaller than required, you must always open a door or window slightly (ensuring an opening of approx. 2.5 cm). It is important that every room where the heater is used has sufficient air intake and efficient air outflow (both openings must have a minimum cross section of 50 cm^2 ). No modifications to the safety system are allowed, as that will invalidate the guarantee that the air probe will work properly. Consult your dealer in case of doubt.

This product may not be used as a main heating device.

Especially for France: Your heater was designed to operate exclusively on fuel for liquid fuel-operated mobile heaters in accordance with the Decrees of 18-07-2002 and 25-06-2010. The use of other fuels is forbidden.

Ask your dealer or check our website for the addresses of our retailers.

The liquid fuel-operated mobile heater is intended as an extra heater, and not as a continuous source of heat.

Especially for United Kingdom: Only use Class C1 paraffin fuel in accordance with BS2869; Part 2, or equivalent.

The user must comply with the following instructions for proper use:

DO NOT

• use the liquid fuel-operated mobile heater in caravans, boats, and vehicle cabins;
• use the liquid fuel-operated mobile heater in insufficiently ventilated rooms (consult the table of properties for the minimum dimensions of the room to be heated), underground rooms and / or at a height of over 1000 metres;
• modify the heater safety features.

The use of this type of heating in public rooms is subject to prior regulatory permission. Obtain proper information on this in advance.

THE RIGHT FUEL

Your heater has been designed for use with high-quality water-free pure paraffin oil, such as Qlima Premium Quality Fuels. Only fuels of this kind will ensure clean and proper burning. Lower quality fuel may result in:

▶ increased possibility of malfunctioning
▶ incomplete combustion
▶ reduced heater lifetime
▶ smoke and/or fumes
▶ deposits on the grid or mantle

Using the right fuel is therefore essential for safe, efficient, and comfortable use of your heater.

Line drawing of a plastic bottle with a recycling symbol on the lid (no text or labels)

Only the use of the correct fuel will ensure safe, efficient, and comfortable use of your heater.

This transportation cap is packed separately in the box. Only this cap ensures trouble-free transportation of the heater after use. Store it well!

Damage and/or malfunctions of the heater due to the use of other than high-quality water-free pure parafine oil is not covered by the warranty.

Always refer to your local dealer for the right fuel for your heater.

Illustration of an open box with a card, a plastic sheet, and a small object inside (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation slots and wiring (no text or symbols)

Illustration of a hand inserting a CD into a washing machine with an arrow indicating direction (no text or symbols)

Diagram of a hand holding a valve with a rotating arrow indicating rotation (no text or symbols)

Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

MANUAL

A INSTALLING THE HEATER

1 Carefully remove your heater from the box and check the contents. In addition to the heater you also need to have:

▶ a transportation cap
▶ these directions for use

Keep the box and the packaging materials (Fig. A) for storage and/or transportation.

2 Open the lid of the removable tank ③ and remove the piece of cardboard.
3 Fill the removable tank as indicated in Section B.
4 The floor should be firm and completely level. Reposition the heater, when it is not level. Do not try to correct the situation by placing books or other goods under the heater.
5 Use the horizontal safety bracket ⑪ to prevent the curtains from covering the ventilator (Fig. B.).
6 Insert the plug ⑬ into the wall-socket (230 Volts - AC / 50 Hz) and set the correct time using the adjustment keys ⑲ (refer to Section C).
7 Your heater is now ready for use.

B FILLING FUEL

Fill the removable tank in a suitable place since there can always be some spillage. Follow the procedure below:

1 Make sure that the heater is switched off.
2 Open the upper lid and lift the removable tank out of the heater (Fig. C). Note: Some drops may leak from the tank. Put down the removable tank (cap pointing upwards, handle on floor and screw off the fuel cap.
3 Remove the metal cap (unscrew). Easy to open by holding the outside (fig. D.).
4 Fill the removable tank using a fuel pump (refer to fuel pump operation instructions.) Make sure that it is in a higher position than the removable tank (Fig. E). Insert the ribbed hose into the opening of the removable tank.
5 Check the removable tank fuel gauge while filling the tank (Fig. F). Stop filling once the gauge indicates that the tank is full. Never overfill the tank, especially not when the fuel is very cold (fuel expands when it heats up).
6 Let the remaining fuel in the pump flow back into the jerrycan and carefully

remove the pump. Carefully screw the fuel cap back on the tank. Clean off any spilled fuel.

7 Check whether the fuel cap is straight and tightened properly. Reinstall the removable tank in the heater (cap down). Close the lid.

- Do not move the heater after reinstalling the tank.

- Take care not to damage the cap while filling the tank. Deformation of the cap can lead to fuel leakage.

8 Turn the heater on again.

C SETTING THE TIME

Set the time to use the heater as a clock or if using the timer. You can even set the time when the heater is on.

1 Press the mode key ⑱ to set the time (fig. G). Time set and the time flash on the display.

2 Press the buttons (-) or (+) 19 to set the time. The time displays the numbers 00:00 to 23:59. Press the (+) button to go forwards and the (-) button to go backwards. The time will change in one minute steps each time you press one of these 2 buttons. The time on the display will change in ten minute steps if you keep the button pressed (fig. H.).

3 Press the mode key 18 again to activate the timer function. See chapter F.

4 Press the mode key 18 to display the time (fig. I.). If the time is not set, the display indicates --:--.

The time must be set again after a power cut or if the plug has been removed from the socket.

D IGNITING THE HEATER

When used for the first time, a new heater may give out a smell for a short while. You should therefore provide extra ventilation.

Always ignite the heater with the ON / OFF button 20. Never use matches or a cigarette lighter.

1 Press the ON / OFF button 20. The ignition indicator will light up: the required temperature and the ambient temperature are displayed (fig. J.). The ambient temperature is displayed from 1^ C. If the temperature is below 0^ C, Lo is displayed. Ignition takes about 45 seconds.

2 Normal combustion: • The flames are blue • The burner grille can become red

Abnormal combustion:

• The flame is yellow and blue In this case take appropriate measures.

This heater cannot be switched on continuously for more than 36 hours. After 36 hours it stops automatically, even if the tank has been refilled within this period.

E SETTING THE REQUIRED TEMPERATURE

If the heater is on, the required temperature can be changed using the adjustment buttons 19 (fig. K). To increase the temperature, press the + button. To decrease the temperature, press the - button. Each time you press the adjustment button the temperature changes by 1°C. The temperature can be set to a minimum of 5°C and a maximum of 26°C.

• If the heater is used in a small space, in a well-insulated space or if the outside temperature is relatively high, the ambient temperature can become higher than the required temperature. In this case, turn the heater off.
• The displayed temperature is the mean ambient temperature. This temperature may not correspond with that indicated by a thermometer.

F USING THE TIMER

The timer allows you to switch on the heater automatically at a preset time. In order to switch on the timer, the correct time must have been set (refer to Section C) and the heater should be off. Follow the procedure below:

1 Check that the time is set properly (see chapter C).
2 Press the mode button 13 (fig. L) until Timer and Set appear in the display.
3 Press the (-) or (+) buttons 19 to set the required activation time for the heater. Press the (+) button to go forwards and the (-) button to go backwards. The time will change in one minute steps each time you press one of these 2 buttons. The time on the display will change in ten minute steps if you keep the button pressed (fig. M).
4 Press the ON / OFF buttons 20 to turn the heater on (the indicator will light up). It is not necessary to press this button if the heater is on.
5 Press the timer button 17. The indicator goes out. The time indicator will light up and the timer is set.

Take care not to press the ON / OFF button 20 again after setting the timer, this will reset the timer.

6 The heater turns on at the time chosen.

• To cancel the timer, press the ON / OFF button 20 (the timer indicator goes out).
• Set the timer and the clock again after a power cut.
• In case of an earthquake, or shocks, code E01 will appear in the display. Reset the error and repeat from point 4 to set the timer again.

G

1 Press the ON / OFF button 20. The red lamp flashes for about 8 seconds and the heater is turned off. Always check that the flame goes out.

The ventilator continues operating for about 3 minutes after turning off in order to cool the inside of the heater. If you turn off the power earlier, uncontrolled symptoms can occur (release of smoke, smell etc.).

H

IN CASE OF PROBLEMS

The symptoms mentioned above are not faults and not abnormal. Check the list.

	Symptoms	Causes
While igniting	Igniting is tedious	Igniting takes about 45 seconds. After filling the tank, wait till the fuel has reached the fixed tank. Repeat ignition 2 or 3 times.
	Crackling sound	This sound is made by the elec-tric ignition.
	White smoke	This can happen if the fuel does not circulate past the burner properly
During ignition or turning off	Smoke and an unpleasant smell during first use	That is the protective lacquer getting warm. This soon stops. Give the space more ventila-tion.
	The ambient temperature does not increase and the requested temperature is higher.	The space is too large.
	The flame glows red.	The ambient air is damp or salty or it contains too many impu-rities.
	The ambient temperature does not decrease and the requested temperature is lower.	The heater is being used in a small insulated space or the outside temperature is relati-vely high. Turn the heater off.
	The displayed ambient tempe-rature is not the same as indica-ted by a thermometer.	This is because the displayed ambient temperature is an indi-cation of the average tempera-ture of the space.
	Small knocking noises when the heater is in operation or imme-diately after turning off.	This is the sound of the metal expanding.
	Noise 8 seconds after turning off.	A ticking sound: can occur when the heater cools off.

THE INFORMATION DISPLAY

The information display ① not only serves as an indicator of the (set) time and temperature (sections C, E, and F), it also indicates any malfunctioning of the heater. The code on the information display tells you what is the matter:

Code	Information	Action
Time----	The heater has been automatically turned off by a power cut or bad connection.	Restore power or restore the connection. Press the ON / OFF key20 again.
E01	An earthquake (magnitude 5 or more), strong vibrations or a shock will ensure that the heater automatically turns off. (The safety system against shocks has worked).	Make sure there are no combustible materials around the heater, or fuel leakages. Press the ON / OFF key20 again.
E02E03	The heater has been automatically turned off after a fault or during ignition or due to the presence of water or dust in the fuel filter or in the fixed tank.	Remove the water and the dust in the fixed tank. Clean the fuel filter (see chapter K).Press the ON / OFF button20 again.
E07	An increase in ambient temperature has turned the heater off. (The temperature monitoring system has worked).	Ventilate the space. Let the heater cool off. Press the ON / OFF button20 again.
FilterE09Filter	The heater has been automatically turned off because the hot air stream, the ventilator or the ventilator filter is blocked or hindered by something. (The safety system against overheating has worked).	Remove obstacles from the ventilator opening. Clean the ventilator filter (see chapter K) Press the ON/OFF button20 again. If the problem occurs again after taking the above measures, contact your dealer.
E13	The heater has been turned off in a closed space. (The safety system against incomplete combustion has worked).	Ventilate the space and press the ON / OFF button20 again.Ensure the space is sufficiently ventilated.
The ON indicator flashes. Err lights up	The heater has automatically stopped because the ON / OFF button was kept pressed in or was blocked.	Remove obstacles from the ventilator opening. Clean the ventilator filter (see chapter K) Press the ON/OFF button20 again. If the problem occurs again after taking the above measures, contact your dealer.
F00 – F30	Poor functioning. Heater needs maintenance	Note the messages displayed and turn the heater off. Contact your dealer.
Symptoms	Causes	Measures to be taken
Heater doesn’t ignite	The child safety catch lights up	Turn the child safety catch off
The fuel indicator lamp doesn’t work	The tank is empty	Fill the tank
	The tank is deformed	Replace the tank
	Dirt particles dust or water on the filter and / or in the fixed tank	Clean the fixed tank and the fuel filter.
Power loss	The fuel indicator flashes
	The fuel indicator flashes	Fill the tank
	A poor quality fuel has been used.	Remove the fuel from the two tanks, then rinse with the correct fuel.
Abnormal combustion	A poor quality fuel has been used.
	Poor ventilation	Ventilate regularly
	Dust on the ventilator filter	Clean the ventilator filter
Unpleasant smells	A poor quality fuel has been used	Remove the fuel from the two tanks, then rinse with the correct fuel.
	No fuel in the tank	Fill the tank
	Fuel leakage or spilled fuel	Do not use any more and contact your dealer
Fuel leakage	Move the heater, the tank is not empty
	A poor quality fuel has been used.

AUTOMATIC DEACTIVATION

This heater is fitted with a safety system that ensures that it switches off automatically after 36 hours continuous operation. If desired, you can switch the heater on again by pressing the ON/OFF button 20 (see section D).

CHILDPROOF LOCK

The childproof lock can be used to prevent children accidentally changing the heater settings. When the heater is burning and the childproof lock is on, the heater can only be switched off. Other functions are blocked then. If the heater has already been switched off, the childproof lock also prevents accidental ignition of the heater. Activate the childproof lock by pressing the CHILDLOCK key 15 and holding it down for more than 3 seconds. The childlock indicator will appear on the information display (Fig. O), indicating that the childproof lock has been activated. Switch off the childproof lock by pressing the CHILDLOCK key 15 and holding it down for more than 3 seconds once again.

THE 'OIL' INDICATOR

If the low fuel level indicator lights up in combination with a short tone, then the fuel tank is empty. The heater will automatically burn at its lowest setting for a period of about 80 minutes. The fuel tank must be replenished.

Diagram of a device with a tool inserted into a chamber, showing internal components and a label 'R' (no text or symbols on the diagram itself)

Diagram of a mechanical device inside a container with an arrow indicating motion (no text or symbols)

Diagram of a mechanical device inside a transparent enclosure, showing internal components and a downward arrow indicating motion (no text or symbols)

▶ remove the removable tank from the heater and fill it with new fuel (outside the living space in a safe place) (see chapter B)

If you take no action, the fuel tank will be emptied and the display will indicate "E 03" (fig. Q). The heater is automatically turned off.

To ignite the heater once more, fill the tank and wait a few minutes.

Then press the ON / OFF button 20.

K MAINTENANCE

Switch off the heater and let it cool down, before you start any maintenance work. Also disconnect the plug from the mains. Your heater needs hardly any maintenance.

Clean the ventilator filter (Fig. R).

Clean the fuel filter:

1 Remove the removable tank ④ from the heater and remove the fuel filter (Fig. S). Some drops may leak from the filter; keep a cloth at hand.
2 Remove the dirt by tapping the fuel filter upside-down against a hard surface. (Never clean it with water!)
3 Reinstall the fuel filter into the heater.

We recommend that you remove dust and stains from time to time with a damp cloth, because otherwise these may cause stains that are hard to remove.

Do not use solvents or alcohol to clean the heater: fire hazard. Clean very dirty components with a light synthetic cleaning agent.

Do not remove any heater components yourself. Always contact your dealer for repairs.

When the power cord is damaged, it may only be replaced by an authorised fitter. Use a new cord of the type H05 VV-F.

L STORAGE (END OF THE HEATING SEASON)

At the end of the heating season, you must store the heater in a dust-free place, if possible in its original packaging. Unused fuel cannot be used in the next heating season. We therefore recommend that you burn up all fuel. If there is still some fuel left, do not throw it away, but dispose of it in accordance with the local regulations for the disposal of domestic chemical waste.

Always start the new heating season with fresh fuel. When you start re-using the heater follow the instructions again (starting from section A and as specified).

Illustration of a hand using a pipette to clean water from a washing machine, with a water dispenser and small bowl nearby (no text or symbols)

Transport cap

M TRANSPORTATION

Take the following measures to avoid fuel leakage during the transportation of the heater:

1 Let the heater cool down.
2 Remove the removable tank ④ from the heater and remove the fuel filter. Some drops may leak from the filter; keep a cloth at hand. Store the fuel filter and the removable tank outside the heater.
3 Empty the fixed fuel tank (fig. U).
4 Place the transport cap.
5 Always move the heater in an upright position.

Make the fixed tank empty with a fuel pump before transportation or in case of wrong or dirty fuel. First remove the fuel filter and then insert the fuel pump into the empty fixed tank. Follow the same procedure if the fuel tank contains water.

N SPECIFICATIONS

Ignition	electrical
Fuel	paraffin
Capacity (kW) max.	3.00
Capacity (kW) min.	1.08
Suitable space (m3)**	48-120
Fuel consumption (l/hr)*	0.313
Fuel consumption (g/hr)*	250
Burning time per tank (hr)*	16
Capacity removable tank (litres)	5
Weight (kg)	7.7

Dimensions (mm)	width	371
(including base plate)	depth	299
	height	429
Accessories:	- transportation cap
Mains		230 V
	-- AC 50 Hz
Rated power consumption (at ignition / at operation)	335 W / 250 W
Average power consumption (at operation) Min-Max	78 W / 123 W
Fuse rating	250V, 5A

* At maximum setting ** Specified values are indicative

The CE marking corresponds with the compliance with the standards EN 60-335 part 1 (1995) and EN 50-165 (08/97)

O WARRANTY PROVISIONS

Your heater comes with a 24-month warranty starting on the date of purchase. Within this period all defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty:

1 We expressly dismiss all other claims for damages, including consequential damages.

2 Any repairs or replacements of components within the term of warranty will not result in an extension of the term of warranty.
3 The warranty shall no longer apply, when the heater has been modified, non-original parts have been used, or when it is repaired by third parties.
4 The warranty shall not apply to parts that are subject to normal wear, such as the manual fuel pump and the vaporizer. See for the complete list of parts excluded from warranty on Qlima.com/warranty.
5 The warranty shall only apply, when you present the original, dated proof of purchase, provided no changes have been made to it.
6 The use of correct fuel is crucial for the correct working of the heater. The warranty shall not apply to damages caused by actions not in compliance with the Directions for Use, neglect, and the use of an incorrect type of fuel, or fuel past its use-by date. The use of incorrect fuel can even be dangerous*, please refer to the chapter 'the right fuel'.
7 Transportation costs and the risks involved during the transportation of the heater or heater components shall always be at the expense of the purchaser.

In order to avoid unnecessary costs, we recommend that you always read the 'Directions for Use' carefully first. In case they offer no solution, please take the heater to your dealer for repair.

* Highly inflammable substances may induce uncontrollable burning, causing flames to break out. Should this happen, never try to move the heater, but always switch off the heater immediately. In case of emergency you may use a fire extinguisher, but only a type B extinguisher: a carbon dioxide or powder extinguisher.

Egregio Signore, Gentile Signora,

Line drawing of a plastic bottle with a recycling symbol on the lid (no text or labels)

Illustration of a gift box with a card and a pair of cards above it, plus an open box with a bag (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grilles and attached cable (no text or symbols)

Illustration of a hand inserting a CD into a washing machine with an arrow indicating direction (no text or symbols)

Diagram of a hand holding a valve with a rotating arrow indicating rotation (no text or symbols)

Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

ISTRUZIONI D'USO

D ACCENSIONE DELLA STUFA

J SEGNALE INDICANTE CHE IL COMBUSTIBILE E ESAURITO

Illustration of a hand inserting a plug into a device labeled 'R' (no text or symbols on the device itself)

Diagram of a mechanical device inside a container with an arrow indicating motion (no text or symbols)

Diagram of a mechanical device inside a bell jar with a downward arrow indicating force or movement (no text or symbols)

Illustration of a kitchen appliance with a hand holding a tool, no text or symbols present

Line drawing of a plastic bottle with a recycling symbol on top (no text or labels)

Illustration of a gift box with a card and a pair of cards above it, plus an open box with a bag (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation slots and wiring (no text or symbols)

Illustration of a hand inserting a CD into a washing machine with an arrow indicating direction (no text or symbols)

Diagram of a hand holding a valve with a rotating arrow indicating rotation (no text or symbols)

Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

HÅNDBOK

A INSTALLERE OVNEN

1 Trykk på ON/OFF-knappen 20.

Indikatoren for tenning lyser: den ønskede temperaturen og ambiente temperaturen vises (fig. J). Den ambiente temperaturen vises fra 1 °C. Hvis temperaturen er under 0 °C, vises Lo. Tenningen tar ca. 45 sekunder.

2 Normal forbrenning:

• Flammene er blå
  • Brennerristen kan bli rød

Unormal forbrenning:

E ANGI ∅NSKET TEMPERATUR

J "OLJE" INDIKATOREN

Illustration of a hand inserting a plug into a device labeled 'R' (no text or symbols on the device itself)

Diagram of a mechanical device inside a container with an arrow indicating motion (no text or symbols)

Diagram of a mechanical device inside a bell jar with a downward arrow indicating force or movement (no text or symbols)

- fjern den avtakbare tanken fra varmeovnen og fyll den med nytt drivstoff (utenfor leveområder på et sikkert sted) (se kapittel B)

Illustration of a kitchen appliance with a hand holding a tool, no text or symbols present

Transportlokket

M TRANSPORT

WAT U VOORAF MOET WETEN

Line drawing of a plastic water bottle with recycling symbol on top (no text or labels)

Simple line drawings of an open box, a card, and a pair of eyeglasses (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation slots and wiring (no text or symbols)

Illustration of a hand inserting a CD into a washing machine with an arrow indicating direction (no text or symbols)

Diagram of a hand holding a valve with a rotating arrow indicating rotation (no text or symbols)

Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

A HET INSTALLEREN VAN DE KACHEL

C INSTELLEN VAN DE TIJD

Abnormale verbranding:

F HET BENUTTEN VAN DE TIMER

Illustration of a hand using a tool to adjust or install a device with a grid panel (no text or symbols visible)

Diagram of a mechanical device inside a container with an arrow indicating motion (no text or symbols)

Diagram of a laboratory setup with a funnel and test tube, showing a downward arrow indicating a process (no text or symbols present)

J DE 'OIL' INDICATOR

Illustration of a hand washing a water dispenser with a tool, next to a water dispenser and a small cup (no text or symbols)

Transportdop

L OPSLAG (EINDE STOOKSEIZOEN)

Line drawing of a plastic bottle with a recycling symbol on the lid (no text or labels)

Simple line drawings of an open box, a card, and a pair of eyeglasses (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation grilles and attached cable (no text or symbols)

Illustration of a hand inserting a CD into a washing machine with an arrow indicating direction (no text or symbols)

Diagram of a hand holding a valve with a rotating arrow indicating rotation (no text or symbols)

Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

MANUAL DE INSTRUÇÕES

C CONFIGURAR O TEMPO

2 Combustão normal:

E CONFIGURAR A TEMPERATURA REQUERIDA

Illustration of a hand using a screwdriver to adjust or install a device inside a container (no text or symbols visible)

Diagram of a mechanical device inside a cylindrical housing, showing internal components and an upward arrow (no text or symbols)

Diagram of a mechanical device inside a bell jar, showing internal components and a downward arrow indicating motion (no text or symbols)

Illustration of a kitchen cleaning or cleaning process with a hand using a tool, no text or symbols present

Tampa para transporte

M TRANSPORTE

Line drawing of a plastic bottle with a recycling symbol on top (no text or labels)

Simple line drawings of an open box, a card, and a pair of eyeglasses (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation slots and wiring (no text or symbols)

Illustration of a hand inserting a CD into a washing machine with an arrow indicating direction (no text or symbols)

Diagram of a hand holding a valve with a rotating arrow indicating rotation (no text or symbols)

Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

A INSTALACJA GRZEJNIKA

F KORZYSTANIE Z PROGRAMATORA CZASU TIMER

Illustration of a hand inserting a plug into a device labeled 'R' (no text or symbols on the device itself)

Diagram of a mechanical device inside a cylindrical housing, showing internal components and an upward arrow (no text or symbols)

Diagram of a mechanical device with a hand pressing a component, showing no text or symbols.

J WSKAŹNIK „OIL”

Illustration of a hand washing a water dispenser with a tool, next to a water dispenser and a small cup (no text or symbols)

Line drawing of a plastic bottle with a recycling symbol on top (no text or labels)

Simple line drawings of an open box, a card, and a pair of eyeglasses (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation slots and wiring (no text or symbols)

Illustration of a hand inserting a CD into a washing machine with an arrow indicating direction (no text or symbols)

Diagram of a hand holding a valve with a rotating arrow indicating rotation (no text or symbols)

Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

A INSTALLERA VÄRMAREN

F ANVÄNDA TIMER

Illustration of a hand using a screwdriver to adjust or install a device inside a container (no text or symbols visible)

Diagram of a mechanical device inside a container with an arrow indicating motion (no text or symbols)

Diagram of a laboratory setup with a funnel and test tube, showing a downward arrow indicating a process (no text or symbols present)

J OLJEINDIKATORN

Illustration of a kitchen cleaning or cleaning process with a hand using a tool, no text or symbols present

Transportlocket

M TRANSPORT

Line drawing of a plastic bottle with a recycling symbol on top (no text or labels)

Illustration of a gift box with a card and a pair of cards above it, plus an open box with a bag (no text or symbols)

Line drawing of a portable air conditioner unit with ventilation slots and wiring (no text or symbols)

Illustration of a hand inserting a CD into a washing machine with an arrow indicating direction (no text or symbols)

Diagram of a hand holding a valve with a rotating arrow indicating rotation (no text or symbols)

Diagram of a water tank with recycling symbol and connected to a battery (no text or labels)

NAVODILA ZA UPORABO

A PRIPRAVA PEČI NA DELOVANJE

C NASTAVLJANJE ČASA

V primeru izpada električne energije ali će je vtič izključen, morate čas ponovno nastaviti.

D PRIŽIGANJE PEČI

E NASTAVLJANJE IZBRANE TEMPERATURE

Illustration of a hand inserting a plug into a device labeled 'R' (no text or symbols on the device itself)

Filter za gorivo

Diagram of a mechanical device inside a container with an arrow indicating motion (no text or symbols)

Diagram of a mechanical device with a hand operating a tool, showing internal components and an arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to clean water from a water dispenser, with another container and small bowl nearby (no text or symbols)

Pokrovček za prevoz

L SHRANJEVANJE (PO KONČANI GRELNI SEZONI)

Distributed in Europe by PVG Holding B.V.

Benötigen Sie weitere Informationen oder treten Probleme auf, besuchen Sie bitte unsere Website www.pvg.eu, oder setzen Sie sich mit unserem Kundendienst in Verbindung (T: [phone]).
© For alle yderligere oplysninger eller ved eventuelle problemer med apparatet henvises til www.pvg.eu eller det lokale Kundecenter (T: [phone]).
Es Si necesita información o si tiene algún problema, visite nuestra página Web www.pvg.eu, o póngase en contacto con el servicio cliente (T: [phone]).
F Si vous souhaitez obtenir des informations supplémentaires ou si vous rencontrez un problème, rendez-vous sur notre site Web (www.pvg.eu) ou contactez notre service client (T : [phone] / [phone]).
FIN Jos haluat huoltoapua, lisätietoja tai laitteen kanssa tulee ongelmia, tutustu verkkosivustoon osoitteessa www.pvg.eu tai kysy neuvoa PVG kuluttajapalvelukeskuksesta (T: [phone]).
GB If you need information or if you have a problem, please visit the our website (www.pvg.eu) or contact our sales support (T: [phone]).
① Per informazioni e in caso di problemi, visitate il sito Web www.pvg.eu oppure contattate il Centro Assistenza Clienti (T: [phone]).
Hvis du trenger informasjon, eller hvis du har et problem med produktet, kan du gå til nettsidene www.pvg.eu. Alternativt kan du kontakte med PVG' forbrukertjeneste (T: [phone]).
NL Als u informatie nodig hebt of als u een probleem hebt, bezoek dan de onze website (www.pvg.eu) of neem contact op met de afdeling sales support (T: [phone] / [phone]).
P Se necessitar de informações ou se tiver problemas, visite o Web site www.pvg.eu ou contacte o Centro de Assistência (T: [phone]).
PL W przypadku problemów i w celu uzyskania szczegółowych informacji odwiedź stronę internetową Qlima dostępną pod adresem www.pvg.eu lub skontaktuj się z Centrum kontaktów Qlima (T: [phone])
Om du behöver service eller information eller har problem med apparaten kan du besöka www.pvg.eu eller kontakta Qlima kundtjänst (T: [phone]).
SLO Če želite dodatne informacije, obiščite spletno mesto podjetja na naslovu www.pvg.eu ali pokličite na telefonsko (T: [phone]).
