Brand	Qlima
Model	R233TC
Product type	Pellet stove
Fuel	Wood pellets
Nominal power	8 kW
Minimum power	3 kW
Energy efficiency	92 %
Recommended heating area	70 to 120 m²
Pellet tank capacity	15 kg
Average autonomy	20 to 40 hours
Power consumption	100 W during operation
Power supply	230 V / 50 Hz
Flue pipe type	Diameter 80 mm, rear or top outlet
Dimensions (W x D x H)	51 x 53 x 107 cm
Weight	85 kg
Main functions	Automatic ignition, weekly programming, room thermostat, remote control
Safety	Automatic shutdown in case of overheating, child safety, flame detection
Maintenance	Weekly cleaning of burner, ash pan emptying every 15 days
Repairability index	7.5/10
Warranty	2 years parts and labor

Frequently Asked Questions - R233TC QLIMA

How to turn on the Qlima R233TC pellet stove?

Press the On/Off button on the remote control or control panel. The stove performs an automatic ignition cycle with electric resistance. Ensure the tank contains pellets.

What type of pellets to use?

Use certified wood pellets ENplus A1 or DINplus, diameter 6 mm, maximum length 25 mm. Avoid poor quality pellets that clog the burner.

Why does the stove turn off by itself?

Possible causes: empty tank, pellets stuck in the auger, dirty flame sensor, or set temperature reached. Consult the manual for checks.

How to program the temperature?

Use the remote control to access Programming mode. You can set 3 time slots per day with different temperatures. Confirm with OK.

How often to clean the ash pan?

Empty the ash pan every 1 to 2 weeks depending on use. An overfilled ash pan reduces draft and may cause smoke emissions.

What to do in case of error code E01?

Code E01 indicates an ignition fault. Check that pellets are present and the ignition resistor works. Clean the burner and try again.

Does the stove emit an odor during first use?

Yes, it is normal to smell paint or new metal during the first hours of operation. Air out the room and let the stove run at maximum power.

Can I use the stove without electricity?

No, the stove requires electricity for ignition, the auger, and ventilation. In case of power failure, the stove shuts down automatically.

How to clean the door glass?

Use a soft cloth soaked in soapy water or a special pellet stove cleaner. Avoid abrasive products that scratch the ceramic glass.

What is the safety distance from furniture?

Maintain a distance of at least 50 cm on the sides and rear, and 100 cm in front of the stove. Walls must be fireproofed if necessary.

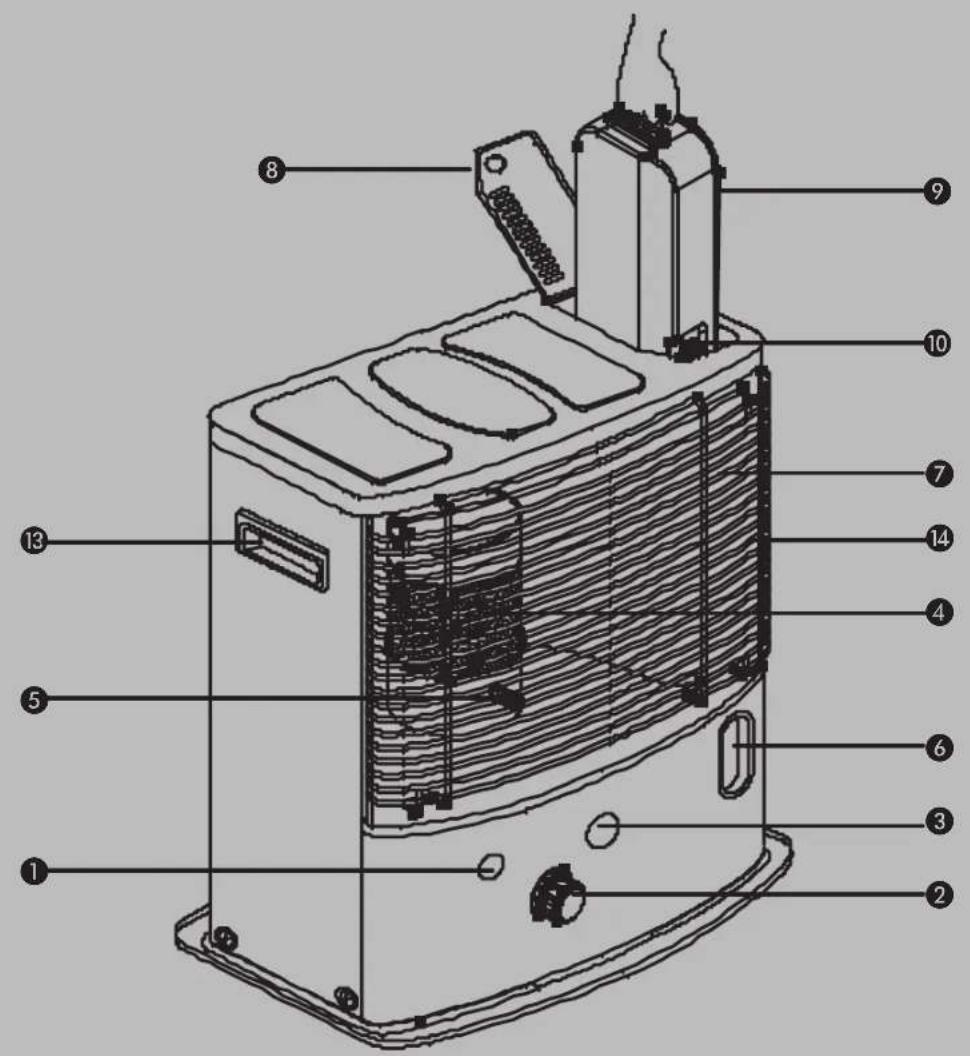

USER MANUAL R233TC QLIMA

Illustration of a portable air heater with heat exchanger and hand gesture (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

INTERDICTION

LE COMBUSTIBLE APPROPRIÉ

MANUEL

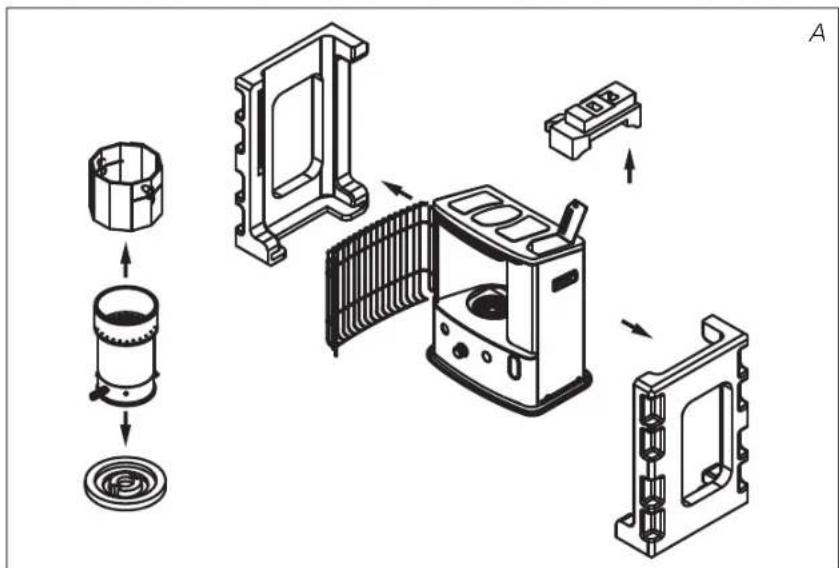

A INSTALLATION DE L'APPAREIL

Line drawing of a kitchen appliance with a fan, lid, and evaporator (no text or symbols)

Diagram of a mechanical device with a metal frame and internal components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a device with heat exchanger and fan base, showing internal components (no text or symbols)

Diagram of a multi-tiered water tank connected to a battery with a hose, showing internal compartments and a small container (no text or symbols)

Illustration of a hand pressing a button on a cooling unit panel (no text or symbols visible)

Technical line drawing of a mechanical assembly with a cylindrical component and tool (no text or symbols)

D FONCTIONNEMENT DE L'APPAREIL

Line drawing of a portable air conditioner unit with a hand operating the control panel (no text or symbols)

Illustration of a portable air conditioner unit with a hand pressing a button (no text or symbols visible)

E EXTINCTION DE L'APPAREIL

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mortar and pestle (no text or symbols)

K CONDITIONS DE GARANTIE

Line drawing of a portable air conditioner unit with cooling fan and ventilation slots (no text or symbols)

Illustration of a portable air conditioner unit with a hand inserting a plug into it (no text or symbols visible)

Technical line drawing of a device with a fan and base plate (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a device with a plug, cable, and a small component (no text or symbols)

Mechanical component diagram showing a rotating assembly with a black arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Mechanical assembly diagram showing hands operating a cylindrical component with a base and clamped parts (no text or symbols)

Hand holding a coiled cylindrical object with a small inset detail (no text or symbols visible)

Illustration of a mechanical device with a handle and base, no visible text or symbols

Technical illustration of a mechanical component with no visible text or symbols

Mechanical assembly diagram showing a cam or cam component (no text or labels visible)

LE CHANGEMENT DE LA MÈCHE

L AVANT DE COMMENCER A CHANGER LA MECHE, L'APPAREIL DOIT ÊTRE ETEINT ET TOTALEMENT REFROIDI.

Mechanical assembly diagram showing a fan component with an arrow indicating motion (no text or symbols)

Mechanical component diagram showing a motor or engine assembly with no visible text or symbols

Technical line drawing of a mechanical clutch assembly (no text or symbols)

Technical line drawing of a mechanical device with internal components and wiring (no text or symbols)

Mechanical component diagram with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a portable air conditioner unit and its internal components (no text or symbols)

Illustration of a portable air conditioner unit with a hand operating it, showing internal panel structure and a close-up view of the device (no text or symbols visible)

Illustration of a portable air conditioner unit with cooling fins and a handle (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fins and control panel (no text or symbols)

Illustration of a portable air heater with heat exchanger and hand gesture (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Line drawing of a kitchen appliance with fan, oven, and side panel (no text or symbols)

GEBRAUCHSANWEISUNG

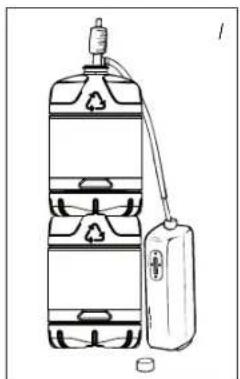

A DIE INSTALLATION DES KAMINOFENS

Technical line drawing of a mechanical device with a metal frame and internal components (no text or symbols)

Illustration of a hand using a tool to adjust or install a cylindrical component (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a mechanical device with a lever and housing, showing internal components (no text or symbols)

Line drawing of a fire extinguisher with a hose and attached bag, no text or symbols present

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mortar or pestle with a handle and base (no text or symbols)

Transportverschluß

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Illustration of a hand inserting a component into a heater device (no text or symbols visible)

Technical line drawing of a device with a cooling unit and its exploded view showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of an electronic device with internal components and wiring (no text or symbols)

Line drawing of a handheld electronic device with a sensor and connector (no text or symbols)

Mechanical assembly diagram showing a rotating component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Mechanical assembly diagram showing hands operating a component with a tool and base (no text or symbols)

Hand holding a coiled cylindrical object with a small inset detail (no text or symbols visible)

Illustration of a mechanical device with a handle and base, no visible text or symbols

Technical illustration of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component (no visible text or symbols)

D

WECHSELN DES DOCHTES

Mechanical assembly diagram showing a fan-like component with a downward arrow, no visible text or symbols

Mechanical component diagram showing a central hub with surrounding parts (no text or symbols)

Technical line drawing of a mechanical clutch assembly (no text or symbols)

Technical line drawing of a mechanical device with internal components and wiring (no text or symbols)

Mechanical device with a central hub and surrounding components (no visible text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Technical line drawing of a portable air conditioner unit and its internal components (no text or symbols)

Illustration of a hand operating a heater with a close-up view showing internal components (no text or symbols)

Illustration of a portable air conditioner unit with cooling fins and heat exchangers (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fins and a hand operating the front panel (no text or symbols)

HVAD MAN F∅RST SKAL VIDE

S∅RG ALTID FOR TILSTRÆKKELIG VENTILATION

VEJLEDNING

Illustration of a portable air heater with heat exchanger and hand gesture (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force, no visible text or symbols

Technical line drawing of a toaster oven with cooling fan and fan blade (no text or symbols)

A INSTALLATION AF OVNEN

Technical line drawing of a mechanical device with a metal frame and mounting bracket (no text or symbols)

Diagram of a mechanical device with a cylindrical component and a tool, no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical device with a lever and housing, showing internal components (no text or symbols)

Line drawing of a multi-stage water tank with a connected bag and connector (no text or symbols)

Line drawing of a portable air conditioner unit with a hand operating the fan (no text or symbols)

Illustration of a hand using a tool to adjust or install a cylindrical component (no text or symbols visible)

Line drawing of a portable air conditioner unit with a grid fan and control panel (no text or symbols)

Illustration of a portable air conditioner unit with a hand operating the front panel (no text or symbols visible)

D REGULERING AF FLAMMEN

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mortar and pestle (no text or symbols)

transportprop

TRANSPORT

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Illustration of a portable air heater with a hand inserting a plug into the socket (no text or symbols visible)

Technical line drawing of a device with a cooling unit and a base housing (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with exploded view and internal components (no text or symbols)

Line drawing of a handheld device with a sensor and connector (no text or symbols)

Mechanical assembly diagram showing a rotating component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Mechanical assembly diagram showing hands operating a component with a tool and base (no text or symbols)

Hand holding a coiled cylindrical object with a small inset detail (no text or symbols visible)

Illustration of a mechanical device with a handle and base, no visible text or symbols

Technical illustration of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component (no visible text or symbols)

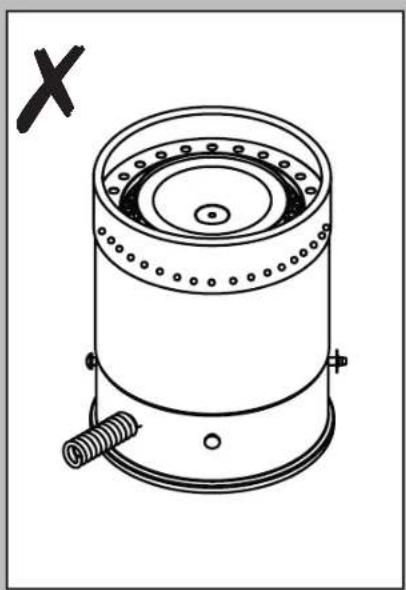

UDSKIFTNING AF VÄGEN

L INDEN DU PÅBEGYNDER UDSKIFTNINGEN AF VÄGEN, SKAL KAMINEN VÄRE SLUKKET OG HELT AFK∅LET.

Mechanical assembly diagram showing a component with a downward arrow indicating motion (no text or symbols present)

Mechanical component diagram showing a central hub with surrounding parts (no text or symbols)

Technical line drawing of a mechanical clutch assembly (no text or symbols)

Technical line drawing of a mechanical device with internal components and wiring (no text or symbols)

Mechanical device with a central hub and surrounding components (no visible text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Technical line drawing of a portable air conditioner unit and its internal components (no text or symbols)

Illustration of a hand operating a heater with a close-up view showing internal components (no text or symbols)

Illustration of a portable air conditioner unit with cooling fins and heat exchangers (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fins and a hand operating the front panel (no text or symbols)

Illustration of a portable air heater with heat exchanger and hand gesture (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a microwave oven with a fan and lid, no text or symbols present

MANUAL

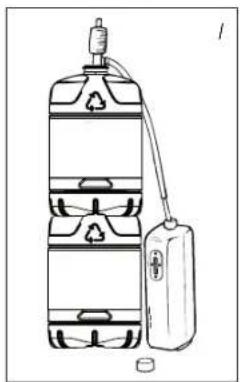

A INSTALACION DE LA ESTUFA

Technical line drawing of a mechanical device with a metal frame and internal components (no text or symbols)

Diagram of a hand holding a cylindrical object with a tool, no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a device with heat exchanger and fan base (no text or symbols)

Line drawing of a multi-stage water tank with recycling symbols and a connected bag (no text or labels)

E

44

Line drawing of a portable air conditioner unit with a hand pressing down on the side panel (no text or symbols)

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Line drawing of a portable air conditioner unit with a hand operating the front panel (no text or symbols)

D LA COMBUSTION DE LA ESTUFA

Line drawing of a portable air conditioner unit with a hand operating the control panel (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

NO SE LOGRA ENCENDER LA ESTUFA.

Simple line drawing of a mortar or pestle with a handle and base (no text or symbols)

Tapón de transporte

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Illustration of a portable air conditioner unit with a hand inserting a plug into it (no text or symbols visible)

Technical line drawing of a heating unit and its internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Technical line drawing of an electronic device with internal components and housing (no text or symbols)

Line drawing of a device with a plug, cable, and connector (no text or symbols)

Mechanical assembly diagram showing a component with a highlighted arrow and numbered label (7), no readable text or symbols present.

Technical line drawing of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Mechanical assembly diagram showing hands operating a cylindrical component with a base and clamped parts (no text or symbols)

Illustration of a hand holding a coiled cable or hose (no text or symbols visible)

Mechanical device diagram showing a motor with rotating arm and housing (no text or symbols)

Mechanical component diagram showing a cylindrical housing with attached parts (no text or symbols)

Mechanical assembly diagram showing gears and housing components (no text or labels)

CAMBIAR LA MECHA

L ANTES DE COMENZAR A CAMBIAR LA MECHA, LA ESTUFA TIENE QUE ESTAR APAGADA Y COMPLETA - MENTE FRÍA.

Mechanical assembly diagram showing a component with a downward arrow and label '15' (no readable text or symbols)

Mechanical component diagram showing a motor or engine assembly with no visible text or symbols

Technical line drawing of a mechanical clutch assembly (no text or symbols)

Technical line drawing of a mechanical device with internal components and wiring (no text or symbols)

Mechanical component diagram with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with internal components and wiring (no text or symbols)

Technical line drawing of a device with a fan and base, showing internal components (no text or symbols)

Illustration of a portable air conditioner unit with a hand inserting a cable (no text or symbols visible)

Line drawing of a portable air conditioner unit with cooling fins and heat exchangers (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fins and control panel (no text or symbols)

KÄYTTÖOHJEET

A LÄMMITTIMEN ASENTAMINEN

Illustration of a portable air heater with heat exchanger and hand gesture (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Technical line drawing of a microwave oven with cooling unit and fan (no text or symbols)

Diagram of a mechanical device with a curved metal frame and internal components (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a portable electronic device with heat exchanger and fan (no text or symbols)

Line drawing of a gas cylinder connected to a water tank with a hose, showing internal compartments and a valve (no text or symbols)

Illustration of a hand operating a heater with a control knob (no text or symbols)

Line drawing of a hand using a tool to press or adjust a cylindrical object (no text or symbols present)

Line drawing of a portable air conditioner unit with a fan and handle (no text or symbols)

Illustration of a portable air conditioner unit with a hand operating the front panel (no text or symbols visible)

D LÄMMITTIMEN POLTTAMINEN

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a mortar or pestle with a handle and base (no text or symbols)

kuljetuskorkki

I KULJETUS

Line drawing of a portable air conditioner unit with cooling fan and ventilation slots (no text or symbols)

Illustration of a portable air conditioner unit with a hand inserting a plug into it (no text or symbols visible)

Technical line drawing of a gasifier and its internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Technical line drawing of an electronic device with internal components and housing (no text or symbols)

Line drawing of a mechanical device with wires and components (no text or symbols)

Mechanical assembly diagram showing a component with a highlighted arrow and numbered label (7), no readable text or symbols present.

Technical line drawing of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Mechanical assembly diagram showing hands operating a cylindrical component with a base and housing (no text or symbols)

Hand holding a coiled cable or hose, no text or symbols visible

Mechanical device diagram showing a motor with rotating arm and housing (no text or symbols)

Mechanical component diagram showing a cylindrical housing with attached parts (no text or symbols)

Mechanical assembly diagram showing internal components (no text or labels)

SYDÄMEN VAIHTAMINEN

L VARMISTA, ETTÄ LÄMMITIN ON SAMMUTETTU JA TÄYSIN JÄÄHTYNYT, ENNEN KUIN ALOITAT SYDÄMEN VAIHTAMISEN.

Mechanical component diagram showing a fan assembly with a downward arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a mechanical device with internal components and a labeled part (no text or symbols present)

Mechanical component diagram showing a circular housing with attached wires and a numbered label '20' (no readable text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a device with a fan and base plate (no text or symbols)

Illustration of a portable air heater with a hand operating it, showing internal components and a close-up view (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fan and ventilation slots (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Congratulations on your purchase of this heater. You have purchased a quality product, which will serve you for many years to come. This, of course, provided you use the heater correctly. Please read these Directions for Use first, to ensure the maximum lifetime for your heater.

This appliance comes with a 24-month manufacturer's warranty on all defects in material or workmanship.

We wish you much warmth and comfort from your heater.

Yours sincerely,

PVG Holding b.v.

Customer Service Department

1 READ THE DIRECTIONS FOR USE FIRST.

2 IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.

GB

64

GENERAL DIRECTIONS FOR USE

Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL (pages 67 ff.).

1 Remove all packaging materials (refer to Section A, Fig. A).
2 Fill the removable tank ⑨ and wait 30 minutes before you ignite the heater (refer to Section B, Fig. 1).
3 Insert the batteries into the battery holder ⑫ (refer to Section A, Fig. G).
4 Check whether the combustion chamber ④ is fully upright (refer to Section A, Fig. F).
5 Ignite the heater by turning the knurled wick adjustment knob ② as far to the right as possible and then gently push the ignition button ③ (refer to Section C, Fig. K and L).
6 After igniting the heater it will take 10 to 15 minutes before you can check if the heater burns well (refer to Section D).
7 Switch off the heater (refer to Section E).

• As a fire precaution, the tank must be filled either when the heater has been switched off or in another room than the room where the heater is installed.
• Always ensure that the tank is closed properly after filling it at a safe distance from all sources of heat and open flames (see chapter B).
• Store all fuel containers with their original caps and seals in a cool and dark place.
• Fuel ages. Use new fuel at the start of every heating season.
• The use of Qlima Premium Quality Fuels as a heating fuel assures you that you have a good quality fuel.
• Before changing brands and/or types of fuel make sure that the mobile heater first completely empties all of the remaining fuel inside the heater.

MAIN COMPONENTS

① OFF - button
② Knurled wick adjustment knob
③ Ignition button
4 Combustion chamber
⑤ Combustion chamber handle
6 Fuel indicator
7 Grill
⑧ Lid for removable tank
9 Removable tank
⑩ Fuel gauge removable tank
⑪ Ignition coil
12 Battery holder
13 Handle
14 Cabinet

WHAT YOU NEED TO KNOW IN ADVANCE

ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION

This device is fitted with a security system that stops it when the temperature in the room is too high. When the heater has switched off (manually or automatically) it may not be restarted for 15 minutes. In order to prevent damage to the device, please do not force the ignition of the heater during this period.

Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. This product is intended to be used as a heater in residential houses and is only suitable for use in dry locations, in normal household conditions, indoors in living room, kitchen and garage.

Regardless of the model, you must always make sure that the heater is used in a room large enough to enable the heater to be used safely without extra ventilation. If the room is smaller than required, you must always open a door or window slightly (ensuring an opening of approx. 2.5 cm). It is important that every room where the heater is used has sufficient air intake and efficient air outflow (both openings must have a minimum cross section of 50 cm ² ). No modifications to the safety system are allowed, as that will invalidate the guarantee that the air probe will work properly. Consult your dealer in case of doubt.

SAFETY SYSTEM

When you have turned on the heater, if the room temperature is relatively low (19 to 20°C) it may automatically switch off. The cause of this is build-up of heat in the heater. This is a logical consequence of the safety mechanism. This will not occur when using the heater at lower ambient temperatures.

SAFE TOP

The heater is supplied with a safe top. This application decreases the temperature of the top plate. In this way, the risk of harmful accidents at accidentally touching the top plate is considerably decreased. However, be aware that the top plate still becomes hot.

Avoid any contact with the top plate and grille.

Especially for France: Your heater was designed to operate exclusively on fuel for liquid fuel-operated mobile heaters in accordance with the Decrees of 18-07-2002 and 25-06-2010. The use of other fuels is forbidden. Ask your dealer or check our website for the addresses of our retailers. The liquid fuel-operated mobile heater is intended as an extra heater, and not as a continuous source of heat.

Especially for United Kingdom: Only use Class C1 paraffin fuel in accordance with BS2869; Part 2, or equivalent.

The user must comply with the following instructions for proper use:

DO NOT

• use the liquid fuel-operated mobile heater in caravans, boats, and vehicle cabins;
• use the liquid fuel-operated mobile heater in insufficiently ventilated rooms (consult the table of properties for the minimum dimensions of the room to be heated), underground rooms and / or at a height of over 1500 metres;
• modify the heater safety features.

The use of this type of heating in public rooms is subject to prior regulatory permission. Obtain proper information on this in advance.

Only the use of the correct fuel will ensure safe, efficient, and comfortable use of your heater.

THE RIGHT FUEL

Your heater has been designed for use with high-quality water-free pure paraffin oil like Qlima Premium Quality Fuels. Only fuels of this kind will ensure clean and proper burning. Lower quality fuel may result in:

▶ excessive tar deposits on the glass fibre wick
▶ incomplete burning
▶ reduced heater lifetime
▶ smoke and/or smells
▶ deposits on the grid or mantle

Using the right fuel is therefore essential for safe, efficient, and comfortable use of your heater.

Damage and/or malfunctions of the heater due to the use of other than high quality water-free pure paraffin oil is not covered by the warranty.

Always refer to your local dealer for the right fuel for your heater.

Illustration of a portable air heater with heat exchanger and hand gesture (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Technical line drawing of a kitchen appliance with fan, drain, and evaporator (no text or symbols)

MANUAL

A INSTALLING THE HEATER

1 Carefully remove your heater from the box and check the contents. In addition to the heater you also need to have:

▶ a transportation cap
▶ these directions for use

Keep the box and the packaging materials (Fig. A) for storage and/or transportation.

2 Remove the other packaging materials:

▶ Release the right side of the grill. Lift the grill from the slot (Fig. B) and pull it forward.
▶ Pull both ends of the packaging to the sides and at the same time slightly downwards (see Fig. C).
▶ Remove the combustion chamber from the heater and remove the packaging underneath (see Fig. D).

GB

67

Technical line drawing of a mechanical device with a metal frame and housing (no text or symbols)

Diagram of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a portable air conditioner unit with heat exchanger and fan (no text or symbols)

Line drawing of a fire extinguisher with a hose and attached bag, no text or symbols present

GB

68

- Put the combustion chamber back into its place. The combustion chamber is positioned correctly when it can be smoothly moved a little to the left and to the right by its handle ⑤ (Fig. F). Close the grill: Slightly lift it to reposition it in its slot. - Open the lid of the removable tank ④ and remove the piece of polyfoam.

3 Fill the removable tank as indicated in Section B.

4 Insert the batteries into their holder 12 at the back of the heater (Fig. G). Ensure that the positive and negative poles match the + and - marks indicated on the battery housing. Close the battery cover.

5 The floor should be firm and completely level. Reposition the heater, when it is not level. Do not correct the situation by placing books or other goods under the heater. Please refer to the separate instructions in the carton box for fixing of the heater.

6 Your heater is now ready for use.

B FILLING FUEL

Fill the removable tank in a suitable place since there can always be some spillage. Follow the procedure below:

1 Make sure that the heater is switched off.

2 Open the upper lid and lift the removable tank out of the heater (Fig. H). Note: Some drops may leak from the tank. Put down the removable tank (cap pointing upwards, handle on floor and screw off the fuel cap.

3 Fill the removable tank using a fuel pump (refer to fuel pump operation instructions.) Make sure that it is in a higher position than the removable tank (Fig. 1). Insert the ribbed hose into the opening of the removable tank.

4 Check the removable tank fuel gauge while filling the tank (Fig. J). Stop filling once the gauge indicates that the tank is full. Never overfill the tank, especially not when the fuel is very cold (fuel expands when it heats up).

5 Let the remaining fuel in the pump flow back into the jerry can and carefully remove the pump. Carefully screw the fuel cap back on the tank. Clean off any spilled fuel.

6 Check whether the fuel cap is straight and tightened properly. Reinstall the removable tank in the heater (cap down). Close the lid.

C IGNITING THE HEATER

A new heater may give off some smells for a short while, when it is used for the first time. You should therefore provide extra ventilation or ignite the heater outside the living room.

When you use the heater for the first time, first put the filled removable tank into place, and then wait approximately 30 minutes before you ignite the heater. This allows the glass fibre wick to soak up the fuel. Follow the same procedure when you have completely burnt up all fuel from the tank, and after the glass fibre wick has been replaced.

Line drawing of a hand holding a tool next to a cylindrical object, with no visible text or symbols

Line drawing of a portable air conditioner unit with cooling fins and a hand operating the front panel (no text or symbols)

Illustration of a portable air conditioner unit with a hand operating the grille and indicator lights (no text or symbols)

Before igniting the heater, always check the fuel indicator ⑥ to see whether the removable tank needs filling up.

Always ignite the heater with the ignition coil ⑪. Never use matches or a cigarette lighter.

Follow the procedure below:

1 Turn the knurled wick adjustment knob ② clockwise to its stop (Fig. K).
2 Push in the ignition button ③ (Fig. L), but do not apply too much force. Release the ignition button as soon as a flame is visible in the combustion chamber ④.

After having ignited the heater, always check whether the combustion chamber ④ is level, by sliding it slightly to the left and the right by its handle ⑤ (Fig. F). This should be a smooth movement. If the combustion chamber is not level, this will cause smoke and soot to develop.

D BURNING OF THE HEATER

After you have ignited the heater, it will take 10 to 15 minutes before you can check whether the heater is burning well. Too high a flame may cause smoke and soot, whereas too low a flame causes smells. Fig. Q shows the minimum and maximum permissible burning heights of the flame. The flame can be slightly adjusted with the knurled wick adjustment knob ② (Fig. M).

Burning that is too low may be caused by:

▶ insufficient fuel (fill the tank)
▶ poor fuel quality (contact your dealer)
▶ insufficient ventilation (put window or door ajar)
▶ wastage of the wick (contact your dealer or replace the wick, refer to section L

E SWITCHING OFF THE HEATER

Push the OFF-button ①. The flame will extinguish after a little while (Fig. N).

F MALFUNCTION, CAUSES AND SOLUTIONS

If any malfunctioning cannot be solved from the directions below, please contact your dealer.

THE HEATER DOES NOT IGNITE

▶ The batteries are not positioned correctly in the holder. Check (Fig. G).
There is not enough power left in the batteries for the ignition. Replace (Fig. G).
▶ You have run out of fuel from the tank or the wick has been replaced. After having refilled and replaced the removable tank, wait for 30 minutes before igniting the heater.
▶ You are pushing the ignition button ③ with too much force. Push it in less forcefully (Section C).
▶ The ignition coil ⑪ is defective. Contact your dealer.

GB

69

Technical line drawing of a mechanical assembly with no visible text or symbols

IRREGULAR FLAME AND/OR SOOT AND/OR SMELLS

▶ The combustion chamber ④ has not been positioned correctly.
Use the handle ⑤ to put it level, until you can easily slide it slightly to the left and to the right and the chamber is level.
▶ You are using fuel which is past its 'use by' date.
Start every heating season with fresh fuel.
▶ You are using the incorrect type of fuel.
Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').
▶ Dust has gathered in the lower part of the heater.
Contact your dealer.
▶ The wick height is not correct.
Contact your dealer.

THE HEATER SLOWLY EXTINGUISHES

▶ The removable tank is empty.
See Section B.
▶ The lower reservoir is contaminated by moist.
Contact your dealer.
▶ The wick has hardened on the upper side.
Burn the heater until all fuel is used (Section G). Use the right fuel.
▶ You are using fuel which is past its 'use by' date.
Start every heating season with fresh fuel.

THE HEATER REMAINS BURNING LOW

▶ Wick position too low.
Contact your dealer.
▶ Before you refilled the tank, the heater had burnt up almost all the fuel.
After having refilled and replaced the removable tank, wait for 30 minutes before igniting the heater.
▶ You are using the incorrect type of fuel.
Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').
▶ The room is insufficiently ventilated.
Leave a window or a door wide open for a while.

THE HEATER IS BURNING TOO HIGH

▶ You are using an incorrect, too volatile type of fuel.
Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').
▶ Wick position too high.
Contact your dealer.

ignition coil

G MAINTENANCE

Your heater needs hardly any maintenance. It is, however, important that you remove dust and stains in time with a damp cloth, because otherwise these may cause stains that are hard to remove. Under normal conditions, only three components are subject to wear:

1. THE BATTERIES

You may replace the batteries yourself. Do not dispose of old batteries along with the other domestic waste. Follow the locally applicable regulations regarding the disposal of domestic chemical waste. - Do not throw batteries into the fire, where they can explode or release dangerous liquids.

2. THE IGNITION COIL

The ignition coil will have a longer life, if you ignite the heater in the correct manner. Replace the batteries in time and take care not to push in the ignition button with too much force. If the filament is broken, the ignition coil must be replaced.

GB

70

3. THE WICK

To extend the glass fibre wick life, you must occasionally let the heater burn until the tank is completely emptied and the heater extinguishes by itself. Do this when you notice that the flame is weakening. The burn-out will cause some smells, so it is recommended that you take the heater outside of the living room.

Do not remove any heater components yourself. Always contact your dealer for repairs.

Let the heater cool down first, before you start any maintenance or service work.

H STORAGE (END OF THE HEATING SEASON)

We recommend that you burn up all the fuel in the fuel tank at the end of the heating season and store the heater properly. Follow the procedure on the next page:

1 Ignite the heater outside the living room and let it burn until all fuel is used.
2 Let the heater cool down.
3 Clean the heater with a damp cloth and then dry it with a dry cloth.
4 Remove the batteries from the holder ⑫ and store them in a dry place.
5 Clean the fuel filter.
6 Store the heater in a dust-free place, if possible in its original packaging. Unused fuel cannot be used for the next heating season. If there is still some fuel left, do not throw it away, but dispose of it in accordance with the local regulations for the disposal of domestic chemical waste. Always start the new heating season with fresh fuel. When you start re-using the heater, follow the instructions again (starting from Section A and as specified).

Simple line drawing of a mortar or cup with a handle and base (no text or symbols)

transportation cap

TRANSPORTATION

Take the following measures to avoid fuel leakage during the transportation of the heater:

1 Let the heater cool down.
2 Remove the removable tank ⑨ from the heater and remove the fuel filter. Some drops may leak from the filter; keep a cloth at hand. Store the fuel filter and the removable tank outside the heater.
3 Place the transportation cap (Fig. O) into the position of the fuel filter. Press it tight. The transportation cap will, as much as possible, prevent oil leakage from the heater during transport.
4 Always move the heater in an upright position.

5 Make the fixed tank empty with a fuel pump before transportation or in case of wrong or dirty fuel. First remove the fuel filter and then insert the fuel pump into the empty fixed tank. Follow the same procedure if the fuel tank contains water.

GB

71

J SPECIFICATIONS

	R 233 TC
Ignition electrical
Fuel paraffin
Capacity (kW)* 2.3
Suitable space (m3)** 37-82
Fuel consumption (l/hr)* 0.240
Fuel consumption (g/hr)* 192
Burning time per tank (hr)* 17.5
Capacity removable tank (litres) 4.2
Weight (kg) 8.6
Dimensions (mm) (including base plate)	width 455
	depth 295
	height 495
Required batteries 3V D.C. (R20 x 2)
Wick type N

* At maximum setting
** Specified values are indicative

K WARRANTY PROVISIONS

Your heater comes with a 24-month warranty starting on the date of purchase. Within this period all defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty:

1 We expressly dismiss all other claims for damages, including consequential damages.
2 Any repairs or replacements of components within the term of warranty will not result in an extension of the term of warranty.
3 The warranty will no longer apply, when the heater has been modified, non-original parts have been used, or when it is repaired by third parties.
4 The warranty will not apply to parts that are subject to normal wear, such as the batteries, the ignition coil, the wick and the manual fuel pump.
5 The warranty will only apply, when you present the original, dated proof of purchase, provided no changes have been made to it.
6 The warranty will not apply to damages caused by actions not in compliance with the Directions for Use, neglect, and the use of an incorrect type of fuel, or fuel past its use-by date. The use of incorrect fuel can even be dangerous*.
7 Transportation costs and the risks involved during the transportation of the heater or heater components will always be the responsibility of the purchaser.

In order to avoid unnecessary costs, we recommend that you always read the 'Directions for Use' carefully first. In case they offer no solution, please take the heater to your dealer for repair.

* Highly inflammable substances may induce uncontrollable burning, causing flames to break out. Should this happen, never try to move the heater, but always switch off the heater immediately (refer to Section E). In cases of emergency you may use a fire extinguisher, but only a type B extinguisher: a carbon dioxide or powder extinguisher.

14 TIPS FOR SAFE USE

1 Children should be supervised to ensure that they do not play with the appliance.

2 Do not move the heater when it is burning or still hot. Do not refill nor service the heater when it is burning or still hot.

3 Position the front of the heater at a minimum distance of 1.5 metres from walls, curtains, and furniture.

4 Do not use the heater in dusty rooms or in very draughty places. In both cases you will not have optimum burning.

5 Switch off the heater, before you go to sleep.

6 Store and move fuel only in suitable tanks and jerrycans.

7 Make sure that the fuel is not exposed to heat or extreme temperature changes. Always store the fuel in a cool, dry and dark place (sunlight will affect the quality).

8 Never use the heater in places where harmful gasses or fumes may be present (e.g. exhaust gasses or paint fumes).

9 Be aware that the grid of the heater becomes hot. If the appliance is covered there is a risk of fire.

10 Always make sure that there is sufficient ventilation.

11 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

12 This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

13 Children shall not play with the appliance.

14 Cleaning and user maintenance shall not be made by children without supervision.

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Illustration of a portable air conditioner unit with a hand inserting a plug into it (no text or symbols visible)

Technical line drawing of a heating unit and its internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of an electronic device with internal components and housing (no text or symbols)

Line drawing of a device with a plug, cable, and connector (no text or symbols)

Mechanical assembly diagram showing a component with a highlighted arrow and numbered label (7), no readable text or symbols present.

Technical line drawing of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Mechanical assembly diagram showing hands operating a cylindrical component with a base and clamped parts (no text or symbols)

Hand holding a coiled cable or hose, no text or symbols visible

Mechanical device diagram showing a motor with rotating arm and housing (no text or symbols)

Mechanical component diagram showing a cylindrical housing with attached parts (no text or symbols)

Mechanical assembly diagram showing gears and housing components (no text or labels)

REPLACEMENT OF THE WICK

L ENSURE THAT THE HEATER IS OFF AND COMPLETELY COOL BEFORE STARTING TO REPLACE THE WICK.

1a. Open the tank cover ⑧ and remove the fuel tank ⑨.
1b. Remove the batteries to prevent possible burns.
1c. Open the front grille and remove the combustion chamber ④.
1d. Remove the knurled wick adjustment knob ② by pulling it straight out.
2a. Unscrew the 5 screws, 1 from the back and 2 from the right side and 2 from the left side of the cabinet 14.
2b. Remote the sensor at the back side of the cabinet 14.
3. Remove the cabinet by pulling it straight up.
4. Remove the 2 screws on the ignitor coil ⑪.
5. Remove the wind cover A/B.
6a. Remove the automatic ignition assembly by unscrewing 1 screw.
6b. Remove the tip-over safety mechanism by unscrewing 2 screws.
7. Unscrew 4 wing nuts.
8. Remove the wick adjuster assembly.
9. Press the pin of the wick which is assembled inside the wick case assembly. Disassemble the wick, the wick holder, the wick case assembly separately.
10. Install the new wick and insert the three pins on the new wick into the 3 holes on the wick sleeve in the upward direction (See the arrow marked "up" on the wick sleeve).
11. Push the new wick into the retainer teeth of the wick sleeve so that the wick adheres tightly around the inside of the wick sleeve, smoothly without any wrinkles.
12. Line up the pins with the slotted holes inside the wick adjuster. Then lightly press each of the three pins of the wick (now attached to the wick sleeve) towards the inside. Insert the three pins into the slanted grooves of the wick adjuster. Press on each of the three pins, inserting them securely in the holes.
13. Turn the knurled wick adjustment knob ② and check to be sure that the wick moves up and down freely.
14. Slide the wick adjuster assembly down the draft tube. Position the adjuster shaft to the front of the heater.

GB

74

Mechanical component diagram showing a fan assembly with a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical clutch assembly (no text or symbols)

Technical line drawing of a mechanical device with internal components and wiring (no text or symbols)

Mechanical device with a central hub and wiring, labeled '20' (no readable text or symbols beyond label)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Technical line drawing of a device with a fan and internal components (no text or symbols)

Illustration of a portable air heater with a hand operating it, showing internal components and a close-up view (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fins and a side panel (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fan and ventilation slots (no text or symbols)

1. Reposition 4 wing nuts on the mounting stud, but do not tighten them.
2. Raise the wick to its highest position and tighten the wing nuts in several steps.
3. Check the wick height. It should be 5/16 inch above the collar.
4. Check for the correct clearance between wick holder and draft tube. It should be the same all around.
5. Reinstall the tip-over switch assembly by pushing the extinguish knob ①.
6. Check the function of the tip-over safety stop by pushing the extinguish button ① to activate the pendulum.
7. Reinstall the automatic ignition assembly.
8. Reinstall the wind cover A / B.
9. Reinstall the ignitor coil ⑪.
10. Reinstall the cabinet 14.
11. Tighten the 5 screws on the cabinet and reinstall the sensor at the back of the cabinet ⑭.
12. Reinstall the combustion chamber ④ and the fuel tank ⑨.
13. Reinstall the knurled wick adjustment knob ②. Close the front plate.

Install the batteries in the battery case and fill the fuel tank with Premium Quality Fuels. Put the tank into the heater and wait at least 30 minutes for the new wick to fully saturate with the fuel.

Egregio Signore, Gentile Signora,

Illustration of a portable air heater with heat exchanger and hand gesture (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Illustration of a kitchen appliance with a fan, heater, and oven (no text or symbols)

MANUALE

Technical line drawing of a mechanical device with a metal frame and mounting bracket (no text or symbols)

Illustration of a hand using a tool to adjust or install a cylindrical component (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a device with a bottle and lid, showing internal components (no text or symbols)

Line drawing of a fire extinguisher with a bag attached, showing internal compartments and a handle (no text or symbols)

C ACCENSIONE DELLA STUFA

Illustration of a hand pressing down on a mechanical device with a handle (no text or symbols visible)

D LA COMBUSTIONE DELLA STUFA

Diagram of a hand holding a cylindrical object with a tool, no visible text or symbols

E SPEGNIMENTO DELLA STUFA

Line drawing of a portable air heater with a hand operating the control panel (no text or symbols)

F GUASTI, CAUSE E SOLUZIONI

Illustration of a portable air heater with a hand pressing a button (no text or symbols)

NON SI RIESCE AD ACCENDERE LA STUFA.

Technical line drawing of a mechanical assembly with no visible text or symbols

FIAMMA INCOSTANTE E/O FULIGGINE E/O CATTIVO ODORE.

2. LA RESISTENZA DI ACCENSIONE

Simple line drawing of a mortar and pestle (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fan and ventilation slots (no text or symbols)

Illustration of a portable air conditioner unit with a hand inserting a plug into it (no text or symbols visible)

Technical line drawing of a device with a fan and internal components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Exploded view diagram of a mechanical device with internal components and housing (no text or labels)

Line drawing of an electronic device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a rotating component with an arrow indicating direction (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Mechanical assembly diagram showing hands operating a cylindrical component with a base and clamped parts (no text or symbols)

Hand holding a coiled cylindrical object, no text or symbols visible

Illustration of a mechanical device with a handle and base, no visible text or symbols

Mechanical component diagram showing a valve assembly with no visible text or symbols

Mechanical assembly diagram showing a cam or cam component with no visible text or symbols

Mechanical component diagram showing a fan assembly with a downward arrow indicating motion (no text or symbols)

Mechanical component diagram showing a gear assembly with no visible text or symbols

Technical line drawing of a mechanical clutch assembly (no text or symbols)

Technical line drawing of a mechanical device with internal components and wiring (no text or symbols)

Mechanical device with a central hub and surrounding components (no visible text or symbols)

Mechanical assembly diagram showing a motor or engine component with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with internal components and wiring (no text or symbols)

Technical line drawing of a device with a fan and base, showing internal components (no text or symbols)

Illustration of a hand operating a heater next to a device with a close-up view of the lid (no text or symbols visible)

Illustration of a portable air conditioner unit with cooling fins and a top-mounted fan (no text or symbols visible)

Line drawing of a portable air conditioner unit with cooling fins and a hand operating the button (no text or symbols)

② Riflet regulerings-bryter

③ Tenningsknapp

4 Forbrenningskammer

HÅNDBOK

A INSTALLERE OVNEN

Illustration of a portable air heater with heat exchanger and hand gesture (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Technical illustration of a microwave oven with cooling unit and fan (no text or symbols)

Technical line drawing of a mechanical device with a metal frame and mounting bracket (no text or symbols)

Illustration of a hand using a tool to adjust or install a cylindrical component (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a portable electronic device with a chimney and fan (no text or symbols)

Diagram of a water tank with recycling symbol and connected to a gas bag (no text or labels)

C TENNE VARMEOVNEN

Line drawing of a portable air conditioner unit with a hand operating the grille (no text or symbols)

Line drawing of a hand holding a tool next to a cylindrical object (no text or symbols)

Line drawing of a portable air conditioner unit with a grid and handle (no text or symbols)

Illustration of a portable air conditioner unit with a hand operating the grille and control panel (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

OVNEN SLÅR SEG LANGSOMT AV

Simple line drawing of a mortar or cup with a handle and base (no text or symbols)

transportdeksel

H OPPBEVARING (SLUTT PÅ DEN KALDE ÅRSTIDEN)

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Illustration of a hand inserting a component into a heater device (no text or symbols visible)

Technical line drawing of a device with a fan and internal components (no text or symbols)

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Technical line drawing of an electronic device with internal components and wiring (no text or symbols)

Line drawing of an electronic device with a plug, cable, and housing (no text or symbols)

Mechanical assembly diagram showing a rotating component with an arrow indicating motion direction (no text or symbols)

Technical line drawing of a mechanical device with a cylindrical component and a base plate (no text or symbols)

Mechanical assembly diagram showing hands operating a component with no visible text or symbols

Hand holding a coiled cable or hose component, no text or symbols visible

Illustration of a mechanical device with a handle and base mount (no text or symbols)

Mechanical component diagram showing a valve assembly with no visible text or symbols

Mechanical assembly diagram showing internal components (no text or labels)

SKIFTE UT VEKEN

L PASS PÅ AT OVNEN ER AV OG HELT KALD F∅R DU BEGYNNER Å BYTTE VEKEN.

Mechanical component diagram showing a fan assembly with a downward arrow indicating motion (no text or symbols)

Mechanical component diagram showing a motor assembly with no visible text or symbols

Technical line drawing of a mechanical clutch assembly (no text or symbols)

Line drawing of a mechanical device with internal components and a labeled part (no text or symbols present)

Mechanical device with a central hub and surrounding components (no visible text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical device with internal components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a device with a fan and internal components (no text or symbols)

Illustration of a portable air heater with a hand operating it, showing internal components and a close-up view (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fins and heat exchangers (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

WAT U VOORAF MOET WETEN

ALTIJD VOLDOENDE VENTILEREN

Illustration of a portable air heater with heat exchanger and hand gesture (no text or symbols)

Diagram of a mechanical device with internal components and directional arrows (no text or symbols)

Line drawing of a kitchen appliance with a fan, lid, and evaporator (no text or symbols)

HANDLEIDING

A HET INSTALLEREN VAN DE KACHEL

Technical line drawing of a mechanical device with a metal frame and mounting bracket (no text or symbols)

Illustration of a hand using a tool to adjust or install a cylindrical component (no text or symbols visible)

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram of a device with a bottle and lid, showing internal components (no text or symbols)

Line drawing of a water bottle connected to a gas bag with a handle, showing internal compartments and no text or symbols.

NL

104

Line drawing of a portable air conditioner unit with a hand operating the front panel (no text or symbols)

Line drawing of a hand holding a tool next to a cylindrical object (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fins and a handle (no text or symbols)
