R251TC - Frying Pan QLIMA - Free user manual and instructions

Product Type	Wood-burning stove
Brand	Qlima
Model	R251TC
Fuel Type	Wood logs
Heating Power	8 kW
Heating Area	Up to 150 m²
Dimensions (H x W x D)	800 x 500 x 450 mm
Weight	80 kg
Material	Cast iron and steel
Flue Outlet Diameter	150 mm (top or rear)
Viewing Window	Ceramic glass
Primary Functions	Room heating with aesthetic flame view
Secondary Combustion	Yes, for high efficiency and low emissions
Efficiency	80%
Air Control	Primary and secondary air slides
Ash Pan	Removable for easy cleaning
Maintenance	Regular ash removal and flue cleaning
Safety Features	Overheat protection, cool-touch handle, safety glass
Certification	CE, EN 13240
Spare Parts Availability	Through Qlima authorized dealers

Frequently Asked Questions - R251TC QLIMA

What type of fuel does the Qlima R251TC use?

The Qlima R251TC is a wood-burning stove designed for logs. Use only dry, seasoned wood with a moisture content below 20% for optimal performance and low emissions.

How do I clean and maintain the R251TC stove?

Regular maintenance includes emptying the ash pan after each use, cleaning the ceramic glass with a damp cloth, and sweeping the flue at least once a year. Ensure the stove is cold before cleaning.

What is the heating capacity of this stove?

The R251TC has a nominal heat output of 8 kW, suitable for heating rooms up to approximately 150 m², depending on insulation and ceiling height.

Can the flue outlet be installed on top or rear?

Yes, the stove features a 150 mm flue outlet that can be configured for either top or rear connection. Follow the installation manual for proper setup.

Is the R251TC safe to touch during operation?

The stove has a cool-touch handle on the door, but the body, glass, and flue become extremely hot. Keep children and flammable materials at a safe distance. Use the provided gloves when adjusting controls.

How do I control the burn rate?

The stove is equipped with primary and secondary air slides. Adjust the primary air for fire intensity and the secondary air for cleaner combustion. Refer to the manual for recommended settings.

Does the stove have a secondary combustion system?

Yes, the R251TC features secondary combustion that burns off smoke particles, increasing efficiency (up to 80%) and reducing environmental impact.

What safety certifications does the R251TC have?

This stove complies with European standard EN 13240 and carries the CE mark, ensuring it meets safety and emission requirements.

How do I replace the glass if it breaks?

Use only original Qlima ceramic glass of the correct size. Remove the broken glass carefully, clean the frame, and fit the new glass with the gasket. Tighten screws evenly. Consult a professional if needed.

Where can I find spare parts for the R251TC?

Spare parts are available through Qlima authorized dealers and service centers. Check the official Qlima website or contact customer support for the nearest distributor.

USER MANUAL R251TC QLIMA

F	MANUEL D'UTILISATION	2
D	GEBRAUCHSANWEISUNG	14
DK	BRUGSANVISNING	26
E	INSTRUCCIONES DE USO	38
FIN	KÄYTTÖOHJE	50
GB	OPERATING MANUAL	62
I	ISTRUZIONI D'USO	74
N	BRUKSANVISNING	86
NL	GEBRUIKSAANWIJZING	98
PL	INSTRUKCJI OBS?UGI	110
S	BRUKSANVISNING	122
SLO	NAVODILA ZA UPORABO	134

Dear Sir, Madam,

Congratulations on your purchase of this heater. You have purchased a quality product, which will serve you for many years to come. This, of course, provided you use the heater correctly. Please read these Directions for Use first, to ensure the maximum lifetime for your heater.

This appliance comes with a 24-month manufacturer's warranty on all defects in material or workmanship.

We wish you much warmth and comfort from your heater.

Yours sincerely,

PVG Holding b.v.

Customer Service Department

1 READ THE DIRECTIONS FOR USE FIRST.

2 IN CASE OF ANY DOUBT, CONTACT YOUR DEALER.

3 BEFORE YOU START READING, FOLD OUT THE LAST PAGE.

▶▶▶▶▶▶▶▶▶▶▶▶

GENERAL DIRECTIONS FOR USE

Below you will find the main steps to be taken for using your heater. For more details, please refer to the MANUAL (pages 65 ff.).

1 Remove all packaging materials (refer to Section A, Fig. A).
2 Fill the removable tank ⑨ and wait 30 minutes before you ignite the heater (refer to Section B, Fig. G).
3 Insert the batteries into the battery holder ¹² (refer to Section A, Fig. F).
4 Check whether the combustion chamber ④ is fully upright (refer to Section A, Fig. E).
5 Ignite the heater by turning the knurled wick adjustment knob ② as far to the right as possible and then gently push the ignition button ③ (refer to Section C, Fig. K and L).
6 After igniting the heater it will take 10 to 15 minutes before you can check if the heater burns well (refer to Section D).
7 Switch off the heater (refer to Section E).

• As a fire precaution, the tank must be filled either when the heater has been switched off or in another room than the room where the heater is installed.
• Always ensure that the tank is closed properly after filling it at a safe distance from all sources of heat and open flames (see chapter B).
• Store all fuel containers with their original caps and seals in a cool and dark place.
• Fuel ages. Use new fuel at the start of every heating season.
• The use of Zibro Extra, Zibro Kristal or Zibro Bio as a heating fuel assures you that you have a good quality fuel.
• Before changing brands and/or types of fuel make sure that the mobile heater first completely empties all of the remaining fuel inside the heater.

MAIN COMPONENTS

① OFF - button
② Knurled wick adjustment knob
③ Ignition button
4 Combustion chamber
⑤ Combustion chamber handle
6 Fuel indicator
7 Grill
⑧ Lid for removable tank
9 Removable tank
10 Fuel gauge removable tank
⑪ Ignition coil
⑫ Battery holder

WHAT YOU NEED TO KNOW IN ADVANCE

ALWAYS MAKE SURE THAT THERE IS SUFFICIENT VENTILATION

Read this user manual carefully before using the appliance and keep it for future reference. Install this device only when it complies with local/national legislation, ordinances and standards. This product is intended to be used as a heater in residential houses and is only suitable for use in dry locations, in normal household conditions, indoors in living room, kitchen and garage.

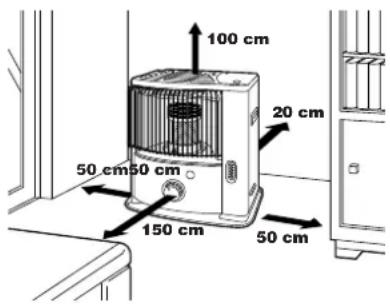

Regardless of the model, you must always make sure that the heater is used in a room large enough to enable the heater to be used safely without extra ventilation. If the room is smaller than required, you must always open a door or window slightly (ensuring an opening of approx. 2.5 cm). It is important that every room where the heater is used has sufficient air intake and efficient air outflow (both openings must have a minimum cross section of 50 cm ² ). No modifications to the safety system are allowed, as that will invalidate the guarantee that the air probe will work properly. Consult your dealer in case of doubt.

SAFETY SYSTEM

When you have turned on the heater, if the room temperature is relatively low (19 to 20°C) it may automatically switch off. The cause of this is build-up of heat in the heater. This is a logical consequence of the safety mechanism. This will not occur when using the heater at lower ambient temperatures.

SAFE TOP

The heater is supplied with a safe top. This application decreases the temperature of the top plate. In this way, the risk of harmful accidents at accidentally touching the top plate is considerably decreased. However, be aware that the top plate still becomes hot.

Avoid any contact with the top plate and grille.

Especially for France: Your heater was designed to operate exclusively on fuel for liquid fuel-operated mobile heaters in accordance with the Decrees of 08-01-1998 and 18-07-2002. The use of other fuels is forbidden. Ask your dealer or check our website for the addresses of our retailers. The liquid fuel-operated mobile heater is intended as an extra heater, and not as a continuous source of heat.

Especially for United Kingdom: Only use Class C1 paraffin fuel in accordance with BS2869; Part 2, or equivalent.

The user must comply with the following instructions for proper use:

DO NOT

• use the liquid fuel-operated mobile heater in caravans, boats, and vehicle cabins;
• use the liquid fuel-operated mobile heater in insufficiently ventilated rooms (consult the table of properties for the minimum dimensions of the room to be heated), underground rooms and / or at a height of over 1500 metres;
• modify the heater safety features.

The use of this type of heating in public rooms is subject to prior regulatory permission. Obtain proper information on this in advance.

Only the use of the correct fuel will ensure safe, efficient, and comfortable use of your heater.

This transportation cap is packed separately in the box. Only this cap ensures trouble-free transportation of the heater after use. Store it well!

THE RIGHT FUEL

Your heater has been designed for use with high-quality water-free pure paraffin oil, such as Zibro Extra or Zibro Kristal. Only fuels of this kind will ensure clean and proper burning. Lower quality fuel may result in:

▶ excessive tar deposits on the glass fibre wick
▶ incomplete burning
▶ reduced heater lifetime
▶ smoke and/or smells
▶ deposits on the grid or mantle

Using the right fuel is therefore essential for safe, efficient, and comfortable use of your heater.

Damage and/or malfunctions of the heater due to the use of other than high quality water-free pure paraffin oil is not covered by the warranty.

Always refer to your local dealer for the right fuel for your heater.

MANUAL

A INSTALLING THE HEATER

1 Carefully remove your heater from the box and check the contents. In addition to the heater you also need to have:

▶ a transportation cap
▶ these directions for use

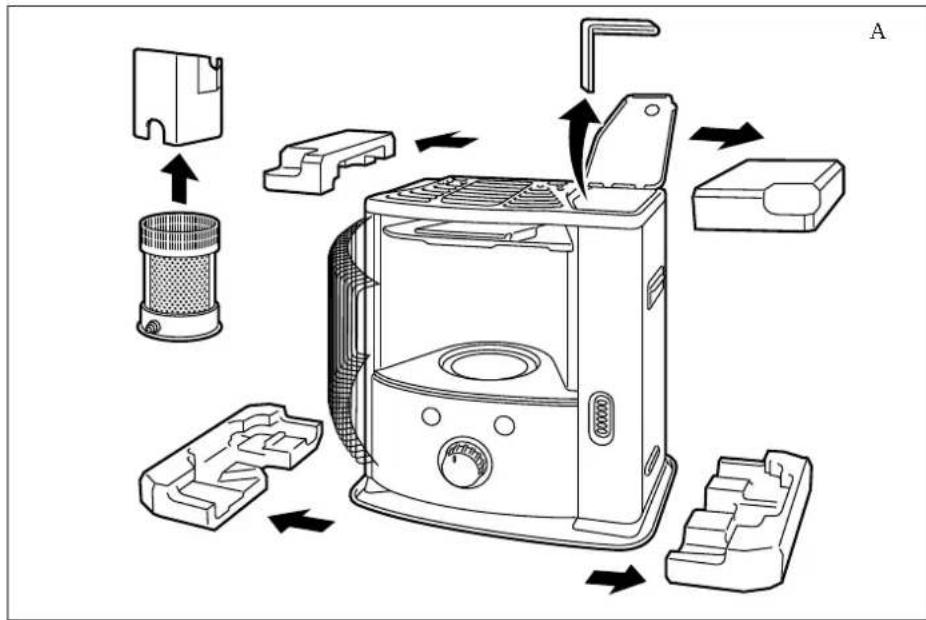

Keep the box and the packaging materials (Fig. A) for storage and/or transportation.

2 Remove the other packaging materials:

▶ Release the right side of the grill ⑦ from the two slots by pulling the right side of the grill to the left and then pull it forward (Fig. B).
▶ Pull both ends of the packaging to the rear and at the same time slightly downwards (see Fig. C).
▶ Remove the combustion chamber from the heater and remove the packaging underneath (see Fig. D).

©

C IGNITING THE HEATER

A new heater may give off some smells for a short while, when it is used for the first time. You should therefore provide extra ventilation or ignite the heater outside the living room.

When you use the heater for the first time, first put the filled removable tank into place, and then wait approximately 30 minutes before you ignite the heater. This allows the glass fibre wick to soak up the fuel. Follow the same procedure when you have completely burnt up all fuel from the tank, and after the glass fibre wick has been replaced.

Before igniting the heater, always check the fuel indicator ⑥ to see whether the removable tank needs filling up.

Always ignite the heater with the ignition coil ⑪. Never use matches or a cigarette lighter.

Follow the procedure below:

1 Turn the knurled wick adjustment knob ②clockwise to its stop (Fig. K). If you apply more pressure you may turn it slightly further; however, it will automatically return to the startposition.
2 Push in the ignition button ③(Fig. L), but do not apply too much force. Release the ignition button as soon as a flame is visible in the combustion chamber ④.

If the heater has been used only a few times and the wick adjustment knob is not locked, first turn the wick adjustment knob (Fig. M) completely left, before putting the wick in the highest position for ignition (Section C).

After having ignited the heater, always check whether the combustion chamber ④ is level, by sliding it slightly to the left and the right by its handle ⑤ (Fig. F). This should be a smooth movement. If the combustion chamber is not level, this will cause smoke and soot to develop.

D BURNING OF THE HEATER

After you have ignited the heater, it will take 10 to 15 minutes before you can check whether the heater is burning well. Too high a flame may cause smoke and soot, whereas too low a flame causes smells. The page opposite the folding page shows the minimum and maximum permissible burning heights of the flame (Fig. Q). The flame can be slightly adjusted with the knurled wick adjustment knob ②(Fig. M).

Burning that is too low may be caused by:

▶insufficient fuel (fill the tank)
▶poor fuel quality (contact your dealer)
▶insufficient ventilation (put window or door ajar)

▶wastage of the wick (contact your dealer or replace the wick, refer to section L

E SWITCHING OFF THE HEATER

Push the OFF-button ①. The flame will extinguish after a little while (Fig. N).

F MALFUNCTION, CAUSES AND SOLUTIONS

If any malfunctioning cannot be solved from the directions below, please contact your dealer.

THE HEATER DOES NOT IGNITE

▶The batteries are not positioned correctly in the holder. Check (Fig. G).
▶There is not enough power left in the batteries for the ignition. Replace (Fig. G).
▶You have run out of fuel from the tank or the wick has been replaced. After having refilled and replaced the removable tank, wait for 30 minutes before igniting the heater.
▶ You are pushing the ignition button ③ with too much force. Push it in less forcefully (Section C).
▶The ignition coil ⑪ is defective. Contact your dealer.

IRREGULAR FLAME AND/OR SOOT AND/OR SMELLS

The combustion chamber 4 has not been positioned correctly.
Use the handle ⑤ to put it level, until you can easily slide it slightly to the left and to the right and the chamber is level.
▶You are using fuel which is past its 'use by' date. Start every heating season with fresh fuel.
▶You are using the incorrect type of fuel. Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').
▶Dust has gathered in the lower part of the heater. Contact your dealer.
▶The wick height is not correct. Contact your dealer.

THE HEATER SLOWLY EXTINGUISHES

▶The removable tank is empty. See Section B.
▶The lower reservoir is contaminated by moist. Contact your dealer.
▶The wick has hardened on the upper side. Burn the heater until all fuel is used (Section G). Use the right fuel.
▶You are using fuel which is past its 'use by' date. Start every heating season with fresh fuel.

THE HEATER REMAINS BURNING LOW

▶Wick position too low. Contact your dealer.
▶Before you refilled the tank, the heater had burnt up almost all the fuel. After having refilled and replaced the removable tank, wait for 30 minutes before igniting the heater.
▶You are using the incorrect type of fuel. Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').
▶The room is insufficiently ventilated. Leave a window or a door wide open for a while.

THE HEATER IS BURNING TOO HIGH

▶You are using an incorrect, too volatile type of fuel. Refer to THE RIGHT FUEL (See Section 'What you need to know in advance').

▶Wick position too high. Contact your dealer.

broken ignition coil

G MAINTENANCE

Your heater needs hardly any maintenance. It is, however, important that you remove dust and stains in time with a damp cloth, because otherwise these may cause stains that are hard to remove. Under normal conditions, only three components are subject to wear:

1. THE BATTERIES

You may replace the batteries yourself. Do not dispose of old batteries along with the other domestic waste. Follow the locally applicable regulations regarding the disposal of domestic chemical waste.

2. THE IGNITION COIL

The ignition coil will have a longer life, if you ignite the heater in the correct manner. Replace the batteries in time and take care not to push in the ignition button with too much force. If the filament is broken, the ignition coil must be replaced.

3. THE WICK

To extend the glass fibre wick life, you must occasionally let the heater burn until the tank is completely emptied and the heater extinguishes by itself. Do this when you notice that the flame is weakening. The burn-out will cause some smells, so it is recommended that you take the heater outside of the living room.

Do not remove any heater components yourself. Always contact your dealer for repairs.

Let the heater cool down first, before you start any maintenance or service work.

H STORAGE (END OF THE HEATING SEASON)

We recommend that you burn up all the fuel in the fuel tank at the end of the heating season and store the heater properly. Follow the procedure on the next page:

1 Ignite the heater outside the living room and let it burn until all fuel is used.

2 Let the heater cool down.

3 Clean the heater with a damp cloth and then dry it with a dry cloth.

4 Remove the batteries from the holder 12 and store them in a dry place.

5 Clean the fuel filter (refer to section G).

6 Store the heater in a dust-free place, if possible in its original packaging. Unused fuel cannot be used for the next heating season. If there is still some fuel left, do not throw it away, but dispose of it in accordance with the local regulations for the disposal of domestic chemical waste. Always start the new heating season with fresh fuel. When you start re-using the heater, follow the instructions again (starting from Section A and as specified).

Transportation cap

TRANSPORTATION

Take the following measures to avoid fuel leakage during the transportation of the heater:

1 Let the heater cool down.
2 Remove the removable tank ⑨ from the heater and remove the fuel filter (Fig. O). Some drops may leak from the filter; keep a cloth at hand. Store the fuel filter and the removable tank outside the heater.
3 Place the transportation cap into the position of the fuel filter (Fig. P). Press it tight. The transportation cap will, as much as possible, prevent oil leakage from the heater during transport.
4 Always move the heater in an upright position.
5 Make the fixed tank empty with a fuel pump before transportation or in case of wrong or dirty fuel. First remove the fuel filter and then insert the fuel pump into the empty fixed tank. Follow the same procedure if the fuel tank contains water.

J SPECIFICATIONS

Ignition electrical Dimensions (mm) width 422
Fuel paraffin	(including base plate) depth 281
Capacity (kW)*	2.2 height 446
Suitable space (m3)**	35-80 Accessories: transportation cap
Fuel consumption (l/hr)*	0.229 Required batteries	2x R20kG, MN 1300
Fuel consumption (g/hr)*	183 1.5V, size D
Burning time per tank (hr)*	17.5 Wick type F
Capacity removable tank (litres)	4.0
Weight (kg)	7.5

* At maximum setting
** Specified values are indicative

K WARRANTY PROVISIONS

Your heater comes with a 24-month warranty starting on the date of purchase. Within this period all defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty:

1 We expressly dismiss all other claims for damages, including consequential damages.
2 Any repairs or replacements of components within the term of warranty will not result in an extension of the term of warranty.
3 The warranty will no longer apply, when the heater has been modified, non-original parts have been used, or when it is repaired by third parties.
4 The warranty will not apply to parts that are subject to normal wear, such as the batteries, the ignition coil, the wick and the manual fuel pump.
5 The warranty will only apply, when you present the original, dated proof of purchase, provided no changes have been made to it.

6 The warranty will not apply to damages caused by actions not in compliance with the Directions for Use, neglect, and the use of an incorrect type of fuel, or fuel past its use-by date. The use of incorrect fuel can even be dangerous*.
7 Transportation costs and the risks involved during the transportation of the heater or heater components will always be the responsibility of the purchaser.

In order to avoid unnecessary costs, we recommend that you always read the 'Directions for Use' carefully first. In case they offer no solution, please take the heater to your dealer for repair.

* Highly inflammable substances may induce uncontrollable burning, causing flames to break out. Should this happen, never try to move the heater, but always switch off the heater immediately (refer to Section E). In cases of emergency you may use a fire extinguisher, but only a type B extinguisher: a carbon dioxide or powder extinguisher.

11 TIPS FOR SAFE USE

1 Children should be supervised to ensure that they do not play with the appliance.
2 Do not move the heater when it is burning or still hot. Do not refill nor service the heater when it is burning or still hot.
3 Position the front of the heater at a minimum distance of 1.5 metres from walls, curtains, and furniture.
4 Do not use the heater in dusty rooms or in very draughty places. In both cases you will not have optimum burning.
5 Switch off the heater, before you go to sleep.
6 Store and move fuel only in suitable tanks and jerrycans.
7 Make sure that the fuel is not exposed to heat or extreme temperature changes. Always store the fuel in a cool, dry and dark place (sunlight will affect the quality).
8 Never use the heater in places where harmful gasses or fumes may be present (e.g. exhaust gasses or paint fumes).
9 Be aware that the grid of the heater becomes hot. If the appliance is covered there is a risk of fire.
10 Always make sure that there is sufficient ventilation.
11 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

REPLACEMENT OF THE WICK

LE NSURE THAT THE HEATER IS OFF AND COMPLETELY COOL BEFORE STARTING TO REPLACE THE WICK.

1 Open the lid and remove the removable tank.
2 Remove the batteries from the battery holder.
3 Open the front grill. Remove the combustion chamber from the heater. Close the grill.
4 Pull the knurled wick adjustment knob off the heater.
5 Unscrew the three cabinet screws on the back and sides of the heater (3). Pull the cabinet forward slightly, and then remove it from the base plate.
6 Unscrew the four wing nuts from the wick holder.
7 Lift the wick holder chassis up until the wick is visible. Place the burner bed next to the heater. (Ensure that the wiring does not become disconnected).
8 Remove the screw on the stem holding the bracket and remove the bracket.
9 Turn right the stem to the end and remove the wick sleeve (with wick).
10 Turn the wick sleeve counterclockwise and lift the wick sleeve up. Remove it from the primary air tube.
11 Squeeze the wick to loosen the three wick pins and remove the wick from the wick sleeve. Ensure that you are wearing gloves and that you have a container in which to put the old wick.

12 Install the wick to the wick sleeve according to the allowed direction engraved on the wick sleeve.
13 Install the wick sleeve (with wick) to the primary air tube. And then turn the wick sleeve clockwise to set in the handle arm.
14 Install the bracket. Then tighten the screw which is holding the stem.
15 Put the wick holder chassis back into position.
16 Screw the four wing nuts hand tight.
17 Place the knurled wick adjustment knob on the wick mechanism. Turn the knob as far to the right as possible. Press the tip-over switch. Check that the wick can be lowered completely. Repeat this check a number of times. If the wick cannot be lowered completely it has not been placed correctly. If this is the case, repeat the procedure from No. 12. Pull the knurled wick adjustment knob off the heater.
18 Put the cabinet back into position and tighten the three screws. Put the knurled wick adjustment knob back into position. Now put the combustion chamber back into position. Check that it is level by sliding it slightly to the left and the right by its handle. Close the grill.
19 Put the filled removable tank into position. Put the batteries into the battery holder (ensure that the positive and negative poles match the + and - marks indicated on the battery housing). Wait 30 minutes after replacing the tank and batteries before using the heater.

*R 25x-TC:

Heator R 251 TC

Stover R 252 TC

Tectro R 253 TC

Toyoheater R 254 TC

Toyoset R 255 TC

Toyostove R 256 TC

Webber R 257 TC

Royalheater R 258 TC

F Sous réserve de modification
D Ändrungen vorbehalten
DK Endringer forbeholdes
E Nos reservamos el derecho de hacer modificaciones
GB Subject to modifications
Sogetti a modifiche
NL Wijzigingen voorbehouden

DISTRIBUTED IN EUROPE BY PVG Holding B.V.

Benötigen Sie weitere Informationen oder treten Probleme auf, besuchen Sie bitte unsere Website www.pvg.eu, oder setzen Sie sich mit unserem Kundendienst in Verbindung (Telefonnummer auf www.pvg.eu).
For alle yderligere oplysninger eller ved eventuelle problemer med apparatet henvises til PVG hjemmeside (www.pvg.eu) eller det lokale Kundecenter (telefonnumre findes i www.pvg.eu).
Si necesita información o si tiene algún problema, visite nuestra página Web www.pvg.eu, o póngase en contacto con el servicio cliente (hallará el número de teléfono en www.pvg.eu).
Si vous souhaitez obtenir des informations supplémentaires ou si vous rencontrez un problème, rendez-vous sur notre site Web (www.pvg.eu) ou contactez le notre service client (vous trouverez l'adresse et numéro de téléphone sur www.pvg.eu).
FHN Jos haluat huoltoapua, lisätietoja tai laitteen kanssa tulee ongelmia, tutustu PVG verkkosivustoon osoitteessa www.pvg.eu tai kysy neuvoa PVG kuluttajapalvelukeskuksesta (www.pvg.eu).
If you need information or if you have a problem, please visit the PVG website (www.pvg.eu) or contact our sales support (you find its phone number on www.pvg.eu)
Per informazioni e in caso di problemi, visitate il sito Web www.pvg.eu oppure contattate il Centro Assistenza Clienti (per conoscere il numero di telefono, consultate www.pvg.eu).
Hvis du trenger informasjon, eller hvis du har et problem med produktet, kan du gå til nettsidene www.pvg.eu. Alternativt kan du kontakte med PVG' forbrukertjeneste (telefonnummeret i www.pvg.eu).
Als u informatie nodig hebt of als u een probleem hebt, bezoek dan de PVG website (www.pvg.eu) of neem contact op met de afdeling sales support (adres en telefoon op www.pvg.eu).
Se necessitar de informações ou se tiver problemas, visite o Web site www.pvg.eu ou contacte o Centro de Assistência (número de telefone o www.pvg.eu)
W przypadku problemów i w celu uzyskania szczegółowych informacji odwiedź stronę internetową firmy PVG dostępną pod adresem www.pvg.eu lub skontaktuj się z Centrum kontaktów PVG (www.pvg.eu)
Om du behöver service eller information eller har problem med apparaten kan du besöka www.pvg.eu eller kontakta PVG kundtjänst (du hittar telefonnumret på www.pvg.eu).
Če želite dodatne informacije, obiščite spletno mesto podjetja PVG na naslovu www.pvg.eu ali pokličite na telefonsko (www.pvg.eu).
Daha fazla bilgiye ihtiyaç duyarsanız veya bir sorunla karşılaşırsanız, www.pvg.eu adresindeki PVG Internet sitesini ziyaret edin veya ülkenizde bulunan PVG müşteri merkeziyle iletişim kurun (telefon numarasını: www.pvg.eu).

Made in Japan by TOYOTOMI Co., Ltd. and imported by PVG Holding B.V.
