KH 4425 - Vacuum Cleaner LERVIA - Free user manual and instructions

Product Type	Handheld Vacuum Cleaner
Brand	LERVIA
Model	KH 4425
Power Supply	12 V DC (cigarette lighter plug)
Power	75 W
Package Contents	Vacuum cleaner, adapter piece, extension hose, large brush, small brush, crevice nozzle, user manual
Intended Use	Vacuuming dry surfaces and dry materials
Switch	On/Off (ON/OFF)
Filter Type	Washable dust filter (with cold water)
Tank Capacity	Approx. 0.5 L (estimation)
Housing Material	Plastic
Included Accessories	Adapter piece, extension hose, large brush, small brush, crevice nozzle
Typical Use	Car interior, furniture, small surfaces
Maintenance	Empty the tank after each use, wash the filter with cold water and dry it completely before reassembling
Safety	Do not use on people or animals, do not expose to rain, unplug before cleaning
Warranty	3 years
Customer Service	Contact details by country (see manual)
Weight	Approx. 0.8 kg (estimation)
Dimensions (L x W x H)	Approx. 35 x 12 x 15 cm (estimation)
Certification	Compliant with EC Directive 2004/108/EC (electromagnetic compatibility)

Frequently Asked Questions - KH 4425 LERVIA

How to use the vacuum cleaner for the first time?

Unpack all accessories. Make sure the dust filter is correctly installed in the tank. Plug the 12V connector into your vehicle's cigarette lighter socket. Press the switch to turn on the vacuum.

Can I vacuum liquids with this vacuum?

No, this vacuum is designed only for vacuuming dry surfaces and dry materials. Never vacuum liquids, as this could damage the motor and pose a risk of electric shock.

How to clean the filter?

Unplug the vacuum. Press the release button to remove the dust tank. Take out the filter and rinse it under cold water. Let it dry completely before reinstalling. Never use the vacuum without a filter.

The vacuum does not start, what should I do?

Check that the 12V connector is firmly inserted into the cigarette lighter socket. Make sure the socket is powered (some vehicles cut power after a while). If the problem persists, contact customer service.

Can I use the vacuum on upholstered furniture?

Yes, use the large brush for wide surfaces like seats or carpets. For difficult areas, use the crevice nozzle. Avoid pressing too hard to prevent damage to the fabric.

How to change the accessories?

Accessories are attached by simply pushing them into the suction opening or onto the adapter piece. To remove, gently pull them off. Make sure the attachments are well fitted to avoid loss of suction.

Is it normal for the vacuum to get hot?

Slight heat is normal during prolonged use. However, if the vacuum becomes very hot, check that the suction opening is not blocked. A blockage can cause the motor to overheat. Turn off and unplug immediately.

Where can I find spare parts?

Spare parts (filter, tank, accessories) are available from your country's customer service. See the manual for contact details. Use only original parts to ensure safety and performance.

Is the warranty transferable?

No, the 3-year warranty applies only to the original purchaser and is not transferable. Keep your receipt as proof of purchase for any claims.

Can I use the vacuum in a car?

Yes, this vacuum is ideal for car use thanks to its 12V power supply via cigarette lighter socket. It is lightweight and compact, perfect for cleaning seats, floor mats, and tight spaces. For long sessions, run the vehicle's engine.

USER MANUAL KH 4425 LERVIA

Operation and Safety Notes

SE

HANDDAMMSUGARE

Lidl Quality Control - rest assured!

FI

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FI

GB/IE/CY Operation and Safety Notes

Proper use . Page 6 Included items.. 6 Parts list.. 6 Technical information.. 6

Safety

Safety advice.. Page 7

Operation

Before first use.. Page 7 Fitting and removing attachments.. Page 7 Switching On/Off. Page 8

Servicing and cleaning

Disposal

Information

Service centre. Page 9 Warranty.. 9 Manufacturer / Supplier.. Page 9 Declaration of Conformity. Page 10

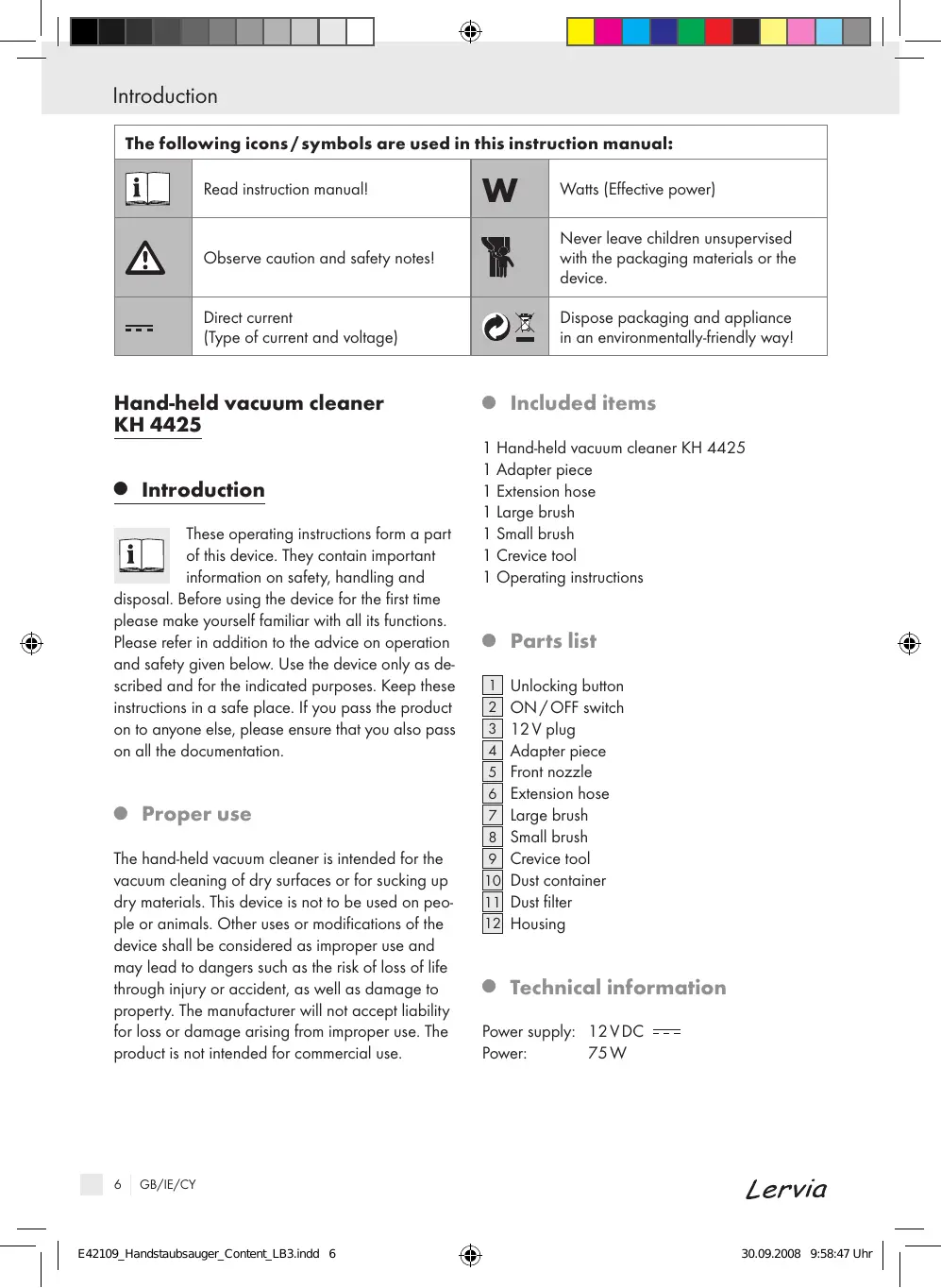

The following icons/ symbols are used in this instruction manual:
i	Read instruction manual!	W	Watts (Effective power)
!	Observe caution and safety notes!		Never leave children unsupervised with the packaging materials or the device.
-	Direct current (Type of current and voltage)		Dispose packaging and appliance in an environmentally-friendly way!

Hand-held vacuum cleaner KH 4425

Introduction

These operating instructions form a part of this device. They contain important information on safety, handling and

disposal. Before using the device for the first time, please make yourself familiar with all its functions. Please also refer to the advice on operation and safety given below. Use the device only as described and for the indicated purposes. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation.

The hand-held vacuum cleaner is intended for the vacuum cleaning of dry surfaces or for sucking up dry materials. This device is not to be used on people or animals. Other uses or modifications of the device shall be considered as improper use and may lead to dangers such as the risk of loss of life through injury or accident, as well as damage to property. The manufacturer will not accept liability for loss or damage arising from improper use. The product is not intended for commercial use.

The hand-held vacuum cleaner is intended for the vacuum cleaning of dry surfaces or for sucking up dry materials. This device is not to be used on people or animals. Other uses or modifications of the device shall be considered as improper use and may lead to dangers such as the risk of loss of life through injury or accident, as well as damage to property. The manufacturer will not accept liability for loss or damage arising from improper use. The product is not intended for commercial use.

1 Hand-held vacuum cleaner KH 4425 1 Adapter piece 1 Extension hose 1 Large brush 1 Small brush 1 Crevice tool 1 Operating instructions

1 Hand-held vacuum cleaner KH 4425 1 Adapter piece 1 Extension hose 1 Large brush 1 Small brush 1 Crevice tool 1 Operating instructions

1 Unlocking button ON/OFF switch 3 12V plug 4 Adapter piece 5 Front nozzle 6 Extension hose Large brush 8 | Small brush 9 Crevice tool 10 Dust container [1] Dust filter [12] Housing

1 Unlocking button, 2 ON/OFF switch, 3 12V plug, 4 Adapter piece, 5 Front nozzle, 6 Extension hose, 7 Large brush, 8 Small brush, 9 Crevice tool, 10 Dust container, 11 Dust filter, 12 Housing

Power supply: 12VDC

Power: 75W

Power: 75W

Safety

Safety advice

This safety advice is an important part of these operating instructions and must be observed every time electrical devices are used. The advice and instructions will help you to avoid risk to life, accidents and damage to property. Therefore you must read carefully through the following information concerning safety and proper use.

Risk of loss of life and accident to infants and children!

Never leave children unsupervised with the packaging materials or the device. There is a risk of suffocation and loss of life from electric shock. Children often underestimate the dangers associated with electrical devices. Always keep children away from the device. This device is not intended to be used by persons (including children) with restricted physical, sensory or mental abilities or with insufficient experience and/or knowledge, unless they are supervised by a person who is responsible for their safety or have received instruction on how to use the device from such a responsible person. Children must never be allowed to play with the device. Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock. Do not use the lead for any purpose for which it was not intended, e.g. to carry the device or to pull the plug out of the 12V socket. Keep the lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled leads or plugs increase the risk of electric shock. A damaged device, lead or plug presents a danger to life from electric shock. Frequently check the condition of the device, lead and plug. Do not use a device with damaged parts. If a dangerous situation arises pull out the plug from the socket immediately. WARNING! Never open up the device. Always have any repairs carried out or replacement parts fitted at the service centre or by an electrical equipment repair specialist.

with the packaging materials or the device. There is a risk of suffocation and loss of life from electric shock. Children often underestimate the dangers associated with electrical devices. Always keep children away from the device. This device is not intended to be used by persons (including children) with restricted physical, sensory or mental abilities or with insufficient experience and/or knowledge, unless they are supervised by a person who is responsible for their safety or have received instruction on how to use the device from such a responsible person. Children must never be allowed to play with the device. Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock. Do not use the lead for any purpose for which it was not intended, e.g. to carry the device or to pull the plug out of the 12V socket. Keep the lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled leads or plugs increase the risk of electric shock. A damaged device, lead or plug presents a danger to life from electric shock. Frequently check the condition of the device, lead and plug. Do not use a device with damaged parts. If a dangerous situation arises pull out the plug from the socket immediately. WARNING! Never open up the device. Always have any repairs carried out or replacement parts fitted at the service centre or by an electrical equipment repair specialist.

• When not in use, always ensure that electrical devices are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical devices are dangerous when used by inexperienced people.

Before first use

Take all the parts carefully out of the packaging and remove all the packaging material. Dispose of all the packaging material in an environmentally friendly manner. Fully unwind the lead attached to the 12V plug [3].

Take all the parts carefully out of the packaging and remove all the packaging material. Dispose of all the packaging material in an environmentally friendly manner. Fully unwind the lead attached to the 12V plug [3].

Note: Always make sure that the dust filter [11] is installed before you use the device.

Adapter piece 4:

You need the adapter piece 4 in order to use the extension hose 6 and the large brush 7.

Insert the adapter piece 4 snugly into the front nozzle 5.

Insert the adapter piece 4 snugly into the front nozzle 5.

Extension hose 6

Use the extension hose 6 in combination with the large brush 7.

Insert the smaller end of the extension hose snugly into the adapter piece 4. Insert the large brush 7 snugly into the extension hose 6.

Large brush 7:

Use this attachment e.g. for cleaning larger surfaces such as seats or car mats.

Insert the large brush 7 snugly into the adapter piece 4. You can also use the large brush 7 with the extension hose 6 as described above.

Small brush 8:

This attachment has harder bristles and is therefore very suitable for loosening stubborn dirt, e.g. on the upholstery or in the footwells, before vacuuming it away, see Fig. D.

Insert the small brush 8 snugly into the front nozzle 5.

Crevice tool 9:

Use this attachment to get into narrow, difficult-to-access places.

Insert the crevice tool snugly into the front nozzle 5.

Removing attachments:

Simply pull the attachment off the front nozzle 5, the adapter piece 4 or the extension hose 6.

- Switching On/Off

Insert the 12V plug into the 12V socket/cigarette lighter socket of the vehicle, see Fig. C. To switch the device on, press the ON/OFF switch 2 forwards into the ON position. To switch the device off, press the ON/OFF switch 2 back into the OFF position. Pull the 12V plug 3 out of the 12V socket after use.

Tip: If you are going to vacuum for a long period, we recommend that you carry out the cleaning with the engine running.

Servicing and cleaning

The device requires no maintenance.

ATTENTION! Before you clean the device itself, pull the 12V plug 3 out of the 12V socket, otherwise there is a risk of electric shock. For the best vacuuming performance always empty the dust container 10 frequently, if possible after each use. Press the unlocking button 1 and take the dust container 10 out of the housing 12.

Take out the dust filter 11. Rinse out the dust filter 11 in cold water and wait until it is completely dry again before you place it back into the dust container 10. Empty the dust container completely. Carefully replace the dust filter 11 back into the dust container 10. Never use the vacuum cleaner without the dust filter 11 in place. Attach the dust container 10 carefully back on to the housing 12 and ensure the two parts engage. Clean all the housing with a soft, dry cloth. Never use liquids or cleaning agents, as they may damage the device.

ATTENTION! The front nozzle 5 must be free and unobstructed at all times. Blockages can lead to overheating and damage to the motor.

Disposal

The packaging is composed of environmentally-friendly materials that can be disposed of at a local recycling centre.

Do not dispose of electrical devices with the household rubbish!

In accordance with European Directive 2002/96/EC, worn out electrical devices must be collected separately and taken for environmentally compatible recycling.

Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.

Information

Service centre

WARNING! Have your device repaired only by qualified specialist personnel using original manufacturer parts only. This will ensure that your device remains safe to use. If the plug or lead needs to be replaced, always have the replacement carried out by the manufacturer or its service centre. This will ensure that your device remains safe to use.

GB

DES Ltd

Units 14-15

Bilston Industrial Estate

Oxford Street

Bilston (Great Britain)

WV147EG

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

IE

Irish Connection

Harbour View

Howth, Co. Dublin (Ireland)

Tel 00353 (0) 879962077

Fax: [phone]

e-mail: [e-mail]

Warranty

This device carries a 3-year warranty from the date of purchase. This device has been carefully manufactured and conscientiously checked before delivery. Please retain the sales voucher as proof of purchase. In the event of a claim under the warranty, please telephone your service centre to ensure that your goods can be returned at no cost. This warranty applies to the original purchaser only and is not transferable.

The warranty covers faults in materials or manufacture only and does not cover wear parts or damage. The product is intended exclusively for private and domestic use. It is not intended for commercial use.

The warranty shall be void in the event of misuse or improper handling, the use of force or interference unless carried out at one of our authorised service outlets. This warranty does not restrict your statutory rights.

Manufacturer/Supplier

Kompernaß GmbH

Burgstraße 21

44867 Bochum (Germany)

Declaration of Conformity

We, Kompernaß GmbH, Burgstr. 21, 44867 Bochum, Germany, hereby declare that this product complies with the following EC directives:

Electromagnetic compatibility (2004/108/EC)

Type/Description of product: Hand-held vacuum cleaner KH 4425

Bochum, 01.09.2008

Hans Kompernaß - Managing Director -

We reserve the right to make technical modifications in the course of further development.

Introduction

44867 Bochum (Germany)

44867 Bochum (Germany)

- Declaration of Conformity (C)

14231 N. Ionia Athens (Greece)

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

Warranty

The warranty for this device is 3 years from the date of purchase. The device has been manufactured carefully and examined meticulously before delivery. Please retain your receipt as proof of purchase. In case of warranty claims, please contact your service partner. Only in this way can a free return of your goods be guaranteed. This warranty applies to the first purchaser and cannot be transferred.

The warranty covers only material or manufacturing defects, not defects due to wear or damage. The product is intended only for private use and not for commercial use.

44867 Bochum (Germany)

CE Declaration of Conformity

Kompernaß GmbH, Burgstr. 21, 44867 Bochum, Germany, declares that this product complies with the EC Directives:

We declare that the product complies with the applicable regulations.

Technical documentation.

Quality control Lidl - 1 means reliability and trust!

Introduction

47623 Kevelaer (Germany)

Tel.: [phone] (0.14 EUR/min)

Fax: [phone]

e-mail: [e-mail]

AT

44867 Bochum (Germany)
