USER MANUAL H610 ZIBRO

• To be used as indication

Congratulations with the purchase of your humidifier. You have acquired a high quality product which will give you many years of pleasure, if you use it responsibly. Please read the user's manual first in order to ensure the optimum life span of your humidifier. On behalf of the manufacturer, we provide a two-year warranty on material- or manufacturing defects.

Enjoy your humidifier.

Yours sincerely,

PVG International B.V.

Customer Service Department

1 PLEASE READ THE USER'S MANUAL FIRST.

2 IF YOU HAVE ANY DOUBTS, CONSULT YOUR DEALER.

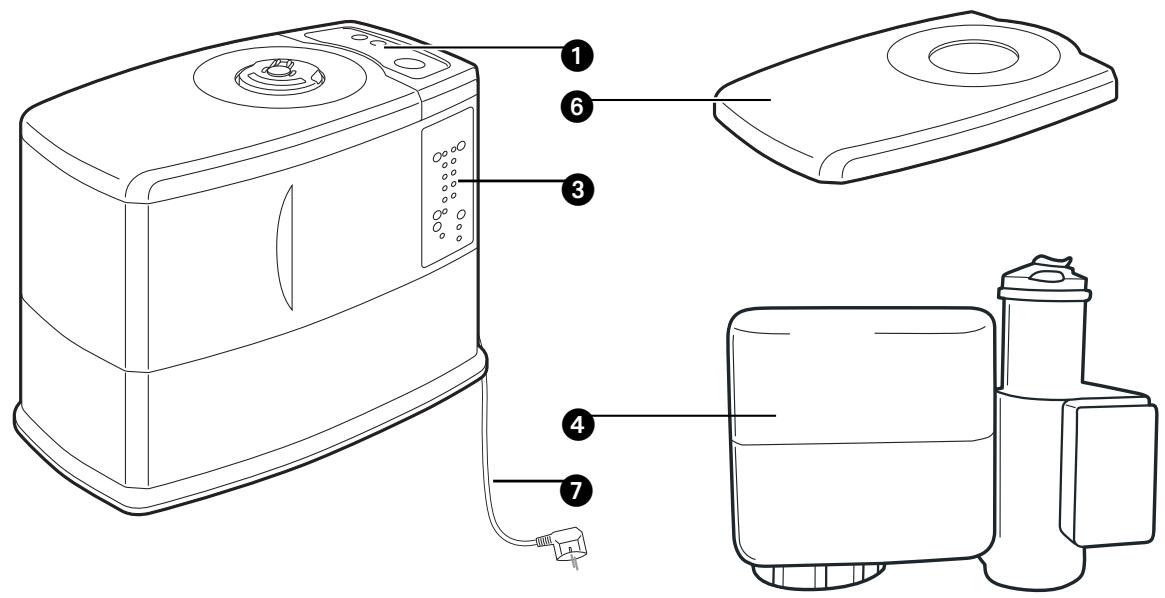

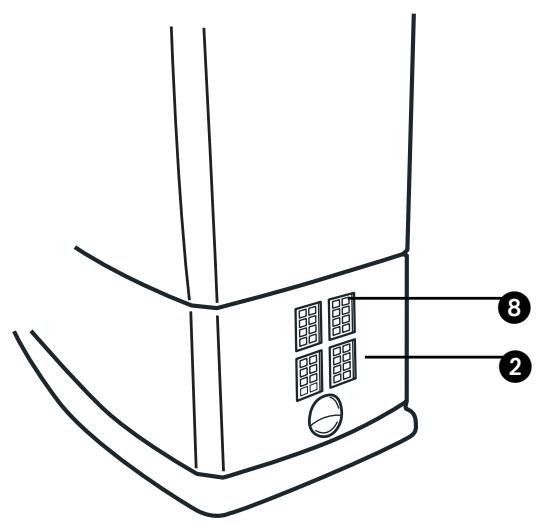

IMPORTANT COMPONENTS

Control panel
Air inlet
Control display
4 Removable water container
Aroma reservoir with cap
Top panel
Plug and cord
Air inlet filter

SAFETY INSTRUCTIONS

Install the device only when it complies with local regulations, by-laws and standards. The unit is only suitable for use in dry locations, indoors. Check the mains voltage and frequency. Connection voltage is 230V / 50Hz .

GENERAL

• Ensure that all windows are closed in order to achieve maximum efficiency.
  The capacity of the humidifier depends on the temperature and the humidity in the room.
• Ensure that the air inlet is kept clean. This prevents unnecessary power consumption and guarantees optimum efficiency.
• If the ON/OFF button is pushed for the second time, the humidifier will stop 1 minute later in order to cool down the unit.

IMPORTANT

• The plug must always be easily accessible when the unit is connected. Read these instructions carefully and follow the instructions.

Before connecting the unit, check the following:

• The voltage supply must correspond with the mains voltage stated on the rating label.
• The socket and power supply must be suitable for the current stated on the rating label.
• The plug on the cable of the device must fit into the wall socket.
  The device must be placed on a flat and stable surface.

The electricity supply to the device must be checked by a recognised professional if you have any doubts regarding the compatibility.

• This device is manufactured according to CE safety standards. Nevertheless, you must take care, as with any other electrical device.
• Do not cover the air inlet and outlet ports.
• Empty the water reservoir before moving the unit.
  The water in the container should be refreshed every day.
• The inside of the water container should be kept clean.
• Do not turn the device upside down if water is in the container.
• Never allow the device to come into contact with chemicals.
• Never spray the unit with or submerge in water
• Do not insert objects into the openings of the unit.
• Always remove the plug from the electric power supply before cleaning or replacing the unit or components of the unit.
• Never use an extension cable to connect the device to the electric power supply. If there is no suitable, earthed wall socket available, have one installed by a recognised electrician.
• For safety reasons take care when children are in the surrounding of the device, as

with any other electrical device.

• Have any repairs only carried out by a recognised service engineer or your supplier. Follow the instructions for use and maintenance as indicated in the user manual of this device.
  Always remove the plug of the unit from the wall socket when it is not in use.
• A damaged power cord or plug must always be replaced by a recognised electrician or your supplier.

ATTENTION!

• Never use the device with a damaged power cord, plug, cabinet or control panel. Never trap the power cord or allow it to come into contact with sharp edges.
• Failing to follow the instructions may lead to nullification of the guarantee on this device.

BEFORE OPERATION

FILLING THE REMOVABLE WATER CONTAINER

1 Open the top panel 6 and remove the water container 4.
2 Remove the water container cap by turning it counter clockwise.
3 Put water into the water container.
4 Tighten the water container cap by turning it clockwise.
5 Replace water container 4 and ensure that the water container has been positioned correctly.

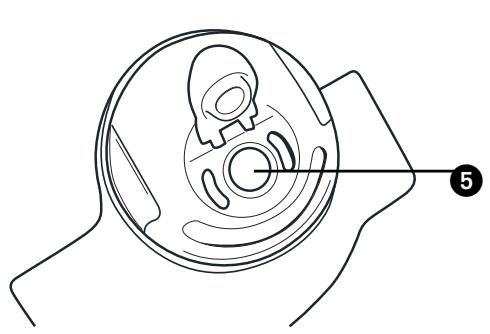

FILLING THE AROMA RESERVOIR

1 Open the aroma cap.
Put aroma oil into the aroma reservoir ⑤. Use only appropriate aroma oils and do not fill the aroma reservoir more than half.

NOTE:

• Do not fill the removable water container with hot water (more than 40^ ) or with chemicals, dirty water, detergents, etc.
• Use only appropriate aroma oils and do not fill the aroma reservoir more than half.
• The humidifier can be used with or without aroma oil in the aroma reservoir.

OPERATION

CONTROL PANEL

A ON-/OFF-button

B Timer button

C SETTING

1 Insert the plug ⑦ in the wall outlet.
Press the ON/OFF button to switch the humidifier on. The "ROOM HUMIDITY" light, the "SET HUMIDITY" light and "ON/OFF" light will switch on.
3 Set the desired humidity by pushing " - SETTING" button.

NOTE!

• If the "ROOM HUMIDITY" is higher than the "SET HUMIDITY" the unit does not operate.
• If you set "continuous mode" the unit works in the high "60%" humidification mode.

The device starts to humidify as soon as it is switched on. If the water container is empty during the operation a buzzer will sound and the "empty" light is blinking.

4 Press the ON/OFF button again to switch the device off. This will take approximately 1 minute, because the unit has to cool down. Never switch off the unit by pulling the plug out of the wall socket!

NOTE!

• If outside temperature is cold, the humidity capacity will be reduced.
• Please check the remaining amount of water in the container before use. Allways switch off the device before filling the water container.
• When the unit is not being used, all water should be removed from the unit and the water container.

HOW TO USE THE AROMA RESERVOIR

1 Switch the device off by pushing the ON/OFF button.
2 Open the aroma cap.

Put aroma oil into the aroma reservoir.
4 Press the ON/OFF button to switch the device on.

NOTE!

• Always open the aroma cap during operation. If you carry the device, close the aroma cap tightly to prevent spilling the aroma oil.
• Use only appropriate aroma oils and do not fill the aroma reservoir more than half.

HOW TO USE THE TIMER

By pushing the "按钮" enables you to switch device off after a certain time. After pushing the first time the "2 hours" light on the display will switch on, which means that the unit will switch off after 2 hours. By pushing the "按钮" a second time both "2 hours" and "4 hours" will switch on. Pushing a third time the timer will switch off.

When the pre-set time has elapsed, the device will switch off.

CLEANING

WARNING!

Switch off the unit and remove the plug from the mains before cleaning the appliance.

• Do not use paint thinner, petrol or alcohol for cleaning the unit, to avoid the degradation or discoloration of the plastic parts of the body.
• Wipe the unit with a soft cloth at least once a month.
• Put water into the water container ④ and shake it to clean inside of the container every day.
  Clean the air inlet filter at least twice a month.
• Wipe the inside of the body with a soft cloth at least once a month. If necessary use a descending fluid for removing scaling. Contact your dealer for specific questions.
  Clean the ultrasonic element once a month, with a soft cloth or soft brush.

AROMA RESERVOIR MAINTENANCE

If the device is not used for more than a few days, empty and wipe the aroma reservoir.

NOTE!

• Do not use a metal brush to clean the device.
• Clean the outside with a soft, damp cloth. Never use aggressive chemicals, petrol, detergents or other cleaning solutions.

STORAGE

If the unit will not be used for a long period of time, take the following steps:

1 Remove the plug from the wall socket and empty the water container. Allow the water container and the humidifier to dry completely.
2 Empty and wipe the aroma reservoir.
3 Clean the air inlet filter 8.
Store the device in a dust-free location, preferably covered in its original packaging.

Check the following before contacting technical support:

Problem	Cause	Solution
The unit does not work.	The power cord is not connected.	Insert the plug into the wall socket
	The water container is too full.	Remove some water from the water container.
	The water container has not been replaced correctly.	Place the water container in the correct position.
	"Empty" light is blinking.	Fill the water container with water.
Moisture is not generated	The current humidity is higher than programmed humidity.	If current humidity is higher than programmed humidity, the unit does not work to prevent to much humidity.
	The water container is empty.	Fill the water container with water.
	The inside of the device is dirty.	Wipe inside of the body with a soft cloth.
The humidifier works, but does not sufficiently increase the relative humidity.	The room is too large.	We recommend using a humidifier with a bigger capacity.
	Too much moisture is absorbed.	We recommend using a humidifier with a greater capacity.
	There is too much ventilation	Reduce ventilation (e.g. close curtains and shut doors).
The device does not humidify.	The air inlet filter is clogged.	Clean the air inlet filter.
	The relative humidity in the room in which the device is operating is too high or the temperature is too low.	It is normal that the device does not humidify in these conditions.
Both "Dry" and "High humidity" lights are blinking at the same time	The thermistor detects hot water in the water container (over 40°C).	Refill the water container with cold water.
Can not set the programmed setting	If "50" or programmed light is blinking,humidity sensor is malfunctioning.	Contact your dealer.
	If "Continuous" light is blinking, the thermistor is malfunctioning	Contact your dealer.
Operations stops automatically after a few minutes	If "40" and "60" of programmed lights are blinking, heater is disconnected.	Contact your dealer.

CONDITIONS OF WARRANTY

There is a two-year warranty on your humidifier from the date of purchase. All material or manufacturing defects will be repaired free of charge.

The following applies:

• All claims for compensation, including consequential damage, will not be entertained.
• Any repairs or replacement of components during the warranty period will not result in an extension of the warranty period.
• The warranty will expire if any alterations have been made, not genuine components have been fitted or if the humidifier has been repaired by a third party.
• Components subject to normal wear and tear, such as the air filter, are not covered by the warranty.
• The warranty is only valid on presentation of the original, unaltered, and date-stamped purchase receipt.
• The warranty does not cover damage caused by actions that deviate from those as described in the user's manual or by neglect.
• Transportation costs and the risks involved during the transportation of the humidifier or components shall always be for the account of the purchaser.

To prevent unnecessary expenses, we recommend that you always carefully read the user's manual first. If this does not provide a solution, take the humidifier to your distributor for repair.

TECHNICAL SPECIFICATIONS

Model		H610
Power consumption	kW	0.10
Power supply	V / Hz / Ph	230 / 50 / 1
Current (nom.)	A	0.6
Continuous operation*		7.5 - 20 h
Water evaporation (max.)	L / 24h	10
Evaporation system		Ultrasonic (cool mist)
Adjustable evaporation		Yes
Capacity water container	L	3.0
Generated negative ions*	cc /air	1000
For rooms up to*	m³	45
Operating range*		10-32°C / 30-70% RH
Control		Manual
Dimensions (w x d x h )	mm	331 x 185 x 296
Power cord	m	1.4
Net weight	kg	3.5
Gross weight	kg	4.0
Noise level	dB	33
Unit Protection		IP X0

• To be used as indication

Waste electrical products should not be disposed with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
