Product Type	Ultrasonic Air Humidifier
Brand	ZIBRO
Model	H108
Power Supply Voltage	230 V / 50 Hz
Power Consumption	35 W (0.035 kW)
Nominal Current	0.5 A
Water Tank Capacity	3.0 L
Evaporation Rate	8 L/24h
Evaporation System	Ultrasonic (cool mist)
Adjustable Evaporation	Yes, by slider
Aroma Tank	Yes, max 1/2 fill capacity
Continuous Runtime	8.5 hours
Maximum Room Volume	40 m³
Dimensions (L × D × H)	260 × 120 × 300 mm
Net Weight	2.5 kg
Gross Weight	3.0 kg
Noise Level	32 dB
Power Cord Length	2 m
Negative Ion Generation	1 000 ions/cm³
Operating Range	10–32 °C / 30–70 % RH
Control	Manual (ON/OFF button, flow slider)
Protection Class	IP X0
Automatic Shut-off	Yes, when tank is empty
Spare Parts and Repairability	Removable tank, caps, filter; repair by authorized distributor
Warranty	2 years against manufacturing defects

Frequently Asked Questions - H108 ZIBRO

How to fill the water tank?

Remove the removable tank, unscrew the cap by turning counterclockwise, pour cold water (max 40°C), screw the cap back on and put the tank back in place. Do not exceed the maximum level.

How to use the aroma tank?

Turn off the device, open the aroma cap, pour suitable aromatic oil into the tank without exceeding half its capacity. Close the cap and turn the device back on. Leave the cap open during operation.

How often to clean the humidifier?

Clean the inside of the water tank daily by shaking it with clean water. The device body and air inlet should be cleaned at least twice a month with a soft cloth. The ultrasonic element requires monthly cleaning. Descale regularly according to water hardness.

What to do if the device does not turn on?

Check that the device is properly plugged into a 230 V / 50 Hz outlet and that the water tank is correctly positioned. If the tank is empty, the device shuts off automatically. Consult the troubleshooting table in the manual.

Which aromatic oils can I use?

Use only pure aromatic oils suitable for humidifiers. Never fill the aroma tank more than half full. Avoid synthetic or overly thick oils that could clog the device.

How to clean the ultrasonic element?

Once a month, gently wipe the element with a soft cloth or soft brush. Do not use a metal brush or abrasive products to avoid damaging it.

Can I use the device continuously?

Yes, the humidifier can run continuously for up to 8.5 hours with a full tank. It shuts off automatically when water runs out. Always leave free space around the device for good air circulation.

How to store the device when not in use?

Empty and thoroughly dry the water tank and aroma tank. Clean the air inlet. Store the device in a dust-free place, preferably in its original packaging or under a cover.

What is the warranty of the ZIBRO H108 humidifier?

The device is guaranteed for 2 years against any manufacturing or design defects from the date of purchase, upon presentation of the original receipt. The warranty does not cover damages due to misuse or normal wear and tear.

What to do if steam production is insufficient?

Check that the water tank is not too full, that the air inlet is not blocked, and that the room is not too large (max 40 m³). Low outside temperature can reduce the flow. Close windows and doors to limit ventilation.

USER MANUAL H108 ZIBRO

Check the following before contacting technical support:

FYLDNING AF VANDBEHOLDER

Congratulations with the purchase of your humidifier. You have acquired a high quality product which will give you many years of pleasure, if you use it responsibly. Please read the user's manual first in order to ensure the optimum life span of your humidifier. On behalf of the manufacturer, we provide a two-year warranty on material- or manufacturing defects.

Enjoy your humidifier.

Yours sincerely,

PVG International B.V.

Customer Service Department

1 PLEASE READ THE USER'S MANUAL FIRST.

2 IF YOU HAVE ANY DOUBTS, CONSULT YOUR DEALER.

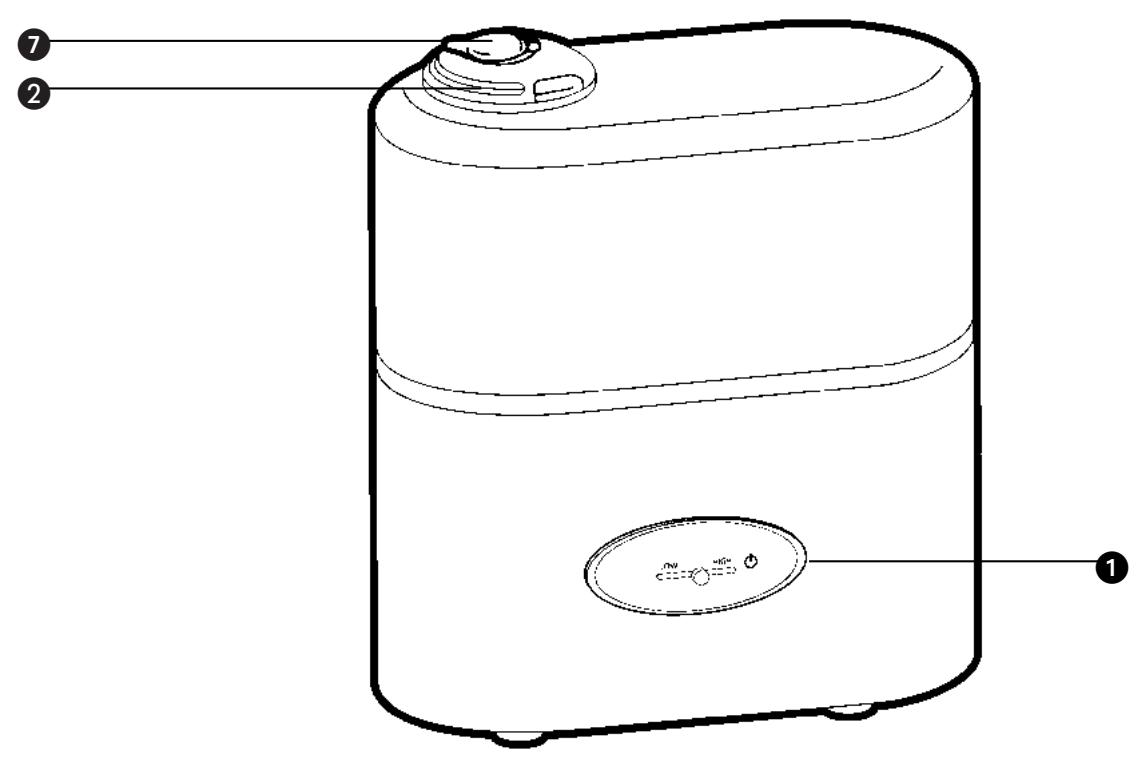

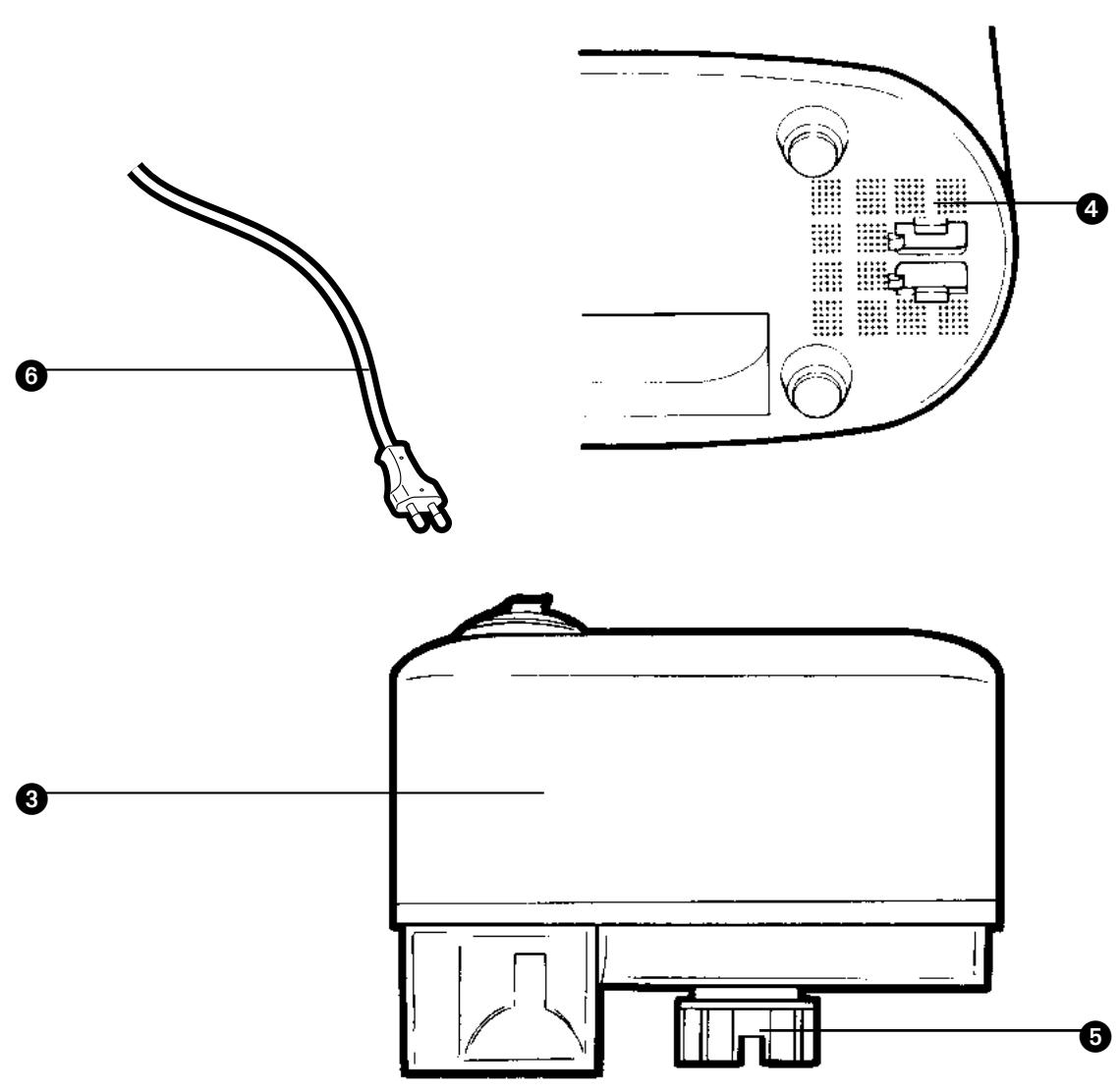

IMPORTANT COMPONENTS

Control panel
2 Humid air outlet
3 Removable water container
Air inlet
Water container cap
Plug and cord
Aroma reservoir with cap

SAFETY INSTRUCTIONS

Install the device only when it complies with local regulations, by-laws and standards. The unit is only suitable for use in dry locations, indoors. Check the mains voltage and frequency. Connection voltage is 230V / 50Hz .

GENERAL

• Ensure that all windows are closed in order to achieve maximum efficiency.
  The capacity of the humidifier depends on the temperature and the humidity in the room.
• Ensure that the air inlet is kept clean.

IMPORTANT

Do not cover the air inlet or outlet ports. The plug must always be easily accessible when the unit is connected. Read these instructions carefully and follow the instructions.

Before connecting the unit, check the following:

• The voltage supply must correspond with the mains voltage stated on the rating label.
• The socket and power supply must be suitable for the current stated on the rating label.
  The plug on the cable of the device must fit into the wall socket.
  The device must be placed on a flat and stable surface.

The electricity supply to the device must be checked by a recognised professional if you have any doubts regarding the compatibility.

• This device is manufactured according to CE safety standards. Nevertheless, you must take care, as with any other electrical device.
• Do not cover the air inlet and outlet grill.
• Empty the water reservoir before moving the unit.
  The water in the container should be refreshed every day.
• The inside of the water container should be kept clean.
• Do not turn the device upside down if water is in the container.
• Never allow the device to come into contact with chemicals.
• Never spray the unit with or submerge in water
• Do not insert objects into the openings of the unit.
• Always remove the plug from the electric power supply before cleaning or replacing the unit or components of the unit.
• Never use an extension cable to connect the device to the electric power supply. If there is no suitable, earthed wall socket available, have one installed by a recognised electrician.

• For safety reasons take care when children are in the surrounding of the device, as with any other electrical device.

• Have any repairs only carried out by a recognised service engineer or your supplier. Follow the instructions for use and maintenance as indicated in the user manual of this device.
  Always remove the plug of the unit from the wall socket when it is not in use.

• A damaged power cord or plug must always be replaced by a recognised electrician or your supplier.

ATTENTION!

• Never use the device with a damaged power cord, plug, cabinet or control panel. Never trap the power cord or allow it to come into contact with sharp edges.
• Failing to follow the instructions may lead to nullification of the guarantee on this device.

BEFORE OPERATION

FILLING THE WATER CONTAINER

1 Close the aroma cap 7 and remove the water container 3.
2 Remove the container cap 5 by turning it counter clockwise.
Put water into the water container.
4 Tighten the container cap 5 by turning it clockwise.
5 Replace water container 3 and ensure that the water container has been positioned correctly.

FILLING THE AROMA RESERVOIR

1 Open the aroma cap 7.
2 Put aroma oil into the aroma reservoir. Use only appropriate aroma oils and do not fill the aroma reservoir more than half.

NOTE:

• Do not fill the water container with hot water (more than 40^ ) or with chemicals, dirty water, detergents, etc
• Use only appropriate aroma oils and do not fill the aroma reservoir more than half.
• The humidifier can be used without aroma oil in the aroma reservoir.

A ON-/OFF-button
B Adjustment button evaporation speed.
1 Insert the plug 6 in the wall outlet.
Press the ON/OFF button to switch the humidifier on.
3 Set the required humidity by sliding the adjuster knob.

The device starts to humidify as soon as it is switched on. The device switches off automatically when the water container is empty.

Press the ON/OFF button again to switch the device off. Never switch off the unit by pulling the plug out of the wall socket!

NOTE!

• If the outside temperature is cold, the amount of moist air could be reduced.
• Please check the remaining amount of water in the container before use. Always switch off the device when filling the water container.
• When the unit is not being used, all water should be removed from the unit and the water container.

HOW TO USE THE AROMA RESERVOIR

1 Switch the device off by pushing the ON/OFF button.
2 Open the aroma cap.
Put aroma oil into the aroma reservoir.
4 Press the ON/OFF button to switch the device on.

NOTE!

• Always open the aroma cap during operation. If you carry the device, close the aroma cap tightly to prevent spilling the aroma oil.
• Use only appropriate aroma oils and do not fill the aroma reservoir more than half.

CLEANING

WARNING!

Switch off the unit and remove the plug from the mains before cleaning the appliance.

• Do not use paint thinner, benzene or alcohol to avoid the degradation or discoloration of the body.
  Wipe the body with a soft cloth at least once a month.
• Put water into the container and shake it to clean inside the container every day.
  Clean the air inlet at least twice a month.
• Wipe the inside of the body with a soft cloth at least once a month. Use a de-scaling fluid to remove scaling. Contact your dealer for specific questions.
  Clean the ultrasonic element once a month with a soft cloth or brush.

AROMA RESERVOIR MAINTENANCE

If the device is not used for several days, empty and wipe the aroma reservoir.

NOTE!

• Do not use a metal brush to clean the device.
• Clean the outside with a soft, damp cloth. Never use aggressive chemicals, petrol, detergents or other cleaning solutions.

STORAGE

If the machine is not going to be used for a long period of time, take the following steps:

1 Remove the plug from the socket and empty the container. Allow the container and the humidifier to dry completely.
2 Empty and wipe the aroma reservoir.
3 Clean the air inlet.
Store the device in a dust-free location, preferably covered with a sheet of plastic or in its original packaging.

TROUBLESHOOTING

Check the following before contacting technical support:

Problem	Cause	Solution
The unit does not work.	The power cord is not connected.	Insert the plug into the socket
	The water container has not been replaced correctly.	Place the water container in the correct position.
Moisture is not generated	Water container is empty.	Fill the water container with water.
	The inside of the device is dirty.	Wipe inside of the body with a soft cloth.
The humidifier works, but does not sufficiently increase the relative humidity.	The room is too large.	We recommend using a humidifier with a greater capacity.
	The water reservoir is too full.	Remove some water from the water reservoir.
	Too much moisture is absorbed.	We recommend using a humidifier with a greater capacity.
	There is too much ventilation	Reduce ventilation (e.g. close curtains and shut doors).
The device does not humidify.	The air inlet is clogged.	Clean the air inlet.
	The relative humidity in the room in which the device is operating is too high or the temperature is too low.	It is normal that the device does not humidify in these conditions.

CONDITIONS OF WARRANTY

There is a two-year warranty on your humidifier from the date of purchase. All material or manufacturing defects will be repaired free of charge.

The following applies:

• All claims for compensation, including consequential damage, will not be entertained.
• Any repairs or replacement of components during the warranty period will not result in an extension of the warranty period.
• The warranty will expire if any alterations have been made, not genuine components have been fitted or if the humidifier has been repaired by a third party.
• Components subject to normal wear and tear, such as the air filter, are not covered by the warranty.
• The warranty is only valid on presentation of the original, unaltered, and date-stamped purchase receipt.
• The warranty does not cover damage caused by actions that deviate from those as described in the user's manual or by neglect.
• Transportation costs and the risks involved during the transportation of the humidifier or components shall always be for the account of the purchaser.

To prevent unnecessary expenses, we recommend that you always carefully read the user's manual first. If this does not provide a solution, take the humidifier to your distributor for repair.

TECHNICAL SPECIFICATIONS

Model		H 108
Power consumption	kW	0.035
Power supply	V / Hz / Ph	230 / 50 / 1
Current (nom.)	A	0.5
Continuous operation*		8.5 h
Water evaporation	L / 24h	8
Evaporation system		Ultrasonic (cool mist)
Adjustable evaporation		Yes
Capacity water container	L	3.0
Generated negative ions*	cc /air	1000
For rooms up to*	m³	40
Operating range*		10-32°C / 30-70% RH
Control		Manual
Dimensions (w x d x h)	mm	260 x 120 x 300
Power cord	m	2
Net weight	kg	2.5
Gross weight	kg	3.0
Noise level	dB	32
Unit Protection	IP	IP X0

• To be used as indication
