TO 2030 - Mini oven SEVERIN - Free user manual and instructions

Product type	Mini oven
Brand	SEVERIN
Model	TO 2030
Category	Mini oven
Functions	Baking, grilling, preheating, continuous operation
Timer	0 to 60 minutes with audible signal, continuous function
Temperature	Adjustable via selector (range not specified)
Included accessories	Wire rack, baking tray
Indicator light	Yes, power-on indicator
Safety	Automatic shut-off, minimum distances (sides 10 cm, rear 10 cm, top 30 cm), do not use outdoors
Care and cleaning	Damp cloth for exterior, removable tilting tray, wire rack and baking tray dishwasher safe
Warranty	2 years
Customer service	Authorized service centers (contact details provided in the manual)
Repairability	Repair by qualified technician, spare parts available through customer service

Frequently Asked Questions - TO 2030 SEVERIN

How to use the timer for cooking less than 10 minutes?

For programming less than 10 minutes, first set the timer to a slightly higher time, then turn slowly back to the desired time. The audible signal will sound at the end.

What to do if the appliance does not heat?

Check that the timer is activated (the heating elements only heat if the timer is set to a time or continuous). Make sure the power cord is plugged in and the outlet works. If the problem persists, contact an authorized service center.

How to clean the tilting bottom tray?

First remove the wire rack and baking tray. Tilt the appliance backward, press the tray button and pull it forward. Clean it with a mild household cleaner, then replace it in reverse order. The tray can also be washed in the dishwasher.

Can I use the oven without the timer (continuous)?

Yes, turn the timer knob counterclockwise to the continuous position. To turn off, bring the knob back to 0. Always supervise the appliance during use.

What safety distances must be observed?

The appliance must be installed with at least 10 cm on the sides and rear, and 30 cm above. Do not place any objects on the oven and ensure good ventilation.

What to do if the power cord is damaged?

Do not use the appliance. The cord must be replaced by a qualified technician or an authorized service center to avoid any risk.

How to preheat the oven?

Close the door, set the desired temperature using the selector and activate the timer for a few minutes. The indicator light turns on. After preheating, place the food and set the cooking time.

Can I put the wire rack or baking tray in the dishwasher?

Yes, the wire rack and baking tray can be cleaned in the dishwasher with a mild detergent.

What to do if the appliance emits a new smell?

This is normal during first use. Heat the empty oven for 15 minutes while ensuring good ventilation. The smell will disappear quickly.

Where can I find an authorized after-sales service center?

The contact details of authorized centers are provided in the manual. For example, for Luxembourg: Ser-Tec, for the Netherlands: HAS b.v., for Norway: Lokken Trading, for Macedonia: Agrotehna.

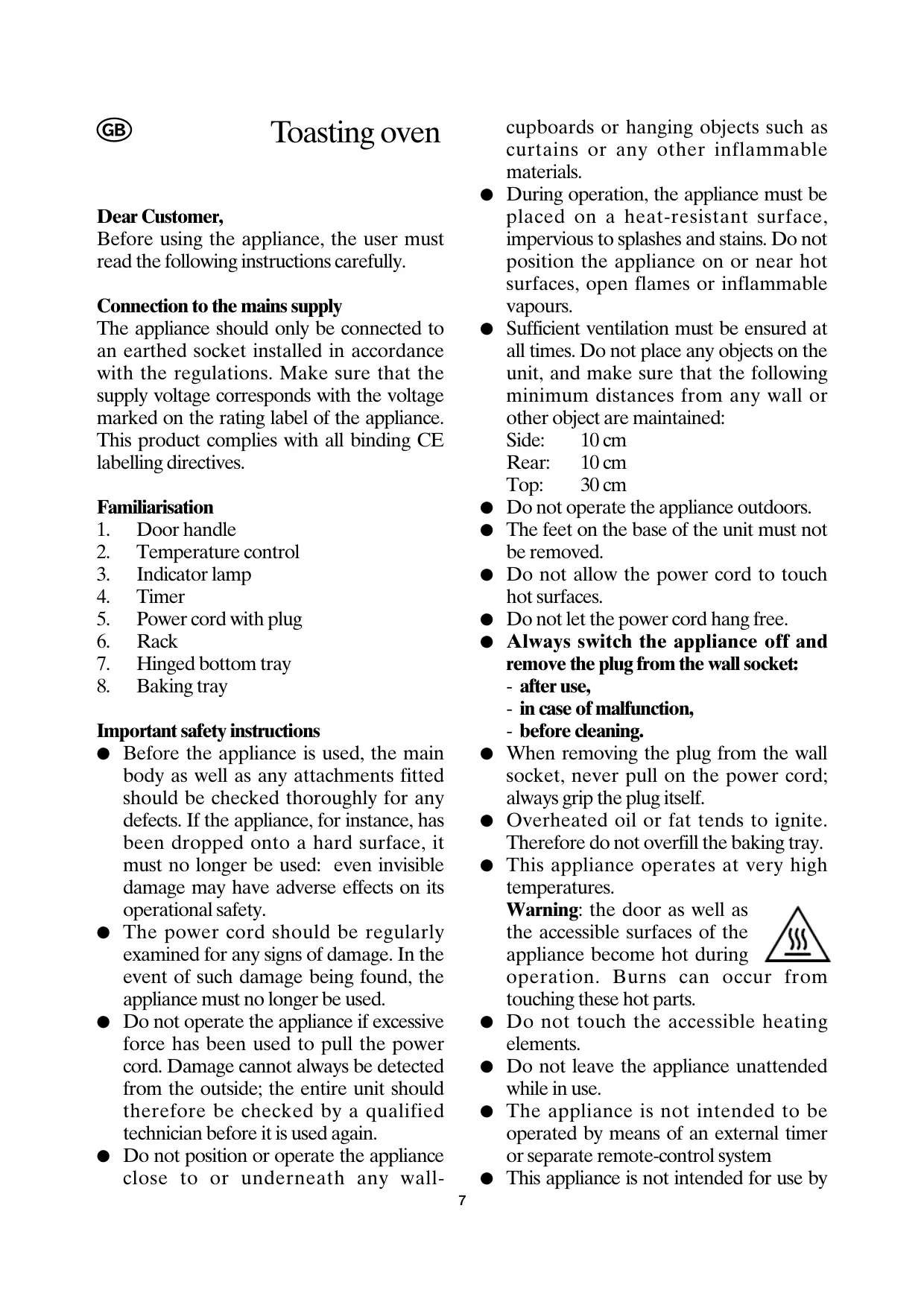

USER MANUAL TO 2030 SEVERIN

Before using the appliance, the user must read the following instructions carefully.

Connection to the mains supply

The appliance should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label of the appliance. This product complies with all binding CE labelling directives.

Familiarisation

1. Door handle
2. Temperature control
3. Indicator lamp
4. Timer
5. Power cord with plug
6. Rack
7. Hinged bottom tray
8. Baking tray

Important safety instructions

• Before the appliance is used, the main body as well as any attachments fitted should be checked thoroughly for any defects. If the appliance, for instance, has been dropped onto a hard surface, it must no longer be used: even invisible damage may have adverse effects on its operational safety.
• The power cord should be regularly examined for any signs of damage. In the event of such damage being found, the appliance must no longer be used.
• Do not operate the appliance if excessive force has been used to pull the power cord. Damage cannot always be detected from the outside; the entire unit should therefore be checked by a qualified technician before it is used again.
• Do not position or operate the appliance close to or underneath any wall

cupboards or hanging objects such as curtains or any other inflammable materials.

• During operation, the appliance must be placed on a heat-resistant surface, impervious to splashes and stains. Do not position the appliance on or near hot surfaces, open flames or inflammable vapours.
• Sufficient ventilation must be ensured at all times. Do not place any objects on the unit, and make sure that the following minimum distances from any wall or other object are maintained:

Side: 10cm

Rear: 10 ~cm

Top: 30 ~cm

• Do not operate the appliance outdoors.
• The feet on the base of the unit must not be removed.
• Do not allow the power cord to touch hot surfaces.

• Do not let the power cord hang free.
  Always switch the appliance off and remove the plug from the wall socket:

• after use,

• in case of malfunction,

• before cleaning.

• When removing the plug from the wall socket, never pull on the power cord; always grip the plug itself.

• Overheated oil or fat tends to ignite. Therefore do not overfill the baking tray.
• This appliance operates at very high temperatures.

Warning: the door as well as the accessible surfaces of the appliance become hot during

operation. Burns can occur from touching these hot parts.

• Do not touch the accessible heating elements.
• Do not leave the appliance unattended while in use.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system
• This appliance is not intended for use by

any persons (including children) with reduced physical, sensory or mental capabilities, or lacking experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.
- Caution: keep any packaging materials well away from children, as they are a potential source of danger e.g. from suffocation.
- No responsibility will be accepted if damage results from improper use, or if these instructions are not complied with.
- This appliance is intended for domestic use only and not for commercial applications.
- In order to comply with safety regulations and to avoid hazards, repairs of electrical appliances must be carried out by qualified personnel, including the replacement of the power cord. If repairs are needed, please send the appliance to one of our customer service departments. The address can be found in the appendix to this manual.

Before using for the first time

• Clean the appliance (see General care and cleaning) and completely remove any packing materials.
• Before using the appliance for the first time, let it heat up for 15 minutes (see Operation). When the appliance is switched on for the first time, a slight smell may be emitted. This is normal and will only last for a very short time. Ensure sufficient ventilation.

Temperature control

Turn the temperature control to the desired setting.

The heating elements will only switch on after the timer is activated.

Timer

The timer can be used for either selecting a certain cooking time (up to 60 minutes), or for continuous operation.

To select continuous operation, turn the timer switch anti-clockwise to its position. To turn the unit off, turn the switch to position . To pre-programme the cooking time, turn the switch clockwise to the desired time.

To set a time of less than 10 minutes, turn the timer to a somewhat higher setting first and then slowly turn it back to the desired time setting. After the pre-programmed time has elapsed, an acoustic signal indicates that the heating elements are switched off.

Indicator lamp

The indicator lamp lights up when the appliance is switched on with the timer. It goes out once the pre-programmed time has elapsed, or if the switch is turned back to position .

Operation

• Fit the grill rack or the baking tray.
• Pre-heat the oven compartment for several minutes with the door closed, using the temperature control to set the required temperature, and the timer to set the desired pre-heating time.
• Place the food to be cooked onto the rack. When cooking food containing fat or moisture, use the tray to stop any drips into the interior of the appliance.
• Close the glass door and use the timer to choose the desired cooking time, or continuous operation.
• After the pre-programmed cooking time has elapsed, the timer will automatically switch off the heating elements.
• To interrupt the cooking process, or to switch off the oven during continuous operation, set the timer switch to .
• When opening the hot glass door after operation, always use the handle. To remove the baking tray or the rack, always use a suitable oven-cloth Always

place the tray and rack on a heat-resistant surface.

• After use, set the temperature control to the '●' position and remove the plug from the wall socket.

General care and cleaning

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.
• To avoid the risk of electric shock, do not clean the appliance with water and do not immerse it in water.
• Do not use abrasives or harsh cleaning solutions.
• The exterior of the appliance may be wiped with a slightly damp, lint-free cloth.
• To release the hinged bottom tray, first remove the baking tray and the grill rack. Now place the unit on its back, push the knob-like protrusion on the tray and pull it out to the front. Any crumbs can now be removed. The hinged bottom tray may be cleaned with a mild household detergent. After cleaning, replace the bottom tray by following the above steps in reverse order.
• The baking tray and the rack may be cleaned with a mild household detergent, or in a dish-washer.

Disposal

Do not dispose of old or defective appliances in domestic garbage; this should only be done through public collection points.

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of two years from the date of purchase. Under this guarantee the manufacturer undertakes to repair or replace any parts found to be defective, providing the product is returned to one of our authorised service centres. This guarantee is only valid if the appliance has been used in accordance with the

instructions, and provided that it has not been modified, repaired or interfered with by any unauthorised person, or damaged through misuse.

This guarantee naturally does not cover wear and tear, nor breakables such as glass and ceramic items, bulbs etc. This guarantee does not affect your statutory rights, nor any legal rights you may have as a consumer under applicable national legislation governing the purchase of goods. If the product fails to operate and needs to be returned, pack it carefully, enclosing your name and address and the reason for return. If within the guarantee period, please also provide the guarantee card and proof of purchase.
