manual GB Instruction The present manual constitutes an integral part of the product and it should be kept for all future reference.

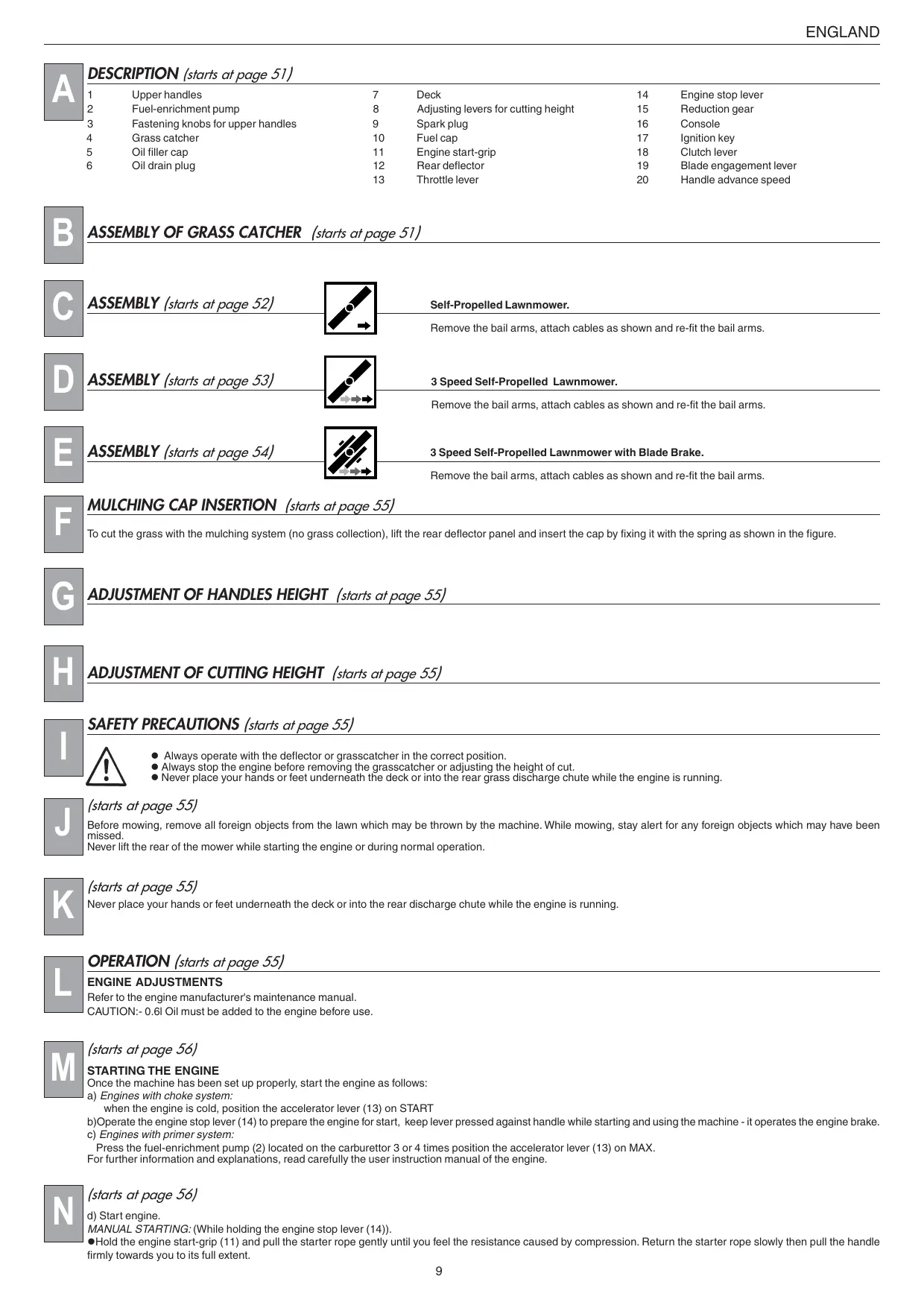

DESCRIPTION (starts at page 51)

Upper handles Fuel-enrichment pump Fastening knobs for upper handles Grass catcher Oil filler cap Oil drain plug

Deck Adjusting levers for cutting height Spark plug Fuel cap Engine start-grip Rear deflector Throttle lever

ASSEMBLY OF GRASS CATCHER (starts at page 51)

ASSEMBLY (starts at page 52)

ASSEMBLY (starts at page 53)

ASSEMBLY (starts at page 54)

Remove the bail arms, attach cables as shown and re-fit the bail arms. 3 Speed Self-Propelled Lawnmower. Remove the bail arms, attach cables as shown and re-fit the bail arms. 3 Speed Self-Propelled Lawnmower with Blade Brake. Remove the bail arms, attach cables as shown and re-fit the bail arms. MULCHING CAP INSERTION (starts at page 55) To cut the grass with the mulching system (no grass collection), lift the rear deflector panel and insert the cap by fixing it with the spring as shown in the figure. ADJUSTMENT OF HANDLES HEIGHT (starts at page 55)

ADJUSTMENT OF CUTTING HEIGHT (starts at page 55) SAFETY PRECAUTIONS (starts at page 55) l Always operate with the deflector or grasscatcher in the correct position. l Always stop the engine before removing the grasscatcher or adjusting the height of cut. l Never place your hands or feet underneath the deck or into the rear grass discharge chute while the engine is running.

Engine stop lever Reduction gear Console Ignition key Clutch lever Blade engagement lever Handle advance speed Self-Propelled Lawnmower.

Before mowing, remove all foreign objects from the lawn which may be thrown by the machine. While mowing, stay alert for any foreign objects which may have been missed. Never lift the rear of the mower while starting the engine or during normal operation. Never place your hands or feet underneath the deck or into the rear discharge chute while the engine is running. OPERATION (starts at page 55) ENGINE ADJUSTMENTS Refer to the engine manufacturer's maintenance manual. CAUTION:- 0.6l Oil must be added to the engine before use. (starts at page 56)

STARTING THE ENGINE

Once the machine has been set up properly, start the engine as follows: a) Engines with choke system: when the engine is cold, position the accelerator lever (13) on START b)Operate the engine stop lever (14) to prepare the engine for start, keep lever pressed against handle while starting and using the machine - it operates the engine brake. c) Engines with primer system: Press the fuel-enrichment pump (2) located on the carburettor 3 or 4 times position the accelerator lever (13) on MAX. For further information and explanations, read carefully the user instruction manual of the engine. (starts at page 56) d) Start engine. MANUAL STARTING: (While holding the engine stop lever (14)). lHold the engine start-grip (11) and pull the starter rope gently until you feel the resistance caused by compression. Return the starter rope slowly then pull the handle firmly towards you to its full extent.

(starts at page 56) Keep the engine stop lever (14) depressed during machine operation. When the lever is released, the engine stops. MOWING To cut the grass, push the lawn mower manually or insert the automatic advance gear.

(starts at page 56) Keep the engine stop lever (14) depressed during machine operation. When the lever is released, the engine stops. MOWING To cut the grass, push the lawn mower manually or insert the automatic advance gear. Before proceeding with the coupling of the automatic feed, choose the speed by means of the change lever (20).

WARNING! When the handle (14) is released the blade stops while the motor continues running. (starts at page 56) MOWING To cut the grass, push the lawn mower manually or insert the automatic advance gear. Before proceeding with the coupling of the automatic feed, choose the speed by means of the change lever (20).

Change the speed with the clutch disengaged. There are 3 speed settings. 1°~ 0,6 m/s 2°~ 0,9 m/s 3°~ 1,2m/s How to insert automatic advance: Lift up the clutch handle (18) and keep it pressed in position. CAUTION: Engage the gear only when the engine is running. How to disengage advance: Release the clutch handle. (starts at page 56) With engine running, pull the handle (14) towards the bar and keep depressed. Push the blade engagement lever (19) forward to make the blade rotate.

How to insert automatic advance: Lift up the clutch handle (18) and keep it pressed in position. CAUTION: Engage the gear only when the engine is running. How to disengage advance: Release the clutch handle. Change the speed with the clutch disengaged. There are 3 speed settings. 1°~ 0,6 m/s 2°~ 0,9 m/s 3°~ 1,2m/s How to insert automatic advance: Lift up the clutch handle (18) and keep it pressed in position. CAUTION: Engage the gear only when the engine is running. How to disengage advance: Release the clutch handle. (starts at page 56) Important: If, when you press the clutch lever, the automatic advance gear does not engage, the clutch cable should be adjusted by inserting the spring (P) in one of the subsequent holes in the plate (R) or in the hole "S" . AUTOMATIC ADVANCEMENT (starts at page 56) Periodically check the automatic advance assembly and make sure to keep it clean. In particular, the pinion (21) and the gear (22) must be kept perfectly clean. To carry out this check, you must remove the wheel (23) by unscrewing the screw (24). SAFETY RULES Training a)Persons under 16 years of age and persons who are not familiar with the user instructions must not use the lawn mower. b)The operator is responsible for the safety of other people in the working area. Keep children and domestic animals at a safe distance when the lawn mower is in use. c)This machine is to be used exclusively for cutting natural grass. Never use the mower for other purposes (e.g., for flattening out bumps in the ground, such as mole-hills or ant- hills). d)Work only when there is sufficient light. e)Before mowing, remove all foreign objects from the lawn which may be thrown by the machine. While mowing, stay alert for any foreign objects which may have been missed. Setting up and operating the lawn mower a)When mowing, wear strong footwear (boots or heavy shoes) and long trousers. b)Before you start mowing, make sure that the blade and blade fixing screw are securely fastened. If the blade is damaged, it must be replaced. c)Turn off the engine, wait until the blade has stopped and remove the spark plug cap before: l transporting, lifting or moving the machine away from the working area; l carrying out maintenance or cleaning, or when carrying out any operation on the blade; l adjusting the cutting height; l leaving the machine unattended. Caution! The blade starts turning as soon as the engine is started d)Caution! The fuel is highly inflammable: lStore fuel in containers specifically designed for this purpose. l Refuel outdoors only and do not smoke while refuelling. l Fill up the fuel tank before starting the engine. Under no circumstances open the fuel tank cap or add petrol when the engine is running or when it is still hot. l If the petrol has overflowed, do not under any circumstances start up the engine.Move the mower away from the area where fuel has bean spilt and avoid any source of possible ignition until the petrol fumes have dissipated. l Replace the fuel tank cap and tighten it down firmly. e)Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.. f) When mowing, never run; you must always walk. g)Exercise extreme caution when turning or when pulling the lawn mower towards you. h)Particular precautions must be taken when mowing on slopes or downhill stretches: lUse appropriate antislip footwear. l Always be sure of your footing. l Mow across the face of slopes, never up or down. l Take great care when changing direction. lDo not mow on excessively steep slopes. i)Never use the lawn mower unless the guards and safety devices (e.g. deflector, grass catcher) are securely in position and in good condition. j)Ensure that the grass catcher and deflector are correctly located. failure to do so may result in foreign objects being ejected by the blade. k)For reasons of safety, the engine must never exceed the speed. (r.p.m.) indicated on the label. l) Take care when starting the engine and be sure to follow the user instructions. Never place your hands or feet underneath the deck or into the rear discharge chute while the engine is running.

m) Never lift the rear of the mower while starting the engine or during normal operation. n) If the blade happens to hit any obstacle, stop the engine at once and remove the spark plug cap. Then get an expert to examine the blade. Maintenance and storage a)Make sure that all nuts, bolts, and screws are kept well tightened to keep the mower in a safe operating condition. b)Never leave the machine with fuel in the tank within an enclosed area where the fuel vapours could reach naked flames or sparks. c)Allow the engine to cool before storing in any enclosure. d)Keep the engine, silencer, battery compartment and petrol tank free from grass, leaves and excess lubricant, in order to reduce the danger of fire. e)Frequently check the grass catcher for wear or deterioration f)For safety reasons, be sure to replace worn-out or damaged parts in due time. g)If the fuel tank has to be drained, it is essential that this be done outdoor. h)Assemble the blades following the corresponding instructions and use only blades bearing the maker's name or the trademark of the manufacturer or supplier and marked with the reference number. i)To protect hands during disassembly or assembly of the blades, it is absolutely essential to wear suitable protective gloves. ENGLAND

MAINTENANCE (starts at page 56) Caution! Switch off the motor and disconnect the spark plug before undertaking any maintenance work. lFor a four stroke engine, check the oil level and change the oil when dirty. For further explanation, see ENGINE INSTRUCTION BOOK. lFrequently check the mower and ensure that all grass deposits are removed from beneath the deck. lNever clean the mower by pouring water over it: this may seriously damage the electric start system. lTake care, the exhaust muffler may be very hot. lFrequently remove the wheel screws clean whith petroleum and oil before replacing. Ball bearings must be greased before remounting. lFrequently check the blade for damage. lThe lawn mower must be checked by a SERVICE DEALER. lCleaning under the bodywork With machine at a standstill and off. - Attach fitting (25) on the deck to the water supply tap. Turn on the tap. - start up the motor (blade in rotation), allowing it to warm up for a few minutes. - at the end of cleaning switch off the motor, turn off the tap, detach the tube from the deck connection. BLADE (starts at page 56)

lTo remove the blade (26) unscrew the screw (27). lCheck the conditions of the blade-support (28), the washer (29), the key (30) and the washer (31) and replace any parts which are damaged. lWhen reassembling, make sure that the key (30) is correctly seated in the shaft and that the cutting edges face in the direction of the engine rotation. The blade screw (27) must be torqued to 5,34 Kgm (52,4 Nm). lTo remove the blade (32) unscrew the two screws (33). lCheck the condition of the blade and replace any parts that are damaged, re-assemble using two screws (33) which must be torqued to 5,34 Kgm (52,4Nm).
