USER MANUAL LM 2147 CMD AUTOSTART JONSERED

J O N S E R E D S E R V I C E I F GB D E NL LM2147CM LM2147CMD L M 2 1 4 7 C M D Auto Start

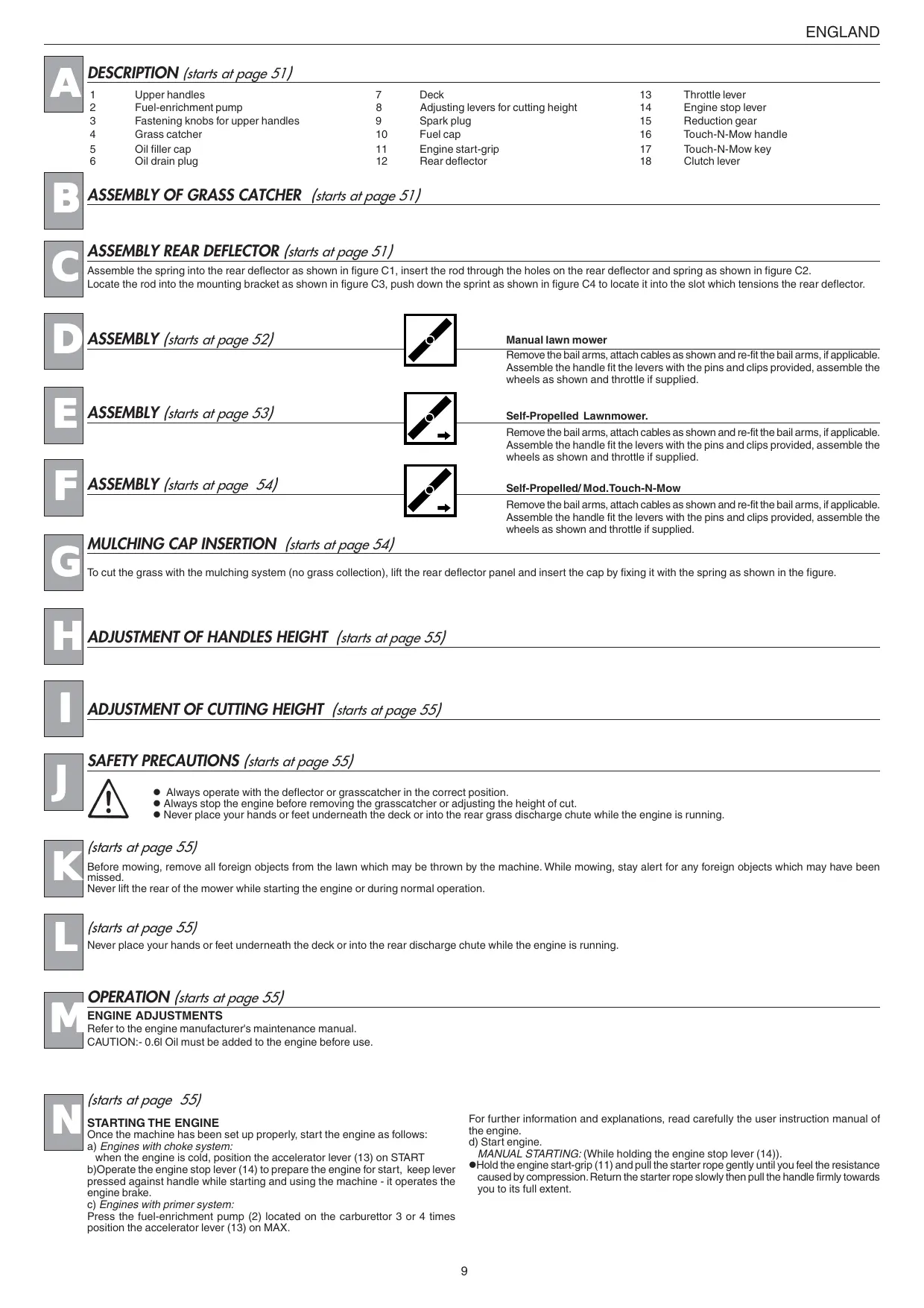

DESCRIPTION (starts at page 51)

B ASSEMBLY OF GRASS CATCHER (starts at page 51)

Fuel-enrichment pump Fastening knobs for upper handles Grass catcher Oil filler cap Oil drain plug

Adjusting levers for cutting height Spark plug Fuel cap Engine start-grip Rear deflector

E ASSEMBLY (starts at page 53)

F ASSEMBLY (starts at page 54)

ADJUSTMENT OF CUTTING HEIGHT (starts at page 55)

N Self-Propelled/ Mod.Touch-N-Mow

Remove the bail arms, attach cables as shown and re-fit the bail arms, if applicable. Assemble the handle fit the levers with the pins and clips provided, assemble the wheels as shown and throttle if supplied.

To cut the grass with the mulching system (no grass collection), lift the rear deflector panel and insert the cap by fixing it with the spring as shown in the figure.

I M Self-Propelled Lawnmower.

MULCHING CAP INSERTION (starts at page 54)

ADJUSTMENT OF HANDLES HEIGHT (starts at page 55)

Remove the bail arms, attach cables as shown and re-fit the bail arms, if applicable. Assemble the handle fit the levers with the pins and clips provided, assemble the wheels as shown and throttle if supplied.

Remove the bail arms, attach cables as shown and re-fit the bail arms, if applicable.

Assemble the handle fit the levers with the pins and clips provided, assemble the wheels as shown and throttle if supplied.

Engine stop lever Reduction gear Touch-N-Mow handle Touch-N-Mow key Clutch lever

Assemble the spring into the rear deflector as shown in figure C1, insert the rod through the holes on the rear deflector and spring as shown in figure C2.

Locate the rod into the mounting bracket as shown in figure C3, push down the sprint as shown in figure C4 to locate it into the slot which tensions the rear deflector.

ASSEMBLY (starts at page 52)

ASSEMBLY REAR DEFLECTOR (starts at page 51)

SAFETY PRECAUTIONS (starts at page 55) l Always operate with the deflector or grasscatcher in the correct position. l Always stop the engine before removing the grasscatcher or adjusting the height of cut. l Never place your hands or feet underneath the deck or into the rear grass discharge chute while the engine is running.

Before mowing, remove all foreign objects from the lawn which may be thrown by the machine. While mowing, stay alert for any foreign objects which may have been missed. Never lift the rear of the mower while starting the engine or during normal operation.

Never place your hands or feet underneath the deck or into the rear discharge chute while the engine is running.

OPERATION (starts at page 55)

ENGINE ADJUSTMENTS Refer to the engine manufacturer's maintenance manual. CAUTION:- 0.6l Oil must be added to the engine before use.

For further information and explanations, read carefully the user instruction manual of the engine. d) Start engine. MANUAL STARTING: (While holding the engine stop lever (14)). lHold the engine start-grip (11) and pull the starter rope gently until you feel the resistance caused by compression. Return the starter rope slowly then pull the handle firmly towards you to its full extent.

STARTING THE ENGINE Once the machine has been set up properly, start the engine as follows: a) Engines with choke system: when the engine is cold, position the accelerator lever (13) on START b)Operate the engine stop lever (14) to prepare the engine for start, keep lever pressed against handle while starting and using the machine - it operates the engine brake. c) Engines with primer system:

Press the fuel-enrichment pump (2) located on the carburettor 3 or 4 times position the accelerator lever (13) on MAX.

O Keep the engine stop lever (14) depressed during machine operation. When the lever is released, the engine stops.

P MOWING To cut the grass, push the lawn mower manually or insert the automatic advance gear.

M S T U How to insert automatic advance: Lift up the clutch handle (18) and keep it pressed in position.

CAUTION: Engage the gear only when the engine is running. How to disengage advance: Release the clutch handle.

Motor start up LOADING THE TOUCH-N-MOW SYSTEM To load the start up system for the first time and whenever the device is disabled, proceed as follows:

R To cut the grass, push the lawn mower manually

Keep the engine stop lever (14) depressed during machine operation. When the lever is released, the engine stops.

1 - Insert the Touch-N-Mow key (17) (provided with the machine)

2 - Rotate the key (17) to “RUN” position

Press the pump (Primer) (2) 3 or 4 times. 1 - Act on the safety lever (14) and keep it pressed against the handgrip. 2 - Push the Touch-N-Mow start up lever forward (16).

Start up the motor by holding the engine start grip (11) and pulling it effortlessly until reaching the resistance caused by compression, release the handle and pull vigorously. If necessary, repeat the operation if the motor does not start.

- Keep the safety lever (14) pressed during operation; if released, the motor will stop.

CUT To cut the grass, manually push the machine or engage the automatic drive.

To engage the automatic drive, act on the clutch handle (18) and keep it pressed against the handgrip. Caution:engage only with operating motor.

After switching off, take the Touch-N-Mow key (17) to LOCK & REMOVE position to lock the system.

Remove the key from upwards.

To disengage the automatic drive, release the clutch handle (18).

After the cut, first release the clutch handle (18) then the safety lever (14) and a noise caused by the reloading of the Touch-N-Mow system will be heard.

After cutting the grass, always remove the key and store it in a safe place available to the authorized operators only.

Caution: Without the Touch-N-Mow key in RUN position or with the key in LOCK & REMOVE position, the motor will not start!

START UP WITH TOUCH-N-MOW Make sure that no person or object is near the machine and all protection devices are installed and operating.

Remain behind the handgrip in the position required for use. -

Caution: if the motor does not start, it means that the Touch-N-Mow start up system has been unloaded. If so, proceed to load it as described in the relevant section.

Important: Should the motor stop due to lack of gasoline, excessively high grass, or any reason other than the normal stop procedures, the Touch-N-Mow start up system will not reload and it will be necessary to repeat the previously described operations in order to load the system.

Insert the key (17) and rotate it to RUN position.

Act on the safety lever (14) ) and keep it pressed against the handgrip. Push the Touch-N-Mow start lever (16) forward and check the motor start up.

UNLOADING THE TOUCH-N-MOW SYSTEM Prior to any cleaning or transport operation, the start up system shall be unloaded.

For this operation, proceed as follows: - Disconnect the spark plug cable. - Act on the safety lever (14) ) and keep it pressed against the handgrip.

- Push the Touch-N-Mow lever (16) forward.

- The motor will run but it will not start as the spark plug cable is disconnected. - Turn the Touch-N-Mow key (17) to LOCK & REMOVE position. - Remove the key (17).

Important: If, when you press the clutch lever, the automatic advance gear does not engage, the clutch cable should be adjusted by inserting the spring (P) in one of the subsequent holes in the plate (R) (or in the hole "S" .

AUTOMATIC ADVANCEMENT (starts at page 56)

Periodically check the automatic advance assembly and make sure to keep it clean. In particular, the pinion (20) and the gear (21) must be kept perfectly clean. To carry out this check, you must remove the wheel (22) by unscrewing the screw (23).

ENGLAND SAFETY RULES Training a)Persons under 16 years of age and persons who are not familiar with the user instructions must not use the lawn mower. b)The operator is responsible for the safety of other people in the working area. Keep children and domestic animals at a safe distance when the lawn mower is in use. c)This machine is to be used exclusively for cutting natural grass. Never use the mower for other purposes (e.g., for flattening out bumps in the ground, such as mole-hills or ant- hills). d)Work only when there is sufficient light. e)Before mowing, remove all foreign objects from the lawn which may be thrown by the machine. While mowing, stay alert for any foreign objects which may have been missed.

Setting up and operating the lawn mower a)When mowing, wear strong footwear (boots or heavy shoes) and long trousers. b)Before you start mowing, make sure that the blade and blade fixing screw are securely fastened.

If the blade is damaged, it must be replaced. c)Turn off the engine, wait until the blade has stopped and remove the spark plug cap before: l transporting, lifting or moving the machine away from the working area; l carrying out maintenance or cleaning, or when carrying out any operation on the blade; l adjusting the cutting height; l leaving the machine unattended. Caution! The blade starts turning as soon as the engine is started d)Caution! The fuel is highly inflammable: lStore fuel in containers specifically designed for this purpose. l Refuel outdoors only and do not smoke while refuelling. l Fill up the fuel tank before starting the engine. Under no circumstances open the fuel tank cap or add petrol when the engine is running or when it is still hot.

l If the petrol has overflowed, do not under any circumstances start up the engine.Move the mower away from the area where fuel has bean spilt and avoid any source of possible ignition until the petrol fumes have dissipated. l Replace the fuel tank cap and tighten it down firmly. e)Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect.. f) When mowing, never run; you must always walk. g)Exercise extreme caution when turning or when pulling the lawn mower towards you. h)Particular precautions must be taken when mowing on slopes or downhill stretches: lUse appropriate antislip footwear. l Always be sure of your footing. l Mow across the face of slopes, never up or down. l Take great care when changing direction. lDo not mow on excessively steep slopes. i)Never use the lawn mower unless the guards and safety devices (e.g. deflector, grass catcher) are securely in position and in good condition. j)Ensure that the grass catcher and deflector are correctly located. failure to do so may result in foreign objects being ejected by the blade. k)For reasons of safety, the engine must never exceed the speed. (r.p.m.) indicated on the label. l) Take care when starting the engine and be sure to follow the user instructions. Never place your hands or feet underneath the deck or into the rear discharge chute while the engine is running. m) Never lift the rear of the mower while starting the engine or during normal operation. n) If the blade happens to hit any obstacle, stop the engine at once and remove the spark plug cap. Then get an expert to examine the blade.

Maintenance and storage a)Make sure that all nuts, bolts, and screws are kept well tightened to keep the mower in a safe operating condition. b)Never leave the machine with fuel in the tank within an enclosed area where the fuel vapours could reach naked flames or sparks. c)Allow the engine to cool before storing in any enclosure. d)Keep the engine, silencer, battery compartment and petrol tank free from grass, leaves and excess lubricant, in order to reduce the danger of fire. e)Frequently check the grass catcher for wear or deterioration f)For safety reasons, be sure to replace worn-out or damaged parts in due time. g)If the fuel tank has to be drained, it is essential that this be done outdoor. h)Assemble the blades following the corresponding instructions and use only blades bearing the maker's name or the trademark of the manufacturer or supplier and marked with the reference number. i)To protect hands during disassembly or assembly of the blades, it is absolutely essential to wear suitable protective gloves. j) Unload the Touch-N-Mow system and remove the safety key before making any cleaning or maintenance operation. k)Make sure that the Touch-N-Mow system is unloaded and the key is in lock position before transporting the machine. l) In case of failure of the Touch-N-Mow start up system, do not try and repair it but request the intervention of an authorized Assistance Centre. m) Remove the safety key to avoid any accidental start up. n) Always remove the safety key when the machine is not used. o) Always store the key in a safe place available to adults only. p) Before removing the safety key, make sure that it is in

LOCK & REMOVE position.

MAINTENANCE (starts at page 56)

Caution! Switch off the motor and disconnect the spark plug before undertaking any maintenance work.

lFor a four stroke engine, check the oil level and change the oil when dirty. For further explanation, see ENGINE INSTRUCTION BOOK. lFrequently check the mower and ensure that all grass deposits are removed from beneath the deck. lNever clean the mower by pouring water over it: this may seriously damage the electric start system. lTake care, the exhaust muffler may be very hot. lFrequently remove the wheel screws clean whith petroleum and oil before replacing.

Ball bearings must be greased before remounting. lFrequently check the blade for damage.

Y Mod. TOUCH-N-MOW (starts at page 56)

Z BLADE (starts at page 56)

lThe lawn mower must be checked by a SERVICE DEALER. lCleaning under the bodywork

With machine at a standstill and off. - Attach fitting (24) on the deck to the water supply tap. Turn on the tap. - start up the motor (blade in rotation), allowing it to warm up for a few minutes. - at the end of cleaning switch off the motor, turn off the tap, detach the tube from the deck connection.

lAfter a garaging period of the machine, it is advisable to lubricate the clutch point shown in fig. Y to facilitate the spring loading procedure.

lTo remove the blade (25) unscrew the screw (26). lCheck the conditions of the blade-support (27), the washer (28), the key (29) and the washer (30) and replace any parts which are damaged.

lWhen reassembling, make sure that the key (29) is correctly seated in the shaft and that the cutting edges face in the direction of the engine rotation. The blade screw (26) must be torqued to 5,34 Kgm (52,4 Nm).
