USER MANUAL NINA BAR SAECO

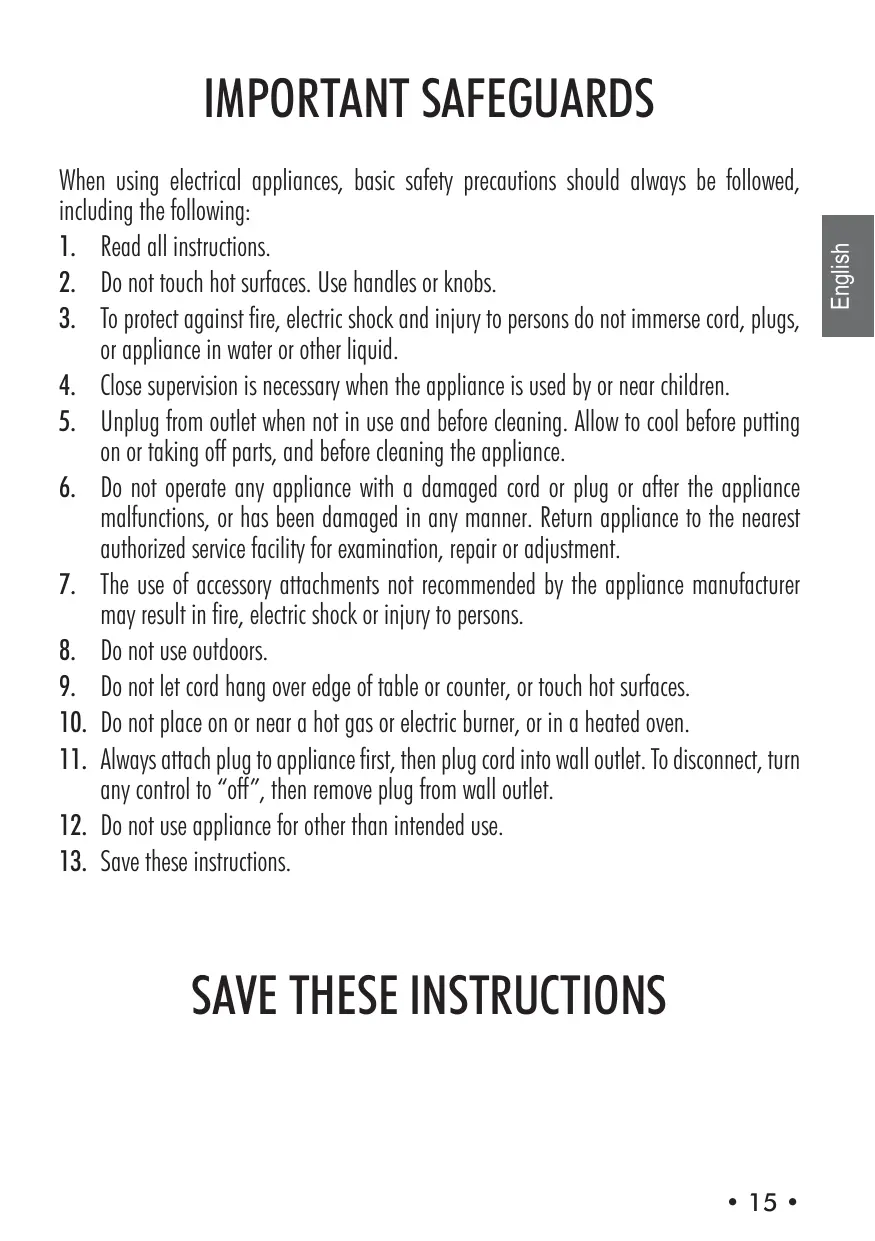

IMPORTANT SAFEGUARDS When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions. 2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against fire, electric shock and injury to persons do not immerse cord, plugs, or appliance in water or other liquid.

4. Close supervision is necessary when the appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Retum appliance to the nearest authorized service facility for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.

8. Do not use outdoors. 9. Do not let cord hang over edge of table or counter, or touch hot surfaces. 10. Do not place on or near a hot gas or electric bumer, or in a heated oven.

11. Always attach plug to appliance first, then plug cord into wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.

12. Do not use appliance for other than intended use. 13. Save these instructions.

SAVE THESE INSTRUCTIONS

INSTRUCTIONS FOR THE POWER SUPPLY CORD

À A short power-supply cord is provided to reduce risks of tangling or tripping over a longer cord.

B Longer extension cords are available and may be used if care is exercised in their use. C Ha long extension cord is used:

1 the marked electrical rating of the extension cord should be at least as great as the electrical rating of the appliance.

2 ifthe appliance is of the grounded type, the extension cord should be a grounding

type 3 the cord should not hang from the table to avoid the risk of tangling or tripping.

2 TECHNICAL SPECIFICATIONS The coffee machine is ideal for brewing 1 or 2 cups of espresso coffee and iis provided ilh a swivel cappuccinatore for steam éjection and hot water dispensing. The controls on the front side of the machine are labelled with easy-to-read symbols.

The machine has been designed for household use only. Itis not suitable for professional, continuous use.

Warning. No liability is held for damages caused by:

+ Improper and inconsistent use of the machine.

+ Repairs carried out by anyone other than authori-

zed service centres.

Tampering with the power cord.

Tampering with any component of the machine.

Use of non-original spare parts and accessories.

Failed descaling and storage at temperatures

In such cases, the warranty is not valid.

1.1 To Facilitate interpretation

The warning triangle indicates the instructions that are important for user's safety. Please follow these

instructions carefully to avoid serious injury!

Illustrations, parts of the machine and control elements are referred to by numbers or letters; in this case please refer to the illustration.

This symbol emphasizes particularly important LM information to take into greater account for à better use ofthe machine.

The illustrations corresponding to the text can be found on the first pages of the manual. Please refer to these pages while reading the operating instructions.

1.2 How to Use These Operating Instruc- tions

Keep these operating instructions in a safe place and make them available to anyone who may use the coffee machine.

For further information or in case of problems, please refer to any authorized service centre.

The manufacturer reserves the right to make technical changes to the product

Nominal Voage - Power raling - Pouer SUppIÿ See label on he appliance HOUSINg mar

Plastic SAITEUET ) 270 x 350 x 300 WÏgRT 4kg Tordlengin 12m TonroT panel Front side POrafter Pressurized type Pannarelo

Special for cappuccinos

Water Tank 1.5 litres - Removable type Pump pressure

Boiler Stainless steel

Safety devices Thermal fuse

AA Do not put live parts in contact with water: danger of short circuit! Overheated steam and hot water may cause scalding! Do not direct the steam or hot water jet towards body parts. Handle the steam/hot water spout with care: danger of scaldingl

The coffee machine is intended for domestic use only. Do not make any technical changes or use the machine for unlawful purposes since this would create serious hazards! The appliance is not for use by persons {included children) with reduced physical, mental or sensory abilities or with scarce experience and/or competences, unless they are supervised by a person responsible for their safety or they are instructed by him/her to use the machine.

Connect the coffee machine only to a suitable socket. The voltage must correspond to the value shown on the machine's label.

Do not use the coffee machine if the power cord is defective. If damaged, the power cord must be replaced by the manufacturer or is customer service centre. Do not run the cord around sharp comers and edges as well as on hot objects and keep it away from oil.

Do not use the power cord to carry or pull he coffee machine. Do not unplug the machine by pulling the power cord or touch the plug with wet hands.

Do not let the power cord hang freely from tables or shelves.

Protecting Other People

Prevent children from playing with the machine. Children are not aware of the risks stemming from household appliances. Do not leave the coffee machine packaging within the reach of children.

Do not direct the jet of overheated steam and/or hot water towards yourself or other people. AIWays use the special handles or knobs.

Do not disconnect (remove) the pressurized portafilter during coffee brewing. Hot water drops may spill out of the coffee brew unit during the warming up.

Place the coffee machine in a safe place, where nobody may overturn it or be injured by it.

Hot water or overheated steam may spill out of the machine: danger of scalding!

Do not keep the machine at a temperature below 0°C: frost may damage the machine.

Do not use the coffee machine outdoors.

Do not place the machine on very hot surfaces and close to open flames in order to prevent its housing from melting or being damaged.

Before cleaning the machine, disconnect it by pressing the ON/OFF button, then pull out the plug from the socket. Wait for the machine to cool down. Do not immerse the machine in water!

Itis strict forbidden to tamper with the internal parts of the machine.

‘Water left in the tank for several days should not be consumed. Wash the tank and fill it with fresh drinking water.

Space for Operation and Maintenance To ensure that the coffee machine works properly and

efficienty, read the following instructions. + Choose an even surface.

Choose an adequatelylitand clean location with a socket within easy reach.

Alow for a minimum distance from the sides of the machine as shown in Fig. A.

Ifthe machine is to remain unused for a long time, turn itoff and unplug it from the socket, Keep itin a dry place out of children's reach. Shelter it from dust and dirt.

Repairing / Maintenance

In case of failure, faults or a suspected fault after dropping, remove the plug from the socket immediately Do not operate a faulty machine. Servicing and repairing should be carried out by authorized service centres only. Allliabiliy for damages caused by works not carried out in a professional manner is declined

Fire Safety In case offre, use carbon dioxide (CO) extinguishers. Do not use water or dry powder extinguishers.

Key to machine components (Page 4) Control panel ON/OFF button ‘Water Tank Hot water/steam knob Drip tray & grill Coffee brew unit Cappuccinatore Power cord Ground coffee measuring scoop Pressurized portaflter Ground coffee filter (single piece for or 2 coffee(s)) 12 Ground coffee filter adapter 13 Brewingpin 14 Coffee pod filter 15 Single coffee brew button 16 Double coffee brew button 17 Hotwater button 18 Steam button 19 Pannarello

For your and other people safety, follow the "Safety Regulations" in section 3 carefully.

47 Packaging The original packaging has been designed to protect the machine during transport. We recommend keeping the packaging for future transport

4.2 7 installation Instructions

Before instaling the machine, read the following safety

instructions carefuly.

+ Putthe machine in a safe place

+ Make sure children cannot play with the machine.

+ Do not place {he machine on hot surfaces or near open flames.

The coffee machine is now ready to be connected to the

Note: itis recommended to wash the components before using them for the first time and/or after they have not been used for a certain period of time.

4.3 Machine Connection

Electric power can be dangerous! It is therefore

essential to follow the safety regulations carefully. Do not use faulty cords! Faulty cords and plugs must be immediately replaced by authorized service centres.

Appliance voltage has been pre-set by the manufacturer. Make sure that the power voltage matches the indications on the identification plate on the bottom of the appliance. Make sure that the ON/OFF button (2) is not pressed before connecting the machine to the power supply.

Fit the plug into a wall socket with suitable power voltage.

{Fig.1) - Remove the water tank (3). Fig.2) - Rinse the water tank and il it with fresh drinking water taking care not to overfill it.

Fig.1) - Reiser the water tank into its seat and make sure that it has been placed correcty.

Use only fresh, non-sparkling drinking water to

filLthe tank. Hot water, as well as any other liquid, may damage the tank. Do not turn on the machine with empty water tank: make sure there is enough water in the tank.

When the machine operates for the first time and when allthe water has been dispensed, the machine circuit needs priming. In this case, the 4 buttons of the control panel will flash at the same time.

+_ (Fig.3)- Press the ON/OFF button (2). The 4 buttons will flash.

{Fig4) - Place a container under the cappuccinatore. (Fig.5) - Open the "hot water/steam” knob (4) by turning itanticlockwise.

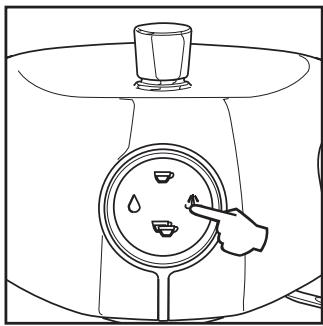

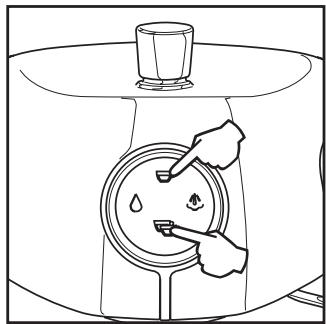

(Fig.6) - Press the hot water button (17).

Wait for water dispensing to stop.

Close the "hot water/steam" knob (4) by turning it clockwise. Remove the container.

When the first priming ends, the warming up starts. Before brewing coffee, water and steam, please wait for lights 15 and 16 to be permanentiy on.

The machine is now ready to brew coffee and dispense steam. Please see related sections for operating details.

Note: if priming is not completed, the 4 buttons will keep on flashing. The machine cannot be used.

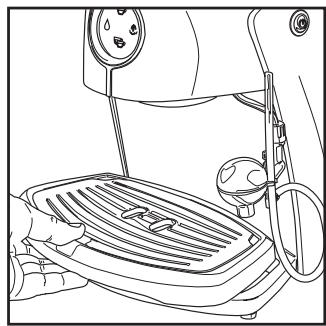

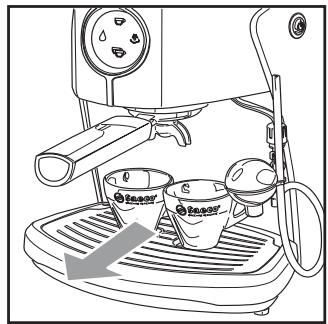

46 Drip Tray Adjustment The drip tray can be adjusted according to the cup size.

To adjust the drip tray height, do as follows. + _Liftthe drip tray and remove the gril.

+ Remove the support under the drip tray.

+ Rotate the support and place it in the coffee machine. + Putthe drip traÿ on the support and replace the gril.

5.2 Using Coffee Pods

Warning! During the coffee brewing, do not remove the pressurized portafilter by manually turning it clockwise. Danger of burns.

During this operation, the buttons (15 - 16) may flash on and off, this is to be considered as standard and not a faulty operating mode.

Before using the machine, make sure that the hot water/ steam knob (4) is closed and that there is enough water in the tank.

{Fig.3) - Press the ON/OFF button (2).

Wait for the buttons (15 - 16) to be permanent on. The machine is now ready for coffee brewing.

5.1 Using ground coffee {Fig.7) - Insert the pin (13) into the pressurized portafiter (10)

{Fig.8A) - Insert the adapter (12) into the pressurized portañlter (13), then insert the filter (11)

(Fig. 11) - Insert the portafiter into the brew unit from the bottom (6).

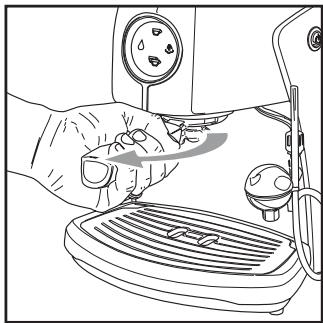

{Fig.12) - Turn the portaflter from lef to right until tlocks in place.

{Fig.14) - Preheat the pressurized portaflter by pressing the button (15). Water will spil out of the pressurized portañlter (this has to be done only for the first coffee). Water dispensing wil stop automatically.

{Fig.16) - Remove the portafiter from the machine by turing it to the left and pour out any water lef. As the machine is fitted with the special fiter (11), there is no need to change the filter to make one or two coffees. (Fig. 9A) - Add 1-1.5 measuring scoop for single coffee and 2 measuring scoops for double coffee. Remove any coffee residues from the rim of the filter.

{Fig.11)- Insert the portaflter (10) into the brew unit from the bottom (6).

{Fig.12) - Turn the portaflter from lef to right until tlocks in place.

{Fig.13) - Take 1 or 2 preheated cups and place them under the pressurized portafiter. Make sure that they are correctly placed under the coffee dispensing holes. (Fig.14) - Press:

= The button (15) to brew 1 coffee

= The button (16) to brew 2 coffees.

When the programmed quantity of coffee has been obtained, brewing will stop automatically, Remove the coffee cups. (Fig.15).

{Fig.16) - Wait a few seconds after brewing, then remove the pressurized portaflter and empty the remaining coffee grounds.

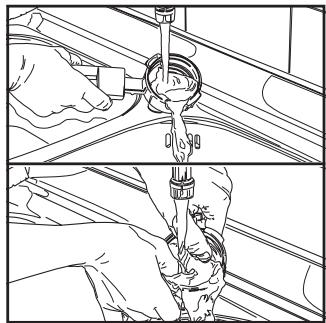

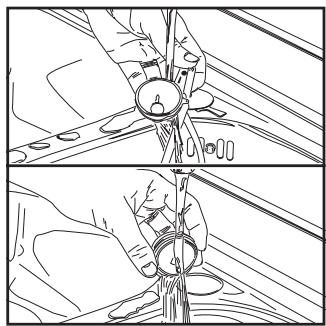

Note for cleaning: keep the filter of the

LM pressurized portafiter clean by removing it from its Seat and washing it with drinking water (Fig.17). Wash the adapter and the pin of the portafilter, then wash the portaflter itself.

Fig.10) - By using a coffee spoon, remove the ground coffee fiter (11) andthe adapter (12) from the pressurized portaflter (10).

(Fig.7) - Remove the pin (13) from the pressurized portaflter (10).

Fig.8B) - Insert the pod fier (14) into the pressurized portaflter (13).

Fig.11) - Insert the portaflter into the brew uni from the bottom (6).

{Fig.12) - Turn the portaflter from left to right until it locks in place.

(Fig.14) - Preheat the pressurized portaflter by pressing the button (15). Water will spil out of the pressurized portaflter (this has to be done only for the first coffee). Water dispensing wil Stop automatically.

Fig.16) - Remove the pressurized portafiter from the machine by tuning it to the left and pour out any water left.

{Fig.9B) - Insert he pod into the portafiter and make sure the paper of the pod does not overhang the portaflter. Fig.11) - Insert the portaflter into the brew uni from the bottom (6).

{Fig.12) - Turn the portaflter from left to right until it locks in place.

Take 1 préheated cup and place it under the portaflter: make sure that it is corectly placed under the coffee dispensing holes.

(Fig. 14) - Press the button (15) for 1 coffee.

When the programmed quantity of coffee has been obtained, brewing will stop automatically, Remove the coffee cups. (Fig.15).

Fig.16) - Wait a few seconds after brewing, then remove the portafiter and dispose of the used pod.

Note for cleaning: keep the filter of the

pressurized portafilter clean by removing it from its seat and washing it with drinking water (Fig.17). Then wash the portafilter itself.

5.3 Programming the Quantity of Coffee

Itis possible to preset the quantiy of coffee to be brewed by pressing the buttons (15) or (16).

The quantity of coffee can only be programmed for the button (15) (min. 25cc, max. 180cc).

By pressing the button (16), you will have twice the

quantity programmed by the button (15).

+ To start programming, insert coffee into the portafñter as shoun in Sections 5.1 and 5.2

+ Place a cup under the brew unit (4).

+ (Fig. 14) - Press the coffee brew button (15) for a few seconds. After 3 seconds, the machine wil start brewing coffee.

+ When the desired quantity of coffee is in the cup, release the button (15).

Programming is complete. From now on the machine will

+_ The same quantity as the one previously selected by pressing and releasing the button (15).

+ Twice the quantity as the one previously selected by pressing and releasing the button (16).

76 TPS FOR CHOOSING COFFÉE As a general rule any type of coffee available on the market can be used. However, coffee is a natural product and its flavour changes according to its origin and blend: itis therefore a good idea to try different types of coffee in order to find the most suited to your personal taste.

For best results, we recommend using blends which are expressiy indicated for espresso coffee machines. Coffee should always be dispensed by the pressurized portafiter without dripping.

The speed of coffee dispensing can be modified by slightly changing the amount of coffee in the filter and/or by using a different coffee grind.

Saeco recommends using single-dose coffee pods marked ESE for a tasty coffee and easier cleaning and preparing.

BEFORE USING THE HOT WATER/STEAM JET, MAKE SURE THAT THE CAPPUCCINATORE IS POSITIONED OVER THE DRIP TRAY.

7__HOT WATER Danger of scalding! When brewing starts, spurts of hot water may come out. The spout can reach high temperatures: do not touch it with bare hands.

{Fig.5) - Open the knob (4)

When the required amount of hot water has been dispensed, press the button (17) again.

{Fig.5) - Close the knob (4).

Remove the container with hot water.

By pressing the buttons (15) or (16), the machine will brew the same quantity of hot water as the one programmed in Section 5.2.

Danger ofscaldingl! When brewing begins, spurts of hot water may come out. The spout can reach high temperatures: do not touch it with bare hands.

(Fig.3) - Press the ONJOFF button (2). Wait for the buttons (15 - 16) to be permanentiy on. (Fig.19) - Press the button (18).

Wait for the button (18) to be permanently on. The machine is now ready for steam ejection.

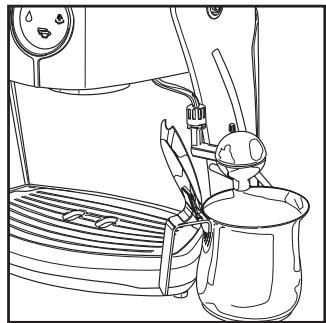

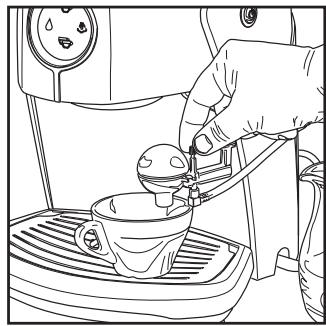

(Fig.18) - Place a container under the cappuccinatore. (Fig.5) - Open the knob (4) for a fewr seconds, so that remaining water flows out of the cappuccinatore. In a short time only steam will come out.

A maximum steam ejection of 60 seconds is recommended.

+ Close the knob (4) and remove the container. + Fil 1/8 of the container you wish to use to prepare the cappuccino with cold milk.

El Use cold milk to get a better result.

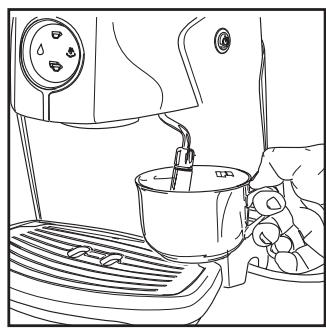

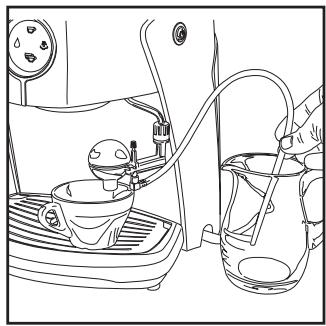

+ (Fig.20) - Immerse the cappuccinatore suction pipe in the milk container.

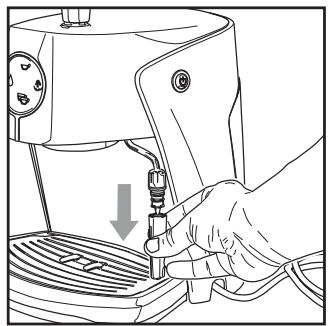

(Fig.5) - Open the knob (4) by tuming it anticlockwise (Fig.21) - Adjust the froth quantity by using the pin. Lift it gently to get a greater quantity of froth.

Wen brewing ends, close the knob (4) and remove the cup with the frothed milk.

After preparing the cappuccino, immerse the suction pipe into à container with fresh clean water and eject steam. The cappuccinatore is clean when clean water is dispensed. Clean the suction pipe externally with a damp cloth.

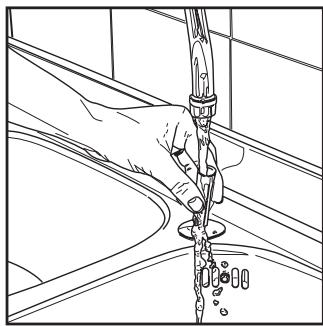

The cappuccinatore must be removed and completely washed once a week.

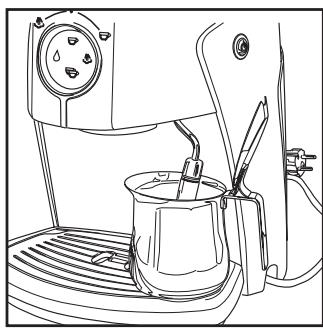

+ (Fig.19) - Press the button (18) again. + Prime the circuit as described in section 4.5 to make the machine ready for use.

Note: the machine is ready when the buttons (15 and16) are permanentiy on.

Note: if it is not possible to dispense a cappuccino as described, prime the circuit as explained in Section 4.5, then repeat the procedure.

The same procedure can be used to heat other beverages.

+ After his operation, clean the steam spout with a damp cloth.

9 PANNARELLO Pannarello can be used for dispensing hot water and ejecting steam instead of the cappuccinatore.

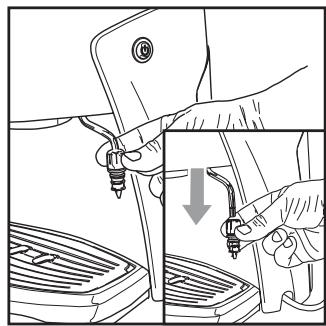

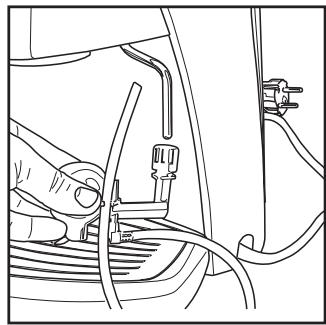

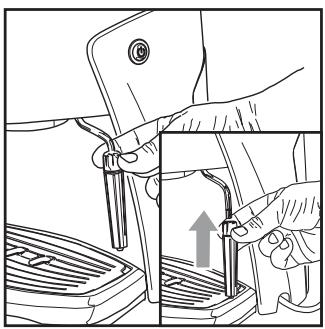

Remove the cappuccinatore before installing the Pannarello (Fig.29-30) - Loosen the ring nut without taking i of. - Remove the cappuccinatore coupling from the steam spout.

Install the Pannarello (Fig.31): - Insert the Pannarello completely into the steam spout. = Tighten the ring nut securely.

Fig.32 - Fig.33) - Prepare the machine by using the Pannarello as described in Sections 7 and 8 to dispense hot water or steam.

(Fig.34 - Fig.35) - After using the machine, when it has cooled doun, remove the lower part of the Pannarello and wash it with lukewarm water.

(Fig.36) - Once a week, remove the upper part as well and wash it with lukewarm water.

10 _CLEANING Maintenance and cleaning must be performed only when the machine has cooled down and has been disconnected from the power supply.

Do notimmerse the machine in water nor place any of is parts in a dishwasher.

Do not use spirit, solvents and/or aggressive chemical agents.

We recommend cleaning the water tank and filing it up with fresh water daily.

{Fig.20) - After heating mik, brew a small quantity of hot water as well

Danger! Ifthe end part ofthe cappuccinatore has been removed, do not eject steam.

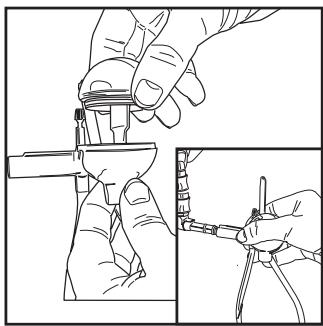

{Fig.22 - 23) - Clean the cappuccinatore week.

In order to do this, please:

- Remove the cappuccinatore end part.

- Separate the cappuccinatore upper and lower parts.

- Wash all the cappuccinatore parts with lukewarm water.

= Wash the suction pipe with à damp cloth and remove any milk residue.

- Assemble the cappuccinatore.

- Place the end part of the cappuccinatore in the coupling on the machine (make sure i is completely inserted).

{Fig.24) - Empty and clean the drip tray daily.

Use a damp and soft cloth to clean the appliance.

{Fig.17) - To clean the pressurized portaflter do as

- (Fig.10) - Remove the filter, wash it thoroughly with hot water.

- (Fig.10) - Remove the adapter (if fitted), wash it thoroughly with hot water.

- Remove the pin, wash it thoroughly th hot water.

= Wash the internal part of the pressurized portafler.

Do not dry the machine andlor its components in a

microwave and/or in a conventional oven.

11_ DESCALING The formation of imescale inside the appliance is inevitable. is necessary to descale the machine every 3-4 months of use andlor when you notice a reduction in the water delivery.

If you want to descale the machine yourself,

you can use a non-toxic and/or non-harmful descaling product for coffee machines (commercially available). We recommend using Saeco descaling solution.

Warning! Do not use vinegar as a descaling solution.

+ (Fig.1) - Remove and empty the water tank

{Fig.2) - Mixthe descaling solution with water as specified

on the descaling solution box and fil the water tank. Fit

the tank into the machine.

{Fig.3) - Tum on the machine by pressing the ON/OFF

Wait for the buttons (15 - 16) to be permanentiy on.

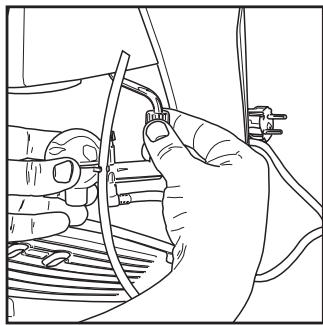

(Fig.29 - 30) - Remove the cappuccinatore.

- Loosen the ring nut without taking it of.

- Remove the cappuccinatore coupling from the steam spout.

Place a container under the steam spout.

{Fig.5 - 6) Open the knob (4) and press the button (17) to

remove at intervals (one cup at a time) all the descaling

To stop dispensing, press the button ({7) and close the

Fig.3) - During each interval disconnect the machine

by pressing the ON/OFF button (2) in order to let the

descalng solution take effect for about 10-15 minutes.

Empty the container.

Fig.! - 2) - When the descaling solution is finished,

remove the water tank, rinse itand fil itwith fresh drinking

(Fig.4) - Reinsert the tank into the machine.

(Fig.3 Fig.5) - Open the knob (4) and press the button

{17) to empty 2/3 of he water. Press the button (17) and

close the steam knob (4) to stop dispensing.

Let the machine warm up and empty the water tank as

Install the cappuccinatore again.

- Insert the cappuccinatore coupling from steam spout completely.

= Tighten the ring nut securely.

If you are using a product other than the

recommended one it is however important to follow the manufacturer’s instructions shown on the descaling solution box.

12 DISPOSAL Put unused appliances out of service.

Disconnect the plug from the socket and cut the electrical cord.

Atthe end ofits if, take the appliance to a suitable waste collection site.

This product complies with EU Directive 2002/96/EC.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of his product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The machine does not turn on.

Machine not connected to the power supply.

Connect the machine to the power supply.

The pump is very noisy.

Refill with water (Section 4.4).

All buttons are flashing.

Water circuit needs priming.

Prime the circuit as described in Section 45.

The coffee is too cold.

The portaflter is notinserted for preheating (Section 5).

Preheat the portañlter.

Preheat the cups with hot water.

Milk does not froth.

Itis not possible to prepare a cappuccino.

Not suitable milk: powdered milk, low-fat milk.

The cappuccinatore is dirty.

Clean the cappuccinatore as described in Section 9.

No steam in the boiler.

Prime the circuit (section 4.5) and repeat the procedure described in Section 8

The coffee is dispensed too fast, no foam builds up.

Too little coffee in the portafilter.

Add coffee (Section 5).

Coffee ground is too coarse.

Use a different blend (Section 6).

Coffee is old or not suitable.

Use a different blend (Section 6).

Old or not suitable pod.

One component missing in the portaflter.

Make sure that ll components are present and that they have been installed properiy

Coffee is not dispensed or dispensed only in drips.

Refill with water. (Section 4.4).

The grindis too fine.

Use a different blend (Section 6).

Coffee pressed in the portafiter.

Shake the ground coffee.

Too much coffee in the portafilter.

Reduce Ihe quantily of coffee in the portaflter.

Traces of limestone.

Descale the machine (section 10).

The filer in the portafilter is clogged

Clean the filter (Section 9).

Coffee drips from the edges.

The portaflter is incorrectly inserted into the brew unit.

Insertthe portafiter correctiy (Section 5).

The upper edge ofthe portafier1s dirty.

Clean the rim of the portañilter.

The gasket ofthe boller is dirty or wo.

Pod wrongly inserted.

Insert the pod correclly. Make sure it does not come out of the portafilter.

Too much coffee in the portañilter.

Reduce Ihe quantily of coffee using the measuring Coop.

Please contact an authorized service centre for any faults not covered in the above table or when the suggested solutions do not solve the problem.

EC DECLARATION OF CONFORMITY EC 2006/95, EC 2004/118, EC 1992/31, EC 1993/68

declare under our responsibility that the product :

COFFEE MAKER TYpe : SIN 026XH

to which this declaration relates is in conformity with the following standards or other normative documents :

Safety of household and electrical appliances - General requirements

EN 60335-1(2002 ) + A1(2004) + A2(2006) + A11(2004) + A12(2006)

Safety of household and electrical appliances - Part 2-15

Particular requirements for appliances for heating liquids

EN 60335-2-15(2002) + A1(2005)

Household and similar electrical appliances - Electromagnetic fields - methods for evaluation and measurement

Electromagneïic compatibilty (EMC) - Requirements for household appliances , electric tools and similar apparatus - Part 1 Emission EN 55014-1 (2000) + A1 (2001) + A2 (2002).

Part. 3 Limits - Section 2 : Limits for harmonic current emissions (equipment input current < 16A for phase) -

Electromagnetic compatibility (EMC)

Part 3° : Limits - Section 3 : Limitation of voltage changes . voltage fluctuations and ficker in public low - voltage supply systems , for equipment with rated current 16 À for phase and not subject to conditional connection

EN 61000-3-3 (1995) + At (2001)

Electromagnetic compatibilty - Requirements for household appliances , electric tools and similar apparatus - Part 2. Immunity - Product family standard EN 55014-2 (1997) + A1 (2001)

following the provisions of the Directives : EC 73/23, EC 89/336, EC 92/31, EC 93/68.

Gaggio Montano 05/07/2006

- was alle onderdelen van de cappuccinatore af metlauw water,
