Brand	Haier
Model	ES50V-F1
Product Type	Electric Water Heater (Boiler)
Capacity	50 Liters
Installation Type	Vertical Wall-Mounted
Dimensions (H x W x D)	Approx. 700 x 450 x 450 mm
Weight (Empty)	Approx. 18 kg
Power Supply	220-240 V ~ 50/60 Hz
Heating Power	2000 W
Max Temperature	75 °C
Temperature Control	Adjustable Thermostat
Inner Tank Material	Enameled Steel
Insulation	Polyurethane Foam
Safety Features	Thermal Cut-off, Pressure Relief Valve, Overheat Protection
Energy Efficiency Class	B
Standby Energy Consumption	0.5 kWh/24h
Water Connection	G 1/2" (Inlet/Outlet)
Max Working Pressure	0.8 MPa (8 bar)
Protection Rating	IP24 (Splash-proof)
Warranty	2 Years
Maintenance	Descaling every 6 months, anode inspection yearly
Control Type	Mechanical Knob
Heating Indicator	LED Pilot Light

Frequently Asked Questions - ES50V-F1 HAIER

What is the capacity of the Haier ES50V-F1 boiler?

The Haier ES50V-F1 has a capacity of 50 liters, suitable for medium-sized households.

How do I adjust the water temperature?

Turn the thermostat knob on the front panel to set the desired temperature, usually between 30°C and 75°C.

Does the boiler require professional installation?

Yes, it is recommended to have a qualified plumber or electrician install the unit to ensure proper water and electrical connections.

How often should I replace the anode rod?

The sacrificial anode rod should be inspected annually and replaced every 2-3 years to prevent tank corrosion.

What safety features does the ES50V-F1 have?

It includes a thermal cut-off, overheat protection, and a pressure relief valve for safe operation.

Can I use the boiler without water?

No, never operate the boiler without water as it may damage the heating element and create a fire hazard.

Why is my water not heating up?

Check the power supply, thermostat setting, and if the thermal cut-off has tripped. Press the reset button on the thermostat if needed.

How do I drain the boiler for maintenance?

Turn off power and water supply, attach a hose to the drain valve, open the valve and a hot water tap to allow air in.

What is the energy efficiency class of this boiler?

The Haier ES50V-F1 has an energy efficiency class of B, meaning moderate energy consumption.

How do I reset the boiler after a safety shutdown?

Locate the reset button on the thermostat (usually behind a cover). Press it gently with a pointed object.

USER MANUAL ES50V-F1 HAIER

Electric Water Heater Instruction manual

ES50V-F1(EU)

ES80V-F1(EU)

ES100V-F1(EU)

• Please read this Instruction Manual carefully before use.
• Please retain this manual for future reference.

Contents

1. Safety Notices (Please read before use)....3-4
2. Specification....5
3. Installation 6-8
4. Packing list 8
5. Use....9-10
6. Cleaning and Maintenance 11-12
7. Troubleshooting....13

Safety Notices (Please read before use)

Meanings of Icons

ForbiddenProhibited

WarningCompulsory Matters

CautionEssential Matters

Immediately cut off power supply and contact our Service Center once the water heater does not work properly or emits burnt smell.

The product is only available for alternating current 220V~240V 50Hz.

To ensure safety, the water heater should be connected to independent sockets (do not use adapters), with reliable earthing. In addition the power socket must conform to national standards. Use of water heater without reliable earthing is strictly prohibited. Use pen multimeter to check whether the live line and zero line are reverse.

Do not use damaged wire and power socket. Promptly clean the dust on the power plug and socket.

Check the power meter and the electric wire's diameter to ensure that they comply with the rated current for the water heater. Where necessary engage qualified electrician to check the electric circuit.

Non-professionals are strictly prohibited from carrying out repairs, maintenance, dismantling or revamping of the water heater.

Installation of water heater outdoors is strictly prohibited.

Do not install the water heater in an environment which is susceptible to ice-formation. Ice will cause the container and water pipe to break, leading to scalding and water leakage.

Please take precautionary measures during cold weather, in order to prevent damage to water heater from freezing.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

The appliance is intended to be permanently connected to the water mains and not connected by a hose-set.

Safety Notices (Please read before use)

Meanings of Icons

Forbidden

Prohibited

Warning

Compulsory Matters

Caution

Essential Matters

Forbidden: Do not touch the plug with wet hands, and make sure that the water heater and plug socket do not come into contact with water. If they are accidentally wet, they must be checked by professionals appointed by our company before using, in order to prevent electrocution.

Forbidden: Storing of inflammable and explosive items near the water heater is strictly prohibited.

Forbidden: Do not connect to power when installing or repairing the water heater.

Caution

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Caution

Take care not to be scalded by heated water.

- Touching of hot water valve and pipes is strictly prohibited. - Make sure to check the water temperature before use; use only when it feels suitable.

Forbidden: Do not use water from the water heater for drinking or similar purposes.

Caution: The water may drip from the discharge pipe of the pressure-relief device and that this pipe must be left open to the atmosphere. The discharge pipe connected to the pressure-relief device is to be installed in a continuously downward direction and in a frost-free environment.

Caution

The pressure-relief device is to be operated regularly to remove lime deposits and to verify that it is not blocked.

Specifications

Introduction of exterior and accessories

Front view Cutaway view Rear view

Side view

Model a1 (mm) b1 (mm) c1 (mm) d1 (mm) e1 (mm)
ES50V-F1(EU)	530	305	720	350	170
ES80V-F1(EU)	530	305	1046	350	170
ES100V-F1(EU)	530 305		1265	350	170

A Hot water outlet B Cold water inlet C Tank D Heating element E Thermometer tube F Anode rod G Wall-mounting bracket

Technical data

Model	Rated voltage	Rated frequency	Rated temperature	Rated pressure	Power	Waterproof rating	Volume	Net Weight
ES50V-F1(EU)	220V~240V	50Hz 75°C	IPX40.80MPa		3000W		50L	25kg
ES80V-F1(EU)	220V~240V	50Hz 75°C	IPX40.80MPa		3000W		80L	36kg
ES100V-F1(EU)	220V~240V	50Hz 75°C	IPX40.80MPa		3000W	100L 41kg

Remarks: The permitted error limit of net weight above is ±10%.

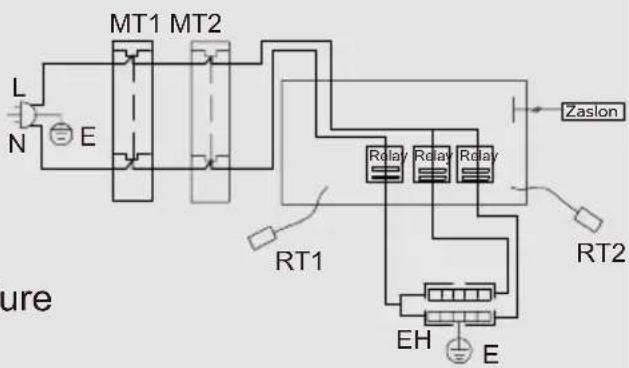

Electrical Diagram

L: Brown wire

N: Blue line

MT1/MT2: High temperature limiter

EH: Heating element

E: Yellow/green wire

RT1/RT2: Temperature sensor

Installation

Installation precautions

During installation of the water heater, some clearances (at least 250mm vertically, at least 700mm horizontally) shall be left to facilitate future maintenance. If the water heater is inserted in the pinch plate, the downside of the pinch plate is movable, ensuring that the maintenance cover can be removed during maintenance. Make sure that the tap water inlet pressure is not less than 0.05MPa, and the maximum pressure does not exceed 0.75MPa. The water heater shall be installed indoors, with the ambient temperature above 0°C, and the piping shall be centralized. The hot water outlet shall be close to the hot water tap as far as possible. If the distance between them is more than 8m, the hot water piping shall be heat insulated to reduce heat loss. The water heater shall be installed on a solid and firm wall, which can bear two times the weight of the water-filled water heater. No adhesive is allowed to avoid accidental falling of the water heater. If the bearing wall or hollow brick wall is not used, proper protections must be taken, e.g., addition of supports, use of wall-through screws, mounting of backing plates. The water heater shall be installed at a place that is easy to access and provided with a floor drain. Make sure that leakage of the water tank or pipe will cause no damage to surrounding or underground facilities. It is preferably installed above the pedestal pan, bath, washbasin, or doorframe to protect users against depressing or insecure feelings. - Correct the water inlet and outlet pipes properly. The safety valve shall be installed as required, without any unauthorized modification. The pressure relief of the safety valve shall be connected to the atmosphere, without any clogging. Use the test pencil to check if the live wire and zero line are properly connected. Do not power it on for heating until you make sure that the water heater is water-filled, all connections are free of leaks, and the power is satisfactory. To avoid hazards due to accidental reset of the thermal breaker, the water heater can be neither powered by a timer or other external switch gears, nor connected to a circuit switched frequently via other devices. To avoid accidents, our accessories must be installed, and cannot be replaced or substituted at discretion. In case of damaged accessory, contact our maintenance department for repair, and replace with new ones provided by us, otherwise we have no responsibility for any direct or indirect loss arising from accidents due to non-compliance with these requirements.

Installation

Figure 2

The water heater must be installed by the installation personnel from or appointed by our after-sale service department.

1. The water heater shall be wall mounted.
2. Use a percussion drill to drill 4 holes with a diameter of 12 mm and a depth of 65 mm on the wall according to the dimensions as shown in Figure 2;

Insert the expansion bolt into the corresponding wall hole to securely fix the wall-mounting bracket, and then uplift the water heater to hook the water heater back on the wall-mounting bracket.

After installation, screw on the drain hose of safety valve.

Install the safety valve and other accessories as per the above figure, with PTFE seal tape used.

Model ES50V-F1(EU) ES80V-F1(EU) ES100V-F1(EU)
a	170mm	170mm	170mm
b	88mm	88mm	88mm
c	362mm	635mm	851mm

To facilitate in assembly and disassembly of the water heater, it is recommended that the water inlet and outlet pipes be added with G1/2 unions respectively. Confirm the location of water supply, and connect respectively the the water inlet pipe and the tap water pipe to the water tap. Fill the inner container with water, and check the water line for any leakage, if so, connect it again.

Warning: Do not lose hold of the water heater until you make sure that the wall-mounting bracket is reliably hooked, otherwise the water heater may fall off, resulting in personal injuries or property damages.

Installation

Installation of safety valve

The safety valve at the rated pressure of 0.80MPa with G1/2 union is installed on the water inlet pipe as per the arrow direction (pointing towards the water heater) indicated on the valve. The water heater, after power-on, start heating, and the heated water in the tank will swell. To reduce the water pressure in the tank, a few drips run out through the pressure relief hole of safety valve. Connect the pressure relief hole to the atmosphere, without any clogging.

- Installation method for the drain hose of safety valve:

one end of the drain hose is screwed on the pressure relief hole of safety valve, and the drain hose can be shortened or extended according to actual conditions; the other end is connected to the sewer port to prevent drips from contaminating indoors during pressure relief.

The drain hose of safety valve shall be connected continuously downwards and mounted in an inclined manner in the frostless environment.

Packing list

Quantity\Model\Name of parts	Electric Water Heater (unit)	Safety Valve (pcs)	Instruction Manual (copy)	Expandable Bolt (pcs)	Wall-mounting plate (pcs)
ES50V-F1(EU)	1 1 1 4				2
ES80V-F1(EU)	1 1 1 4				2
ES100V-F1(EU)	1 1 1 4				2

Use

Introduction to control panel

Keys

Smart Mode

1.5KW Enter the single tank mode

3KW Enter the dual tank mode

BPS Bacteria protection system

ON/OFF

Icons

Smart mode Pilot light

Single/double tank

All Double tank

Half Single tank

Setting Temperature/ Actual temperature

BPS mode Pilot light

After installation, firstly open the tap water inlet valve and the water outlet of the water heater due to no water in the inner container in the first use, and then open the mixing valve to allow the maximum hot water flow. Close the water outlet after continuous flow from the shower nozzle or other water outlets which indicates that the tank is water-filled. After confirming that all connections are free of any leak, power it on. If the water heater is powered on first time, the display is on for 1s, then the water heater goes into the status before power failure.

Start-up

1 If the water heater is powered on, the display is on for 1s, then the water heater goes into the status before power failure. 2 Press ⏻ to start up.

Smart mode

1 Press "Smart" to select number of people, and the numerical code is alternately switched between 1, 2 and 3.

Numerical code 1 is on: for one-person bath;

Numerical code 2 is on: for two-person bath;

Numerical code 3 is on: for three-person bath;

2 The water heater will automatically complete heating as per the selected number of people.

50L allows one-person bath and two-person bath;

80L/100L allows one-person bath, two-person bath and three-person bath.

Use

Single/dual tank mode

Press “1.5kW” to light the icon “Half”, then the default maximum heating temperature of 75° C blinks for 2s, the actual water temperature appears; the water in left tank will be heated by the 1500W electric heater.

Press “3kW” to light the icon “All”, and the water in both tank will be heated simultaneously by 3000W heater.

Bacteria protection system

Press “BPS” to light the icon “✝”, then the default maximum heating temperature of 80°C blinks for 2s, and the actual water temperature appears. After the actual water temperature reaches 80°C, the BPS is completed, and the function is automatically deactivated, with the “✝” off. The maximum heating temperature is the heating temperature before the BPS is activated. Press “BPS” to re-activate the bacteria protection system.

Note: 1. The BPS is available under the Smart or single/dual container modes; 2. Settings of BPS mode can be reserved against power failure; 3. The BPS cannot be independent of other functions.

Turn Off

After bath, press ⏻ to turn off the heater.

Tips: In the dual tank mode, because of the different heating powers in two tanks or other impacts, it is normal that the right tank is still heated when the display temperature is 75°C.

Things to note during use

1. Do not connect the power before filling the inner chamber with water in order to prevent damage to the water heater.
2. Adjust the water temperature to suitable level before use in order to prevent scalding.
3. As long as the hot water is adequate, set a lower temperature to reduce heat loss, high temperature corrosion and scaling, thus extending the water heater's lifespan.
4. Do not place inflammable substances such as petrol near the water heater, otherwise it may cause fire.

Cleaning and Maintenance

Warning!

The water heater must be repaired or maintained by qualified professionals. Improper methods may cause serious injury or damage to property.

Note: Before calling service technicians, please refer to the Q&A to solve simple issues.

Cleaning

1 External cleaning

Power must be switched off before cleaning the water heater. Take a wet cloth and dab it with a small quantity of neutral detergent. Lightly wipe the water heater. Do not use petrol or other solvents. Finally, use a dry cloth to wipe; make sure to dry the water heater thoroughly. Make sure not to use detergents containing abrasive agents (e.g., toothpaste), acidic substances, chemical solvents (e.g., alcohol), or polish to clean the water heater.

2 Internal cleaning

In order to ensure that the water heater will work with high efficiency, clean the heating tube and inner chamber once every two years. Take care not to damage the exterior of the heating pipe and the protective layer on the surface of the inner chamber.

Depending on the local water quality and usage habits, the anode rod should be regularly replaced. If maintenance is required, please contact the local Maintenance Department.

Check

When the water heater is in use, the safety valve should be checked once every month. To check it, turn the safety valve's small handle on the side of the water intake (take care not to hurt your hand). If there is water flowing out, the safety valve is working normally. Please contact the local After-sales Department if no water flows out. In the event of damage to the safety valve, please replace it with a safety valve of similar specifications.

- Regularly engage service personnel to carry out safety inspection and promptly clear the water heating pipes of scale. Check also the consumption of the anode rod; change it if consumption becomes excessive.

Cleaning and Maintenance

Not in use for an extended period of time

If the water heater is not used for an extended period of time, please carry out the following steps:

1 Turn off the water pipe valve. 2 Screw the water drainage pipe to the safety valve's pressure-relief hole; turn on the safety valve handle. 3 Turn the hot water valve to the maximum (at the same time unscrew the soft sprinkler pipe from the water outlet valve; take care not to be scalded by hot water), drain the inner chamber of water.

When the water heater needs to be used again, our recommendation is to open the hot water valve before switching on the power in order to prevent accidents. Allow any gas that may be trapped in the pipe to be discharged. Do not smoke or allow other exposed fire to be near the opened valve. At the same time, make sure to carefully examine all the parts of the water heater and ensure that they are in perfect condition. Make sure to fill the inner chamber with water before use.

Troubleshooting

Phenomenon Items to be confirmed Solutions
No flow	1 Whether or not the water supply system is cut off or under too low water pressure	Check
	2 Whether or not the water tap is clogged, and the hot water valve is opened	Check and clear up
Cold water supplied	1 Whether or not the hot water port is closed	Check and open the port
	2 Whether or not the water temperature is well adjusted	Make corrections as per the usage stated in the manual.
	3 The water is not heated to the set temperature because the heating time is too short	Make corrections as per the usage stated in the manual.
	4 Whether or not the components are damaged	If Items 1, 2 and 3 are confirmed as irrelevant items, please contact the after-service department
Below the required heating temperature or less hot water supplied	1 Whether or not the current function mode is properly set, and the set temperature is too low	Make corrections as per the usage stated in the manual.
	2 Whether or not the tap water pressure is too high	Turn down the water outlet valve
Water supplied with unstable flow and temperature	Whether or not the tap water pressure is stable	Turn down the water outlet valve or use after the water pressure is stable.
No power or display failure	1 Whether or not the power is well contacted	Check the power socket.
	2 Whether or not the components are damaged	If item 1 is confirmed as irrelevant one, please contact the after-service department.
Display E1 Circuit fault		Contact the after-service department
Display E2	1 Whether or not the inner tank is filled with water	After power-off, fill it with water and then power on again.
	2 Whether or not the components are damaged	If item 1 is confirmed as irrelevant one, please contact the after-service department.
Display E3/E8	1 Whether or not the ambient temperature is below -20°C	Power off until the ambient temperature is above -19°C, and then power it on again to go back to normal.
	2 Whether or not the sensor is damaged	If item 1 is confirmed as irrelevant one, please contact the after-service department.

Haier

Haier

Inspired Living

Model a1 (mm) b1 (mm) c1 (mm) d1 (mm) e1 (mm)
ES50V-F1(EU)	530	305	720	350	170
ES80V-F1(EU)	530	305	1046	350	170
ES100V-F1(EU)	530 305		1265	350	170

Modell a1 (mm) b1 (mm) c1 (mm) d1 (mm) e1 (mm)
ES50V-F1(EU)	530	305	720	350	170
ES80V-F1(EU)	530	305	1046	350	170
ES100V-F1(EU)	530 305		1265	350	170

Modell a1 (mm) b1 (mm) c1 (mm) d1 (mm) e1 (mm)
ES50V-F1(EU)	530	305	720	350	170
ES80V-F1(EU)	530	305	1046	350	170
ES100V-F1(EU)	530 305		1265	350	170

Introduction to the panel

Buttons

Smart Smart operating mode

1.5KW Mode of operation. Operation with one tank

BPS Bacterial System

Model a1 (mm) b1 (mm) c1 (mm) d1 (mm) e1 (mm)
ES50V-F1(EU)	530	305	720	350	170
ES80V-F1(EU)	530	305	1046	350	170
ES100V-F1(EU)	530 305		1265	350	170

Model a1 (mm) b1 (mm) c1 (mm) d1 (mm) e1 (mm)
ES50V-F1(EU)	530	305	720	350	170
ES80V-F1(EU)	530	305	1046	350	170
ES100V-F1(EU)	530 305		1265	350	170

Model a1 (mm) b1 (mm) c1 (mm) d1 (mm) e1 (mm)
ES50V-F1(EU)	530	305	720	350	170
ES80V-F1(EU)	530	305	1046	350	170
ES100V-F1(EU)	530 305		1265	350	170

A Hot water outlet B Cold water inlet C Tank D Heater E Temperature measuring pipe F Anode G Wall mounting frame

Technical data

Model	Nazivni napon	Nazivna frekvencija	Nazivna temperatura	Nazivni tlak	Učinak	Vodootpornost	Kapacitet	Neto težina
ES50V-F1(EU)	220V~240V	50Hz 75°C	IPX40.80MPa		3000W		50L	25kg
ES80V-F1(EU)	220V~240V	50Hz 75°C	IPX40.80MPa		3000W		80L	36kg
ES100V-F1(EU)	220V~240V	50Hz 75°C	IPX40.80MPa		3000W	100L 41kg

Notes: The margin for errors in the net weight stated above is ±10%.

Connection diagram

L: Brown wire

N: Blue wire

EH: Heater

E: Yellow/green wire

RT1/RT2: Temperature sensor

MT1/MT2: High temperature limiter

Installation

• Read the instructions carefully before use.
• Keep these instructions for future reference.

Contents

1. Safety warnings (Please read before use)....3-4
2. Specifications....5
3. Installation 6-8
4. Package contents ....8
5. Use....9-10
6. Cleaning and maintenance 11-12
7. Troubleshooting....13

Safety warnings

Explanation of symbols

ZabranjenoZabranjeno

Obavezno

Oprez

Osnovno

Model a1 (mm) b1 (mm) c1 (mm) d1 (mm) e1 (mm)
ES50V-F1(EU)	530	305	720	350	170
ES80V-F1(EU)	530	305	1046	350	170
ES100V-F1(EU)	530 305		1265	350	170

A Hot water outlet B Cold water inlet C Tank D Heating element E Temperature sensor tube F Anode G Wall mounting bracket

Technical data

Model	Nominalni napon	Nominalna frekvencija	Nominalna temperatura	Nominalni pritisak	Učinak	Vodootpornost	Kapacitet	Neto težina
ES50V-F1(EU)	220V~240V	50Hz 75°C	IPX40.80MPa		3000W		50L	25kg
ES80V-F1(EU)	220V~240V	50Hz 75°C	IPX40.80MPa		3000W		80L	36kg
ES100V-F1(EU)	220V~240V	50Hz 75°C	IPX40.80MPa		3000W	100L 41kg

Notes: The margin of error for the net weight stated above is ±10%.

Wiring diagram

L: Brown wire

N: Blue wire

EH: Heating element

E: Yellow/green wire

RT1/RT2: Temperature sensor

MT1/MT2: High temperature limiter

Installation

Installation precautions

When installing the water heater, leave a gap (at least 250 mm vertically, at least 700 mm horizontally) to facilitate future maintenance. If the water heater is installed on a mounting plate, the lower part of the plate can be moved, allowing the maintenance cover to be removed during servicing. Check that the inlet pressure at the tap is at least 0.05 MPa and that the maximum pressure does not exceed 0.75 MPa. The water heater should be installed indoors, with an ambient temperature above 0°C, and the piping should be centralized. The hot water outlet should be as far as possible from the hot water tap. However, the distance between them must not exceed 8 m, and the hot water pipe should be insulated to avoid heat loss. The water heater should be installed on a solid, sturdy wall that can support twice the weight of the water heater when filled with water. The use of adhesive is not allowed, as the water heater could fall. If the water heater is not mounted by drilling into a load-bearing wall or hollow brick, appropriate protection must be ensured, such as a support, wall plugs, or installing the accompanying back plate.

Hot water outlet valve

Figure 2 The water heater should be installed by a qualified person hired by our customer service. The water heater should be mounted on the wall. Using a hammer drill, drill 4 holes, each with a diameter of 12 mm and a depth of 65 mm, according to the dimensions in Figure 2. Insert the expansion anchor into the corresponding hole in the wall to securely fasten the mounting bracket to the wall, then lift the water heater and hang it from the rear onto the mounting bracket. After installation, secure the safety valve drain pipe with screws. Install the safety valve and other accessories according to the figure above using PTFE tape.

Model	ES50V-F1(EU)	ES80V-F1(EU)	ES100V-F1(EU)
a	170mm	170mm	170mm
b	88mm	88mm	88mm
c	362mm	635mm	851mm

To facilitate the assembly and disassembly of the water heater, we suggest that you install the water supply and drain pipes with G1/2 connections. Check the water supply location and connect the appropriate water supply pipe and the pipe from the faucet to the faucet. Fill the inner tank with water and check if the pipes leak; if so, reconnect them.

Warning: Secure the water heater with support until you are sure that the hanging frame is reliably installed; otherwise, the water heater may fall, which could cause injury or material damage.

Installation

Installation of the safety valve

The safety valve should be installed at a rated pressure of 0.80 MPa, with a G1/2 connection on the water supply pipe according to the arrow on the valve (which points toward the water heater). After turning on the water heater, it starts heating, and the volume of water increases because it is heated in the tank. To reduce the water pressure in the tank, a few drops leak through the pressure regulator of the safety valve. Connect the pressure regulator to the atmosphere without blockage or obstacles.

Method for installing the safety valve drain pipe: screw one end of the drain pipe onto the pressure regulator of the safety valve; the drain pipe can be shortened or extended as needed; the other end is connected to the sewer, preventing leakage inside when pressure drops. The safety valve drain pipe should be connected so that it continuously slopes downward in a frost-free environment.

Package contents

KoličinaModel\Nazivelementa	Električnibojler(Jedinica)	Sigurnosniventil(kom)	Uputstva zaupotrebu(Broj kopija)	Kuka zavešanje naizvlačenje(kom)	Ploča zavešanje o zid(kom)
ES50V-F1(EU)	1 1 1 4				2
ES80V-F1(EU)	1 1 1 4				2
ES100V-F1(EU)	1 1 1 4				2

Usage

Introduction to the control panel

Keys

Smart Smart mode
