Product type	Motherboard
Brand	MSI
Model	880GMA-E53 (MS-7623 v4.x)
Form factor	Micro-ATX
Dimensions	24.4 cm x 24.4 cm
CPU socket	AM3
Supported processors	AMD Phenom II, Phenom, Athlon II, Athlon, Sempron
Chipset	AMD 880G (North Bridge) + AMD SB710 (South Bridge)
Supported memory	DDR3 800/1066/1333/1600* (OC) up to 16 GB, dual channel
Storage	1 IDE port, 6 SATA 3 Gb/s ports (SB710), 2 SATA 6 Gb/s ports (Marvell SE9128)
Expansion slots	1 PCI Express x16, 2 PCI Express x1, 1 PCI
Audio	Realtek ALC892, 8-channel HD Audio
Networking	Realtek RTL8111E Gigabit Ethernet
Rear panel ports	1 PS/2 mouse, 1 PS/2 keyboard, 1 VGA, 1 DVI-D, 1 HDMI, 1 IEEE 1394, 4 USB 2.0, 2 USB 3.0, 1 RJ45, 6 audio jacks
Internal connectors	3 USB 2.0, 1 parallel, 1 serial, 1 IEEE 1394, 1 S/PDIF out, 1 front audio, 1 CD-IN, 1 TPM, 1 chassis intrusion, 1 OC switch
Power	1 ATX 24-pin connector (JPWR1), 1 ATX 4-pin connector (JPWR2)
Special features	OC Genie Lite, Active Phase Switching (APS), FSB overclocking switch, Cool'n'Quiet
Maintenance and cleaning	Disconnect power before cleaning. Use a dry or antistatic cloth. Do not use solvents.
Safety	Avoid electrostatic discharge. Handle the board by its edges. Do not touch the gold contacts.
Spare parts and repairability	Consult the MSI website for replacement parts. The motherboard is only repairable by a professional.
General information	Compliant with WEEE Directive 2002/96/EC. Supports HyperTransport 3.0 technology. BIOS with advanced settings.

Frequently Asked Questions - G52-76231XG MSI

What type of processor can I install on this MSI 880GMA-E53 motherboard?

This motherboard supports AMD processors for socket AM3, including the Phenom II, Phenom, Athlon II, Athlon and Sempron series. Check the compatibility list on the MSI website for exact models.

How to properly install the CPU and fan?

Locate the gold arrow on the CPU and align it with the socket mark. Lift the lever to 90°, insert the CPU without force, close the lever. Apply thermal paste, place the fan by clipping one side first, then the other. Connect the fan cable to the CPUFAN connector.

What is the maximum supported RAM capacity?

The board supports up to 16 GB of DDR3 memory in dual channel. Compatible frequencies are 800, 1066, 1333 and 1600 MHz (1600 in overclocking). Use sticks of the same type and capacity for optimal compatibility.

How to enable dual channel mode for memory?

Insert the memory sticks into slots of the same color. For example, use slots DIMM1 and DIMM3 (or DIMM2 and DIMM4). Make sure the sticks are identical (brand, capacity, frequency).

What to do if the computer does not start after component installation?

Check connections: 24-pin and 4-pin power, CPU cables, memory sticks properly seated. Try booting with one memory stick in DIMM1 slot. Use jumper JBAT1 to clear CMOS if necessary.

How to reset BIOS to factory settings?

Turn off the computer and unplug the power cable. Move jumper JBAT1 from position 1-2 (keep) to position 2-3 (clear) for a few seconds, then put it back to 1-2. Reconnect and power on.

Can I use a SATA 6 Gb/s hard drive on this board?

Yes, ports SATA7 and SATA8 are managed by the Marvell SE9128 controller and support SATA 6 Gb/s. Ports SATA1 to SATA6 are limited to 3 Gb/s.

How to enable Cool'n'Quiet function in BIOS?

Enter BIOS by pressing Del at startup. Go to Cell Menu, then set AMD Cool'n'Quiet to Enabled. In Windows, select power mode Minimum power management in power options.

The motherboard emits a beep at startup, what does it mean?

One long beep and two short beeps usually indicate a memory problem. A continuous beep may be due to missing memory or power. Refer to the manual for the specific beep code table.

How to safely clean the motherboard?

Disconnect power and wait a few minutes. Use a slightly damp antistatic cloth (distilled water) to remove dust. Avoid contact with electronic components. Never use chemicals or a vacuum cleaner.

USER MANUAL G52-76231XG MSI

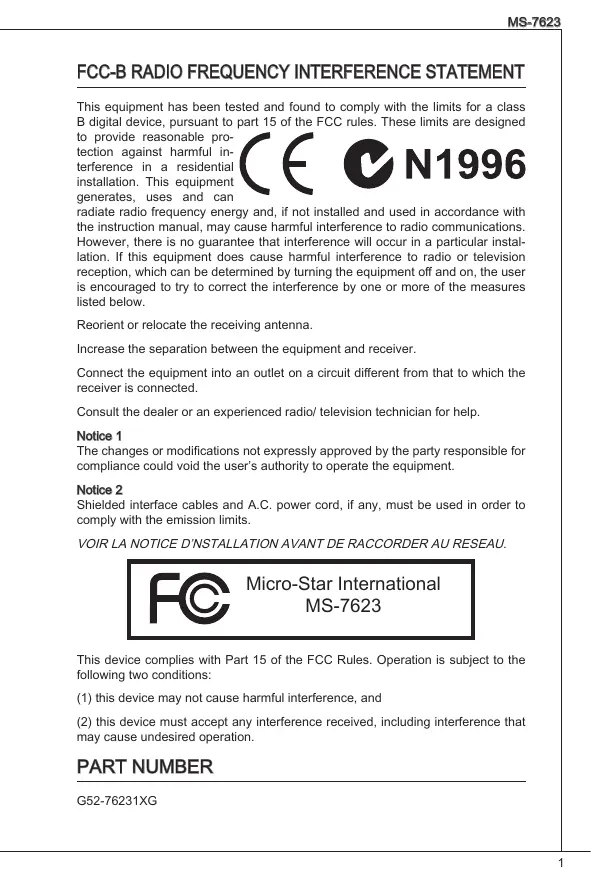

FCC-B RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Notice 1

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice 2

Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

SEE THE INSTALLATION NOTICE BEFORE CONNECTING TO THE NETWORK.

Micro-Star International MS-7623

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PART NUMBER

G52-76231XG

COPYRIGHT NOTICE

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

TRADEMARKS

All trademarks are the properties of their respective owners.

MSI is registered trademark of Micro-Star Int'l Co., Ltd. NVIDIA® is registered trademark of NVIDIA Corporation. ATI® is registered trademark of ATI Technologies, Inc. AMD is registered trademarks of AMD Corporation. Intel is registered trademarks of Intel Corporation. Windows® is registered trademarks of Microsoft Corporation. AMI is registered trademark of American Megatrends, Inc. Award® is a registered trademark of Phoenix Technologies Ltd. Sound Blaster® is registered trademark of Creative Technology Ltd. Realtek® is registered trademark of Realtek Semiconductor Corporation. JMicron® is registered trademark of JMicron Technology Corporation. Netware is a registered trademark of Novell, Inc.

REVISION HISTORY

Revision	Revision History	Date
V4.0	First release	July 2010

SAFETY INSTRUCTIONS

Always read the safety instructions carefully. - Keep this User Manual for future reference. - Keep this equipment away from humidity. Lay this equipment on a reliable flat surface before setting it up. - The openings on the enclosure are for air convection hence protects the equipment from overheating. Do not cover the openings. - Make sure the voltage of the power source and adjust properly 110/220V before connecting the equipment to the power inlet. - Place the power cord such a way that people can not step on it. Do not place anything over the power cord. Always Unplug the Power Cord before inserting any add-on card or module. All cautions and warnings on the equipment should be noted. - Never pour any liquid into the opening that could damage or cause electrical shock. If any of the following situations arises, get the equipment checked by a service personnel:

The power cord or plug is damaged. Liquid has penetrated into the equipment. The equipment has been exposed to moisture. The equipment does not work well or you can not get it work according to User Manual. The equipment has dropped and damaged. The equipment has obvious sign of breakage.

• Do not leave this equipment in an environment unconditioned, storage temperature above 60°C (140°F), it may damage the equipment.

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer.

Warning to users

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

ENGLISH

To protect the global environment and as an environmentalist, MSI must remind you that...

Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of "electrical and electronic equipment"

cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

DEUTSCH

Thank you for choosing the 880GMA-E53 series (MS-7623 v4.x) Micro-ATX mainboard. The 880GMA-E53 series is designed based on AMD® 880G & SB710 chipset for optimal system efficiency. Designed to fit the advanced AMD® AM3 processor, the 880GMA-E53 series delivers a high performance and professional desktop platform solution.

Layout

SPECIFICATIONS

Processor Support

• AMD® PhenomII/ Phenom/ Althon II/ Althon/ Sempron processors in AM3 package.

(For the latest information about CPU, please visit

http://www.msi.com/index.php?func=cpuform2)

HyperTransport

Supports HyperTransport (HT) 3.0 Technology

Chipset

North Bridge: AMD® 880G chipset South Bridge: AMD® SB710 chipset

Memory Support

DDR3 800/1066/1333/1600*(OC) SDRAM (16GB Max) Supports Dual-Channel mode) (For more information on compatible components, please visit http://www.msi.com/index.php?func=testreport)

LAN

Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111E

Audio

Chip integrated by Realtek ALC892 Flexible 8-channel audio with jack sensing Compliant with Azalia 1.0 Spec

IDE

1 IDE port by AMD® SB710 Supports Ultra DMA 33/66/100, PIO & Bus Master operation mode

SATA

6 SATA 3Gb/s ports by AMD® SB710 (SATA1~6) 2 SATA 6Gb/s ports by Marvell® SE9128 (SATA7~8)

Floppy

1 floppy port Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB

Connectors

Back panel

• 1 PS/2 mouse port
• 1 PS/2 keyboard port
• 1 VGA port
• 1 DVI-D port
• 1 HDMI port
• 1 IEEE 1394 port
• 4 USB 2.0 Ports
• 2 USB 3.0 ports
• 1 LAN jack
• 6 flexible audio jacks

On-Board Connectors

• 1 Parallel connector
• 3 USB 2.0 connectors
• 1 IEEE 1394 connector
• 1 Serial port connector
• 1 SPDIF-Out connector
• 1 Front Panel Audio connector
• 1 Chassis Intrusion connector
• 1 CD-In connector
• 1 TPM connector
• 1 OC switch

Slots

1 PCIE x16 slot, 2 PCIE x1 slots, 1 PCI slot, support 3.3V/5V PCI bus Interface

Form Factor

Micro-ATX (24.4cm X 24.4 cm)

Mounting

8 mounting holes

(If you need to purchase accessories and request the part numbers, you can search the product web page and find details on our website at http://www.msi.com/index.php)

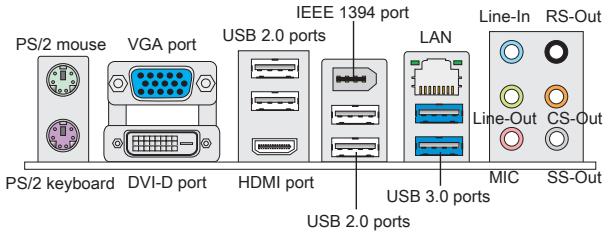

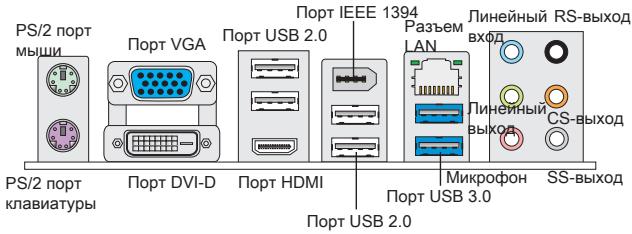

The rear panel provides the following connectors:

HARDWARE SETUP

CPU & Cooler Installation for AM3

When installing the CPU, make sure the CPU has a cooler attached on top to prevent overheating. Meanwhile, do not forget to apply some thermal paste on the CPU before installing the heat sink/cooler fan for better heat dispersion.

The surface of the AM3 CPU.

Remember to apply some thermal paste on it for better heat dispersion.

Gold arrow

Follow the steps below to install the CPU & cooler correctly. Wrong installation will cause damage to your CPU & mainboard.

1. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree angle.
2. Look for the gold arrow of the CPU. The gold arrow should point as shown in the picture. The CPU can only fit in the correct orientation.
3. If the CPU is correctly installed, the pins should be completely embedded into the socket and cannot be seen. Please note that any violation of the correct installation procedures may cause permanent damage to your mainboard.
4. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move while the lever is being closed, always close the lever with your fingers pressing tightly on top of the CPU to make sure the CPU is properly and completely embedded into the socket.
5. Position the cooling set onto the retention mechanism. Hook one end of the clip to the hook first.
6. Then press down the other end of the clip to fasten the cooling set on top of the retention mechanism. Locate the Fix Lever and lift it up.
7. Fasten down the lever.
8. Attach the CPU Fan cable to the CPU fan connector on the mainboard.

IMPORTANT

• Mainboard photos shown in this section are for demonstration of the cooler installation for Socket AM3 CPUs only. The appearance of your mainboard may vary depending on the model you purchase.
• While disconnecting the Safety Hook from the fixed bolt, it is necessary to keep an eye on your fingers, because once the Safety Hook is disconnected from the fixed bolt, the fixed lever will spring back instantly.

Installing Memory Modules

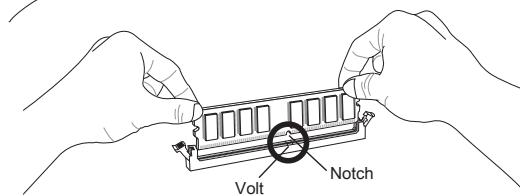

1. The memory module has only one notch on the center and will only fit in the right orientation.
2. Insert the memory module vertically into the DIMM slot. Then push it in until the golden finger on the memory module is deeply inserted in the DIMM slot. You can barely see the golden finger if the memory module is properly inserted in the DIMM slot.
3. Manually check if the memory module has been locked in place by the DIMM slot clips at the sides.

IMPORTANT

• In Dual-Channel mode, make sure that you install memory modules of the same type and density in different channel DIMM slots.
• To enable successful system boot-up, always insert the memory modules into the DIMM1 first.

ATX 24-Pin Power Connector: JPWR1

This connector allows you to connect an ATX 24-pin power supply. To connect the ATX 24-pin power supply, make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned. Then push down the power supply firmly into the connector.

ATX 4-Pin Power Connector: JPWR2

This 4-Pin power connector is used to provide power to the CPU.

IMPORTANT

Make sure that all the connectors are connected to proper ATX power supplies to ensure stable operation of the mainboard.

Floppy Disk Drive Connector: FDD1

This connector supports 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB floppy disk drive.

IDE Connector: IDE1

This connector supports IDE hard disk drives, optical disk drives and other IDE devices.

IMPORTANT

If you install two IDE devices on the same cable, you must configure the drives to cable select mode or separately to master / slave mode by setting jumpers. Refer to IDE device documentation supplied by the vendors for jumper setting instructions.

Serial ATA Connector: SATA1 ~ 8

This connector is a Serial ATA interface port. Each connector can connect to one Serial ATA device.

IMPORTANT

Please do not fold the Serial ATA cable into a 90-degree angle. Otherwise, data loss may occur during transmission.

Fan Power Connectors: CPUFAN, SYSFAN1, SYSFAN2

The fan power connectors support system cooling fan with +12V. When connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V; the black wire is Ground and should be connected to GND. If the mainboard has a System Hardware Monitor chipset onboard, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control.

S/PDIF-Out Connector: JSP1

This connector is used to connect the S/PDIF (Sony & Philips Digital Interconnect Format) interface for digital audio transmission.

CD-In Connector: JCD1

This connector is provided for external audio input.

Front Panel Connectors: JFP1, JFP2

These connectors are for electrical connection to the front panel switches and LEDs. The JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide.

Serial Port Connector: JCOM1

This connector is a 16550A high speed communication port that sends/receives 16 bytes FIFOs. You can attach a serial device.

Front Panel Audio Connector: JAUD1

This connector allows you to connect the front panel audio and is compliant with Intel® Front Panel I/O Connectivity Design Guide.

Front USB Connector: JUSB1, JUSB2, JUSB3

This connector, compliant with Intel® I/O Connectivity Design Guide, is ideal for connecting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3 players, printers, modems and the like.

TPM Module connector: JTPM1

This connector connects to a TPM (Trusted Platform Module) module. Please refer to the TPM security platform manual for more details and usages.

Chassis Intrusion Connector: JCI1

This connector connects to the chassis intrusion switch cable. If the chassis is opened, the chassis intrusion mechanism will be activated. The system will record this status and show a warning message on the screen. To clear the warning, you must enter the BIOS utility and clear the record.

Parallel Port Header: JLPT1

This connector is used to connect an optional parallel port bracket. The parallel port is a standard printer port that supports Enhanced Parallel Port (EPP) and Extended Capabilities Parallel Port (ECP) mode.

IEEE1394 Connector: J1394_1

This connector allows you to connect the IEEE1394 device via an optional IEEE1394 bracket.

Clear CMOS Jumper: JBAT1

There is a CMOS RAM onboard that has a power supply from an external battery to keep the data of system configuration. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, set the jumper to clear data.

Keep Data

Clear Data

IMPORTANT

You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage the mainboard.

Overclock FSB Switch: OC_SW1

You can overclock the FSB to increase the processor frequency by changing the switch. Follow the instructions below to set the FSB.

Default

Increase 10% speed of CPU clock

Increase CPU clock speed by 15%.

Increase CPU clock speed by 20%.

IMPORTANT

• Make sure that you power off the system before setting the switch.
• When overclocking causes system instability or crash during boot, please set the switch to default setting.

APS LED Status Indicator: LED1

The APS (Active Phase Switching) LED indicates the current CPU power phase mode. Follow the instructions below to read.

LED1

ON	The LED will light when CPU is in 3 phase power mode.
OFF	The LED will go off when CPU is in 1 phase power mode.

PCIE Slot

The PCIE slot supports the PCIE interface expansion card.

The PCIE 2.0 x16 slot

The PCIE x1 slot

PCI Slot

The PCI slot supports LAN card, SCSI card, USB card, and other add-on cards that comply with PCI specifications.

IMPORTANT

Make sure that you unplug the power supply first. Meanwhile, read the documentation for the expansion card to configure any necessary hardware or software settings for the expansion card, such as jumpers, switches or BIOS configuration.

PCI Interrupt Request Routing

When adding or removing expansion cards, make sure that the IRQ, acronym of interrupt request line and pronounced I-R-Q, are hardware lines over which devices can send interrupt signals to the microprocessor. The PCI IRQ pins are typically connected to the PCI bus pins as follows:

Order Slot	1	2	3	4
PCI 1	INT A#	INT B#	INT C#	INT D#

BIOS SETUP

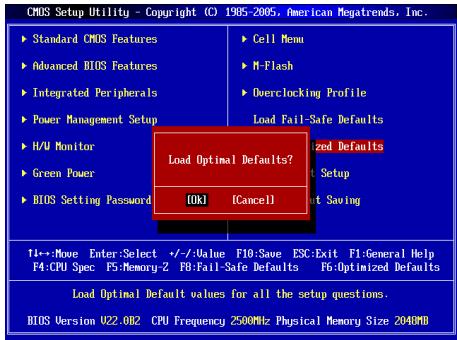

Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press key to enter Setup.

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing , , and keys.

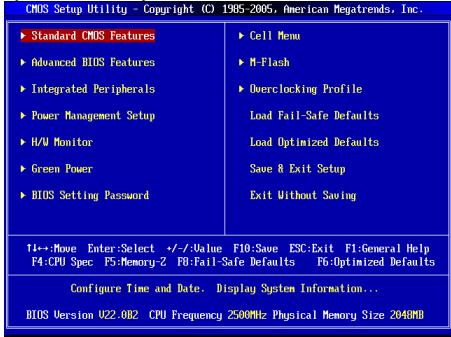

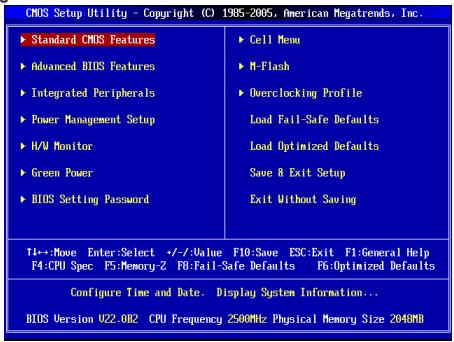

Main Page

Standard CMOS Features

Use this menu for basic system configurations, such as time, date etc.

Advanced BIOS Features

Use this menu to setup the items of special enhanced features.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

H/W Monitor

This entry shows the status of your CPU, fan, and warning for overall system status.

Green Power

Use this menu to specify the power phase.

BIOS Setting Password

Use this menu to set the BIOS setting password.

Cell Menu

Use this menu to specify your settings for frequency/voltage control.

M-Flash

Use this menu to read/flash the BIOS from a storage drive (FAT/FAT32 format only).

Overclocking Profile

Use this menu to save/load your settings to/from CMOS for BIOS.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values that are factory settings for system operations.

Load Optimized Defaults

Use this menu to load factory default settings into the BIOS for stable system performance operations.

Save & Exit Setup

Save changes to CMOS and exit setup.

Exit Without Saving

Abandon all changes and exit setup.

Cell Menu

Current CPU / DRAM / CPU-NB Frequency

These items show the current clocks of CPU, Memory and CPU-NB speed. Read-only.

CPU Specifications

Press to enter the sub-menu. This submenu shows the information of installed CPU.

CPU Technology Support

Press to enter the sub-menu. This sub-menu shows the technologies that the installed CPU supported.

CPU Feature

Press to enter the sub-menu:

AMD Cool'n'Quiet

The Cool'n'Quiet technology can effectively and dynamically lower CPU speed and power consumption.

C1E Support

Enable this item to reduce CPU power consumption while idle. Not all processors support Enhanced Halt State (C1E).

SVM Support

This item allows you to enable/disable the AMD SVM (Secure Virtual Machine) Technology.

AMD Cool'n'Quiet

The Cool'n'Quiet technology can effectively and dynamically lower CPU speed and power consumption.

C1E Support

Enable this item to reduce CPU power consumption while idle. Not all processors support Enhanced Halt State (C1E).

IMPORTANT

To ensure that Cool'n'Quiet function is activated and working properly, it is required to double confirm that:

• Run BIOS Setup, and select Cell Menu. Under Cell Menu, find AMD Cool'n'Quiet, and set this item to "Enabled".
• Enter Windows, and select [Start]->[Settings]->[Control Panel]->[Power Options]. Enter Power Options Properties tab, and select Minimal Power Management under Power schemes.

Adjust CPU FSB Frequency (MHz)

This item allows you to select the CPU Front Side Bus clock frequency (in MHz).

OC Stepping

This item will be enabled after you set the overclocking frequency in the "Adjust CPU FSB Frequency (MHz)". And the following items will appear. This item will help the system to overclock step by step after system booting up.

Start OC Stepping From (MHz)

This item is used to set the initial base clock. The system will boot with the initial base clock, and start to overclock from initial base clock to set base clock that you set in "Adjust CPU FSB Frequency (MHz)" step by step.

OC Step

This item is used to set how many steps for base clock overclocking.

OC Step Count Timer

This item is used to set the buffer time for every step.

Adjust CPU Ratio

This item is used to adjust CPU clock multiplier (ratio). It is available only when the processor supports this function.

Adjusted CPU Frequency (MHz)

It shows the adjusted CPU frequency. Read-only.

Adjust CPU-NB Ratio

This item is used to adjust CPU-NB ratio.

Adjusted CPU-NB Frequency (MHz)

It shows the adjusted CPU-NB frequency. Read-only.

Unlock CPU Core

This item allows you to unlock the additional cores. You can set it to [Enabled] and then set Advanced Clock Calibration to [Auto] in order to activate the processor cores.

Advanced Clock Calibration

This item is for overclocking. Setting it to [Auto] allows you to set the CPU Ratio higher. It is available only when the processor supports this function.

CPU Core Control

This item is used to control the number of CPU cores. When set to [Auto], the CPU will operate under the default number of cores. When set to [Manual], you will be able to enable or disable specific CPU cores.

Core 1/2/3/4

These items are used to enable or disable cores 1, 2, 3, and 4.

OC Genie Lite

Setting this item to [Enabled] allows the system to detect the maximum FSB clock and overclock automatically. If overclocking fails, you can try a lower FSB clock for successful overclocking.

Onboard VGA Core OverClock

This item allows you to enable or disable the onboard VGA overclocking ability.

Adjust Onboard VGA Frequency

This item allows you to adjust the frequency of the onboard VGA core.

Auto OverClock Technology

Setting this item to [Max FSB] allows the system to detect the maximum FSB clock and to overclock automatically. If overclocking fails to run, you can try the lower FSB clock for overclocking successfully.

Memory-Z

Press to enter the sub-menu.

DIMM1~4 Memory SPD Information

Press to enter the sub-menu. This sub-menu displays the information of installed memory.

Advance DRAM Configuration

Press to enter the sub-menu.

DRAM Timing Mode

Select whether DRAM timing is controlled by the SPD (Serial Presence Detect) EEPROM on the DRAM module. Setting to [Auto] enables DRAM timings and the following "Advance DRAM Configuration" sub-menu to be determined by BIOS based on the configurations on the SPD. Selecting [Manual] allows users to configure the DRAM timings and the following related "Advance DRAM Configuration" sub-menu manually.

FSB/DRAM Ratio

This item allows you to select the ratio of FSB/DRAM.

Adjusted DRAM Frequency (MHz)

It shows the adjusted memory frequency. Read-only.

HT Link Control

Press to enter the sub-menu.

HT Incoming/Outgoing Link Width

These items allow you to set the Hyper-Transport Link width. Setting to [Auto], the system will detect the HT link width automatically.

HT Link Speed

This item allows you to set the Hyper-Transport Link speed. Setting to [Auto], the system will detect the HT link speed automatically.

Adjusted HT Link Frequency (MHz)

It shows the adjusted HT Link frequency. Read-only.

Auto Disable DRAM/PCI Frequency

When set to [Enabled], the system will remove (turn off) clocks from empty DRAM/PCI slots to minimize the electromagnetic interference (EMI).

CPU Voltage (V)/ CPU-NB Voltage (V)/ DRAM Voltage (V)

These items are used to adjust the voltage of CPU, Memory and chipset.

Spread Spectrum

When the mainboard's clock generator pulses, the extreme values (spikes) of the pulses create EMI (Electromagnetic Interference). The Spread Spectrum function reduces the EMI generated by modulating the pulses so that the spikes of the pulses are reduced to flatter curves. If you do not have any EMI problem, leave the setting at Disabled for optimal system stability and performance. But if you are plagued by EMI, set to Enabled for EMI reduction. Remember to disable Spread Spectrum if you are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up.

IMPORTANT

• If you do not have any EMI problem, leave the setting at [Disabled] for optimal system stability and performance. But if you are plagued by EMI, select the value of Spread Spectrum for EMI reduction.
• The greater the Spread Spectrum value is, the greater the EMI is reduced, and the system will become less stable. For the most suitable Spread Spectrum value, please consult your local EMI regulation.
• Remember to disable Spread Spectrum if you are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up.

Load Optimized Defaults

You can load the default values provided by the mainboard manufacturer for the stable performance.

HyperTransport

Hyper Transport (HT) 3.0 Function Manual

Supports 1 FDD of 360KB, 720KB, 1.2MB, 1.44MB, and 2.88MB

K

-

CMOS Setup Utility - Copyright (C) 1985-2005, American Megatrends, Inc.
Standard CMOS Features	Cell Menu
Advanced BIOS Features	M-Flash
Integrated Peripherals	Overclocking Profile
Power Management Setup	Load Fail-Safe Defaults
H/O Monitor	Load Optimized Defaults
Green Power	Save & Exit Setup
BIOS Setting Password	Exit Without Saving
T4→Move Enter:Select +/-/Value F10:Save ESC:Exit FI:General Help F4:CPU Spec F5:Memory-2 F6:Fail-Safe Defaults F7:Optimized Defaults
Configure Time and Date. Display System Information...
BIOS Version U22.0B2 CPU Frequency 2500MHz Physical Memory Size 2040MB

Standard CMOS Features

iEe 1

Advanced BIOS Features

iEe 1

Integrated Peripherals

i

Adjust CPU Ratio (CPU ratio to 0)

Adjusted CPU Frequency (main CPU frequency) (MHz)

i

Adjust CPU-NB Ratio (CPU-NB ratio to 0)

i

Adjusted CPU-NB Frequency (regular CPU-NB frequency) (MHz)

Unlock CPU Core (CPU Core)

CPU Core Control (CPU Core)

Adjusted HT Link Frequency (MHz)

Auto Disable DRAM/PCI Frequency (DRAM/PCI)

Press DEL to enter SETUP

Advanced BIOS Features

Integrated Peripherals

BIOS Setting Password

Overclocking Profile

Current CPU / DRAM / CPU-NB Frequency

CPU Technology Support

Adjust CPU FSB Frequency (MHz)

Start OC Stepping From (MHz)

Adjusted CPU Frequency (MHz)

Adjusted CPU-NB Frequency (MHz)

Advanced Clock Calibration

Adjust Onboard VGA Frequency

Adjusted DRAM Frequency (MHz)

HT Incoming/Outgoing Link Width

Adjusted HT Link Frequency (MHz)

Press DEL to enter SETUP

Advanced BIOS Features

Integrated Peripherals

BIOS Setting Password

Overclocking Profile

Current CPU / DRAM / CPU-NB Frequency

CPU Technology Support

Adjust CPU FSB Frequency (MHz)

Start OC Stepping From (MHz)

Adjusted CPU Frequency (MHz)

Adjusted CPU-NB Frequency (MHz)

Advanced Clock Calibration

Adjust Onboard VGA Frequency

Adjusted DRAM Frequency (MHz)

HT Incoming/Outgoing Link Width

Adjusted HT Link Frequency (MHz)

AMD® Phenom II/ Phenom/ Athlon II/ Athlon/ Sempron processors in AM3 socket.

For CPU information, please visit

http://www.msi.com/index.php?func=cpuform2)

HyperTransport

• Support for Hyper Transport (HT) 3.0 technology

Chipset

North Bridge: AMD 880G South Bridge: AMD SB710

Memory

DDR3 800/1066/1333/1600*(OC) SDRAM (16GB Max) (For dual-channel mode, please refer to the supported memory modules list at: http://www.msi.com/index.php?func=testreport)

LAN

• Supports LAN 10/100/1000 Fast Ethernet based on the Realtek® RTL8111E chipset

Audio

Integrated Realtek ALC892 8-channel audio with flexible jack assignment, compliant with the Azalia 1.0 specification

IDE

1 IDE port on the AMD® SB710 chipset, supporting Ultra DMA 33/66/100, PIO and Bus Master modes

SATA

6 SATA 3Gb/s ports on the AMD® SB710 chipset (SATA1~6), 2 SATA 6Gb/s ports on the Marvell® SE9128 chipset (SATA7~8)

Floppy

1 floppy port, supporting 360KB, 720KB, 1.2MB, 1.44MB, and 2.88MB floppy drives

CONNECTORS

Rear panel

- 1 PS/2 mouse/keyboard port - 1 VGA port - 1 DVI-D port - 1 HDMI port - 1 IEEE 1394 port - 4 USB 2.0 ports - 2 USB 3.0 ports - 1 LAN connector - 3 audio jacks

Connectors on the motherboard

• 1 parallel port connector
• 3 USB 2.0 connectors - 1 IEEE 1394 connector
• 1 serial port connector
• 1 SPDIF-Out connector
• 1 connector for front panel audio
• 1 chassis intrusion switch connector
• 1 CD-In connector
• 1 TPM connector
• 1 switch

Slots

1 PCIE x16 slot, 2 PCIE x1 slots, 1 PCI slot, supporting PCI bus with 3.3V/5V power

Form Factor

Micro-ATX (24.4cm X 24.4 cm)

Mounting

Mounting holes

(For more information on installing optional accessories and locating the model number, please visit http://www.msi.com/index.php)

Please prepare the following items:

INSTALLATION OF COMPONENTS

Installing the processor and its cooler

To prevent overheating during operation, it is necessary to install the processor cooler. At the same time, to improve heat dissipation, make sure that the thermal paste is applied on the processor before installing the cooler.

Processor and cooler installation steps.

Do not forget to apply thermal paste for more effective heat dissipation.

Gold arrow

Follow the instructions for correct installation. Incorrect installation may damage the processor and the motherboard.

1. Lift the lever to a vertical position, away from the socket.
2. Pay attention to the gold arrow on the CPU. It should be positioned as shown in the figure. The CPU can only be inserted with the correct orientation.
3. When installing the CPU, its contacts may be inserted into the socket and will not be visible. Remember that improper use of the CPU during installation can cause serious damage to the system board. 4. Carefully press the CPU into the socket. Since the CPU may shift when lowering the socket lever, gently press the CPU with your fingers in the center so that it is correctly and fully seated in the socket.
4. Place the heatsink on the retention module. Align the screws with its holes.
5. Then press on the other side to install the heatsink on the retention module. Start the locking lever and press it down.

1. Secure the heatsink by turning the lever further.
2. Connect the CPU fan cable to the corresponding connector on the system board.

WARNING

Make sure all power connectors are properly connected.

FDD connector: FDD1

This connector supports floppy disk drives with capacities of 360KB, 720KB, 1.2MB, 1.44MB, and 2.88MB.

IDE connector: IDE1

This connector supports up to two IDE hard drives, optical drives, and other IDE devices.

WARNING

When connecting two devices to one cable, you must set the device to master or slave mode using the jumper. For details, refer to the documentation of the device manufacturer.

Serial ATA connector: SATA1 ~ 8

The Serial ATA connector is a high-speed Serial ATA interface. This connector allows you to connect only one Serial ATA device.

Connect the cable to the Serial ATA connector. Otherwise, data loss may occur during transmission.

Fan connectors: CPUFAN, SYSFAN1, SYSFAN2

The fan connectors support fans with a +12 V power supply. It is necessary to remember that the red wire is connected to the +12 V line, and the black wire to the ground (GND). If the motherboard contains a hardware monitoring chip, it is necessary to use special fans with a speed sensor to implement the fan control function.

S/PDIF-Out connector: JSP1

This connector is used for connecting the S/PDIF (Sony & Philips Digital Interconnect Format) interface for transmitting audio in digital format.

CD-In connector: JCD1

This connector is designed for connecting an additional audio cable.

Front panel connectors: JFP1, JFP2

These connectors provide connection of buttons and indicators of the front panel. JFP1 corresponds to the Intel® Front Panel I/O Connectivity Design Guide.

Serial port connector: JCOM1

Main Menu

Standard CMOS Features

This menu allows you to set the basic parameters of the system configuration (date, time, etc.).

Integrated Peripherals

This menu is used to configure the parameters of the built-in peripheral devices.

Power Management Setup (Power management settings)

This menu allows you to set the power management parameters of the system.

H/W Monitor (Hardware monitor)

This item displays the status of the hardware components.

Green Power

This menu is used to set the power saving mode.

BIOS Setting Password (Password for accessing BIOS settings)

This menu is used to set a password.

Cell Menu (Menu for overclocking)

This menu allows you to control the clock frequencies and voltages.

M-Flash

Used to update/flash the BIOS from an external storage device (only FAT/FAT32).

Overclocking Profile

Used to save/load overclocking profiles from CMOS BIOS.

Load Fail-Safe Defaults

This menu is used to load the fail-safe defaults set by the system manufacturer for stable system operation.

Load Optimized Defaults (Set Optimized Defaults)

This menu is used to load the default settings for optimal system performance.

Save & Exit Setup (Exit with Saving Settings)

Save changes to CMOS and exit the setup program.

Exit Without Saving (Exit without Saving)

Cancel all changes and exit the setup program.

Cell Menu

Current CPU / DRAM / CPU-NB Frequency

These items show the current CPU frequency, memory speed, and CPU-NB frequency. For reference only.

CPU Specifications

Press Enter to enter the submenu. The submenu shows information about the installed CPU.

CPU Technology Support

Press Enter to enter the submenu. The submenu shows the technologies supported by the installed CPU.

CPU Feature

Haxmnte ДЯ BXOa B noDMenHIO:

AMD Cool'n'Quiet

TexHONOR NoCuiKieN QoB3OAneT 3aEKeKTHBNO dHAMMueCKN M3MEHnTb 卷CTOy CPU nHepronotP6bnene HcIeTMebl.

C1E Support

BKN0UHTE 3OT NTK DnA CHENKHEI 3HEPONOTpe6HENIA CPU, KORA OH p6a0TaET. He B cnpOeCspbN oNDepkXbaIoH ENsT Hal t state (C1E).

SVM Support

3TOT nyHKT no3B0JAEET BKNIOATb/BykIOaHTb TExHOONIO AMD SVM (Secure Virtual Machine).

AMD Cool'n'Quiet

TexHONORa Cool'Quiet no3BOJare 3ΦΦeTKBHO DnHAMMueckn 13MeHNrTaCTO CPU n 3heponrTOpe6NEHeN CNTeMb.

C1E Support

BknOHTe 3OTy NHTI kHnENHEA HneRponTe6JIeHNa CPU, KOrda OH He paOtaETa. He BcNpoUecCoppbNoDaePKBaToH ENoted Half state (C1E).

BHIMAHHE

Ycbb y6dbntb a TOM, YTO texhONrHg Coof'n'Quiet BkIOHena n pa5Otaet npabInbHo, Heo6xoHMo:

3aHn B nporpammy BIOS Setup, n bivbpatr Cell Menu. Hauhnte AMD Cool'nQuiet noct Cell Menu, u yctanohrote ero a Enabled"Enabled". * B Windows vybeprte [Start]->[Settings]->[Control Panel]->[Power Options]. Bovdne B Power Options Properties, vybeprte Minimal Power Management noq Power schemes.

Adjust CPU FSB Frequency (MHz)

This item allows you to adjust the FSB frequency of the CPU (in MHz).

OC Stepping

This item is enabled after you have set the frequency in "Adjust CPU FSB Frequency (MHz)". Once this item is enabled, it allows you to overclock step by step after the system boots.

Start OC Stepping From (MHz)

This item allows you to set the initial value of the base clock. The system will boot with the initial base clock value, and then start overclocking step by step from the initial value to the value set in "Adjust CPU FSB Frequency (MHz)".

OC Step

This item is used to set the overclocking step of the base clock.

OC Step Count Timer

This item is used to set the delay time for each step.

Adjust CPU Ratio

This item is used to adjust the CPU multiplier. It is only available when the CPU supports this function.

Adjusted CPU Frequency (MHz)

This item displays the current CPU frequency. It is for display only.

Adjust CPU-NB Ratio

Adjusted CPU-NB Frequency (MHz)

This item shows the current CPU-NB frequency. For reference only.

Unlock CPU Core

This item allows you to unlock additional cores. You can set it to [Enabled] and set Advanced Clock Calibration to [Auto] to have the possibility to activate processor cores.

Advanced Clock Calibration

This item is used for overclocking. Setting it to [Auto] allows you to set the CPU frequency higher. It is only available when the processor supports this function.

CPU Core Control

This item is used to control the number of processor cores. When set to [Auto], the CPU operates with the default number of cores. When set to [Manual], you can enable/disable specific CPU cores.

Core 1/2/3/4

These items are used to enable/disable cores 1/2/3/4.

OC Genie Lite

Setting this item to [Enabled] allows the system to determine the maximum FSB frequency and overclock automatically. If overclocking fails, you can reduce the FSB frequency for successful overclocking.

Onboard VGA Core OverClock

This item allows you to enable/disable VGA overclocking on the board.

Adjust Onboard VGA Frequency

This item allows you to adjust the frequency of the onboard VGA.

Auto OverClock Technology

Setting [Max FSB] allows the BIOS to automatically determine the maximum FSB frequency and overclock the system. If overclocking fails, you can try lowering the FSB frequency for a successful overclock.

Memory-Z

Press <Enter> to enter the submenu.

DIMM1~4 Memory SPD Information

Press <Enter> to enter the submenu. The submenu shows the information about the installed memory.

Advance DRAM Configuration

Press <Enter> to enter the submenu.

DRAM Timing Mode

This determines whether the DRAM timing parameters are controlled by the data from the SPD (Serial Presence Detect) EEPROM on the DRAM module. When [Auto] is selected, the DRAM timing parameters, including the submenus listed below, are set by the BIOS according to the data from the SPD. When [Manual] is selected, this item allows you to manually adjust the DRAM timing parameters available in this

submenu.

FSB/DRAM Ratio

This item allows you to adjust the ratio between the FSB and memory frequencies.

Adjusted DRAM Frequency (MHz)

This item displays the memory frequency value. For reference only.

HT Link Control

Press to enter the submenu.

HT Incoming/Outgoing Link Width

This item determines the width of the incoming/outgoing HT link. It is recommended to set it to [Auto] so that the system automatically determines the link width.

HT Link Speed

This item allows you to set the transmission speed of the HyperTransport link. When set to [Auto], the system automatically determines the speed of the HT link.

Adjusted HT Link Frequency (MHz)

This item displays the current frequency of the HT link. For reference only.

Auto Disable DRAM/PCI Frequency

When set to [Enabled], the system will disable unused DRAM/PCI slots, which reduces electromagnetic interference (EMI).

CPU Voltage (V)/ CPU-NB Voltage (V)/ DRAM Voltage (V)

This item allows you to adjust the voltage of the CPU, memory, and chipset.

Spread Spectrum

If the system clock generator produces pulses, its operation will cause electromagnetic interference - EMI (Electromagnetic Interference). The Spread Spectrum function reduces these interferences by generating spread pulses. If you do not have interference problems, leave the value [Disabled] for better stability and performance. However, if you encounter electromagnetic interference, enable the use of this function by setting [Enable]. Do not forget to disable the Spread Spectrum function if you are overclocking the system bus. This is necessary because even a small jitter of the clock generator signal can lead to a failure of the overclocked processor.

WARNING

• If you do not have interference problems, leave the value [Disabled] for better stability and performance. However, if you encounter electromagnetic interference, select Spread Spectrum to reduce it. The higher the Spread Spectrum value, the lower the level of electromagnetic interference, but the system becomes less stable. For the best choice of Spread Spectrum value, refer to the settings

level of electromagnetic interference set by legislation.

* Do not forget to disable the Spread Spectrum function if you are overclocking the system bus. This is necessary because even a small jitter of the clock generator signal can lead to a failure of the overclocked processor.

Setting Default Values

The motherboard manufacturer has set the default values for the system board settings.

Introduction

Press DEL to enter SETUP

CPU Specifications

Start OC Stepping From (MHz)

Adjusted HT Link Frequency (MHz)

This item displays the adjusted HT Link frequency. Read-only.

Press DEL to enter SETUP

(Press DEL to enter SETUP)

CPU Specifications

CPU Feature

Press the key to enter the submenu.

AMD Cool'n'Quiet

Adjust CPU FSB Frequency (MHz)

Start OC Stepping From (MHz)

Adjusted CPU Frequency (MHz)

This item displays the adjusted CPU frequency. Read-only.

Unlock CPU Core

Press DEL to enter SETUP

(Press the key to enter the setup screen)

Integrated Peripherals

CPU Technology Support

CPU Feature

C1E Support (C1E-扑一卜)

C1E Support (C1E*s#-卜)
