Frequently Asked Questions - G52-76231XK MSI

How to install the processor on the MSI G52-76231XK motherboard?

To install the CPU, lift the socket lever to 90°, align the gold arrow on the processor with the mark on the socket, insert it without forcing, then close the lever. Apply thermal paste before attaching the fan.

What types of RAM are compatible?

The motherboard supports DDR3 at 800/1066/1333/1600 MHz (overclocking) up to 16 GB maximum, in dual-channel configuration. Make sure to use identical modules to enable dual channel.

How to access the BIOS?

Turn on the PC and press the DEL key when the message 'Press DEL to enter SETUP' appears on the screen. If the message disappears, restart and try again.

How to overclock the processor with the FSB switch?

Turn off the system, then set the OC_SW1 switch on the motherboard to increase the FSB frequency by 10%, 15% or 20%. Be careful not to exceed the limits of your processor.

What to do if the motherboard does not start after overclocking?

Reset the BIOS by moving the JBAT1 jumper to pins 2-3 for a few seconds (PC off), then put it back to position 1-2. Reload default settings.

How to configure RAID?

The AMD SB850 southbridge supports RAID 0, 1, 5 and 10 modes. Connect the SATA drives, enter the BIOS and set the SATA mode to RAID. Save, then access the RAID utility during POST.

Is the motherboard compatible with AMD Ryzen processors?

No, the MSI G52-76231XK motherboard uses the AM3 socket and only supports AMD Phenom II, Athlon II, Sempron, etc. Ryzen requires an AM4 socket.

How to clean the motherboard?

Use compressed air to remove dust. For stains, lightly dampen a lint-free cloth with 90% isopropyl alcohol and wipe gently. Never use water.

Where to find spare parts for this motherboard?

You can order parts such as the CMOS battery, I/O shield or cables by contacting MSI support or through authorized resellers. The manual indicates part numbers.

How to enable Cool'n'Quiet technology?

In the BIOS, go to Cell Menu → CPU Feature and enable AMD Cool'n'Quiet. Then, in Windows, set the power plan to 'Minimum power management'.

USER MANUAL G52-76231XK MSI

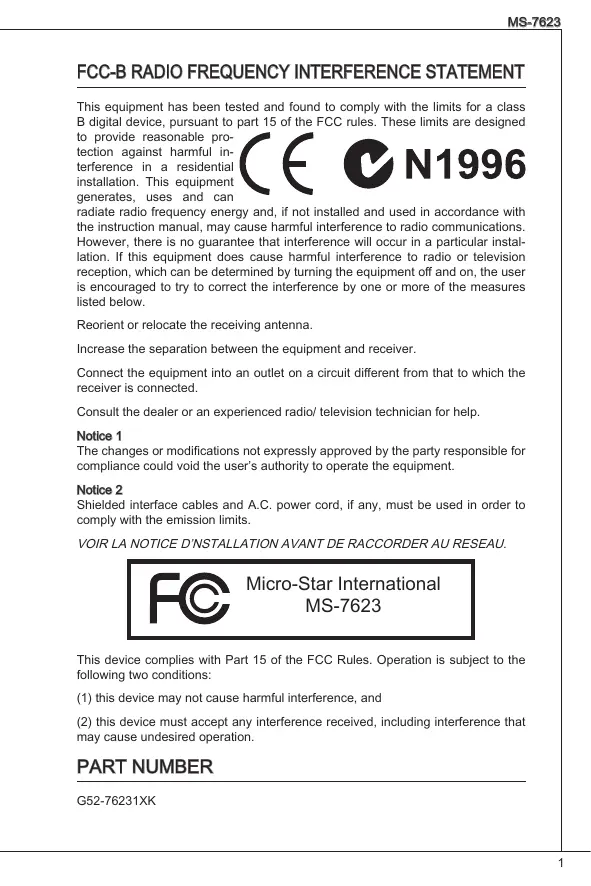

FCC-B RADIO FREQUENCY INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can

N1996

radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below.

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/ television technician for help.

Notice 1

The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Notice 2

Shielded interface cables and A.C. power cord, if any, must be used in order to comply with the emission limits.

VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER AU RESEAU.

Micro-Star International MS-7623

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

PART NUMBER

G52-76231XK

COPYRIGHT NOTICE

The material in this document is the intellectual property of MICRO-STAR INTERNATIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice.

TRADEMARKS

All trademarks are the properties of their respective owners.

MSI is registered trademark of Micro-Star Int'l Co., Ltd.
NVIDIA® is registered trademark of NVIDIA Corporation.
ATI® is registered trademark of ATI Technologies, Inc.
AMD is registered trademarks of AMD Corporation.
Intel is registered trademarks of Intel Corporation.
Windows® is registered trademarks of Microsoft Corporation.
AMI is registered trademark of American Megatrends, Inc.
Award® is a registered trademark of Phoenix Technologies Ltd.
Sound Blaster® is registered trademark of Creative Technology Ltd.
Realtek® is registered trademark of Realtek Semiconductor Corporation.
■ JMicron® is registered trademark of JMicron Technology Corporation.
Netware is a registered trademark of Novell, Inc.

REVISION HISTORY

Revision	Revision History	Date
V5.0	First release	October 2010

SAFETY INSTRUCTIONS

Always read the safety instructions carefully.
- Keep this User Manual for future reference.
- Keep this equipment away from humidity.
Lay this equipment on a reliable flat surface before setting it up.
- The openings on the enclosure are for air convection hence protects the equipment from overheating. Do not cover the openings.
- Make sure the voltage of the power source is at 110/220V before connecting.
- Place the power cord such a way that people can not step on it. Do not place anything over the power cord.
Always Unplug the Power Cord before inserting any add-on card or module.
All cautions and warnings on the equipment should be noted.
- Never pour any liquid into the opening that can cause damage or cause electrical shock.
If any of the following situations arises, get the equipment checked by service personnel:

The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well or you can not get it work according to User Manual.
The equipment has been dropped and damaged.
The equipment has obvious sign of breakage.

DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED, STORAGE TEMPERATURE ABOVE 60^ (140^) , IT MAY DAMAGE THE EQUIPMENT.

CAUTION

Danger of explosion if battery is incorrectly replaced.

警告使用者

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

ENGLISH

To protect the global environment and as an environmentalist, MSI must remind you that...

Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of "electrical and electronic equipment"

cannot be discarded as municipal wastes anymore, and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life. MSI will comply with the product take back requirements at the end of life of MSI-branded products that are sold into the EU. You can return these products to local collection points.

DEUTSCH

Thank you for choosing the 880GMA-E55 series (MS-7623 v5.x) Micro-ATX mainboard. The 880GMA-E55 series is design based on AMD® 880G & SB850 chipset for optimal system efficiency. Designed to fit the advanced AMD® AM3 processor, the 880GMA-E55 series deliver a high performance and professional desktop platform solution.

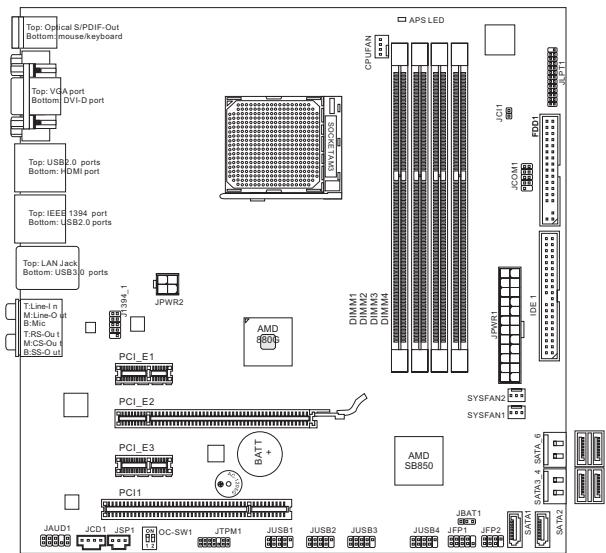

Layout

SPECIFICATIONS

Processor Support

• AMD® PhenomII/ Phenom/ Althon II/ Althon/ Sempron processors in AM3 package.

(For the latest information about CPU, please visit

http://www.msi.com/index.php?func=cpuform2)

HyperTransport

Supports Hyper Transport(HT) 3.0 Technology

Chipset

North Bridge: AMD® 880G chipset
South Bridge: AMD® SB850 chipset

Memory Support

DDR3 800/1066/1333/1600*(OC)SDRAM(16GB Max)
Supports Dual-Channel mode (For more information on compatible components, please visit http://www.msi.com/index.php?func testreport)

LAN

Supports LAN 10/100/1000 Fast Ethernet by Realtek® RTL8111E

IEEE 1394

2 IEEE 1394 ports by VIA® VT6315N (pinheader x1, rear panel x1)

Audio

Chip integrated by Realtek ALC892
Flexible 8-channel audio with jack sensing
Compliant with Azalia 1.0 Spec

IDE

1 IDE port by JMicron 368
Supports Ultra DMA 33/66/100/133, PIO & Bus Master operation mode

SATA

6 SATA 6Gb/s ports by AMD® SB850

RAID

SATA1-6 support RAID 0/1/5/10 by AMD® SB850

Floppy

1 floppy port
Supports 1 FDD with 360KB, 720KB, 1.2MB, 1.44MB and 2.88MB

Connectors

Back panel

• 1 Optical S/PDIF-Out
• 1 PS/2 mouse/keyboard port
• 1 VGA port
• 1 DVI-D port
• 1 HDMI port
• 1 IEEE 1394 port
• 4 USB 2.0 Ports

• 2 USB 3.0 ports

• 1 LAN jack

• 6 flexible audio jacks

On-Board Connectors

• 1 Parallel connector
• 4 USB 2.0 connectors
• 1 IEEE 1394 connector
• 1 Serial port connector
• 1 SPDIF-Out connector
• 1 Front Panel Audio connector
• 1 Chassis Intrusion connector
• 1 CD-In connector
• 1 TPM connector
• 1 OC switch

Slots

1 PCIE 2.0 x16 slot
2 PCIE 2.0 x1 slots
1 PCI slot, support 3.3V/5V PCI bus Interface

Form Factor

Micro-ATX (24.4cm X 24.4 cm)

Mounting

8 mounting holes

(If you need to purchase accessories and request the part numbers, you could search the product web page and find details on our web address below http://www.msi.com/index.php)

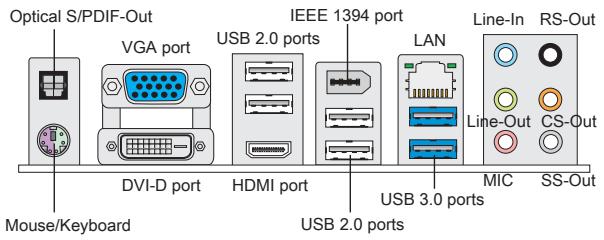

The rear panel provides the following connectors:

HARDWARE SETUP

CPU & Cooler Installation for AM3

When you are installing the CPU, make sure the CPU has a cooler attached on the top to prevent overheating. Meanwhile, do not forget to apply some thermal paste on CPU before installing the heat sink/cooler fan for better heat dispersion.

The surface of AM3 CPU.

Remember to apply some thermal paste on it for better heat dispersion.

Follow the steps below to install the CPU & cooler correctly. Wrong installation will cause the damage of your CPU & mainboard.

1. Pull the lever sideways away from the socket. Make sure to raise the lever up to a 90-degree angle.
2. Look for the gold arrow of the CPU. The gold arrow should point as shown in the picture. The CPU can only fit in the correct orientation.
3. If the CPU is correctly installed, the pins should be completely embedded into the socket and can not be seen. Please note that any violation of the correct installation procedures may cause permanent damages to your mainboard.
4. Press the CPU down firmly into the socket and close the lever. As the CPU is likely to move while the lever is being closed, always close the lever with your fingers pressing tightly on top of the CPU to make sure the CPU is properly and completely embedded into the socket.
5. Position the cooling set onto the retention mechanism. Hook one end of the clip to hook first.
6. Then press down the other end of the clip to fasten the cooling set on the top of the retention mechanism. Locate the Fix Lever and lift up it.
7. Fasten down the lever.
8. Attach the CPU Fan cable to the CPU fan connector on the mainboard.

IMPORTANT

• Mainboard photos shown in this section are for demonstration of the cooler installation for Socket AM3 CPUs only. The appearance of your mainboard may vary depending on the model you purchase.
• While disconnecting the Safety Hook from the fixed bolt, it is necessary to keep an eye on your fingers, because once the Safety Hook is disconnected from the fixed bolt, the fixed lever will spring back instantly.

Installing Memory Modules

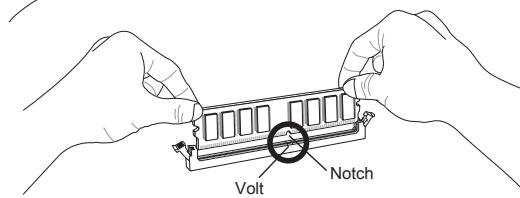

1. The memory module has only one notch on the center and will only fit in the right orientation.
2. Insert the memory module vertically into the DIMM slot. Then push it in until the golden finger on the memory module is deeply inserted in the DIMM slot. You can barely see the golden finger if the memory module is properly inserted in the DIMM slot.
3. Manually check if the memory module has been locked in place by the DIMM slot clips at the sides.

IMPORTANT

• In Dual-Channel mode, make sure that you install memory modules of the same type and density in different channel DIMM slots.
• To ensure a successful system boot-up, always insert the memory modules into the DIMM1 first.

ATX 24-Pin Power Connector: JPWR1

This connector allows you to connect an ATX 24-pin power supply. To connect the ATX 24-pin power supply, make sure the plug of the power supply is inserted in the proper orientation and the pins are aligned. Then push down the power supply firmly into the connector.

ATX 4-Pin Power Connector: JPWR2

This 4-Pin power connector is used to provide power to the CPU.

IMPORTANT

Make sure that all the connectors are connected to proper ATX power supplies to ensure stable operation of the mainboard.

Floppy Disk Drive Connector: FDD1

This connector supports 360KB, 720KB, 1.2MB, 1.44MB or 2.88MB floppy disk drive.

IDE Connector: IDE1

This connector supports IDE hard disk drives, optical disk drives and other IDE devices.

IMPORTANT

If you install two IDE devices on the same cable, you must configure the drives to cable select mode or separately to master / slave mode by setting jumpers. Refer to IDE device documentation supplied by the vendors for jumper setting instructions.

Serial ATA Connector: SATA1 ~ 6

This connector is a Serial ATA interface port. Each connector can connect to one Serial ATA device.

IMPORTANT

Please do not fold the Serial ATA cable into a 90-degree angle. Otherwise, data loss may occur during transmission.

Fan Power Connectors: CPUFAN, SYSFAN1, SYSFAN2

The fan power connectors support system cooling fan with +12V . When connecting the wire to the connectors, always note that the red wire is the positive and should be connected to the +12V ; the black wire is Ground and should be connected to GND. If the mainboard has a System Hardware Monitor chipset onboard, you must use a specially designed fan with speed sensor to take advantage of the CPU fan control.

CPUFAN

SYSFAN1

SYSFAN2

S/PDIF-Out Connector: JSP1

This connector is used to connect S/PDIF (Sony & Philips Digital Interconnect Format) interface for digital audio transmission.

CD-In Connector: JCD1

This connector is provided for external audio input.

Front Panel Connectors: JFP1, JFP2

These connectors are for electrical connection to the front panel switches and LEDs. The JFP1 is compliant with Intel® Front Panel I/O Connectivity Design Guide.

Serial Port Connector: JCOM1

This connector is a 16550A high speed communication port that sends/receives 16 bytes FIFOs. You can attach a serial device.

Front Panel Audio Connector: JAUD1

This connector allows you to connect the front panel audio and is compliant with Intel® Front Panel I/O Connectivity Design Guide.

Front USB Connector: JUSB1, JUSB2, JUSB3, JUSB4

This connector, compliant with Intel® I/O Connectivity Design Guide, is ideal for connecting high-speed USB interface peripherals such as USB HDD, digital cameras, MP3 players, printers, modems and the like.

TPM Module connector: JTPM1

This connector connects to a TPM (Trusted Platform Module) module. Please refer to the TPM security platform manual for more details and usages.

Chassis Intrusion Connector: JCI1

This connector connects to the chassis intrusion switch cable. If the chassis is opened, the chassis intrusion mechanism will be activated. The system will record this status and show a warning message on the screen. To clear the warning, you must enter the BIOS utility and clear the record.

Parallel Port Header: JLPT1

This connector is used to connect an optional parallel port bracket. The parallel port is a standard printer port that supports Enhanced Parallel Port (EPP) and Extended Capabilities Parallel Port (ECP) mode.

IEEE1394 Connector: J1394_1

This connector allows you to connect the IEEE1394 device via an optional IEEE1394 bracket.

Clear CMOS Jumper: JBAT1

There is a CMOS RAM on board with an external battery power supply to preserve the system configuration data. With the CMOS RAM, the system can automatically boot OS every time it is turned on. If you want to clear the system configuration, use the button to clear data. Press the button to clear the data.

Keep Data

Clear Data

IMPORTANT

You can clear CMOS by shorting 2-3 pin while the system is off. Then return to 1-2 pin position. Avoid clearing the CMOS while the system is on; it will damage the mainboard.

Overclock FSB Switch: OC_SW1

You can overclock the FSB to increase the processor frequency by changing the switch. Follow the instructions below to set the FSB.

Default

Increase 10% speed of CPU clock

Increase 15% speed of CPU clock

Increase 20% speed of CPU clock

IMPORTANT

• Make sure that you power off the system before setting the switch.
• When overclocking cause system instability or crash during boot, please set the switch to default setting.

APS LED Status Indicator:LED1

The APS (Active Phase Switching) LED indicates the current CPU power phase mode. Follow the instructions below to read.

LED1

ON	The LED will light when CPU is in 3 phase power mode.
OFF	The LED will go off when CPU is in 1 phase power mode.

PCIE Slot

The PCIE slot supports the PCIE interface expansion card.

The PCIE 2.0 x16 slot

The PCIE 2.0 x1 slot

PCI Slot

The PCI slot supports LAN card, SCSI card, USB card, and other add-on cards that comply with PCI specifications.

IMPORTANT

Make sure that you unplug the power supply first. Meanwhile, read the documentation for the expansion card to configure any necessary hardware or software settings for the expansion card, such as jumpers, switches or BIOS configuration.

PCI Interrupt Request Routing

When adding or removing expansion cards, make the IRQ, acronym of interrupt request line and pronounced I-R-Q, are hardware lines over which devices can send interrupt signals to the microprocessor. The PCI IRQ pins are typically connected to the PCI bus pins as follows:

Order Slot	1	2	3	4
PCI 1	INT E#	INT F#	INT G#	INT H#

BIOS SETUP

Power on the computer and the system will start POST (Power On Self Test) process. When the message below appears on the screen, press key to enter Setup.

Press DEL to enter SETUP

If the message disappears before you respond and you still wish to enter Setup, restart the system by turning it OFF and On or pressing the RESET button. You may also restart the system by simultaneously pressing , , and keys.

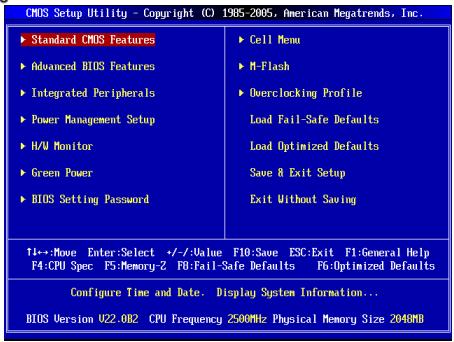

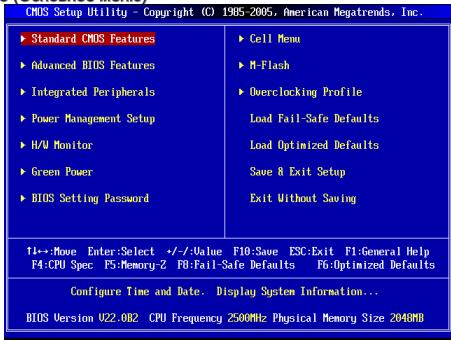

Main Page

Standard CMOS Features

Use this menu for basic system configurations, such as time, date etc.

Advanced BIOS Features

Use this menu to setup the items of special enhanced features.

Integrated Peripherals

Use this menu to specify your settings for integrated peripherals.

Power Management Setup

Use this menu to specify your settings for power management.

H/W Monitor

This entry shows the status of your CPU, fan, warning for overall system status.

Green Power

Use this menu to specify the power phase.

BIOS Setting Password

Use this menu to set BIOS setting Password.

Cell Menu

Use this menu to specify your settings for frequency/voltage control.

M-Flash

Use this menu to read/ flash the BIOS from storage drive (FAT/ FAT32 format only).

Overclocking Profile

Use this menu to save/ load your settings to/ from CMOS for BIOS.

Load Fail-Safe Defaults

Use this menu to load the BIOS default values that are factory settings for system operations.

Load Optimized Defaults

Use this menu to load factory default settings into the BIOS for stable system performance operations.

Save & Exit Setup

Save changes to CMOS and exit setup.

Exit Without Saving

Abandon all changes and exit setup.

Cell Menu

Current CPU / DRAM / CPU-NB Frequency

These items show the current clocks of CPU, Memory and CPU-NB speed. Read-only.

CPU Specifications

Press to enter the sub-menu. This submenu shows the information of installed CPU.

CPU Technology Support

Press to enter the sub-menu. This sub-menu shows the technologies that the installed CPU supported.

CPU Feature

Press to enter the sub-menu:

AMD Cool'n'Quiet

The Cool'n'Quiet technology can effectively and dynamically lower CPU speed and power consumption.

C1E Support

To enable this item to red the CPU power consumption while idle. Not all poressors support Enhanced Halt tate (C1E).

SVM Support

This item allows you to enable/disable the AMD SVM (Secure Virtual Machine) Technology.

AMD Cool'n'Quiet

The Cool'n'Quiet technology can effectively and dynamically lower CPU speed and power consumption.

C1E Support

To enable this item to read the CPU power consumption while idle. Not all portcessors support Enhanced Halt tate (C1E).

IMPORTANT

To ensure that Cool'n'Quiet function is activated and will be working properly, it is required to double confirm that:

• Run BIOS Setup, and select Cell Menu. Under Cell Menu, find AMD Cool'n'Quiet, and set this item to "Enabled".
• Enter Windows, and select [Start]->[Settings]->[Control Panel]->[Power Options]. Enter Power Options Properties tag, and select Minimal Power Management under Power schemes.

Adjust CPU FSB Frequency (MHz)

This item allows you to select the CPU Front Side Bus clock frequency (in MHz).

OC Stepping

This item will be enabled after you set the overclocking frequency in the "Adjust CPU FSB Frequency (MHz)". And the following items will appear. This items will help the system to overclock step by step after system booting up.

Start OC Stepping From (MHz)

This item is used to set the initial base clock. The system will boot with the initial base clock, and start to overclock from initial base clock to set base clock that you set in "Adjust CPU FSB Frequency (MHz)" step by step.

OC Step

This item is used to set how many steps for base colck overclocking.

OC Step Count Timer

This item is used to set the buffer time for every step.

Adjust CPU Ratio

This item is used to adjust CPU clock multiplier (ratio). It is available only when the processor supports this function.

Adjusted CPU Frequency (MHz)

It shows the adjusted CPU frequency. Read-only.

Adjust CPU-NB Ratio

This item is used to adjust CPU-NB ratio.

Adjusted CPU-NB Frequency (MHz)

It shows the adjusted CPU-NB frequency. Read-only.

Unlock CPU Core

This item allows you to unlock the additional cores, you could set it [Enabled] and then set Advanced Clock Calibration [Auto] in order to be able to activate the processor cores.

Advanced Clock Calibration

This item is for overclock. Setting to [Auto] allows you to set the CPU Ratio higher. It is available only when the processor supports this function.

CPU Core Control

This item is used to control number of CPU cores. When set to [Auto], the CPU will operate under the default number of cores. When set to [Manual], you will be able to enable/disable the specific CPU core.

Core 1/2/3/4

These items are used to enable/disable the core 1/2/3/4.

OC Genie Lite

Setting this item to [Enabled] allows the system to detect the maximum FSB clock and to overclock automatically. If overclocking fails to run, you can try the lower FSB clock for overclocking successfully.

Onboard VGA Core OverClock

This item allows you to enable/ disable the onboard VGA overclocking ability.

Adjust Onboard VGA Frequency

This item allows you to adjust the frequency of the onboard VGA core..

Memory-Z

Press to enter the sub-menu.

DIMM1~4 Memory SPD Information

Press to enter the sub-menu. This sub-menu displays the information of installed memory.

Advance DRAM Configuration

Press to enter the sub-menu.

DRAM Timing Mode

Select whether DRAM timing is controlled by the SPD (Serial Presence Detect) EEPROM on the DRAM module. Setting to [Auto] enables DRAM timings and the following "Advance DRAM Configuration" sub-menu to be determined by BIOS based on the configurations on the SPD. Selecting [Manual] allows users to configure the DRAM timings and the following related "Advance DRAM Configuration" sub-menu manually.

FSB/DRAM Ratio

This item allows you to select the ratio of FSB/ DRAM.

Adjusted DRAM Frequency (MHz)

It shows the adjusted Memory frequency. Read-only.

HT Link Control

Pressto enter the sub-menu.

HT Incoming/Outgoing Link Width

These items allow you to set the Hyper-Transport Link width. Setting to [Auto], the system will detect the HT link width automatically.

HT Link Speed

This item allows you to set the Hyper-Transport Link speed. Setting to [Auto], the system will detect the HT link speed automatically.

Adjusted HT Link Frequency (MHz)

It shows the adjusted HT Link frequency. Read-only.

Auto Disable DRAM/PCI Frequency

When set to [Enabled], the system will remove (turn off) clocks from empty DRAM/PCI slots to minimize the electromagnetic interference (EMI).

CPU Voltage (V)/ CPU-NB Voltage (V)/ DRAM Voltage (V)

These items are used to adjust the voltage of CPU, Memory and chipset.

Spread Spectrum

When the mainboard's clock generator pulses, the extreme values (spikes) of the pulses create EMI (Electromagnetic Interference). The Spread Spectrum function reduces the EMI generated by modulating the pulses so that the spikes of the pulses are reduced to flatter curves. If you do not have any EMI problem, leave the setting at Disabled for optimal system stability and performance. But if you are plagued by EMI, set to Enabled for EMI reduction. Remember to disable Spread Spectrum if you are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up.

IMPORTANT

• If you do not have any EMI problem, leave the setting at [Disabled] for optimal system stability and performance. But if you are plagued by EMI, select the value of Spread Spectrum for EMI reduction.
• The greater the Spread Spectrum value is, the greater the EMI is reduced, and the system will become less stable. For the most suitable Spread Spectrum value, please consult your local EMI regulation.
• Remember to disable Spread Spectrum if you are overclocking because even a slight jitter can introduce a temporary boost in clock speed which may just cause your overclocked processor to lock up.

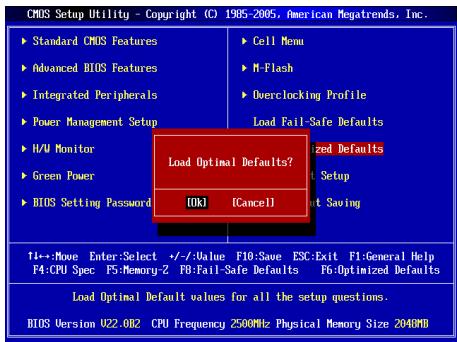

Load Optimized Defaults

You can load the default values provided by the mainboard manufacturer for the stable performance.

韓國兒

#

AM3 仿尼贝是AMD Phenom/Phenom/Althon II/Althon/ Sempron 形

CPU上

ATX24FJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJFJ

i 1AATX24FJI0TJHJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AaeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1AeJ1Aee JAAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAEAE

ATX4FJPWR2

Integrated Peripherals (通参数的主信号)

i

Power Management Setup (修正规则实施)

i

H/W Monitor (H/W MoNlTeI)

i

Green Power

CPU Specifications (CPU Specification)

SVM Support (SVM Driver)

i

AMD Cool'n'Quiet (AMD 裁印和印器)

C1E Support (C1E 资源)

此在愿藏是云在的，CPU的器集到能。

音

曾藥忘H日造名H自歌造歌記目青朝樂歌達者志歌忘H歌則，多音默义若云

Adjust CPU FSB Frequency (MHz) (CPU FSB plus/total (MHz)

i

OC Stepping (OC Stetig)

Start OC Stepping From (MHz) (OC S-TE®ng Si@h@)(MHz)

此在同的上，

OC Step (OC△

此在同的，

OC Step Count Timer (OC Stelk Kauundt Taikir)

i

Adjust CPU Ratio (CPU bit to 0)

Adjusted CPU Frequency (MHz) (主锁回CPU主卡数) (MHz)

i

Adjust CPU-NB Ratio (CPU-NB bit to 0)

IhachoueCPU-NBbitoue tooohnlo

Adjusted CPU-NB Frequency (MHz) (主锁回CPU-NB主功) (MHz)

i

Unlock CPU Core (金融机构CPU接口)

Spread Spectrum (Dadeckshank)

Press DEL to enter SETUP

Advanced BIOS Features

Integrated Peripherals

BIOS Setting Password

Overclocking Profile

Current CPU / DRAM / CPU-NB Frequency

CPU Technology Support

Adjust CPU FSB Frequency (MHz)

Start OC Stepping From (MHz)

Adjusted CPU Frequency (MHz)

Adjusted CPU-NB Frequency (MHz)

Advanced Clock Calibration

Adjust Onboard VGA Frequency

Adjusted DRAM Frequency (MHz)

HT Incoming/Outgoing Link Width

Adjusted HT Link Frequency (MHz)

Press DEL to enter SETUP

Advanced BIOS Features

Integrated Peripherals

BIOS Setting Password

Overclocking Profile

Current CPU / DRAM / CPU-NB Frequency

CPU Technology Support

Adjust CPU FSB Frequency (MHz)

Start OC Stepping From (MHz)

Adjusted CPU Frequency (MHz)

Adjusted CPU-NB Frequency (MHz)

Advanced Clock Calibration

Adjust Onboard VGA Frequency

Adjusted DRAM Frequency (MHz)

HT Incoming/Outgoing Link Width

Adjusted HT Link Frequency (MHz)

KOMNOHEHTbI CNTeMHOn INaTbI

XAPAKTEPNUCTIKN

Ipoceccopb

■Пeroceccspby AMD® Phenomll/ Phenom/ Althon II/ Althon/ Sempron B KOHCTyKtBVE AM3.

1Флonnnpn npot
Iopdeprka1FDDc360KB,720KB,1.2MB,1.44MBu2.88MB

KOHHeKTopbI

3aJndn naHnn -1 pazbem oTnueckn S/PDIF-Out
- 1 PS/2 nopT mbln/ knaBnAtypbl
- 1 nopT VGA
- 1 nopT DVI-D
- 1 nopT HDMI
- 1 nopT IEEE 1394
- 4 nopTa USB 2.0

• 2 nopTa USB 3.0
  -1pa3bemLAN
  -63ByKOBbIX pa3beMOB C rN6kM npeHa3HaueHHeM

Pa3bEmbl,yTcaHOBnEHHbIeHa nNaTe

• 1 pa3bem napaannelbHoro npota
• 4 pa3bema USB 2.0
• 1 pa3bem IEEE 1394
• 1 pa3bem nocleIDOBaTeIbHoro nopTa
• 1 pa3bem SPDIF-Out
• 1 pa3bem dny nooknueheny ayno Ha nepehdne nahe
  -1pa3bem DaTcNka OTKpbBaHnKa KopnyCa
• 1 pa3bem CD-In
• 1 pa3bem TPM
• 1 nepeknioateIb

CnotbI

1 cnot PCIE 2.0 x16
2cnotaPCIE2.0x1
1 cnot PCI, noDnepeKka nHTeppeca PCI uHbI c nTtAHnEM 3.3V/5V

ΦopM ΦakTop

Micro-ATX (24.4cm X 24.4 cm)

KpennneHne

8OTBepCTnIgKpeJIeHnI

Y6eIntecb, yTO Bce KOHNeKToPbI NITaHnA Tx npabNtBn ONDKnIOUHeBly.

Pa3bEm FDD:FDD1

3TQTpaBempoIeepxHbAeFTPONNNINDCKNEMKoCTbO 360K5,720K5,1.2M5, 1.44MBnIu 2.88MB.

PazbEM IDE:IDE1

Pazbem nopepkjBaAeT noeknlochHne XeCTKHX DnCKOB IDE, ONTNUecknx DnCKOB nDpyrIX IDE yctpOCTB.

BHIMAHHE

Pnno ndknoe Hdyx yctpoiBt ha odHom kabe, cnedyet yctahOBntb yctpoIb a pekim master / slave nocpeCTbOM yctahOBKn pepeMbYek. 3a nHTCPTKJIaMm OBpaTHeB KdojMCteAun mIRTOBHTen yCTPOCTBa.

Pazem Serial ATA: SATA1 ~ 6

Pa3bEm Serial ATA - 30 ByCOKOOPCOTHOIN NOT HENTPcFepCa Serial ATA. 3TOT pa3bEm p03BONJET NOKHNQHTB ToNko ODO yCTPOICTBO Serial ATA.

BHIMAHHE

IV36eBae pe3kXn IaHbO B Kaebna Serial ATA. B npotnbHM cnyae Moryr BOBHKNHTy notepn dAnhIX np nepeDaue.

Pazbemпитань В entnlaTopob:CPUFAN, SYSFAN1, SYSFAN2

PazbEmbl NtHAnaB BENTNIATOPOB NOdEperKXBAAOTB EBTNIIATOpbl c NITNAHE +12 B. PnI NOdklHouEn HEO6XoIMNo NOMHTb, YKTcKaHbN npOboD NOdkHuaeTcR KUHe 10 +2A, b CepbH - K 3EMe GND.EcNc CnCTeMHra NpTa aCoDPKHT MINKPOCXemy annapathrOHO MOnHTOPINHa, HEO6XoIMNo IcNOrb3OBatb CneuAlNbHbe BENTNIATOpbl c DaTcHKOM CKOPoCTn DnpeaIn3aumn FyHKUu ynpABNeHN BENTNIATOpOM.

CPUFAN

SYSFAN1

SYSFAN2

Pa3bem S/PDIF-Out:JSP1

3ToT pa3bem nCOnIob3yETc4 dIe npOKnIOHcHn HInTepeFcna S/PDIF (Sony & Philips Digital Interconnect Format) dIe npEpaU 3Byka B UΦpOBOM φopMaTe.

Pazem CD-In: JCD1

3T0t p3abem npedna3nauhen nIpy noKIOUeHHI NOONHITeHbHOA ydno Ka6eN.

Pa3bEmblnnoKluOeHnnepeDHe naneHJFP1,JFP2

3TN pa3bEMbl o6ceNcHBAOT nOdknOueHne KHOON k INdMkatopoB nepeDnei naHEn. JFP1 cooTBeTCTByeT cneuФнkaunl Intel® Front Panel I/O Connectivity Design Guide.

Pazbem nocjeboTaBHO npTa: JCOM1

Main Page (OchOBHoe MeHIO)

Standard CMOS Features (CTaHdapTbIe yHKmN CMOS)

3TOMeHNO 03BONJETYCTAHOBINTbOCHOBHIE NapAMETpI KOHNfrypaunu CImCTEmbl (dAty, BPMAr, n.T.D.).

Integrated Peripherals (BCTpoehhble nepupepnhbye yctpoicta)

3ToMeHIOIcnpbIaByeTcAJnHaCTpoIKnnapaMetPOB BCTPOeHNbX nepiFepeinHbIX yuctoCTb.

Power Management Setup (Hactpoika ynpablenia nitaHnem)

3TO MEHIO N03BOJAE T3aTaB npaMeTpbl ynpaBNeHn NITAHmE CNTEmbl.

H/W Monitor (MoHTop annapaTHOy actn)

3TOT nyHKT OTO6paKaAe COCTOaHne annapatnoh qactn PIK.

Green Power

3To MeHIO nCNoB3yeTcI dIg Ha3HaueHnpeXmAmNTaHn.

Overclocking Profile

IcnoIb3yETcIaXpaHEnI/ 3arpy3kn npametpoB I/3 CMOS BIOS.

Load Fail-Safe Defaults

3To mEnIO nCNOB3yETcIa 3r4gU3H3aHcHbNBIOS,yCTaHOBENbIX npno3AHTIDENTeMnTcIa6INbHbOpaBOtIcnCTeMbI.

Load Optimized Defaults (YctaHOBITb ONTMMAbHbIe HAcTpOKn)

3TO MeHIO ICNOpIbEyctar DcY JCTAHOBK HACTPQEO INGTOBOTENI DnA ONTUMJIHOINPOINBODENTBJHOCTN CHTEMHNOI PnATb.

Save & Exit Setup (BbIXoD c coXpaHHeHem HactpoeK)

3aIINcB n3MeHEni B CMOS u bIXoN i3 peKIma hAcTpoKn.

Exit Without Saving (BbIXoD 6e3 coxpaHeneH)

OTMeHa BCEx N3MeHeHn I BbIXoN I3 peKIma NaCTpoKN.

Cell Menu

Current CPU / DRAM / CPU-NB Frequency

3TNyNHTbI NOKa3bIAIOT TeKyUIO YACTOT CPU, CkOPOCTbI naMTI bCPU-NB. TolbKO dIeTHeNIA.

CPU Specifications

JahMmteДЯн BXODA B NOdMeHNo B NOdMeHNO NOKA3aHa INHΦopMaZIO6 yctAHOBHeHOM CPU.

CPU Technology Support

HakmmtEДЯВбдАБиВ ДпмсимьНБИнКЗАЗыТХУОЛМуN，KOTOByДлбДркIMBAIOCTСВ.YBCTAHOBHENCPOU.

CPU Feature

HaxmnteДЯ BXOa B noDMenHIO:

AMD Cool'n'Quiet

TexHONOR NoCuiKieN QoB3OAneT 3aEeKtNBHO dHAMMueCKN M3MeHReTB aactOTy CPU nHepronotPe6Ibnene CnCTeMb.

C1E Support

BKN0UHTE 3OT NTKJN DnA CHKENHIE 3HEPONOTpe6HENI CPU, KORA OH p6a0TaET. He B NCPOeCCOJI NOpDaePKMBAIOHT Enhanced Halt state (C1E).

SVM Support

3TOT nyHKT no3B0JAEET BKNIOATb/BykIOaHTb TExHOONIO AMD SVM (Secure Virtual Machine).

AMD Cool'n'Quiet

Texohonorha Cool'Quiet no3boJare 3ΦΦeTKBHO DnHAMMueckn 13MeHertb aactoy CPU n 3heponrtope6neHme CNTeMb.

C1E Support

BknOHTe 3OTy NHTI kHnENKHEA HEPRONOTpe6JIHnC PCU, KOJa OH He paOaTeTae. He BcNpoueccBoI noDaePKNBaOT Enhorted Halte state (C1E).

BHIMAHVE

Ycbb y6bdntb a TOM, YTO texhONrHg Coof'n'Quiet BkIOHena n paB0TaET npabInbHo, Heo6xoHmo:

3aHn B nporpammy BIOS Setup, n bivbpatr Cell Menu. Hauhnte AMD Cool'nQuiet noct Cell Menu, u yctanohrote ero a Enabled"Enabled".
* B Windows vybeprte [Start]->[Settings]->[Control Panel]->[Power Options]. Bovdne B Power Options Properties, vybeprte Minimal Power Management noq Power schemes.

Adjust CPU FSB Frequency (MHz)

TOT nyHKT nO3BONaET peryIINPOBaTaY FSB npouceccopa (B MfU).

OC Stepping

3TOT npHKT BKNIOHEN nocye tvaHOBNI cactOtbl paRHOA b "Adjust CPU FSB Frequcncy (MHz)". NcIeLIOUJIe nyKHTb IONBIIaIOTc. OH nO3BOJrE T OCUJECTBnTb paRHOI 3a 3aAROM nocNE 3aRy3uC iCtEMb.

Start OC Stepping From (MHz)

3TOT nyHTN 03BONRET yCTAHOBINb HauanbHOE 3HAeHHe TAKTOBOI YACTOTBI (base clock). CNTEMTA 3ARpy3TNc R HauanbHM 3HAeHEM TAKTOBOI YACTOTBI (base clock), a NOTOM HauHTEN p430rHbT CHTEMCY c HauanbHoro 3HAeHHeIWAR 3a 3awarO yCTAHOBENHBIM B "Adjust CPU FSB Frequency (MHz)".

OC Step

3TOT nyHKT INCNOB3yETcR dIy yCTAHOBK Iwara pa3ROHA TAKTOBO YACTObl (base colck).

OC Step Count Timer

TOT nyHKT nCnObl3yETcA dIy UCTAHOBKn BpeMeHn 3aIepKKn KaKdOrO Waara.

Adjust CPU Ratio

3TOT nyHKT nCnONbEycTd PeryNtPOBm MHOXKNTe NpOecCCPO. OH DOctyHnToIbKO TOra, KOrDa npOecCOP NoDpeKbMaE tTy fYHKNUO.

Adjusted CPU Frequency (MHz)

3TOT nyHKT noka3bIbaeT kcyuio qactOtu CPU. TOnbKO dnyteHna.

Adjust CPU-NB Ratio

ETOTnyHKNTNcONb3ayetcndperpynnpOBKuacToTBCPU-NB.

Adjusted CPU-NB Frequency (MHz)

3TOT nyHKT noka3bIbaET TeKuIyU yactOty CPU-NB.ToIbKO dnyTeHnA.

Unlock CPU Core

3TOT NHYKT NOBONIET PA36NOKIOPOBATb DONONHITENbIe YINCETbl, BAM MOXHO yCTAHOBNTb EoB [Enabled] n NOT yCTAHOBNT Advanced Clock Calibration B [Auto], YTOsb IMEMb BO3MOXHOCTb AKTNIBIOPOBATb npOecOPBHeYINCETbl.

Advanced Clock Calibration

3TOT NYHK TcNOpb3yETcI DnA pa3rOHa. YcTaHOBka B [Auto] no3BONReY cTaHOBt bactOty CPU bIwe. OH doCTyIeN toIbKO torDa, kOrda pIoceccpNoIaePekBaIeT 3Tu fyHkuIIO.

CPU Core Control

3TOT NYHKT NcOINb3yETcA DnI KOHTpONIOBAAHn HOMepa npoecccopHOro YNCHcTa. Pnp yctahOBBe B [Auto], CPU paobotaet noD homepom YNCHcTeB NO ymOLAHNo. Pnp yctahOBBe B [Manual], BAM MOxHO BKNIOATb/BkIKIOuATb ONpeDENEHHy ChNcET CPU.

Core 1/2/3/4

3Tn NyKtbI NcNoJIb3yIOCTa IINB KlnHouEnHa/BblKnHouEnHa YInCeTOB 1/2/3/4.

OC Genie Lite

YCTAHOBKA 3TOrnyHKTA B [Enabled] no3BONRAET CNTCEME ONpeDENbTBA MAKCImaMbHyIO cHactOTy FSB n p3aR0n ABtomATnuCheKc. Ecm p3aR0n He ydaNcAB, BAM MOxHO YMeMbHsTb TAKTOBYo cHactOTy FSB dIra p3aR0n yduNchO.

Onboard VGA Core OverClock

3TOT nyHKT n03BONJET BKNIOUHTb/ BbIKIOUHTb pa3ROH VGA ha nnaTe.

Adjust Onboard VGA Frequency

3TOT nyHKT no3BONJET perynnpoBaTB qactObl YINCeTa VGA ha nnaTe.

Memory-Z

HaxmnteДЯ BXOda B noDmeHIO.

DIMM1~4 Memory SPD Information

HAnMnTe IaBxOda BnoDMHeo. B noDMHeo nok3aHa HmΦOpMaJra 06 yCTAHOBLeHNHO nAMrTn.

Advance DRAM Configuration

HaxmnteДЯ BXOa BNoDMeHIO.

DRAM Timing Mode

OnpeIenIeT 6ydtI nI bPemHbIe napaMeTpbl DRAM KOHTpOnpoBbTaBdHbIMn I3 SPD (Serial Presence Detect) EEPROM Ha moYDE DRAM. PInn BbIbOpE 3aHeHcN [Auto], BPbEMHbIe napaMeTpbl DRAM, BKIOHua pNtIKbTu MeHIO, PepeHcNepHbIe HnKe, yctHaBaJIbNAkOTcB BIOS B COOTBETCBM C dAHHbIMn I3 SPD. PnI yCTaHOBe 3aHeHcN [Manual], 3OT nYPKt N03BONIe BpyUHy opeYIpOpaBt BPeMhBcIe napaMeTpbl DRAM DOCTynbIE B 3OT MmEO.

FSB/DRAM Ratio

3TOTyHKTI PO3BONJET peryIINPOBaT Ko3ΦΦnIeHT MEXdY qACTOTAMi FSB mPbAToBIO.

Adjusted DRAM Frequency (MHz)

3TOT nyHKT NOKa3bIbaet 3NaueHne yactoTBi namrtn. TOnbKO dnyTeHnA.

HT Link Control

HaxmnteДЯ BXOa B noDMehIO.

HT Incoming/Outgoing Link Width

3TOT NYKTH ONEPENIET WIPINHY BXOJARIE/MCXOJAISEUHNHIT. HTpynycbAOKBE B [Auto].CTCITEMAbotOMaTHueCKN ONEPENIET WIPINHYWNIHHT.

HT Link Speed

3TOT nyHKT no3BOJRAET yCTaHOBt bCKOpOCTb nepeDaun no shHe HyperTransport.

Pn yctahOBke B [Auto], CNTcEMa ABTOMATUeCKN ONpeIeJIeT CKOpOCTb 1HtI HT.

Adjusted HT Link Frequency (MHz)

3TOT nyHKT noka3bIbae Tekyuyo yactOty wHbI HT. Tonko dnyteHna.

Auto Disable DRAM/PCI Frequency

Pn yctaHOBKe 3naueHInn [Enabled], CnCTeMa OTKnIOHT NHeCNPOB3yEmbIe pa3BeMn pAmrTn nPCI, TTO npNBeTeK cnHexeHIno yOboHn 3NeKTPomarHnTHbIX nomex (EMI).

CPU Voltage (V)/ CPU-NB Voltage (V)/ DRAM Voltage (V)

3TOT nyHKT no3BOJAEr perynipoBaTB HanpJKeHne CPU, naMaTn uYnceta.

Spread Spectrum

Tak kak taktobbl rehepatop cintemnoi natabl mnybchbl, to ero pa6ota bblbaet 3nktpomarHnthe nomexn - EMI (Electromagnetic Interference). FyHKnlae Spred Spectrum cHnkaet 3tn nomexn, rheepurya crnaekhenhie mnnybcbl. Ecn y bac het npobm c nomexamn, octabte 3nauehme [Disabled] (zanepehe) dna lyuwe ctabnblhoctn npon3boDntlehOCTn. Ondako, ecn y bac 803nKAAOT 3nktpomarHnthe nomexn, papa5wne IcnpNlB3oBaHne 3tof yHKnuiy, yctahOBin [Enable] (pa3peheho). He 3a6byte 3anptetnb IcnpNlB3oBaHne FyHKnuiy Spred Spectrum, ecn bIy (pa3rOHeTe) cIcTeMHyo nnaty. 3to heo6xodmo, Tak kak dake heoBshou ndebe6rCngharoTAKTOBO rerehepatorMOkET npivectn OKtAky (pa3orAHHHOrO) npocecoppa.

BHIMAHHE

• Ecnny y BAC het npobnem c nomexamn, octabte 3auehne [Disabled] (aanpeuho) dnnyuwhc stcbunbHOCTN n pnoo3BODHTENbHOCTN. Ondako, ecnny y BAC BOHnkaIOT 3eKpTOMarHnthe Nomexn, Bblbepnte Spread Spec-trum dny uymehbUeHnna.
  * 3eM 3nBle 3naueHne Spread Spectrum, Tm HnKe bdyet ypoBHeB 3eKTPomAHHTbIX nOmeX, Ho cNCTMa cTahET MeNee cTaBnBHO. JIa Bb6opa nOxOJaZero 3naueHne Spread Spectrum, CbpeTbe Co 3NaueHneMIMy ypoBHeN 3eKTPomAHHTbIX nOmeX, yCtahOBnEHbX 3AkoHOdaTeJIbCTBOM.
• He 3a6ydbte 3a9pntHb NcNoIb3OboAHne FyHKcMn Spread Spectrum, ecn Bbl (PazorHHeT) CNTeMHy IO npA. 3To Heo6xOJMo, TAK KAK DaXe HeoBonsuon Dpe6zrCngHOB TaKTOBORO reHEPATOPa MOKeT pNBeCTN K OTKa3y (PazorHnHBO) npoCeoppa.

YctaHObKa 3HaueHn no yMOJIaHnIO

IaCTa6bHbONpaboTcNCTCMBbI MOKETe 3aRgTHbN HACTPOIKIN BLONISOUMJHANU, yctAOHOBENHEIpePNO3BOdHTENEM CCTMHN PnATbI.

简体中文

简介

Press DEL to enter SETUP

CPU Specifications (CPU 属性)

Start OC Stepping From (MHz)

Adjusted HT Link Frequency (MHz) (调整后的HT连接频率)

此项显示调整后的HT连接频率。只读。

Press DEL to enter SETUP

（按DEL键進入設定）

CPU Specifications (CPU 規格)

CPU Feature (CPU 功能)

按下键進入子選單。

AMD Cool'n'Quiet

Adjust CPU FSB Frequency (MHz) (調整 CPU 外頻)

Start OC Stepping From (MHz)

Adjusted CPU Frequency (MHz) (調整後CPU頻率)

本項顯示調整後CPU的頻率。唯讀。

Unlock CPU Core (CPU開核)

Press DEL to enter SETUP

一押七设定画面呼出

Integrated Peripherals (內藏機能の設定)

CPU Technology Support (CPUtekNoJ-saPob-1)

CPU Feature (CPUの機能)

C1E Support (C1E*s#-卜)

C1E Support (C1E-扑一卜)
