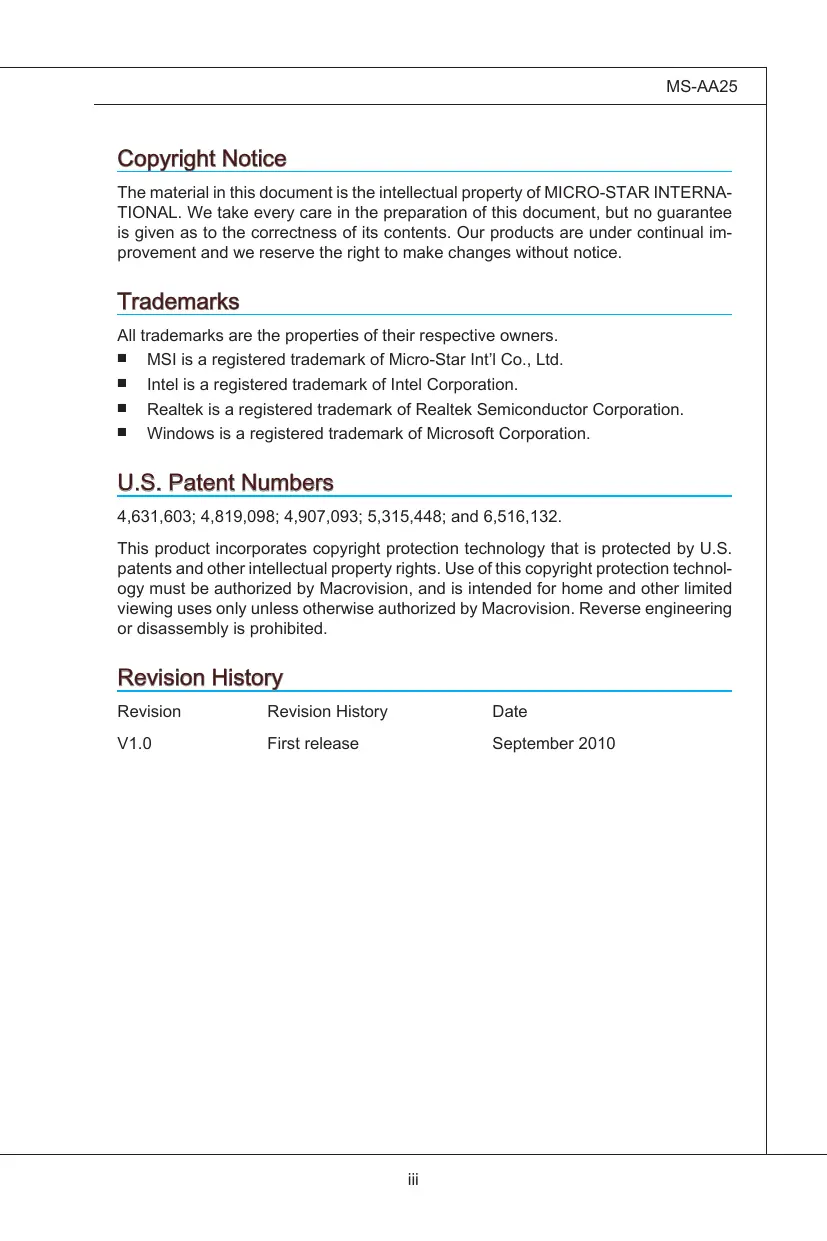

MS-AA25 Copyright Notice The material in this document is the intellectual property of MICRO-STAR INTERNA- TIONAL. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual im- provement and we reserve the right to make changes without notice. Trademarks All trademarks are the properties of their respective owners. ” MSlis a registered trademark of Micro-Star Intl Co., Ltd. " _Intelis a registered trademark of Intel Corporation. "Realtek is a registered trademark of Realtek Semiconductor Corporation. "Windows is a registered trademark of Microsoft Corporation. U.S. Patent Numbers 4,631,603; 4,819,098; 4,907,093; 5,315,448; and 6,516,132. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use ofthis copyright protection technol- ogy must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. Revision History Revision Revision History Date V1.0 First release September 2010

Î Pretace Upgrade and Warranty Please note that certain components preinstalled in the product may be upgrad- able or replaceable by user's request. To learn more about upgrade limitation, please refer to the specifications in the User's Manual. For any further information about the product users purchased, please contact the local dealer. Do not attempt to upgrade or replace any component of the product if you are not an authorized dealer or service center, since it may cause the warranty void. Itis strongly recom- mended that you contact the authorized dealer or service center for any upgrade or replace service. Acquisition of Replaceable Parts Please be noticed that the acquisition of replaceable parts (or compatible ones) of the product users purchased in certain countries or territories may be fulfiled by the manufacturer within 5 years at most since the product has been discontinued, depending on the official regulations declared at the time. " Please contact the manufacturer via http://www.msicomputer.com/msi_user/ msi_rma/ for the detailed information about the acquisition of spare parts. Technical Support If a problem arises with your system and no solution can be obtained from the user's manual, please contact your place of purchase or local distributor. Alterna- tively, please try the following help resources for further guidance. © VisittheMSIwebsite for FAQ, technical guide, BIOS updates, driverupdates and other information via http:/www.msi.com/index.php?func=service © Contact our technical staff via http://ocss.msi.com/

MS-AA25 Green Product Features © Reduced energy consumption during use and stand-by Limited use of substances harmful to the environment and health Easily dismantled and recycled Reduced use of natural resources by encouraging recycling Extended product lfetime through easy upgrades Reduced solid waste production through take-back policy Environmental Policy ® The product has been designed to enable proper reuse of parts and recycling and should not be thrown away at its end of life. © Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products © Visit the MSI website and locate a nearby distributor for further recycling information: http:/www.msi.com/index.php?func=htmi&name=service_ worldwide. © Users may also reach us at gpgreenteam@msi.com for information regarding proper Disposal, Take-back, Recycling, and Disassembly of MSI products.

ZD | prerace Safety Instructions Read the safety instructions carefully and thoroughly. All cautions and warnings on the equipment or users manual should be noted Keep the User's Guide that comes with the package for future reference. Keep this equipment away from humidity and high temperature. Lay this equipment on a reliable flat surface before setting it up. © Make sure that the power voltage is within its safety range and has been adjusted properly to the value of 100-240V before connecting the equipment to the power oullet. Do not disable the protective earth pin from the plug. The equipment must be connected to an earthed mains socket-outlet. Æ Always unplug the AC power cord before installing any add-on card or module to the equipment. Æ Always disconnect the AC power cord or switch the wall socket off if the equipment would be left unused for a certain time to achieve zero energy consumption. The ventilator on the enclosure is used for air convection and to prevent the equipment from overheating. Do not cover the ventilator. Do not leave the equipment in an unconditioned environment with a storage temperature above 60°C (140°F) or below 0°C (32°F), which may damage the equipment.

ÉASŸ) NOTE: The maximum operating temperature is around 40°C.

MS-AA25 Never pour any liquid into the opening that could damage or cause electri- cal shock. Place the power cord in a way that people are unlikely to step on it. Do not place anything on the power cord. When installing the coaxial cable to the TV Tuner, it is necessary to ensure that the metal shield is reliably connected to protective earthing system of the building. Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable. Always keep the strong magnetic or electrical objects away from the equip- ment If any of the following situations arises, get the equipment checked by ser- vice personnel: The power cord or plug is damaged Liquid has penetrated into the equipment. The equipment has been exposed to moisture. The equipment does not work well or you can not get it work according to users manual. The equipment has dropped and damaged. The equipment has obvious sign of breakage.

1. The optical storage devices are classified as CLASS 1 LASER PRODUCT. Use of

controls or adjustments or performance of procedures other than those specified is prohibited.

2. Do not touch the lens inside the drive.

CA Re TH ET [ae | For better environmental protection, waste batteries should be collected separately for recycling or special disposal. CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. vil

Î Pretace CE Conformity Hereby, Micro Star International CO. LTD declares that this device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive. FCC-B Radio Frequency Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the C FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential instal- lation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the measures listed below: = Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. = Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. # Consult the dealer or an experienced radio/television technician for help. Notice 1 The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Notice 2 Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits. VOIR LA NOTICE D'INSTALLATION AVANT DE RACCORDER AU RESEAU. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and

2. this device must accept any interference received, including interference that

may cause undesired operation. vil

Overview This system is integrated in design, selecting a stylish appear- ance with a mirror screen, which displays the simplicity of mod- ern individualism and the comfort of home. With a touchscreen display, flawless audiolvideo capabilities, and intuitive user inter- face, it blends technology with life, making computers easier and more fun to use — suitable for the whole family.

• Please contact us immediately if any of the items is damaged or missing

• The picture is for your reference only and your packing contents may slightiy vary depending on the model you purchased.

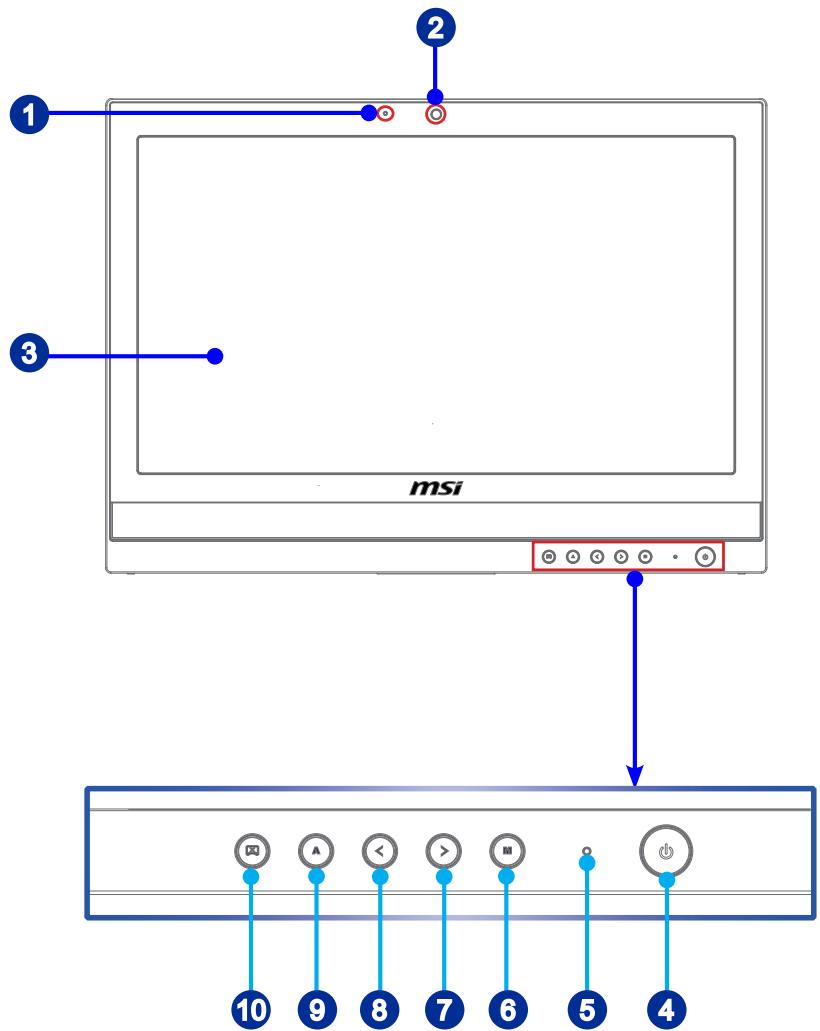

2 | oveniew Microphone The built-in microphone can be used for video chatting online. [2] Webcam The builtin webcam with the microphone can be used for picture taking, video recoding, online conferencing and any other interactive applications. LCD Display The 20-inch TFT LCD display is with an optimal resolution of 1600 X 900 and standard proportion of 16:9 widescreen. System Power Button/LED Press the system power button to turn the system on or off. The power LED glows when the system is turned on and goes off when the system is shut down. In terms of power saving, the LED blinks in S3 (Suspend to RAM) mode and goes off in S4 (Suspend to Disk) mode. Pressing the sys- tem power button will wake the system up from power saving mode. @ | aiPskDie LED This indicator shows the activity status of the HDD. It flashes when the system is accessing data on the HDD and remains off when no disk activity is detected. Menu Button Press this button to view the OSD menu or enter into the submenu. (a) Q Right / Volume Up Button In Menu mode, this button indicates the cursor movement or OSD manual selection in incremental values. Out of Menu mode, it works as Volume Up button. 0 Left / Volume Down Button In Menu mode, this button indicates the cursor movement or OSD manual selection in decremental values. Out of Menu mode, it works as Volume Down button.

MS-AA25 Auto Button Press this button to view and adjust the video mode menu or exit the submenu. Display Power Button Press this button to power on/off the monitor.

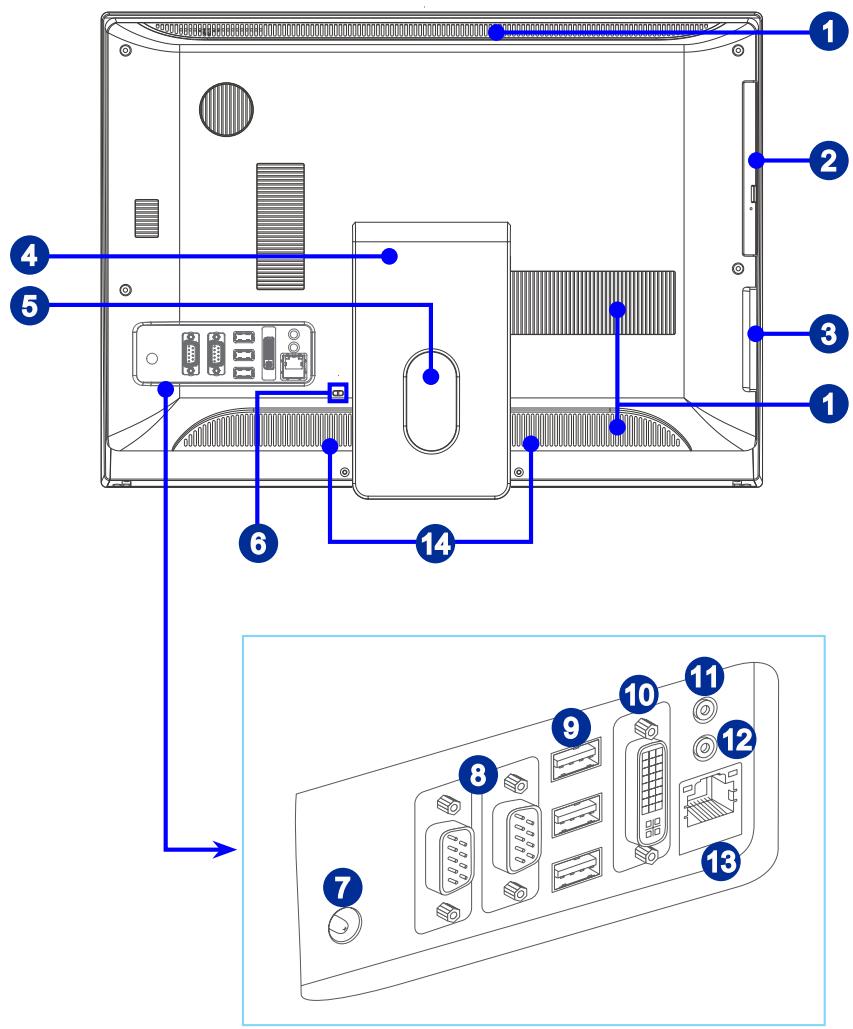

2 | oveniew CF Rear View [ne] RTEER BP LL U tin. | Ôô 4 Important We suggest that you connect the AC/DC adapter to your AIO PC first and then con- nect the AC power cord to the socket-outlet for safety concerns.

MS-AA25 Ventilator The ventilator on the enclosure is used for air convection and to pre- vent the equipment from overheating. Do not cover the ventilator. Optical Disk Drive À DVD Super-Multi drive is integrated for your home entertainment. (Blu-ray is optional.) Card Reader Drive The built-in card reader may support various types of memory card, such as XD (eXtreme Digital), SD (Secure Digital), SDHC (SD High Capacity), MS (Memory Stick), MS Pro (Memory Stick Pro) or MMC (Multi-Media Card) cards that usually used in devices like digital cameras, MP3 players, mobile phones and PDAs. Contact the local dealer for further information and please be noted that the supported memory cards may vary without notice. USB Port The USB (Universal Serial Bus) port is provided for attaching USB devices such as mouse, keyboard, printer, scanner, camera, PDA or other USB-compatible devices.

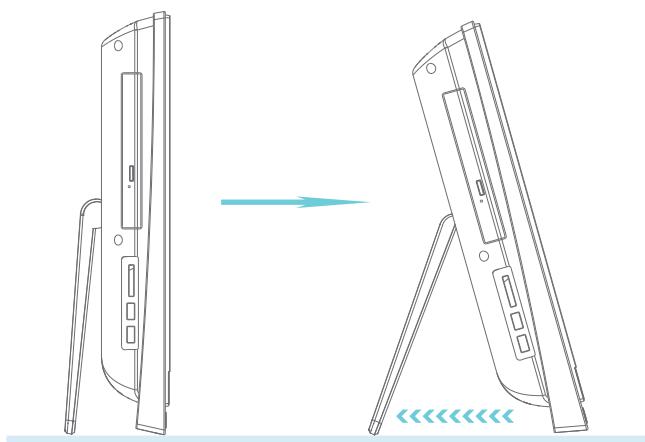

Stand Use this stand to position your system on a flat and stable surface. Cable Routing Hole Route the cables through the cable routing hole to avoid cable spa- ghetti when connecting devices. Kensington Lock Port This AIO PC provides a Kensington lock port, which allows users to secure the AIO PC in place with a key or some mechanical PIN device and attached through a rubberised metal cable. The end of the cable has a small loop which allows the whole cable to be looped around a permanent object, such as a heavy table or other similar equipment, thus securing the AIO PC in place. Power Jack The AC/DC adapter converts AC power to DC power for this jack. Power supplied through this jack supplies power to the PC. To pre- vent damage to the PC, always use the supplied power adapter.

Serial Port (Optional) The serial port supports barcode scanners, barcode printers, bill print- ers, credit card machine, etc.

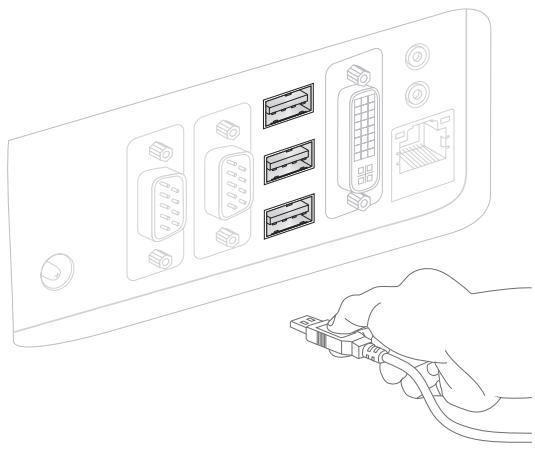

USB Port The USB (Universal Serial Bus) port is provided for attaching USB devices such as mouse, keyboard, printer, scanner, camera, PDA or other USB-compatible devices. DVI Port (Optional) The DVI-I (Digital Visual Interface-Integrated) port supports DVI-D / DVI and VGA devices. Line-Out Jack This connector is provided for headphones or speakers. Microphone Jack This connector is provided for microphones.

RJ-45 LAN Jack The standard RJ-45 LAN jack is provided for connection to the Local Area Network (LAN). You can connect a network cable to it. Yellow 5 Green Orange LED | Color | LED State Condition Len | Yelow | or LAN link is not established. On (steady state) LAN link is established On (brighter & puising) | The computer is communicating with another computer on the LAN Right | Green | of 10 Mbisec data rate is selected. on 100 Mbitisec data rate is selected Orange | On 1000 Mbitsec data rate is selected. Stereo Speakers The built-in stereo speakers deliver high quality sound blaster with stereo system.

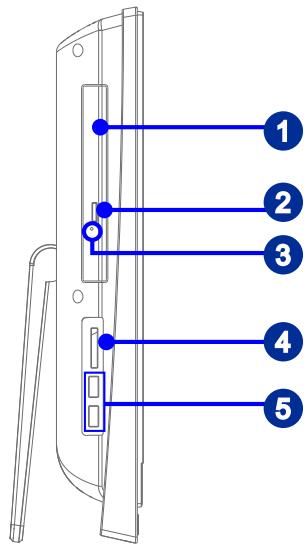

[1] Optical Disk Drive A DVD Super-Multi drive is integrated for your home entertain- ment. (Blu-ray is optional.) Eject Button Press the eject button to open the optical disk drive. [3] Eject Hole Insert a thin, straight object (such as a paper clip) into the eject hole to open the optical disk drive manually if the eject button does not work.

2 | oveniew Q | Srrecernre The builtin card reader may support various types of memory card, such as XD (eXtreme Digital), SD (Secure Digital), SDHC (SD High Capacity), MS (Memory Stick), MS Pro (Memory Stick Pro) or MMC (Multi-Media Card) cards that usually used in devices like digital cameras, MP3 players, mobile phones and PDAs. Contact the lo- cal dealer for further information and please be noted that the sup- ported memory cards may vary without notice. 6 USB Port The USB (Universal Serial Bus) port is provided for attaching USB devices such as mouse, keyboard, printer, scanner, camera, PDA or other USB-compatible devices. 1-10

MS-AA25 SYSTEM SPECIFICATIONS Processor = Intel® Core i series processor Chipset = Intel® HM55 chipset Memory 2 DDR3 SO-DIMM slots = Supports the maximum of 4GB LAN = Wired LAN: supported by Realtek” RTL8111DL Gigabit Ethernet controller = Wireless LAN: optionally supported through Mini PCI-E WLAN module Audio = HDA Codec by Realtek? ALCxxx series = Compliant with Azalia 1.0 specs Display = 20-inch TFT LCD display with an optimal resolution of 1600 X 900 and standard proportion of 16:9 widescreen Rear Panel 1/0 = 1 DC power jack = 2 serial ports = 3 USB ports = 1 DVI port (optional) = 1 Line-Out audio jack = 1 microphone jack = 1 RJ-45 LAN jack Storage = Hard Disk Drive: 3.5”, SATAII = Optical Disk Drive: Slim DVD Super Multi (Blu-ray is optional) # Card Reader: 4 in 1 (XD, SD, MMC, MS) Stereo Speaker = 2 stereo speakers WebCam = 1.3M WebCam with microphone Power Supply = 90-120 watt AC/ DC adapter with active PFC = Input: 100-240V-, 50-60Hz, 1.5A # Output: 19V 77 4.74A CD 1-11

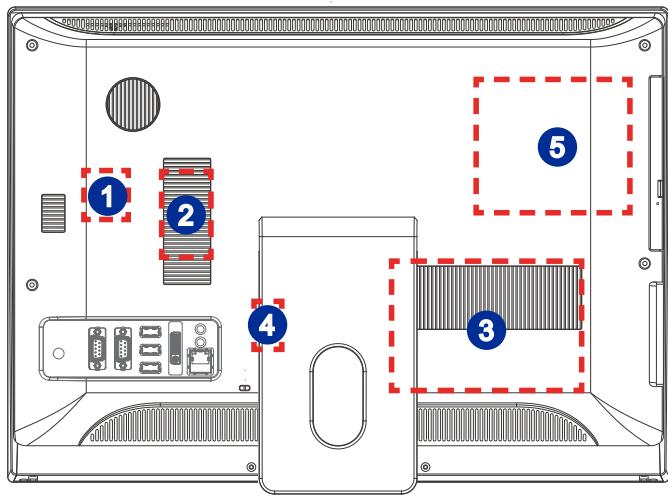

Please note that certain components preinstalled in the product may be up- gradable or replaceable by user's request depending on the models users pur- chased. 1-12

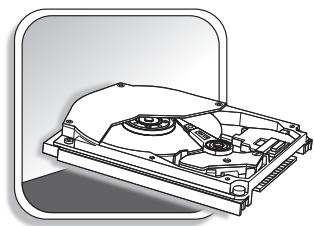

MS-AA25 (3 Hard Disk Drive (A) Wireless LAN Card Ifthe specified component has been determined by the MSI engineer or store as problematic or defective and may incur the need for replacement, you may bring the product for repair along with the warranty card, purchase invoice or receipt to the MSl-authorized service center closest to your location for as- sistance. To learn more about upgrade limitation, please refer to the specifications in the Users Manual. For any further information on the product users purchased, please contact the local dealer. Do not attempt to upgrade or replace any component of the product if you are not an authorized dealer or service center, since it may cause the warranty void. It is strongly recommended that you contact the authorized dealer or service center for any upgrade or replace service. 1-13

Getting Started This chapter provides you with the information on hardware set- up procedures. While connecting peripheral devices, be careful in holding the devices and use a grounded wrist strap to avoid static electricity.

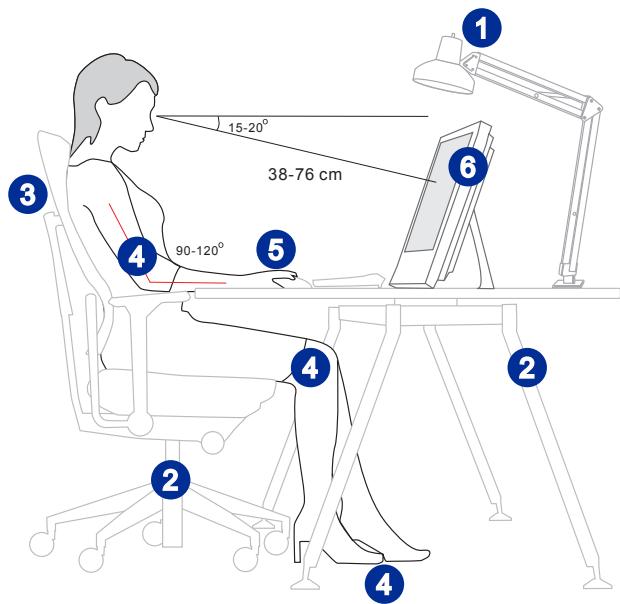

D À Geting Started SAFETY & CoMFoRT Tips The AIO PC is a portable platform that allows you to work anywhere. However, choosing a good workspace is important if you have to work with your PC for a long period of time.

1. Your work area should have enough illumination.

2. Choose the proper desk and chair and adjust their height to fit your posture

3. When sitting on the chair, sit straight and keep a good posture. Adjust the

chair's back (if available) to support your back comfortably.

4. Place you feet flat and naturally on the floor, so that your knees and elbows

have the proper position (about 90-degree) when operating.

5. Put your hands on the desk naturallÿ to support your wrists.

6. Adjust the angle/position of the AIO PC to have an optimal view.

7. Avoid using your PC in a place where discomfort may oceur (such as on the

8. The AIO PC is an electrical device. Please treat it with great care to avoid

personal injury. 2-2

MS-AA25 HAviNG Goop WorkiNG HaBiTs Having good working habits is important if you have to work with your AIO PC for long periods of time: otherwise, it may cause discomfort or injury to you Please keep the following tips in mind when operating. "Change your posture frequently. "Stretch and exercise your body regulariy. "Remember to take a break after working for a period of time. 2-3

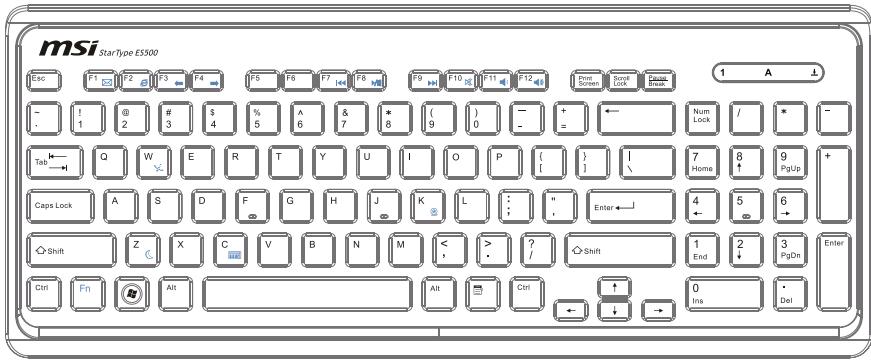

> Specifications “Compatible with EU/UK/US/JP/KR language layout = _Isolated keycap for easy typing = Low profile with silk printing technology #“ USB interface for all Windows® OS ” Keystroke life: 12 million #“ Dimensions: 376.4 (L) X 155.09 (W) X 21.91 (H) mm #“ Cable Length: 150cm = Weight: 440g > Features ”“ Multimedia function keys with AIO PC = Newisolated keycap for easy typing # Soft-touch and tactile feedback for comfortable typing = New concept elegant and slim keyboard in streamline shape = Compact size for space saving ”“ Especially fit for MSI LCD display “Compatible with Windows® 2000/ ME/ XP/ Vista/ 7 # Built-in function hot keys “Access favorite websites and applications with one touch hot keys

• The illustration of keyboard is for reference only. Actual product specifications may vary with territories. 2-4

MS-AA25 > Multimedia Keys [ Fa | IT we] À Fn+F7 | Backward to previous track Fn+F8 | Play and pause Fn+F9 | Forward to next track Fn+F10 | Mute function Fn+F11 | Volume down Fn+F12 | Volume up Fn +F1 | Launch the defauit E-Mail applications Lanuch the default intemet browser and go to the de- Fn+F2 | Qu home page Fn+F3 | Back to the previous web page Fn+F4 | Forward to the next web page Fn+C | Calculator Fn+2Z | Sleep mode (energy saving) Fn+W | Wireless LAN Fn+K | Camera 2-5

[es Positioning Your System Step 1. Place your system on a flat and steady surface such as a table or desk. Step 2. Pull the stand open and tit the LCD display. To stabilize the system, make sure that you pull the stand outwards to its fullest extent until the system is securely positioned.

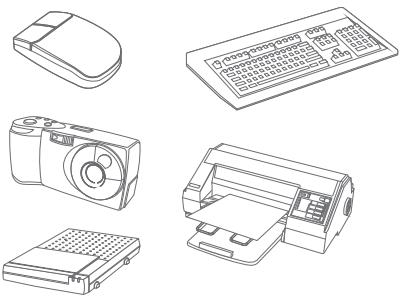

The 1/O (input/output) ports on the rear panel allow you to connect peripheral devices. All devices listed here are for reference only. [ea Connecting the USB Devices This AIO PC provides USB ports for connecting various USB devices, such as mouse, keyboard, digital camera, webcam, printer, external optical storage de- vice. and etc. To connect these devices, install the drivers for each device first ifnecessary, and then connect the device to the AIO PC. This AIO PC is capable of auto detecting the USB devices installed, and if there is no detection of the de- vices, please manually enable the USB devices by going to Start Menu / Control Panel / Add Hardware to add the new device. 2-7

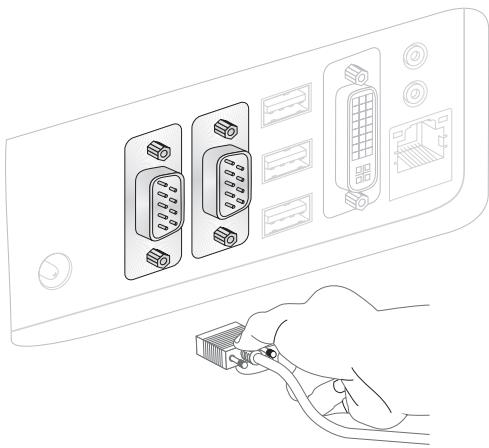

A À Getting Started [es Connecting Serial Devices (Optional) Serial ports are commonly used in applications such as industrial automation sys- tems, scientific analysis, shop till systems and some industrial/consumer prod- ucts. Users may connect barcode scanners, barcode printers, bill printers, and credit card machine to this serial port. 2-8

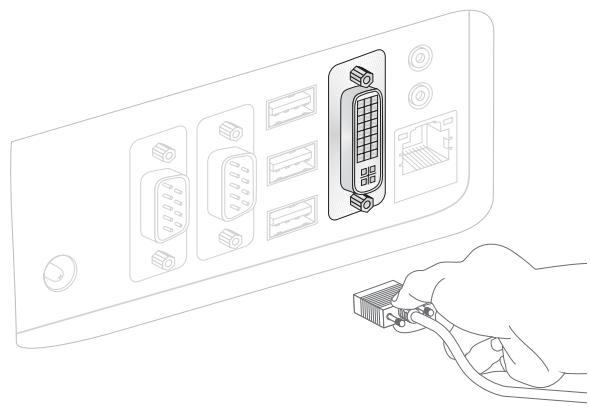

MS-AA25 [es Connecting DVI-I Devices (Optional) The DVI (Digital Visual Interface) is a video interface standard designed to pro- vide high visual quality on digital display devices. Users may connect DVI-D / DVH and VGA devices to this DVI-I port. 2-9

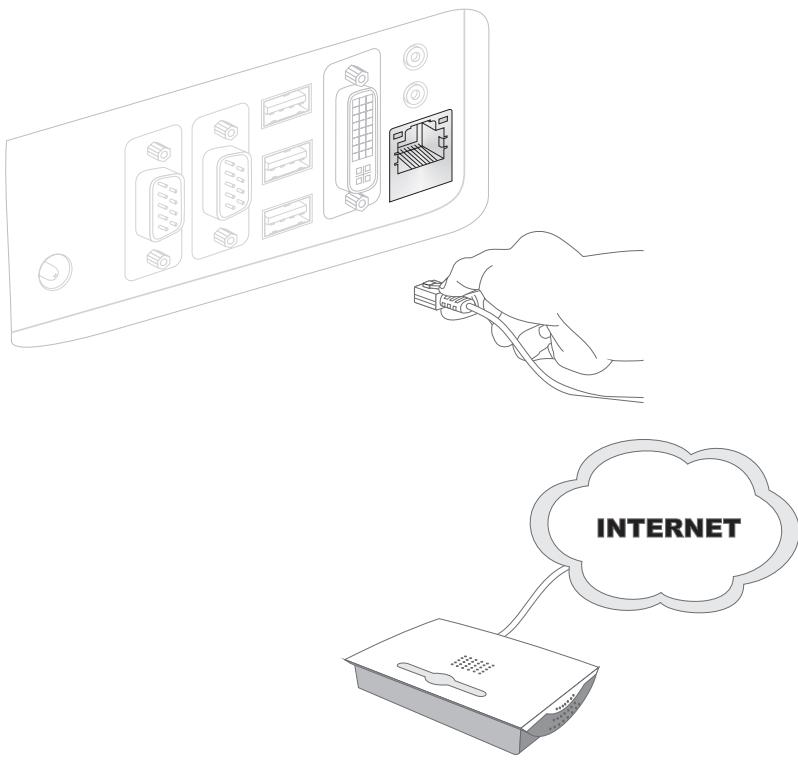

D À Geting Started [es Connecting the Communication Device Œ Wired LAN The RJ-45 connector of the AIO PC allows you to connect the LAN (local area network) devices, such as a hub, switch and gateway, to build a network con- nection. For more instructions or detailed steps on connecting to the LAN, please ask your MIS staff or network manager for help. 2-10

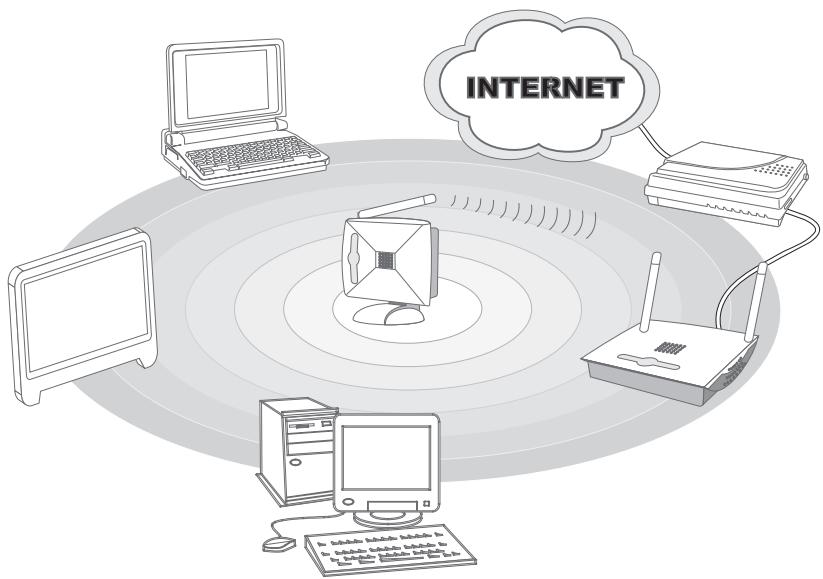

MS-AA25 1 Wireless LAN (Optional) This AIO PC is equipped with wireless LAN module which allows users to per- form fast data transmission with standard IEEE 802.11 technology for wireless LAN. This gives users the mobility to move around within a broad coverage area and still be connected to the network. By using the 64-bit/128-bit Wired Equivalent Privacy (WEP) encryption technol- ogy and Wi-Fi Protected Access feature, the optional built-in wirelesses LAN is capable to achieve a more efficient and a more secure solution to the wireless communication. For more instructions or detailed steps on connecting to the Wireless LAN, please ask your MIS staff or network manager for help. 2-11

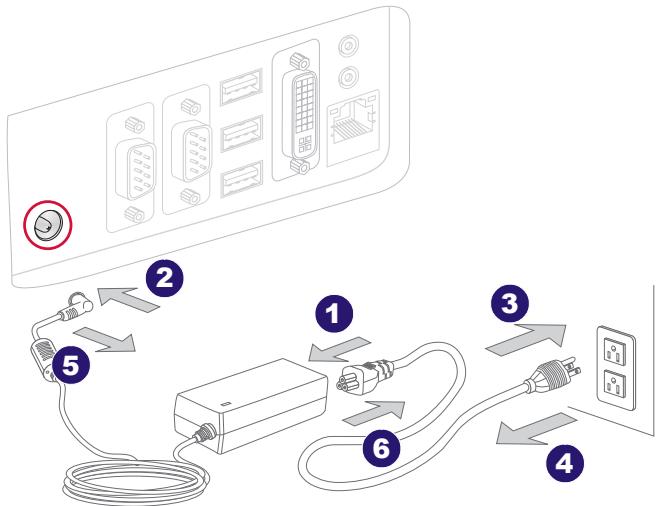

D À Geting Started CoONNECTING POWER £F Connecting the AC Power Step 1. Unpack the package to find the AC/DC adapter and AC power cord. Step 2. Assemble the AC/DC adapter and the AC power cord. Step 3. Plug the DC end of the adapter to the AIO PC, and the male end of the AC power cord to the electrical outlet. We suggest that you connect the AC/DC adapter to your AIO PC first and then connect the AC power cord to the socket-outlet for safety concerns. [ed Disconnecting the AC Power Step 4. Unplug the AC power cord from the electrical outlet first. Step 5. Unplug the connector from the AIO PC. Step 6. Disassemble the AC power cord and the AC/DC adapter. When unplugging the AC power cord, always hold the connector part of the cord. Never pull the cord directly! 2-12

System Operations This chapter provides you with essential information on system operations, such as system boot setup, recovery disk creation, network connection, and so on. dnportent IL IS highly recommended that you create a system recovery disk as the backup solution in the event of a catastrophic disk failure or other accidents. All information is subject to change without prior notice.

A À system Operations SYSTEM BoOTING SETUP FOR THE FIRST TIME For the first-time use, you will need to go over the following steps to start using your Wind Top Series AIO PC. The entire booting setup will take you around 30 minutes. Step 1. Windows setup starts running. Please wait until Windows setup finishes the progress loading. Step 2. Select the language of the operating system and click [Nex!] to con- tinue. Step 3. Choose the “Country or region”, “Time and currency", and “Keyboard layout” you need. Click [Next] to continue. Step 4. Choose a user name for your account and name your computer to distin- guish it on the network. Click [Next] to continue. Step 5. Set a password for your account to protect your user account from un- wanted users. (Leave this field blank if no need for password.) Click [Nexl] to continue. Step 6. Please read the license terms. Check the ‘ accept the license terms” box and click [Next] to continue. Step 7. Select [Use recommended settings] for “Help protect your computer and improve Windows automatically." Step 8. Review your time and date settings. Click [Next] to continue. Step 9. Please choose a wireless network you intend to join from the provided WLAN list. Click [Next] to continue. You may also click [Skip] to skip this step and set up the WLAN later. Step 10. Followingly comes the anti-virus software screen. Click [Agree] to ac- cept the license agreement terms and activate the anti-virus software. Alternatively, choose [No, 1 do not want to protect my PC.] to proceed without activating the anti-virus software. Step 11. The “Software Installation Menu” pops up. Click [Install] to continue. Step 12. The software is being installed. Please do not turn off the computer when software installation is running. When the progress bar completes loading, click [Finish] to continue. Step 13. The system enters the Windows 7 OS to start its personalized settings. Get ready to explore your AIO PC after the personalized settings are done. Have fun with it! 3-2

MS-AA25 CREATING SYSTEM RECOVERY Disk For the first-time use, itis highly recommended that you create a system recovery disk as the backup solution in the event of a catastrophic disk failure or other ac- cidents. Before moving forward, please make sure your system booting setup is complete and go over the following procedures to get it done.

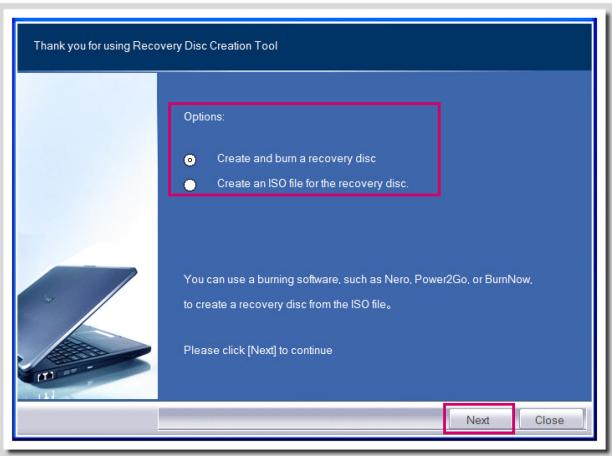

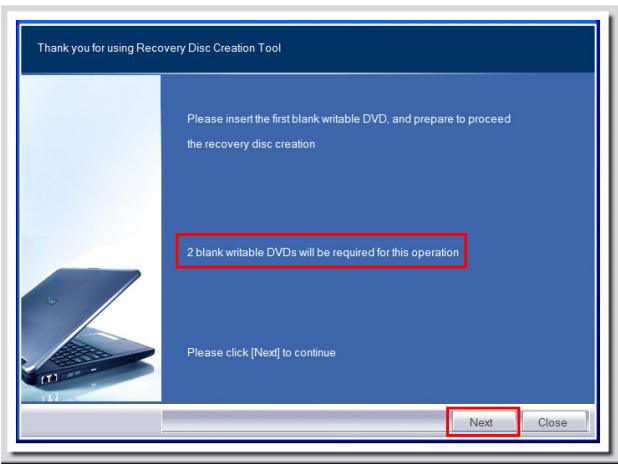

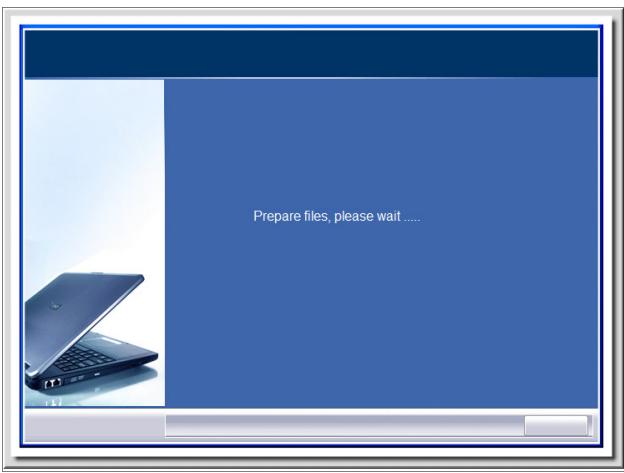

Step 1. Double-click the “BurnRecovery” Æ## icon on the desktop to launch the Recovery Disc Creation Tool. Please note that it may take a while for the operating system to prepare recovery files. EEE Ji Step 2. Click [Next] to start the image creation of the recovery disk. 3-3

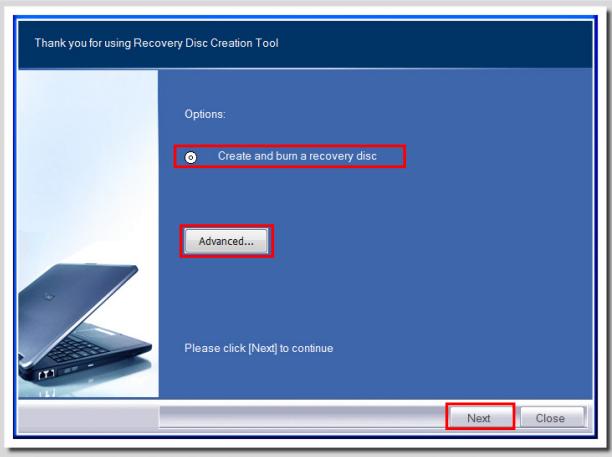

2% | system Operations Step 3. Select [Create and burn a recovery disk] and click [Next] to continue. Alternatively, choose [Advanced] to bring forth advanced options. 3-4

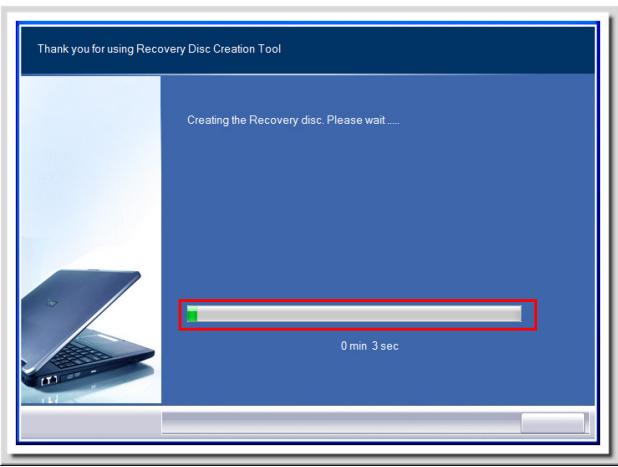

MS-AA25 Step 4. The progress bar starts running to create the image of recovery disk. It takes some time to finish the processing. Step 5. Follow the on-screen instructions to prepare enough number of blank DVD disks. Insert the blank DVD disk into the optical disk drive and click [Nexl] to continue. 3-5

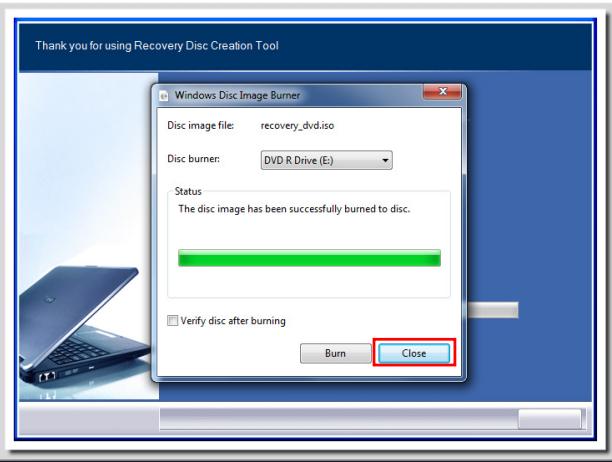

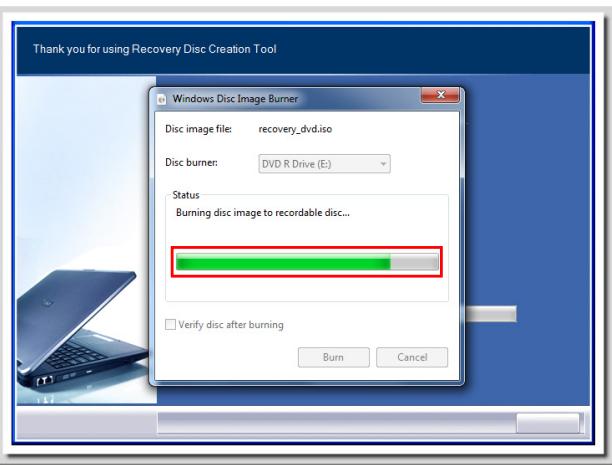

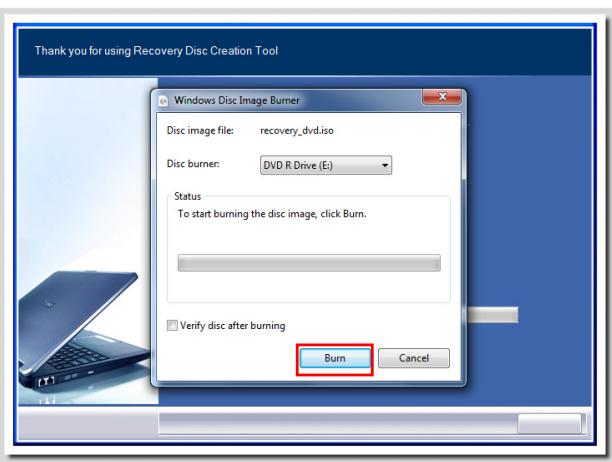

2% | system Operations Step 6. The Windows Disc Image Burner pops up. Click [Burn] to start the burn- ing progress. It takes a while to finish the processing. Dar É ! Fey dc tarbuning Dutunee (RD à 3-6

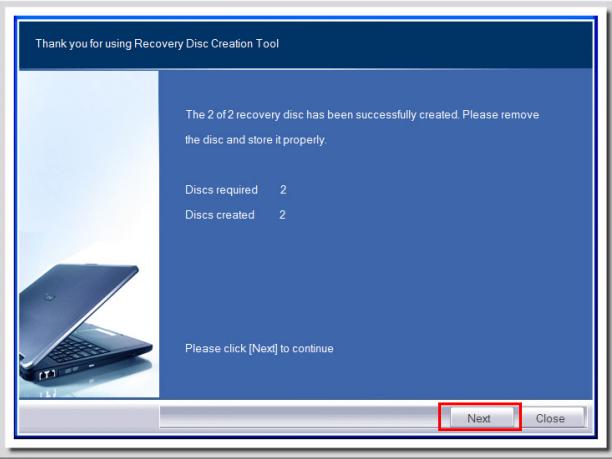

MS-AA25 Step 7. On completion of the disk creation, click [Close] to exit and take out the disk. Follow the on-screen instructions to create all recovery disks. Step 8. All recovery disks have been successfully created. Please store the disks carefully and click [Next] to continue. 3-7

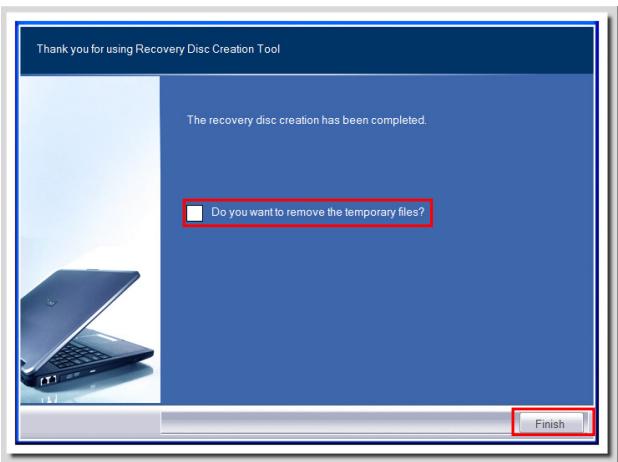

2% | system Operations Step 9. Check the following box if you want to remove the temporary files. Click [Finish] to complete recovery disk creation. 3-8

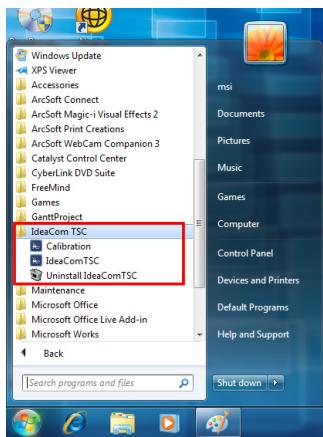

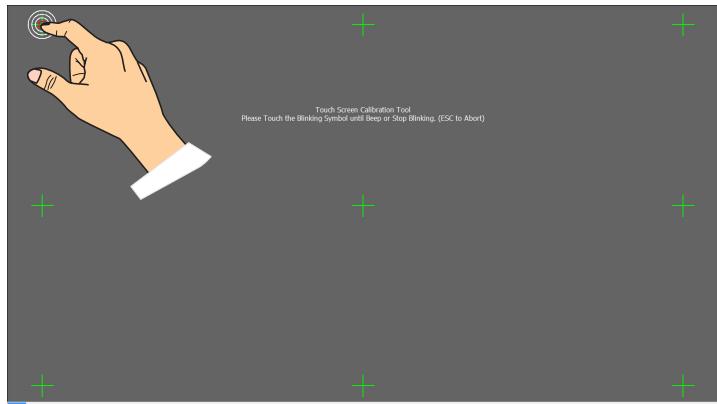

MS-AA25 ToucH PANEL CALIBRATION (ONLY FOR SINGLE-TOUCH MODEL) Wind Top Series AIO PC has touch panel function. If the mouse cursor can not match the move, users could use the IdeaCom TSC tool installed in system to adjust the accuracy of the touch panel. Please go over the following steps to get it done. Step 1. Locate the IdeaCom TSC tool at [Stari] > [AII Programs] > [IdeaCom TSC]. Step 2. Click [Calibration] to bring forth the default 9-point calibration. Follow the on-screen instructions to calibrate the touch panel. 3-9

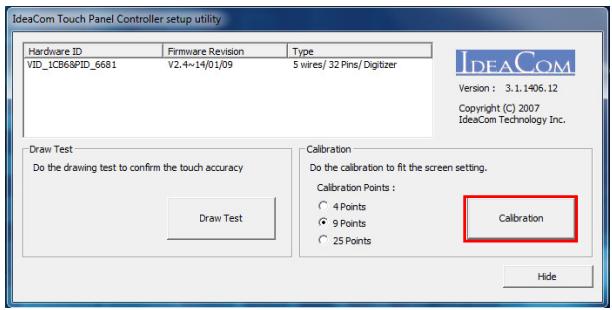

Z® À system Operations Step 3. For advanced settings, click [ldeaCom TSC] to launch the setup utility. Three calibration modes are provided: 4 points, 9 points, and 25 points. We suggest that users choose 9 points to adjust the touch panel. Ifusers desire the best precision, then choose 25 points instead. Click [Calibra- tion] to proceed and follow the on-screen instructions to calibrate the touch panel. +_ Do not touch the screen directly with any sharp-pointed object. + Actual product specifications may vary with territories. 3-10

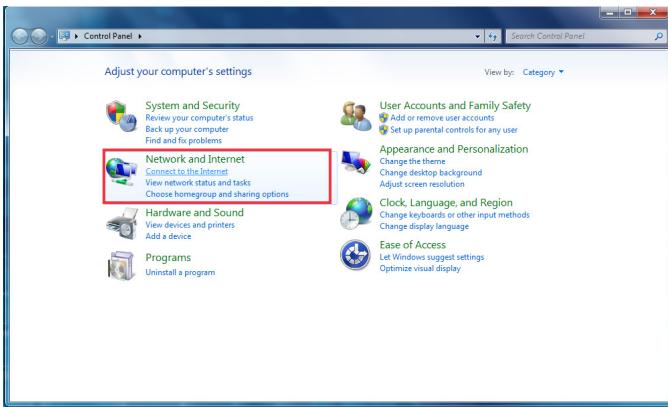

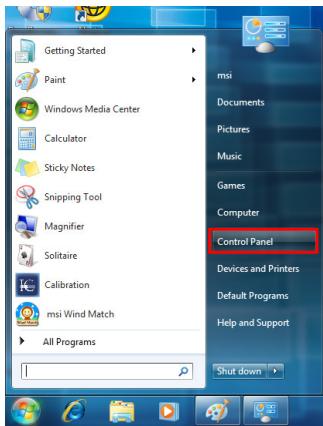

Step 2. Select [Connect to the Internet] under [Network and Internet]. RE Vu ar am À ere ETS 3-11

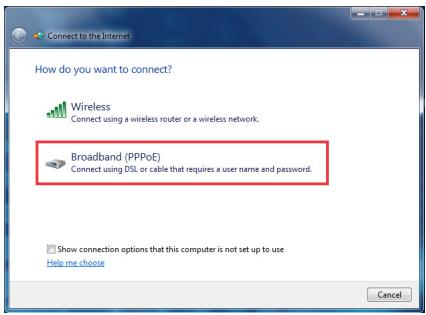

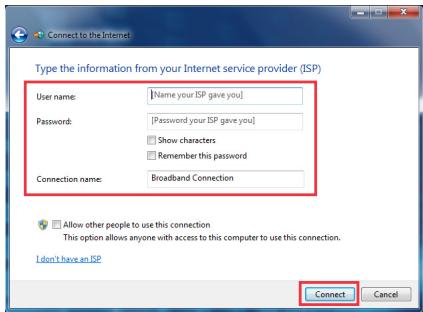

2% E system Operations Step 3. Select [Broadband (PPPOE)] to connect using DSL or cable that requires a user name and password. aus Step 4. Type the information from your Internet Service Provider (ISP) and click [Connect] to establish your LAN connection. rod)

MS-AA25 EH Wireless LAN Step 1. Go to [Start] > [Control Panel]. @ ce EE ce is scra

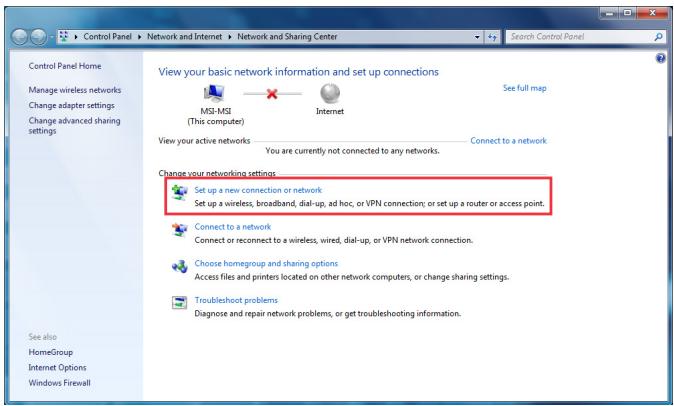

Step 2. Select [Connect to the Internet] under [Network and Internet].

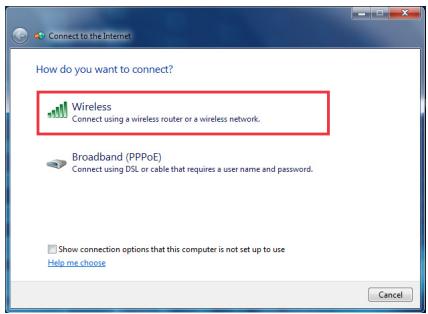

System Operations Step 3. Select [Wireless] to connect using a wireless router or a wireless net- work.

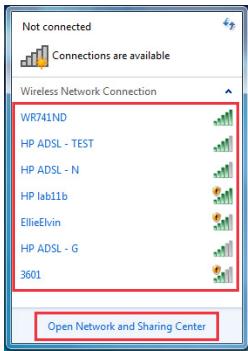

Step 4. A list of available WLAN connections pops up. Choose a connection from the list or click [Open Network and Sharing Center] to establish a new connection. Step 5. To establish a new WLAN connection, select [Set up a new connection or network] in [Network and Sharing Center]. 3-14

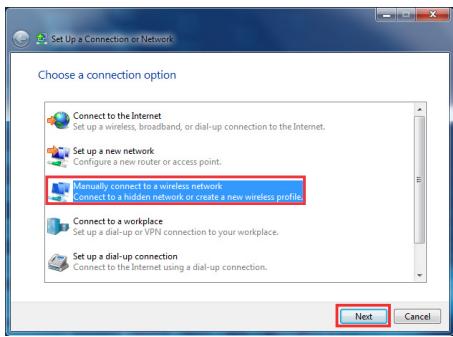

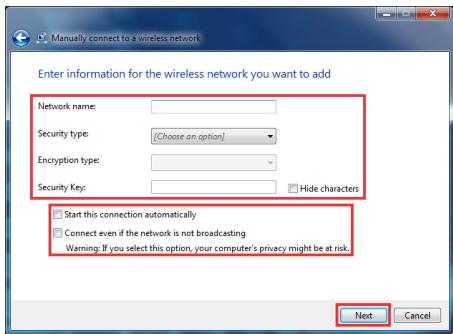

MS-AA25 Step 6. Followingly, choose [Manually connect to a wireless network] and click [Nexi] to continue. house comen pion

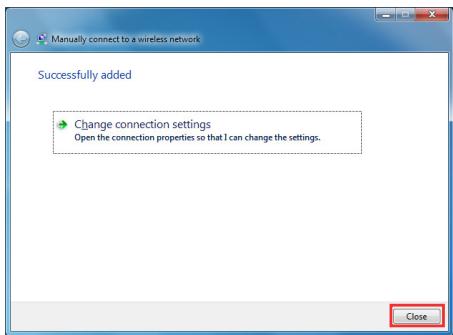

Step 8. A new WLAN connection has been made. Click [Close] to exit or select [Change connection settings] to modify the WLAN settings. Sucsestah dé [2 Chan connecon aires À? con cm ann ton hp 3-15

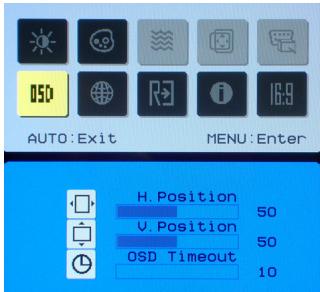

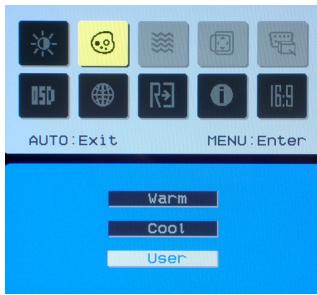

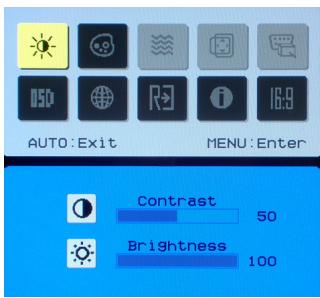

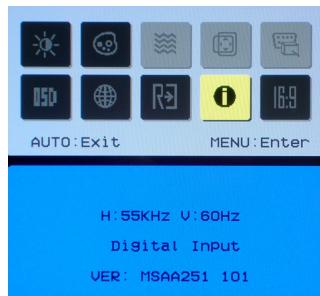

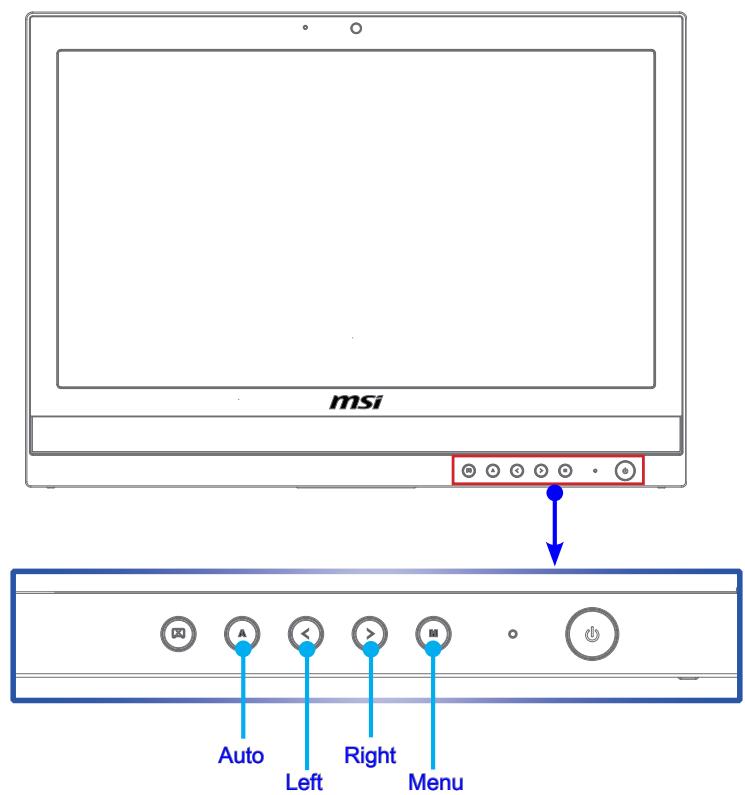

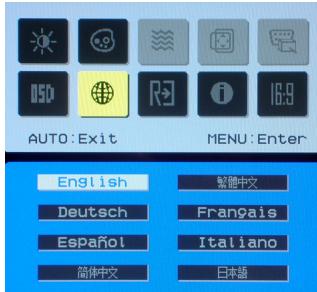

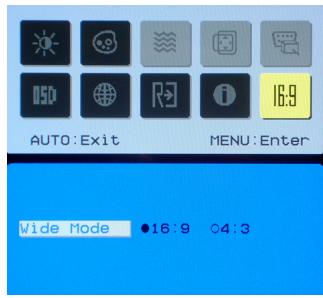

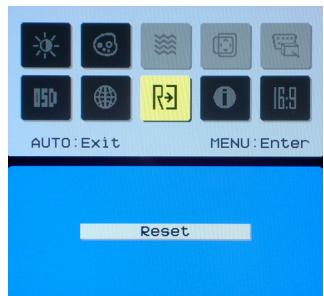

Z® À system Operations ON-ScREEN DispLay (OSD) The on-screen display (OSD) allows you to tune the viewing options of the moni- tor, such as brightness, contrast, positioning, and language. It can be activated by buttons at the right side of the monitor. 00000 : O| 29999 - O Auto Right Left Menu 3-16

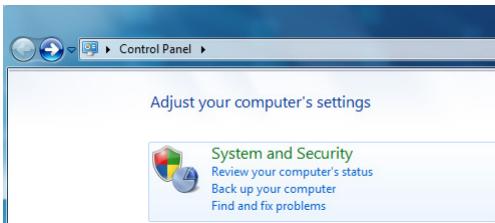

MS-AA25 Power MANAGEMENT Power management of personal computers (PCs) and monitors has the poten- tial to save significant amounts of electricity as well as deliver environmental benefits. To be energy efficient, turn off your display or set your PC to sleep mode after a period of user inactivity. = [Power Options] in Windows OS allow you to control the power man- agement features of your display, hard drive, and battery. Go to [Start] > [Control Panel] > [System and Security]. Adjust your computer settings System and Security Bac jour computer Fin and problems Then click on the [Power Options] link. Power Options Requr parer uhen the computer wake | Change hate power butons do Change vente computer sleep Select a power plan that suits your personal needs. You may also fine- tune the settings by clicking [Change plan settings]. Select a power plan Paver plans can help you mamie your computer etfomance at cenceve eng. Make 2 plan active lecing & réhoote à pan and cute y changing ds pour singe LL re mor Do Do ans Preteme pins 19 Banced (recommended) Automates balance performance th energy concumpton on expable arr. D Pover mer COMTE Save energy by reduing your compare performance hate posbe. Show adtional plans @ 3-19

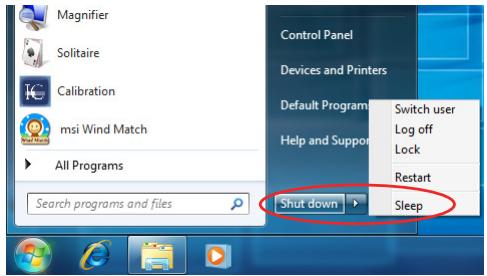

2% E system Operations = The Shut Down Computer menu presents the options of Sleep (S3/S4) & Shut Down (S5) for rapid and easy management of your system power.

Can @ ram =. D AProgame The computer shall be able to wake up from power saving mode in response to a command from any of the following: = the power button, = the mouse, = the keyboard. & Energy Saving Tips: “__ Tumoffthe monitor by pressing the LCD power button after a period of user inactivity. "_Uüiizethe [7] (Fn +2) sleep mode keys to turn into power saving mode. —" "Tune the settings in Power Options under Windows OS to optimize your PC's power management. "Install power saving software to manage your PC's energy consumption. "_ AWays disconnect the AC power cord or switch the wall socket off if your PC would be left unused for a certain time to achieve zero energy consumption. 3-20

MS-AA25 SYSTEM RECOVERY The System Recovery Function is only available on systems bundled with Win- dows OS and MSI utiities by default. The purposes for using the System Recovery Function may include: "Restore the system back to the initial status of original manufacturers default settings. "When some errors have occurred to the operating system in use. "When the operating system is affected by virus and is not able to work normally. Before using the System Recovery Function, please backup the important data saved on your system drive to other storage devices. If the following solution fails to recover your system, please contact the autho- rized local distributor or service center for further assistance. If the system encounters non-recoverable problems, it is always recommend- ed that you try the F3 hotkey to recover your system with the recovery partition of the hard disk drive first. Follow the instructions below to continue:

1. Restart the system.

2. Press the F3 hotkey on the keyboard when the following image appears

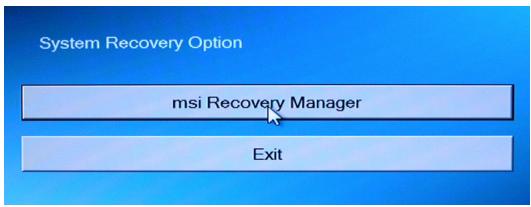

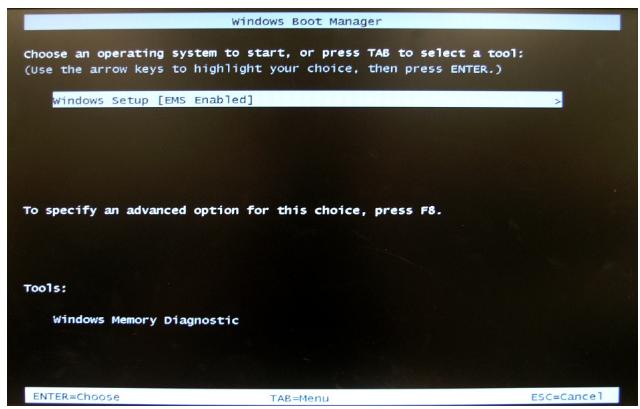

4. Select [MSI Recovery Manager] to start the System Recovery Function: or

select [EXIT] to restart the system

5. The System Recovery Function will get your system back to default settings.

Press [OK] to confirm.

6. Press [OK] to reconfirm and start the System Recovery Function. Alterna-

tively, press [Cancel] to stop. 3-22

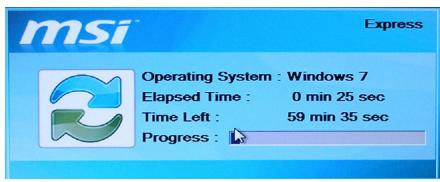

7. The System Recovery Function is proceeding now.

Operating System Window 7. Elapsed Time: 0 min 18 sec

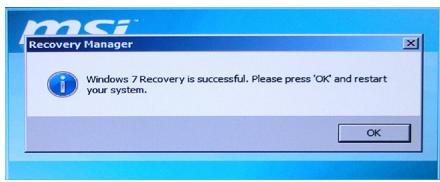

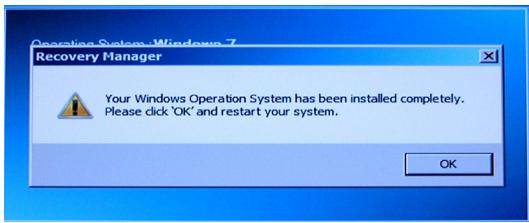

8. The following message indicates successful system recovery. Press [OK] to

restart the system and access the Windows operating system as usual. our Wndones Operation System has been instal conpletl. D Phease dk Où and resta your systen [Euros Recovering the System with the Recovery Disks If the F3 hotkey recovery cannot work, try recovering your system with the recovery disks that you created beforehand Follow the instructions below to continue:

1. Insert the recovery disk into the optical disk drive and restart the system.

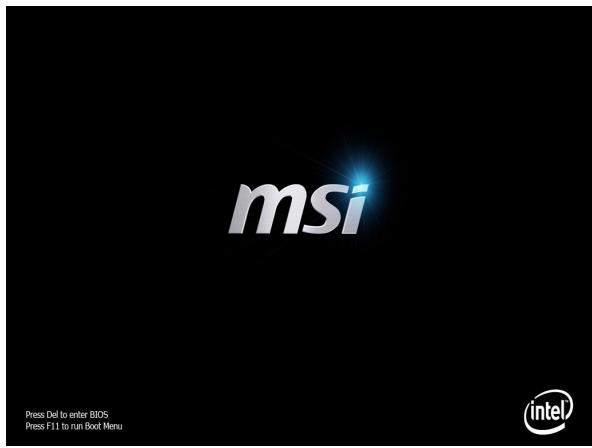

2. Press the F11 hotkey on the keyboard when the following image appears.

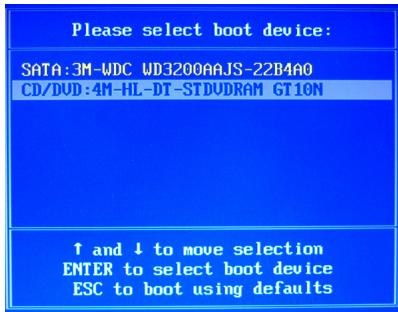

3. Select the [CD/DVD] device as the boot device and press [Enter] to confirm

the selection. P select boot device

SATA :3M-UDC UDI200AAJS-22B4A0

Press any key to reconfirm the selection when the following message ap- pears. key to boot from CD or D\

4. The Windows OS starts loading files.

Windows is loading file

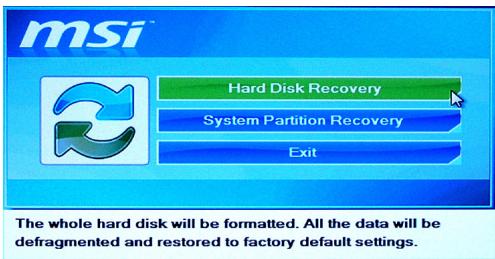

5. The system recovery menu pops up. [Hard Disk Recovery] will format the

whole HDD. AI data on the HDD will be erased while all settings will be restored to manufacturer default. Select [Hard Disk Recovery] only when your HDD is infected with fatal viruses and no solution can be found except à clear cleanup of the HDD. The whole hard disk will be formatted. A the data wi defragmented and restored to factory default setings. 3-24

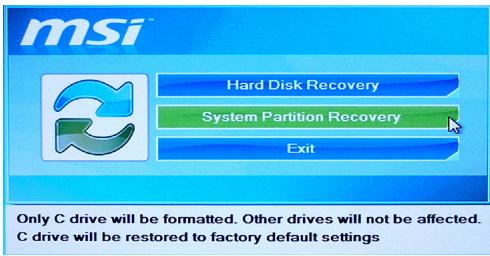

MS-AA25 [System Partition Recovery] will format the C drive only. Only the C drive will be restored to manufacturer default. Other drives will not be affected. It is highly recommended that users select [System Partition Recovery] to restore the system. Onty G dive wi be formatted. Other drives will not be affected. déve wall be restored to factory default settings

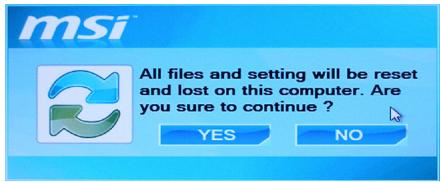

6. The system recovery will format your HDD partition. Make sure that the

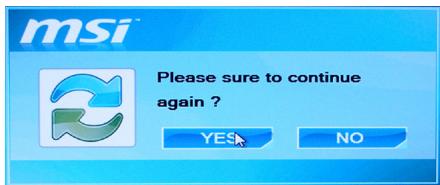

important data have been backed up. Click [YES] to continue: click [NO] to stop the system recovery. Click [YES] again to reconfirm; click [NO] to stop the system recovery. 3-25

2% E system Operations

7. DO NOT turn off the system power while performing the system recovery

function, or it may cause unknown damage to the system.

8. The following message indicates successful system recovery. Press [OK] to

restart the system and access the Windows operating system as usual.

9. If the recovery process is interrupted or failed, please repeat the recovery

procedures from the beginning. 3-26
