HCW 82 - Thermostat HONEYWELL - Free user manual and instructions

Product type	Room thermostat / Thermostat with temperature sensor
Brand	Honeywell
Model	HCW 82
Main functions	Ambient temperature measurement, setpoint adjustment (±12°C around 20°C), radio transmission 868.3 MHz, window contact, external power supply possible
Power supply	2 LR06 (AA) 1.5 V batteries or 3 VDC ±10% power supply unit, min. 25 mA
Radio frequency	868.3 MHz
Adjustment range	±12 °C, base value 20 °C (position 0)
Range limitation	Possible via internal pins (e.g. ±3 °C)
Window contact	Yes, potential-free connection (terminals 1 and 2)
Battery type	LR06 (AA) 1.5 V, always replace both at the same time
Battery life	Not specified, replace when red LED flashes
Cable for external power supply	Max. 100 m, type JE-Y(ST)Y 2x2x0.8 mm or JE-LIICY 2x2x0.5 mm²
Mounting	Wall-mounted, screwed, with snap-on cover
Minimum distance to metal objects	1 m
Minimum distance to heat sources	30 cm
Low battery indicator	Flashing red LED
Test mode	Hold the recognition button for 30 s, transmits every 5 s, lasts 5 min
Frost protection	Via Hometronic Manager HCM 200D with HS 30 switch
Compatibility	Zone controllers HCE 80/HCC 80/HCE 80R/HCC 80R, Hometronic Manager HCM 200D
Care and cleaning	Wipe with a dry cloth, do not use aggressive cleaning agents
Disposal	Do not dispose of with household waste, follow the WEEE directive (2002/96/EC)
Safety	Use only a suitable power supply unit (3 VDC, min. 25 mA), observe polarity
Spare parts and repairability	Not specified, contact Honeywell after-sales service

Frequently Asked Questions - HCW 82 HONEYWELL

How to install batteries in the HCW 82?

Remove the housing cover, insert two LR06 (AA) batteries observing polarity (see Figure 2 in the manual). Close the cover from the top then lock it from the bottom.

How to pair the HCW 82 with a zone controller?

Follow the instructions in the chapter Commissioning of the zone controller HCE 80/HCC 80. Activate the recognition on the controller, then press the emission button of the HCW 82 within 4 minutes.

What to do if recognition fails?

Check that the batteries are correctly installed, move the device away from metal objects and sources of radio interference (minimum 1 m). Repeat the recognition procedure.

How to use an external power supply?

For the HCW 82 only, you can replace the batteries with a 3 VDC ±10%, 25 mA power supply unit. Disconnect the power, remove the batteries, connect the cable to the terminals (see Figure 7) and screw the housing back on.

How to install a window contact?

Connect a potential-free contact to terminals 1 and 2 of the HCW 82 (see Figure 7). Then assign the HCW 82 to the Hometronic Manager HCM 200D as a sensor. If multiple contacts, connect them in series.

How to limit the adjustment range of the dial?

Open the housing, move the two internal pins (see Figure 6) to limit the travel. For example, set the pins to allow only ±3°C around the origin point.

When should the batteries be changed?

Replace the batteries as soon as the red LED flashes (outside test mode). Use two identical new batteries of type LR06 (AA) 1.5 V observing polarity.

How to test the radio link?

Hold the recognition button for 30 seconds until the LED goes out. The device then transmits a test signal every 5 seconds for 5 minutes. Check reception on the controller.

The HCW 82 is not transmitting data, what to check?

Make sure the batteries are in good condition and correctly inserted. Eliminate sources of interference (metal objects, radio devices less than 1 m away). Repeat the assignment if necessary.

How to dispose of the product at end of life?

Do not throw the device away with household waste. In accordance with the European directive WEEE (2002/96/EC), dispose of it at a suitable recycling center for electrical and electronic waste.

USER MANUAL HCW 82 HONEYWELL

Setpoint Adjuster HCW 82/ Room Temperature Sensor HCF 82

Installation and Operation

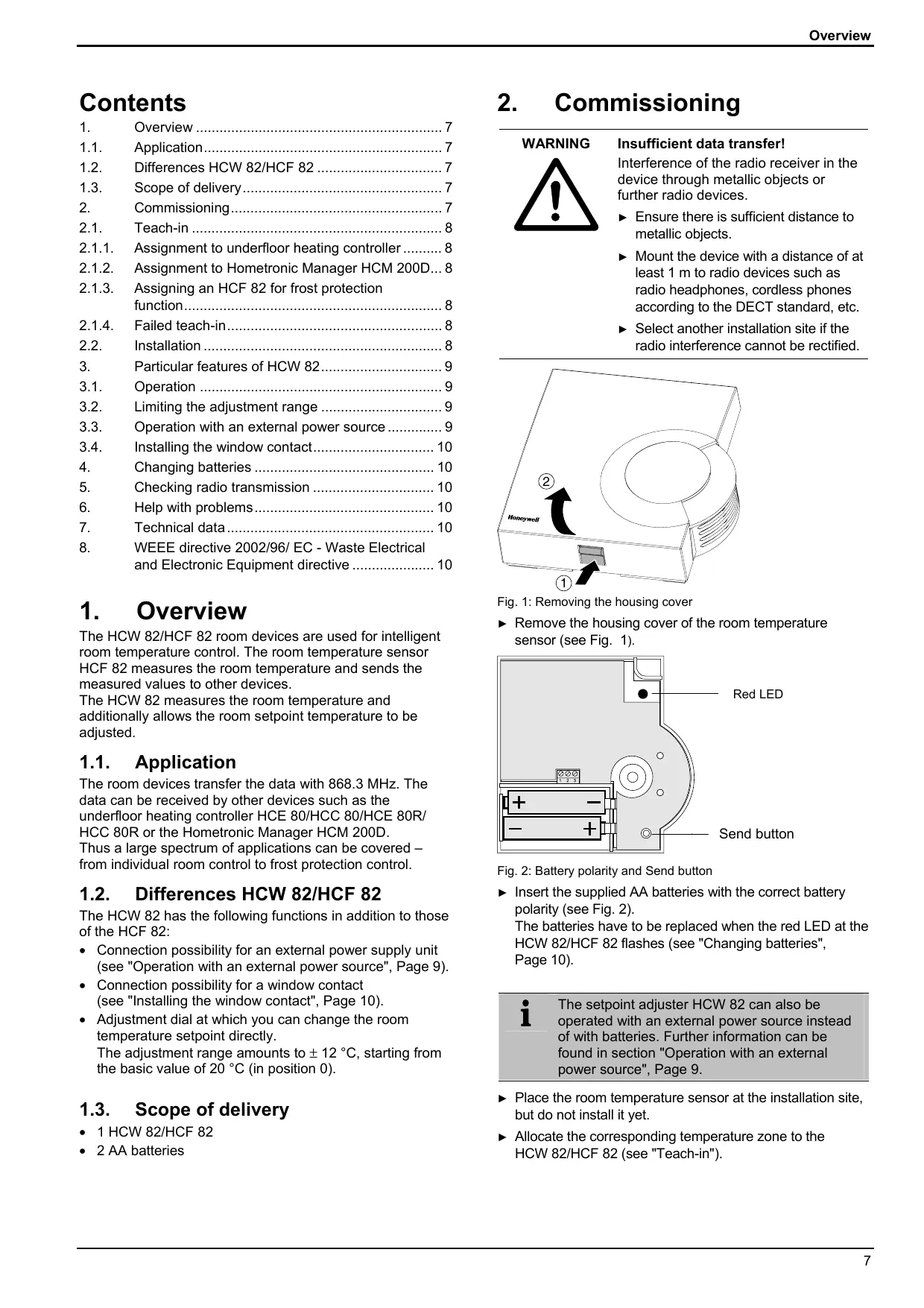

1. Overview 7
   1.1. Application 7
   1.2. Differences HCW 82/HCF 82 7
   1.3. Scope of delivery 7
2. Commissioning 7
   2.1. Teach-in 8
   2.1.1. Assignment to underfloor heating controller 8
   2.1.2. Assignment to Hometronic Manager HCM 200D...8
   2.1.3. Assigning an HCF 82 for frost protection function
   2.1.4. Failed teach-in 8
   2.2. Installation 8
3. Particular features of HCW 82. 9
   3.1. Operation 9
   3.2. Limiting the adjustment range 9
   3.3. Operation with an external power source 9
   3.4. Installing the window contact 10
4. Changing batteries 10
5. Checking radio transmission 10
6. Help with problems 10
7. Technical data 10
8. WEEE directive 2002/96/ EC - Waste Electrical and Electronic Equipment directive 10

1. Overview

The HCW 82/HCF 82 room devices are used for intelligent room temperature control. The room temperature sensor HCF 82 measures the room temperature and sends the measured values to other devices.

The HCW 82 measures the room temperature and additionally allows the room setpoint temperature to be adjusted.

1.1. Application

The room devices transfer the data with 868.3 MHz. The data can be received by other devices such as the underfloor heating controller HCE 80/HCC 80/HCE 80R/HCC 80R or the Hometronic Manager HCM 200D.

Thus a large spectrum of applications can be covered from individual room control to frost protection control.

1.2. Differences HCW 82/HCF 82

The HCF 82:

• Connection possibility for an external power supply unit (see "Operation with an external power source", Page 9).
• Connection possibility for a window contact (see "Installing the window contact", Page 10).
• Adjustment dial at which you can change the room temperature setpoint directly. The adjustment range amounts to ± 12^ , starting from the basic value of 20^ (in position 0).

1.3. Scope of delivery

1 HCW 82/HCF 82
2 AA batteries

2. Commissioning

WARNING

Insufficient data transfer!

Interference of the radio receiver in the device through metallic objects or further radio devices.

Ensure there is sufficient distance to metallic objects.
Mount the device with a distance of at least 1 m to radio devices such as radio headphones, cordless phones according to the DECT standard, etc.
- Select another installation site if the radio interference cannot be rectified.

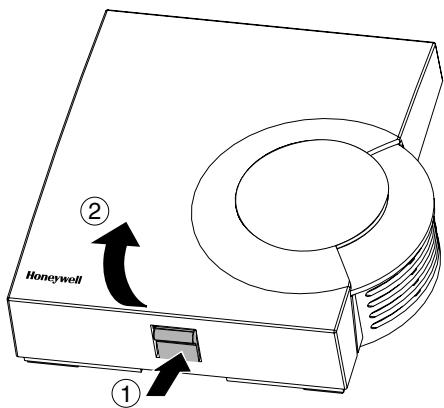

Fig. 1: Removing the housing cover

• Remove the housing cover of the room temperature sensor (see Fig. 1).

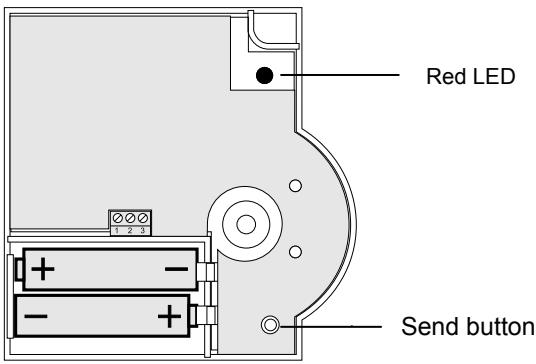

Fig. 2: Battery polarity and Send button

• Insert the supplied AA batteries with the correct battery polarity (see Fig. 2). The batteries have to be replaced when the red LED at the HCW 82/HCF 82 flashes (see "Changing batteries", Page 10).

i

The setpoint adjuster HCW 82 can also be operated with an external power source instead of with batteries. Further information can be found in section "Operation with an external power source", Page 9.

• Place the room temperature sensor at the installation site, but do not install it yet.
• Allocate the corresponding temperature zone to the HCW 82/HCF 82 (see "Teach-in").

2.1. Teach-in

2.1.1. Assignment to underfloor heating controller

In order to assign a temperature zone to the HCW 82/ HCF 82, follow the instructions from the chapter entitled "Start-up" in the "Underfloor heating controller HCE 80/HCE 80R/ HCC 80/HCC 80R" installation instructions.

2.1.2. Assignment to Hometronic Manager HCM 200D

In order to assign a temperature zone to the HCW 82/ HCF 82, follow the instructions from the chapter entitled "Installing the HCW 82/HCF 82 and assigning it to a room" in the Hometronic Manager HCM 200D operating instructions.

2.1.3. Assigning an HCF 82 for frost protection function

The HCW 82/HCF 82 can only be assigned to the Hometronic Manager as a frost protection sensor if the device switch HS 30 is used for the boiler request.

Proceed as follows in order to assign the HCF 82 as a frost protection sensor:

Press the Input but

The Hometronic Manager is in the "Settings" menu.

INSTALLATION

DE-INSTALLATION DAYLIGHTSAVING TIME SENSORFUNCTION

Go to the "Installation" menu.
Go to the "Boiler request" menu.
Turn the Input button until "Frost protec. sensor" is selected.
SWITCHING MODULE
ROST PROTEC.
SENSOR
Press the input button.

The cursor flashes next to the "Frost protec. sensor". The Hometronic Manager is ready to receive data from the sensor.

Activate the teach-in function within 4 minutes by pressing the Send button at the room temperature sensor (see Fig. 2, Send button).

After successful teach-in, a * appears next to "Frost protec. sensor" in the display of the Hometronic Manager: The room temperature sensor is assigned to the Hometronic Manager for the frost protection function.

For information on how to read measured data of the room temperature sensor at the Hometronic Manager or adapt the threshold value for the frost protection function, please refer to the operating instructions of the Hometronic Manager.

2.1.4. Failed teach-in

If the teach-in has failed:

Improve the data transfer (see below).
Repeat the teach-in.

Improving the data transfer

• When selecting the operating site of each device ensure that the distance to radio devices such as radio headphones, cordless phones, etc. according to the DECT standard amounts to at least 1m .
• Do not install the devices over metallic wall connecting sockets and at least 30~cm away from the cover of the heat generator.
• Correct the installation site of the room temperature sensor if necessary.

2.2. Installation

Remove the batteries.
Mark the drill holes according to the drilling template (see Fig. 3).

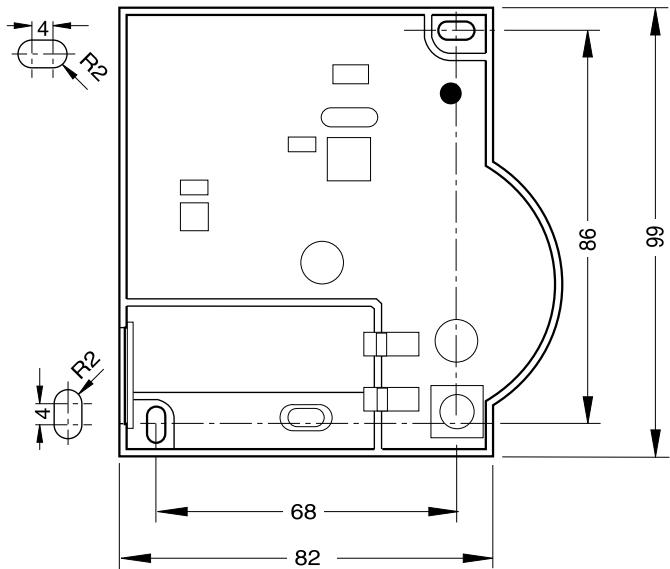

Fig. 3: Drilling scheme (measurements in mm)

Drill the holes.
Screw on the room temperature sensor.
Re-insert the batteries.

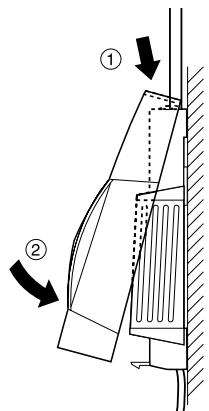

- Place the housing cover in position above and snap it down (see Fig. 4).

Fig. 4: Placing housing cover in position

3. Particular features of HCW 82

3.1. Operation

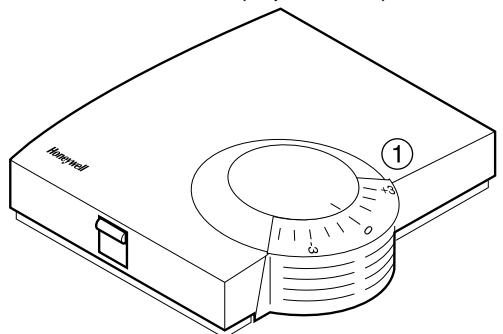

The room setpoint temperature can be set easily at the setpoint adjuster HCW 82 by means of an adjustment dial. The adjustment range amounts to ± 12^ , starting from the basic value of 20^ (in position 0).

Fig. 5: HCW 82

Select the desired change of the preset temperature at the adjustment dial (1) (see Fig. 5) (settings on the scale in ^ C ).

3.2. Limiting the adjustment range

You can limit the setting range that can be used at the adjustment dial.

Remove the housing cover (see Fig. 1, Page 7).

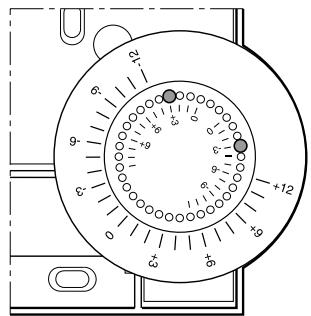

Fig. 6: Limiting the adjustment range

• Place the two small pins into the holes of the adjustment dials in order to limit the adjustment range (see Fig. 6). Orientate yourself on the basis of the inner scale: In Fig. 6, the pins are inserted so that the adjustment dial can only be adjusted by ± 3^ around the zero point.
  Turn the adjustment dial clockwise until it stops.
• Check whether the adjustment dial is in the position shown in Fig. 5.
  If appropriate, put the adjustment back in, rotated by 180^ until it has the position shown.
  Turn the adjustment dial to Position 0.
• Place the housing cover in position above and snap it down (see Fig. 4).

3.3. Operation with an external power source

In addition to battery operation, the setpoint adjuster HCW 82 is also prepared for operation with an external power source.

WARNING

Damage to the device!

Use of an unsuitable power supply unit.

• Use a power supply unit with 3VDC ± 10% , min. 25mA .
• Keep the power supply unit de-energised while connecting it.
  Observe the connection diagram next to the cable terminals.

Have a power supply unit with 3VDC± 10% ,min.25 mA at hand.
De-energise the power supply unit.
Remove the housing cover of the HCW 82 (see Fig. 1, Page 7).
Remove the batteries.

Dispose of the batteries according to the local statutory requirements and not with the used domestic refuse.

Unscrew the setpoint adjuster HCW 82.

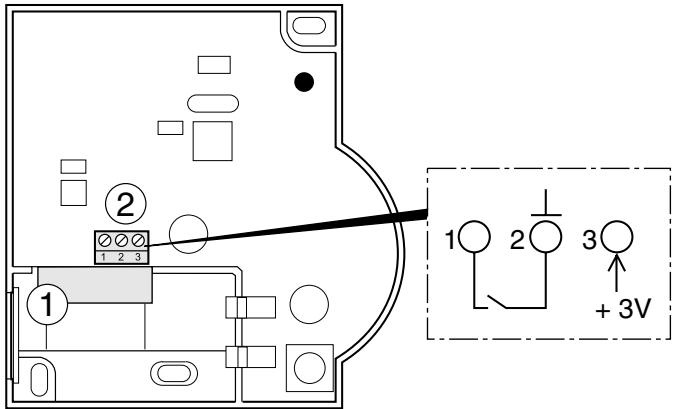

Fig. 7: Connection of the external power source (only HCW 82)

i

The maximum permissible cable length from the power supply unit to the device amounts to 100m . If possible, use a cable of the type JE-Y (ST)Y 2x2x0.8 mm or JE-LIYCY 2x2x0.5 mm².

• Lead the outlet cable of the power supply unit through the housing opening (1) (see Fig. 7) to the inside.
  Connect the outlet cable to the terminal (2) (see Fig. 7).

• Connection 2: Earth

• Connection 3: Voltage

Screw the setpoint adjuster HCW 82 back on.
- Place the housing cover in position above and snap it down (see Fig. 4).

3.4. Installing the window contact

• Connect any sensor with floating contact to the HCW 82 (installation to connection 1 and connection 2, see Fig. 7(2), Page 9).
• Assign the HCW 82 to the Hometronic Manager HCM 200D as a sensor (refer to the HCM 200D instructions "Assigning a room to a sensor").

If several floating contacts are used, these have to be connected in series.

4. Changing batteries

Change the batteries if the red LED of the room temperature sensor flashes and the device is not in test mode.

• Remove the housing cover of the HCW 82/HCF 82 (see Fig. 1).
  Remove the batteries.

Dispose of the batteries according to the local statutory requirements and not with the used domestic refuse.

Always replace both batteries together. Only use 1.5V batteries of the type LR06, AA.

• Insert the batteries with the right polarity into the battery compartment (see Fig. 2).
• Place the housing cover on at the top and latch it in downwards (see Fig. 4).

5. Checking radio transmission

The HCW 82/HCF 82 can send a test signal to the allocated receiver (for example an underfloor heating controller) in order to test the signal strength.

• Keep the teach-in button pressed for at least 30 s until the red LED extinguishes.
  The device is now in test mode and sends a test signal every 5 seconds.
  The LED flashes briefly at every test signal.
• Check the radio transmission at the receiver. Refer to the respective instructions for information about receiving and evaluating the test signals.

The test mode is terminated automatically after 5 minutes. The test mode can also be terminated by removing the batteries, disconnecting the power supply or by pressing the teach-in button.

6. Help with problems

Problem	Cause	Remedy
Teach-in failed	Batteries inserted incorrectly	► Insert the batteries correctly.
	Radio connection failure	► Eliminate interference sources (metal, wireless devices).► Correct installation site.► Repeat the teach-in.
No measured data at Hometronic Manager	Batteries inserted incorrectly	► Insert the batteries correctly.
	Radio connection failure	► Eliminate interference sources (metal, wireless devices).► Repeat the teach-in.
	Module not assigned or assigned incorrectly	► Repeat the teach-in.► Check the assignment. If appropriate, repeat.
Window contact is ignored	Window contact not assigned	► Repeat the teach-in for the window contact.

7. Technical data

Batteries	1.5 V, type LR06, AA
Power supply unit	3 V DC ± 10 %, min. 25 mA
Cable for power supply unit/window contact	Ø 2x0.8 mm; 2x0.5 mm² max. length 100 m
Frequency	868.3 MHz (transmitter)

8. WEEE directive 2002/96/ EC - Waste Electrical and Electronic Equipment directive

At the end of the product life dispose of the packaging and product in a corresponding recycling centre.
Do not dispose of the unit with the usual domestic refuse.
Do not burn the product.

Sommaire

Raccordement 2: masse
Raccordement 3: tension

SWITCHING MODULE
PROST PROTEC.
SENSOR

Manufactured for and on behalf of the Environmental and Combustion Controls Division of Honeywell Technologies Sàrl, Ecublens, Route du Bois 37, Switzerland by its Authorized Representative:

Honeywell GmbH

Böblinger Straße 17

71101 Schonaich, Germany

Tel.: (++49) (0) 703163701

Fax: (+ + 49) (0) 7031637493

http://europe.hbc.honeywell.com

The right is reserved to make

modifications

This document is definitive for the enclosed product and replaces all previous publications.

Honeywell Inc. hereby declares that this device complies with the basic requirements and other relevant regulations of guideline 1999/5/EC. The declaration of conformity of the product can be requested from the manufacturer.

Note to non-EU countries: This product may only be used if operation in the 868 MHz frequency band is permissible.
